Toyota Hilux Champ

2023-12 → present · chassis GUN1##,TGN11# · catalogue 676210 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Tool Box & License Plate Bracket

11 part groups · 3 illustrations

Illustrations

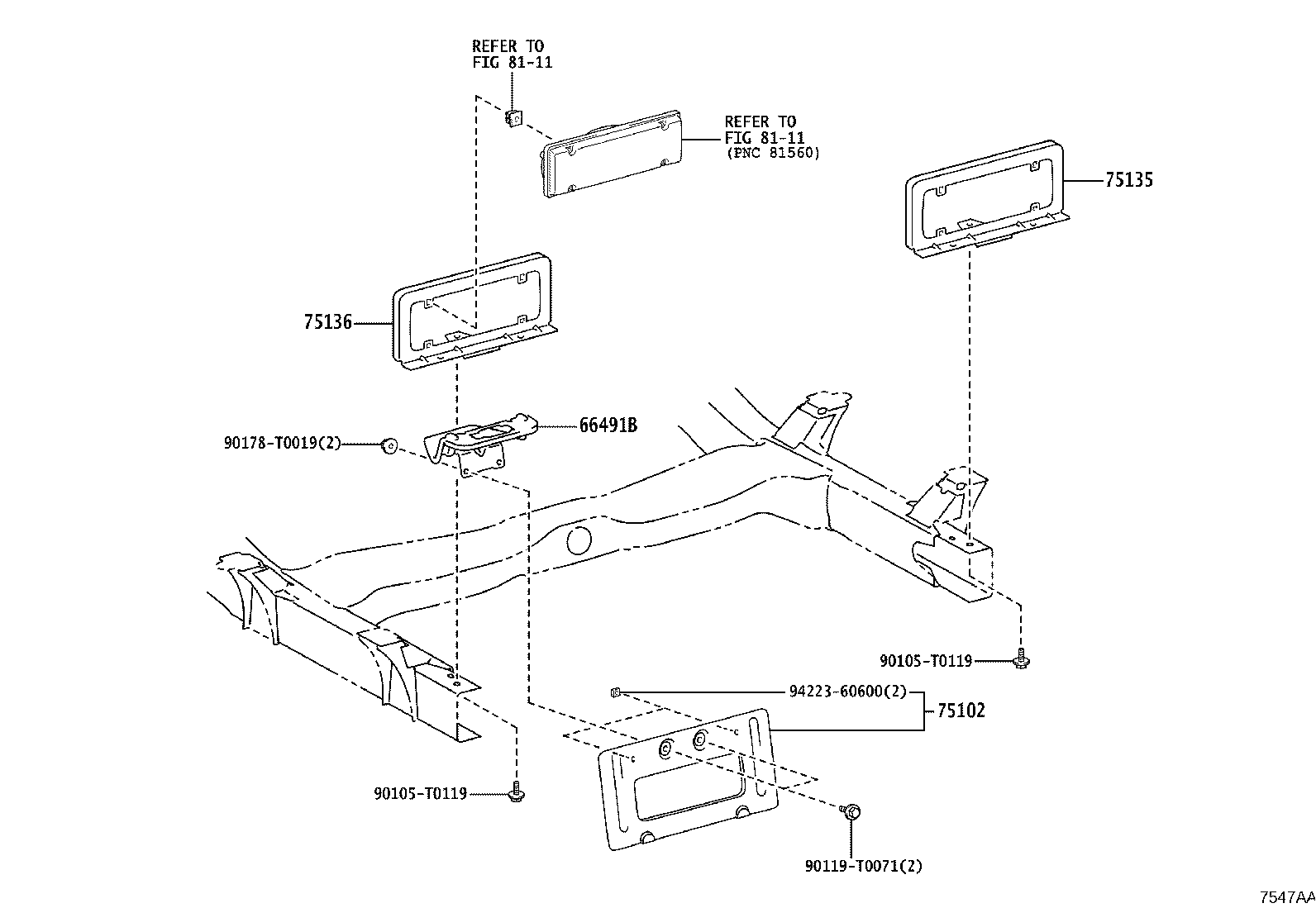

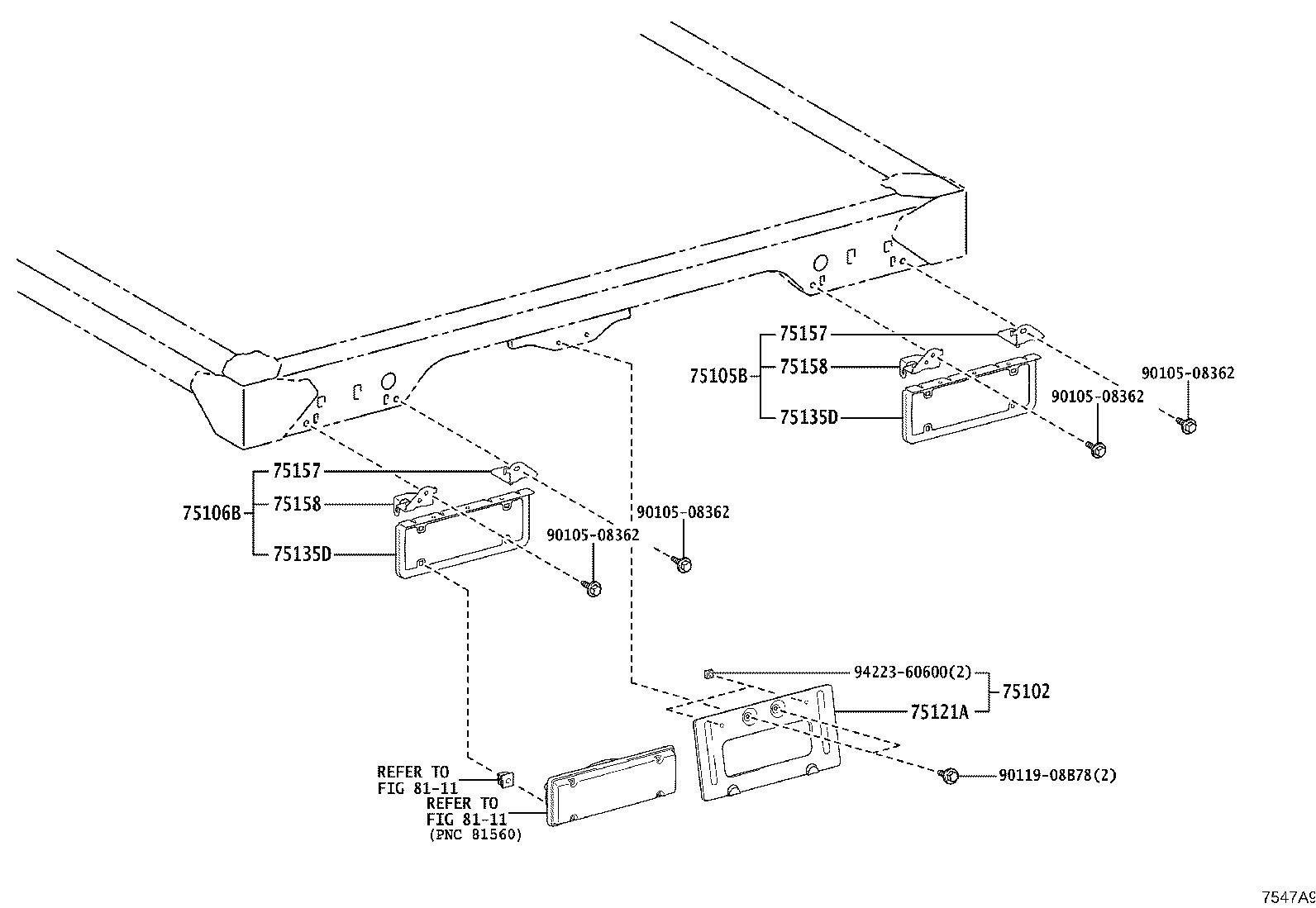

Figure 7547A8 7547A8 2023-12 → — Figure 7547A9 7547A9 2023-12 → — Figure 7547AA 7547AA 2023-12 → —

Part groups

PNCDescription
58780 Band Assy, Tool Box
66491B Hanger, License Plate Bracket
75102 Bracket Sub-assy, Rear License Plate
75105B Bracket Sub-assy, Combination Rear Lamp, RH
75106B Bracket Sub-assy, Combination Rear Lamp, LH
75121A Bracket, Rear License Plate
75135 Bracket, Combination Rear Lamp, RH
75135D Bracket, Combination Rear Lamp
75136 Bracket, Combination Rear Lamp, LH
75157 Stay, Combination Rear Lamp, NO.1
75158 Stay, Combination Rear Lamp, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
