Toyota Hilux Champ
2023-12 → present · chassis GUN1##,TGN11# · catalogue 676210 · General
Supported model
Data version 2023-11

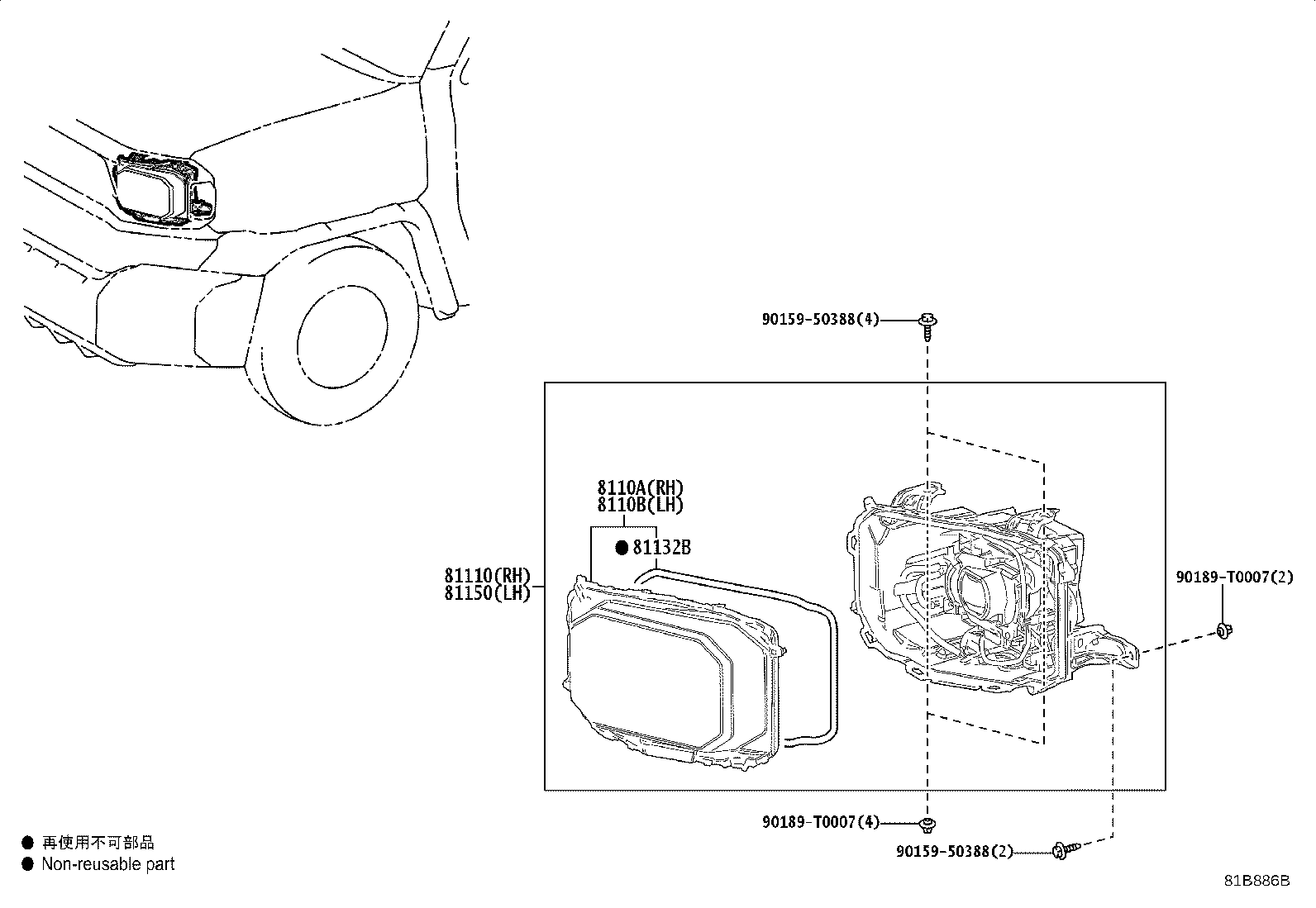

Headlamp
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 8110A | Lens Sub-assy, Headlamp, RH |
| 8110B | Lens Sub-assy, Headlamp, LH |
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81132B | Gasket, Headlamp Lens |
| 81135 | Unit Assy, Headlamp, RH |
| 81144C | Cover, Headlamp Socket |
| 81150 | Headlamp Assy, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615D | Socket, Clearance Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
