Toyota Hilux Champ

2023-12 → present · chassis GUN1##,TGN11# · catalogue 676210 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

42 part groups · 23 illustrations

Illustrations

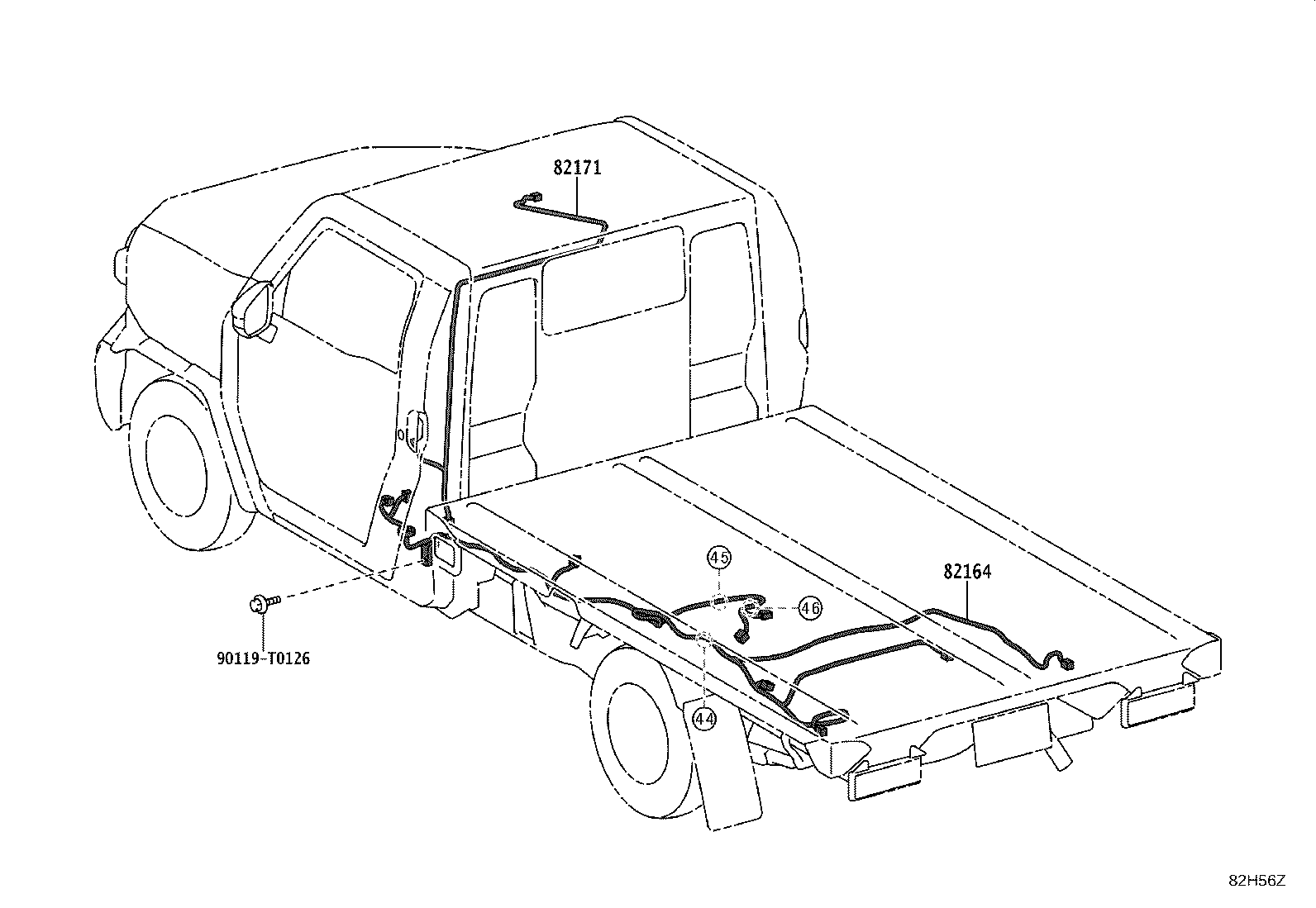

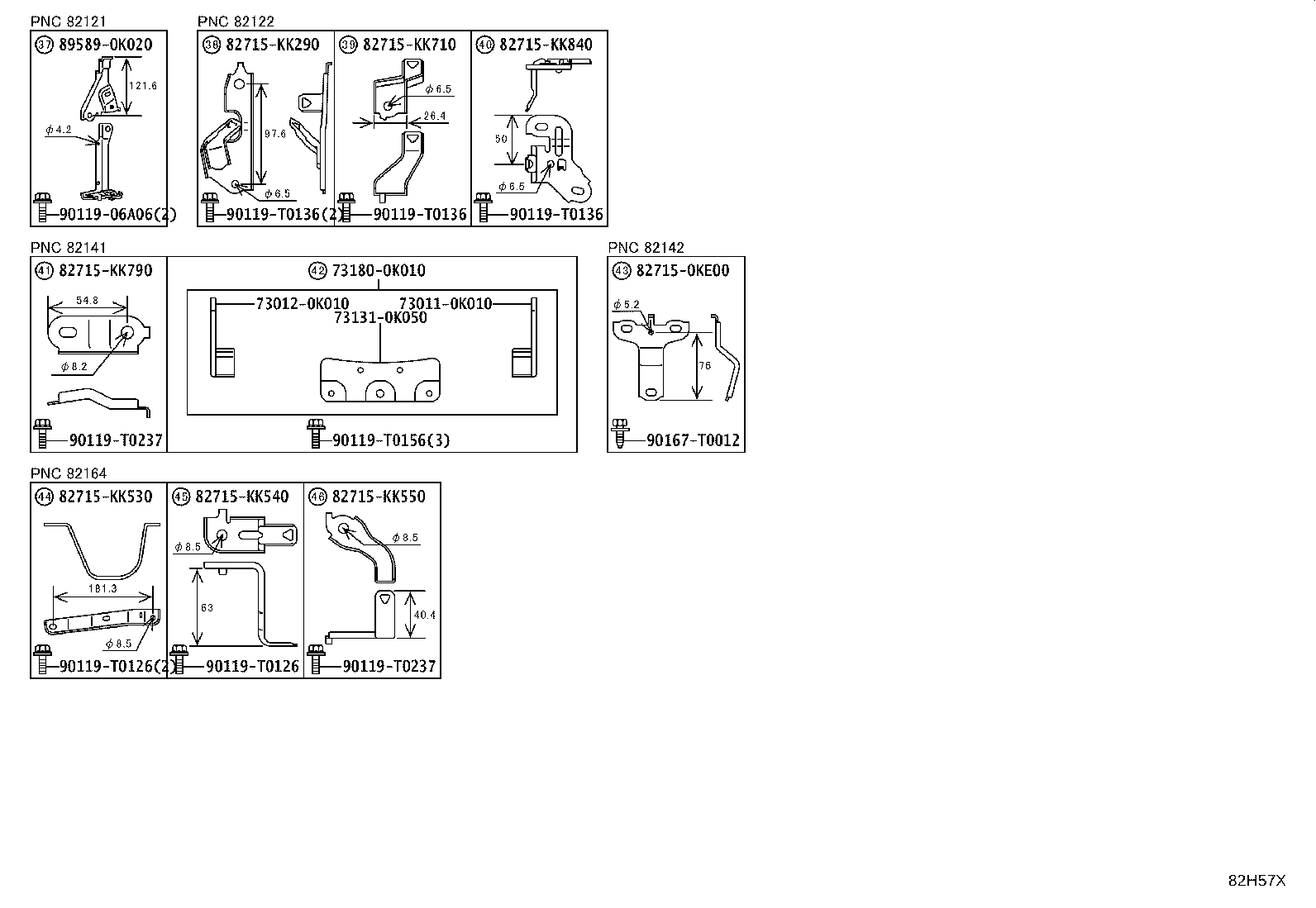

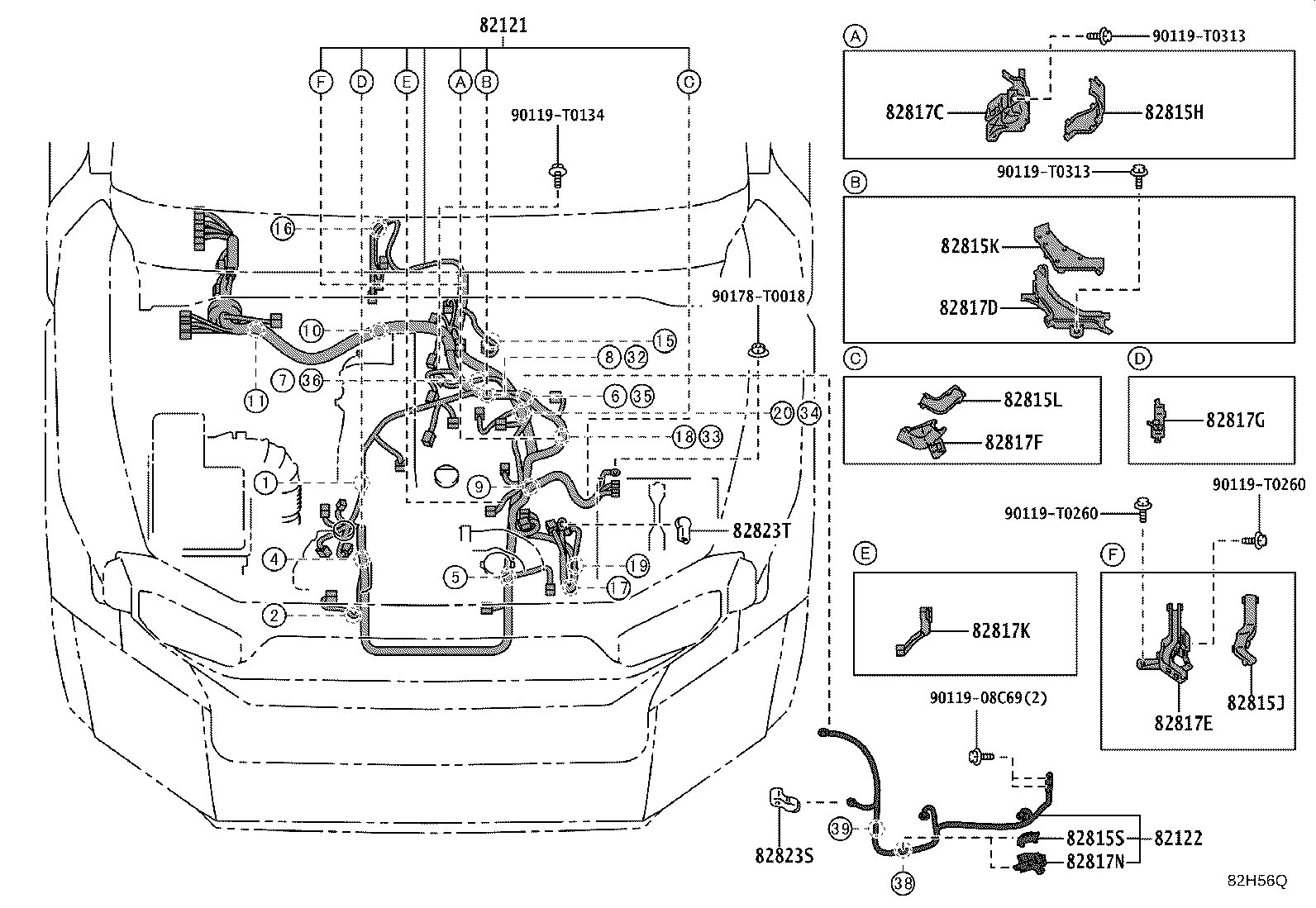

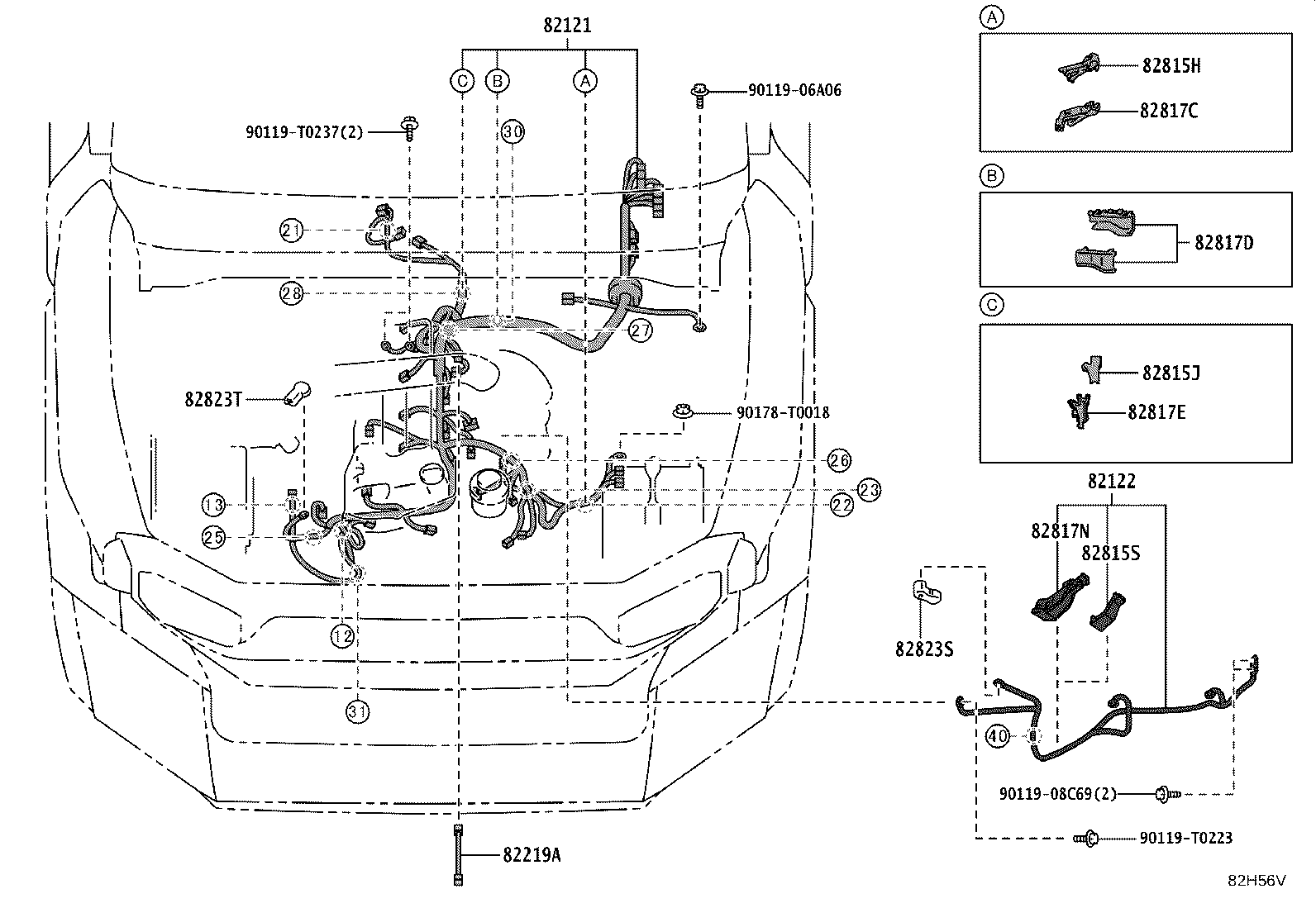

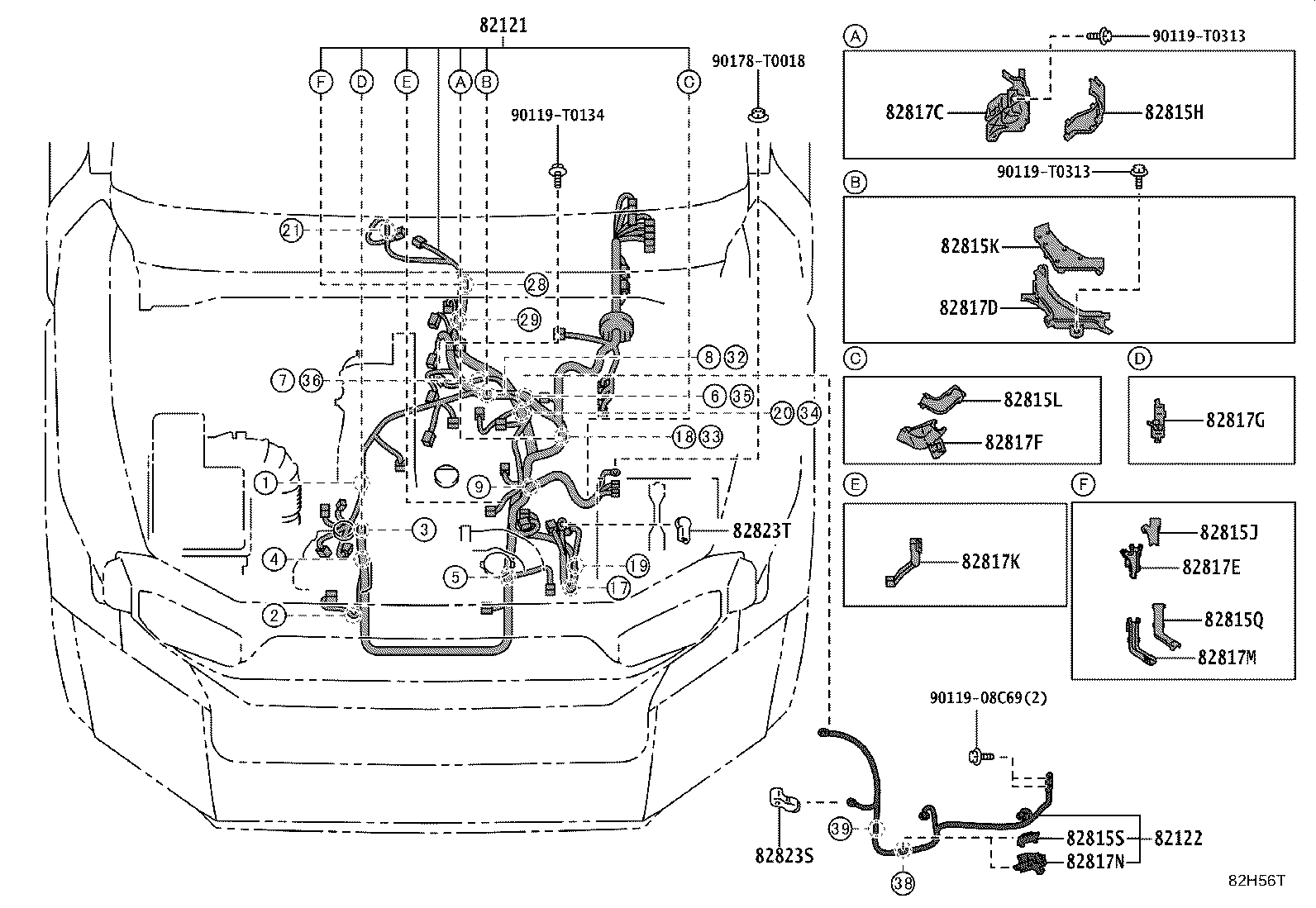

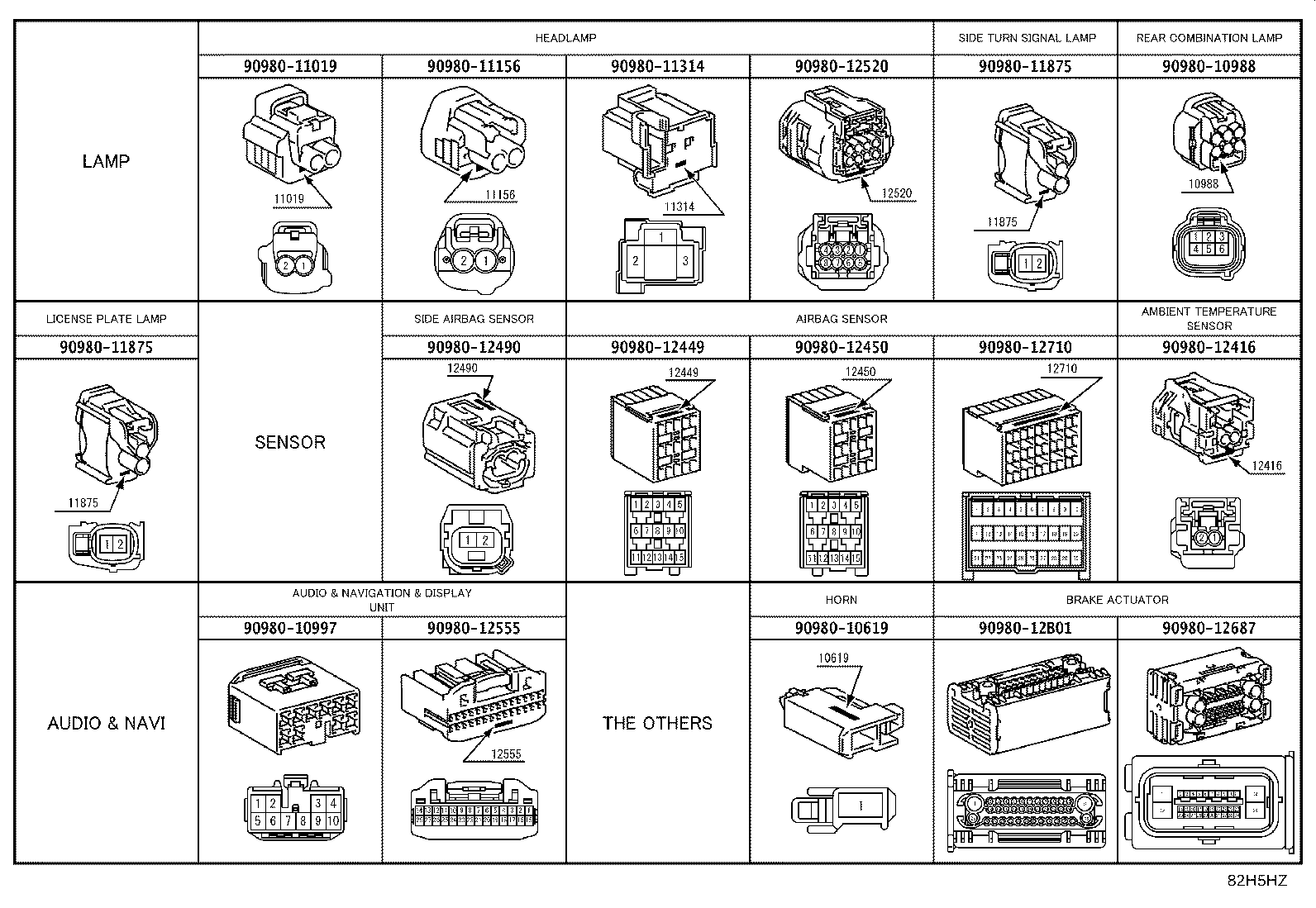

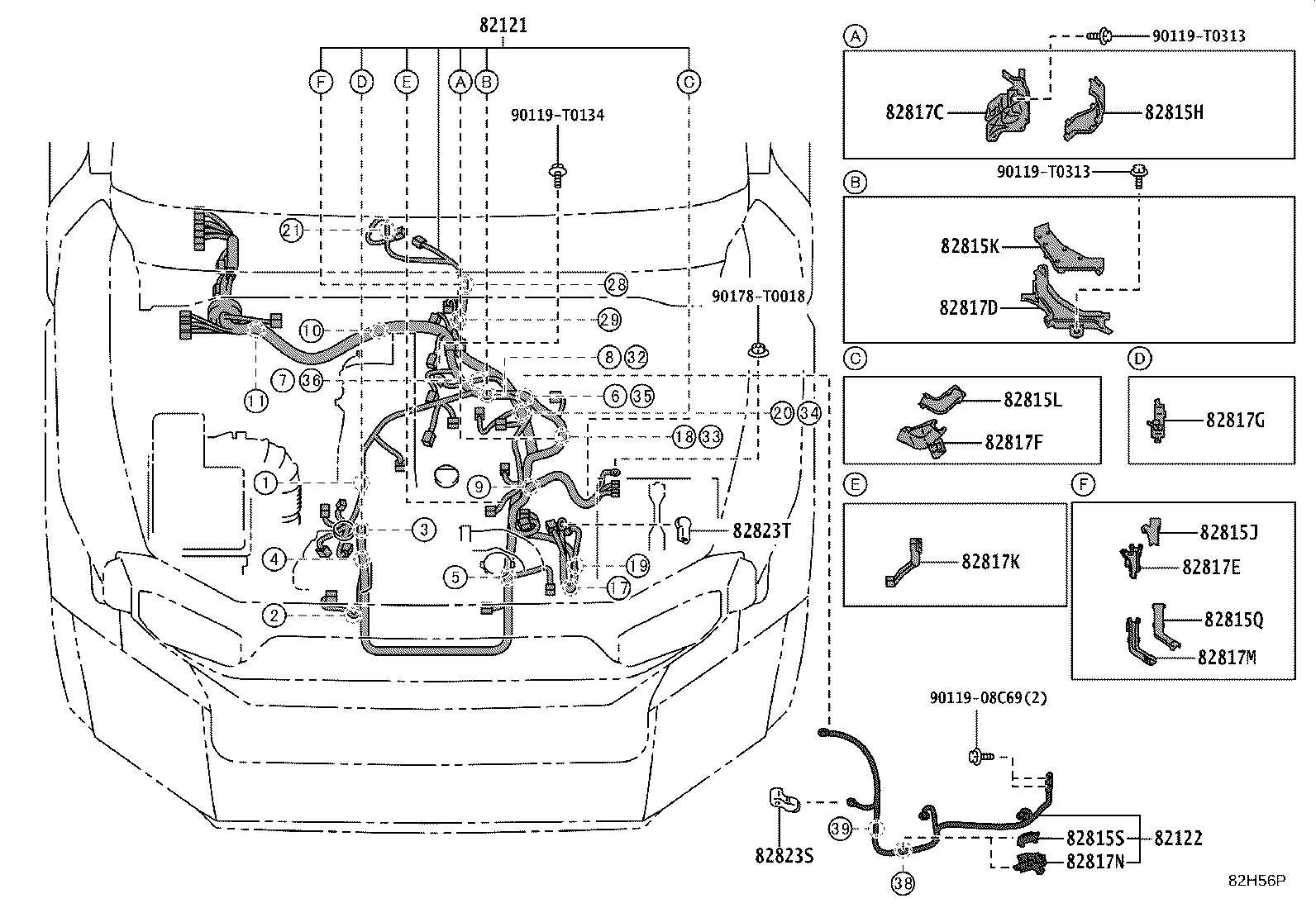

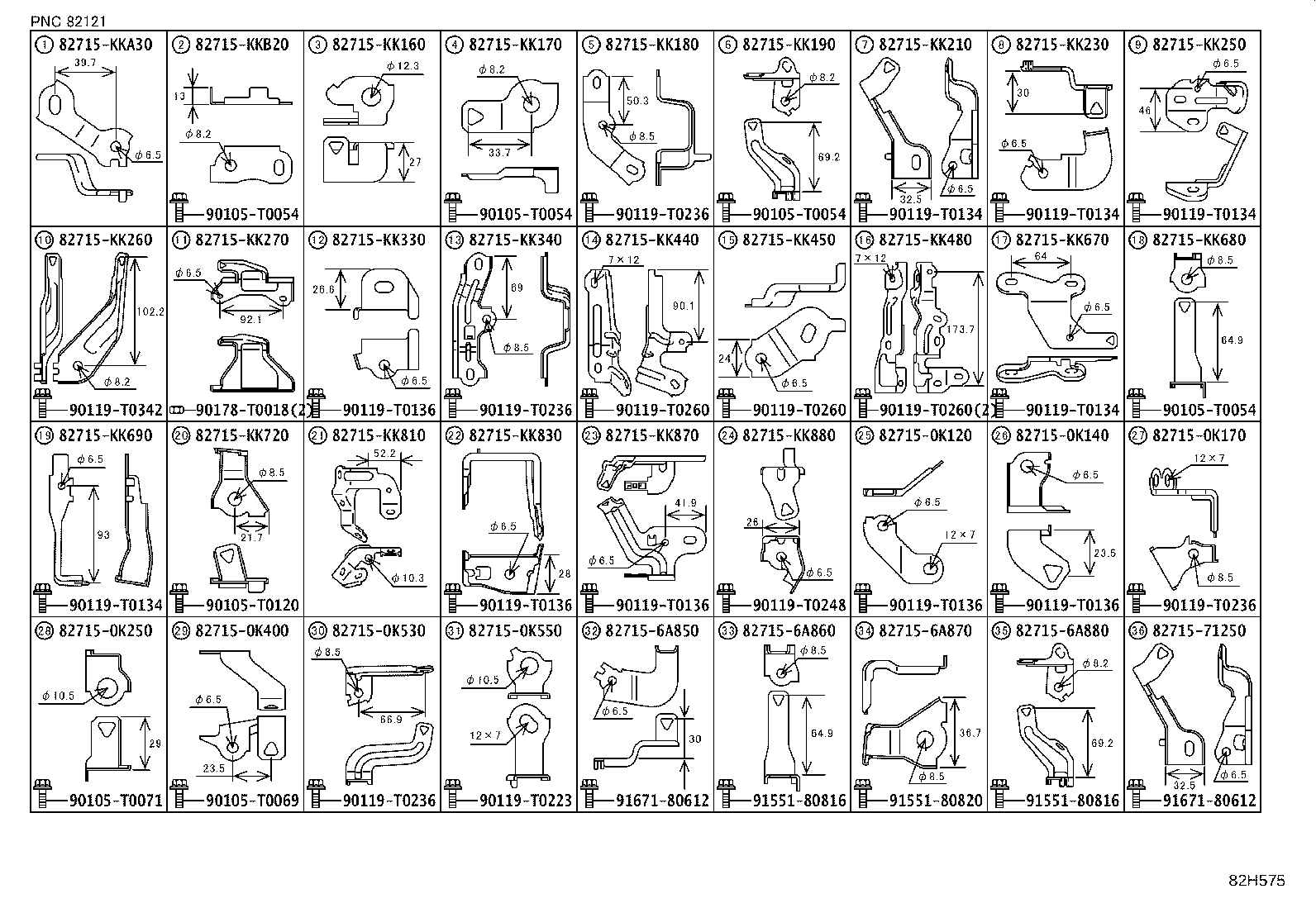

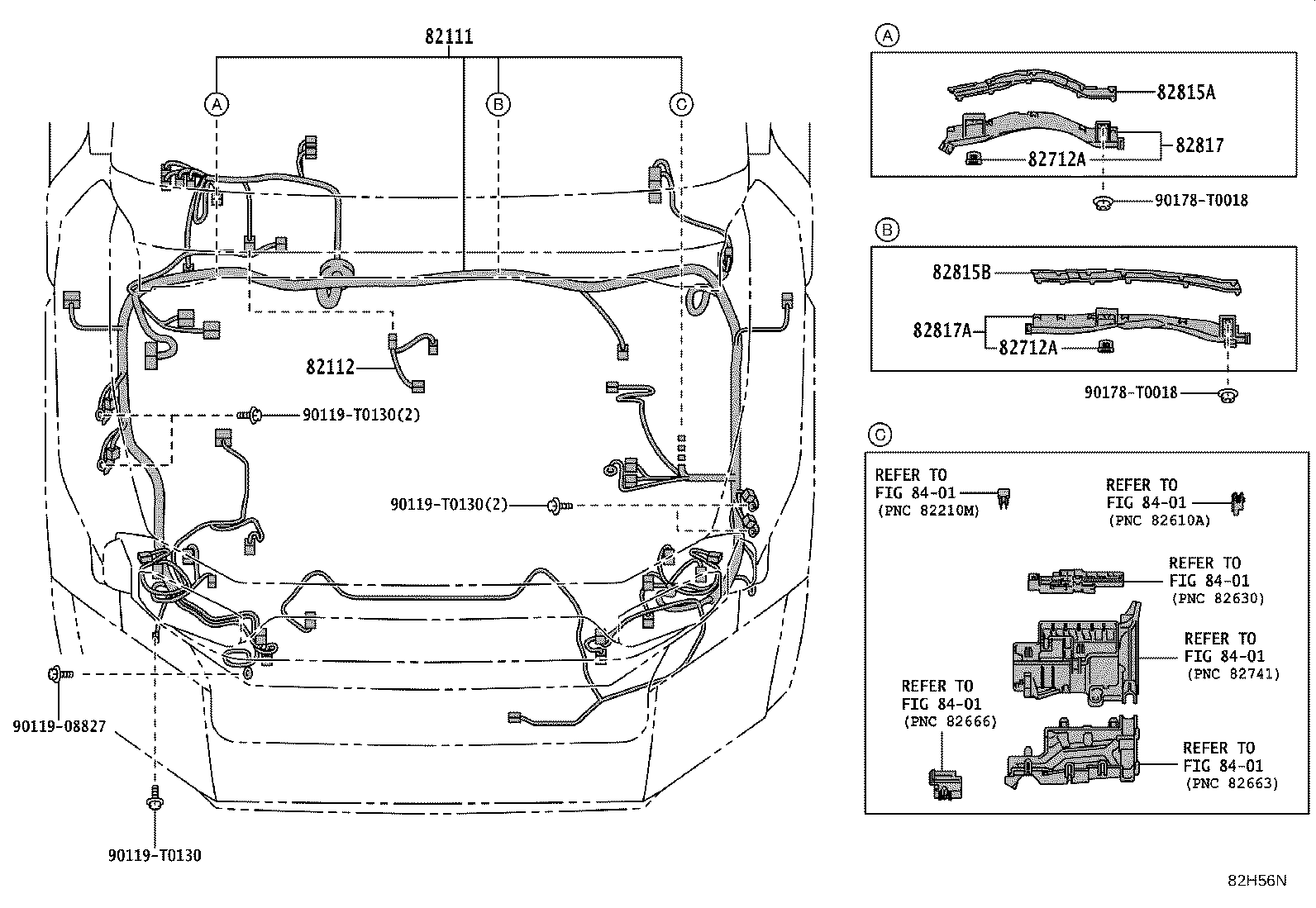

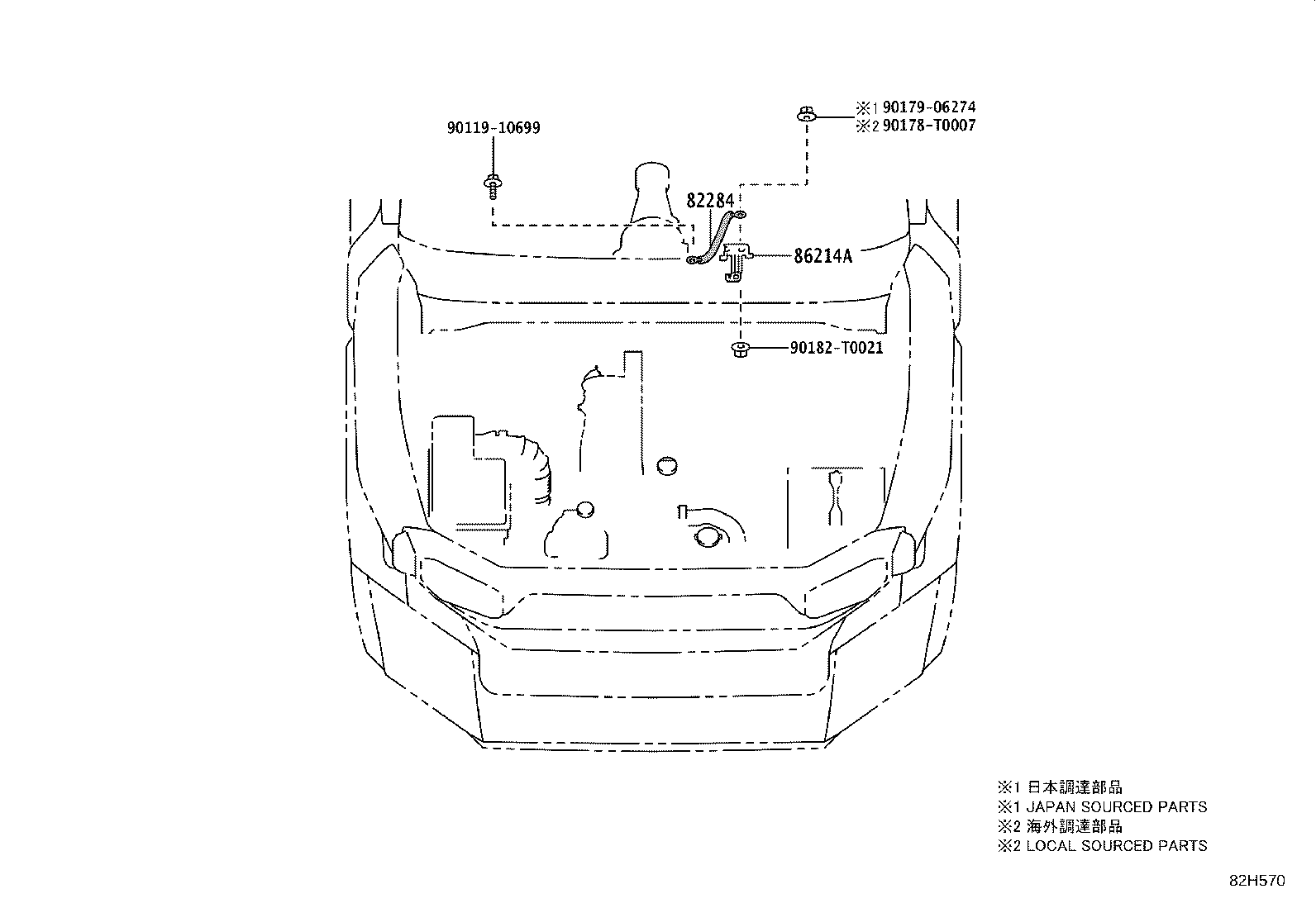

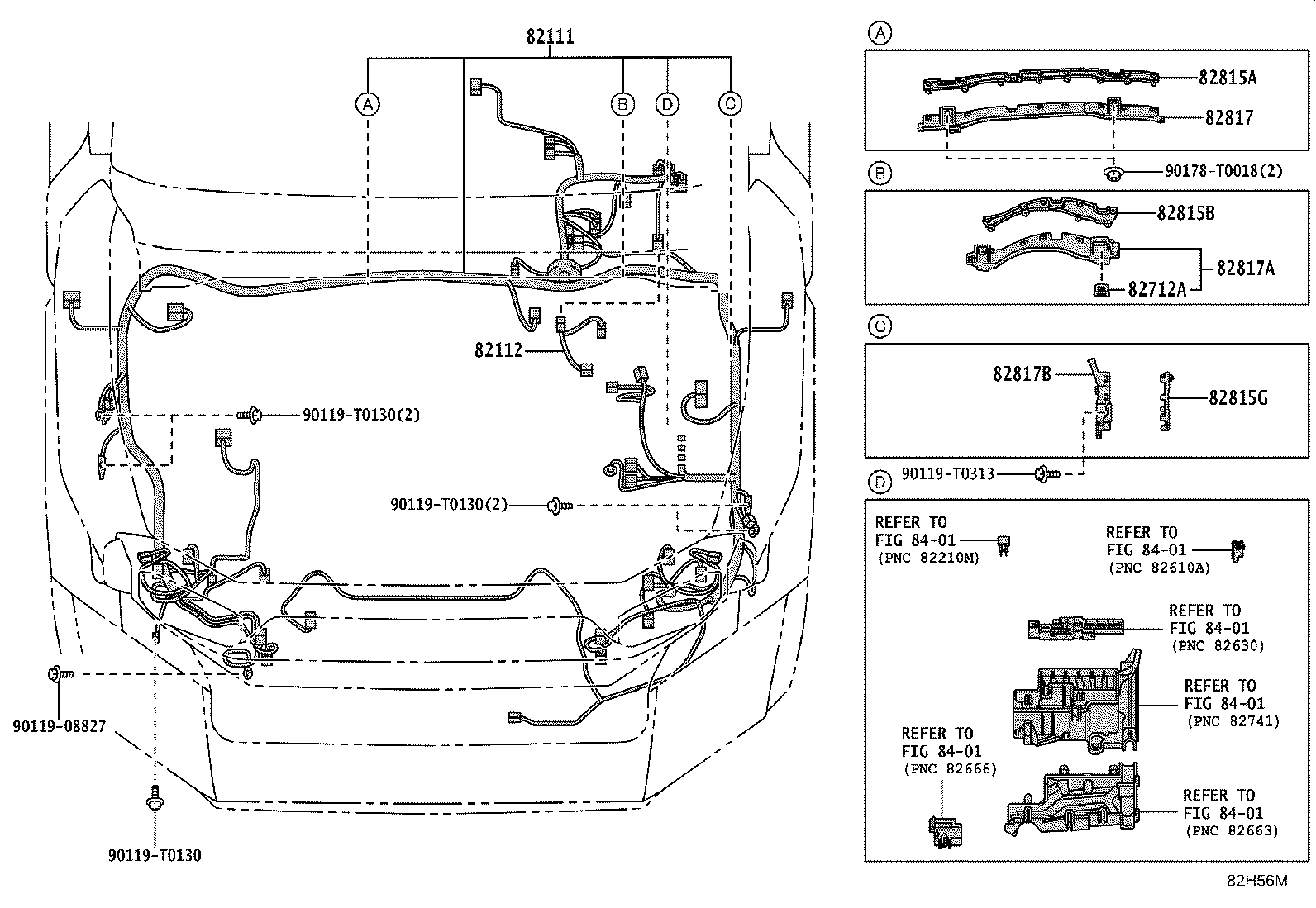

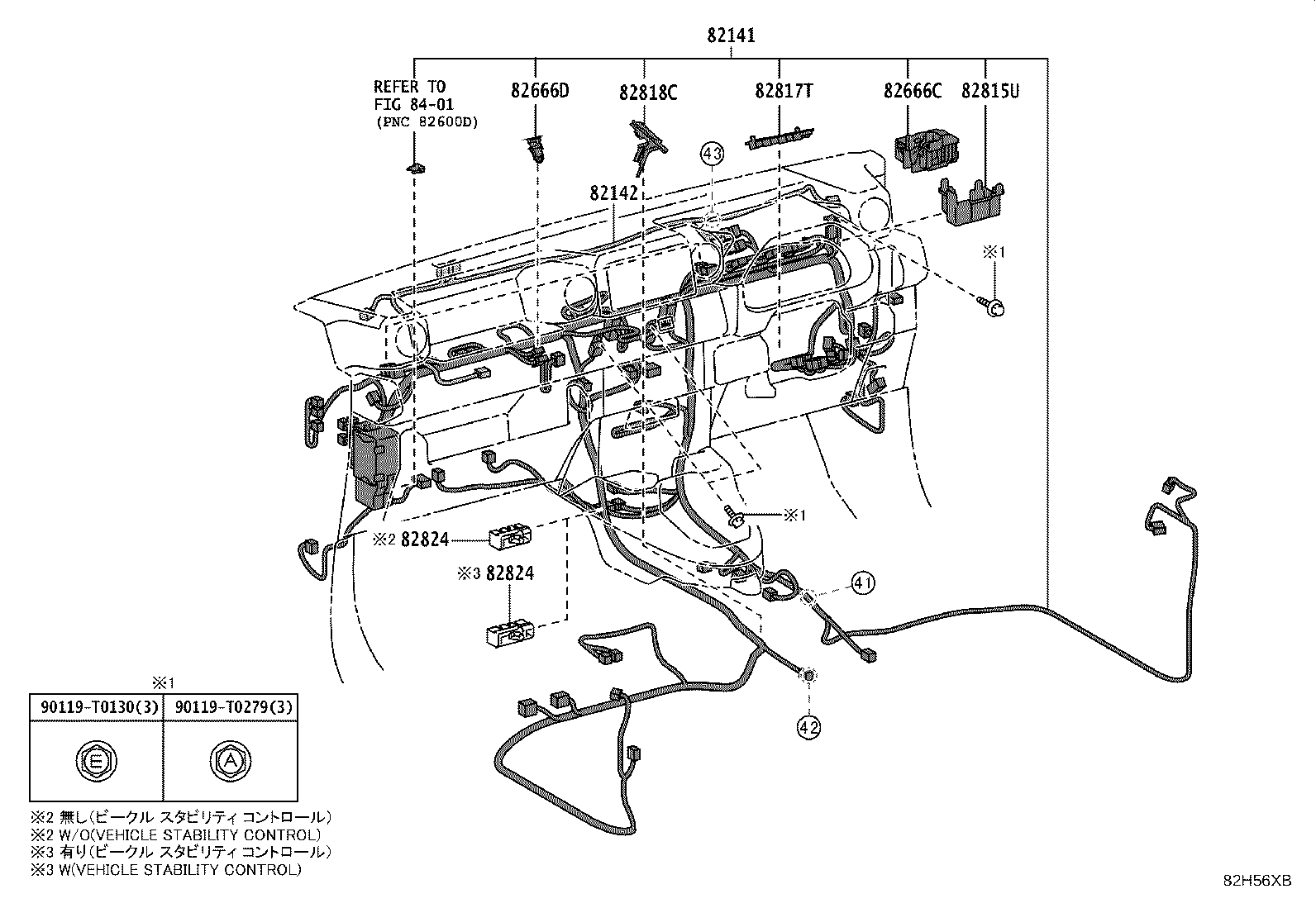

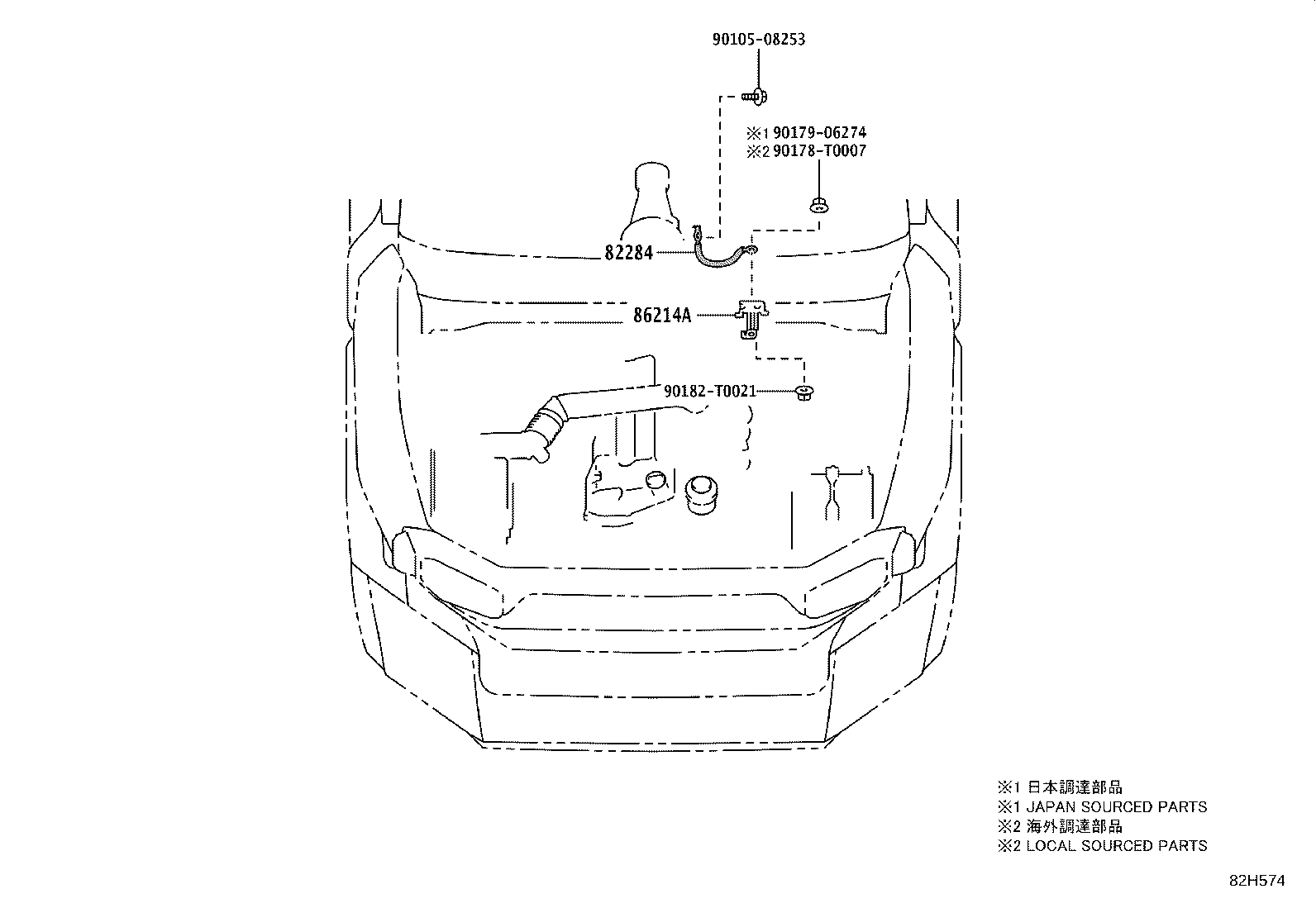

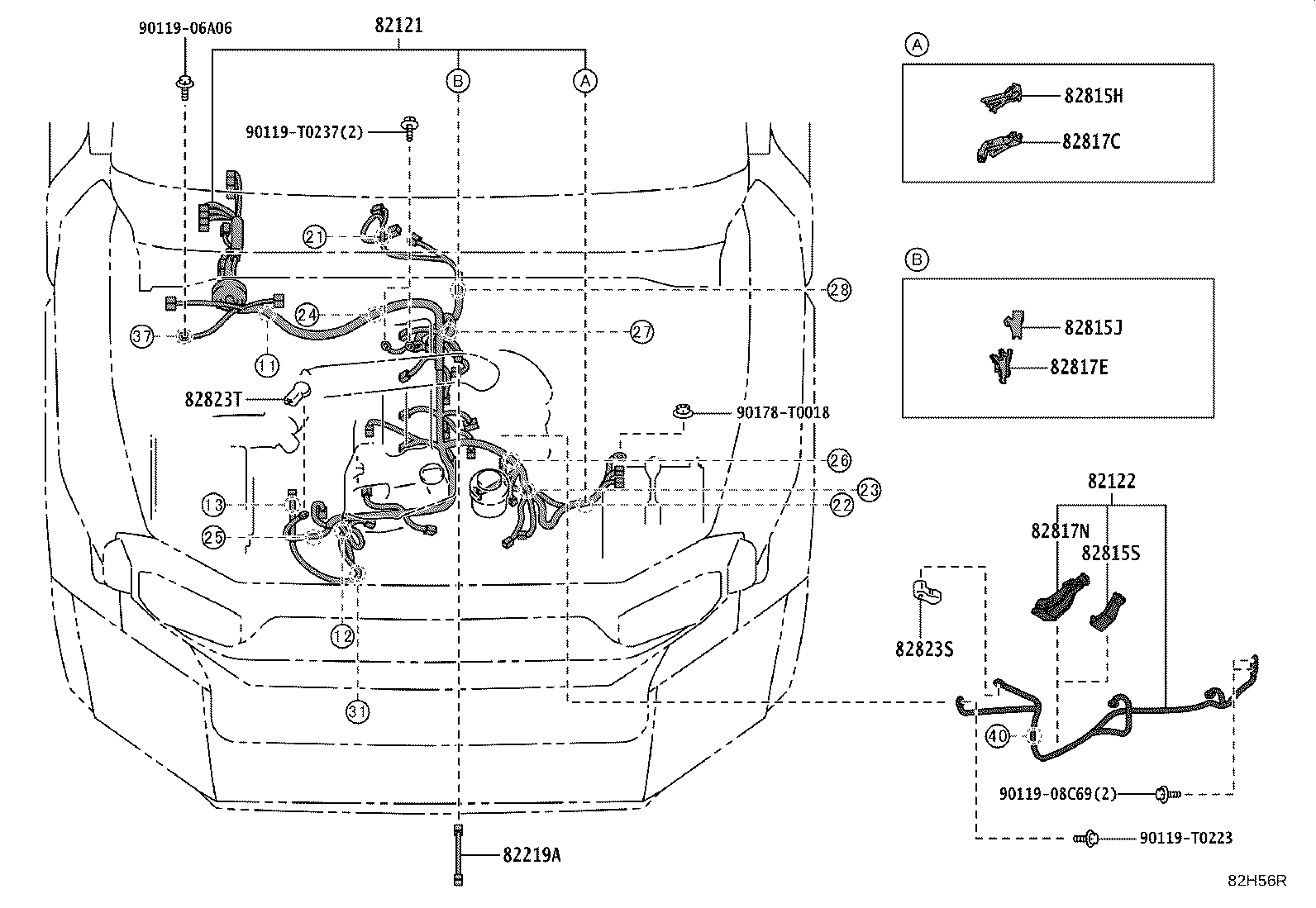

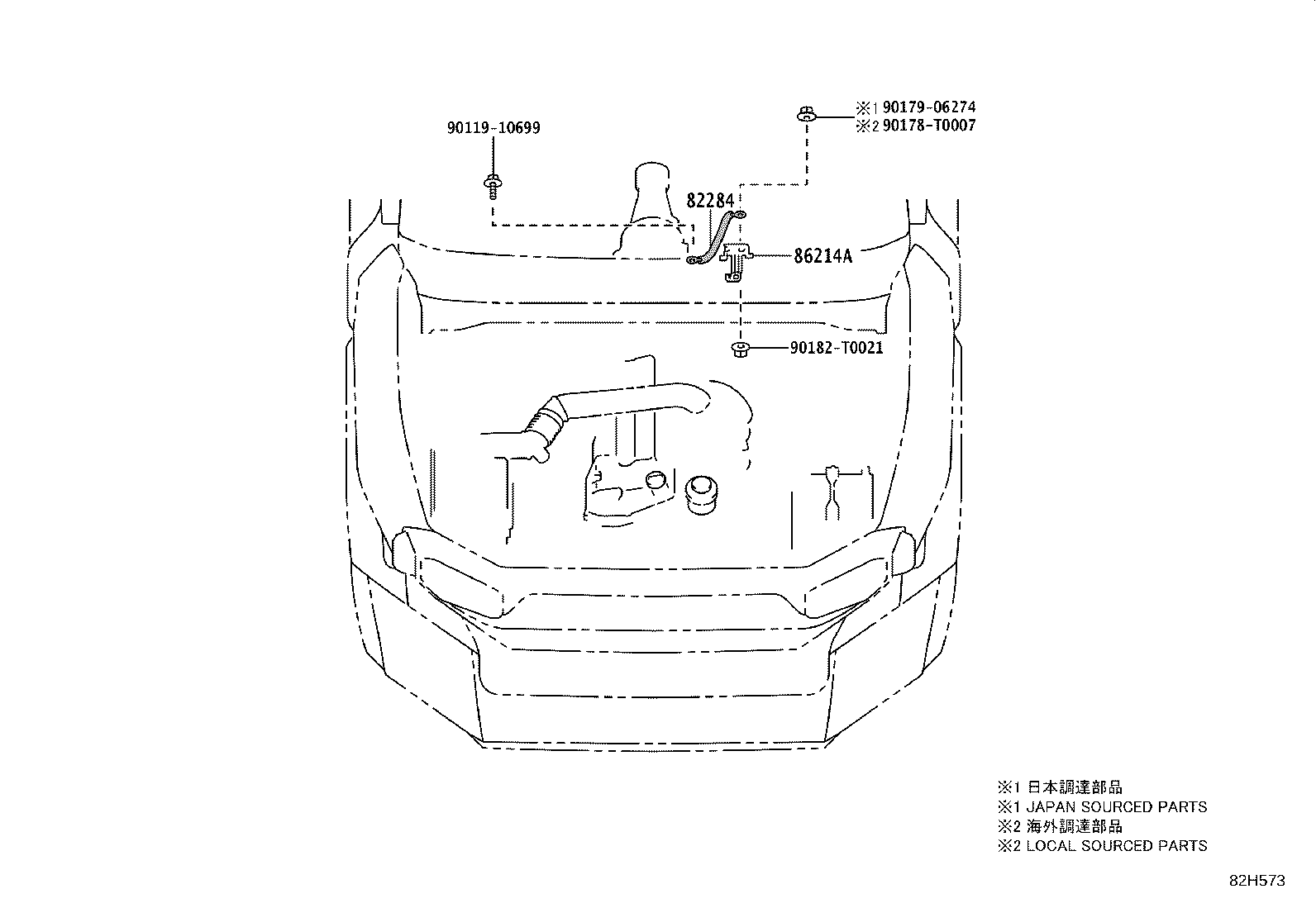

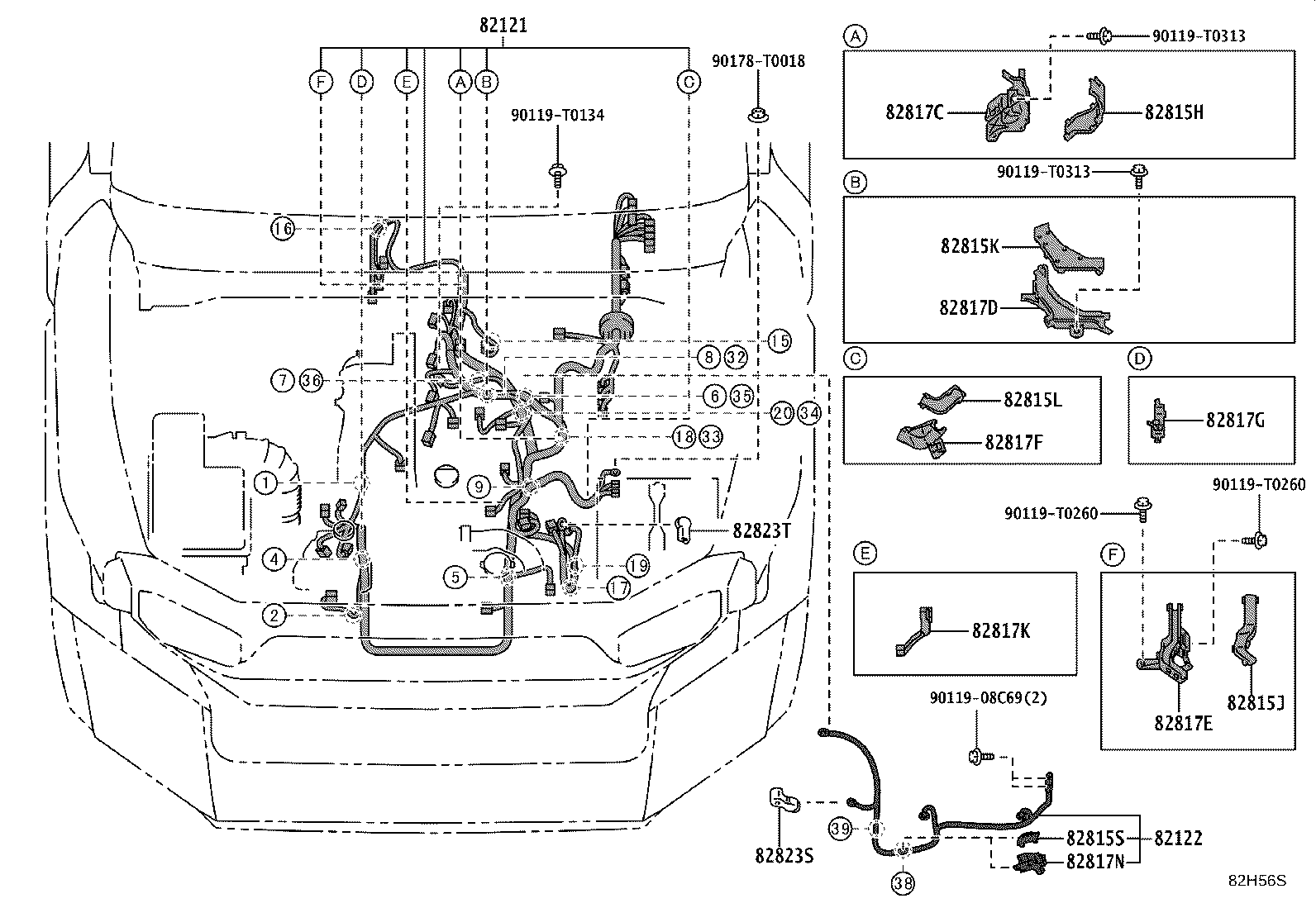

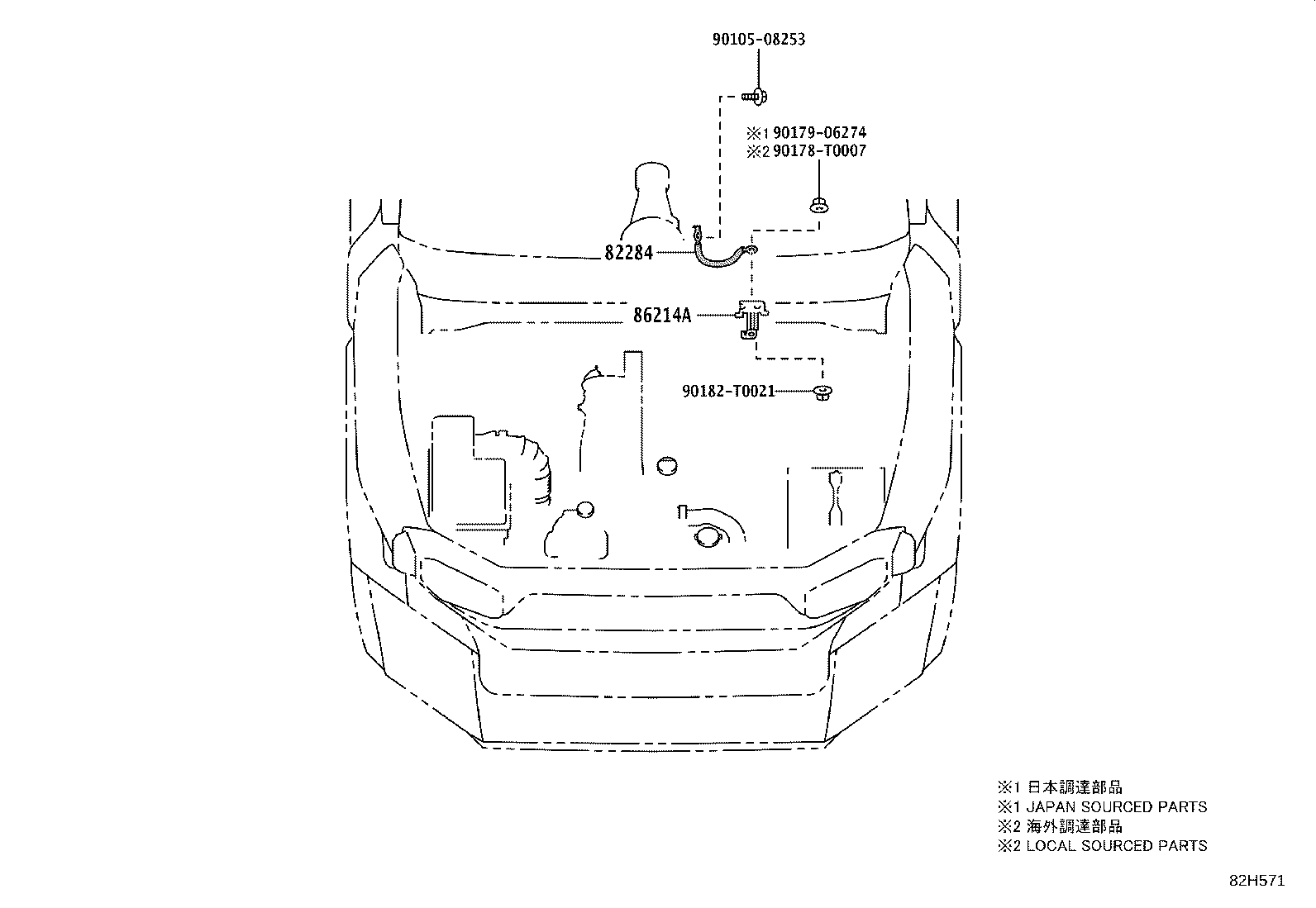

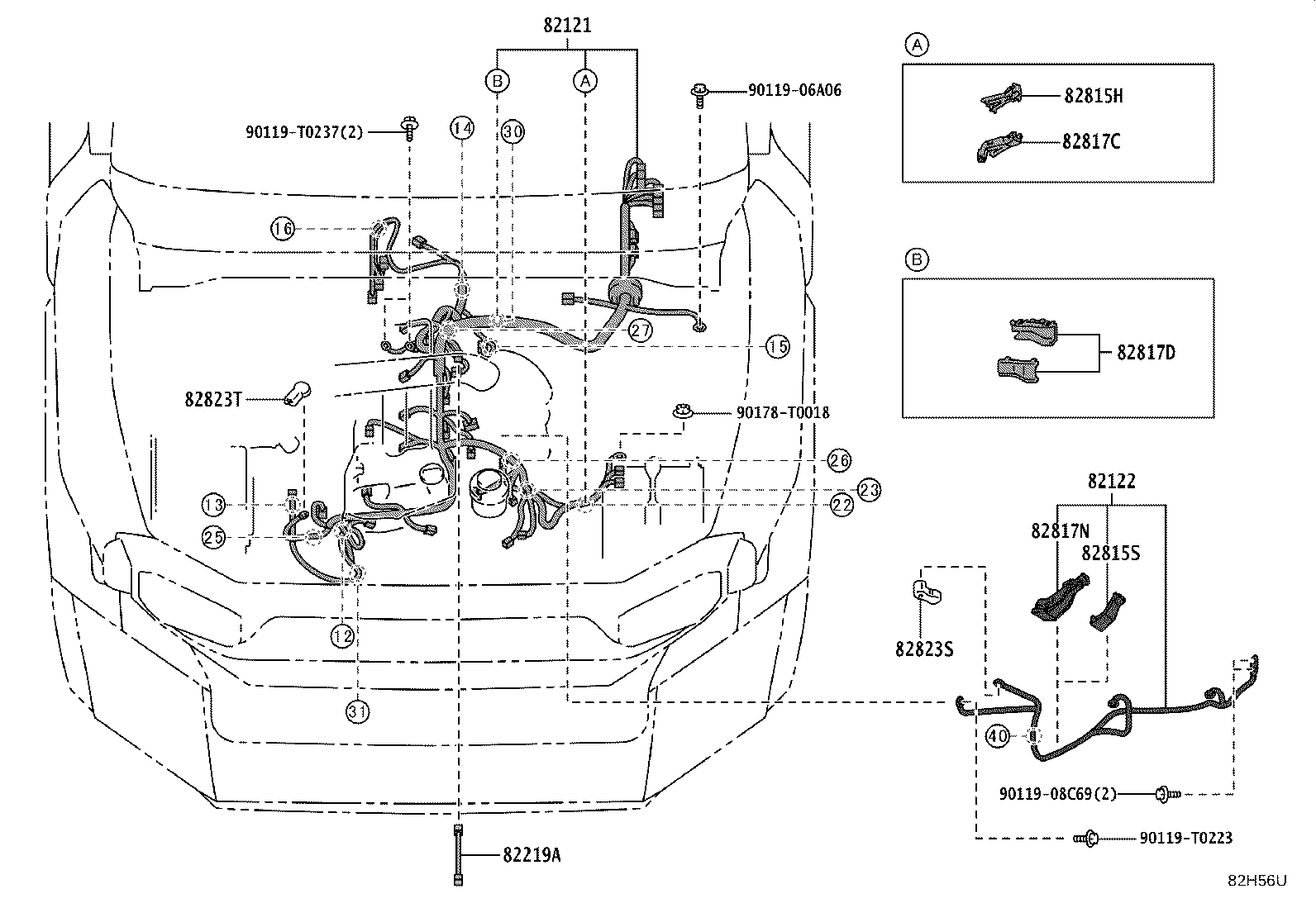

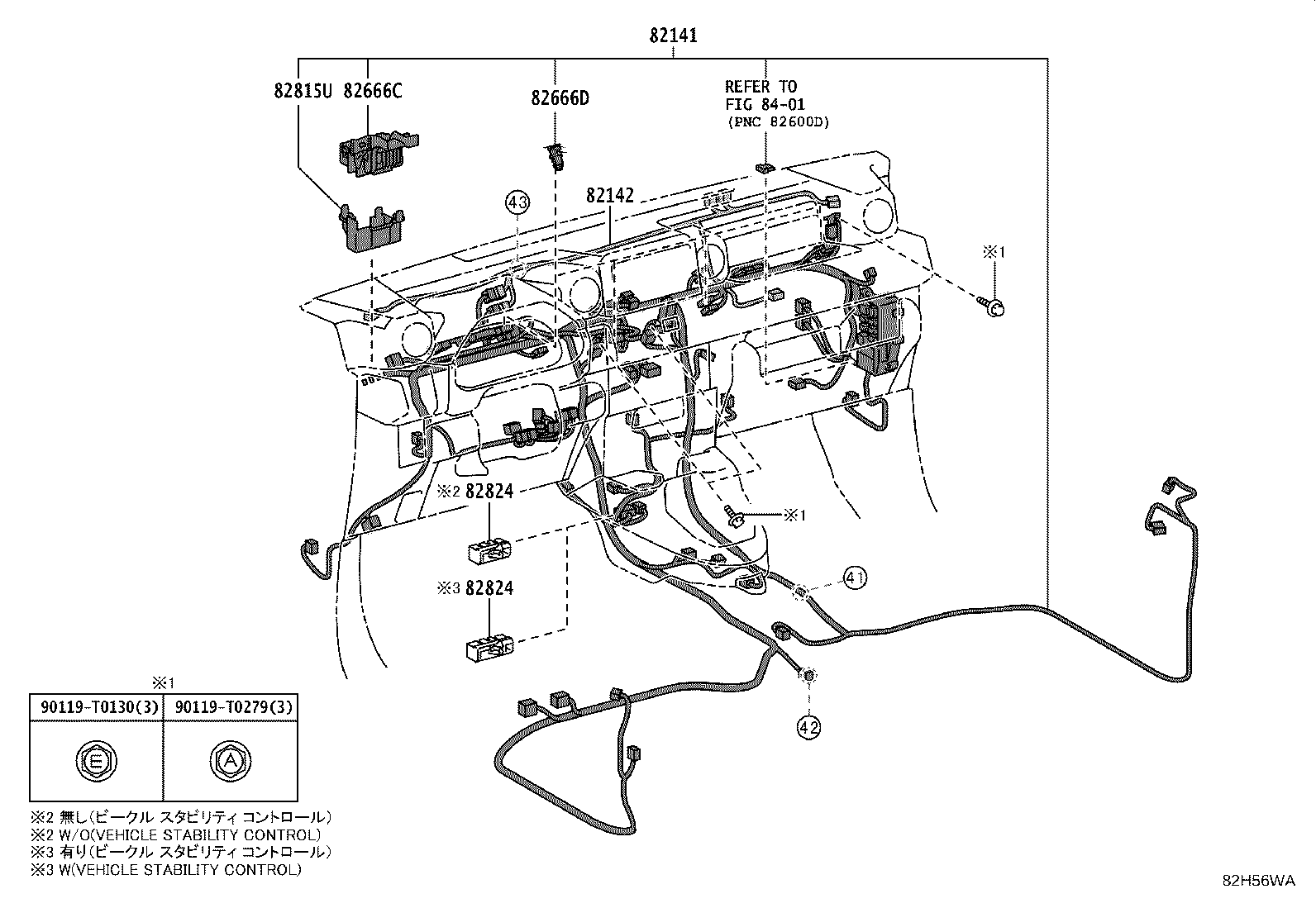

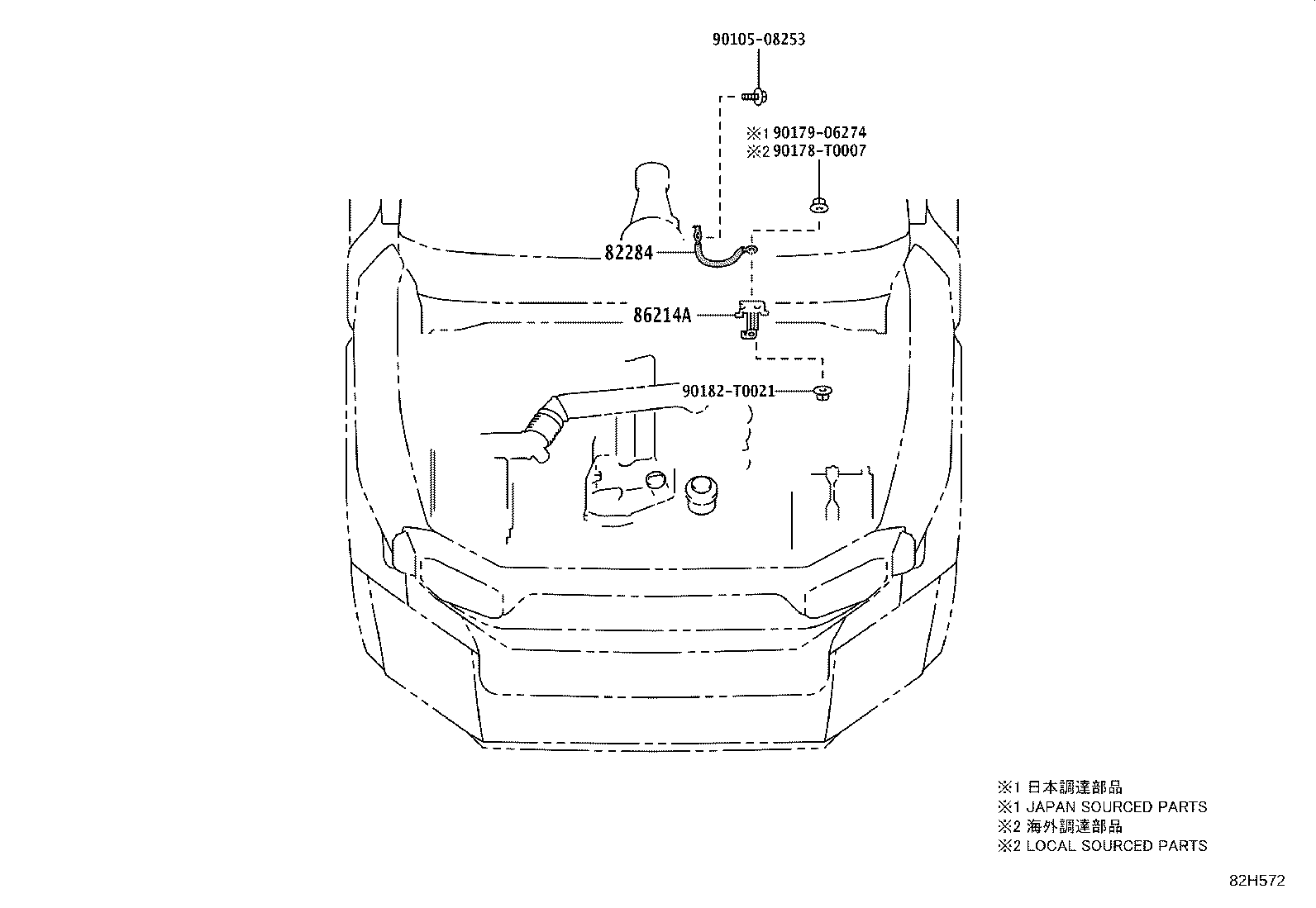

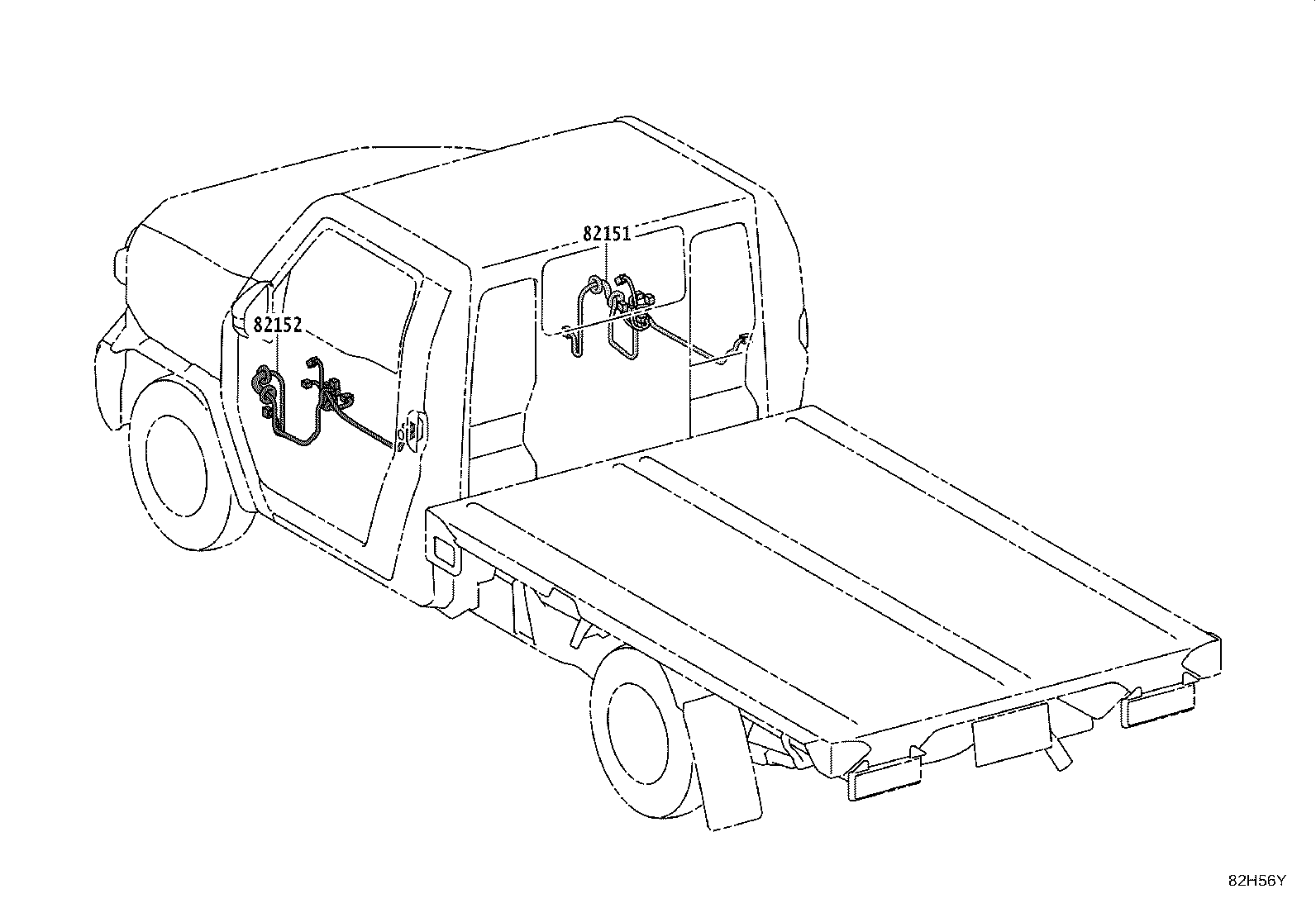

Figure 82H56L 82H56L 2023-12 → — Figure 82H56M 82H56M 2023-12 → — Figure 82H56N 82H56N 2023-12 → — Figure 82H56O 82H56O 2023-12 → — Figure 82H56P 82H56P 2023-12 → — Figure 82H56Q 82H56Q 2023-12 → — Figure 82H56R 82H56R 2023-12 → — Figure 82H56S 82H56S 2023-12 → — Figure 82H56T 82H56T 2023-12 → — Figure 82H56U 82H56U 2023-12 → — Figure 82H56V 82H56V 2023-12 → — Figure 82H56WA 82H56WA 2023-12 → — Figure 82H56XB 82H56XB 2023-12 → — Figure 82H56Y 82H56Y 2023-12 → — Figure 82H56Z 82H56Z 2023-12 → — Figure 82H570 82H570 2023-12 → — Figure 82H571 82H571 2023-12 → — Figure 82H572 82H572 2023-12 → — Figure 82H573 82H573 2023-12 → — Figure 82H574 82H574 2023-12 → — Figure 82H575 82H575 2023-12 → — Figure 82H57X 82H57X 2023-12 → — Figure 82H5HZ 82H5HZ 2023-12 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82122 Wire, Engine, NO.2
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82164 Wire, Frame
82171 Wire, Roof, NO.1
82219A Wire, Sensor
82284 Wire, Earth
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82712A Support, Wiring Harness
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815Q Cover, Wiring Harness Protector, NO.13
82815S Cover, Wiring Harness Protector, NO.15
82815U Cover, Wiring Harness Protector, NO.17
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817K Protector, Wiring Harness, NO.10
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817T Protector, Wiring Harness, NO.15
82818C Protector, Wiring Harness, NO.4
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
86214A Bracket, Radio Earth
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
