Toyota Hilux Champ
2023-12 → present · chassis GUN1##,TGN11# · catalogue 676210 · General
Supported model
Data version 2023-11
Switch & Relay & Computer
84 part groups · 13 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28300F | Relay Assy, Starter, NO.2 |

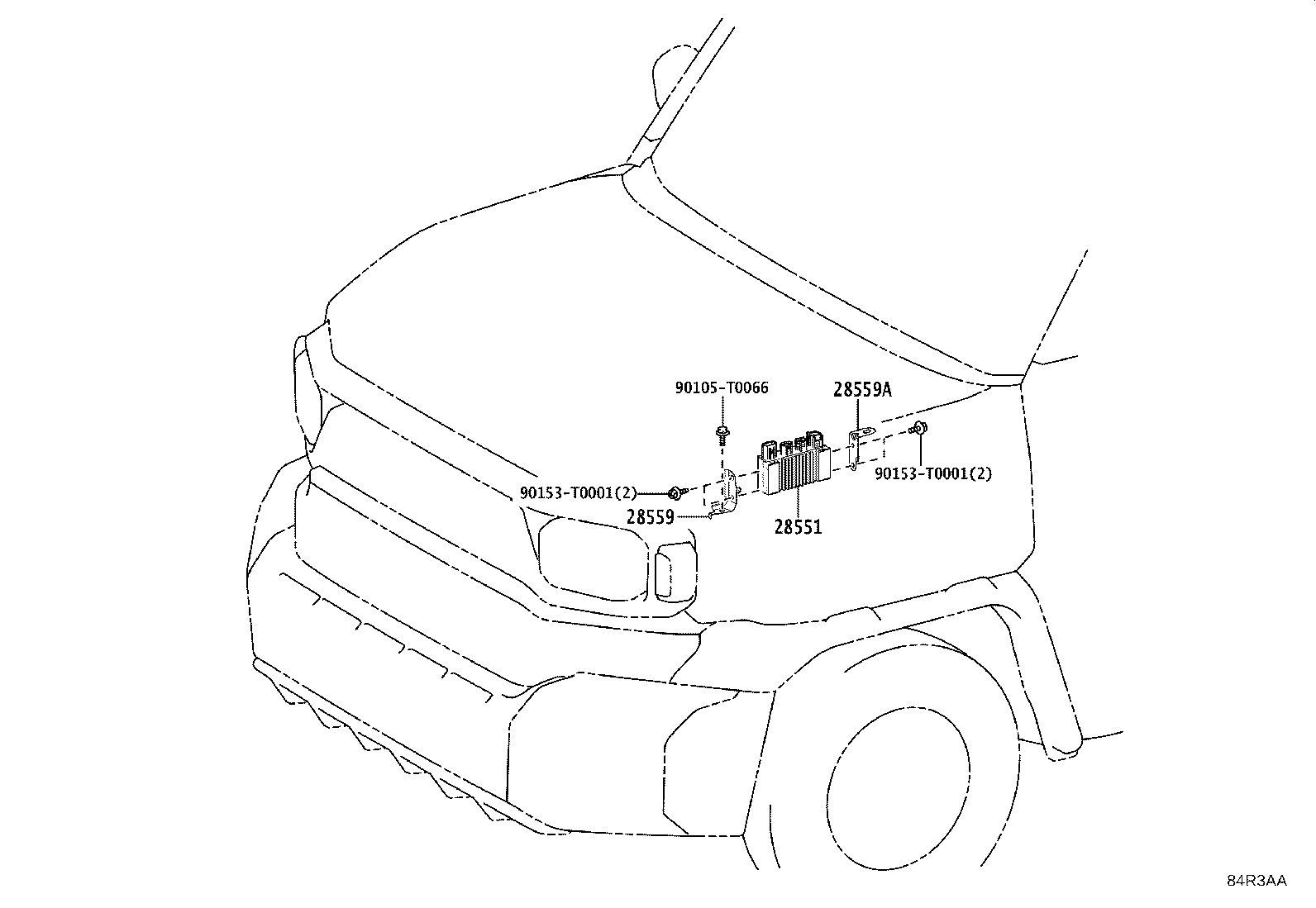

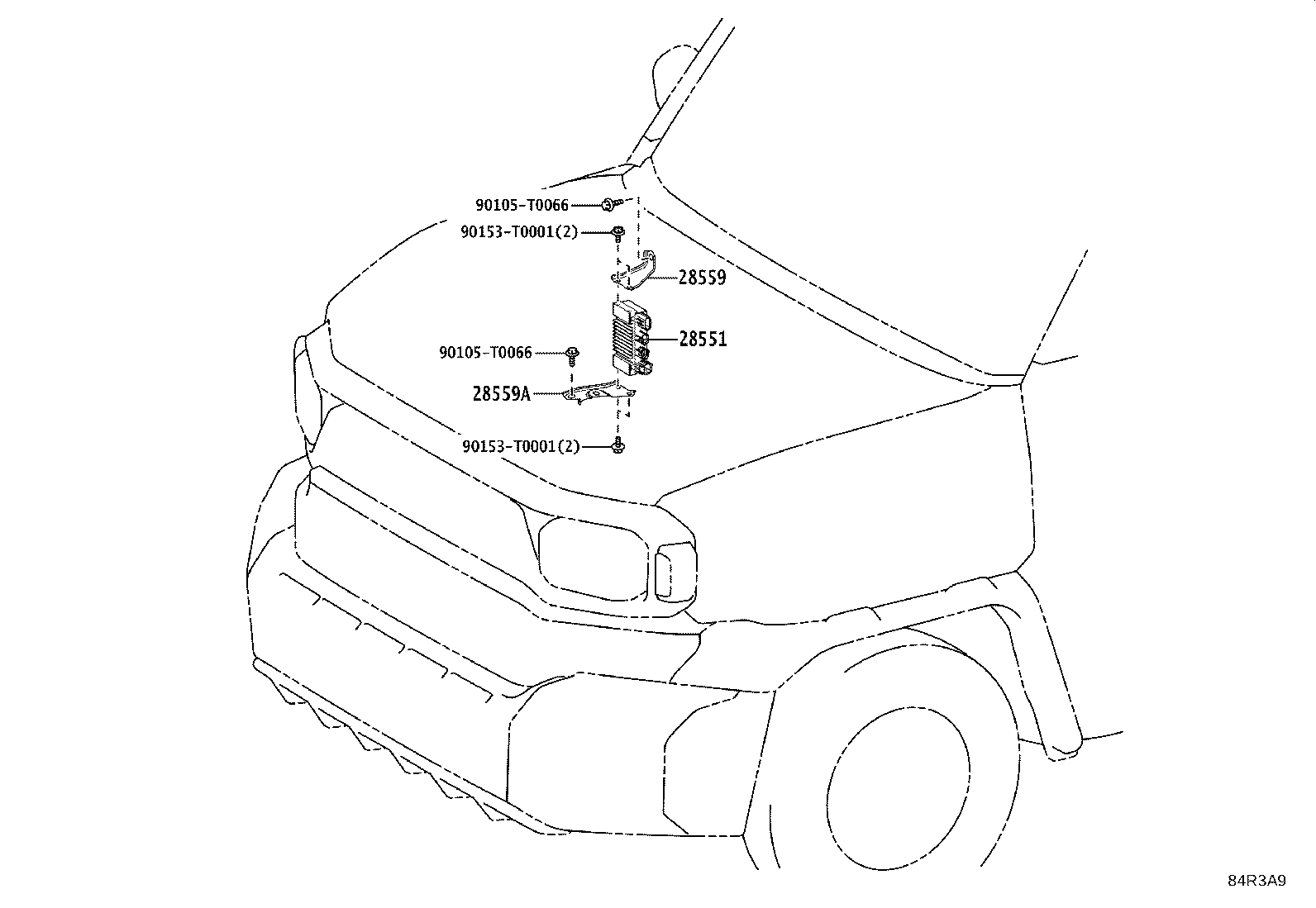

| 28551 | Controller, Glow Plug |
| 28559 | Bracket, Glow Plug Controller, NO.1 |
| 28559A | Bracket, Glow Plug Controller, NO.2 |
| 28590B | Relay Assy, Fuel Control |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 82210M | Fusible Link |
| 82210N | Instrument Panel Fusible Link |
| 82600D | Instrument Panel Fuse |
| 82610A | Block Assy, Fuse |
| 82610C | Block Assy, Fuse |
| 82610D | Block Assy, Fuse |
| 82616 | Puller, Fuse |
| 82630 | Holder Assy, Fuse |
| 82642A | Relay, Running Light |
| 82660D | Block Assy, Relay |
| 82660E | Block Assy, Relay |
| 82661 | Cover, Relay Block, NO.1 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82663 | Cover, Relay Block, Lower |
| 82663B | Cover, Relay Block, Lower, NO.3 |
| 82665 | Label, Relay Block |
| 82666 | Holder, Connector |
| 82672A | Cover, Junction Block |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673B | Bracket, Junction Block, NO.2 |

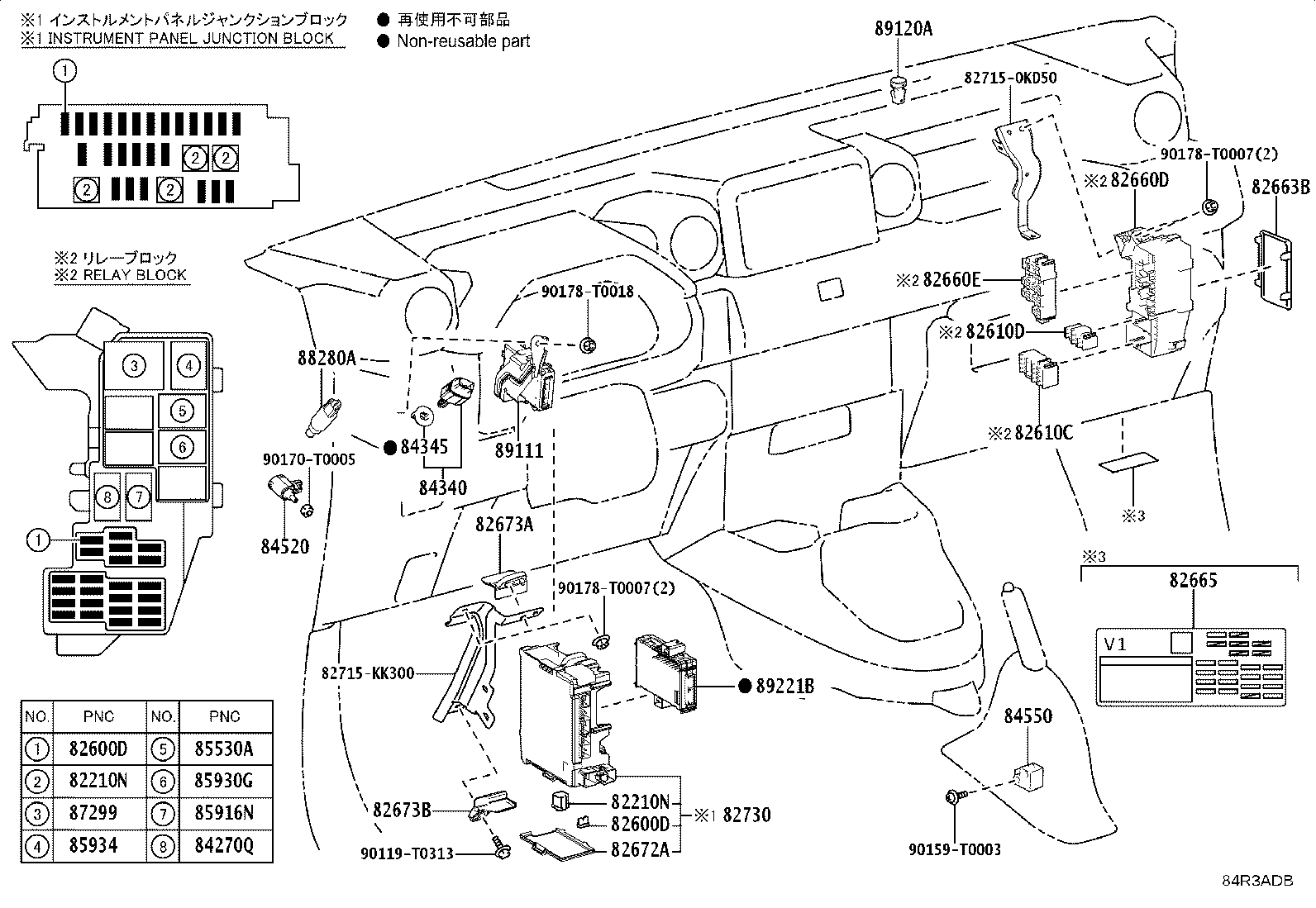

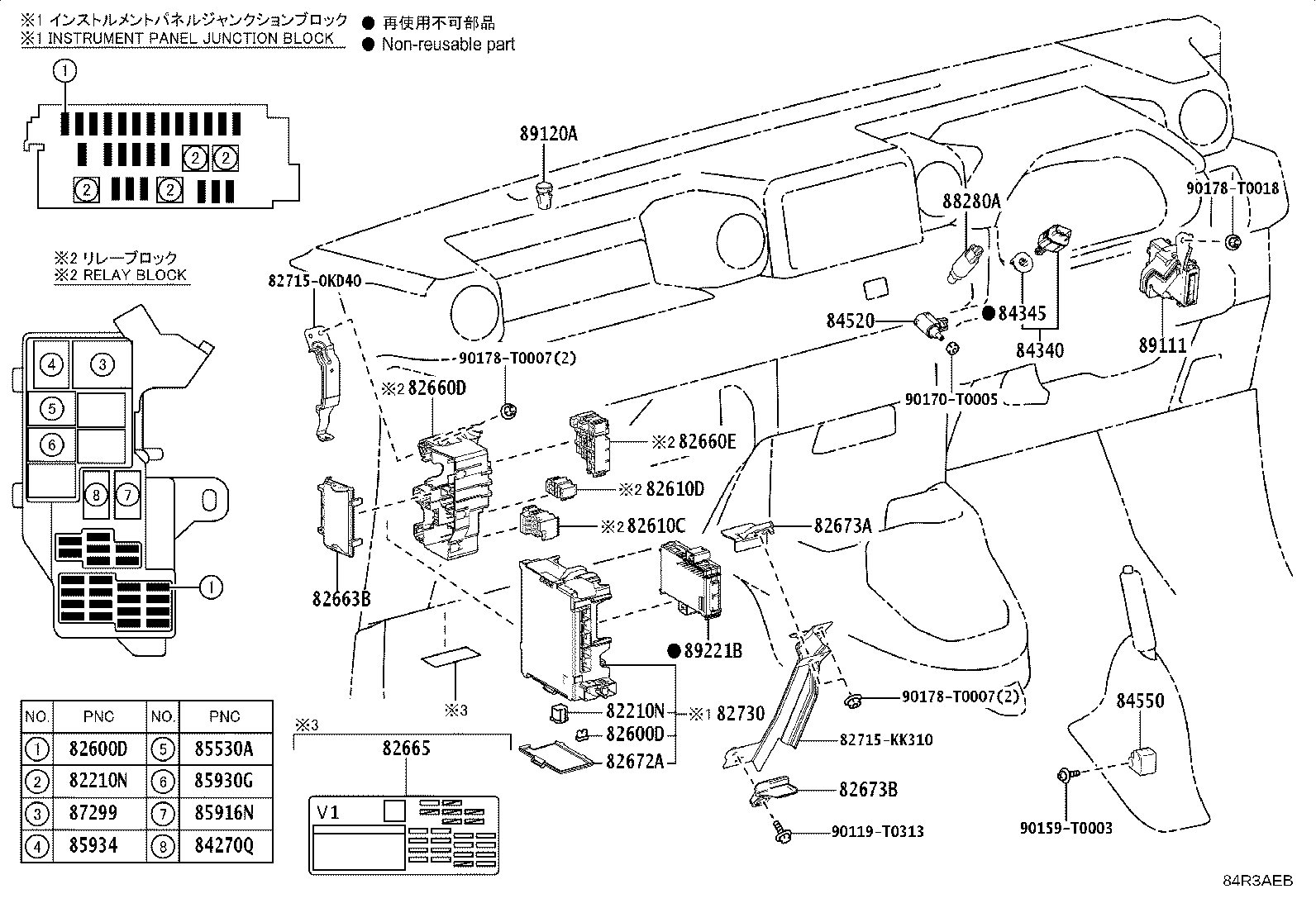

| 82730 | Block Assy, Instrument Panel Junction |

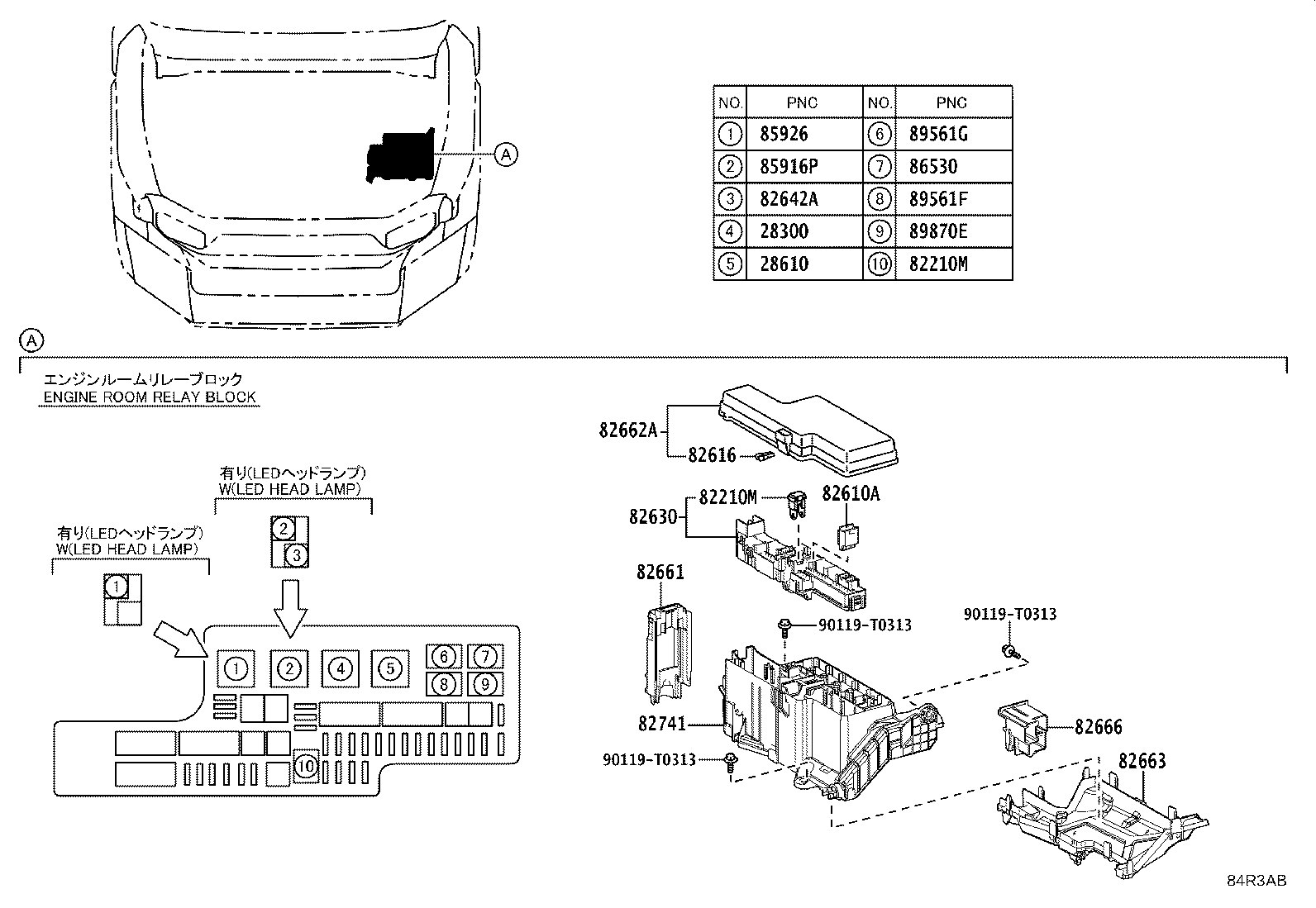

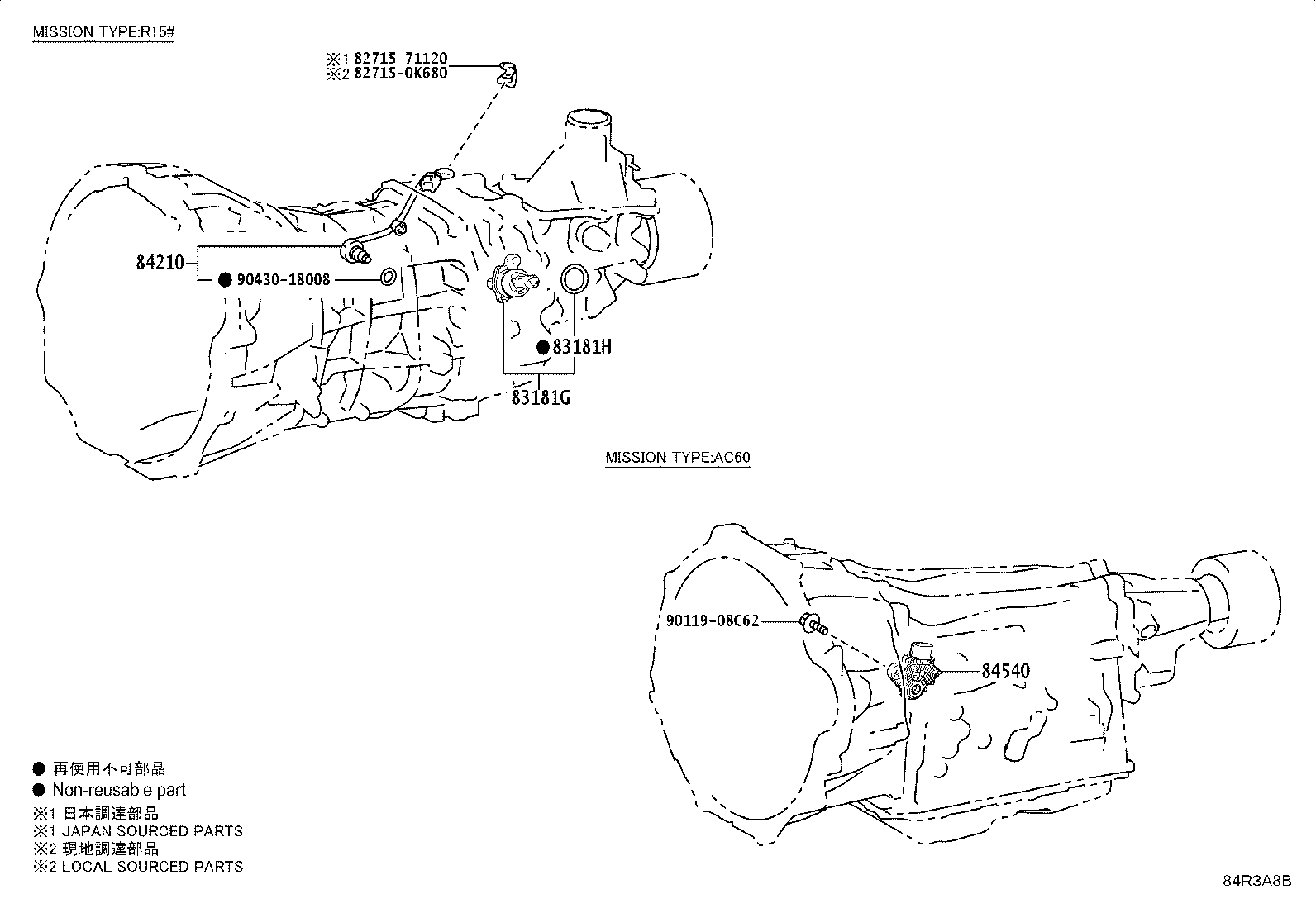

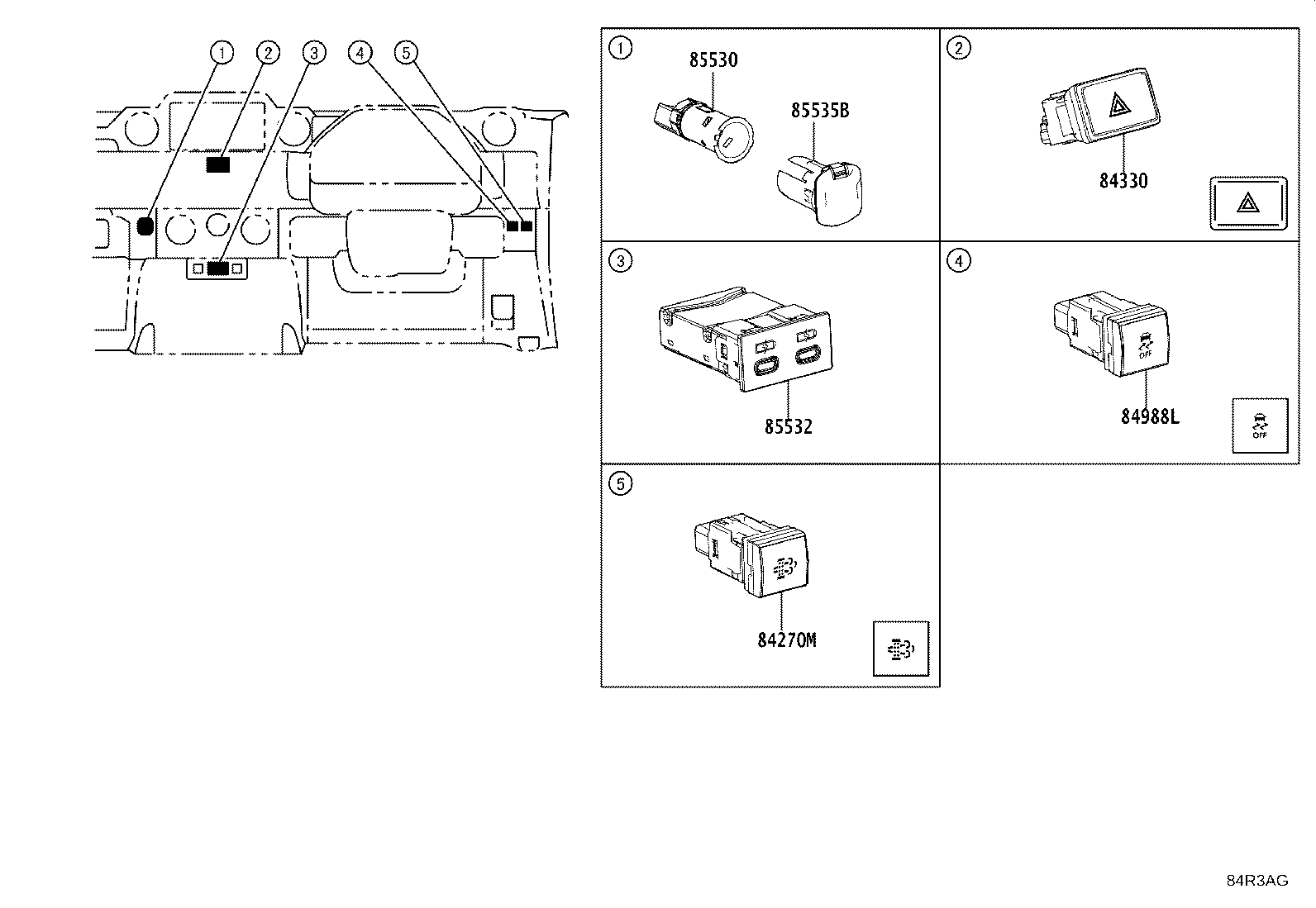

| 82741 | Block, Engine Room Relay |
| 83181G | Sensor, Speedometer |
| 83181H | Ring, O (FOR SPEEDOMETER SENSOR) |
| 83320 | Gage Assy, Fuel Sender |
| 83520 | Gage Assy,Oil Pressure Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84052 | Switch Assy, Un-lock Warning |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84270M | Switch Assy, Diesel Particulate Reduction |
| 84270Q | Relay, Lamp Cut |

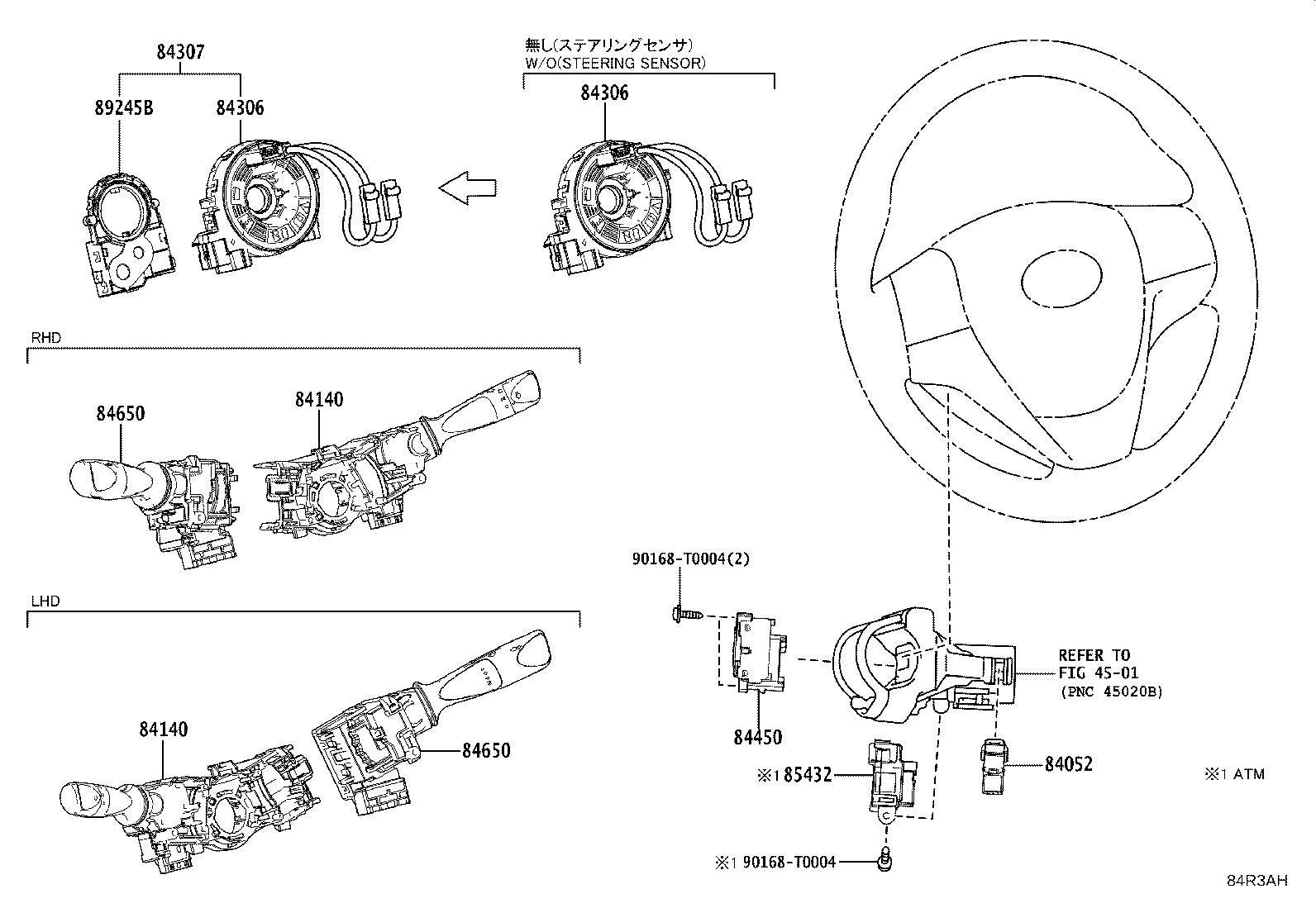

| 84306 | Cable Sub-assy, Spiral |
| 84307 | Cable Sub-assy, Spiral W/Sensor |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84450 | Switch Assy, Ignition OR Starter |
| 84520 | Switch Assy, Clutch Start |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |

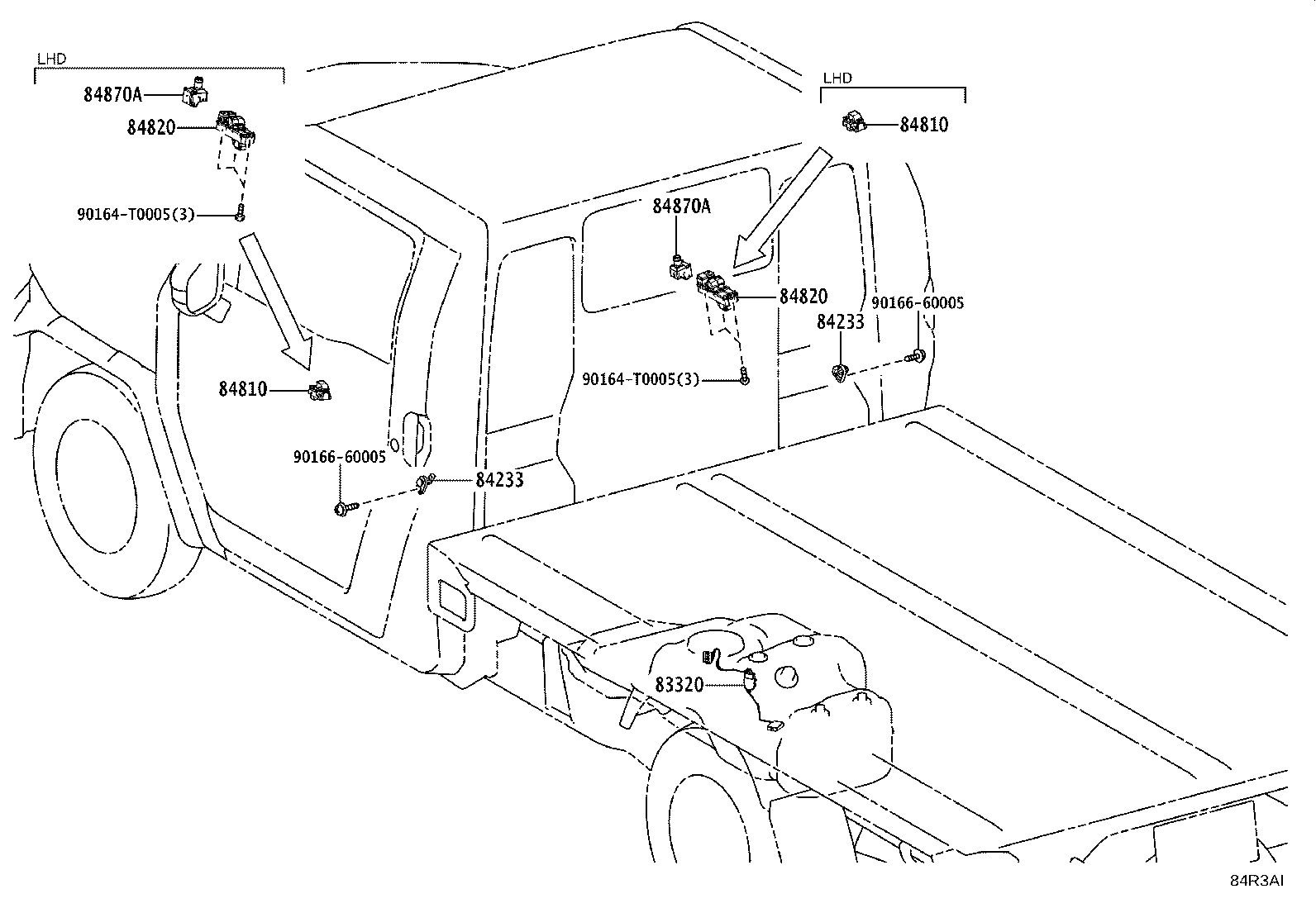

| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84870A | Switch Assy, Outer Mirror |

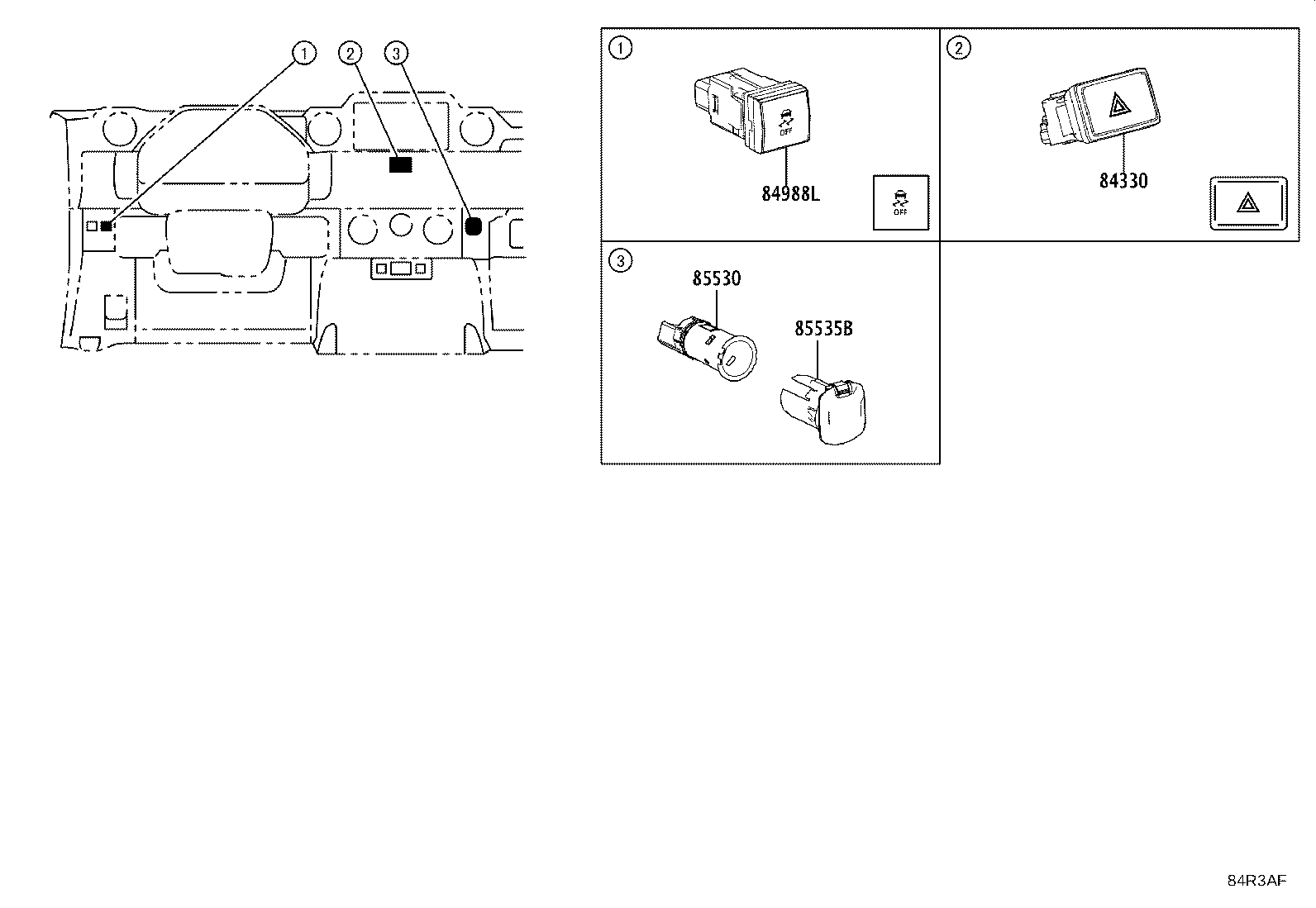

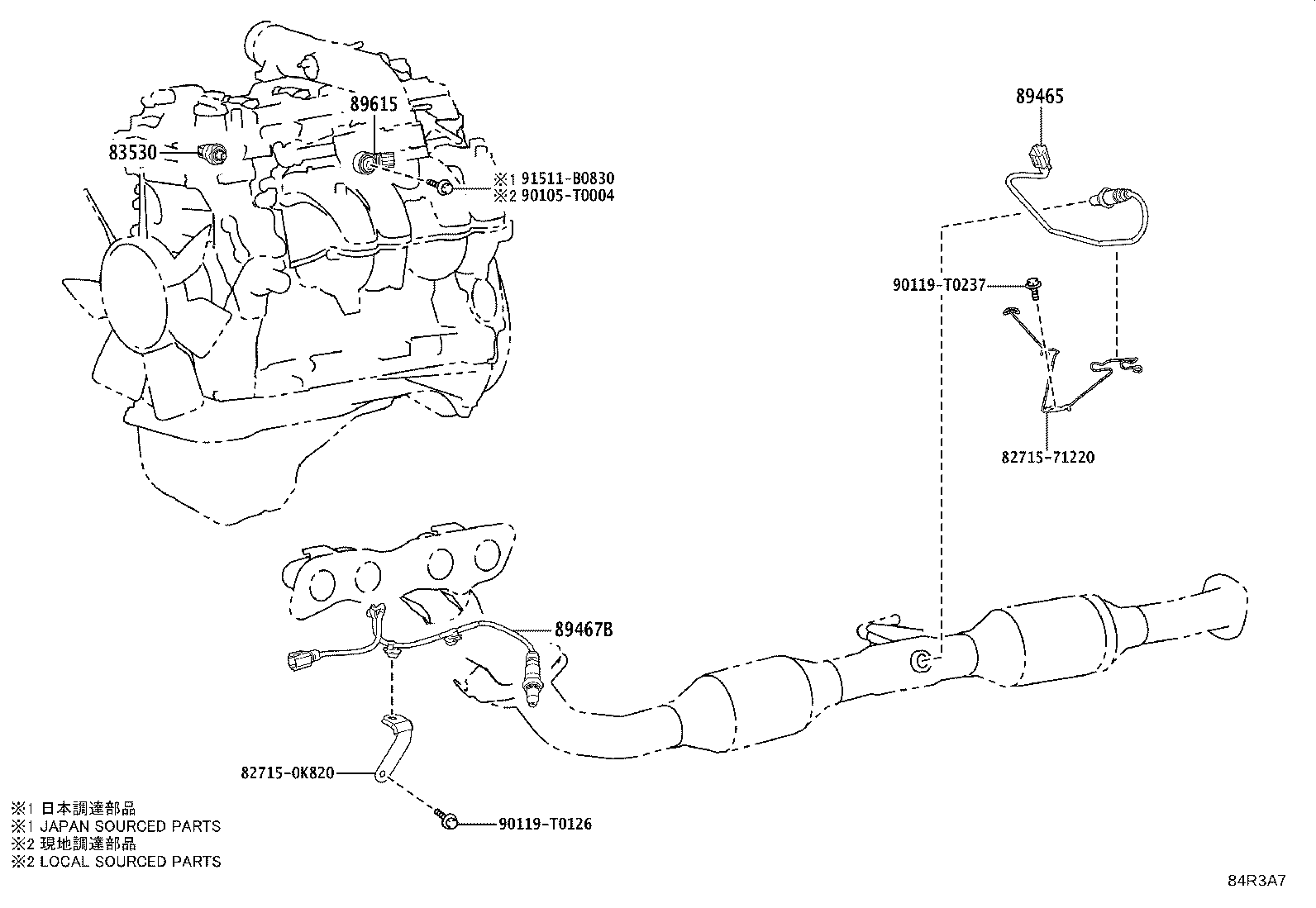

| 84988L | Switch, Vsc Off |
| 85432 | Solenoid, Key Interlock |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530A | Relay, Power Outlet Socket |
| 85532 | Socket, Usb Charger |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85910E | Relay, Injector |
| 85916N | Relay, Taillamp |
| 85916P | Relay, Headlamp |
| 85917D | Relay, Heater(FOR AIR FUEL RATIO SENSOR) |
| 85926 | Relay, Headlamp Dimmer |
| 85930G | Relay, Acc |
| 85934 | Relay, Magnet-clutch |
| 86530 | Relay Assy, Horn |
| 87299 | Relay, Heater |
| 88280A | Switch Assy, Clutch |
| 89111 | Computer, Network Gateway |
| 89120A | Sensor, Automatic Light Control |
| 89221B | Computer, Body |
| 89245B | Sensor, Steering |
| 89425 | Sensor, Exhaust Gas Temperature |
| 89425A | Sensor, Exhaust Gas Temperature, NO.2 |
| 89425B | Sensor, Exhaust Gas Temperature, NO.3 |
| 89465 | Sensor, Oxygen |
| 89467B | Sensor, Air Fuel Ratio |
| 89481B | Sensor, Differential Pressure |
| 89491 | Sensor, Engine Oil Level |
| 89561F | Relay, Electronic Fuel Injection Main, NO.1 |
| 89561G | Relay, Electronic Fuel Injection Main, NO.2 |
| 89615 | Sensor, Knock Control |
| 89870E | Relay, Electronic Driver Unit |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
