Toyota Hilux Champ
2023-12 → present · chassis GUN1##,TGN11# · catalogue 676210 · General
Supported model
Data version 2023-11

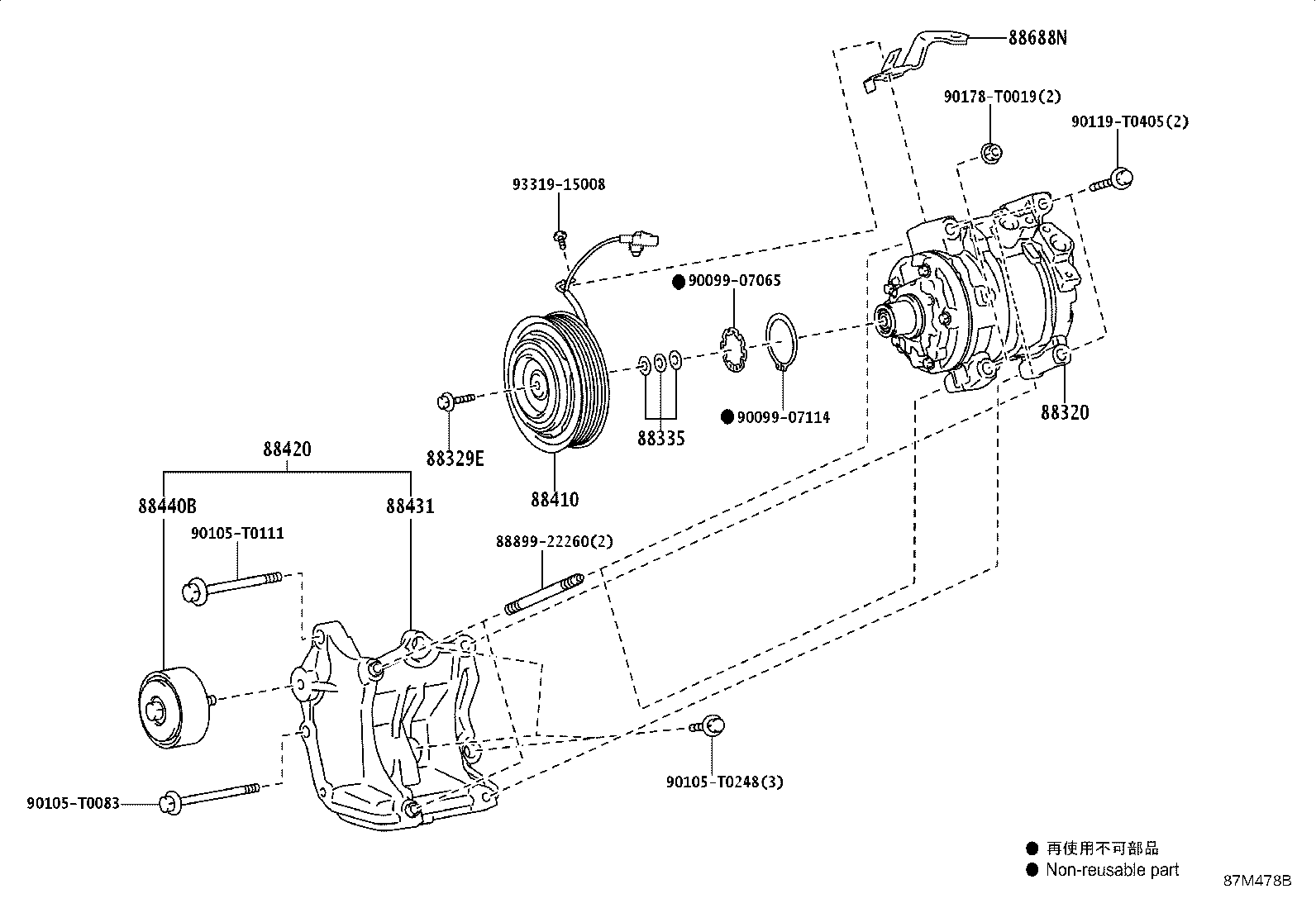

Heating & Air Conditioning - Compressor
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88320 | Compressor Assy, Cooler |
| 88329E | Bolt, Compressor, NO.1 |
| 88335 | Gasket Kit, Overhaul |
| 88410 | Clutch Assy, Magnet |
| 88420 | Pulley Assy, Idle, W/Bracket |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88440B | Pulley Assy, Idle |
| 88688N | Bracket, Cooler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
