Toyota Stout
1979-03 → 2000-02 · chassis RK110,YK110 · catalogue 681220 · General
Discontinued model
Data version 2001-01

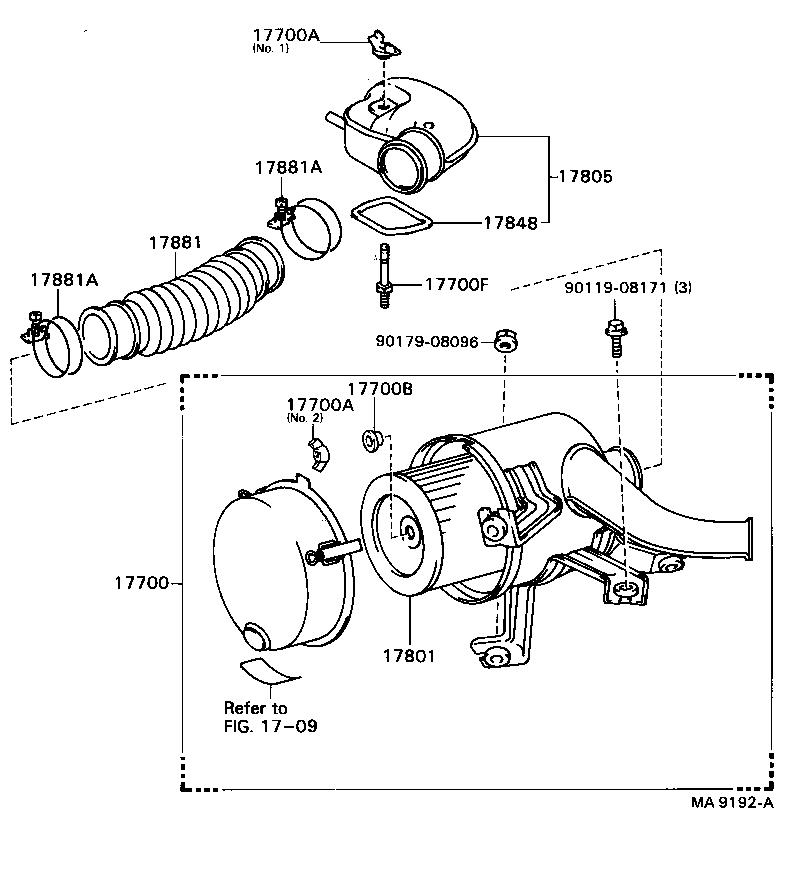

Air Cleaner
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17700 | Cleaner Assy, Air |
| 17700A | Nut, Wing(FOR AIR CLEANER) |
| 17700B | Washer, Seal(FOR AIR CLEANER) |
| 17700F | Bolt, Stud(FOR AIR CLEANER SETTING) |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17805 | Connector Sub-assy, Intake Air |
| 17848 | Gasket, Air Cleaner TO Carburetor |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
