Toyota Stout
1979-03 → 2000-02 · chassis RK110,YK110 · catalogue 681220 · General
Discontinued model
Data version 2001-01

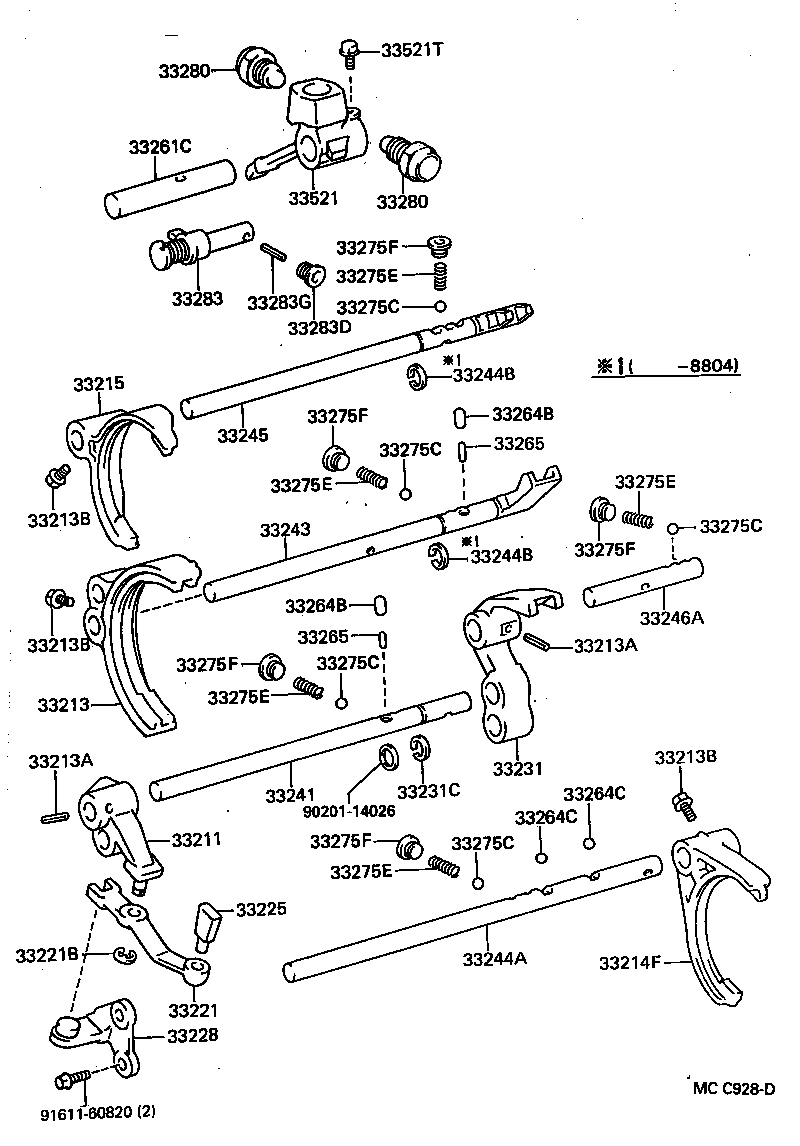

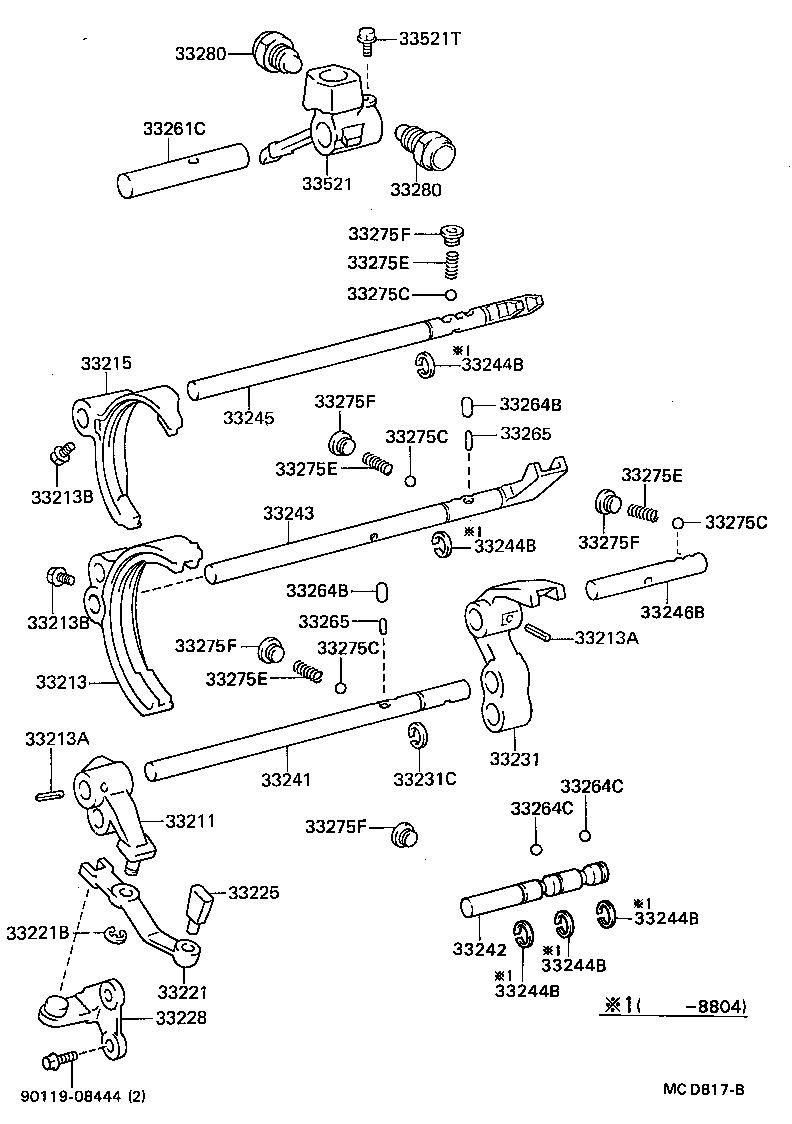

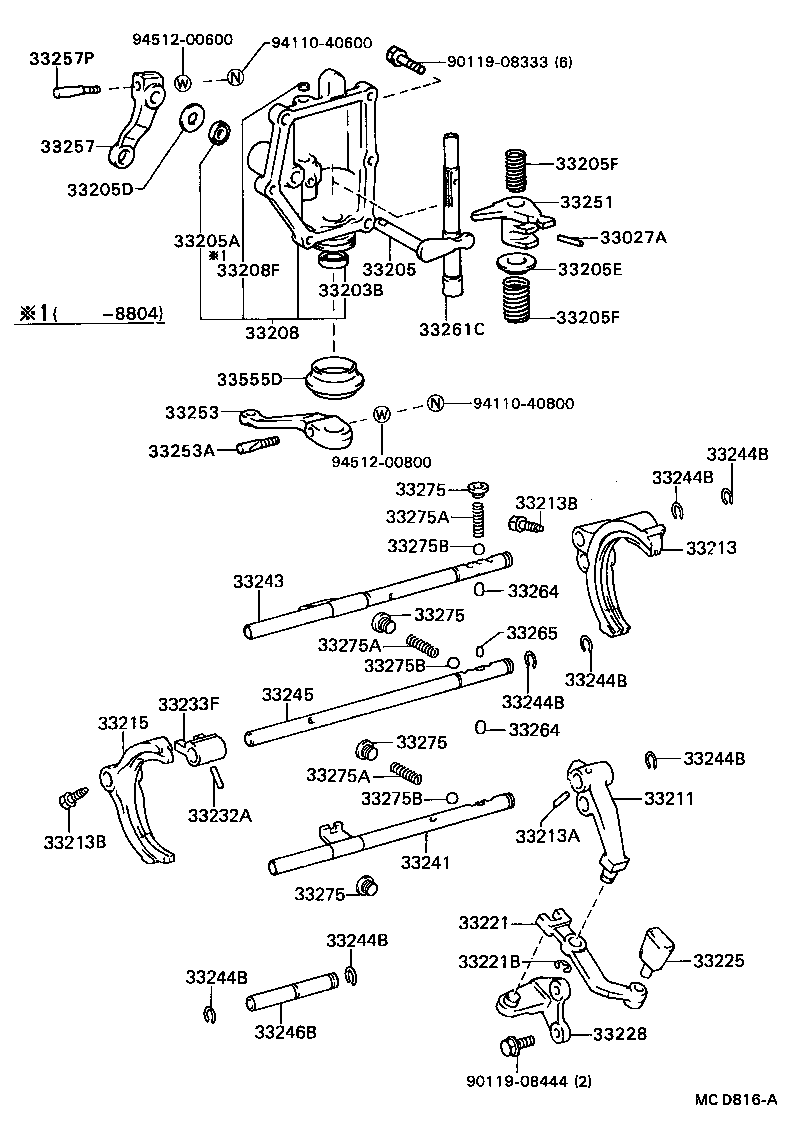

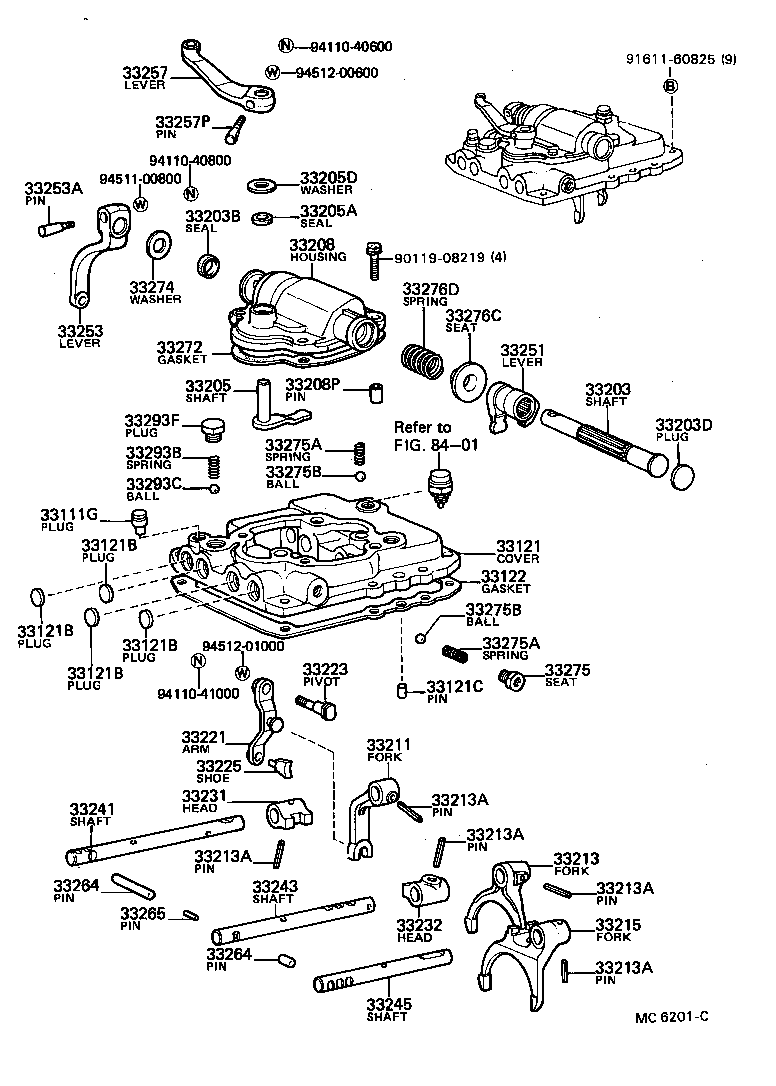

Gear Shift Fork & Lever Shaft (MTM)
70 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 33027A | Pin, Slotted Spring(FOR SHIFT LEVER SHAFT SET) |
| 33111G | Plug, Breather(FOR MANUAL TRANSMISSION) |
| 33121 | Cover, Manual Transmission Case |
| 33121B | Plug, Expansion OR Tight(FOR TRANSMISSION CASE COVER) |
| 33121C | Pin(FOR TRANSMISSION CASE COVER) |
| 33122 | Gasket, Manual Transmission Case Cover |
| 33203 | Shaft Sub-assy, Shift Lever, NO.1 |
| 33203B | Seal, Oil(FOR SHIFT LEVER SHAFT) |
| 33203D | Plug, Tight(FOR SHIFT LEVER SHAFT) |
| 33205 | Shaft Sub-assy, Select Lever |
| 33205A | Seal, Oil(FOR SHIFT LEVER NO.2 SHAFT) |
| 33205D | Washer(FOR OUTER LEVER OIL SETTING) |
| 33205E | Seat(FOR SELECT RETURN SPRING) |
| 33205F | Spring, Compression(FOR SELECT RETURN) |
| 33208 | Housing Sub-assy, Shift Lever Shaft |
| 33208P | Pin, Ring(FOR SHIFT LEVER SHAFT HOUSING) |
| 33211 | Fork, Reverse Shift |
| 33213 | Fork, 1ST & 2ND Shift |
| 33213A | Pin, Slotted Spring(FOR SHIFT FORK SET) |
| 33213B | Bolt(FOR SHIFT FORK SET) |
| 33214F | Fork, 5TH Shift |
| 33215 | Fork, 3RD & 4TH Shift |
| 33221 | Arm, Reverse Shift |
| 33221B | Ring, E(FOR REVERSE SHIFT ARM) |
| 33223 | Pivot, Shift Arm |
| 33225 | Shoe, Shift Arm |
| 33228 | Bracket, Reverse Shift Arm |
| 33231 | Head, Reverse Shift |
| 33231C | Ring(FOR REVERSE SHIFT HEAD) |
| 33232 | Head, 1ST & 2ND Shift |
| 33232A | Pin, Slotted Spring (FOR SHIFT HEAD SET) |
| 33233F | Head, 3RD & 4TH Shift |
| 33241 | Shaft, Reverse Shift Fork |
| 33242 | Shaft, Gear Shift Fork, NO.1 |
| 33243 | Shaft, 1ST & 2ND Shift Fork |
| 33244A | Shaft, 5TH Shift Fork |
| 33244B | Ring, Shaft Snap (FOR SHIFT FORK SHAFT) |
| 33245 | Shaft, 3RD & 4TH Shift Fork |
| 33246A | Shaft, Reverse & 5TH Shift Head |
| 33246B | Shaft, Reverse Shift Head |
| 33251 | Lever, Shift & Select |
| 33253 | Lever, Shift Outer, NO.1 |
| 33253A | Pin, Lever Lock (FOR SHIFT OUTER LEVER) |
| 33257 | Lever, Select Outer |
| 33257P | Pin, Select Outer Lever Lock |
| 33261C | Shaft, Shift & Select Lever |
| 33264 | Pin, OR Ball, Shift Interlock, NO.1 |
| 33264B | Roller, NO.1 (FOR SHIFT INTERLOCK ) |
| 33264C | Ball (FOR SHIFT INTERLOCK) |
| 33265 | Pin, Shift Interlock, NO.2 |
| 33272 | Gasket, Shift Lever Shaft Housing |
| 33274 | Washer, Shift Lever Shaft Housing, NO.2 |
| 33275 | Seat, Shift Detent Ball Spring, NO.1 |
| 33275A | Spring, Compression (FOR SHIFT DETENT BALL LOW SIDE) |
| 33275B | Ball, Shaft Detent |
| 33275C | Ball (FOR SHIFT DETENT) |
| 33275E | Spring, Compression (FOR SHIFT DETENT BALL) |
| 33275F | Plug (FOR SHIFT DETENT BALL) |
| 33276C | Seat, Select Spring |
| 33276D | Spring, Compression (FOR SELECT LEVER SHAFT) |
| 33280 | Pin Assy, Reverse Restrict |
| 33283 | Pin, Reverse Restrict, NO.1 |
| 33283D | Plug (FOR REVERSE RESTRICT PIN) |
| 33283G | Pin, Slotted Spring (FOR REVERSE RESTRICT PIN) |
| 33293B | Spring, Compression (FOR REVERSE RESTRICT BALL) |
| 33293C | Ball (FOR REVERSE RESTRICT) |
| 33293F | Plug (FOR REVERSE RESTRICT BALL HOLDER) |
| 33521 | Housing, Shift Lever |
| 33521T | Bolt (FOR SHIFT LEVER HOUSING) |
| 33555D | Boot, Shift Lever |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
