Toyota Stout

1979-03 → 2000-02 · chassis RK110,YK110 · catalogue 681220 · General

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

17 part groups · 2 illustrations

Illustrations

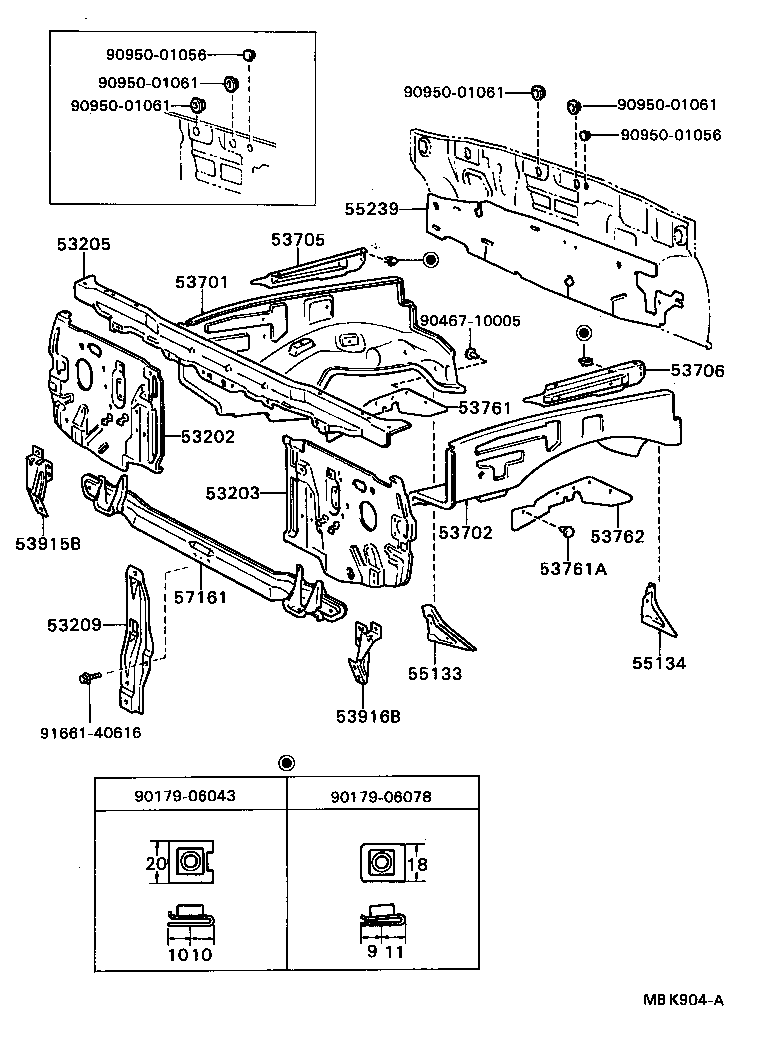

Figure MB8794G MB8794G 1979-03 → 1986-09 Figure MBK904A MBK904A 1986-09 → —

Part groups

PNCDescription
53202 Support Sub-assy, Radiator, RH
53203 Support Sub-assy, Radiator, LH
53205 Support Sub-assy, Radiator, Upper
53209 Brace Sub-assy, Hood Lock
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
53705 Reinforcement Sub-assy, Front Fender Apron, Rear RH
53706 Reinforcement Sub-assy, Front Fender Apron, Rear LH
53761 Mudguard, RH
53761A Retainer(FOR MUDGUARD)
53762 Mudguard, LH
53915B Brace, Valance Panel TO Radiator Support, RH
53916B Brace, Valance Panel TO Radiator Support, LH
55133 Plate, Front Fender Apron Set, Lower RH
55134 Plate, Front Fender Apron Set, Lower LH
55239 Silencer, Steering Column Hole Cover
57161 Crossmember, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
