Toyota Stout
1979-03 → 2000-02 · chassis RK110,YK110 · catalogue 681220 · General
Discontinued model
Data version 2001-01

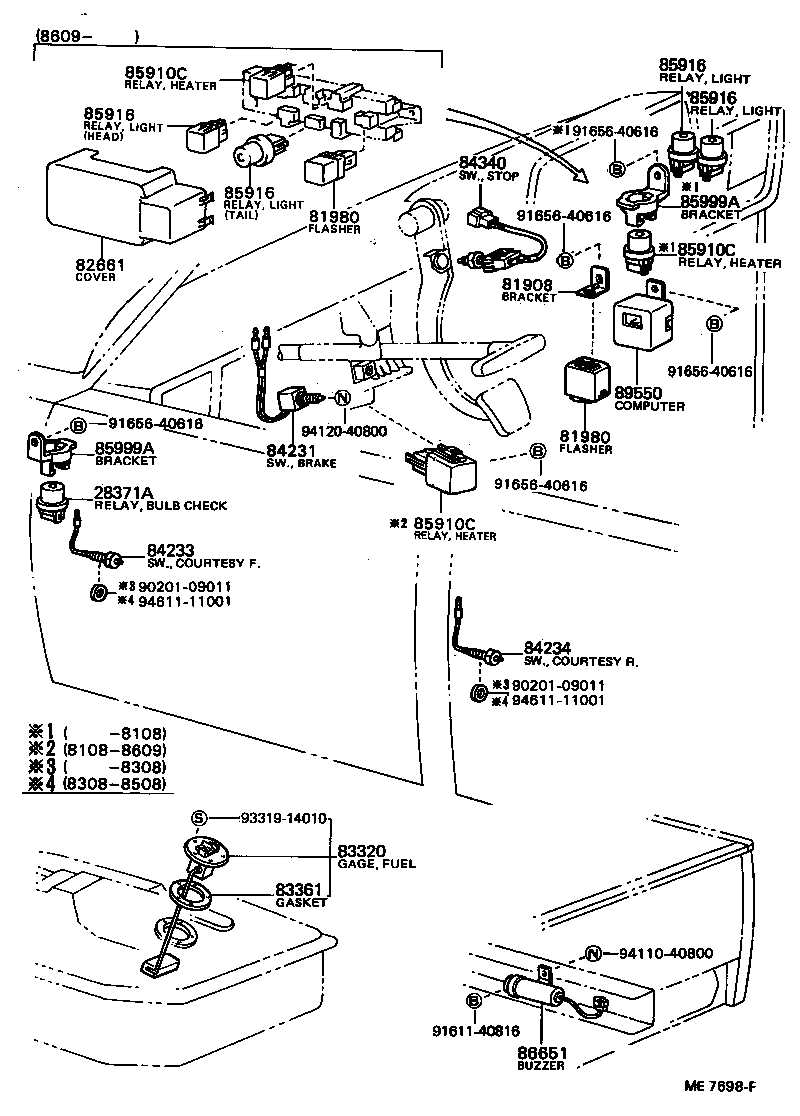

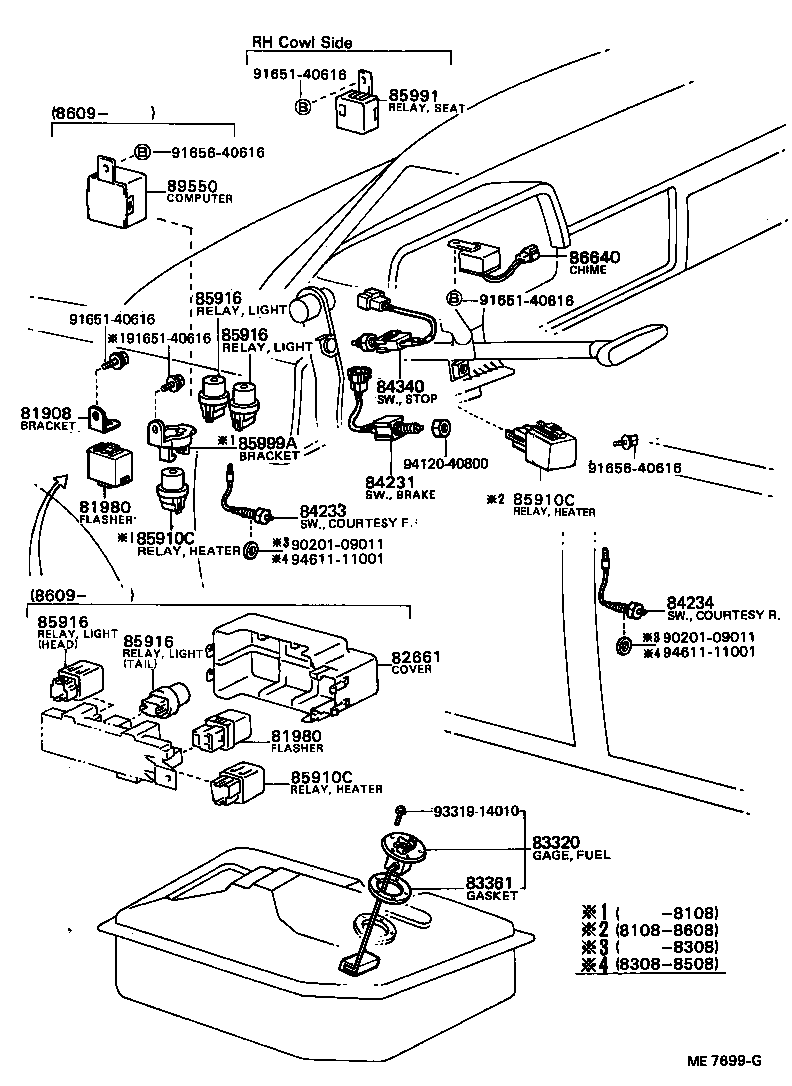

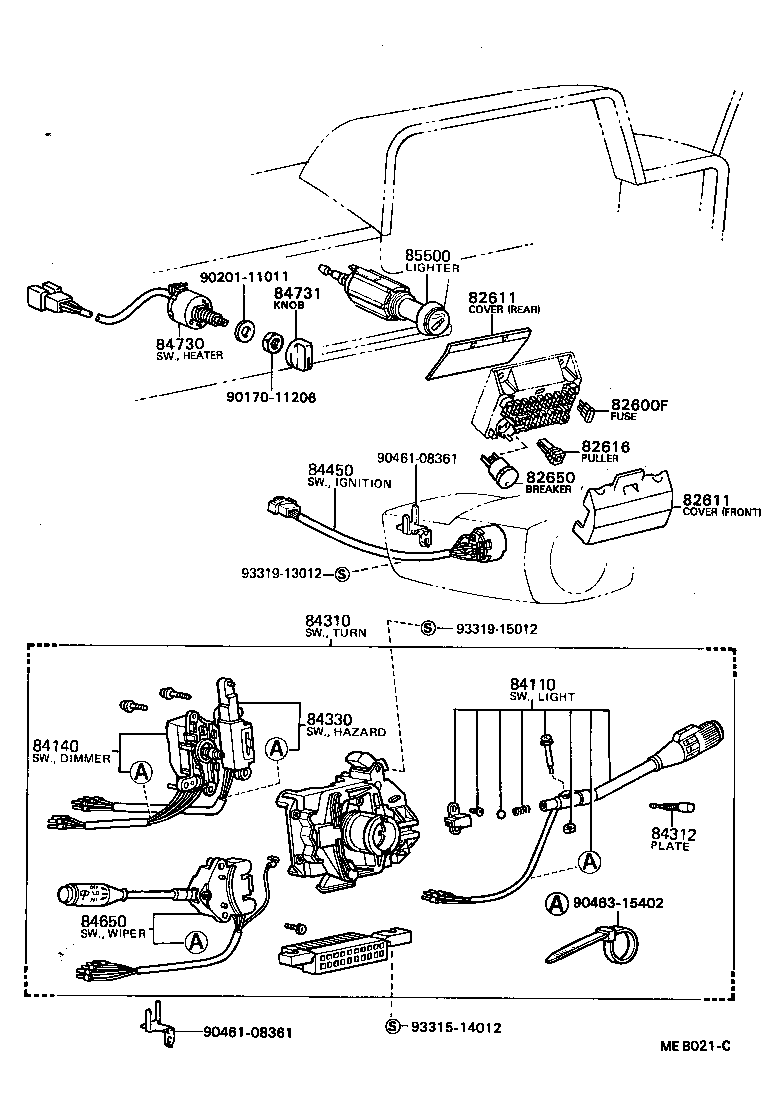

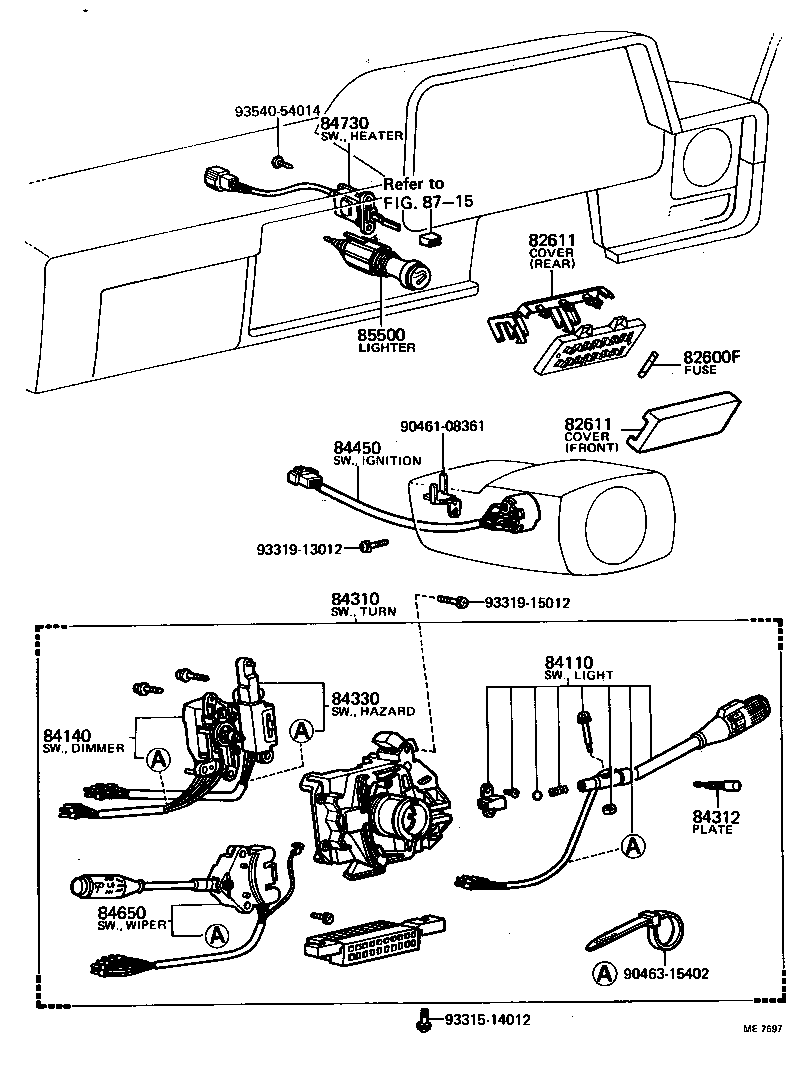

Switch & Relay & Computer
37 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 27700 | Regulator Assy, Generator |
| 28371A | Relay, Bulb Check |
| 81908 | Bracket Sub-assy, Flasher |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82611 | Cover, Fuse Block |
| 82616 | Puller, Fuse |
| 82650 | Breaker Assy, Wiring Circuit, NO.1 |
| 82661 | Cover, Relay Block, NO.1 |
| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83391 | Switch, Vacuum |
| 83399 | Bracket, Vacuum Switch |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84110 | Switch Assy, Light Control, NO.1 |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84210 | Switch Assy, Back-up Lamp |
| 84231 | Switch Assy, Courtesy Lamp (FOR PARKING BRAKE) |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84650 | Switch Assy, Windshield Wiper |
| 84730 | Switch Assy, Heater Blower |
| 84731 | Knob, Heater Blower Switch |
| 85500 | Lighter Assy, Cigarette |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85916 | Relay, Light Control |
| 85991 | Relay, Seat Belt Warning |
| 85999A | Bracket, Relay, NO.2 |
| 86640 | Chime Assy |
| 86651 | Buzzer Assy, Back |
| 89550 | Computer Assy, Emission Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
