Toyota Hiace
1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · General
Discontinued model
Data version 1983-06

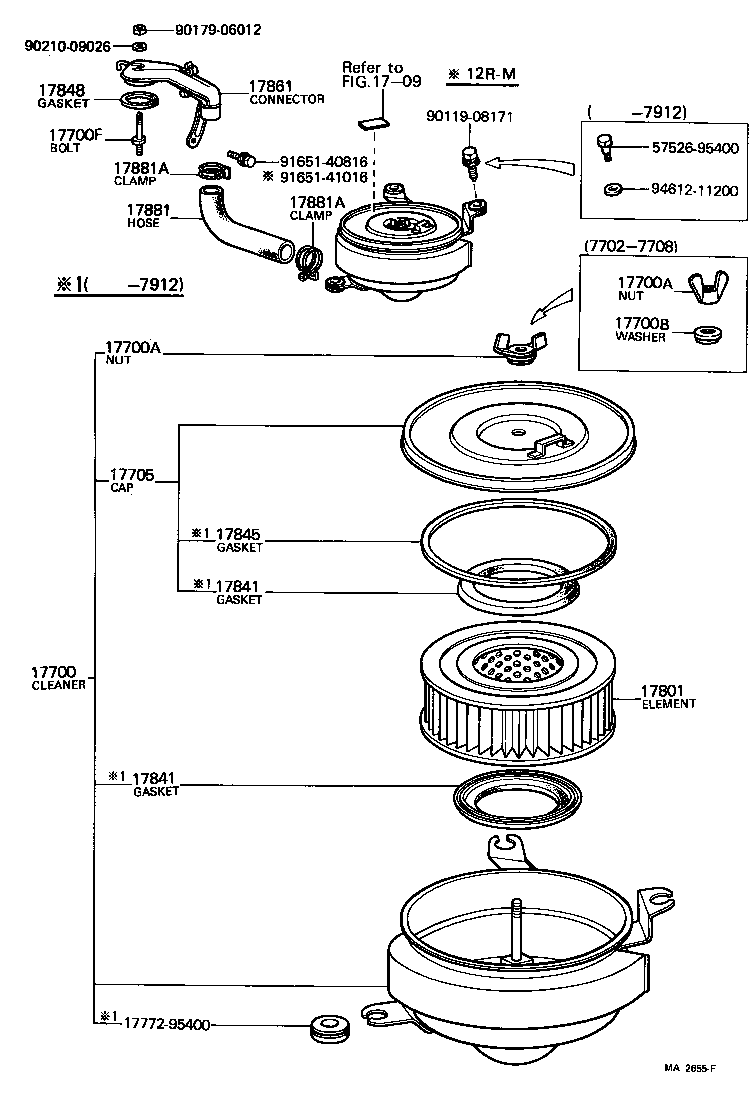

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17700 — Cleaner Assy, Air | ||||
| 17700-31350 note |
Cleaner Assy, Air
1977-07 → 1979-12
ended
|
18R RH22,32,42 ARL,GEN,SA | — | |
| 17700-31350 note |
Cleaner Assy, Air
1977-08 → 1979-12
ended
|
12R RH11,20,30 GEN | — | |
| 17700-31351 note |
Cleaner Assy, Air
1979-12 → 1982-11
ended
|
12R RH11,20,30 GEN | — | |
| 17700-31351 note |
Cleaner Assy, Air
1979-12 → 1982-11
ended
|
18R RH22,32,42 GEN,SA | — | |
| 17700-54100 note |
Cleaner Assy, Air
1979-09 → 1980-01
ended
|
L LH20,30 GEN | — | |
| 17700-54101 note |
Cleaner Assy, Air
1980-01 → 1980-05
ended
|
L LH20,30 GEN | — | |
| 17700-54101 note |
Cleaner Assy, Air
1980-05 → 1980-12
ended
|
L LH11,20,30 | — | |
| 17700-54130 |
Cleaner Assy, Air
1980-12 → 1982-11
ended
|
L LH11,20,30 | — | |
| 17710-31280 note |
Cleaner Assy, Air
1977-02 → 1978-08
ended
|
12R RH11,20 ARL | — | |
| 17710-31281 note |
Cleaner Assy, Air
1978-08 → 1979-12
ended
|
12R RH11,20 ARL | — | |
| 17710-31282 note |
Cleaner Assy, Air
1979-12 → 1982-11
ended
|
12R RH11,20 ARL | — | |
| 17710-31300 |
Cleaner Assy, Air
1977-02 → 1978-08
ended
|
12R# RH11,20,30 | — | |
| 17710-31500 note |
Cleaner Assy, Air
1981-02 → 1982-11
ended
|
18R RH25,32 EUR | — | |
| 17710-31500 note |
Cleaner Assy, Air
1981-02 → 1982-11
ended
|
12R RH11,20,30 EUR | — | |
| 17710-34280 note |
Cleaner Assy, Air
1977-06 → 1979-12
ended
|
18R RH22,32 ARL | — | |
| 17710-34281 note |
Cleaner Assy, Air
1979-12 → 1982-11
ended
|
18R RH22,32 ARL | — | |
| 17710-34290 |
Cleaner Assy, Air
1978-08 → 1979-12
ended
|
12R# RH11,20,30 | — | |
| 17710-34290 note |
Cleaner Assy, Air
1977-02 → 1979-12
ended
|
18R RH22,32,42 BUS,V | — | |
| 17710-34291 |
Cleaner Assy, Air
1979-12 → 1982-11
ended
|
12R RH11,20,30 | — | |
| 17710-34291 note |
Cleaner Assy, Air
1979-12 → 1982-11
ended
|
18R RH22,32,42 BUS,V | — | |
| 17710-34300 note |
Cleaner Assy, Air
1977-07 → 1979-12
ended
|
18R RH32 EUR | — | |
| 17710-34301 note |
Cleaner Assy, Air
1979-12 → 1981-02
ended
|
18R RH25,32 EUR | — | |
| 17710-54020 note |
Cleaner Assy, Air
1979-01 → 1980-12
ended
|
L LH11,20,30 | — | |
| 17700A — Nut, Wing(FOR AIR CLEANER) | ||||
| 90175-06003 |
Nut, Wing(FOR AIR CLEANER)
1977-08 → 1982-11
ended
|
L LH11,20,30 | — | |
| 90175-06003 |
Nut, Wing(FOR AIR CLEANER)
1977-08 → 1982-11
ended
|
12R#,18R RH11,2#,3#,42 | — | |
| 90175-06026 |
Nut, Wing(FOR AIR CLEANER)
1977-02 → 1977-08
ended
|
12R,18R RH11,2#,3#,42 | — | |
| 17700B — Washer, Seal(FOR AIR CLEANER) | ||||
| 90210-09026 |
Washer, Seal(FOR AIR CLEANER)
1977-02 → 1977-08
ended
|
12R,18R RH11,2#,3#,42 | — | |
| 17700F — Bolt, Stud(FOR AIR CLEANER SETTING) | ||||
| 90116-06230 |
Bolt, Stud(FOR AIR CLEANER SETTING)
1978-08 → 1982-11
ended
|
12R# RH11,20,30 | — | |
| 90116-06230 note |
Bolt, Stud(FOR AIR CLEANER SETTING)
1977-08 → 1978-08
ended
|
12R RH11,20,30 GEN | — | |
| 90116-06309 note |
Bolt, Stud(FOR AIR CLEANER SETTING)
1977-02 → 1978-08
ended
|
12R#,18R RH11,2#,3#,42 | — | |
| 90116-06309 |
Bolt, Stud(FOR AIR CLEANER SETTING)
1978-08 → 1982-11
ended
|
18R RH22,25,32,42 | — | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-31050 |
Cap Sub-assy, Air Cleaner
1977-02 → 1977-04
ended
|
12R,18R RH11,2#,3#,42 | — | |
| 17705-34220 note |
Cap Sub-assy, Air Cleaner
1979-01 → 1979-11
ended
|
L LH11,20,30 | — | |
| 17705-34220 |
Cap Sub-assy, Air Cleaner
1977-04 → 1979-12
ended
|
12R#,18R RH11,2#,3#,42 | — | |
| 17705-34221 |
Cap Sub-assy, Air Cleaner
1979-12 → 1982-11
ended
|
12R,18R RH11,2#,3#,42 | — | |
| 17705-54040 note |
Cap Sub-assy, Air Cleaner
1979-11 → 1980-05
ended
|
L LH11,20,30 | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-23020 note |
Element Sub-assy, Air Cleaner Filter
1981-02 → 1982-11
ended
|
12R RH11,20,30 EUR | — | |
| 17801-23020 |
Element Sub-assy, Air Cleaner Filter
1977-02 → 1982-11
ended
|
12R#,18R RH11,2#,3#,42 BUS,TR,V | — | |
| 17801-31040 note |
Element Sub-assy, Air Cleaner Filter
1977-08 → 1979-12
ended
|
12R RH11,20,30 GEN | — | |
| 17801-31040 note |
Element Sub-assy, Air Cleaner Filter
1977-07 → 1979-12
ended
|
18R RH22,32,42 ARL,GEN,SA | — | |
| 17801-54010 note |
Element Sub-assy, Air Cleaner Filter
1979-01 → 1980-12
ended
|
L LH11,20,30 | — | |
| 17801-54040 note |
Element Sub-assy, Air Cleaner Filter
1979-12 → 1982-09
ended
|
12R RH11,20,30 GEN | — | |
| 17801-54040 note |
Element Sub-assy, Air Cleaner Filter
1979-09 → 1980-05
ended
|
L LH20,30 GEN | — | |
| 17801-54040 note |
Element Sub-assy, Air Cleaner Filter
1979-12 → 1982-11
ended
|
18R RH22,32,42 GEN,SA | — | |
| 17801-54040 note |
Element Sub-assy, Air Cleaner Filter
1980-05 → 1982-11
ended
|
L LH11,20,30 | — | |
| 17801-64030 note |
Element Sub-assy, Air Cleaner Filter
1982-09 → 1982-11
ended
|
12R RH11,20,30 GEN | — | |
| 17841 — Gasket, Filter Element | ||||
| 17841-20020 note |
Gasket, Filter Element
1977-02 → 1979-11
ended
|
12R#,18R RH11,2#,3#,42 | — | |
| 17841-20020 note |
Gasket, Filter Element
1977-02 → 1979-11
ended
|
L LH11,20,30 | — | |
| 17841-31010 note |
Gasket, Filter Element
1977-02 → 1979-11
ended
|
L LH11,20,30 | — | |
| 17841-31010 note |
Gasket, Filter Element
1977-02 → 1979-11
ended
|
12R#,18R RH11,2#,3#,42 | — | |
| 17841-54010 note |
Gasket, Filter Element
1979-01 → 1980-05
ended
|
L LH11,20,30 | — | |
| 17845 — Gasket, Air Cleaner Cap | ||||
| 17845-31030 |
Gasket, Air Cleaner Cap
1977-02 → 1979-11
ended
|
L LH11,20,30 | — | |
| 17845-31030 |
Gasket, Air Cleaner Cap
1977-02 → 1979-11
ended
|
12R#,18R RH11,2#,3#,42 | — | |
| 17845-54010 note |
Gasket, Air Cleaner Cap
1979-01 → 1980-05
ended
|
L LH11,20,30 | — | |
| 17848 — Gasket, Air Cleaner TO Carburetor | ||||
| 90430-63187 |
Gasket, Air Cleaner TO Carburetor
1977-02 → 1982-11
ended
|
12R# RH11,20,30 | — | |
| 90430-72114 |
Gasket, Air Cleaner TO Carburetor
1977-02 → 1979-12
ended
|
18R RH22,32,42 | — | |
| 17861 — Connector, Intake Air | ||||
| 17770-95A00 |
Connector, Intake Air
1979-01 → 1980-12
ended
|
L LH11,20,30 | — | |
| 17861-31070 |
Connector, Intake Air
1977-02 → 1978-08
ended
|
12R RH11,20,30 | — | |
| 17861-31071 |
Connector, Intake Air
1978-08 → 1982-11
ended
|
12R RH11,20,30 | — | |
| 17861-31080 note |
Connector, Intake Air
1977-08 → 1978-08
ended
|
12R RH11,20,30 GEN | — | |
| 17861-31081 note |
Connector, Intake Air
1978-08 → 1982-11
ended
|
12R RH11,20,30 GEN | — | |
| 17861-31090 |
Connector, Intake Air
1977-11 → 1978-08
ended
|
12RM RH30 | — | |
| 17861-31091 |
Connector, Intake Air
1978-08 → 1979-04
ended
|
12RM RH30 | — | |
| 17861-34010 note |
Connector, Intake Air
1977-06 → 1979-12
ended
|
18R RH22,32 ARL | — | |
| 17861-34011 note |
Connector, Intake Air
1979-12 → 1982-11
ended
|
18R RH22,32 ARL | — | |
| 17861-34030 |
Connector, Intake Air
1977-02 → 1979-08
ended
|
18R RH22,32,42 BUS,V | — | |
| 17861-34031 |
Connector, Intake Air
1979-08 → 1979-12
ended
|
18R RH22,32,42 BUS,V | — | |
| 17861-34032 |
Connector, Intake Air
1979-12 → 1982-11
ended
|
18R RH22,25,32,42 ARL,EUR,GEN | — | |
| 17861-34060 note |
Connector, Intake Air
1977-07 → 1979-11
ended
|
18R RH22,32,42 ARL,GEN,SA | — | |
| 17861-34060 note |
Connector, Intake Air
1979-11 → 1979-12
ended
|
18R RH22,32,42 GEN,SA | — | |
| 17861-34061 note |
Connector, Intake Air
1979-12 → 1982-11
ended
|
18R RH22,32,42 GEN,SA | — | |
| 17881 — Hose, Air Cleaner, NO.1 | ||||
| 17881-23020 note |
Hose, Air Cleaner, NO.1
1977-07 → 1981-02
ended
|
18R RH25,32 EUR | — | |
| 17881-23020 note |
Hose, Air Cleaner, NO.1
1977-06 → 1982-11
ended
|
18R RH22,32 ARL | — | |
| 17881-31050 |
Hose, Air Cleaner, NO.1
1978-08 → 1982-11
ended
|
12R# RH11,20,30 | — | |
| 17881-54030 note |
Hose, Air Cleaner, NO.1
1979-01 → 1980-12
ended
|
L LH11,20,30 | — | |
| 17881-54090 note |
Hose, Air Cleaner, NO.1
1980-05 → 1982-11
ended
|
L LH11,20,30 | — | |
| 17881-54090 note |
Hose, Air Cleaner, NO.1
1979-09 → 1980-05
ended
|
L LH20,30 GEN | — | |
| 17882-31050 note |
Hose, Air Cleaner, NO.1
1981-02 → 1982-11
ended
|
18R RH25,32 EUR | — | |
| 90910-06034 |
Hose, Air Cleaner, NO.1
1977-02 → 1978-08
ended
|
12R# RH11,20,30 | — | |
| 17881A — Clamp(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-47036 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1977-06 → 1979-12
ended
|
18R RH22,32 ARL | — | |
| 90460-47036 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1977-07 → 1979-12
ended
|
18R RH32 EUR | — | |
| 90460-58001 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1977-02 → 1978-08
ended
|
12R RH11 | — | |
| 90460-69001 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1978-08 → 1979-12
ended
|
12R RH11 | — | |
| 90460-69001 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1979-12 → 1980-02
ended
|
12R RH11,20,30 | — | |
| 96111-10460 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1979-12 → 1982-11
ended
|
18R RH25,32 EUR | — | |
| 96111-10460 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1979-12 → 1982-11
ended
|
18R RH22,32 ARL | — | |
| 96111-10580 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1977-02 → 1978-08
ended
|
12R# RH20,30 | — | |
| 96111-10690 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1978-08 → 1979-12
ended
|
12R# RH20,30 | — | |
| 96111-10690 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1979-01 → 1982-11
ended
|
L LH11,20,30 | — | |
| 96111-10690 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1980-02 → 1982-11
ended
|
12R RH11,20,30 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
