Toyota Hiace
1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · General
Discontinued model
Data version 1983-06

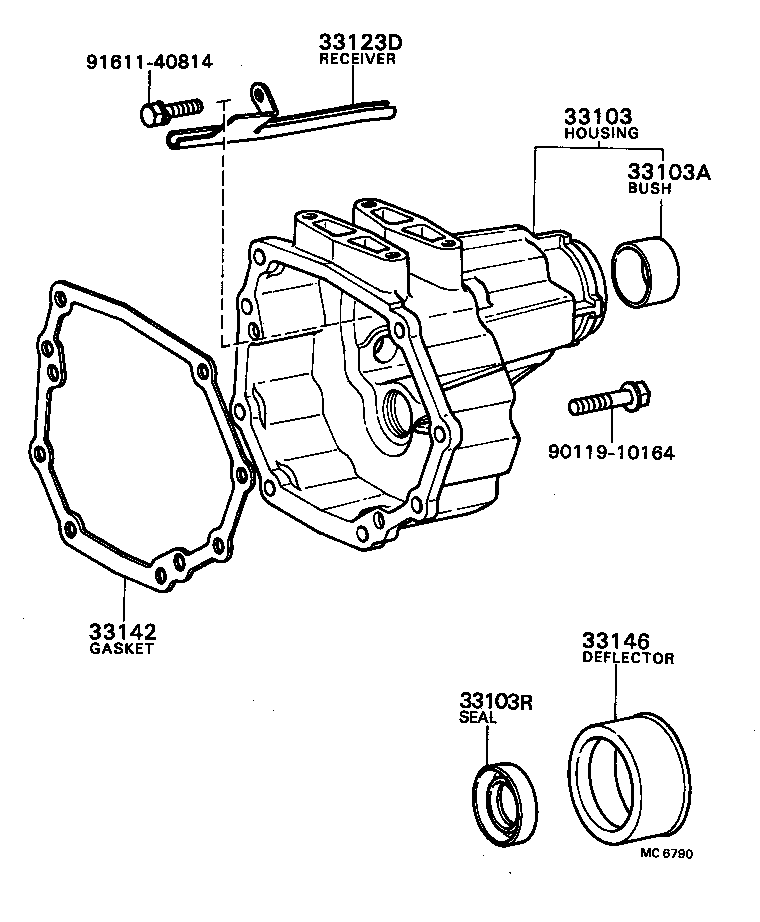

Extension Housing (MTM)
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33103 | Housing Sub-assy, Extension(MTM) |
| 33103A | Bush(FOR MANUAL TRANSMISSION EXTENSION HOUSING) |
| 33103B | Plug, Breather(FOR TRANSMISSION EXTENSION HOUSING) |
| 33103K | Seal Kit, Oil(FOR MANUAL TRANSMISSION EXTENSION HOUSING) |
| 33103R | Seal, Oil(FOR MANUAL TRANSMISSION EXTENSION HOUSING) |
| 33123D | Receiver, Case Cover Oil(MTM) |
| 33142 | Gasket, Extension Housing(MTM) |
| 33145 | Retainer, Extension Housing Dust Seal(MTM) |
| 33145A | Seal, Dust(FOR MANUAL TRANSMISSION EXTENSION HOUSING) |
| 33146 | Deflector, Extension Housing Dust(MTM) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
