Toyota Hiace
1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · General
Discontinued model
Data version 1983-06

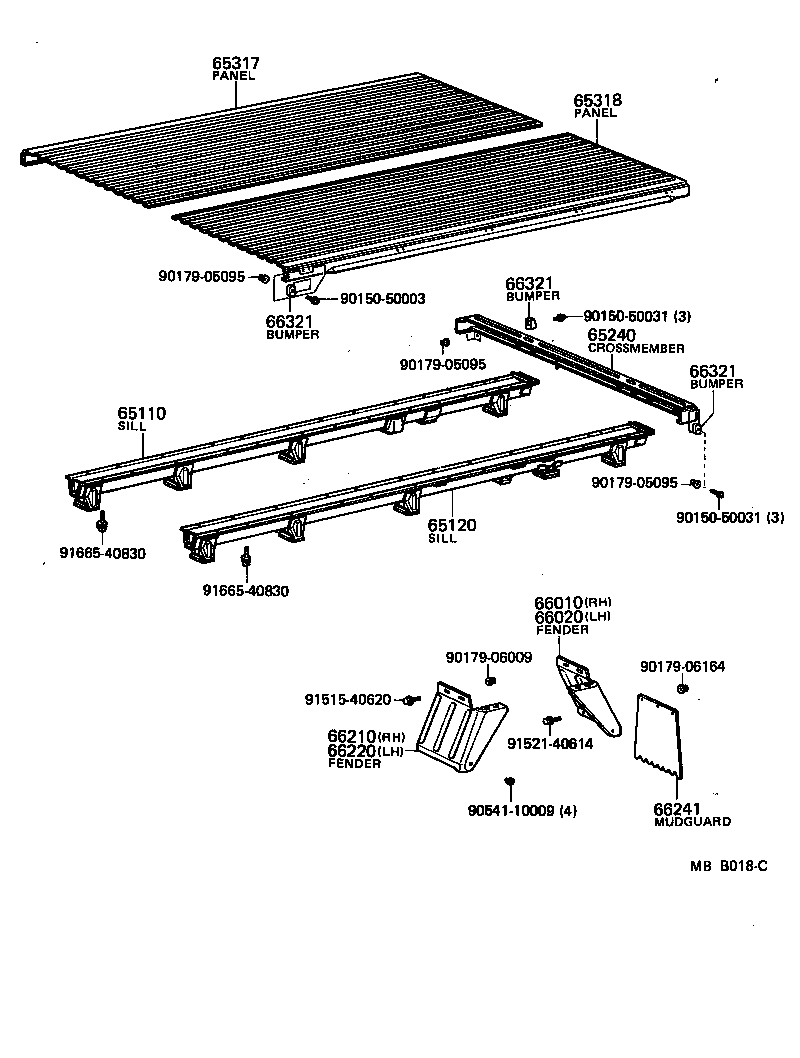

Rear Body Floor & Fender
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 65110 | Sill Assy, Main, RH |
| 65120 | Sill Assy, Main, LH |
| 65240 | Crossmember, Rear Body Floor, Tail |
| 65311 | Panel, Floor, Center |
| 65317 | Panel, Floor Side, RH |
| 65318 | Panel, Floor Side, LH |
| 65351 | Cover, Battery Service Hole |
| 65353 | Packing, Battery Service Hole Cover |
| 65354 | Cover, Fuel Tank Service Hole |
| 65354A | Packing, Fuel Tank Service Hole Cover |
| 66010 | Fender Assy, Rear Body, Rear RH |
| 66020 | Fender Assy, Rear Body, Rear LH |
| 66210 | Fender Assy, Rear Body, Front RH |
| 66220 | Fender Assy, Rear Body, Front LH |
| 66225 | Support, Rear Mudguard, RH |
| 66226 | Support, Rear Mudguard, LH |
| 66241 | Mudguard, Rear |
| 66321 | Bumper, Gate Rubber |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
