Toyota Hiace

1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · General

Discontinued model Data version 1983-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

88 part groups · 10 illustrations

Illustrations

MB6572N 1977-02 → —

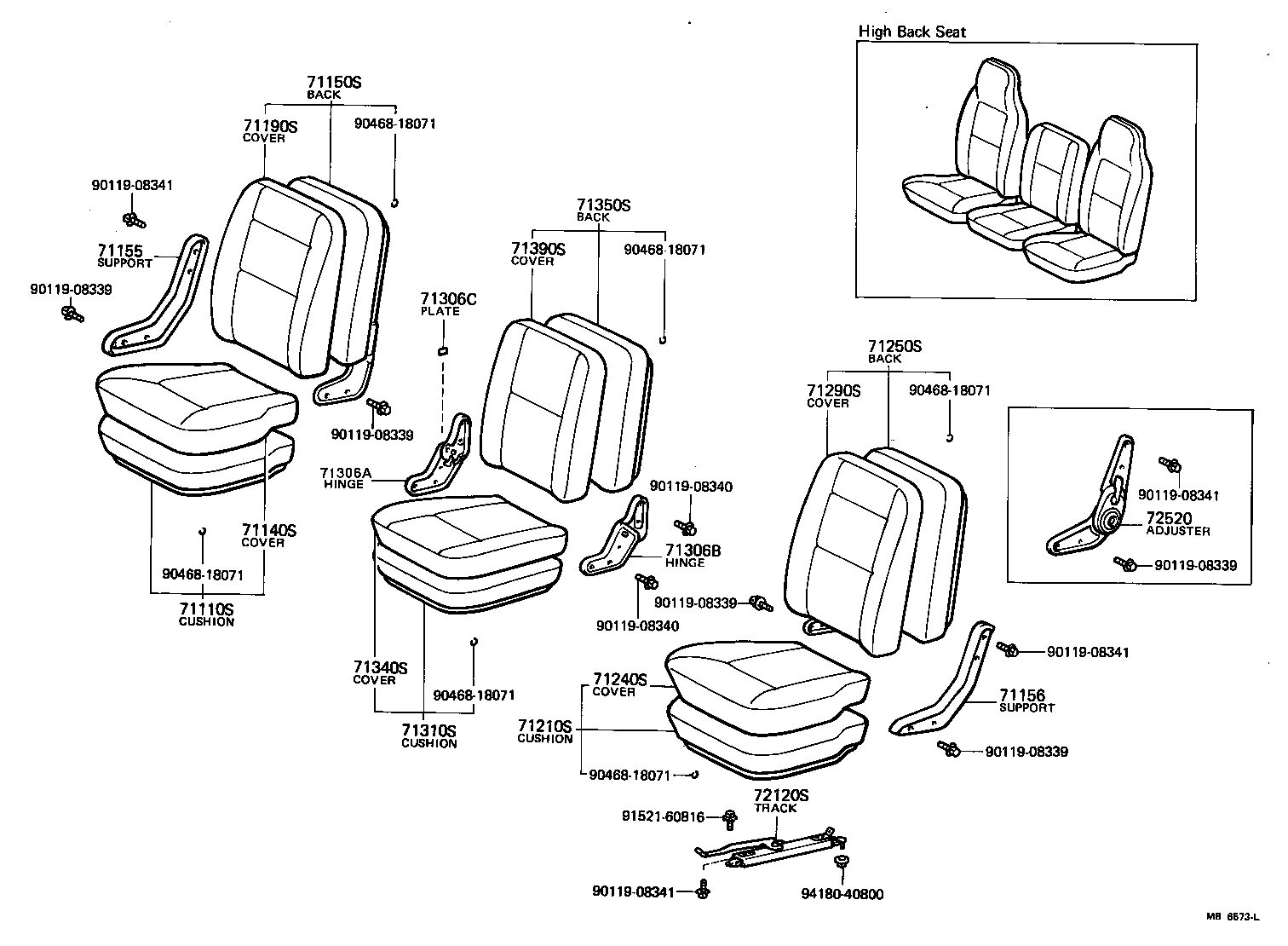

MB6573L 1977-02 → —

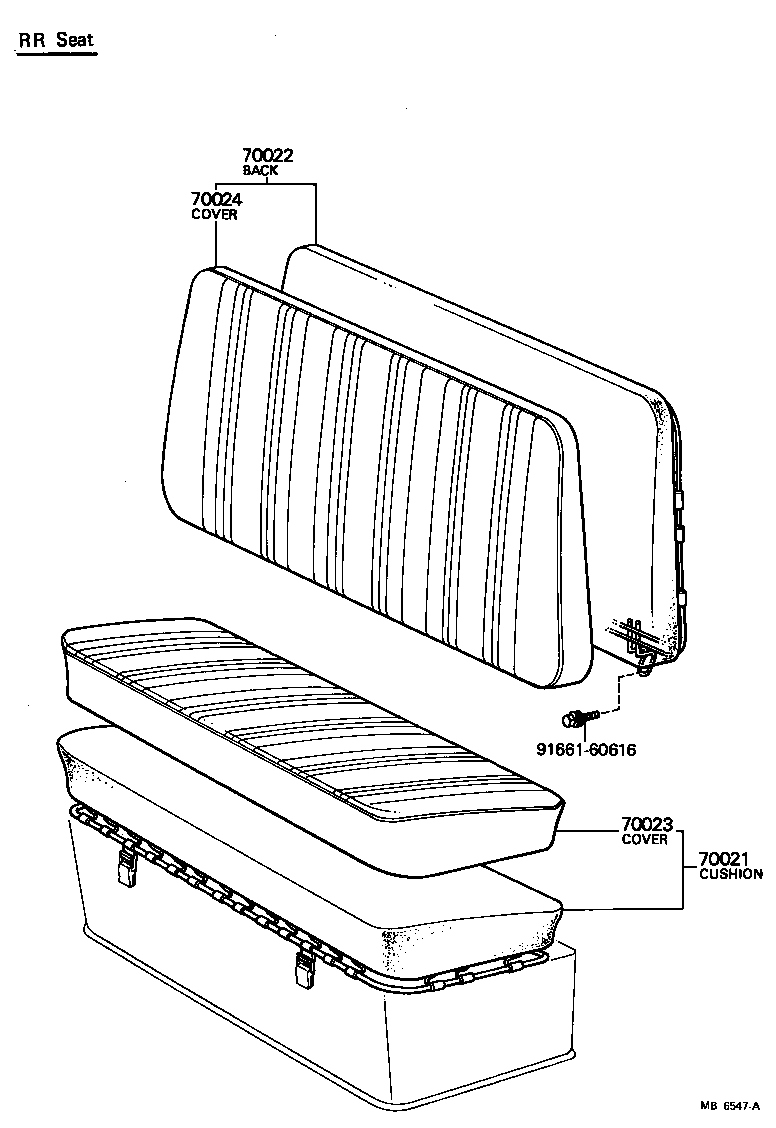

MB6547A 1977-02 → —

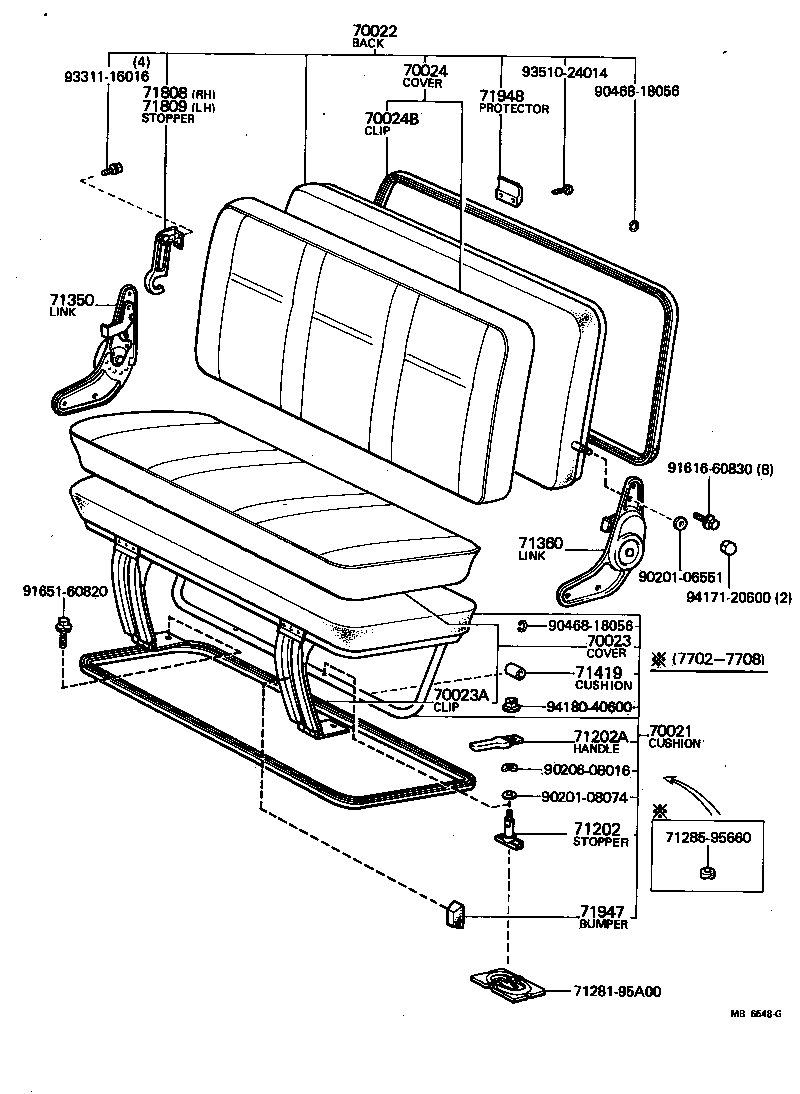

MB6548G 1977-02 → 1979-12

MB6548G 1979-12 → —

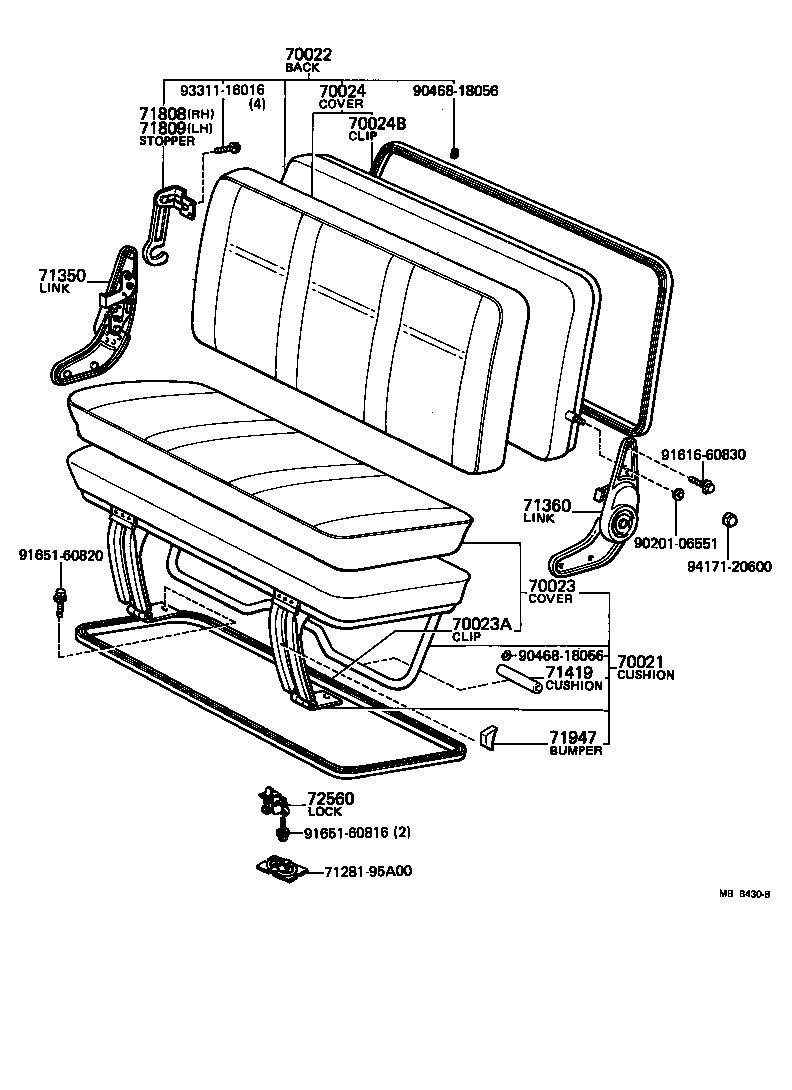

MBB430B 1979-12 → —

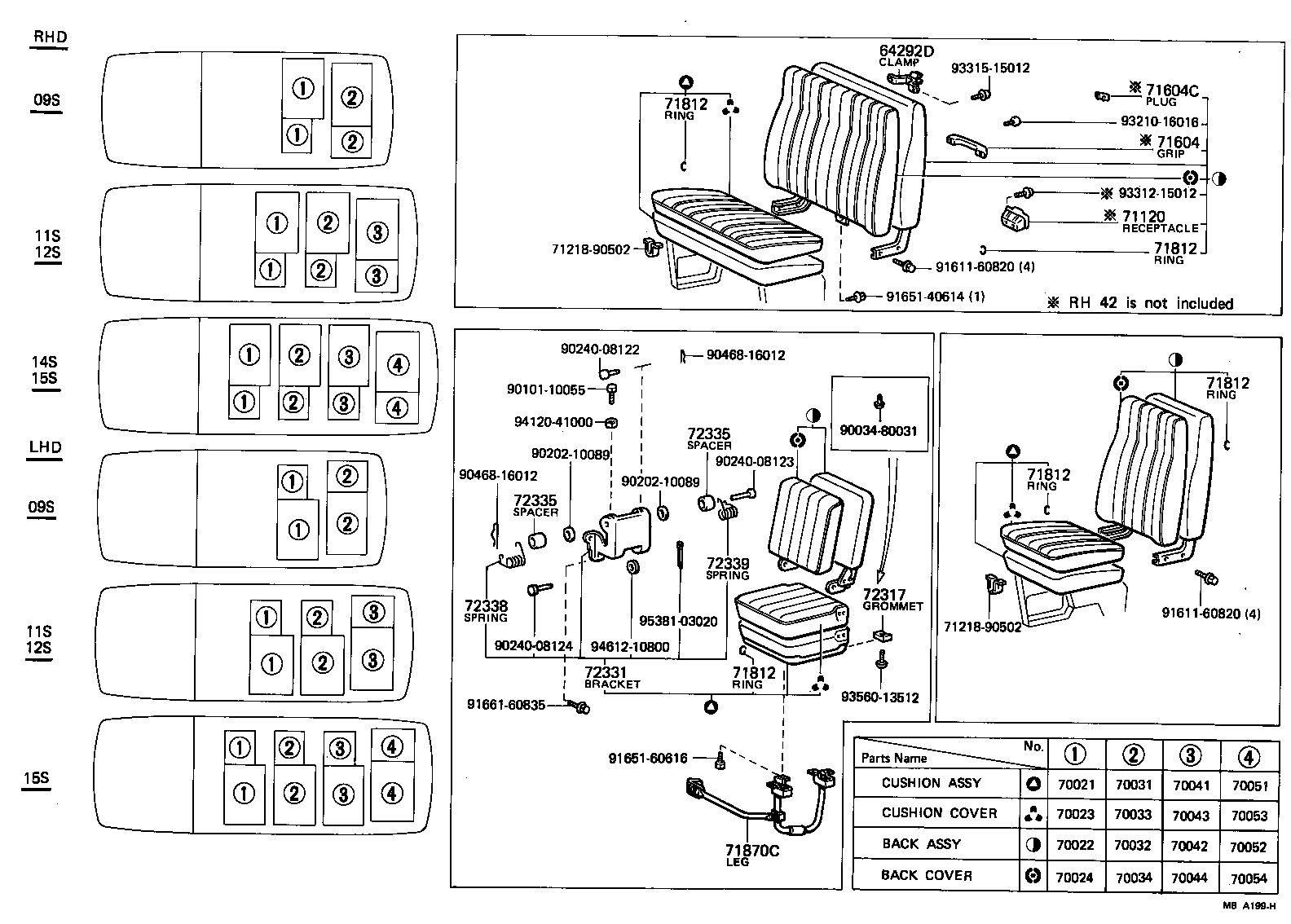

MBA199H 1977-02 → —

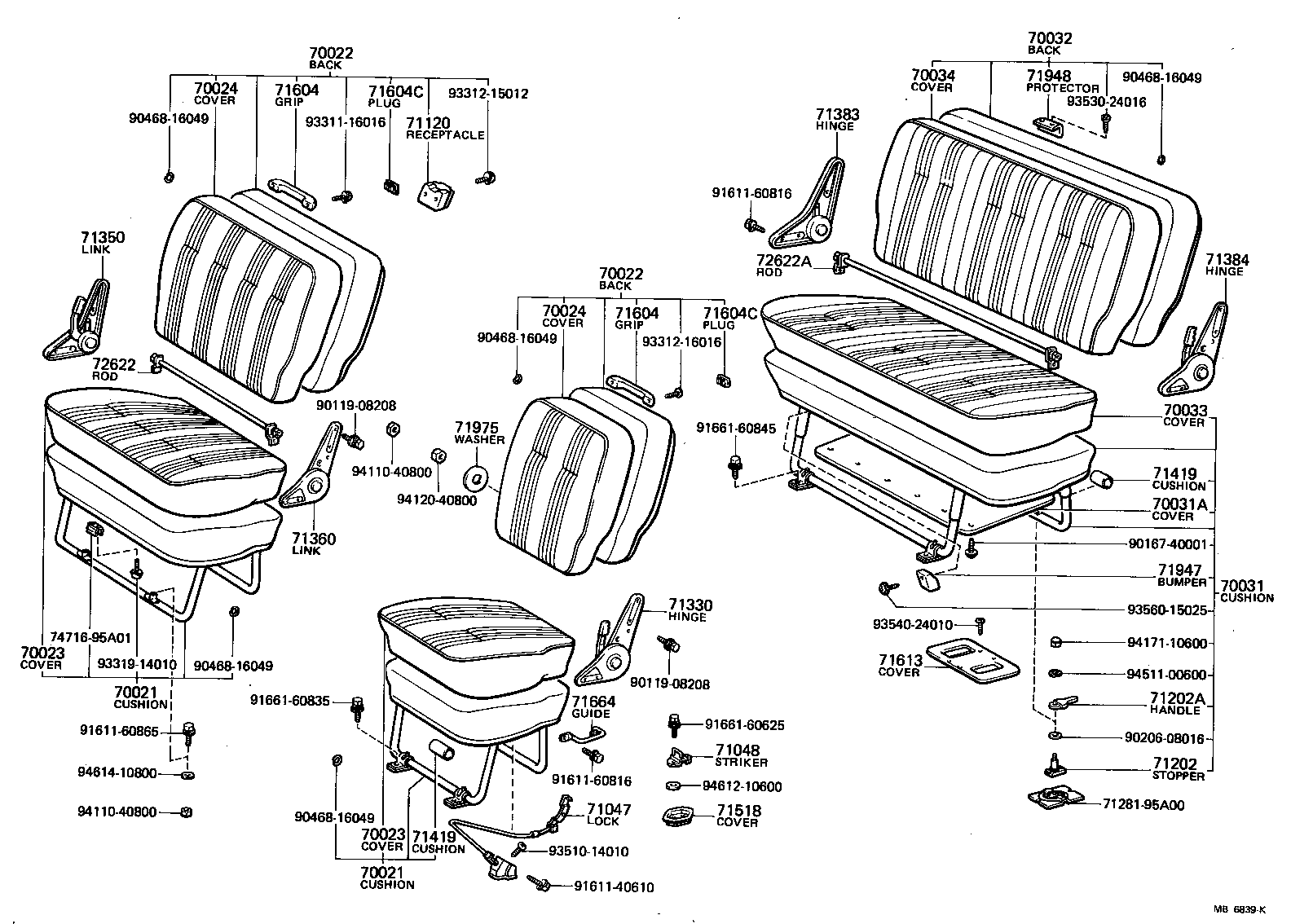

MB6839K 1977-07 → 1979-03

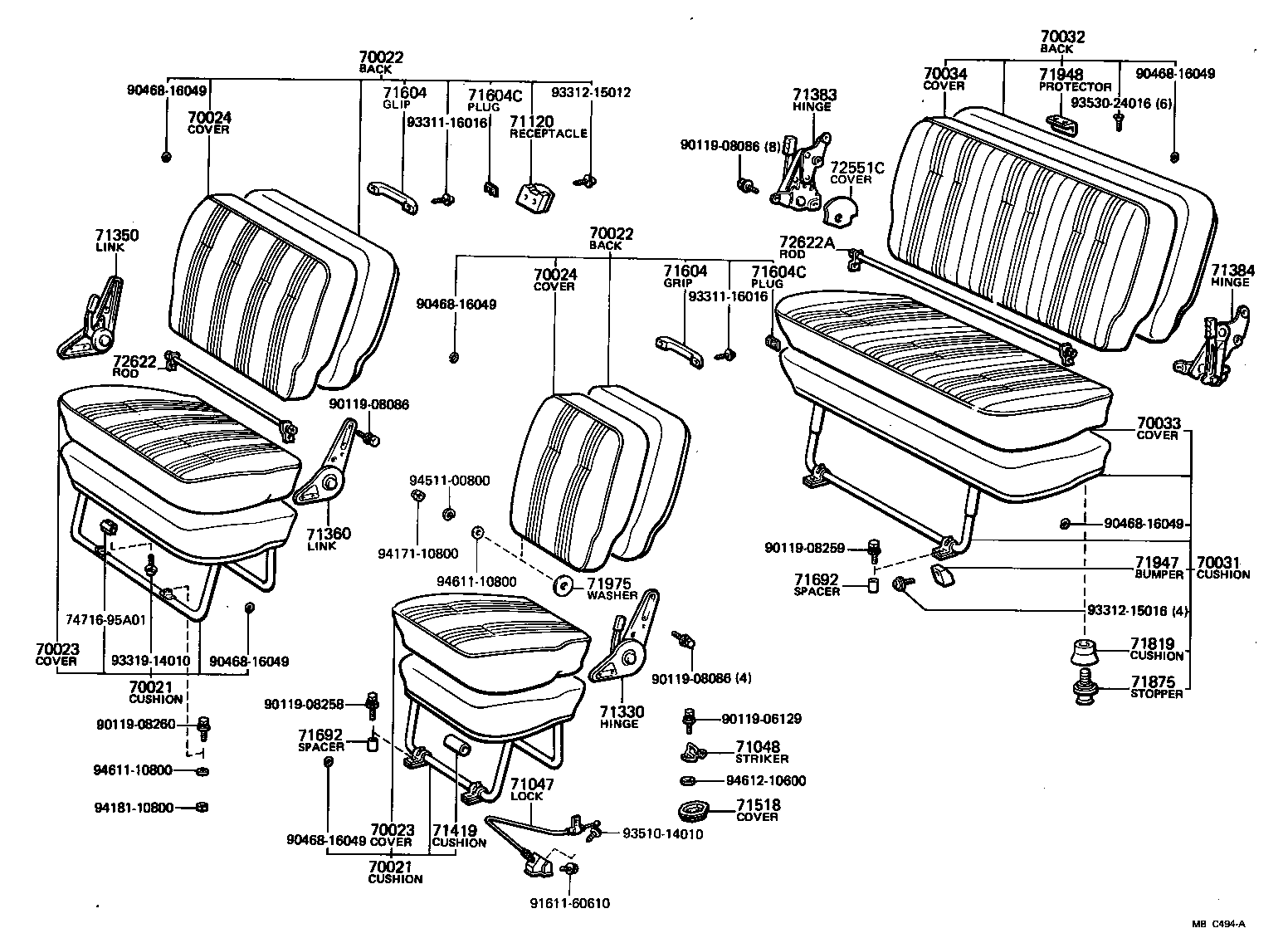

MBC494A 1979-03 → —

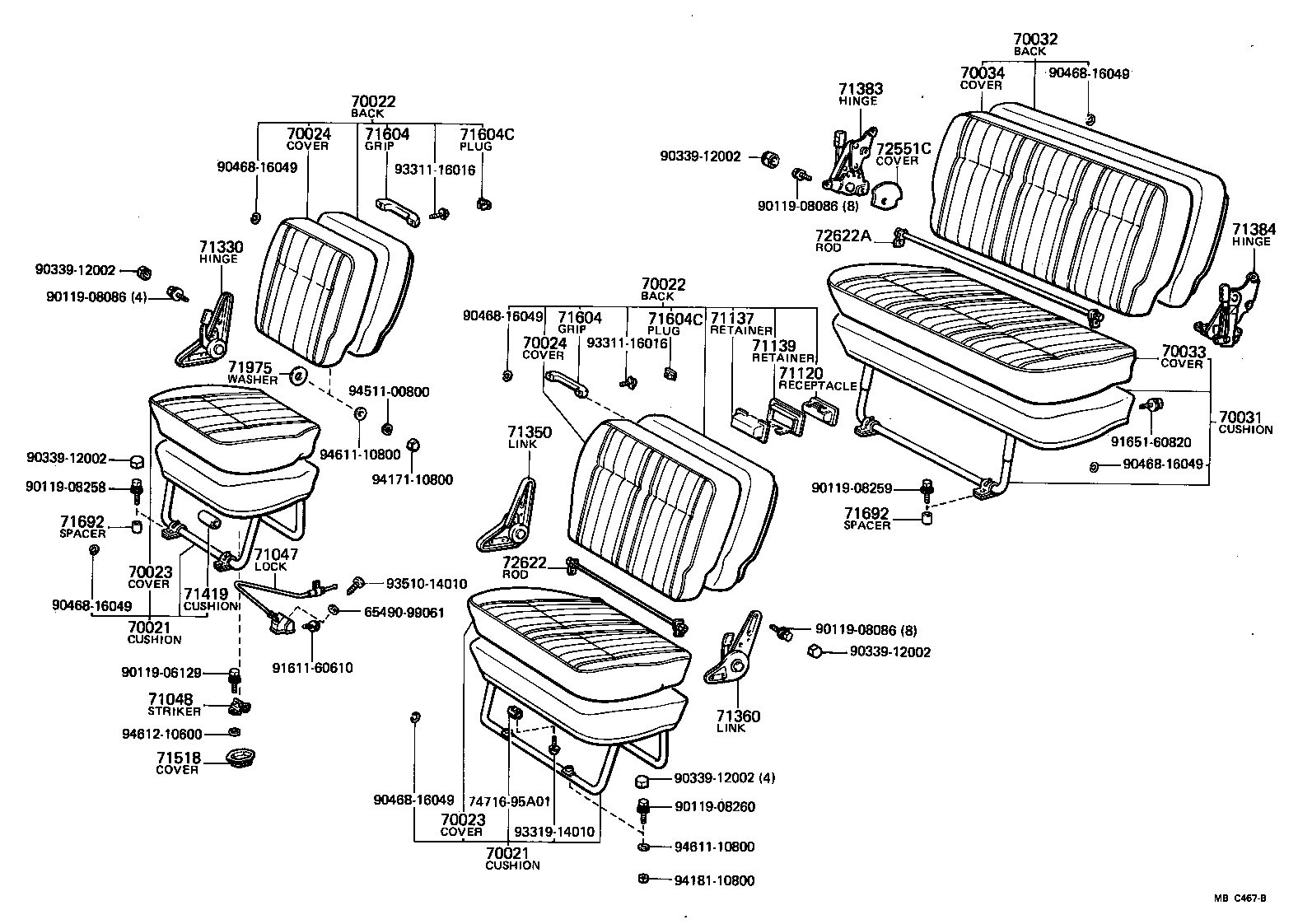

MBC467B 1981-02 → —

Part groups

PNC	Description
64292D	Clamp, Jack Handle
70021	Cushion Assy, NO.2 Seat
70022	Back Assy, NO.2 Seat
70023	Cover Assy, NO.2 Seat Cushion
70023A	Clip, Leather (FOR SEAT CUSHION COVER)
70024	Cover Assy, NO.2 Seatback
70024B	Clip, Leather(FOR SEATBACK COVER)
70031	Cushion Assy, NO.3 Seat
70031A	Cover Sub-assy, Rear NO.3 Seat Cushion, Lower
70032	Back Assy, NO.3 Seat
70033	Cover Assy, NO.3 Seat Cushion
70034	Cover Assy, NO.3 Seatback
70041	Cushion Assy, NO.4 Seat
70042	Back Assy, NO.4 Seat
70043	Cover Assy, NO.4 Seat Cushion
70044	Cover Assy, NO.4 Seatback
70051	Cushion Assy, NO.5 Seat
70052	Back Assy, NO.5 Seat
70053	Cover Assy, NO.5 Seat Cushion
70054	Cover Assy, NO.5 Seatback
71012	Support Sub-assy, Front Seatback, LH
71012A	Guide, Front Seatback Support, LH
71047	Lock Sub-assy, Rear Seat Leg
71048	Striker Sub-assy, Rear Seat Lock
71110S	Cushion Assy, Front Seat, RH
71120	Receptacle Sub-assy, Ash(FOR REAR SEAT)
71137	Retainer, Rear Ash Receptacle, Inner(FOR REAR SEAT)
71139	Retainer, Rear Ash Receptacle, Outer(FOR REAR SEAT)
71140S	Cover, Front Seat Cushion, RH
71150S	Back Assy, Front Seat, RH
71155	Support, Driver Seatback, RH
71156	Support, Driver Seatback, LH
71190S	Cover, Front Seat Back, RH
71202	Stopper Sub-assy, Rear Seat Leg
71202A	Handle, Rear Seat Leg Stopper
71210S	Cushion Assy, Front Seat, LH
71240S	Cover, Front Seat Cushion, LH
71250S	Back Assy, Front Seat, LH
71283	Bush, Front Seatback Support, LH
71283A	Bolt, Front Seatback Support, LH
71284	Spacer, Front Seatback Support, LH
71290S	Cover, Front Seatback, LH
71294	Hinge, Front Seatback, LH
71299	Bracket, Front Seatback, LH
71301	Lock Sub-assy, Center Seat
71306A	Hinge Sub-assy, Center Seat, RH
71306B	Hinge Sub-assy, Center Seat, LH
71306C	Plate, Center Seat Hinge Caution
71310S	Cushion Assy, Front Seat, Center
71330	Hinge Assy, Rear Seat Cushion
71340S	Cover, Front Seat Cushion, Center
71350	Link Assy, Rear Seatback Cushion, RH
71350S	Back Assy, Front Seat, Center
71360	Link Assy, Rear Seatback Cushion, LH
71383	Hinge, Rear Seatback Stop, NO.3
71384	Hinge, Rear Seatback Stop, NO.4
71390S	Cover, Front Seatback, Center
71419	Cushion (FOR REAR SEAT LEG)
71518	Cover, Rear Seat Lock, Lower
71604	Grip Sub-assy, Assist(FOR SEATBACK)
71604C	Plug, Hole(FOR ASSIST GRIP)
71613	Cover, NO.3 Seat Lock, Lower
71664	Guide, Seat Belt
71692	Spacer, Passenger Seat Leg
71808	Stopper Sub-assy, Rear Seatback, RH
71809	Stopper Sub-assy, Rear Seatback, LH
71812	Clip (FOR FRONT SEAT CUSHION COVER)
71819	Cushion (FOR REAR SEAT CUSHION)
71870C	Leg Assy, Sub Seat
71875	Stopper, Rear Seat Cushion
71903	Catch Sub-assy, Seat Cushion, Front
71921	Retainer, Engine Service Hole Cover Catch
71947	Bumper, Passenger Seat Cushion
71948	Protector, Passenger Seatback
71975	Washer, Rear NO.1 Seat
72110S	Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72120S	Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
72317	Grommet, Sub Seat Cushion
72331	Bracket, Sub Seat Cushion
72335	Spacer, Sub Seat Link
72338	Spring, Sub Seat Link, RH
72339	Spring, Sub Seat Link, LH
72510	Adjuster Assy, Reclining Seatback, RH
72520	Adjuster Assy, Reclining Seatback, LH
72551C	Cover, Reclining Hinge, NO.2
72560	Lock Assy, Rear Seat
72622	Rod, Rear Seatback Stopper Connecting
72622A	Rod, Rear Seatback Stopper Connecting, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
