Toyota Hiace

1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · General

Discontinued model Data version 1983-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

31 part groups · 10 illustrations

Illustrations

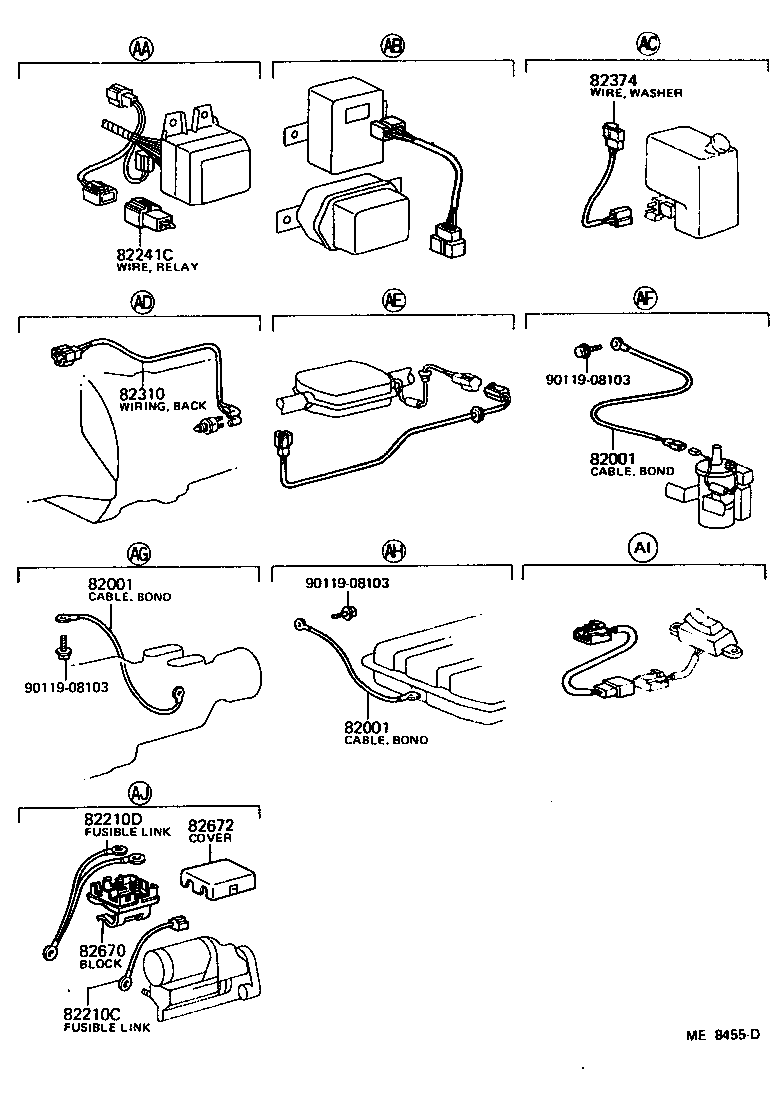

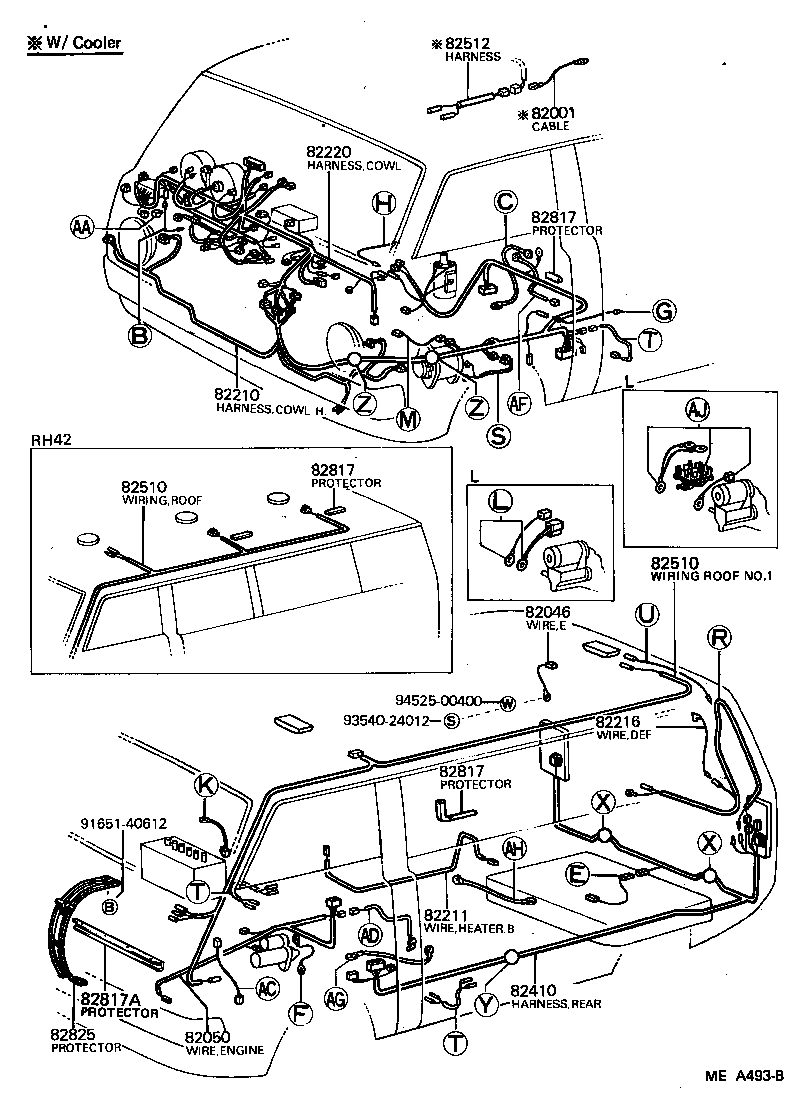

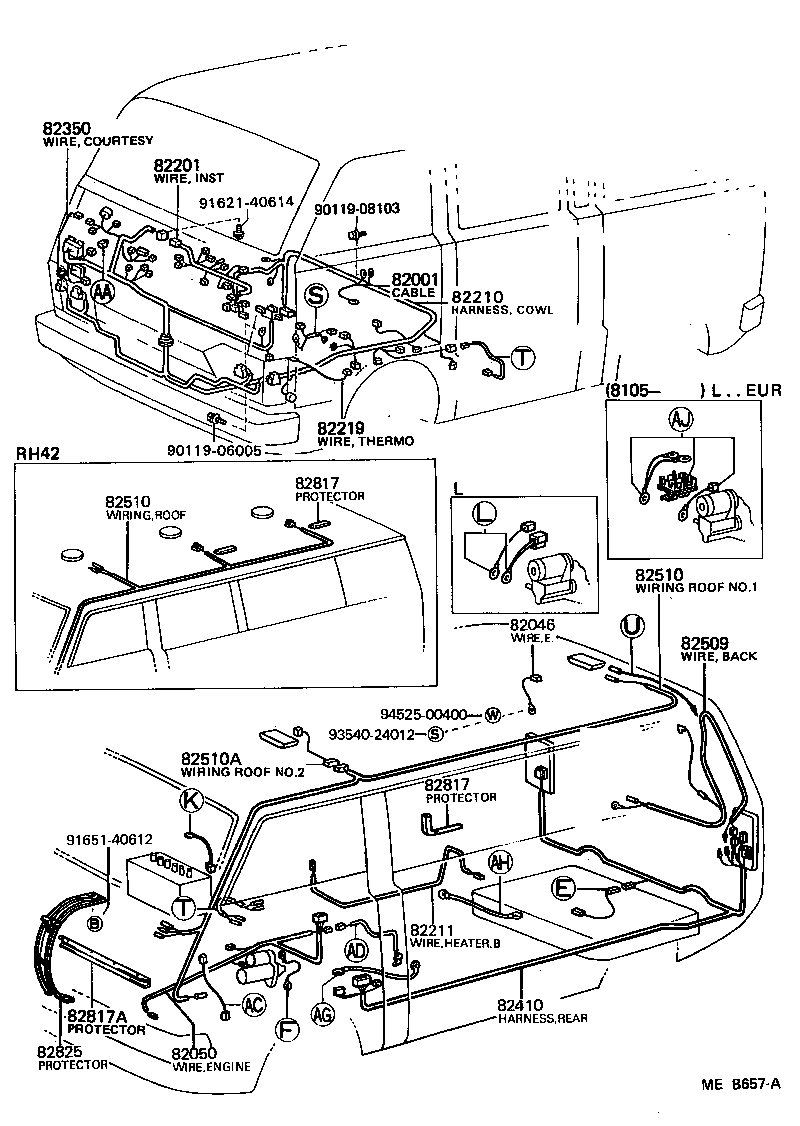

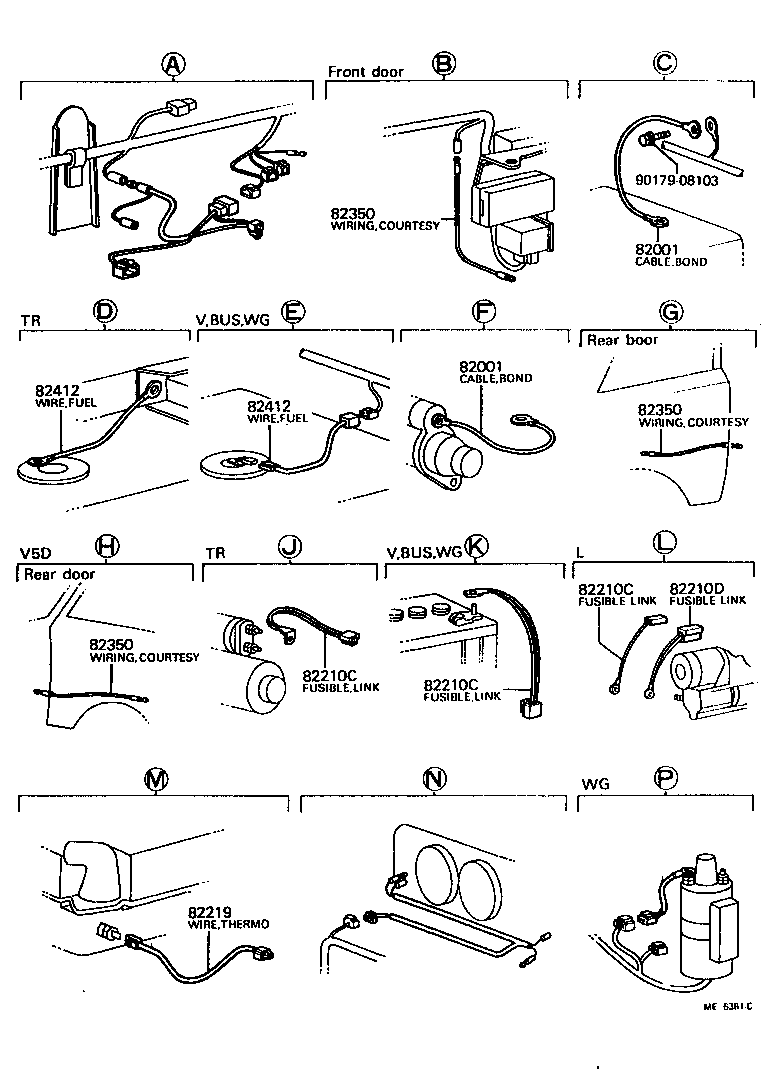

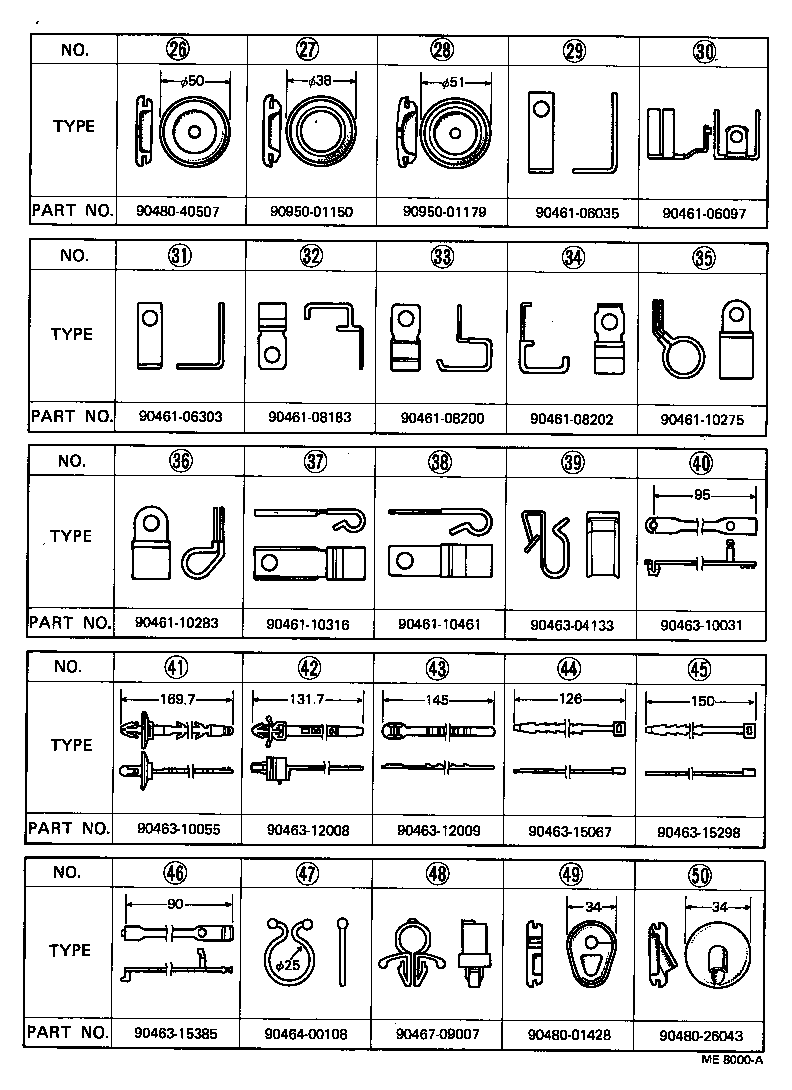

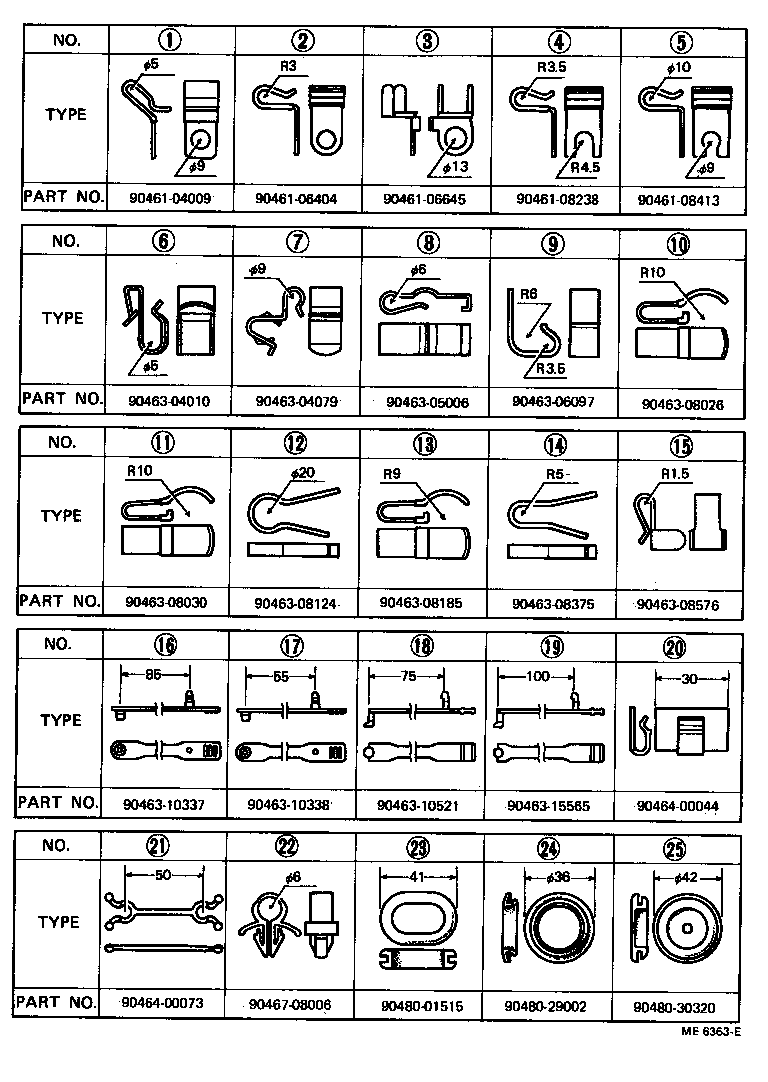

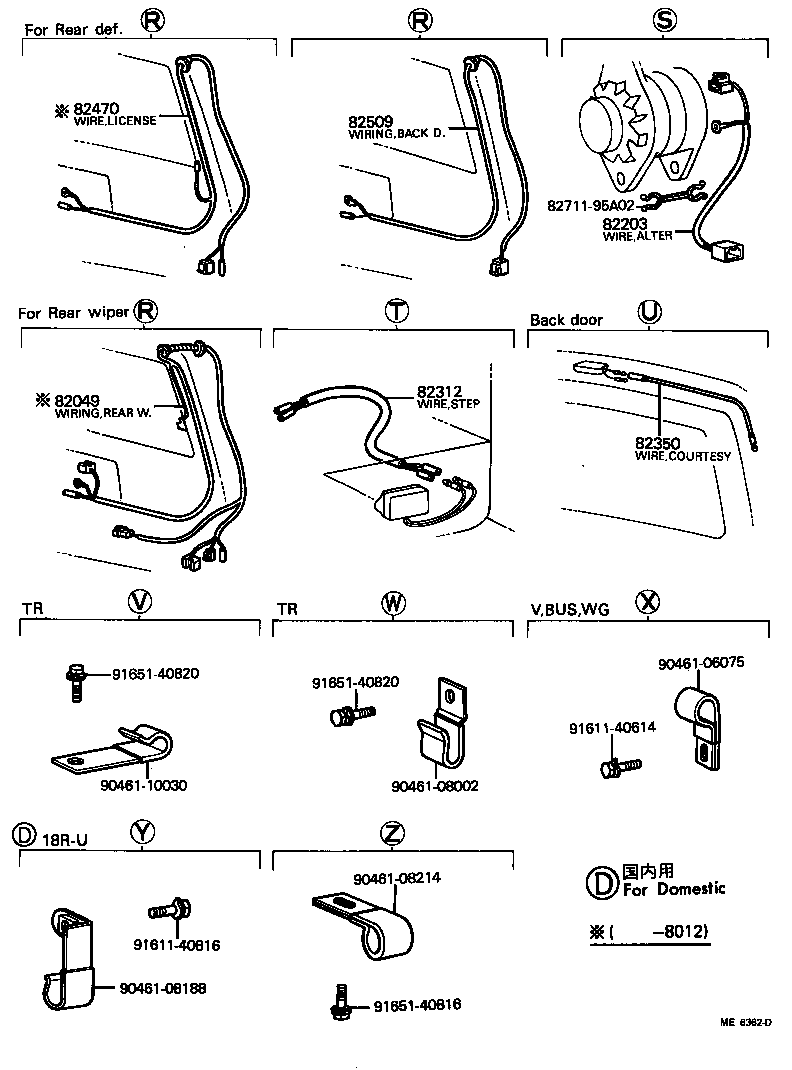

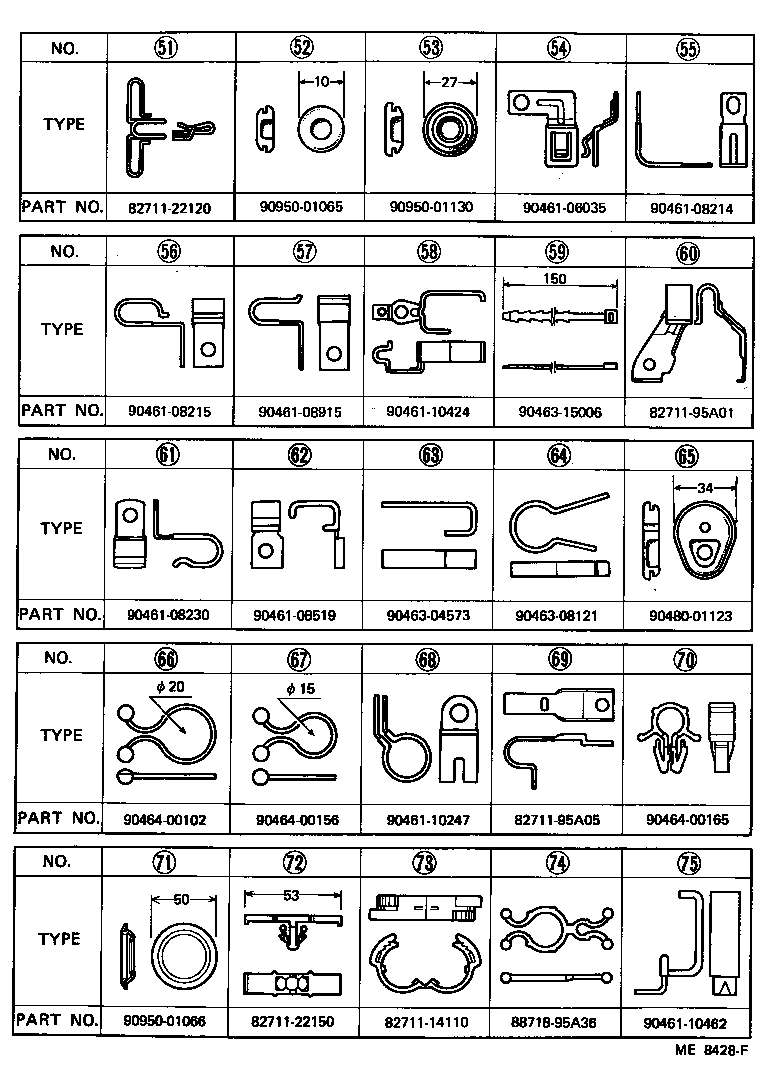

Figure ME6359I ME6359I 1977-02 → — Figure MEA493B MEA493B 1977-02 → 1980-12 Figure MEB657A MEB657A 1980-12 → — Figure ME6361C ME6361C 1977-02 → — Figure ME6362D ME6362D 1977-02 → — Figure ME8455D ME8455D 1979-12 → — Figure ME6363E ME6363E 1977-02 → — Figure ME8000A ME8000A 1977-02 → — Figure ME8428F ME8428F 1979-12 → — Figure MEA529C MEA529C 1980-12 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82046 Wire Sub-assy, Rear Window Defogger Earth
82049 Wiring Sub-assy, Rear Wiper
82050 Wire Assy, Engine
82201 Wiring Sub-assy, Instrument Panel
82203 Wire Sub-assy, Alternator
82210 Harness Assy, Wiring Cowl TO Headlamp, NO.1
82210C Fusible Link
82210D Fusible Link
82211 Wire, Heater Blower Fan Switch
82216 Wire, Rear Window Defogger
82219 Wire, Thermo Sensor
82220 Harness Assy, Wiring Cowl
82241C Wire, Relay
82310 Wiring Assy, TO Back UP Lamp Switch
82312 Wire, Step Lamp
82350 Wiring Assy, Courtesy Lamp Switch (FOR FR OR RR DOOR)
82374 Wire, Washer
82410 Harness Assy, Wiring TO Rear Lamp
82412 Wire, Fuel Gage
82420 Wiring Assy, Chassis
82470 Wire Assy, License Lamp Feed
82509 Wiring Sub-assy, Back Door
82510 Wiring Assy, Roof
82510A Wiring Assy, Roof, NO.2
82512 Harness Assy, Room Lamp Sub Wire
82670 Block Assy, Junction, NO.1
82672 Cover, Junktion Block
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82825 Protector, Wiring Harness
