Toyota Hiace

1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · General

Discontinued model Data version 1983-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

15 part groups · 7 illustrations

Illustrations

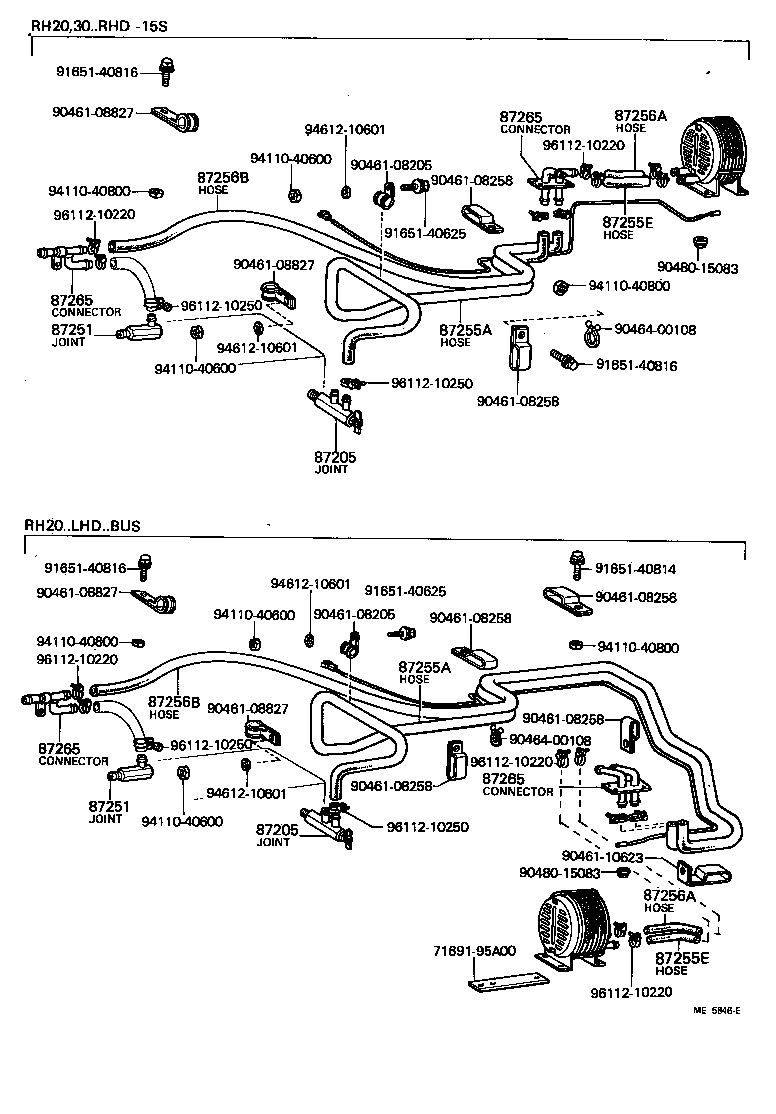

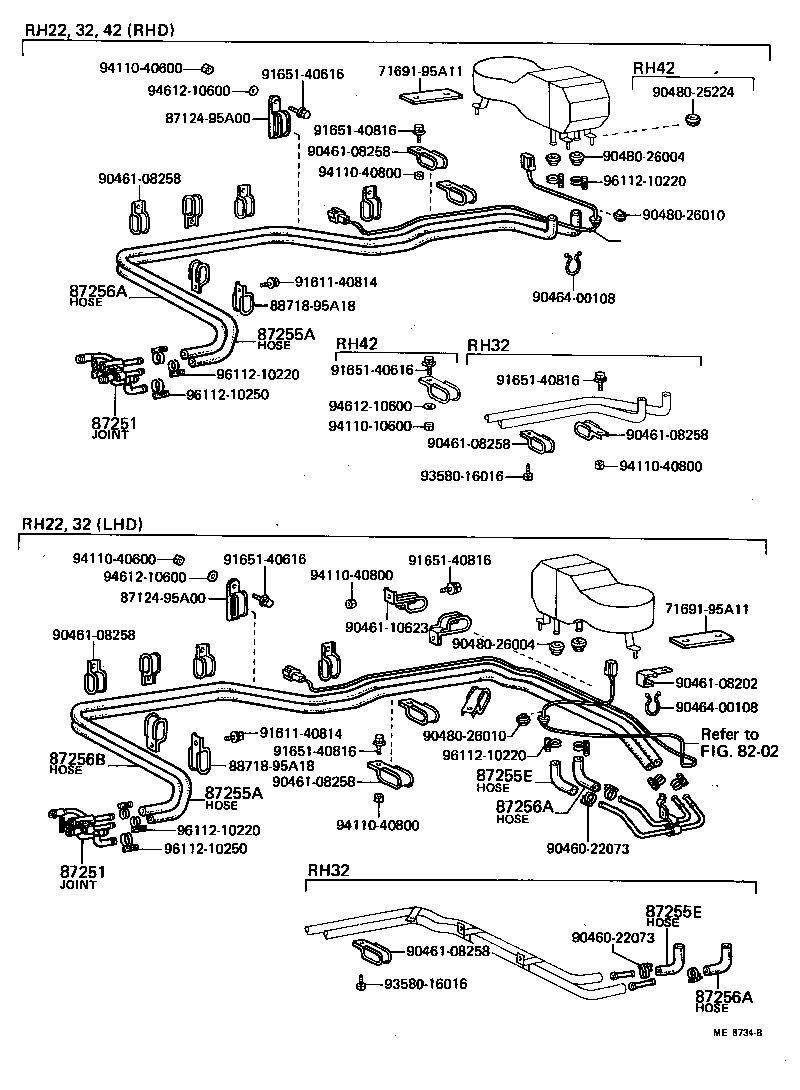

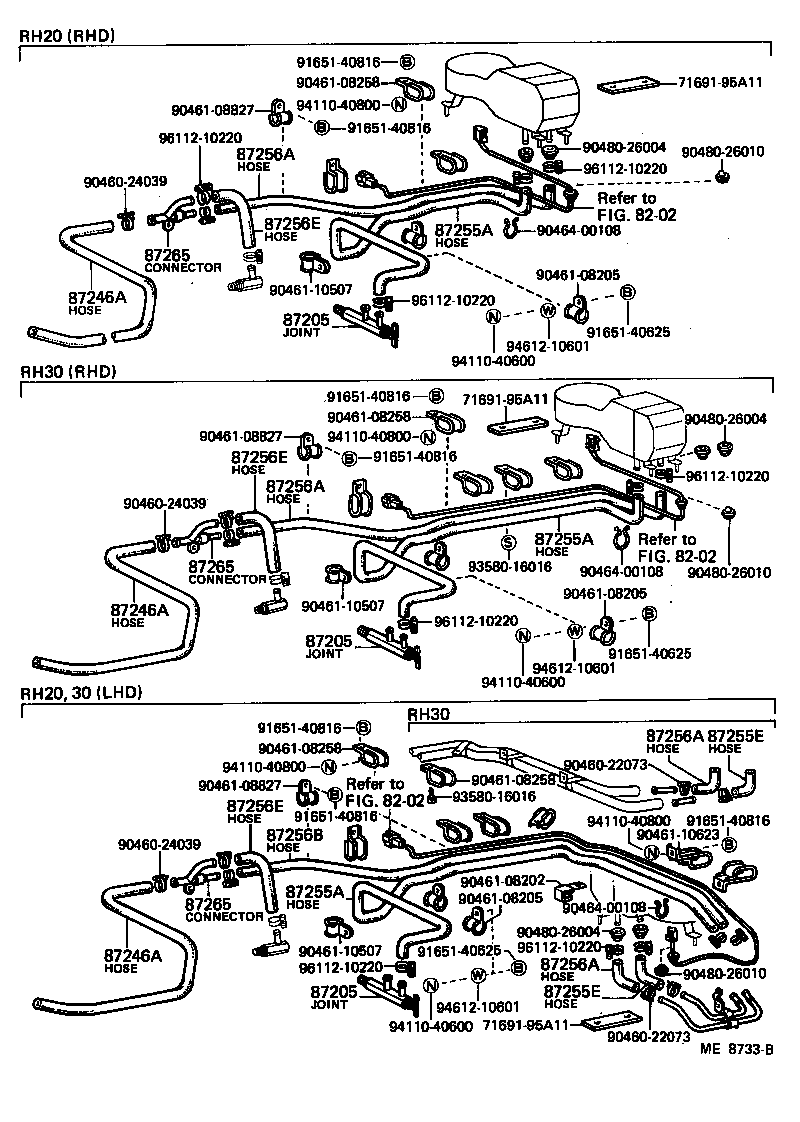

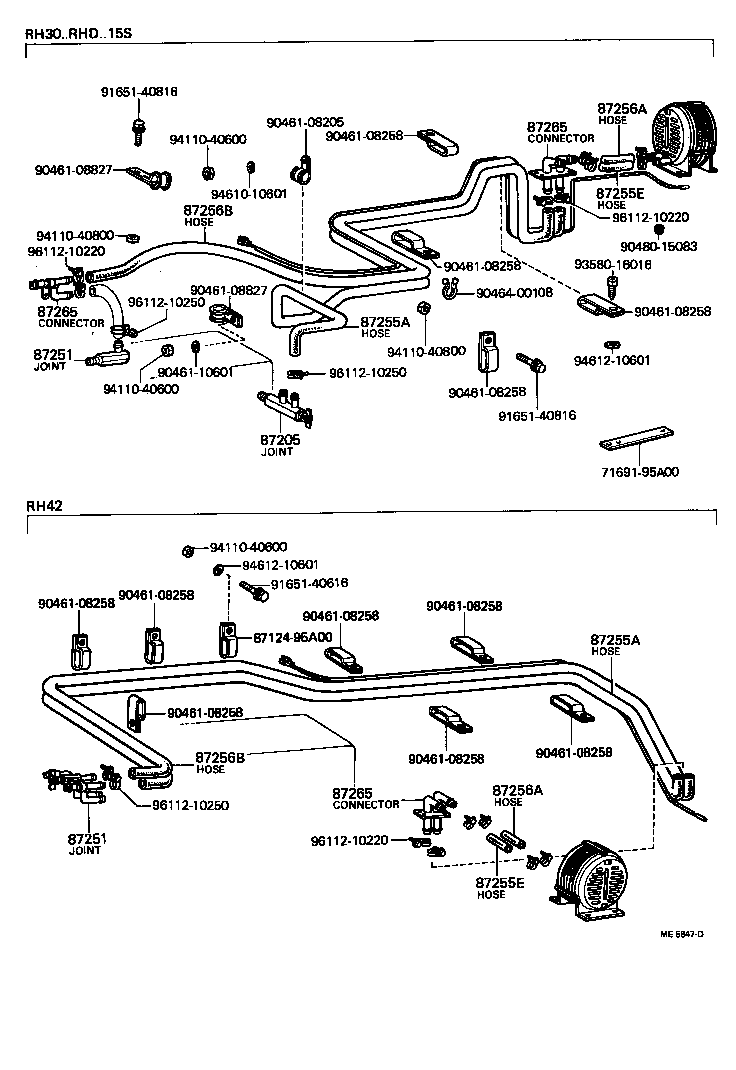

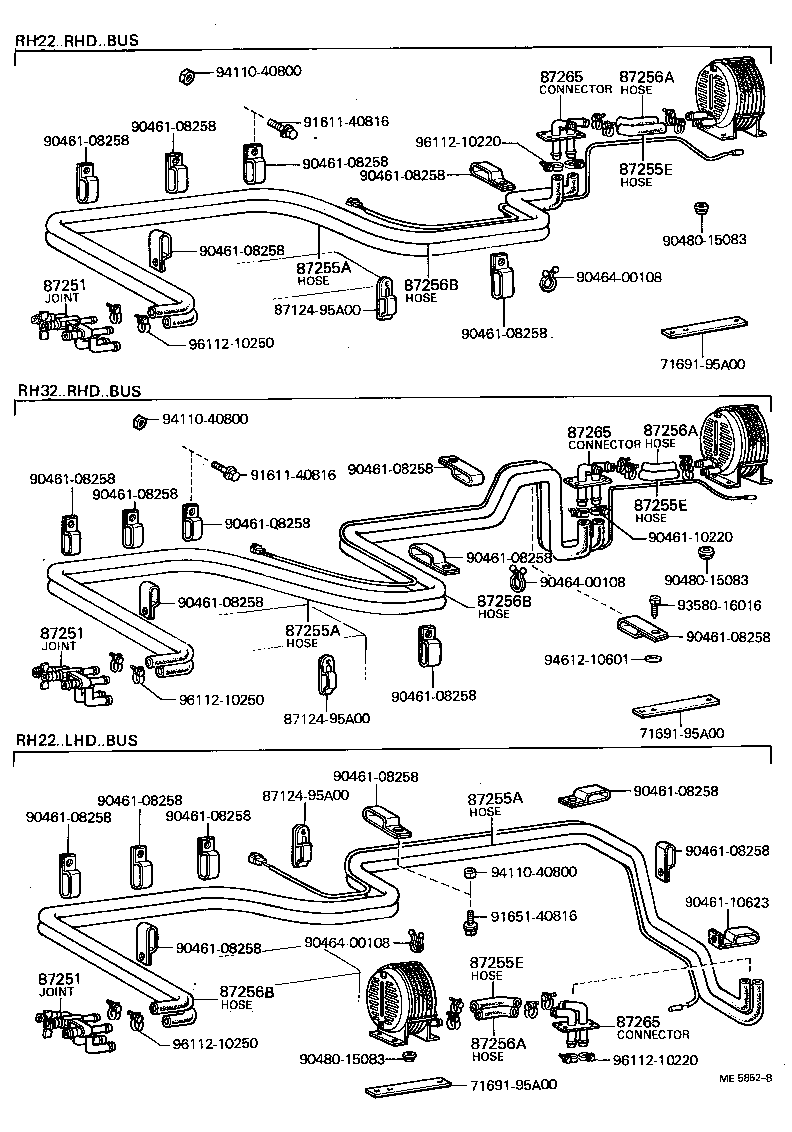

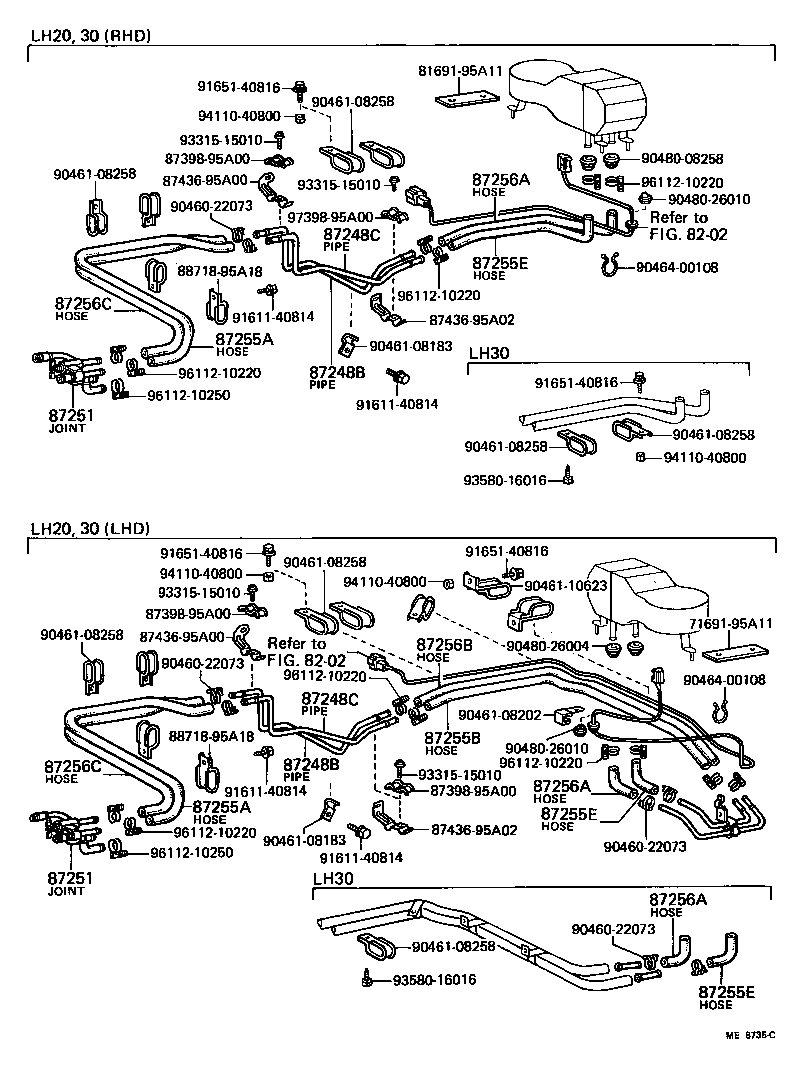

Figure ME5842F ME5842F 1977-02 → — Figure ME5846E ME5846E 1977-02 → 1979-12 Figure ME5847D ME5847D 1977-02 → 1979-12 Figure ME5852B ME5852B 1977-02 → 1979-12 Figure ME8733B ME8733B 1979-12 → — Figure ME8734B ME8734B 1979-12 → — Figure ME8735C ME8735C 1979-09 → —

Part groups

PNCDescription
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87245A Hose, Heater Water, Inlet A
87246A Hose, Heater Water, Outlet A
87246E Hose, Heater Water, Outlet E
87248B Pipe, Heater Water Inlet, B
87248C Pipe, Heater Water Inlet, C
87251 Joint OR Union, Water Hose Through
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255B Hose, Rear Heater Water Inlet, B
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
87256C Hose, Rear Heater Water Outlet, C
87256E Hose, Rear Heater Water Outlet, E (TO ENGINE)
87265 Connector, Heater Water Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
