Toyota Hiace

1982-11 → 1985-07 · chassis RH11,LH11 · catalogue 691230 · General

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 3 illustrations

Illustrations

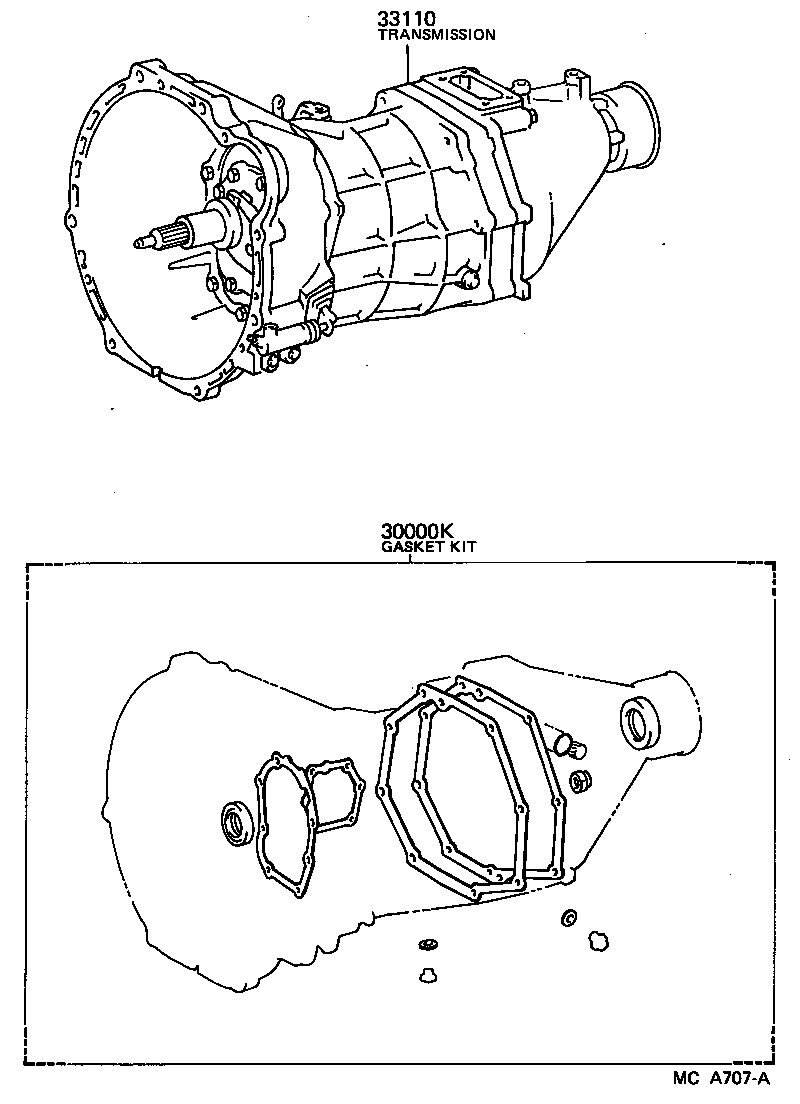

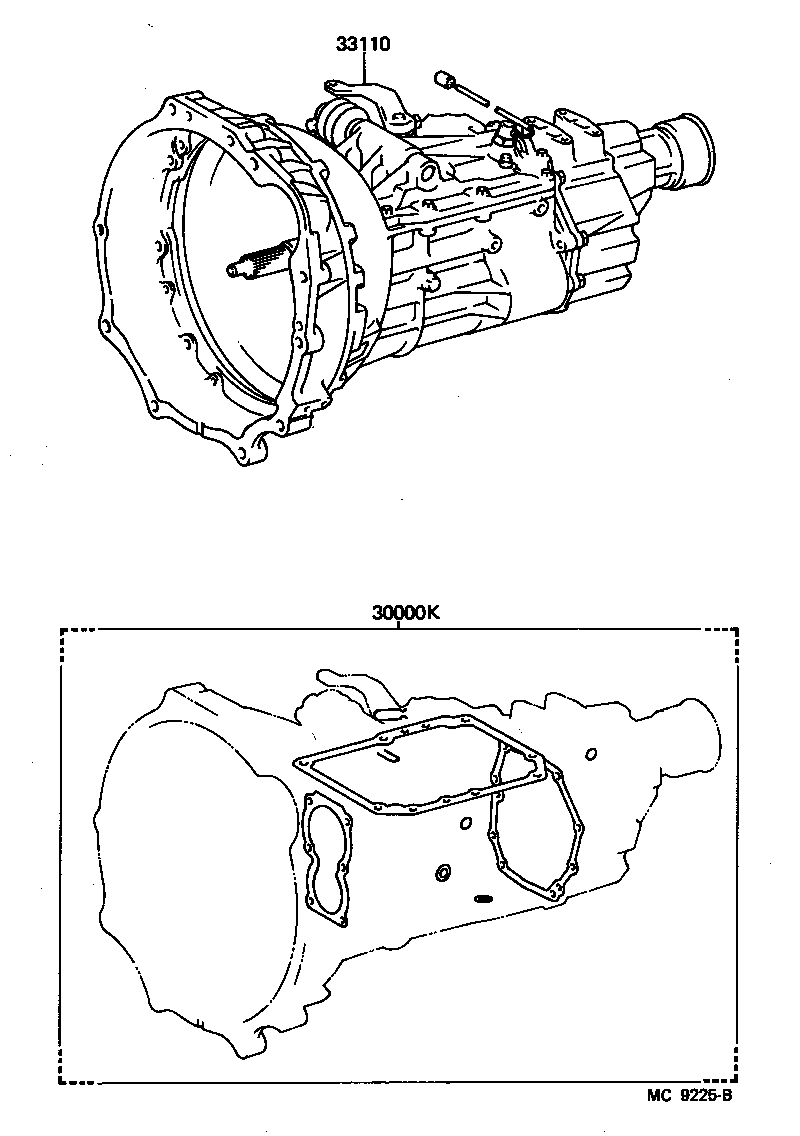

Figure MC9224A MC9224A 1982-11 → — Figure MC9225B MC9225B 1982-11 → 1984-01 Figure MCA707A MCA707A 1984-01 → —

Part groups

PNCDescription
30000K Gasket Kit, Manual Transmission Overhaul
33110 Transmission Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
