Toyota Hiace

1982-11 → 1985-07 · chassis RH11,LH11 · catalogue 691230 · General

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

18 part groups · 2 illustrations

Illustrations

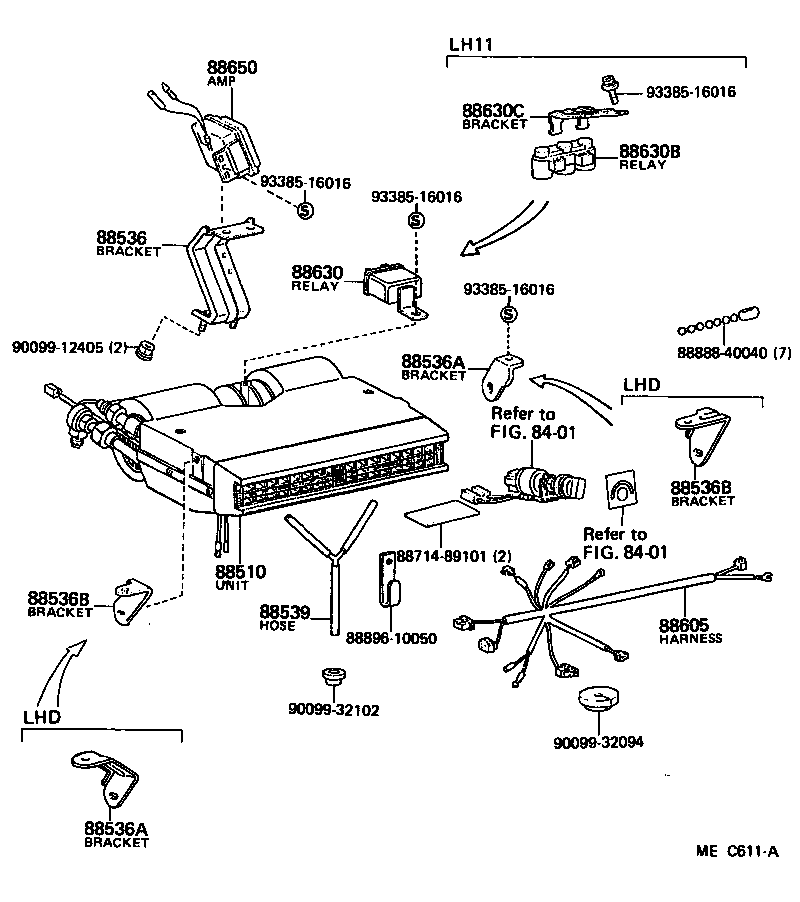

Figure MEC586 MEC586 1982-11 → — Figure MEC611A MEC611A 1982-11 → —

Part groups

PNCDescription
88306 Motor Sub-assy, Cooler Blower, NO.1
88361 Fan, Cooler Blower, NO.1
88371 Fan, Cooler Blower, NO.2
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88536 Bracket, Cooling Unit, NO.1
88536A Bracket, Cooling Unit, NO.2
88536B Bracket, Cooling Unit, NO.3
88539 Hose, Cooler Unit Drain, NO.1
88570 Grille Sub-assy, Cooler Air Outlet
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88630B Relay Assy, Cooler
88630C Bracket, Cooler Relay
88635 Resistor, Cooler Unit Blower
88650 Amplifier Assy, Cooler Stabilizer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
