Toyota Hiace

1982-11 → 1985-07 · chassis RH11,LH11 · catalogue 691230 · General

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

9 part groups · 2 illustrations

Illustrations

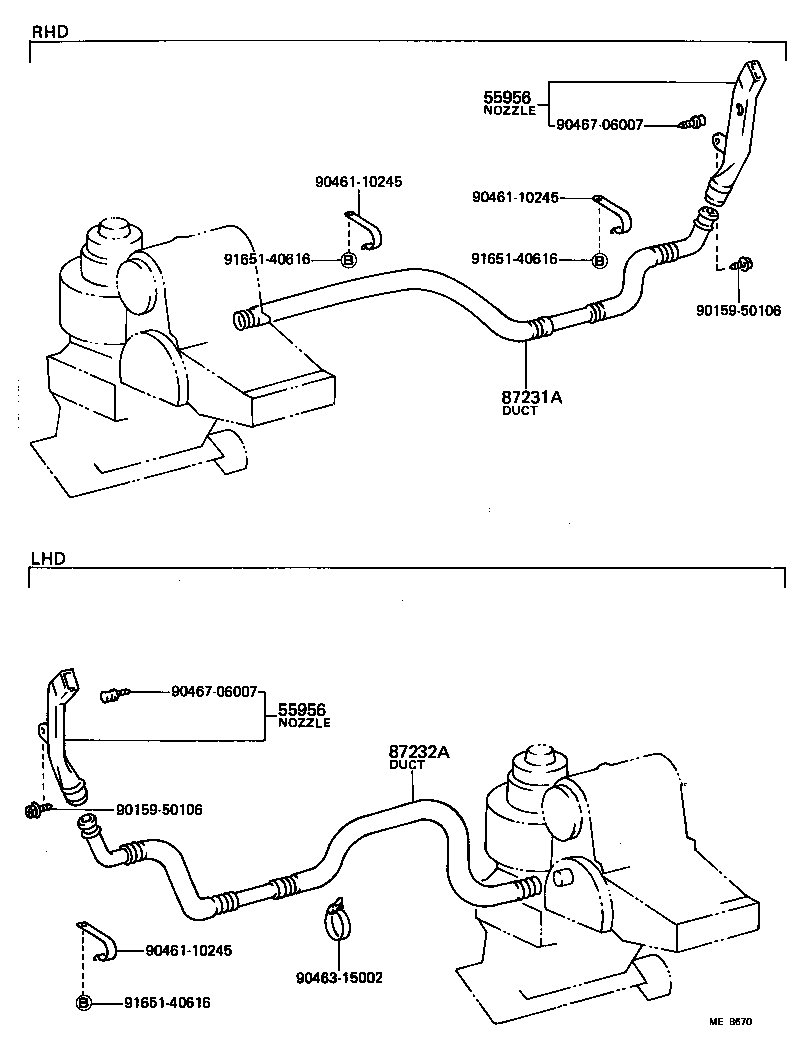

Figure MEC612 MEC612 1982-11 → — Figure MEB670 MEB670 1982-11 → —

Part groups

PNCDescription
55905 Cable Sub-assy, Defrost Control
55906 Cable Sub-assy, Heater Control
55907 Cable Sub-assy, Heater Air Inlet Butterfly
55910 Control Assy, Heater OR Boost Ventilator
55937 Knob, Heater Control Lever
55939 Ornament, Heater Control
55956 Nozzle, Side Defroster
87231A Duct, Heater Defroster, Side NO.1 RH
87232A Duct, Heater Defroster, Side NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
