Toyota DYNA100
1987-08 → 1995-05 · chassis YH81,LH80 · catalogue 691250 · General
Discontinued model
Data version 1995-10
Brake Master Cylinder

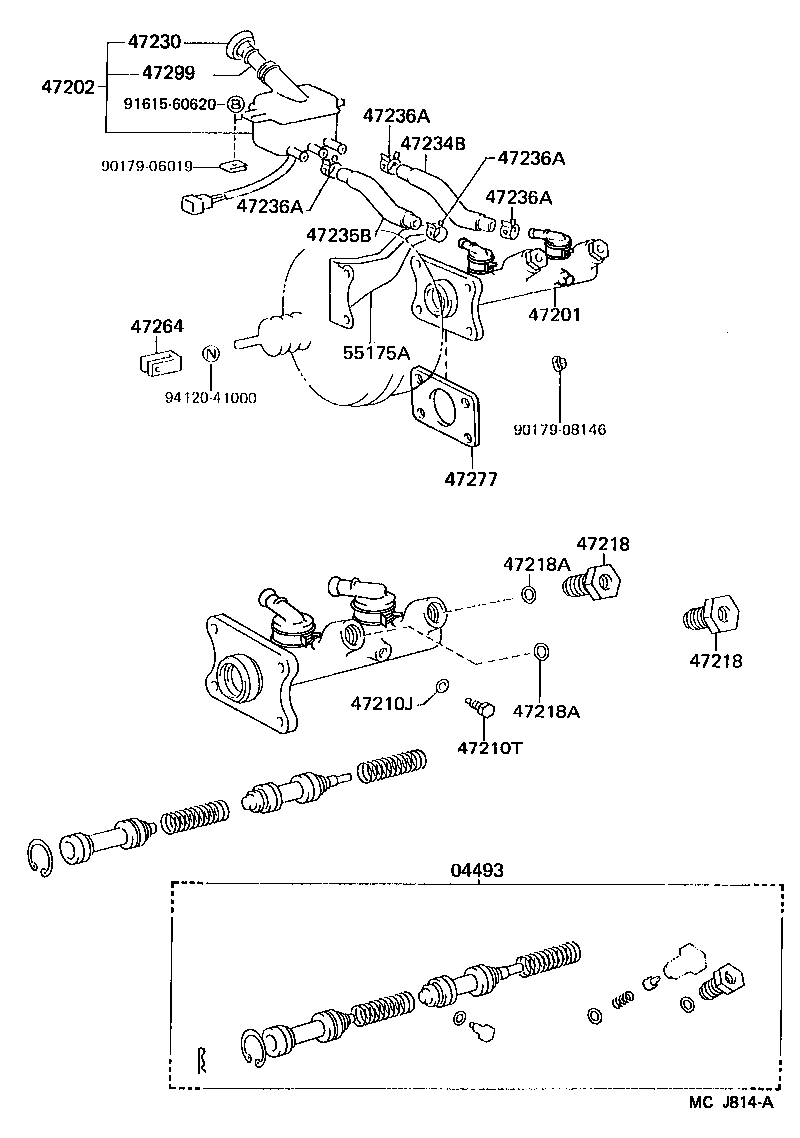

20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04493 | Cylinder Kit, Brake Master |
| 47201 | Cylinder Sub-assy, Brake Master |
| 47202 | Reservoir Sub-assy, Brake Master Cylinder |
| 47202P | Union, Reservoir(FOR BRAKE MASTER CYLINDER SIDE) |
| 47202Q | Bolt, Reservoir Union(FOR BRAKE MASTER CYLINDER SIDE) |
| 47202R | Gasket, Reservoir Union(FOR BRAKE MASTER CYLINDER SIDE) |
| 47210J | Gasket(FOR MASTER CYLINDER) |
| 47210T | Bolt(FOR BRAKE MASTER CYLINDER) |
| 47218 | Plug, Master Cylinder Fluid Outlet |
| 47218A | Gasket(FOR FLUID OUTLET PLUG) |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47234B | Tube, Reservoir, NO.1 |
| 47235B | Tube, Brake Master Cyrinder Reservoir, NO.2 |
| 47236A | Clip(FOR RESERVOIR TUBE) |
| 47264 | Clevis, Master Cylinder Push Rod |
| 47277 | Spacer, Master Cylinder |
| 47281 | Valve, Brake Master Cylinder Outlet Check |
| 47281A | Spring Compression(FOR OUTLET CHECK VALVE) |
| 47299 | Strainer, Brake Master Cylinder Reservoir |
| 55175A | Support Sub-assy, Brake Master Cylinder |
