Toyota Hiace Van,Commuter

1987-08 → 2007-10 · chassis YH5#,6#,7#,LH51,61,71 · catalogue 711330 · General

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

15 part groups · 7 illustrations

Illustrations

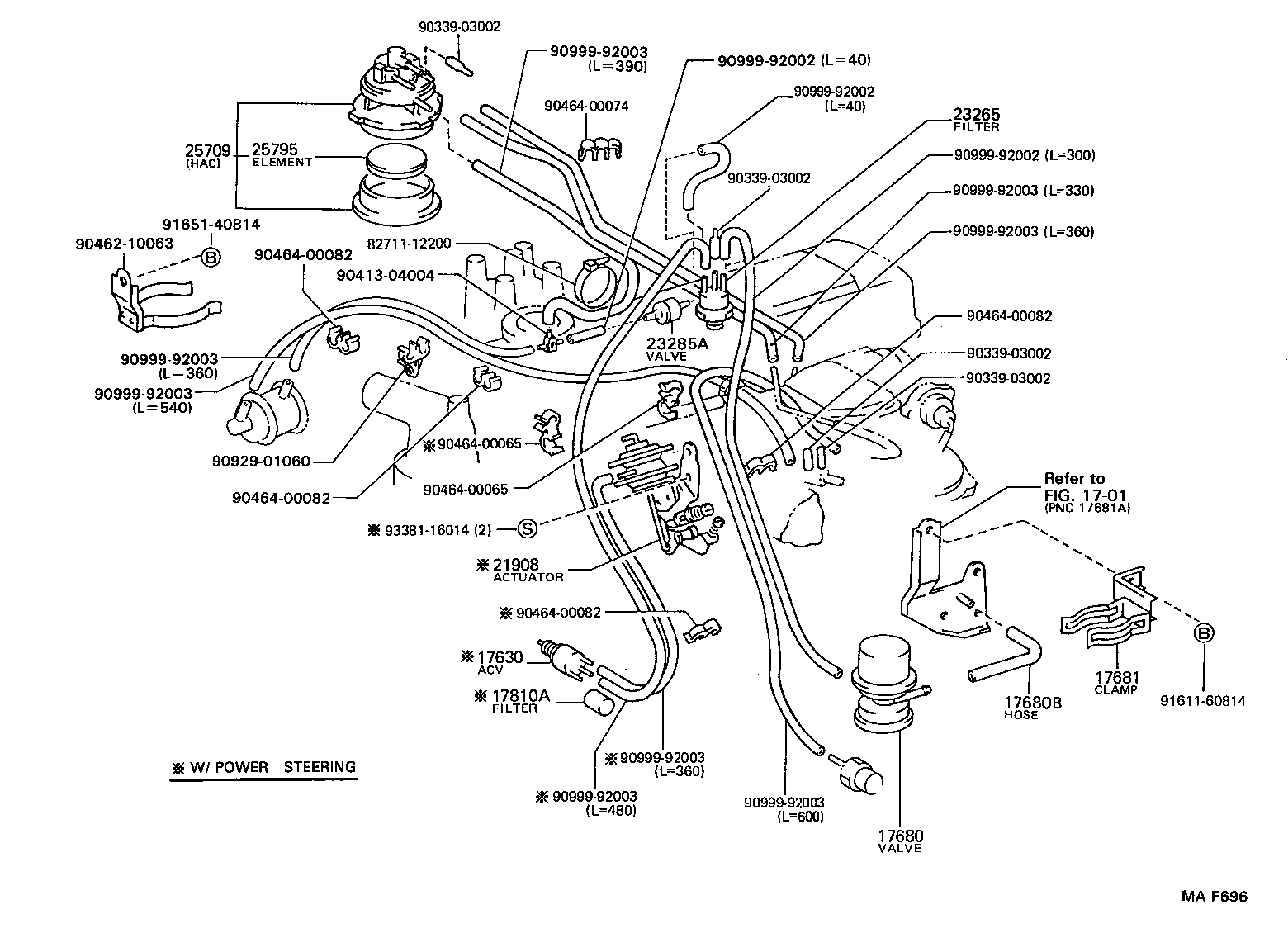

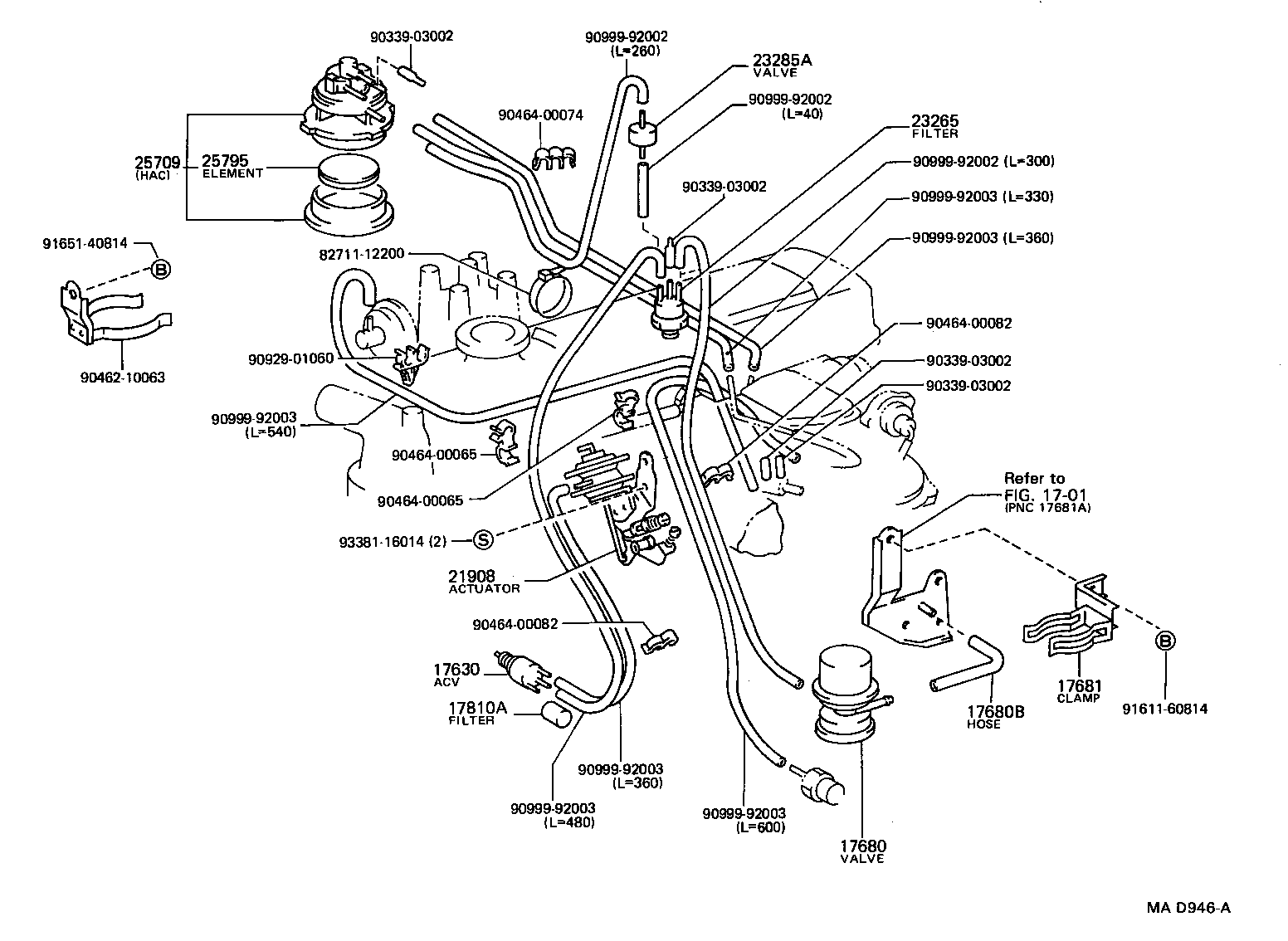

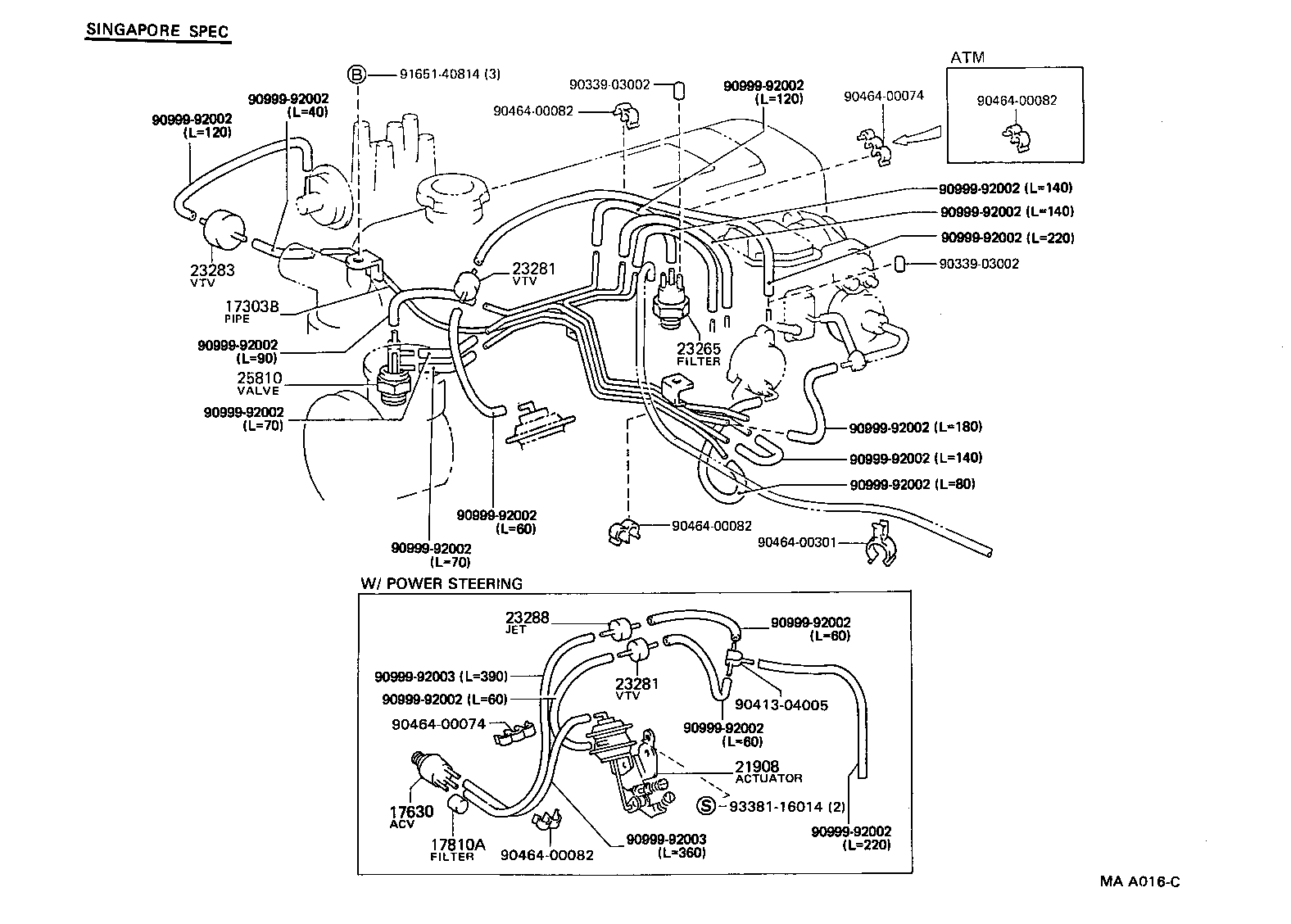

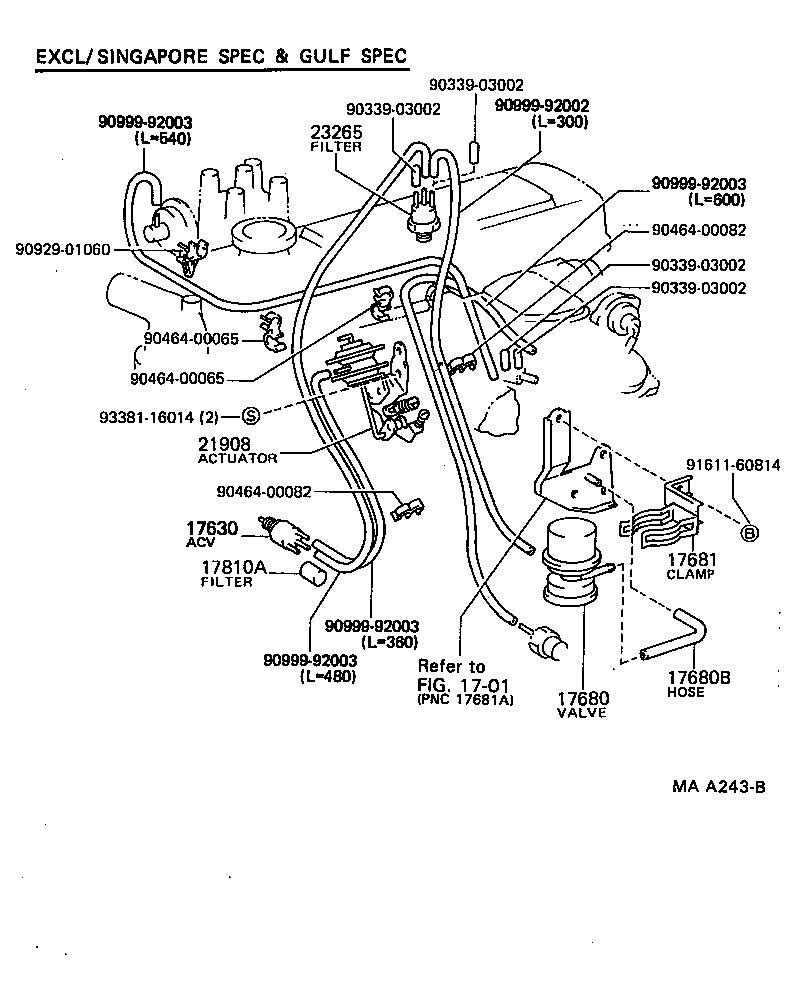

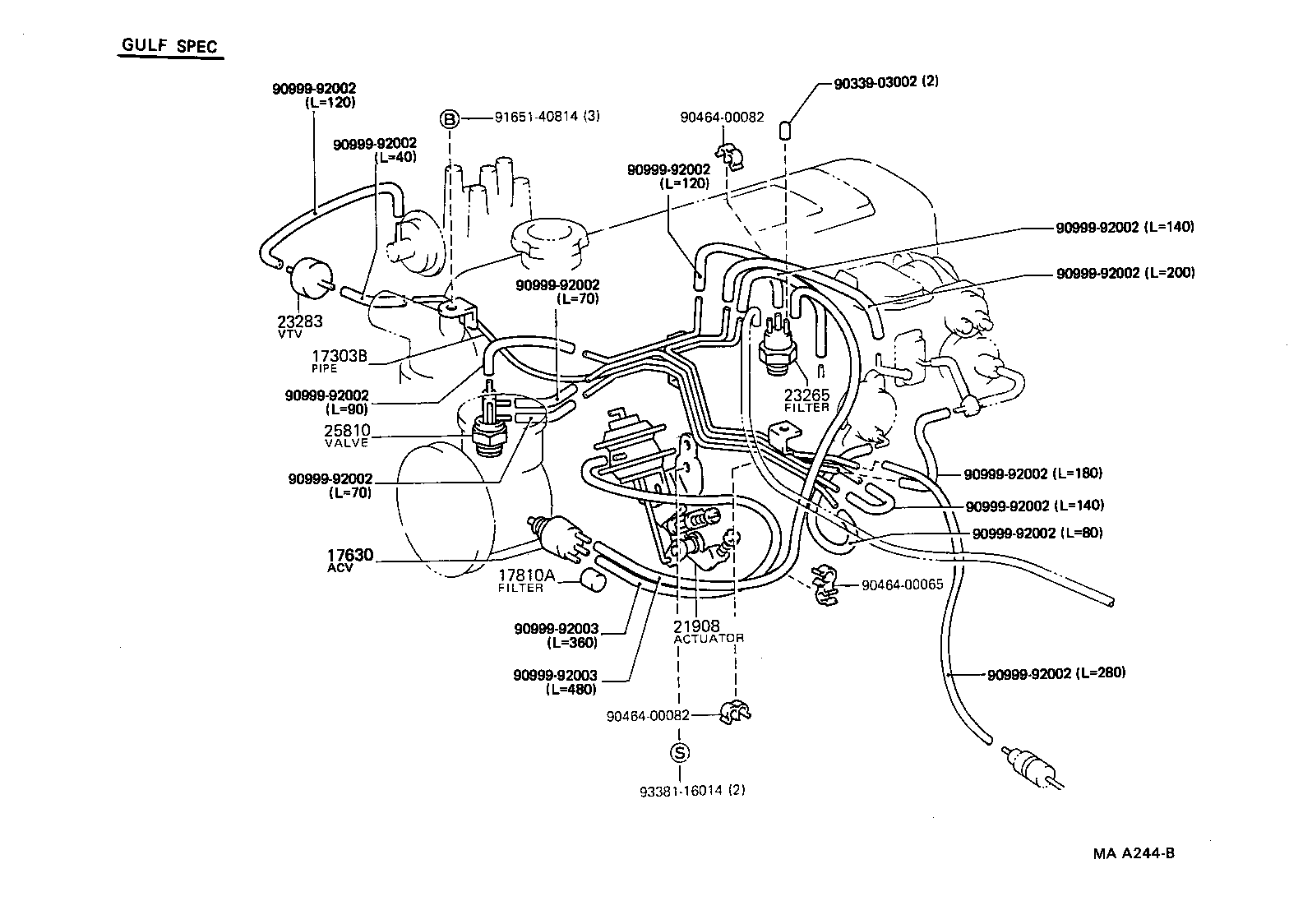

Figure MA9504B MA9504B 1987-08 → — Figure MAA016C MAA016C 1987-08 → 1989-08 Figure MAA243B MAA243B 1987-08 → 1989-10 Figure MAA243B MAA243B 1988-08 → 1992-06 Figure MAA244B MAA244B 1987-08 → 1989-08 Figure MAD946A MAD946A 1989-10 → 1992-06 Figure MAF696 MAF696 1992-06 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17630 Valve Assy, Air Control
17680 Valve Assy, Mixture Control
17680B Hose(FOR MIXTURE CONTROL VALVE)
17681 Bracket, Mixture Control Valve
17810A Filter Assy, Air
21908 Actuator Sub-assy, Idle-up
23265 Filter, Gas, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23283 Valve, Vacuum Transmitting, NO.3
23285A Valve, Check, NO.1
23288 Jet, NO.1
25709 Valve Sub-assy, High Altitude Compensator
25795 Element, Altitude Compensator Filter
25810 Valve Assy, Bimetal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
