Toyota Hiace Van,Commuter
1987-08 → 2007-10 · chassis YH5#,6#,7#,LH51,61,71 · catalogue 711330 · General
Discontinued model
Data version 2008-05

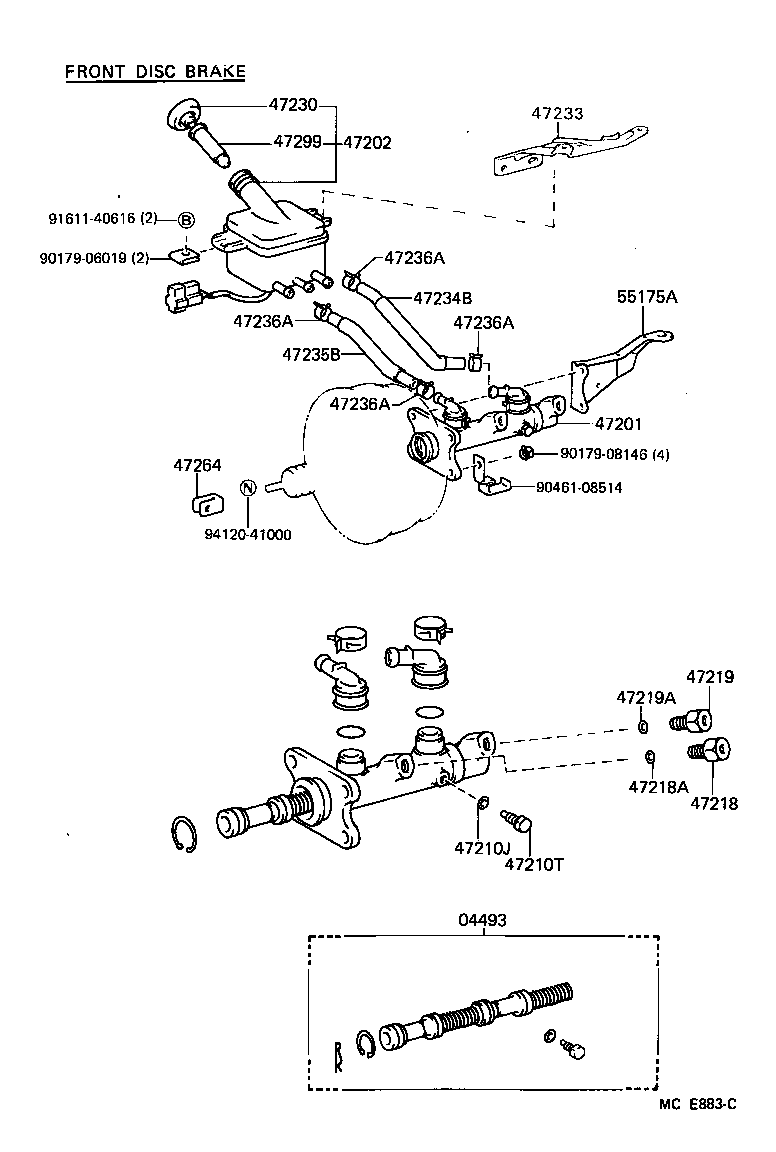

Brake Master Cylinder
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04493 | Cylinder Kit, Brake Master |
| 47201 | Cylinder Sub-assy, Brake Master |
| 47202 | Reservoir Sub-assy, Brake Master Cylinder |
| 47202P | Union, Reservoir(FOR BRAKE MASTER CYLINDER SIDE) |
| 47202Q | Bolt, Reservoir Union(FOR BRAKE MASTER CYLINDER SIDE) |
| 47202R | Gasket, Reservoir Union(FOR BRAKE MASTER CYLINDER SIDE) |
| 47210J | Gasket(FOR MASTER CYLINDER) |
| 47210T | Bolt(FOR BRAKE MASTER CYLINDER) |
| 47218 | Plug, Master Cylinder Fluid Outlet |
| 47218A | Gasket(FOR FLUID OUTLET PLUG) |
| 47219 | Plug, Master Cylinder Fluid Outlet(FOR REAR SIDE) |
| 47219A | Gasket(FOR FLUID OUTLET PLUG REAR SIDE) |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47233 | Bracket, Reservoir |
| 47234B | Tube, Reservoir, NO.1 |
| 47235B | Tube, Brake Master Cyrinder Reservoir, NO.2 |
| 47236A | Clip(FOR RESERVOIR TUBE) |
| 47264 | Clevis, Master Cylinder Push Rod |
| 47280A | Spring, Compression |
| 47281 | Valve, Brake Master Cylinder Outlet Check |
| 47290A | Spring, Compression(FOR FLUID OUTLET REAR SIDE) |
| 47299 | Strainer, Brake Master Cylinder Reservoir |
| 55175A | Support Sub-assy, Brake Master Cylinder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
