Toyota Hiace Van,Commuter
1987-08 → 2007-10 · chassis YH5#,6#,7#,LH51,61,71 · catalogue 711330 · General
Discontinued model
Data version 2008-05
Rear Spring & Shock Absorber
27 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 04483 | Shackle Kit, Rear Spring |
| 48037 | Spacer Sub-assy, Rear Spring |
| 48046 | Seat Sub-assy, Spring U Bolt, RH |
| 48046A | Bolt, U(FOR REAR SPRING) |
| 48047 | Seat Sub-assy, Spring U Bolt, LH |

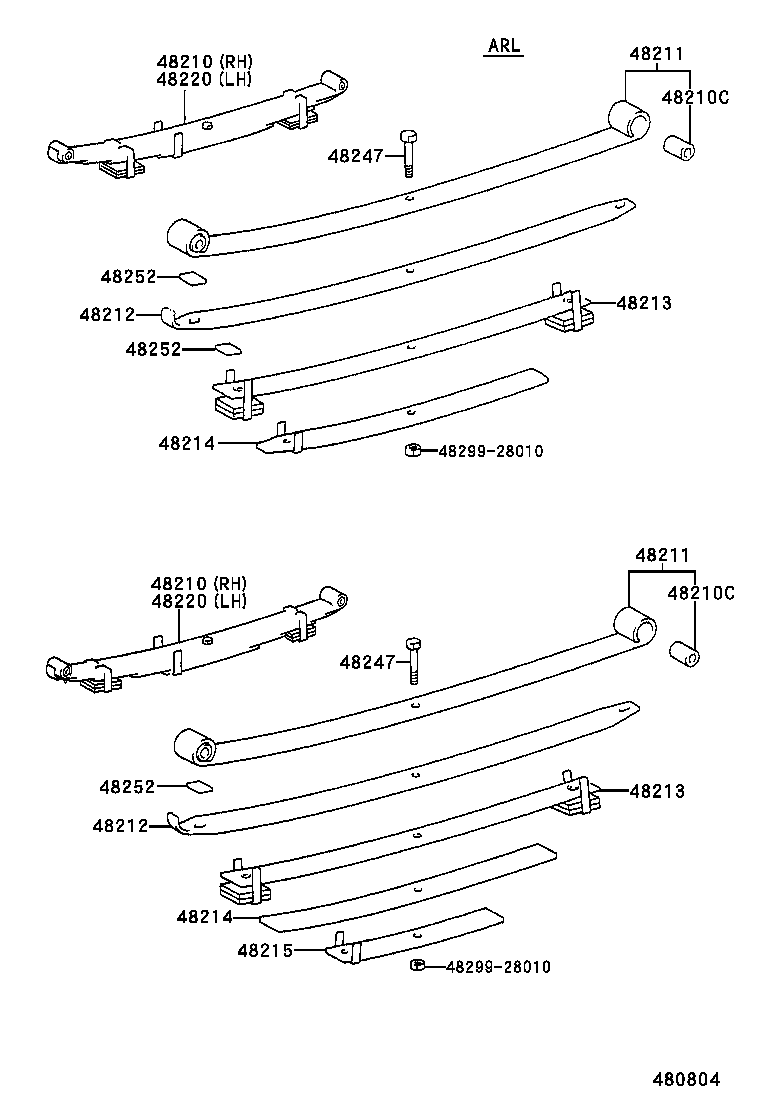

| 48210 | Spring Assy, Rear RH |
| 48210A | Bush(FOR REAR SPRING SHACKLE UPPER) |
| 48210C | Bush(FOR REAR SPRING LEAF) |
| 48211 | Leaf, Rear Spring, NO.1 |
| 48212 | Leaf, Rear Spring, NO.2 |
| 48213 | Leaf, Rear Spring, NO.3 |
| 48214 | Leaf, Rear Spring, NO.4 |
| 48215 | Leaf, Rear Spring, NO.5 |
| 48220 | Spring Assy, Rear LH |
| 48247 | Bolt, Rear Spring, Center |
| 48251 | Spacer, Rear Spring Leaf |
| 48252 | Silencer, Rear Spring |
| 48341 | Bumper, Rear Spring |
| 48371 | Retainer, Rear Spring Pad |
| 48372 | Pad, Rear Spring |

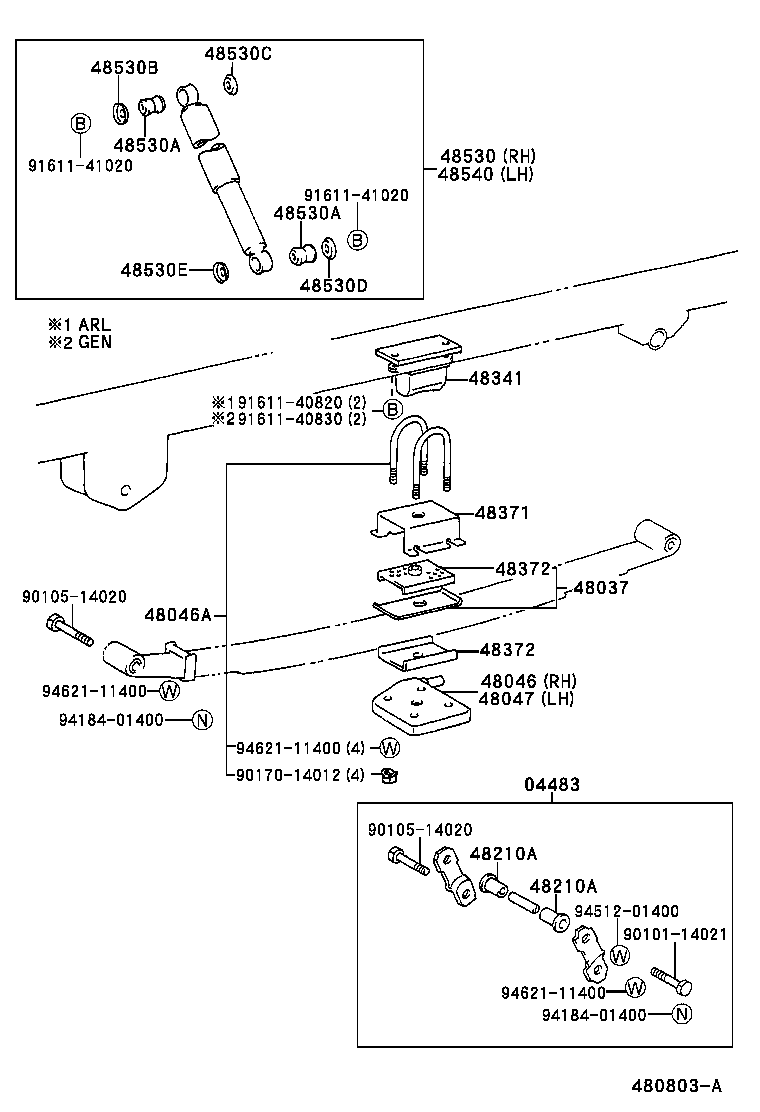

| 48530 | Absorber Assy, Shock, Rear RH |
| 48530A | Bush(FOR REAR SHOCK ABSORBER) |
| 48530B | Washer, Rear Shock Absorber Cushion, NO.1 |
| 48530C | Washer, Rear Shock Absorber Cushion, NO.2 |
| 48530D | Washer, Rear Shock Absorber Cushion, NO.3 |
| 48530E | Washer, Rear Shock Absorber Cushion, NO.4 |
| 48540 | Absorber Assy, Shock, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
