Toyota Hiace Van,Commuter
1987-08 → 2007-10 · chassis YH5#,6#,7#,LH51,61,71 · catalogue 711330 · General
Discontinued model
Data version 2008-05

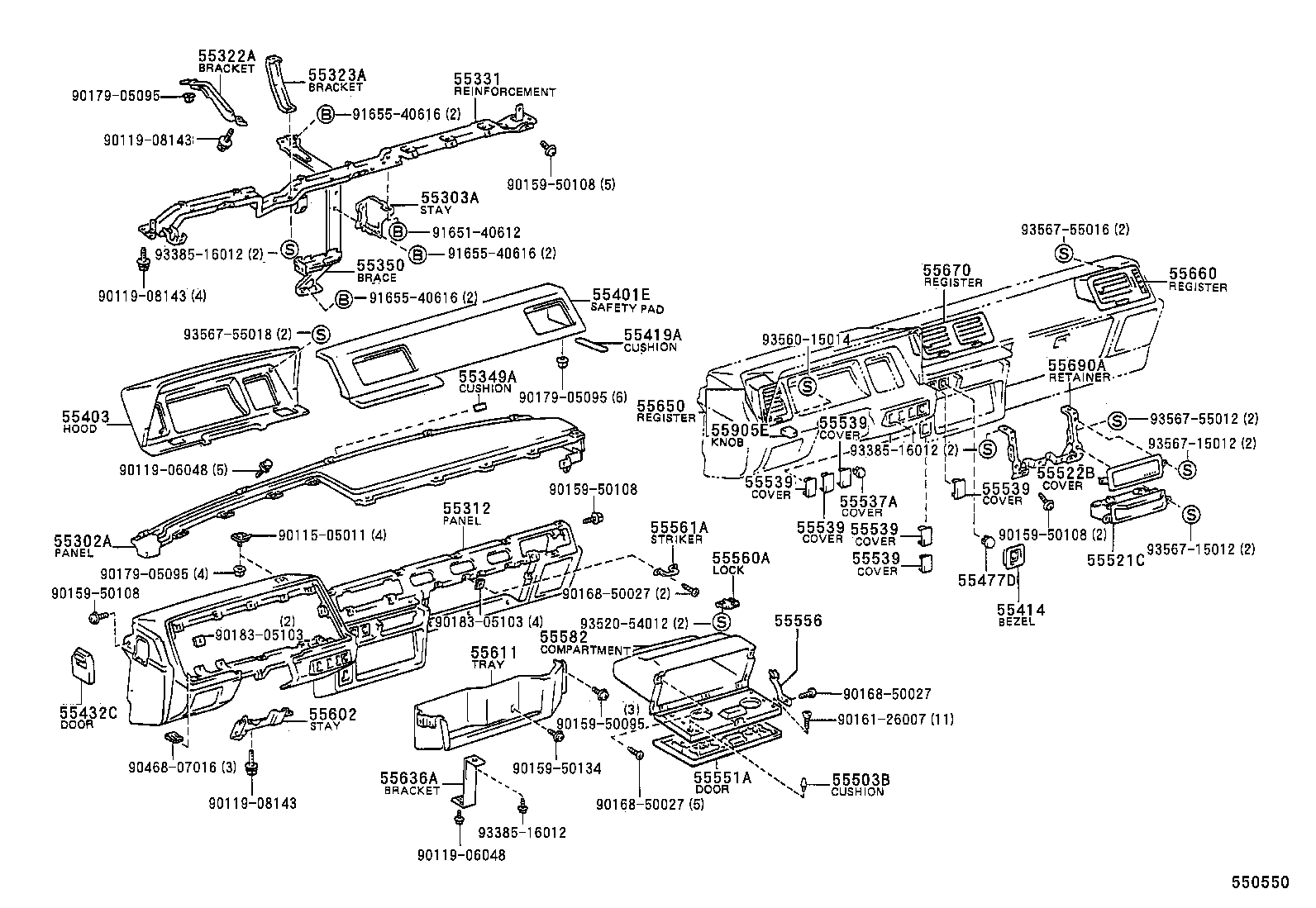

Instrument Panel & Glove Compartment
38 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55195 | Stay, Pedal Bracket, NO.1 |
| 55302A | Panel Sub-assy, Instrument, Upper |
| 55303A | Stay Sub-assy, Instrument Panel |
| 55303C | Stay Sub-assy, Instrument Panel |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55312 | Panel, Instrument, Lower |
| 55322A | Bracket, Instrument Panel, NO.2 |
| 55323A | Bracket, Instrument Panel, NO.3 |
| 55331 | Reinforcement, Instrument Panel |
| 55349A | Cushion, Instrument Panel |
| 55350 | Brace Assy, Instrument Panel |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55403 | Hood Sub-assy, Meter |
| 55414 | Bezel, Cigar Lighter Hole |
| 55419A | Cushion, Instrument Cluster Finish Panel |
| 55424C | Panel, Radio Tuner Finish |
| 55432C | Door, Reservoir Tank |
| 55477D | Cover, Cigarette Lighter Hole |
| 55503B | Cushion(FOR GLOVE COMPARTMENT) |
| 55521C | Cover, Stereo Opening |
| 55522B | Cover, Radio Tuner Opening |
| 55536A | Cover, Long Parking Switch Hole |
| 55537A | Cover, Throttle Knob Hole |
| 55538B | Cover, Rheostat Light Hole |
| 55539 | Cover, Spare Switch Hole |
| 55551A | Door, Glove Compartment, Outer |
| 55556 | Arm, Glove Compartment Door Check |
| 55560A | Lock Assy, Glove Compartment Door |
| 55561A | Striker, Glove Compartment Door Lock |
| 55582 | Compartment, Glove Door, Inner |
| 55602 | Stay Sub-assy, Steering Column, Upper |
| 55611 | Tray, Instrument Panel Under |
| 55636A | Bracket, Instrument Panel Under Cover, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55690A | Retainer Assy, Instrument |
| 55905E | Knob Sub-assy, Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
