Toyota Hiace Van,Commuter
1987-08 → 2007-10 · chassis YH5#,6#,7#,LH51,61,71 · catalogue 711330 · General
Discontinued model
Data version 2008-05

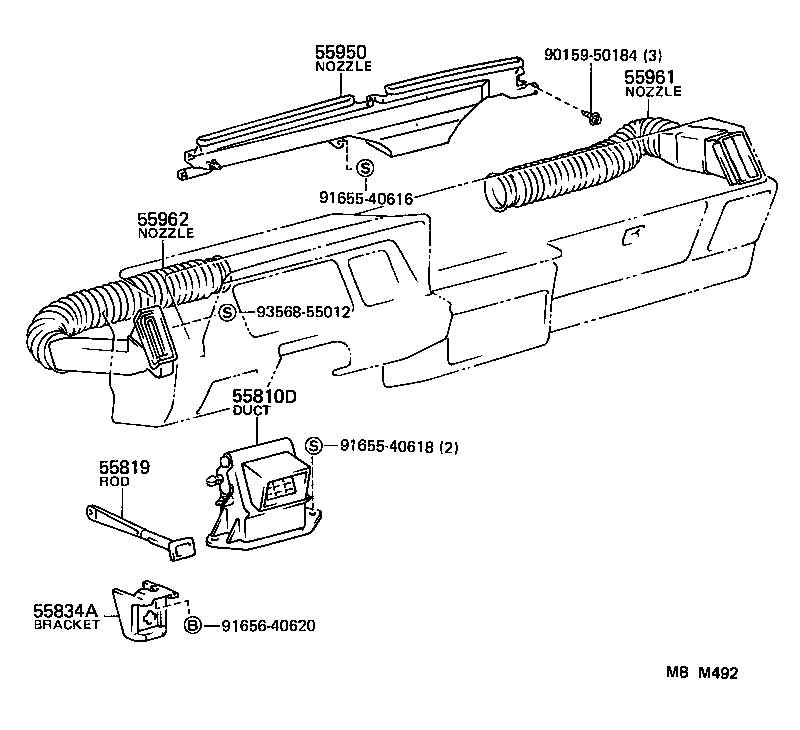

Front Ventilator
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55081D | Duct Sub-assy, Cowl TO Register, NO.1 |
| 55082D | Boot Sub-assy, Side Vent Duct, NO.1 |
| 55083B | Boot Sub-assy, Side Vent Duct, NO.2 |
| 55810D | Ventilator Assy, Front Foot Side |
| 55819 | Rod, Side Ventilator Control |
| 55834A | Bracket, Foot Ventilator Control Rod |
| 55865A | Box, Instrument Ventilator |
| 55950 | Nozzle Assy, Defroster |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
