Toyota Hiace Van,Commuter
1987-08 → 2007-10 · chassis YH5#,6#,7#,LH51,61,71 · catalogue 711330 · General
Discontinued model
Data version 2008-05

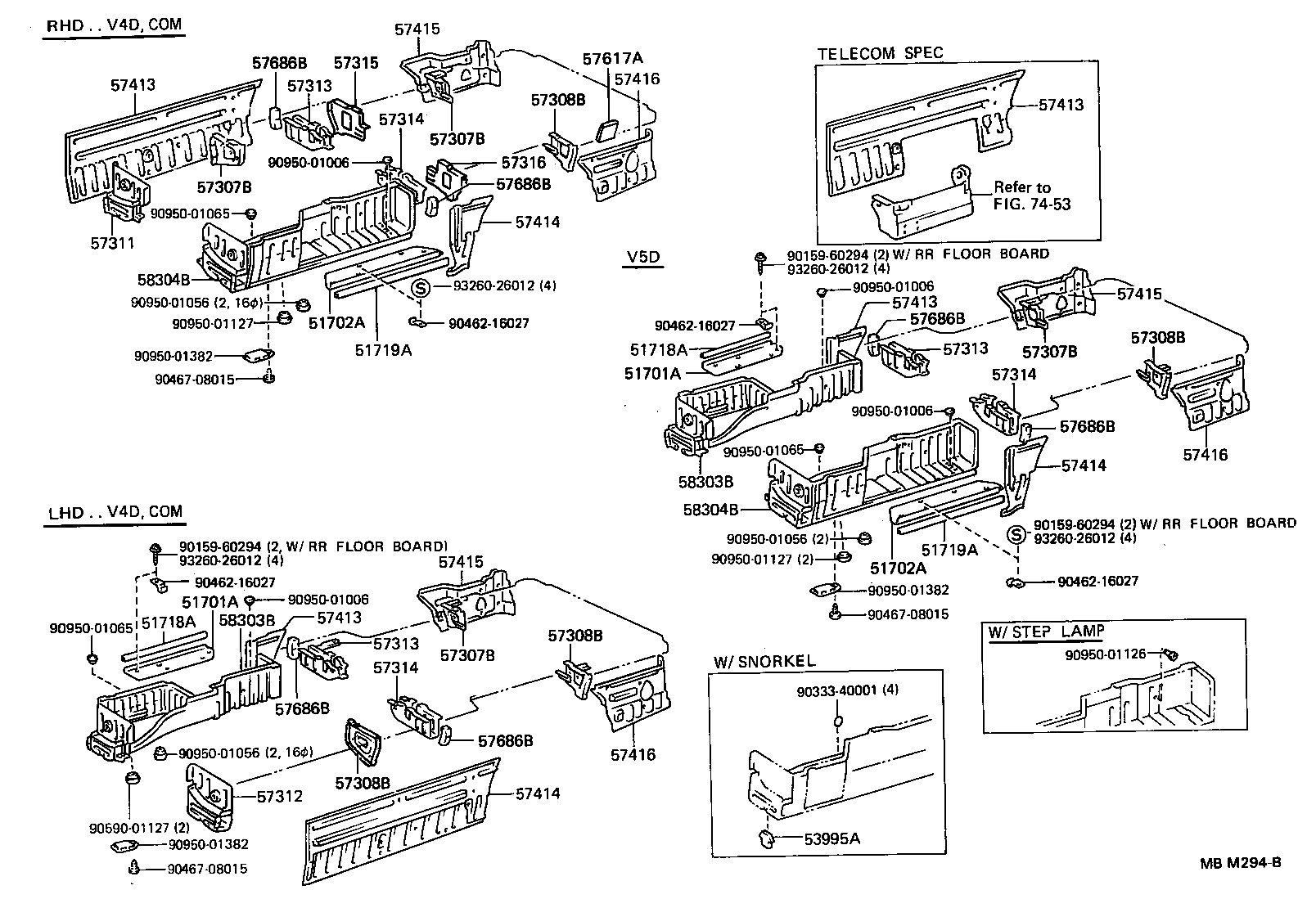

Rear Floor Panel & Rear Floor Member
42 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51569A | Guard, Propeller Shaft |
| 51701A | Cover Sub-assy, Side Door Step Panel, RH |
| 51702A | Cover Sub-assy, Side Door Step Panel, LH |
| 51718A | Protector, Step Cover, RH |
| 51719A | Protector, Step Cover, LH |
| 53995A | Plug, Air Cleaner Inlet |
| 57078 | Member Sub-assy, Rear Floor Rear Cross, Outer |
| 57079 | Member Sub-assy, Rear Floor Rear Cross, Inner |
| 57307B | Outrigger Sub-assy, NO.4 RH |
| 57308B | Outrigger Sub-assy, NO.4 LH |
| 57311 | Outrigger, NO.1 RH |
| 57312 | Outrigger, NO.1 LH |
| 57313 | Outrigger, NO.2 RH |
| 57314 | Outrigger, NO.2 LH |
| 57315 | Outrigger, NO.3 RH |
| 57316 | Outrigger, NO.3 LH |
| 57361A | Cover, NO.2 Outerigger Hole |
| 57362A | Packing, NO.2 Outrigger Hole Cover |
| 57413 | Rail, Floor Side, Center RH |
| 57414 | Rail, Floor Side, Center LH |
| 57415 | Rail, Floor Side, Rear RH |
| 57416 | Rail, Floor Side, Rear LH |
| 57419A | Plate, Rear Seat Lock |
| 57617A | Retainer, Exhaust Pipe Bracket |
| 57686B | Dust Proof, Outrigger, NO.2 |
| 58032 | Panel Sub-assy, Header |
| 58207C | Cover Sub-assy, Transmission Service Hole |
| 58209B | Cover Sub-assy, Battery Service Hole |
| 58215D | Cover, Camber Service Hole |
| 58216 | Packing, Camber Service Hole Cover |
| 58303B | Step Sub-assy, Rear Floor, RH |
| 58304B | Step Sub-assy, Rear Floor, LH |
| 58311 | Pan, Rear Floor |
| 58444A | Packing, Battery Service Hole Cover |
| 58445B | Pad, Battery Service Hole Cover |
| 58451B | Cover, Air Cleaner Service Hole |
| 58457D | Packing, Air Cleaner Service Hole Cover |
| 58465B | Packing, Transmission Service Hole Cover |
| 58466E | Silencer, Transmission Service Hole Cover, NO.1 |
| 58689A | Weight, Rear Floor |
| 59371 | Retainer, Rear Seat, NO.3 |
| 66311 | Hook, Rope |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
