Toyota Hiace Van,Commuter
1987-08 → 2007-10 · chassis YH5#,6#,7#,LH51,61,71 · catalogue 711330 · General
Discontinued model
Data version 2008-05

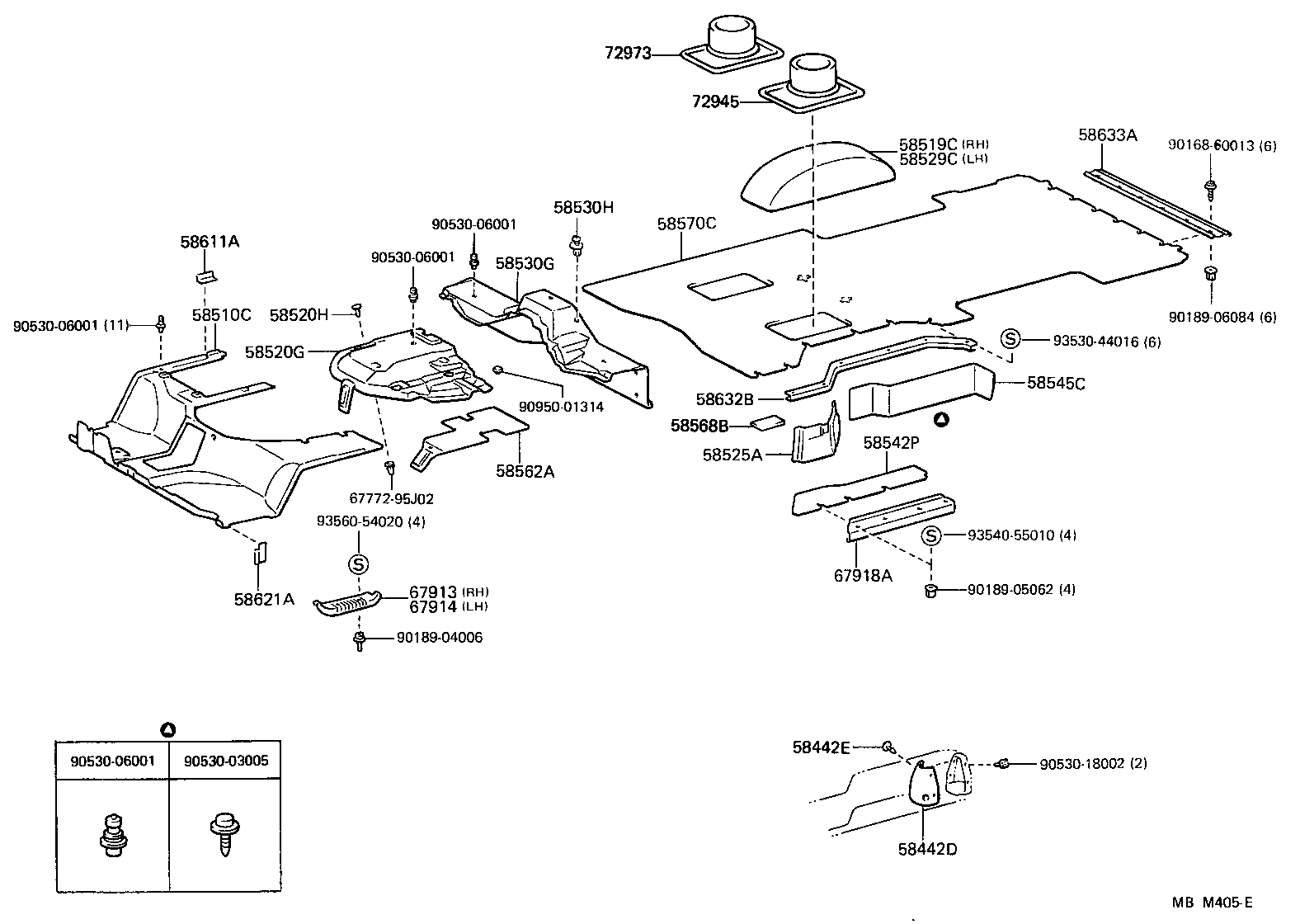

Floor Mat & Silencer Pad
34 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55211 | Silencer, Front Panel |
| 58442D | Cover, Jack |
| 58442E | Clip(FOR JACK COVER) |
| 58510B | Mat, Front Floor, Front |
| 58510C | Carpet Assy, Front Floor, Front |
| 58519B | Mat, Rear Wheel House, RH |
| 58519C | Carpet, Rear Wheel House, RH |
| 58520F | Mat Assy, Engine Cover |
| 58520G | Carpet Assy, Engine Cover |
| 58520H | Clip(FOR ENGINE COVER MAT) |
| 58525A | Carpet, Air Cleaner Service Hole Cover |
| 58529B | Mat, Rear Wheel House, LH |
| 58529C | Carpet, Rear Wheel House, LH |
| 58530F | Mat Assy, Header |
| 58530G | Carpet Assy, Header |
| 58530H | Clip(FOR HEADER MAT & HEADER CARPET) |
| 58541P | Mat, Step, RH |
| 58542P | Mat, Step, LH |
| 58545C | Carpet, Step Side, LH |
| 58562A | Carpet, Front Seat Side, LH |
| 58568B | Spacer, Rear Floor Carpet |
| 58570B | Mat Assy, Rear Floor |
| 58570C | Carpet Assy, Rear Floor |
| 58611A | Plate, Mat Set, NO.1 RH |
| 58621A | Plate, Mat Set, NO.1 LH |
| 58632B | Plate, Rear Floor Mat Set, NO.1 LH |
| 58633A | Plate, Back Door Scuff |
| 58634C | Plate, Rear Floor Mat Set, NO.1 RH |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
| 72945 | Carpet, Turn Seat Leg, NO.1 |
| 72973 | Cover, Turn Table |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
