Toyota Hiace Van,Commuter
1987-08 → 2007-10 · chassis YH5#,6#,7#,LH51,61,71 · catalogue 711330 · General
Discontinued model
Data version 2008-05

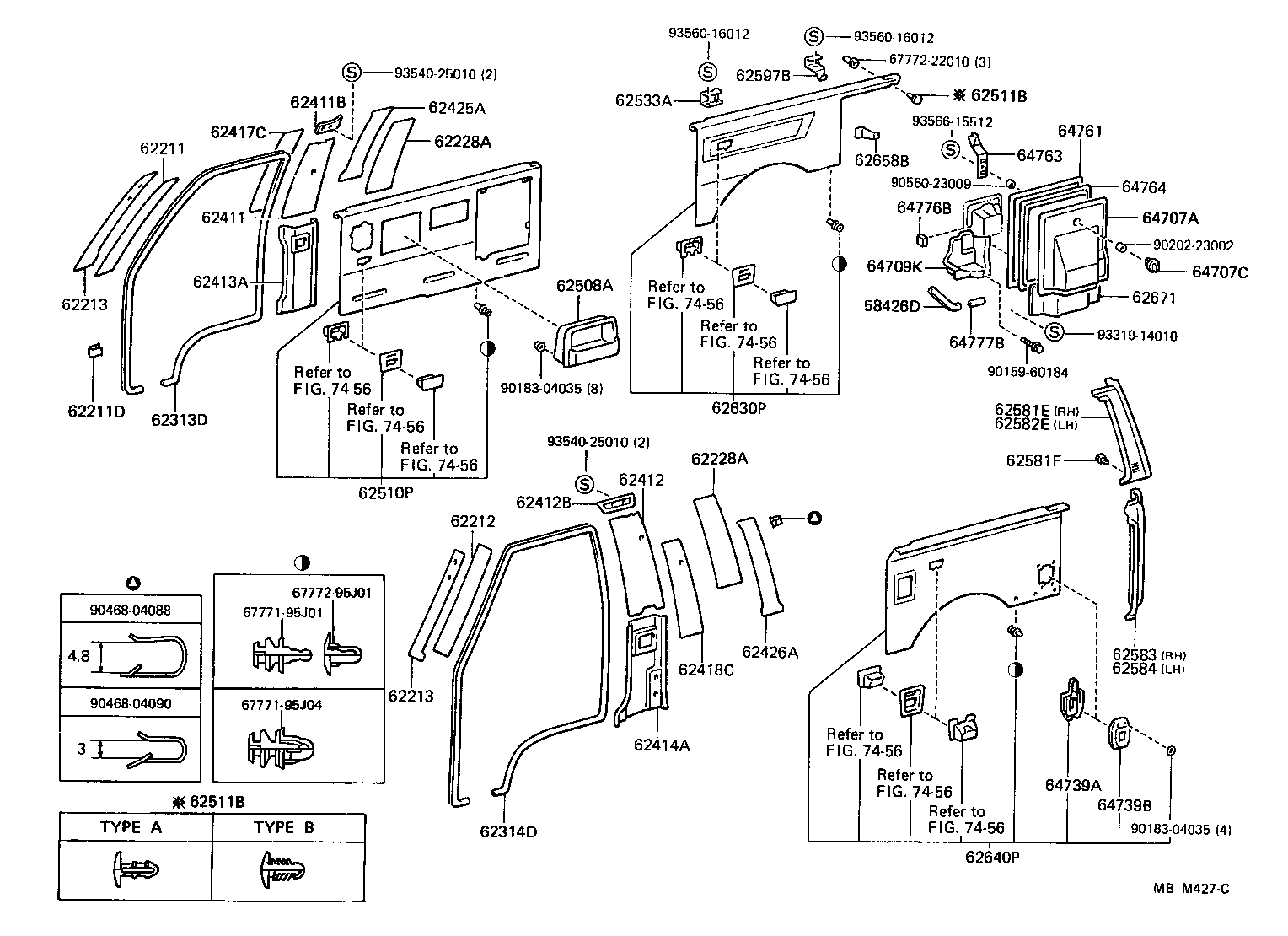

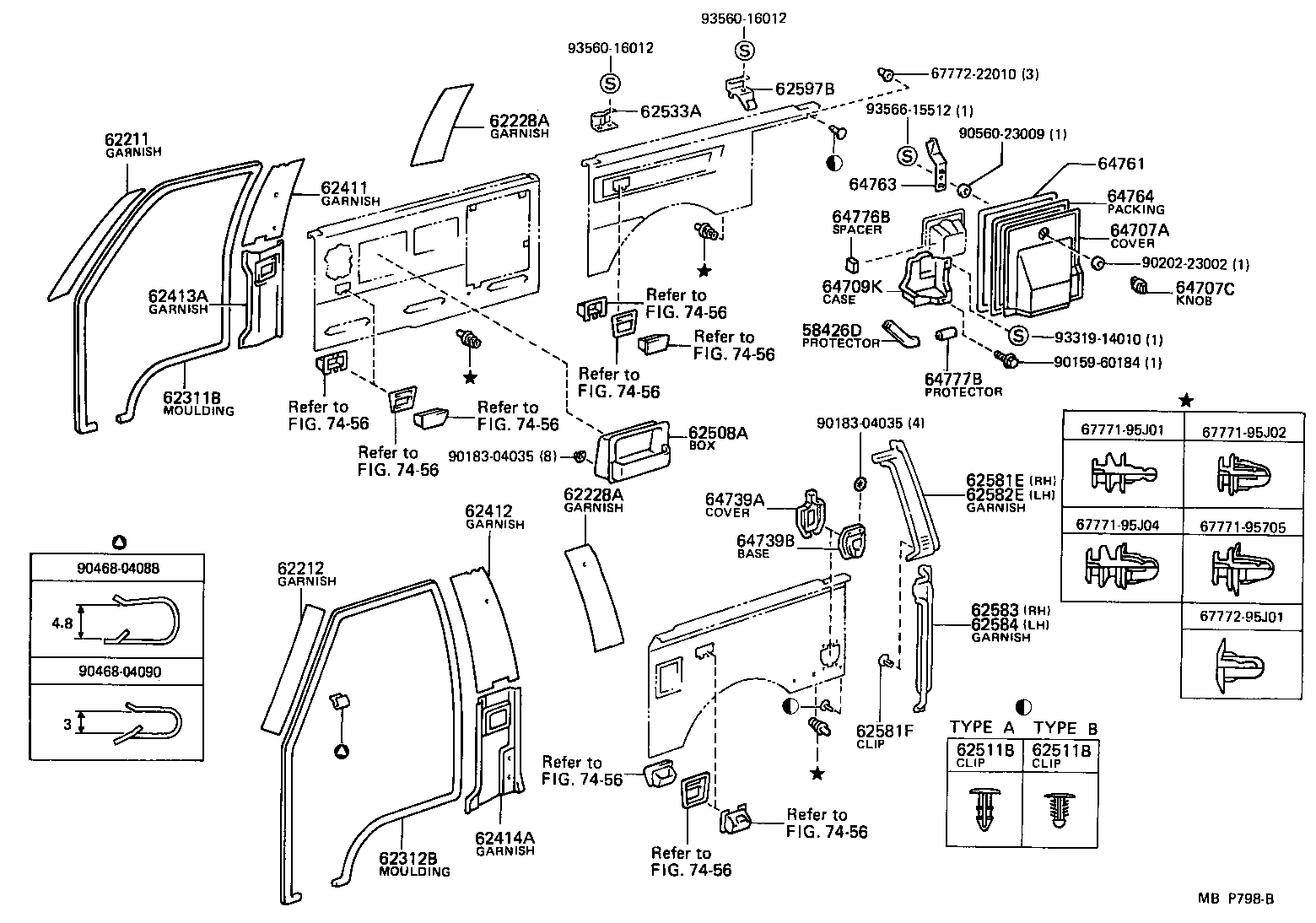

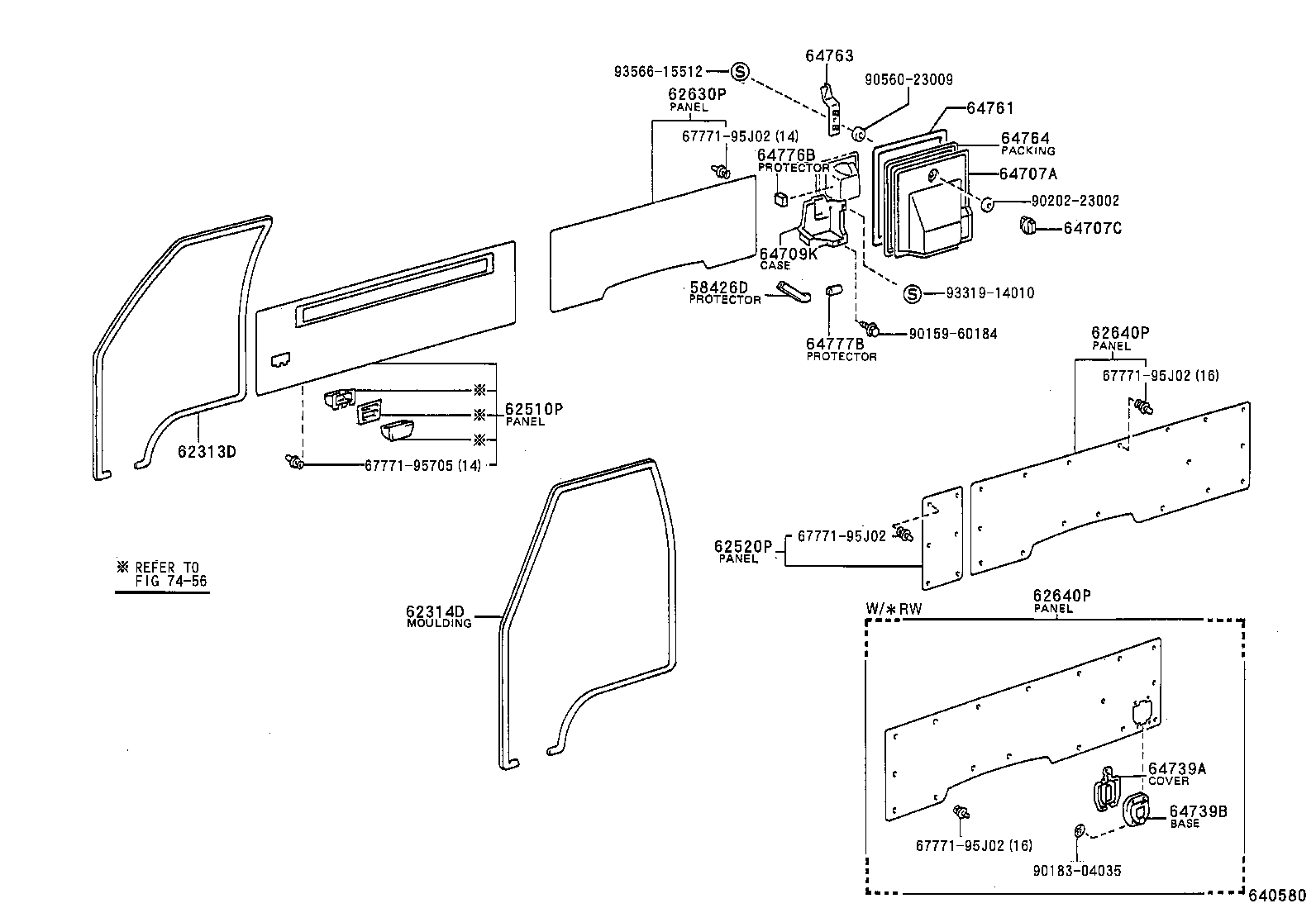

Inside Trim Board
45 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 58426D | Protector, Tool Bag Case |
| 62211 | Garnish, Front Pillar, RH |
| 62211D | Clip(FOR FRONT BODY PILLAR GARNISH) |
| 62212 | Garnish, Front Pillar, LH |
| 62213 | Pad, Front Pillar Garnish |
| 62228A | Garnish, Quarter Lock Piller |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62313D | Trim, Front Door Opening, RH |
| 62314D | Trim, Front Door Opening, LH |
| 62411 | Garnish, Center Pillar, RH |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412 | Garnish, Center Pillar, LH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62417C | Pad, Center Pillar, RH |
| 62418C | Pad, Center Pillar, LH |
| 62425A | Pad, Quarter Lock Pillar, RH |
| 62426A | Pad, Quarter Lock Pillar, LH |
| 62508A | Box Sub-assy, Side Trim |
| 62510P | Panel Assy, Quarter Trim, Front RH |
| 62511B | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62520P | Panel Assy, Quarter Trim, Front LH |
| 62533A | Bracket, Quarter Trim Clamp |
| 62581E | Garnish, Quarter Pillar, RH |
| 62581F | Clip (FOR QUARTER PILLAR GARNISH) |
| 62582E | Garnish, Quarter Pillar, LH |
| 62583 | Garnish, Quarter Pillar, Lower RH |
| 62584 | Garnish, Quarter Pillar, Lower LH |
| 62597B | Clamp, Quarter Trim |
| 62630P | Panel Assy, Quarter Trim, Rear RH |
| 62640P | Panel Assy, Quarter Trim, Rear LH |
| 62658B | Leather, Quarter Trim Rear, RH |
| 62671 | Board Sub-assy, Quarter Trim, Lower |
| 64707A | Cover Sub-assy, Quarter Trim Tool |
| 64707C | Knob, Jack Cover |
| 64709K | Case Sub-assy, Tool Bag |
| 64739A | Cover, Deck Trim Rear Washer |
| 64739B | Base, Rear Washer Tank, Service Hole Cover |
| 64761 | Cushion, Side Trim Tool Cover |
| 64763 | Stopper, Tool Cover |
| 64764 | Packing, Tool Cover |
| 64776B | Spacer, Tool Bag Case, NO.2 |
| 64777B | Protector, Quarter, Inner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
