Toyota Hiace Van,Commuter

1987-08 → 2007-10 · chassis YH5#,6#,7#,LH51,61,71 · catalogue 711330 · General

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

167 part groups · 8 illustrations

Illustrations

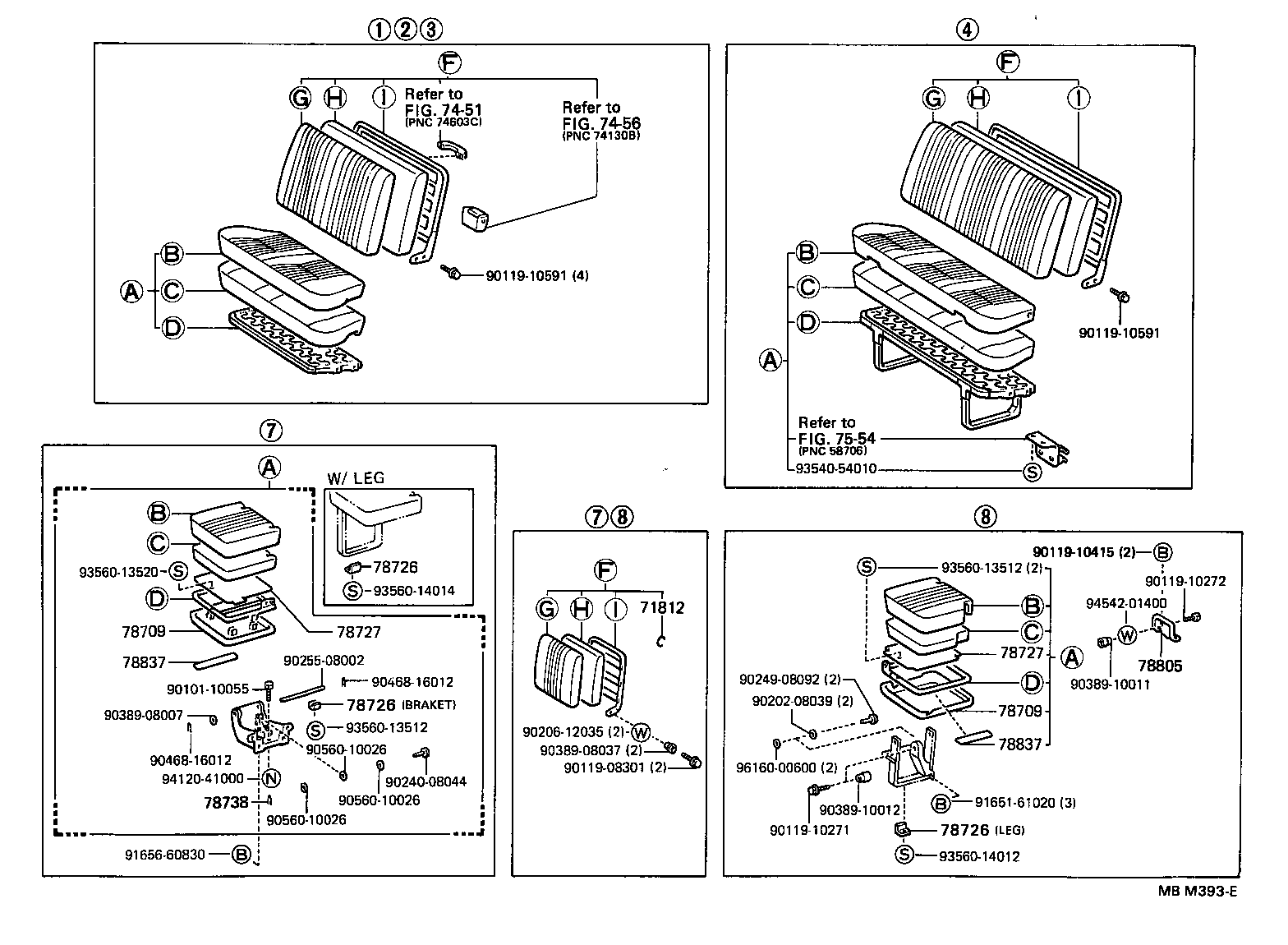

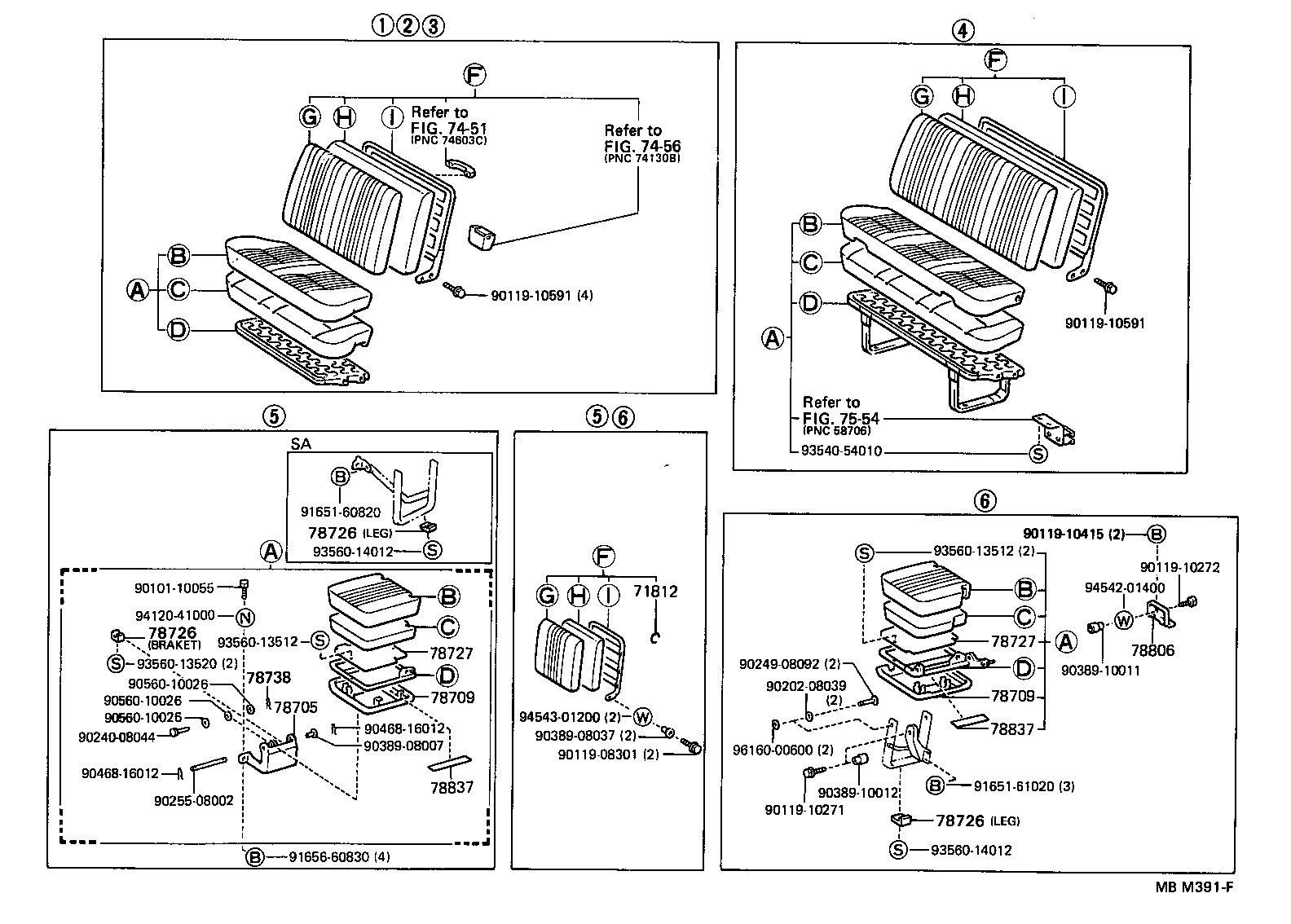

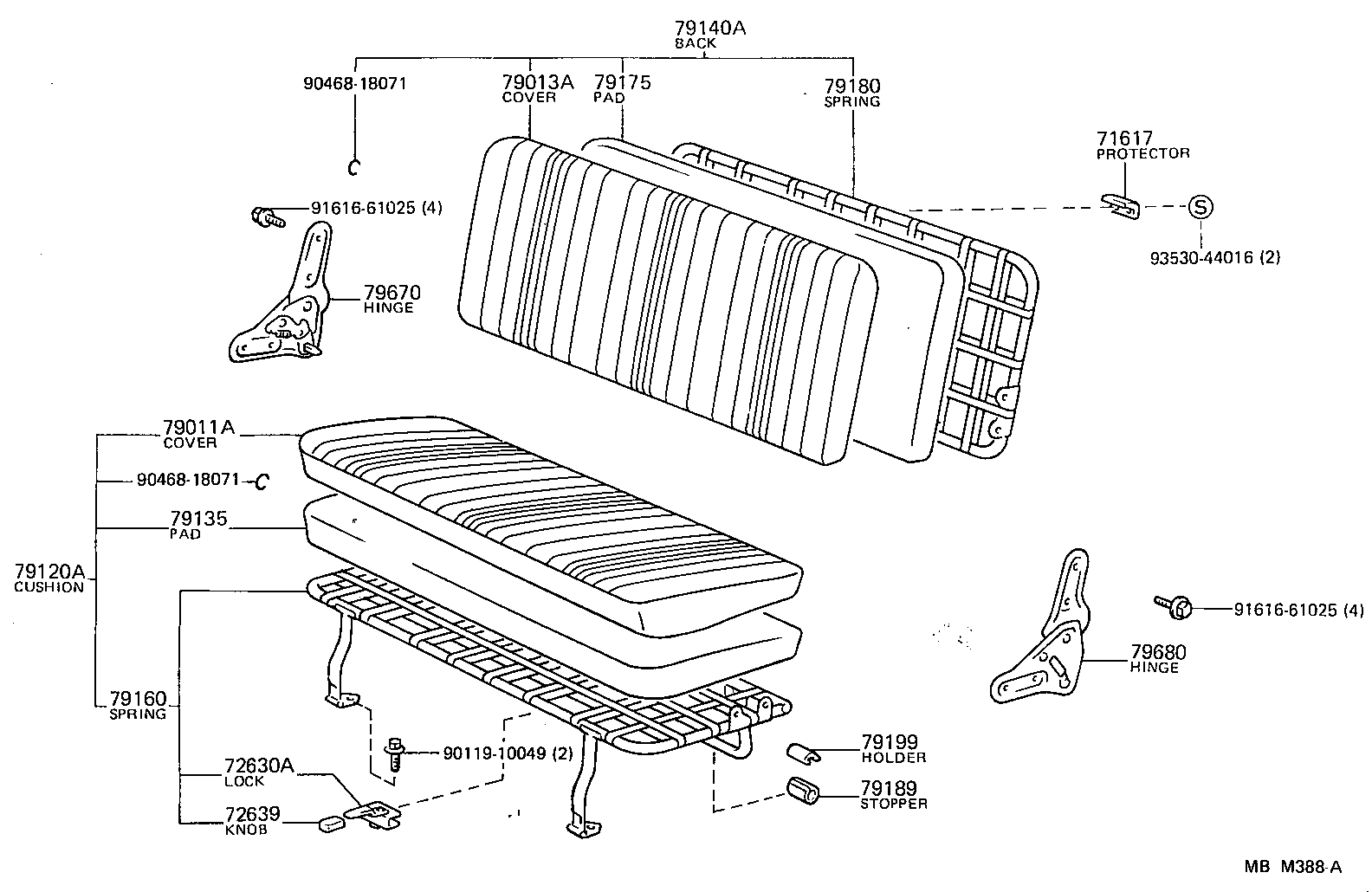

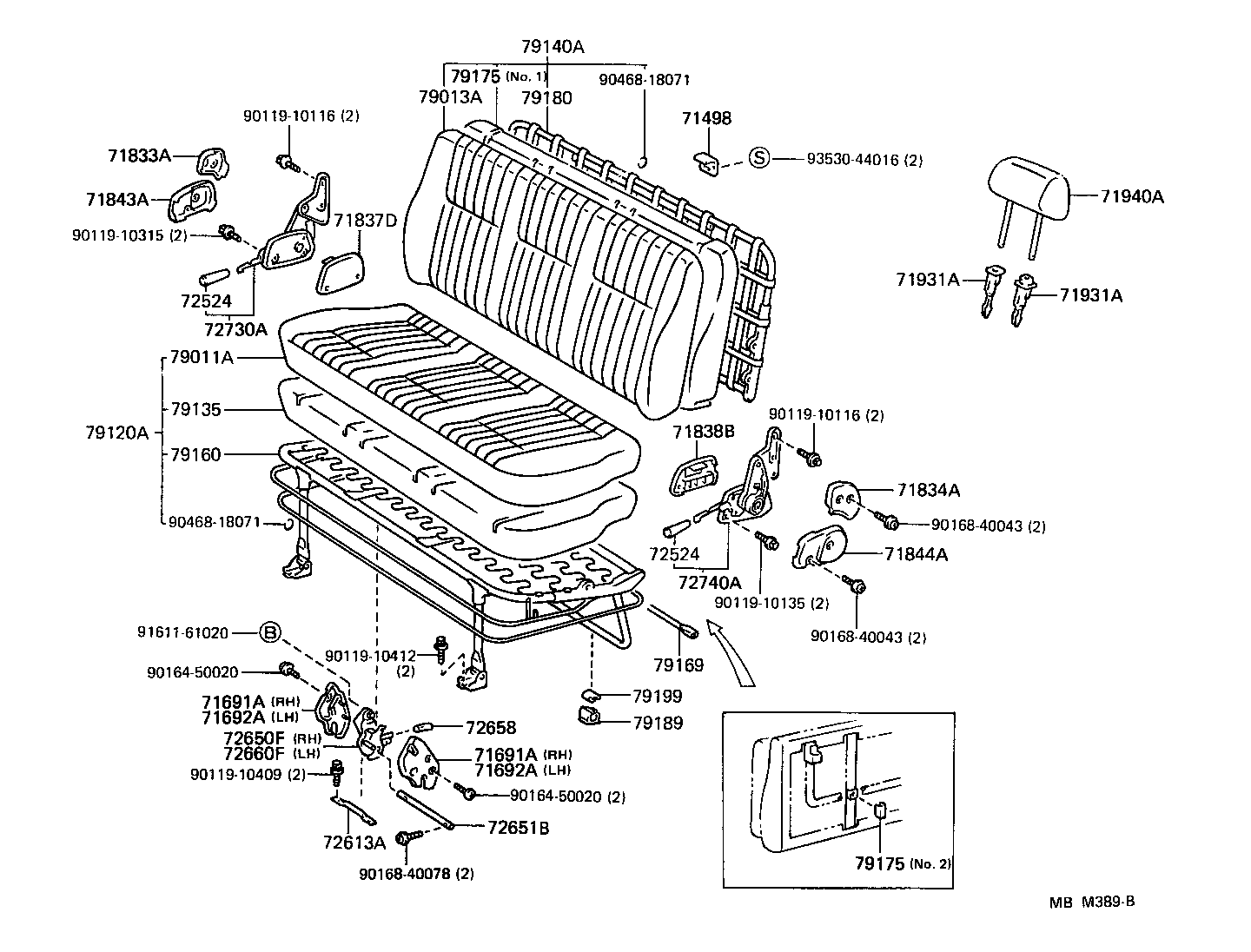

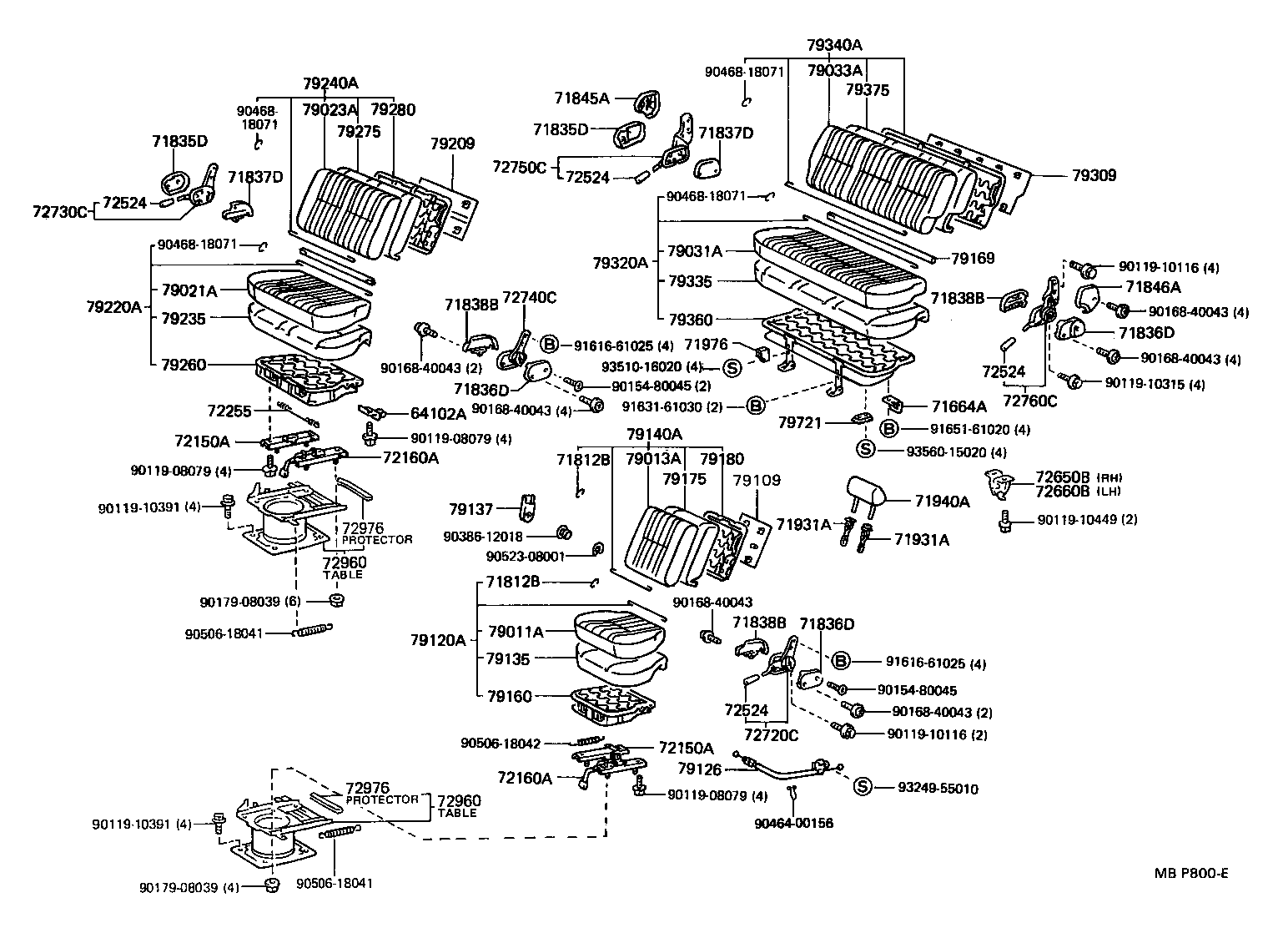

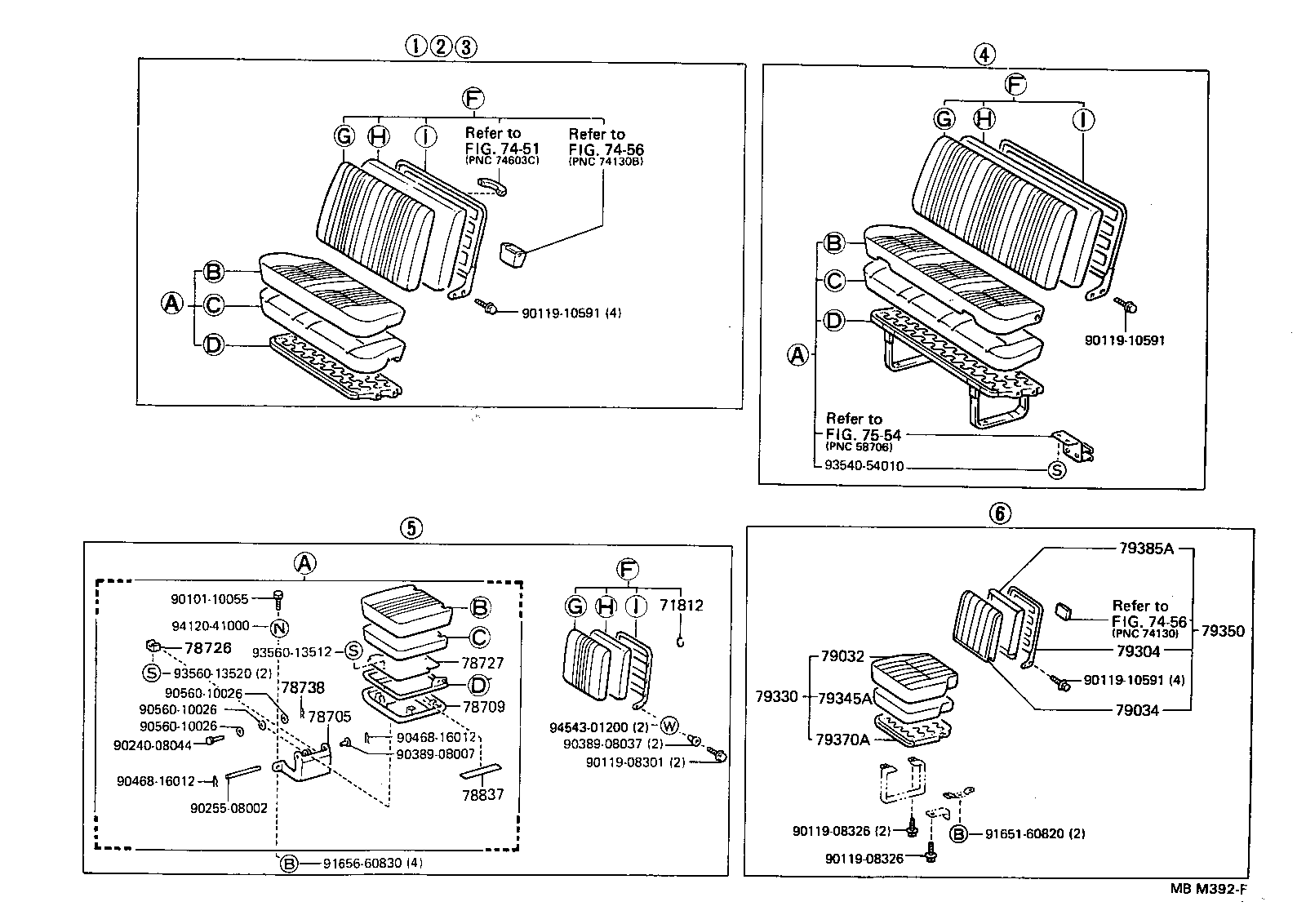

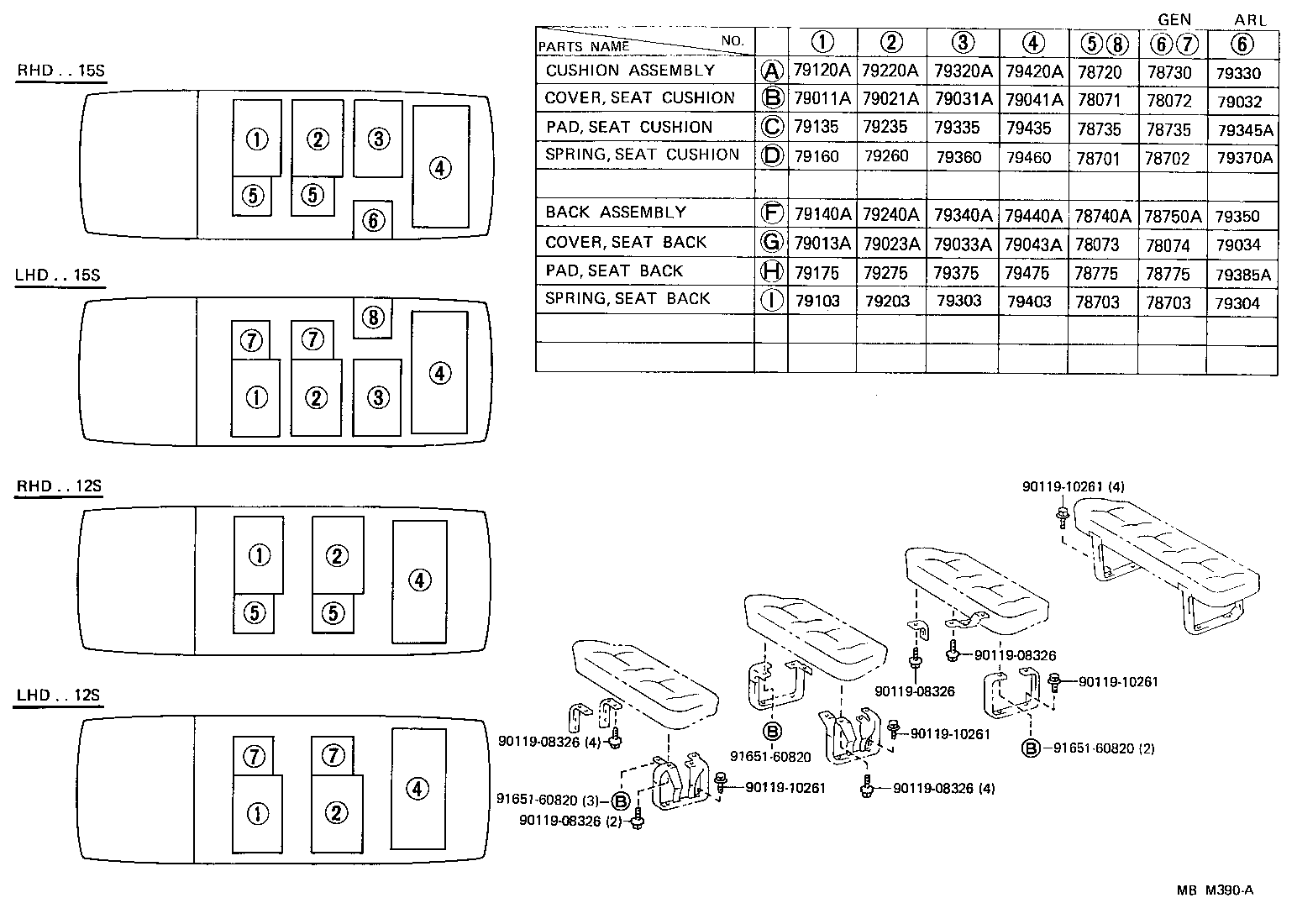

Figure MBM310B MBM310B 1987-08 → — Figure MBM388A MBM388A 1987-08 → — Figure MBM389B MBM389B 1987-08 → — Figure MBP800E MBP800E 1988-08 → — Figure MBM390A MBM390A 1987-08 → — Figure MBM391F MBM391F 1987-08 → — Figure MBM392F MBM392F 1987-08 → — Figure MBM393E MBM393E 1987-08 → —

Part groups

PNCDescription
64102A Bracket Sub-assy, Jack Handle Support
71011S Frame Sub-assy, Front Seat Cushion, RH
71012S Frame Sub-assy, Front Seat Cushion, LH
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71031S Cover Sub-assy, Center Seat Cushion
71035S Cover, Front Seatback, Center
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71181 Support, Front Seatback, RH
71274 Knob, Front Seat Hinge
71280A Hinge Assy, Front Seatback, LH
71301S Frame Sub-assy, Center Seat Cushion
71305S Frame Sub-assy, Center Seatback
71310S Cushion Assy, Front Seat, Center
71318 Pad, Center Seat Cushion
71350S Back Assy, Front Seat, Center
71358 Pad, Center Seatback
71361 Bracket, Front Seat Set, NO.1
71363 Bracket, Front Seat Set, NO.3
71364 Bracket, Front Seat Set, NO.4
71366 Bracket, Front Seat Set, NO.6
71391 Cover, Center Seat Cushion Bracket, RH
71392 Cover, Center Seat Cushion Bracket, LH
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71498 Protector, Rear Seatback
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71617 Protector, Rear Seatback
71621A Pad, Rear Seat Cushion Silencer, A
71664A Striker, Rear NO.3 Seat
71691A Cover, Rear NO.3 Seat Lock, RH
71692A Cover, Rear NO.3 Seat Lock, LH
71811C Cover, Reclining Adjuster, RH
71812 Clip (FOR FRONT SEAT CUSHION COVER)
71812A Ring, Hog, Small (FOR FRONT SEAT)
71812B Clip(FOR REAR SEAT CUSHION COVER)
71812C Cover, Reclining Adjuster, LH
71815A Cover, Front Seat Cushion Hinge, RH
71816A Cover, Front Seat Cushion Hinge, LH
71832C Cover, Front LH Seat Hinge
71833A Cover, Rear Seat Reclining, NO.1 RH
71834A Cover, Rear Seat Reclining, NO.1 LH
71835D Cover, Rear Seat Reclining, Lower RH
71836D Cover, Rear Seat Reclining, Lower LH
71837D Cover, Rear Seat Reclining, Inner RH
71838B Cover, Rear Seat Reclining, Inner LH
71843A Cover, Rear Seat Reclining, NO.2 RH
71844A Cover, Rear Seat Reclining, NO.2 LH
71845A Cover, Rear Seat Reclining, Upper RH
71846A Cover, Rear Seat Reclining, Upper LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71976 Cushion, Rear NO.3 Seat
72110A Track Assy, Front Seat, Outer RH
72120 Track Assy, Front Seat, Outer LH
72130A Track Assy, Front Seat, Inner RH
72140A Track Assy, Front Seat,Inner LH
72150A Track Assy, Rear Seat, RH
72160A Track Assy, Rear Seat, LH
72255 Cable, Rear Seat Track Lever
72510D Adjuster Assy, Reclining Seat, Outer RH
72520D Adjuster Assy, Reclining Seat, Outer LH
72524 Handle, Reclining Adjuster Release
72613A Striker, Front Seat Lock
72630A Lock Assy, Rear NO.1 Seat
72639 Knob, Rear Seat Lock
72650B Lock Assy, Rear NO.3 Seat, RH
72650F Lock Assy, Rear Seat, RH
72651B Rod, Rear Seat Lock
72658 Knob, Rear Seat Handle
72660B Lock Assy, Rear NO.3 Seat, LH
72660F Lock Assy, Rear Seat, LH
72720C Adjuster Assy, NO.1 Seat Reclining, LH
72730A Adjuster Assy, Rear Seat Reclining, RH
72730C Adjuster Assy, NO.2 Seat Reclining, RH
72740A Adjuster Assy, Rear Seat Reclining, LH
72740C Adjuster Assy, NO.2 Seat Reclining, LH
72750C Adjuster Assy, NO.3 Seat Reclining, RH
72760C Adjuster Assy, NO.3 Seat Reclining, LH
72960 Table Assy, Rear Seat Turn
72976 Protector, Rear Seat Turn Table
73178B Cap, Seat Belt Anchor Cover
78071 Cover Sub-assy, Sub Seat Cushion, RH
78072 Cover Sub-assy, Sub Seat Cushion, LH
78073 Cover Sub-assy, Sub Seatback, RH
78074 Cover Sub-assy, Sub Seatback, LH
78701 Frame Sub-assy, Sub Seat Cushion, RH
78702 Frame Sub-assy, Sub Seat Cushion, LH
78703 Frame Sub-assy, Sub Seatback
78705 Bracket Sub-assy, Sub Seat Cushion
78709 Panel Sub-assy, Sub Seat Cushion
78720 Cushion Assy, Sub Seat, RH
78726 Cushion, Sub Seat Cushion Frame
78727 Board, Sub Seat Cushion
78730 Cushion Assy, Sub Seat, LH
78735 Pad, Sub Seat Cushion
78738 Pin, Sub Seat Cushion Pin
78740A Back Assy, Sub Seat, RH
78750A Back Assy, Sub Seat, LH
78775 Pad, Sub Seatback
78805 Bracket Sub-assy, Sub Seat Cushion, Rear RH
78806 Bracket Sub-assy, Sub Seat Cushion, Rear LH
78837 Pad, Sub Seat Cushion Safety
79011A Cover Sub-assy, NO.1 Seat Cushion
79013A Cover Sub-assy, NO.1 Seatback
79021A Cover Sub-assy, NO.2 Seat Cushion
79023A Cover Sub-assy, NO.2 Seatback
79031A Cover Sub-assy, NO.3 Seat Cushion
79032 Cover Sub-assy, NO.3 Seat Cushion, LH
79033A Cover Sub-assy, NO.3 Seatback
79034 Cover Sub-assy, NO.3 Seatback, LH
79041A Cover Sub-assy, NO.4 Seat Cushion
79043A Cover Sub-assy, NO.4 Seatback
79103 Frame Sub-assy, NO.1 Seatback
79109 Board Sub-assy, NO.1 Seatback
79120A Cushion Assy, NO.1 Seat
79126 Cable, NO.1 Seat Lock
79135 Pad, NO.1 Seat Cushion
79137 Cover, NO.1 Seat Hinge
79140A Back Assy, NO.1 Seat
79160 Spring Assy, NO.1 Seat Cushion
79169 Rod, Rear Seat Hinge Connector
79175 Pad, NO.1 Seatback
79180 Spring Assy, NO.1 Seatback
79189 Stopper, NO.1 Seat Leg
79199 Holder, NO.1 Seat Leg Stopper
79203 Frame Sub-assy, NO.2 Seatback
79209 Board Sub-assy, NO.2 Seatback
79220A Cushion Assy, NO.2 Seat
79235 Pad, NO.2 Seat Cushion
79240A Back Assy, NO.2 Seat
79260 Spring Assy, NO.2 Seat Cushion
79275 Pad, NO.2 Seatback
79280 Spring Assy, NO.2 Seatback
79303 Frame Sub-assy, NO.3 Seatback
79304 Frame Sub-assy, NO.3 Seatback
79309 Board Sub-assy, NO.3 Seatback
79320A Cushion Assy, NO.3 Seat
79330 Cushion Assy, NO.3 Seat, LH
79335 Pad, NO.3 Seat Cushion
79340A Back Assy, NO.3 Seat
79345A Pad, NO.3 Seat Cushion, LH
79350 Back Assy, NO.3 Seat, LH
79360 Spring Assy, NO.3 Seat Cushion
79370A Spring Assy, NO.3 Seat Cushion, LH
79375 Pad, NO.3 Seatback
79385A Pad, NO.3 Seatback, LH
79403 Frame Sub-assy, NO.4 Seatback
79420A Cushion Assy, NO.4 Seat
79435 Pad, NO.4 Seat Cushion
79440A Back Assy, NO.4 Seat
79460 Spring Assy, NO.4 Seat Cushion
79475 Pad, NO.4 Seatback
79670 Hinge Assy, NO.1 Seat, RH
79680 Hinge Assy, NO.1 Seat, LH
79721 Stopper, NO.3 Seat
81917 Washer, Leather
