Toyota Hiace Van,Commuter
1987-08 → 2007-10 · chassis YH5#,6#,7#,LH51,61,71 · catalogue 711330 · General
Discontinued model
Data version 2008-05
Moulding

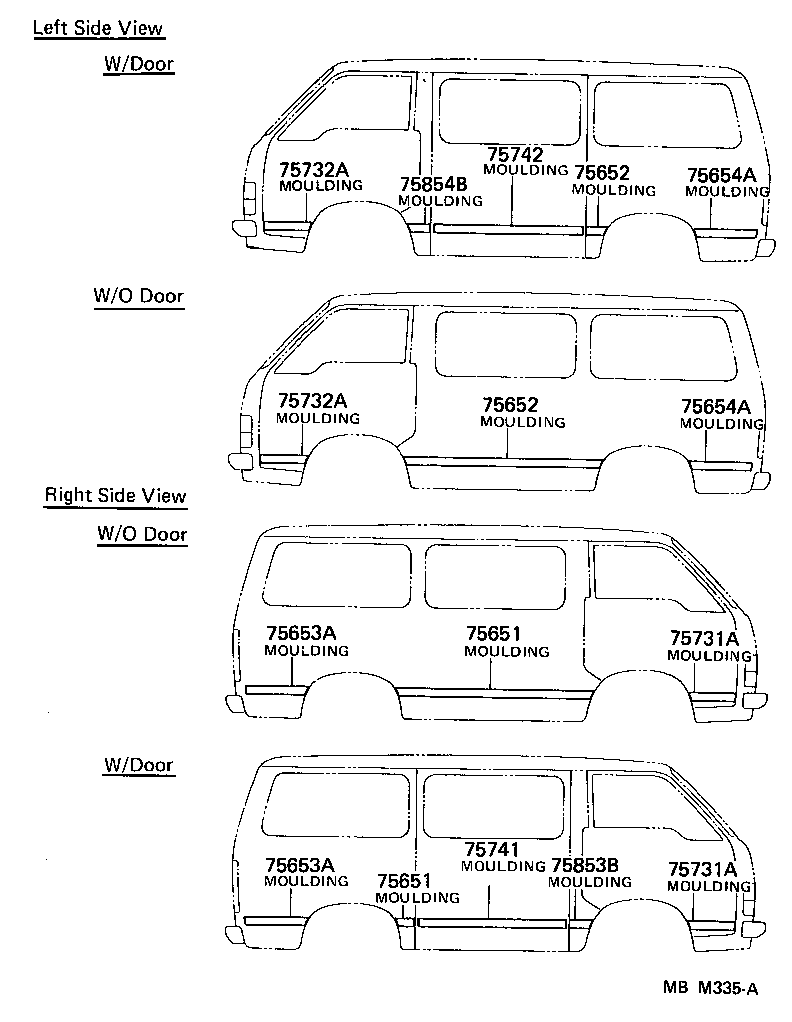

23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 75531 | Moulding, Windshield, Outer Upper |
| 75532B | Cover, Front Windshield Moulding |
| 75551 | Moulding, Roof Drip Side Finish, RH |
| 75552 | Moulding, Roof Drip Side Finish, LH |
| 75553A | Moulding, Roof Drip Side Finish, Rear RH |
| 75554A | Moulding, Roof Drip Side Finish, Rear LH |
| 75555C | Connector, Roof Drip Moulding |
| 75571 | Moulding, Back Window, Outside Upper |
| 75575A | Moulding, Back Window, Outside Lower |
| 75578B | Cover, Roof Drip Moulding End, Rear RH |
| 75579B | Cover, Roof Drip Moulding End, Rear LH |
| 75585A | Cover, Back Door Windshield Moulding |
| 75595B | Cover, Roof Drip Side Moulding End, Front |
| 75651 | Moulding, Quarter, Outside RH |
| 75652 | Moulding, Quarter, Outside LH |
| 75653A | Moulding, Quarter, Outside Rear RH |
| 75654A | Moulding, Quarter, Outside Rear LH |
| 75731A | Moulding, Front Door, Outside RH |
| 75732A | Moulding, Front Door, Outside LH |
| 75741 | Moulding, Rear Door, Outside RH |
| 75742 | Moulding, Rear Door, Outside LH |
| 75853B | Moulding, Center Pillar, RH |
| 75854B | Moulding, Center Pillar, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
