Toyota Hiace Van,Commuter
1987-08 → 2007-10 · chassis YH5#,6#,7#,LH51,61,71 · catalogue 711330 · General
Discontinued model
Data version 2008-05

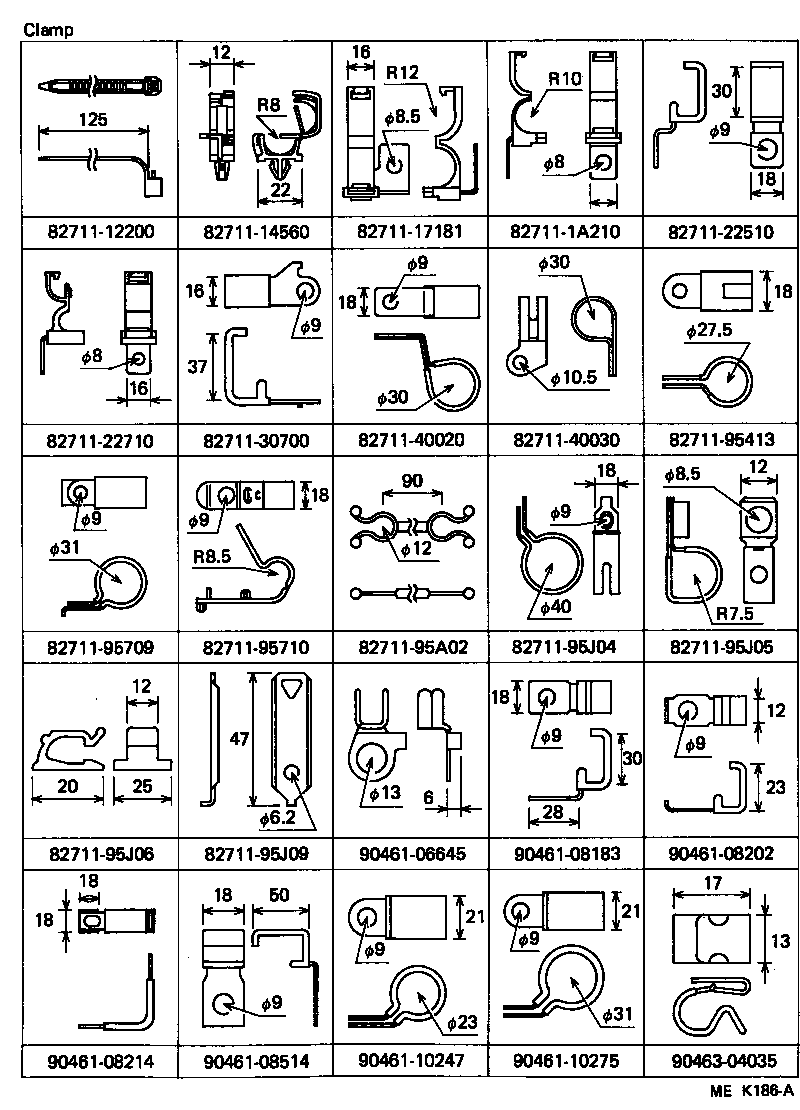

Wiring & Clamp
31 part groups · 5 illustrations
Part groups

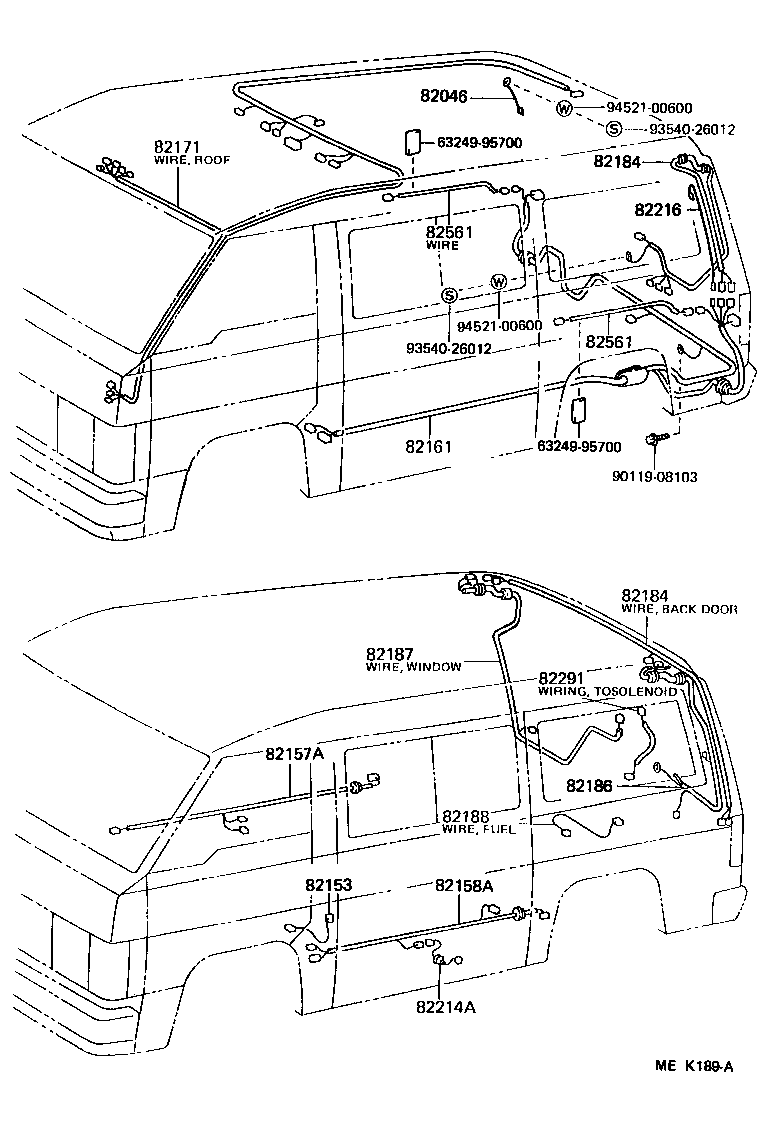

| PNC | Description |
|---|---|
| 82001 | Cable, Bond, NO.1 |
| 82046 | Wire Sub-assy, Rear Window Defogger Earth |
| 82046A | Wire Sub-assy, Body Ground, NO.1 |
| 82111 | Wire, Engine Room Main |
| 82112 | Wire, Engine Room, NO.2 |
| 82113 | Wire, Engine Room, NO.3 |
| 82121 | Wire, Engine |
| 82122 | Wire, Engine, NO.2 |
| 82123 | Wire, Engine, NO.3 |
| 82125 | Wire, Transmission |
| 82131 | Wire, Cowl |
| 82132 | Wire, Cowl, NO.2 |
| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82157A | Wire, Step Panel, RH |
| 82158A | Wire, Step Panel, LH |
| 82161 | Wire, Floor |
| 82171 | Wire, Roof, NO.1 |
| 82184 | Wire, Back Door, NO.1 |
| 82186 | Wire, Rear Window, NO.1 |
| 82187 | Wire, Rear Window, NO.2 |
| 82188 | Wire, Fuel Tank |
| 82210C | Fusible Link |
| 82214A | Wire, Lamp |
| 82216 | Wire, Rear Window Defogger |
| 82221 | Wire, Oil Pressure Switch |
| 82291 | Wiring, TO Solenoid |
| 82345 | Diode |
| 82561 | Wire, Rear Speaker |
| 82701 | Bracket Sub-assy, Wire Harness |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
