Toyota Hiace Van,Commuter

1987-08 → 2007-10 · chassis YH5#,6#,7#,LH51,61,71 · catalogue 711330 · General

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

12 part groups · 2 illustrations

Illustrations

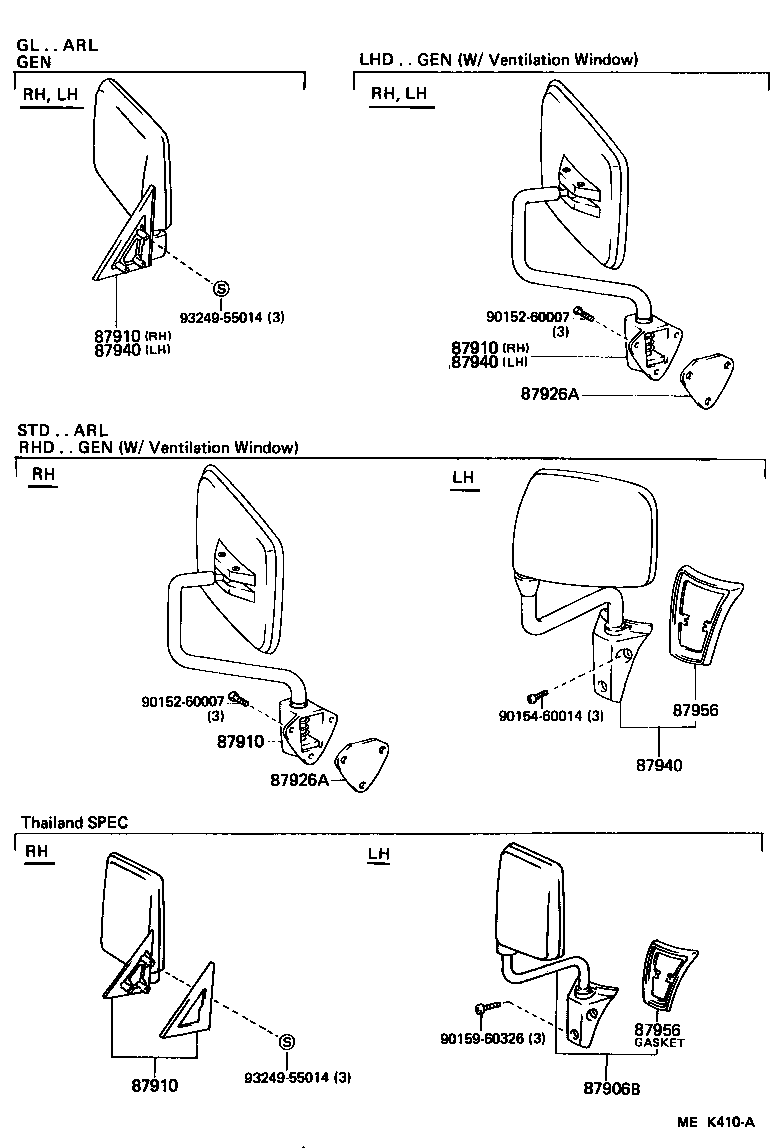

Figure MEK404C MEK404C 1987-08 → — Figure MEK410A MEK410A 1987-08 → —

Part groups

PNCDescription
81218B Bracket
87810 Mirror Assy, Inner Rear View
87810B Bulb, Inner Rear View Mirror Lamp
87827 Absorber, Inner Rear View Mirror
87833 Cap, Inner Mirror Service Hole
87834 Cover, Inner Rear View Mirror Stay Holder
87839 Packing, Inner Rear View Mirror
87906B Mirror Sub-assy, Outer Rear View, LH
87910 Mirror Assy, Outer Rear View, RH
87926A Packing, Outer Rear View Mirror
87940 Mirror Assy, Outer Rear View, LH
87956 Gasket, Outer Rear View Mirror Base, Lower LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
