Heating & Air Conditioning - Water Piping

30 part groups · 5 illustrations

Illustrations

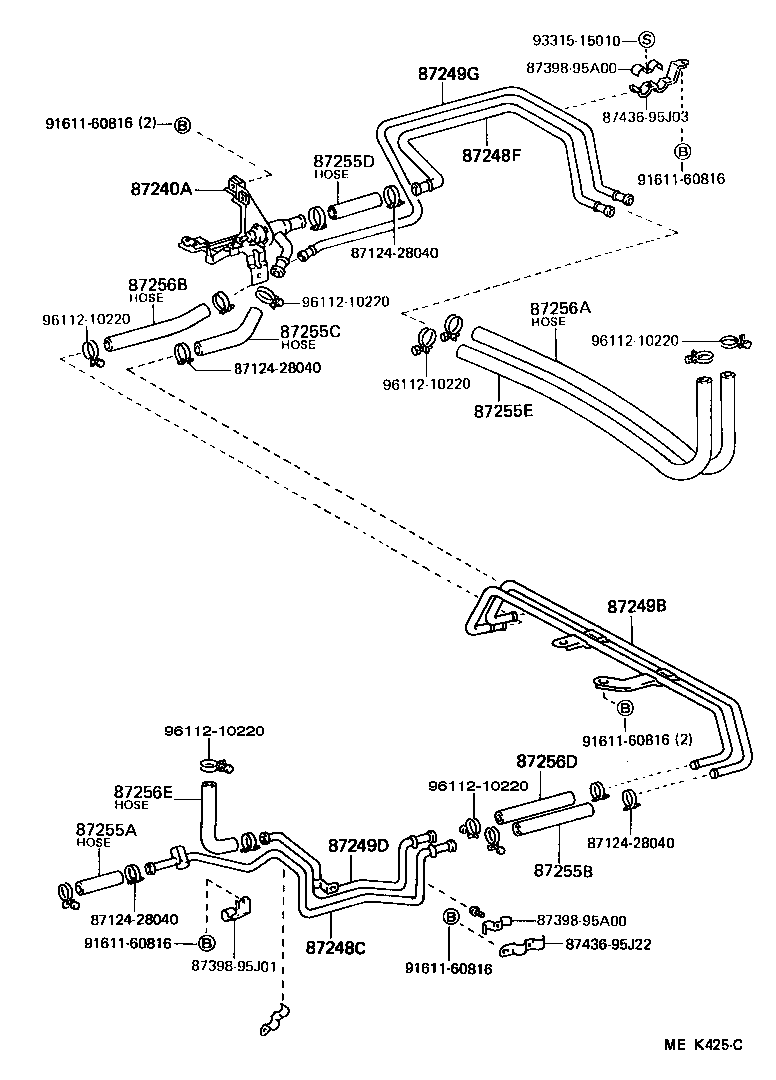

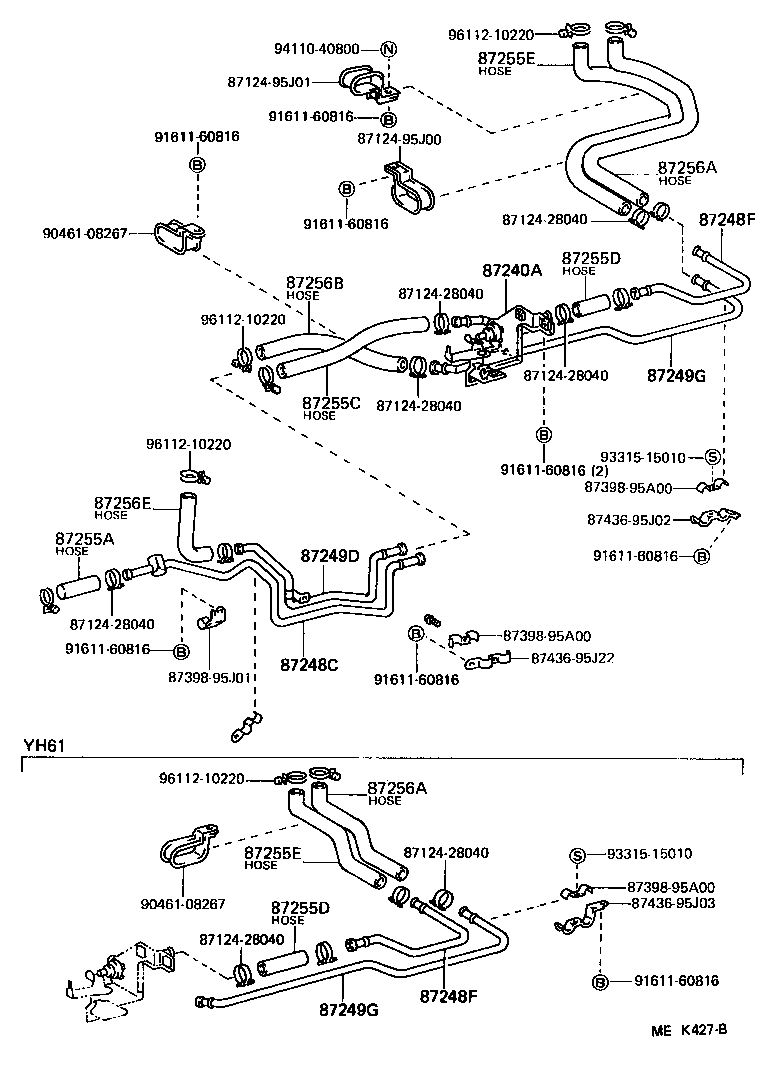

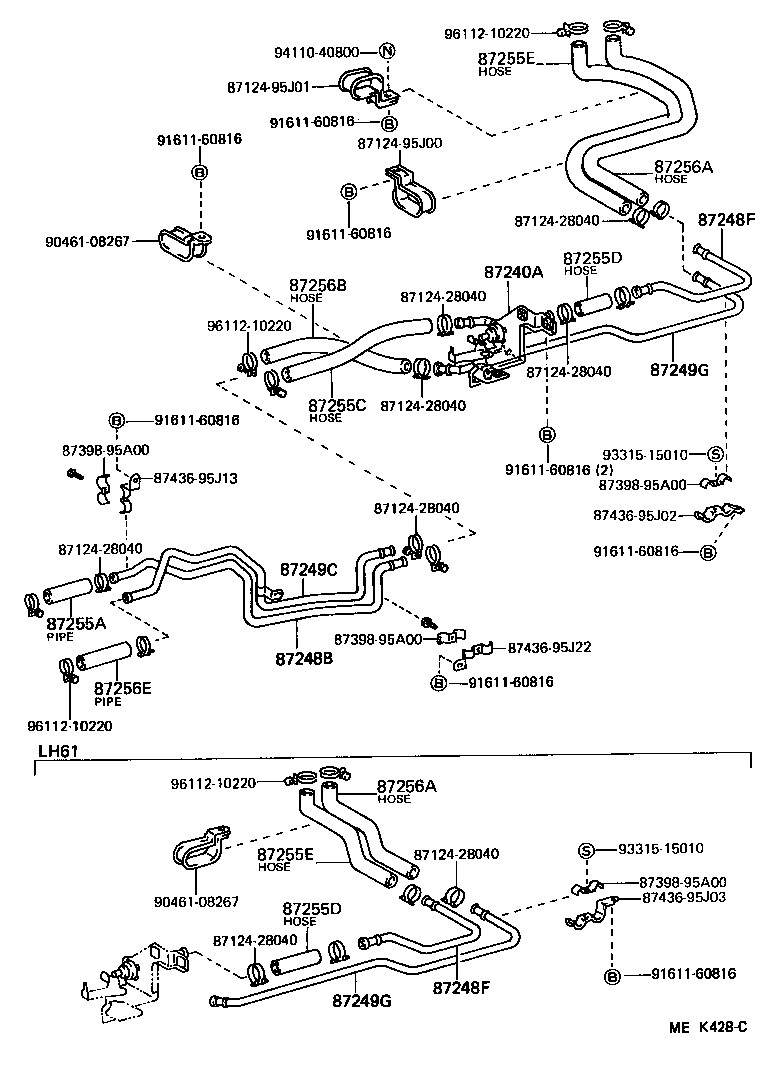

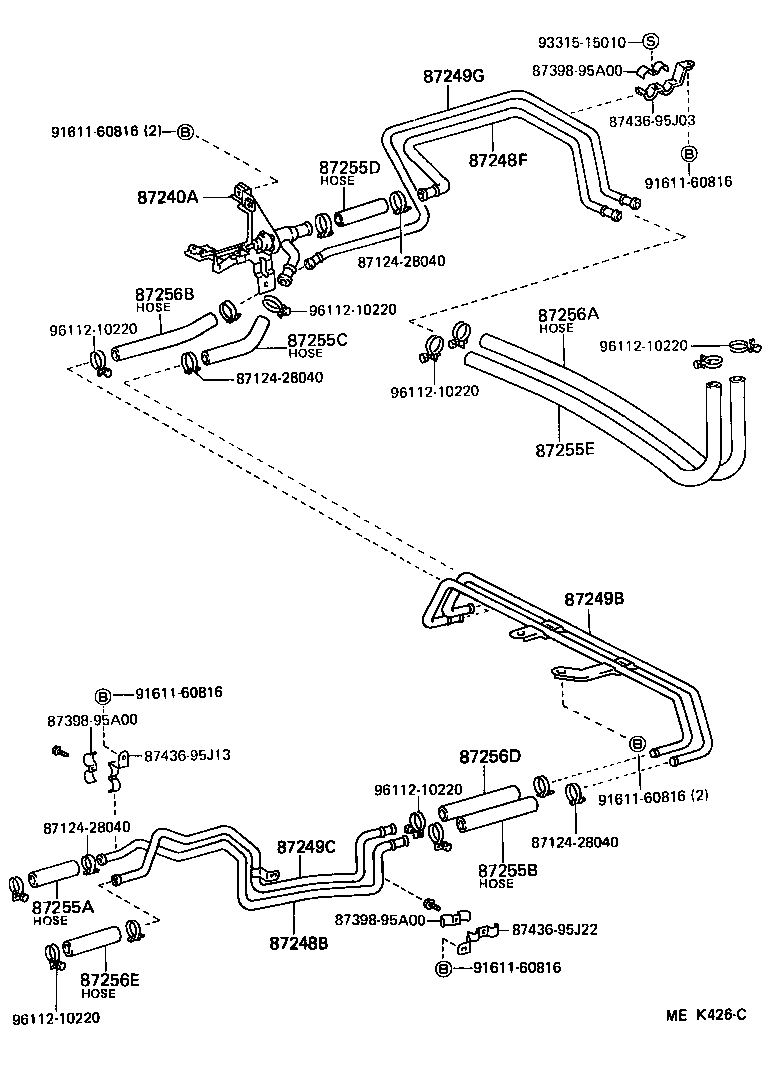

Figure MEK424C MEK424C 1987-08 → — Figure MEK425C MEK425C 1987-08 → 1989-08 Figure MEK426C MEK426C 1987-08 → 1989-08 Figure MEK427B MEK427B 1987-08 → 1989-08 Figure MEK428C MEK428C 1987-08 → 1989-08

Part groups

PNCDescription
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87240 Valve Assy, Heater Water
87240A Valve Assy, Rear Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248C Pipe, Heater Water Inlet, C
87248F Pipe, Heater Water Inlet, F
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87249C Pipe, Heater Water Outlet, C
87249D Pipe, Heater Water Outlet, D
87249F Pipe, Heater Water Outlet, F
87249G Pipe, Heater Water Outlet, G
87251 Joint OR Union, Water Hose Through
87251B Plug, Heater Water
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255B Hose, Rear Heater Water Inlet, B
87255C Hose, Rear Heater Water Inlet, C
87255D Hose, Rear Heater Water Inlet, D
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
87256D Hose, Rear Heater Water Outlet, D
87256E Hose, Rear Heater Water Outlet, E (TO ENGINE)
87263 Bracket, Heater Water Pipe, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
