Toyota Hiace Van,Commuter

1987-08 → 2007-10 · chassis YH5#,6#,7#,LH51,61,71 · catalogue 711330 · General

Discontinued model Data version 2008-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

38 part groups · 12 illustrations

Illustrations

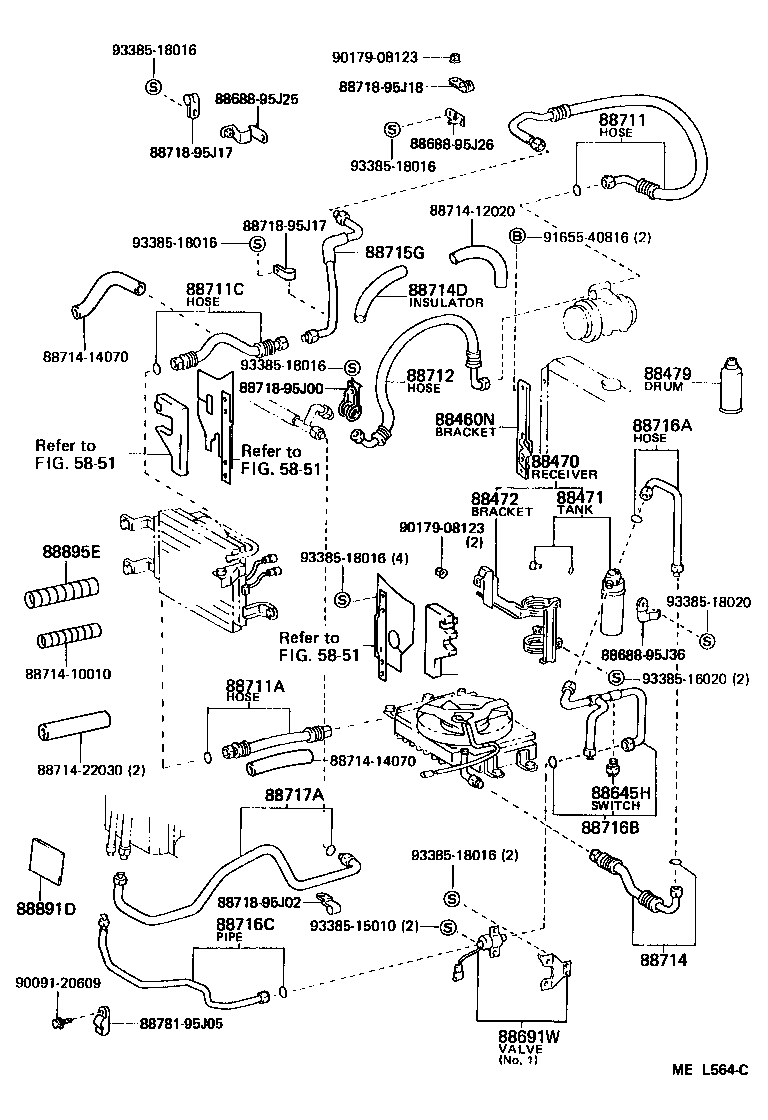

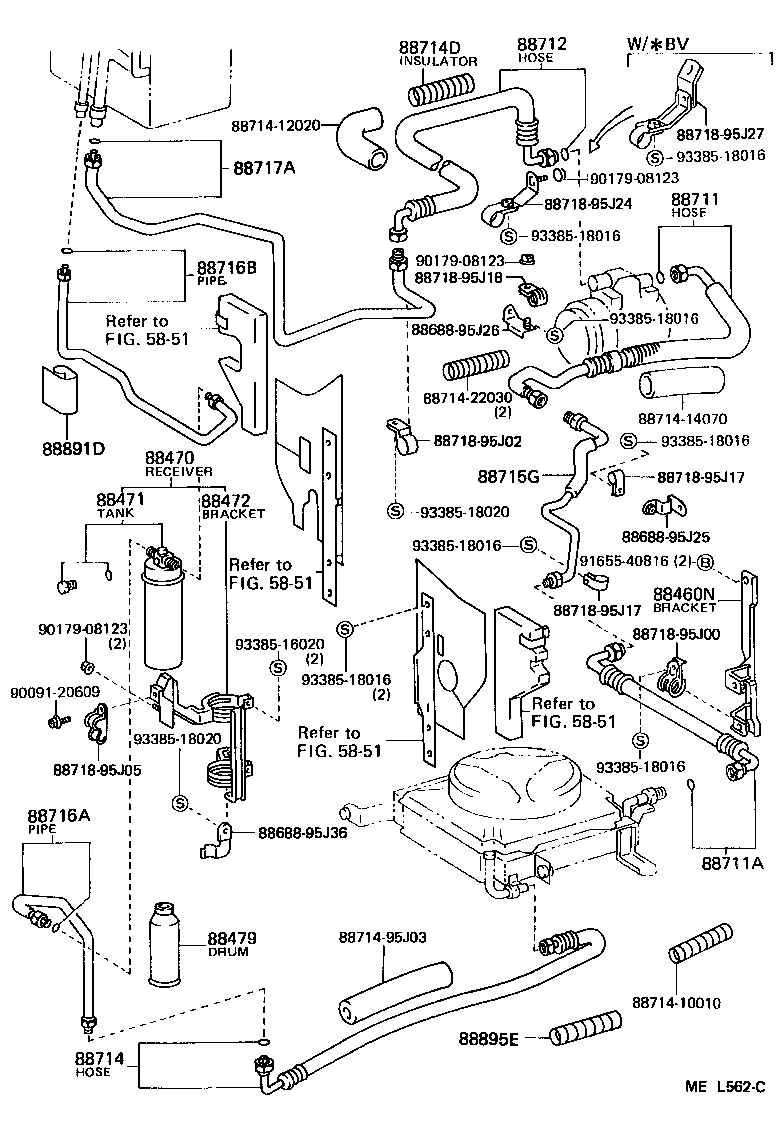

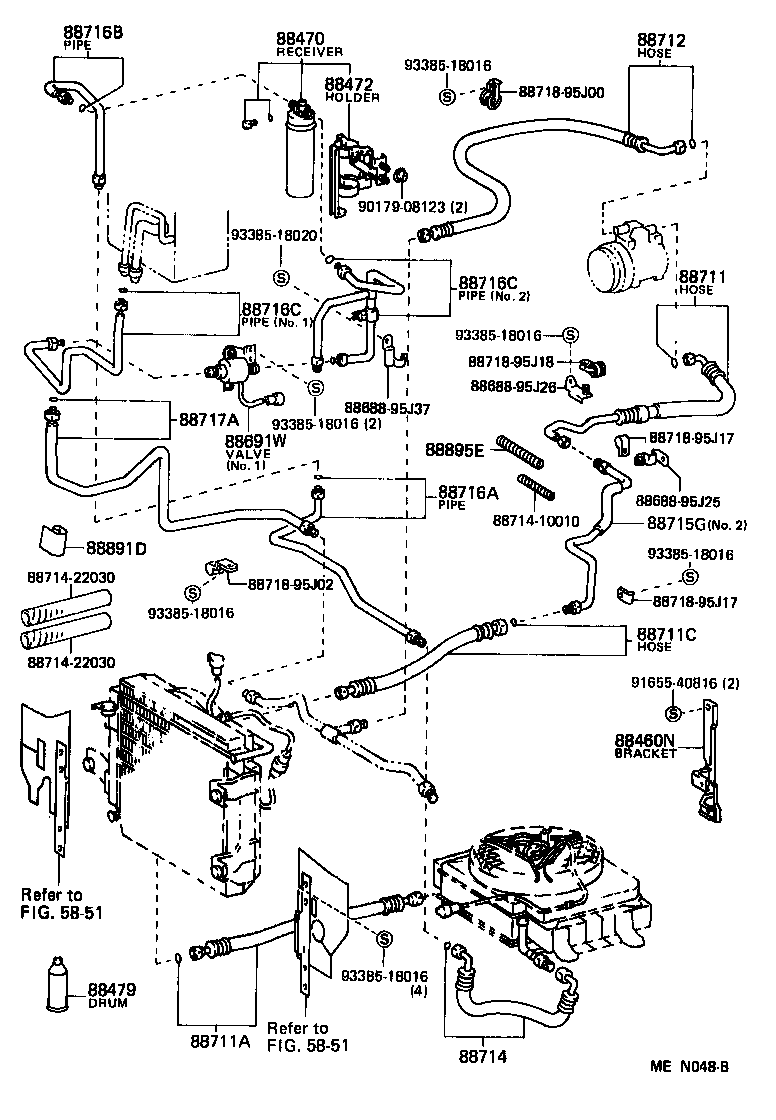

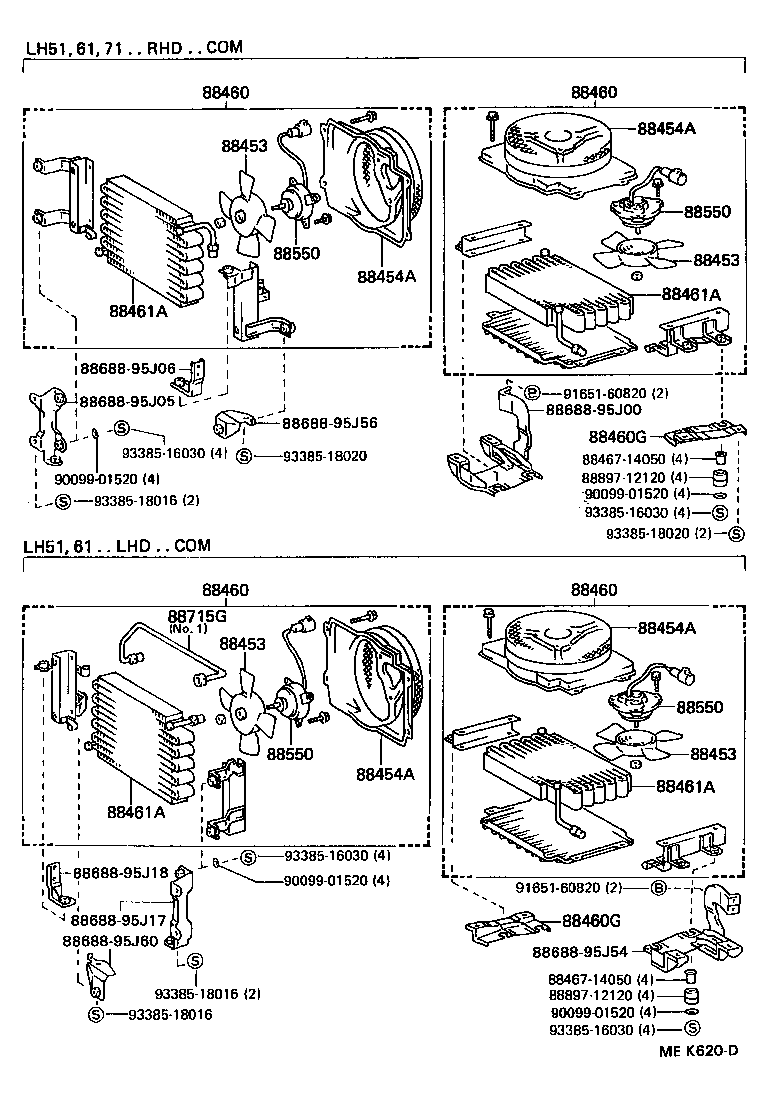

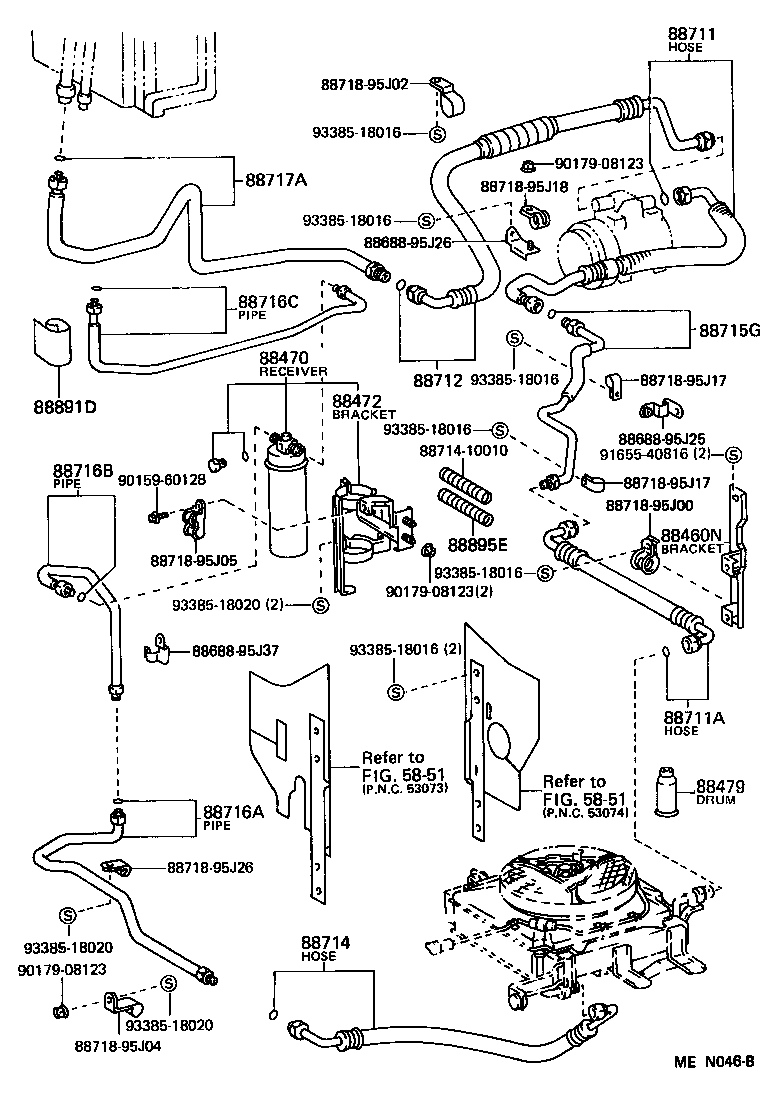

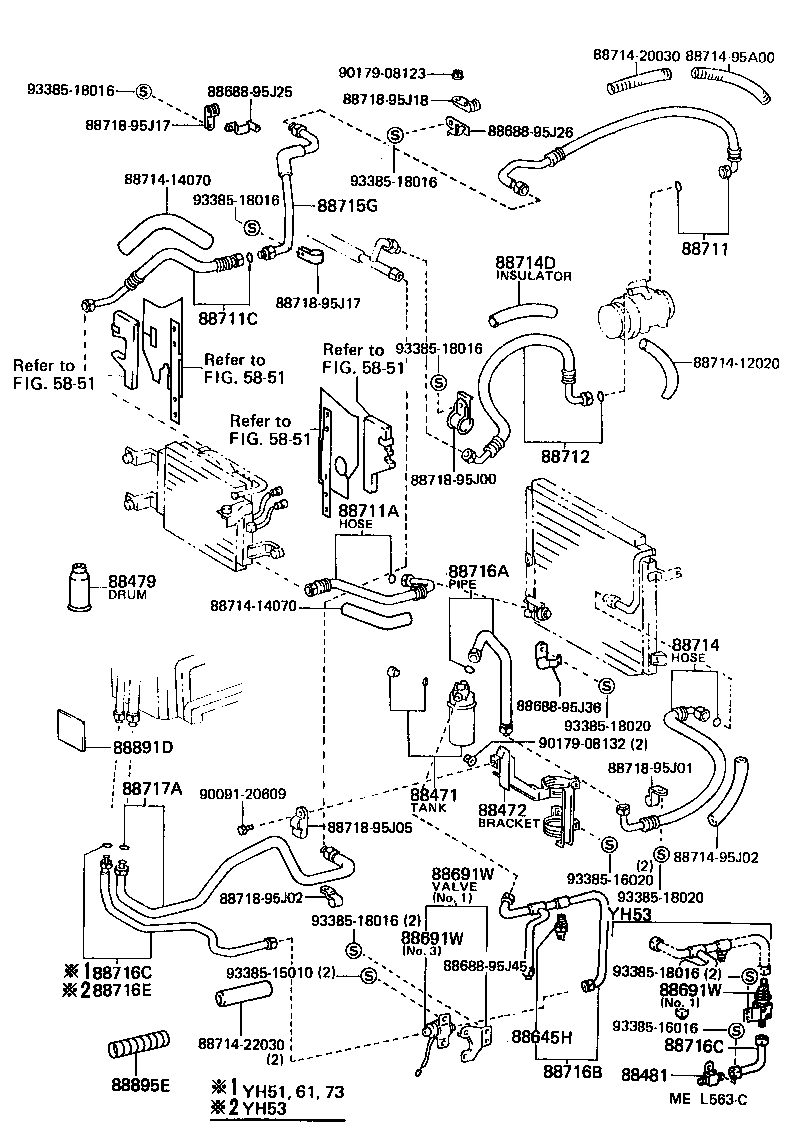

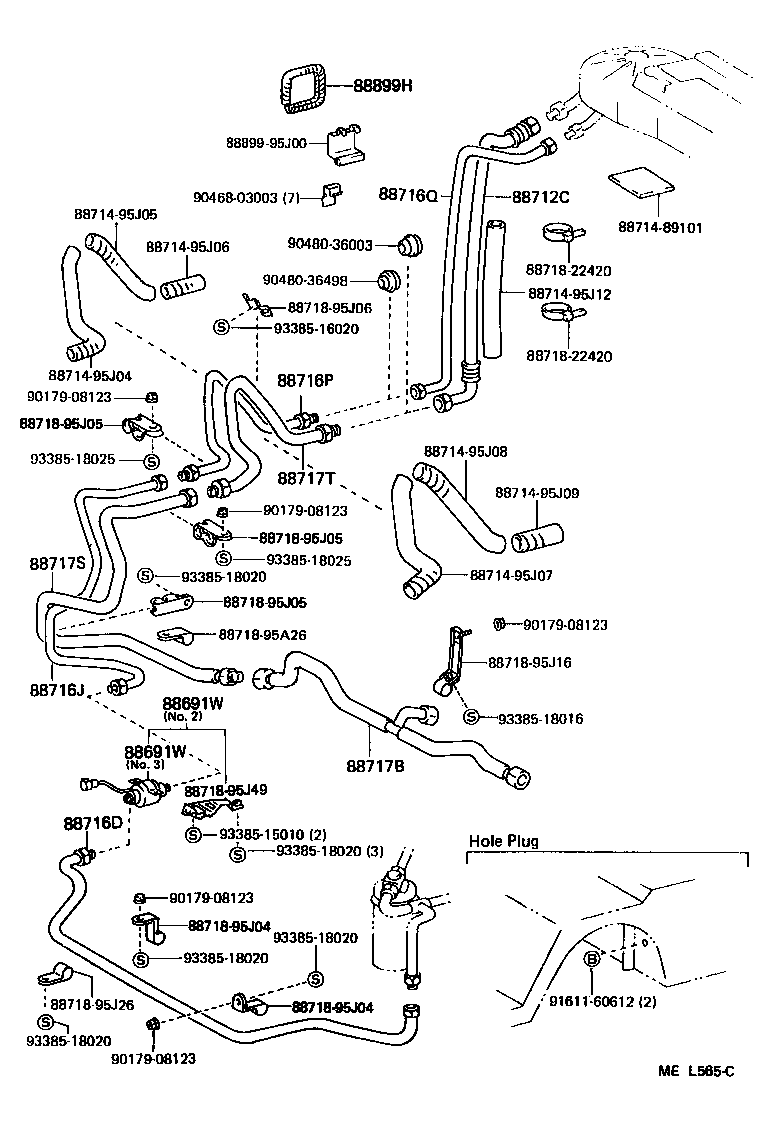

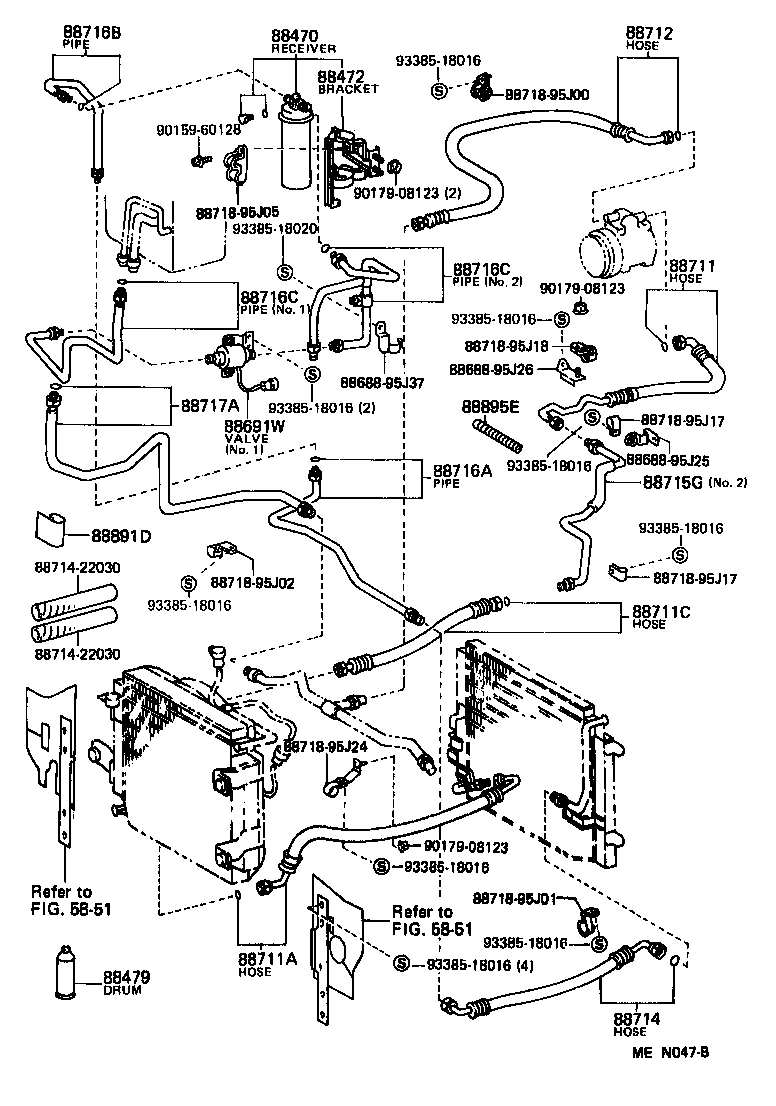

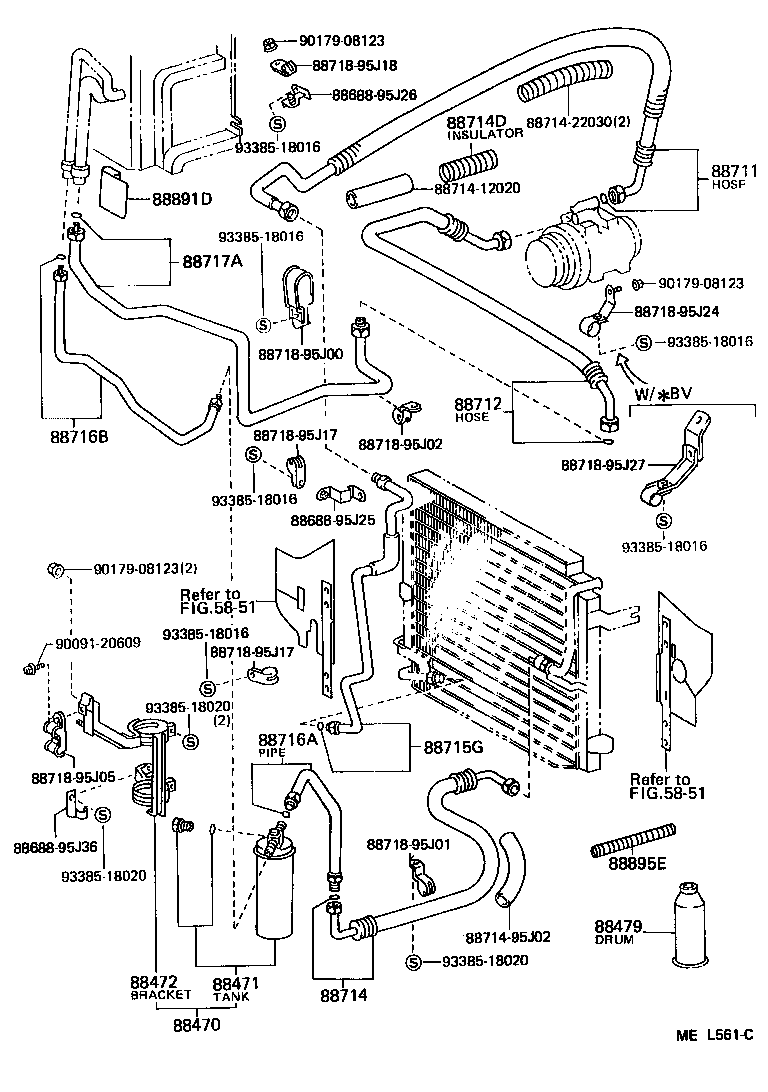

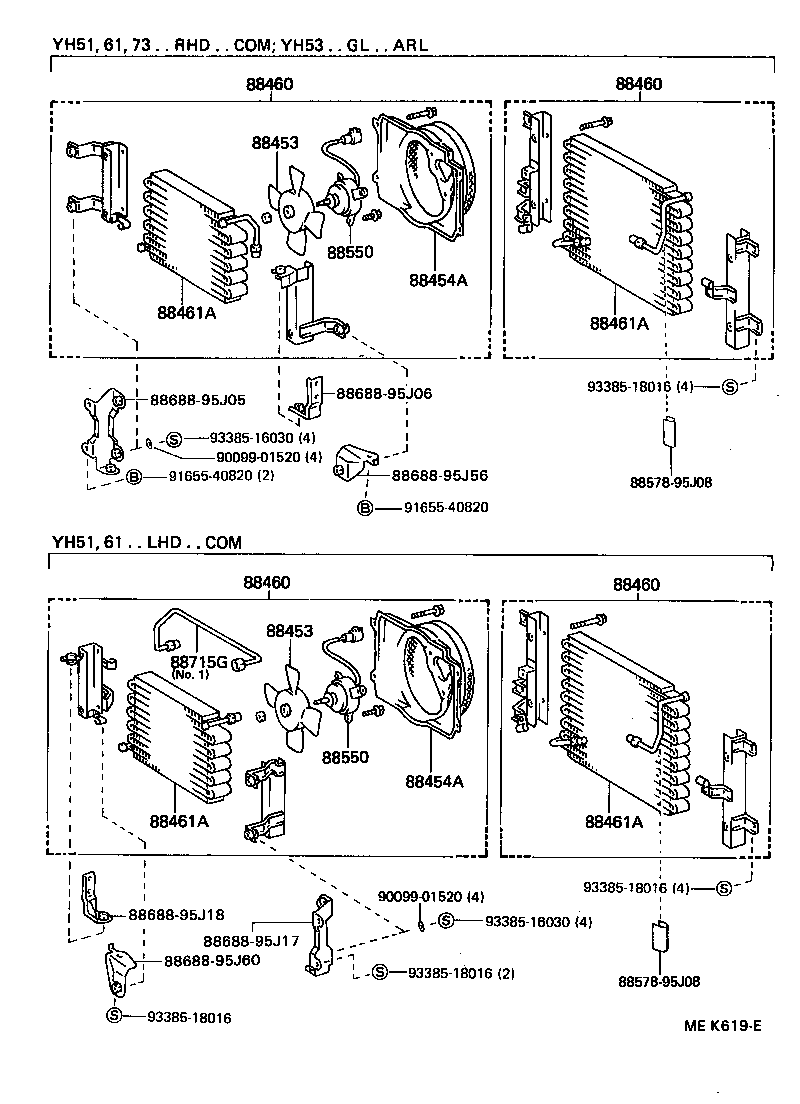

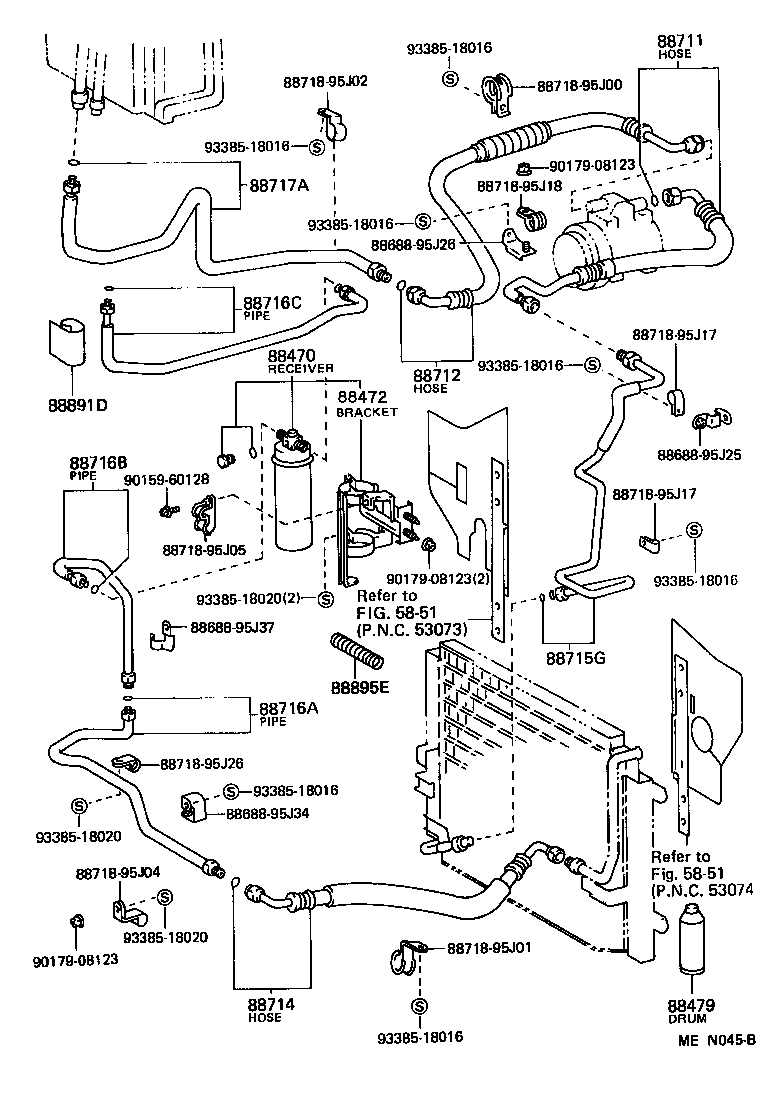

Figure MEM245E MEM245E 1987-08 → — Figure MEK619E MEK619E 1987-08 → 1989-08 Figure MEK620D MEK620D 1987-08 → 1989-08 Figure MEL561C MEL561C 1987-08 → 1989-08 Figure MEN045B MEN045B 1987-08 → 1989-08 Figure MEL562C MEL562C 1987-08 → 1989-08 Figure MEN046B MEN046B 1987-08 → 1989-08 Figure MEL563C MEL563C 1987-08 → 1989-08 Figure MEN047B MEN047B 1987-08 → 1989-08 Figure MEL564C MEL564C 1987-08 → 1989-08 Figure MEN048B MEN048B 1987-08 → 1989-08 Figure MEL565C MEL565C 1987-08 → 1989-08

Part groups

PNCDescription
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88460G Bracket, Cooler Condenser, NO.5
88460N Bracket, Cooler Condenser, NO.8
88461A Core, Cooler Condenser
88470 Receiver & Dryer Assy, Cooler
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88481 Glass, Sight
88550 Motor Assy, Blower (FOR CONDENSER)
88645H Switch, Pressure NO.1
88648E Wiring, Cooler
88691W Valve, Magnet
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711A Hose, Cooler Refrigerant Discharge, NO.2
88711C Hose, Cooler Refrigerant Discharge, NO.3
88712 Hose, Cooler Refrigerant Suction, NO.1
88712C Hose, Suction
88714 Hose, Cooler Refrigerant Liquid, NO.1
88714D Insulator, Cooler Refrigerant Hose, NO.2
88715G Tube, Discharge, G
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88716E Pipe, Cooler Refrigerant Liquid, E
88716J Pipe, Cooler Refrigerant Liquid, J
88716P Pipe, Cooler Refrigerant Liquid, P
88716Q Pipe, Cooler Refrigerant Liquid, Q
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717S Pipe, Cooler Refrigerant Suction, S
88717T Pipe, Cooler Refrigerant Suction, T
88891D Packing D (FOR COOLER)
88895E Insulator, Return Tube
88899H Moulding, Protector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
