Toyota Hiace Van,Commuter
1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · General
Discontinued model
Data version 2006-10

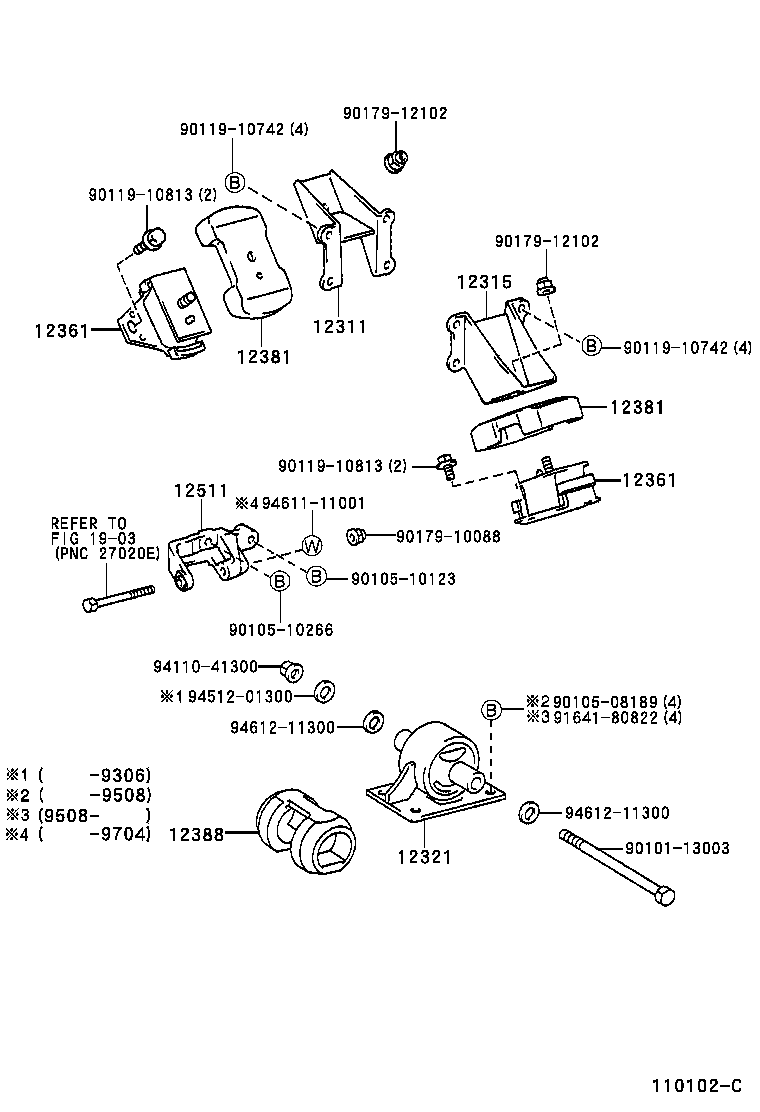

Mounting
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12311 | Bracket, Engine Mounting, Front NO.1 RH |
| 12315 | Bracket, Engine Mounting, Front NO.1 LH |
| 12321 | Bracket, Engine Mounting, Rear, NO.1 |
| 12361 | Insulator, Engine Mounting, Front |
| 12381 | Stabilizer, Engine Mounting |
| 12388 | Stopper, Engine Mounting Bracket, Rear |
| 12511 | Bracket, Alternator, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
