Toyota Hiace Van,Commuter

1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · General

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

58 part groups · 9 illustrations

Illustrations

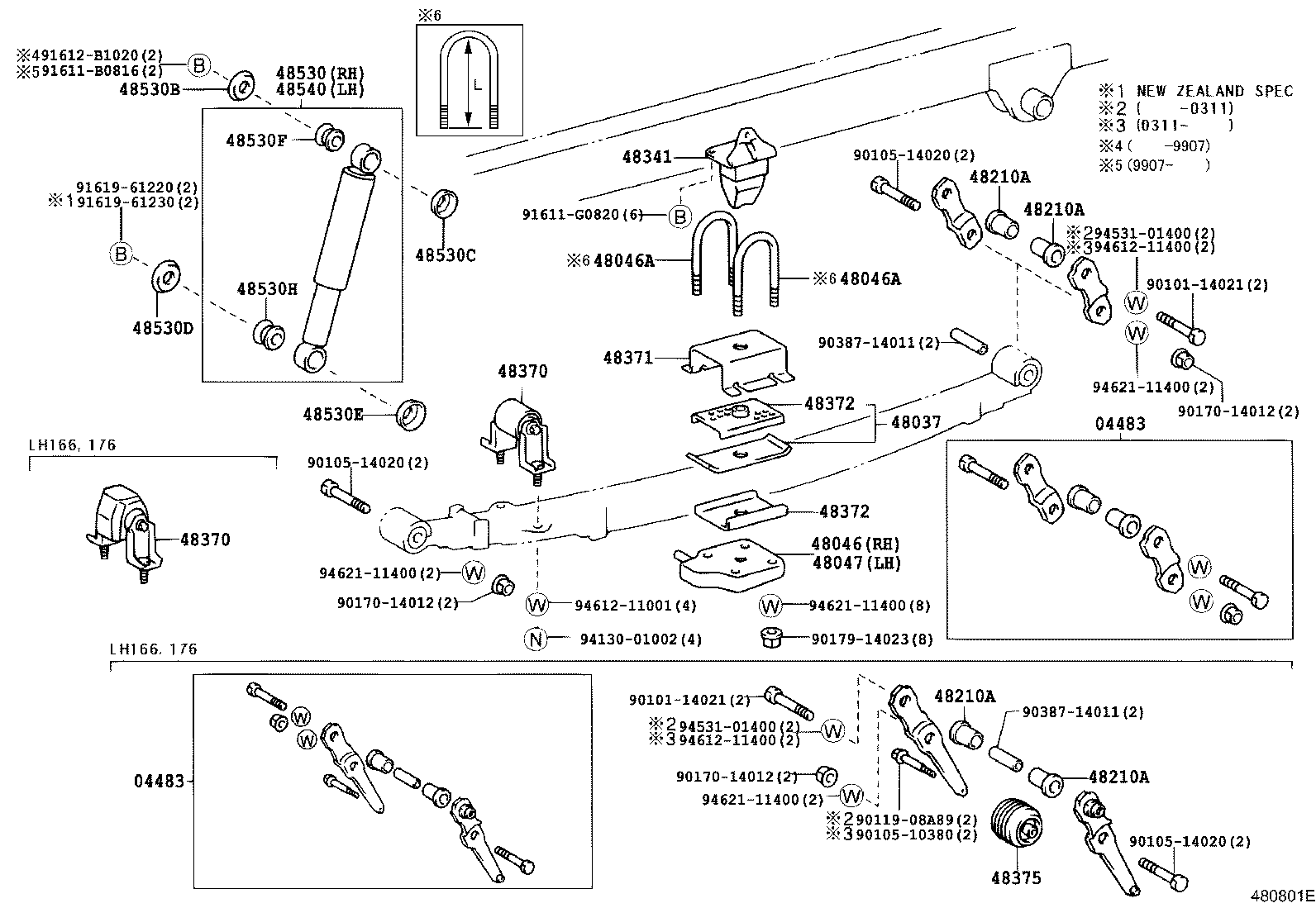

Figure 480130D 480130D 1996-11 → — Figure 480801E 480801E 1989-08 → — Figure 480796 480796 1989-08 → 1995-08 Figure 480796 480796 1993-08 → 1995-08 Figure 480797A 480797A 1989-08 → 1995-08 Figure 480797A 480797A 1995-08 → — Figure 480797A 480797A 1995-08 → — Figure 481544 481544 2002-08 → — Figure 481469 481469 2001-08 → —

Part groups

PNCDescription
04483 Shackle Kit, Rear Spring
48037 Spacer Sub-assy, Rear Spring
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48210 Spring Assy, Rear RH
48210A Bush(FOR REAR SPRING SHACKLE UPPER)
48210C Bush(FOR REAR SPRING LEAF)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48215 Leaf, Rear Spring, NO.5
48220 Spring Assy, Rear LH
48231 Spring, Coil, Rear
48247 Bolt, Rear Spring, Center
48252 Silencer, Rear Spring
48252C Silencer, Rear Spring, NO.2
48253 Spacer, Rear Spring, NO.1
48257B Insulator, Rear Coil Spring, Upper
48258A Insulator, Rear Coil Spring, Lower
48284 Nut, Rear Spring Center Bolt
48341 Bumper, Rear Spring
48370 Damper Assy, Leaf Spring Dynamic
48371 Retainer, Rear Spring Pad
48372 Pad, Rear Spring
48375 Damper, Leaf Spring Dynamic
48530 Absorber Assy, Shock, Rear RH
48530B Washer, Rear Shock Absorber Cushion, NO.1
48530C Washer, Rear Shock Absorber Cushion, NO.2
48530D Washer, Rear Shock Absorber Cushion, NO.3
48530E Washer, Rear Shock Absorber Cushion, NO.4
48530F Retainer, Shock Absorber Cushion(FOR REAR)
48530H Bush, Rear Shock Absorber
48530K Cushion, Rear Shock Absorber, NO.2
48530L Cushion, Rear Shock Absorber, NO.3
48530M Cushion, Rear Shock Absorber, NO.4
48530N Cushion, Rear Shock Absorber, NO.5
48540 Absorber Assy, Shock, Rear LH
48702 Bush Sub-assy, Upper Control Arm
48702C Bush Sub-assy, Lower Control Arm
48703D Washer(FOR REAR SUSPENSION ARM)
48706A Bush Sub-assy, Rear Lateral Control Rod
48710 Arm Assy, Upper Control
48720 Arm Assy, Lower Control, RH
48724 Damper, Lwr Control Arm Dynamic
48730 Arm Assy, Lower Control, LH
48740 Rod Assy, Rear Lateral Control
48740H Bush, NO.1(FOR REAR LATERAL CONTROL ROD)
48740J Bush, NO.2(FOR REAR LATERAL CONTROL ROD)
48790 Arm Assy, Upper Control, Rear LH
48802D Bush, Stabilizer Link
48802E Spacer(FOR REAR STABILIZER BAR)
48805 Bar Sub-assy, Rear Stabilizer
48815R Bush, Stabilizer(FOR REAR)
48823R Cover, Stabilizer Link(FOR REAR)
48830D Link Assy, Rear Stabilizer, RH
48840A Link Assy, Rear Stabilizer, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
