Toyota Hiace Van,Commuter

1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · General

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board

42 part groups · 7 illustrations

Illustrations

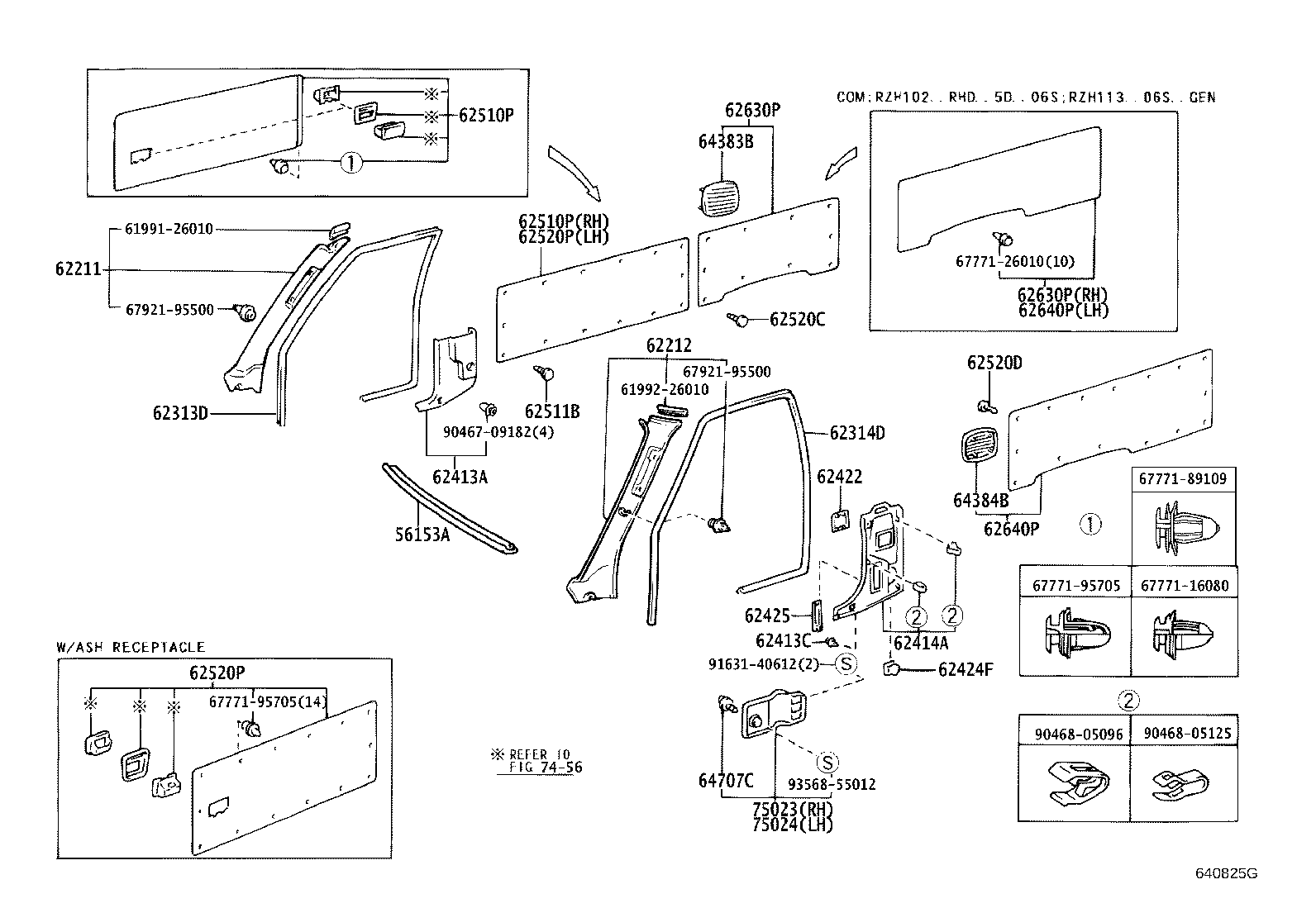

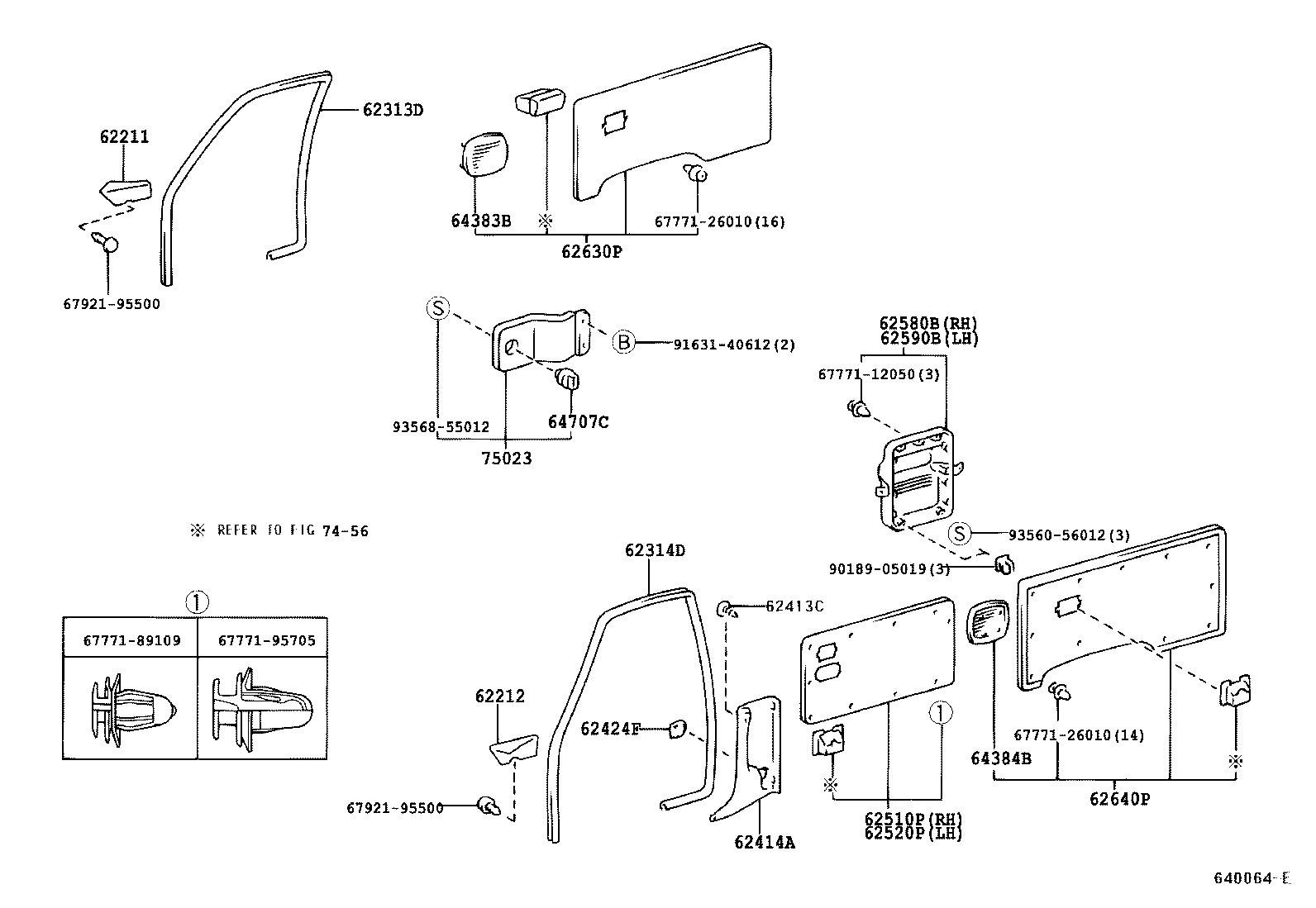

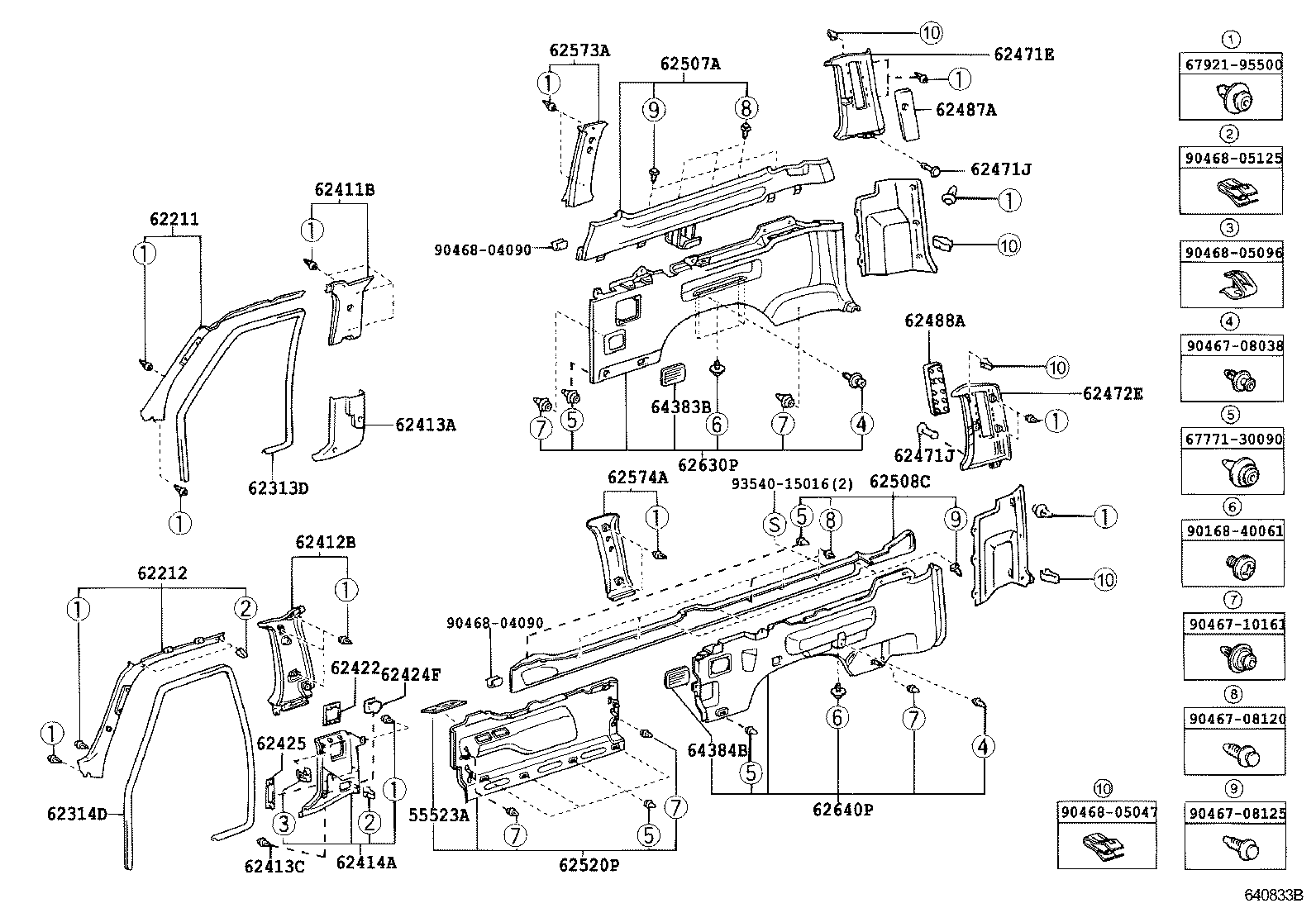

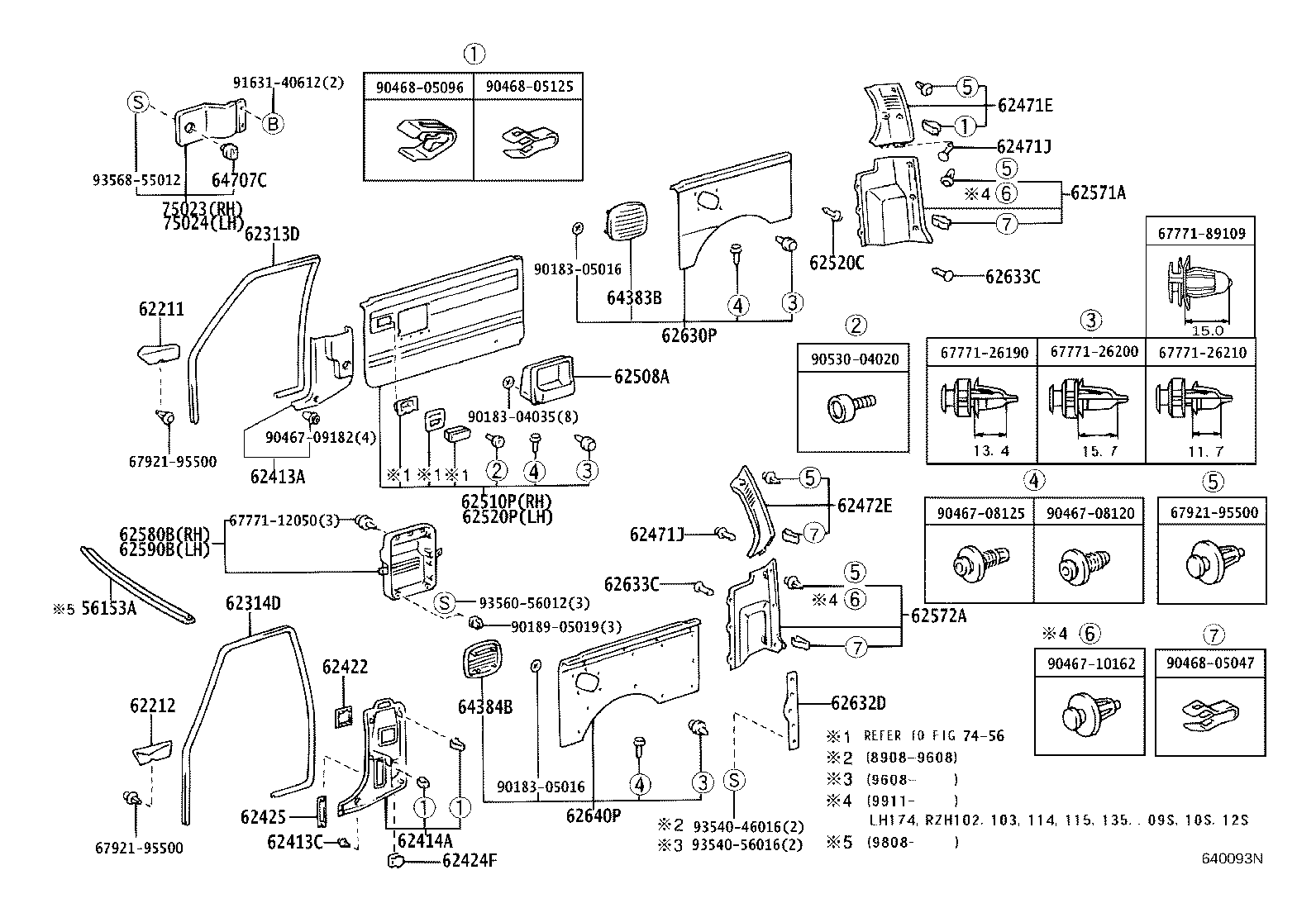

Figure 640092E 640092E 1989-08 → 1998-08 Figure 640093N 640093N 1989-08 → — Figure 640093N 640093N 1995-09 → 1996-07 Figure 640064F 640064F 1994-05 → — Figure 640825G 640825G 1998-08 → — Figure 640825G 640825G 1998-08 → — Figure 640833B 640833B 2000-08 → —

Part groups

PNCDescription
55523A Cover, Heater Control Opening
56153A Moulding, Front Window, Inner Center
62211 Garnish, Front Pillar, RH
62212 Garnish, Front Pillar, LH
62313D Trim, Front Door Opening, RH
62314D Trim, Front Door Opening, LH
62411B Garnish, Center Pillar, Upper RH
62412B Garnish, Center Pillar, Upper LH
62413A Garnish, Center Pillar, Lower RH
62413C Clip (FOR CENTER LOWER GARNISH)
62414A Garnish, Center Pillar, Lower LH
62422 Cover, Center Pillar Garnish, LH
62424F Cover, Center Pillar Garnish, Lower LH
62425 Cover, Center Pillar Garnish
62471E Garnish, Roof Side, Inner Upper RH
62471J Clip (FOR ROOF SIDE GARNISH)
62472E Garnish, Roof Side, Inner Upper LH
62487A Cover, Roof Side Inner Garnish, RH
62488A Cover, Roof Side Inner Garnish, LH
62507A Panel Sub-assy, Quarter Trim, RH
62508A Box Sub-assy, Side Trim
62508C Panel Sub-assy, Quarter Trim, LH
62510P Panel Assy, Quarter Trim, Front RH
62511B Clip (FOR QUARTER INSIDE TRIM BOARD)
62520C Clip, Quarter Trim Board, NO.1
62520D Clip, Quarter Trim Board, NO.2
62520P Panel Assy, Quarter Trim, Front LH
62571A Garnish, Roof Side, Inner Lower RH
62572A Garnish, Roof Side Inner Lower LH
62573A Garnish, Quarter Lock Pillar, RH
62574A Garnish, Quarter Lock Pillar, LH
62580B Board Assy, Side Heater Cover, RH
62590B Board Assy, Side Heater Cover, LH
62630P Panel Assy, Quarter Trim, Rear RH
62632D Board, Quarter Trim, Rear LH
62633C Clip (FOR QUARTER TRIM GARNISH)
62640P Panel Assy, Quarter Trim, Rear LH
64383B Grille, Rear Speaker, RH
64384B Grille, Rear Speaker, LH
64707C Knob, Jack Cover
75023 Lid Sub-assy, Tool Box, RH
75024 Lid Sub-assy, Tool Box, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
