Toyota Hiace Van,Commuter

1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · General

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate

9 part groups · 3 illustrations

Illustrations

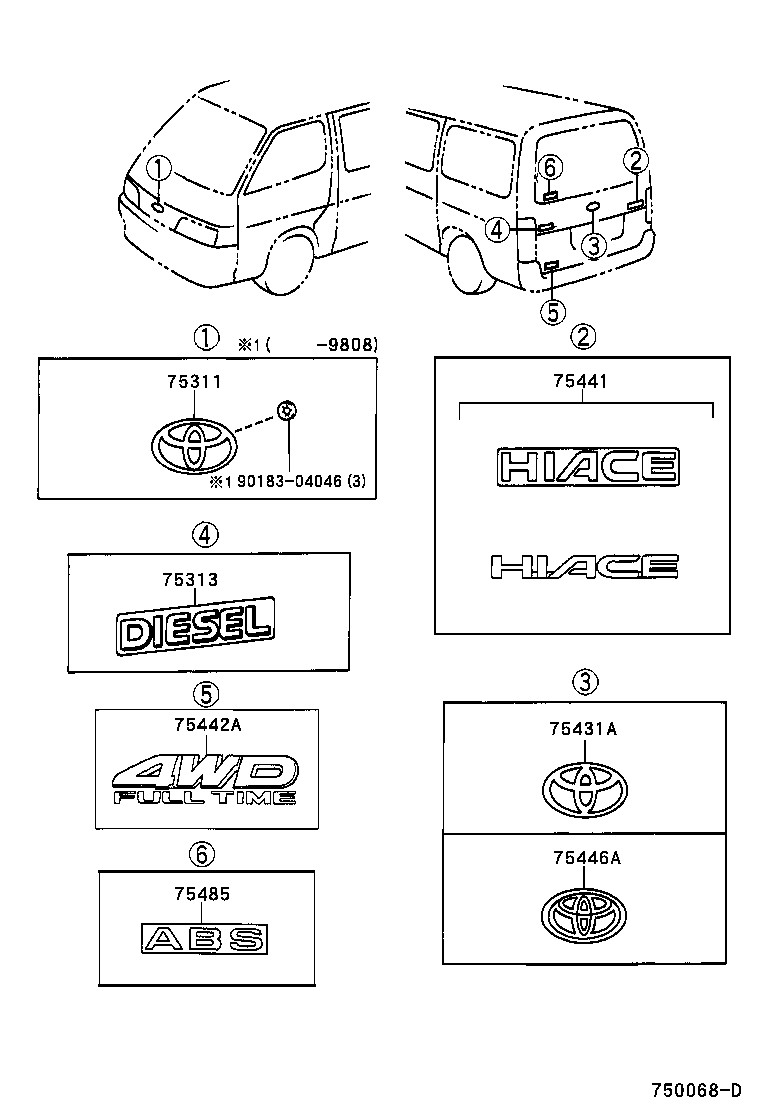

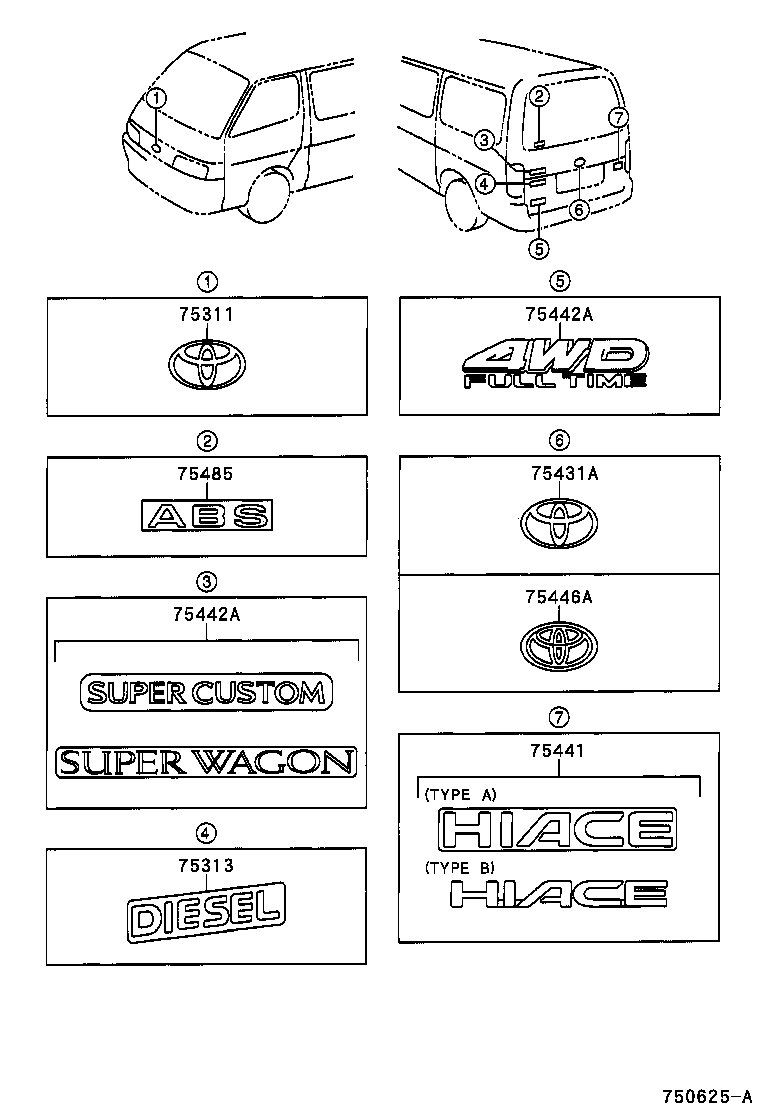

Figure 750067 750067 1989-08 → 1996-08 Figure 750068D 750068D 1996-08 → 1999-07 Figure 750625A 750625A 1999-07 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75312B Emblem, Radiator Grille, NO.2
75313 Plate, Front Name, NO.3
75431A Emblem, Back Door, NO.1
75441 Plate, Rear Name, NO.1
75442A Plate, Back Door Name, NO.2
75444A Plate, Back Door Name, NO.4
75446A Plate, Back Door Name, NO.6
75485 Plate, Back Window Name
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
