Toyota Hiace Van,Commuter

1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · General

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

47 part groups · 19 illustrations

Illustrations

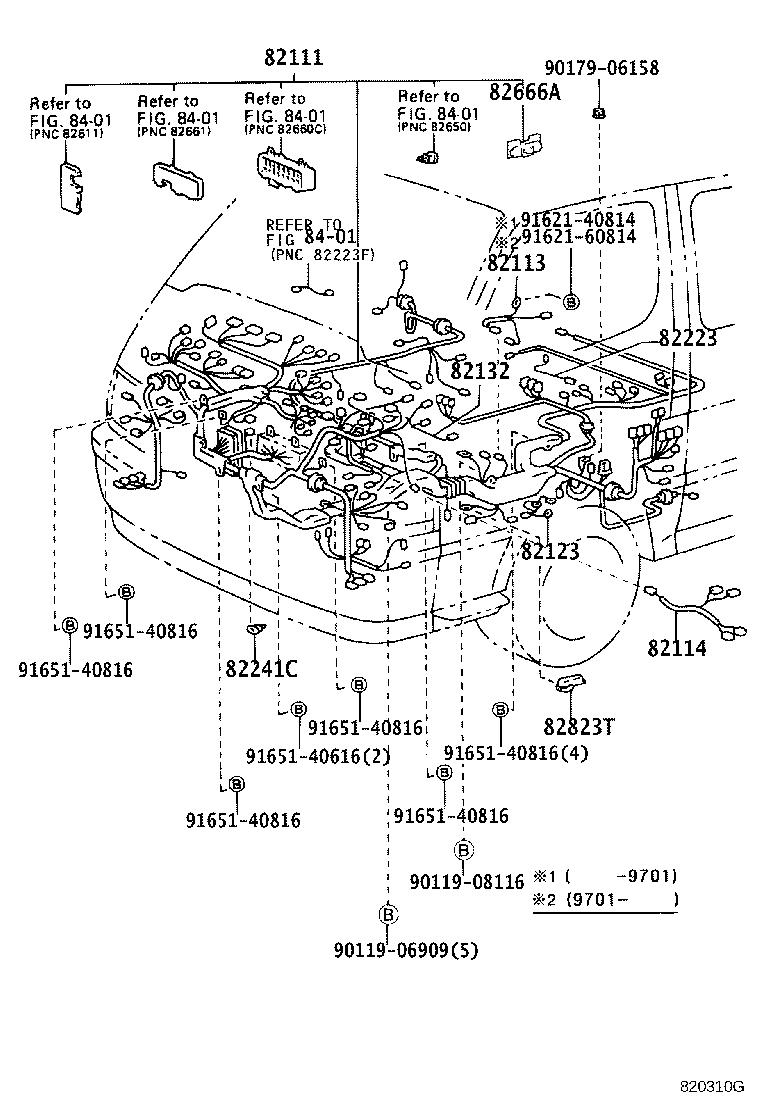

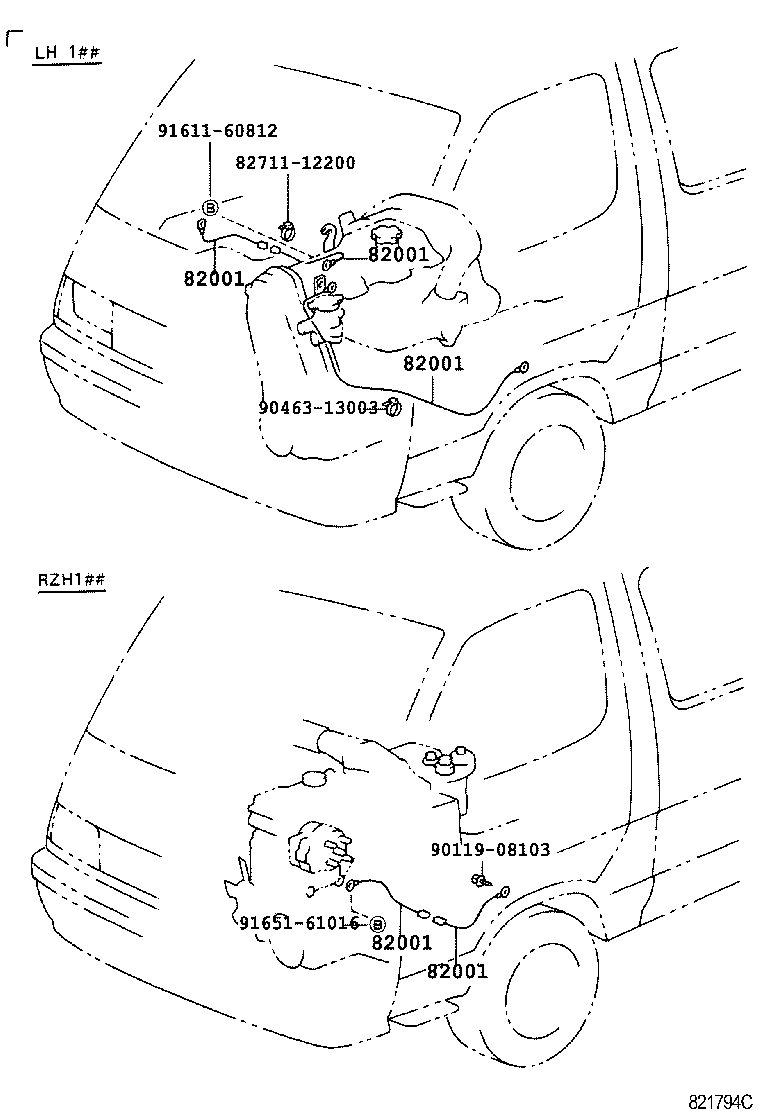

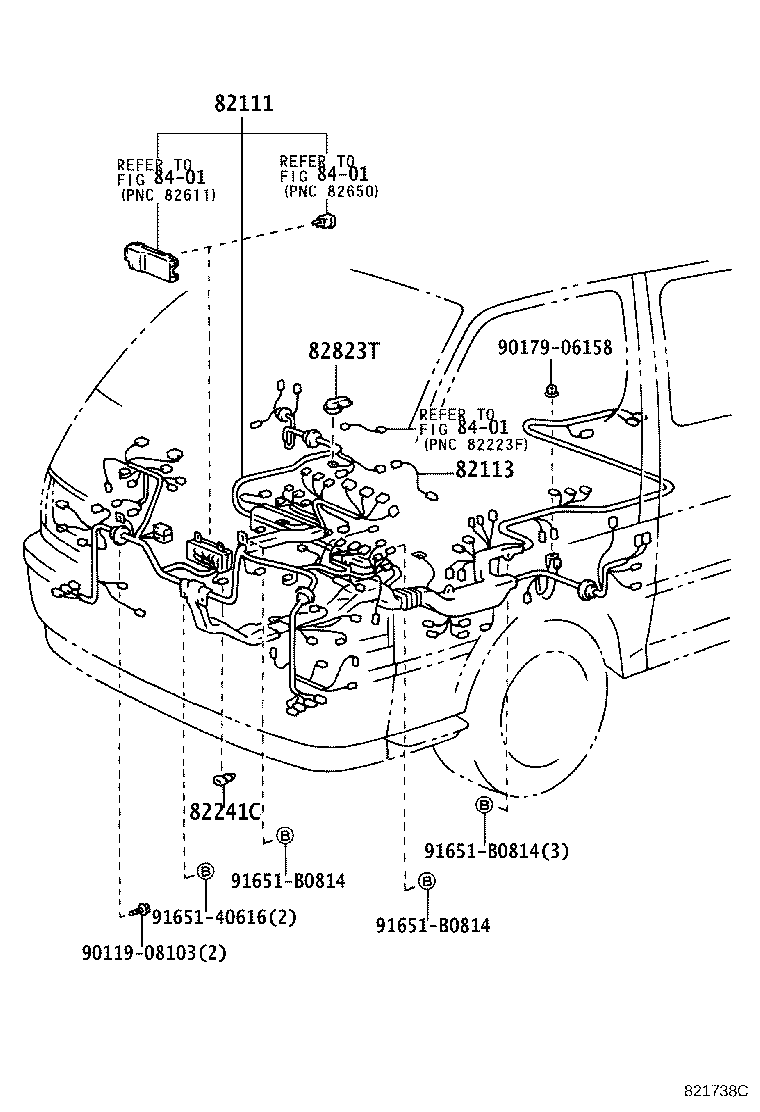

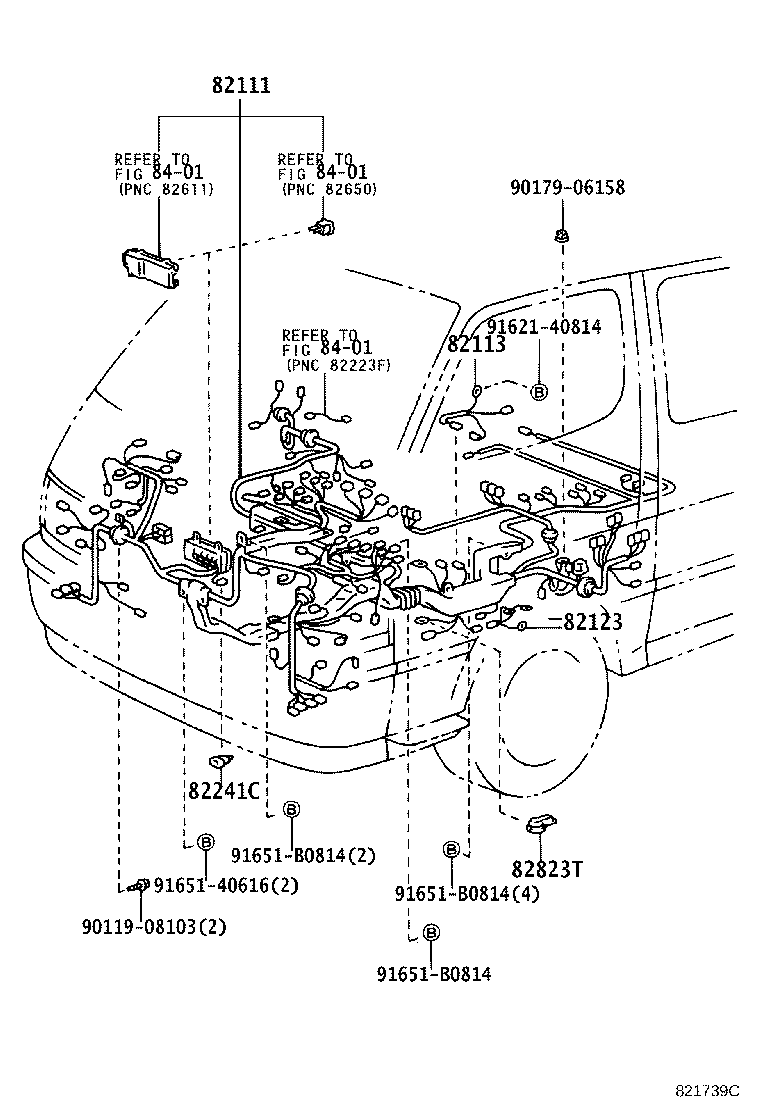

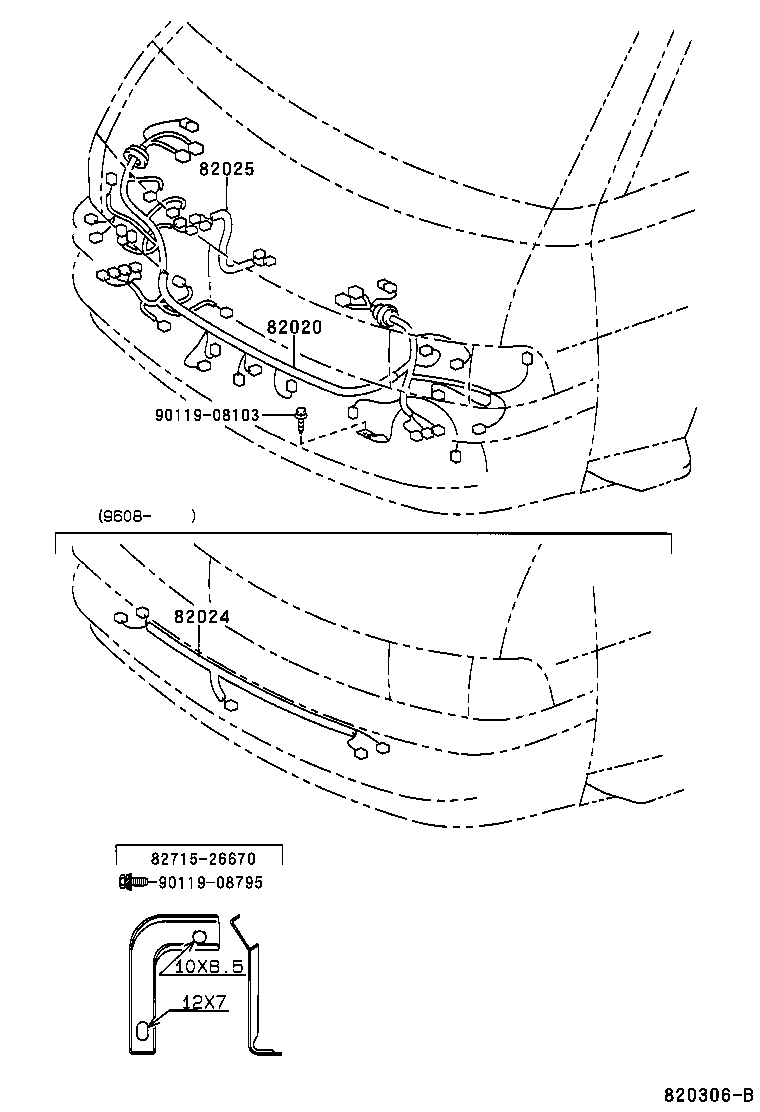

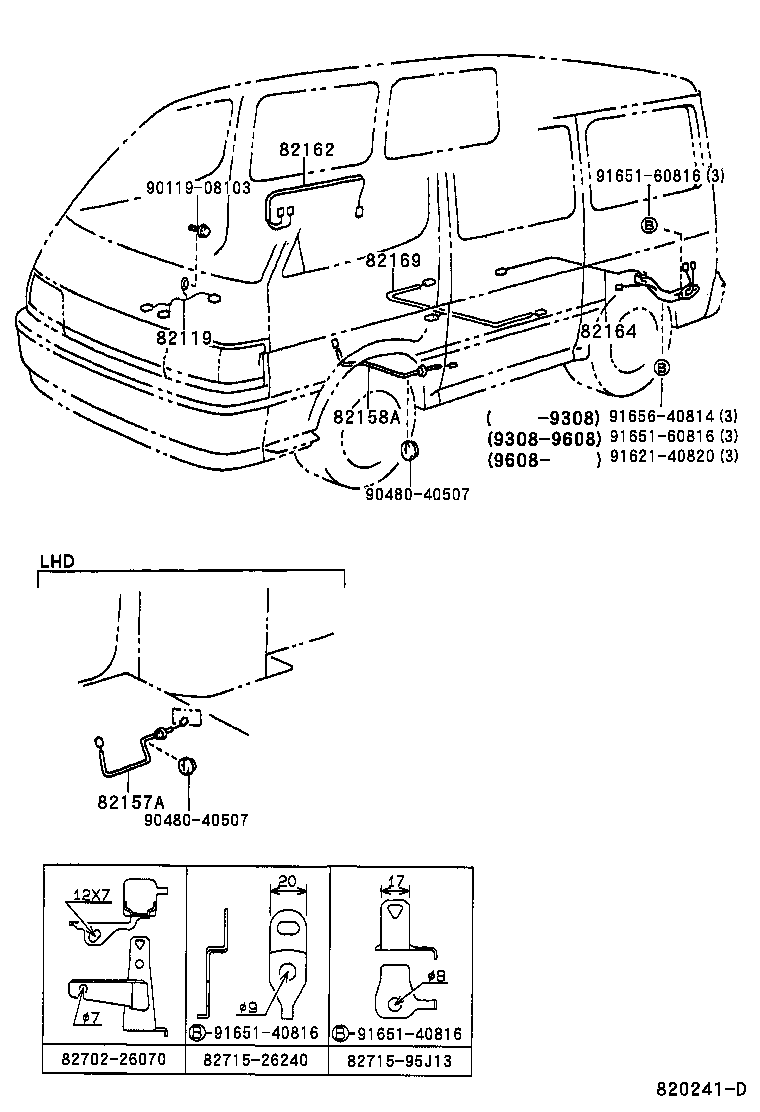

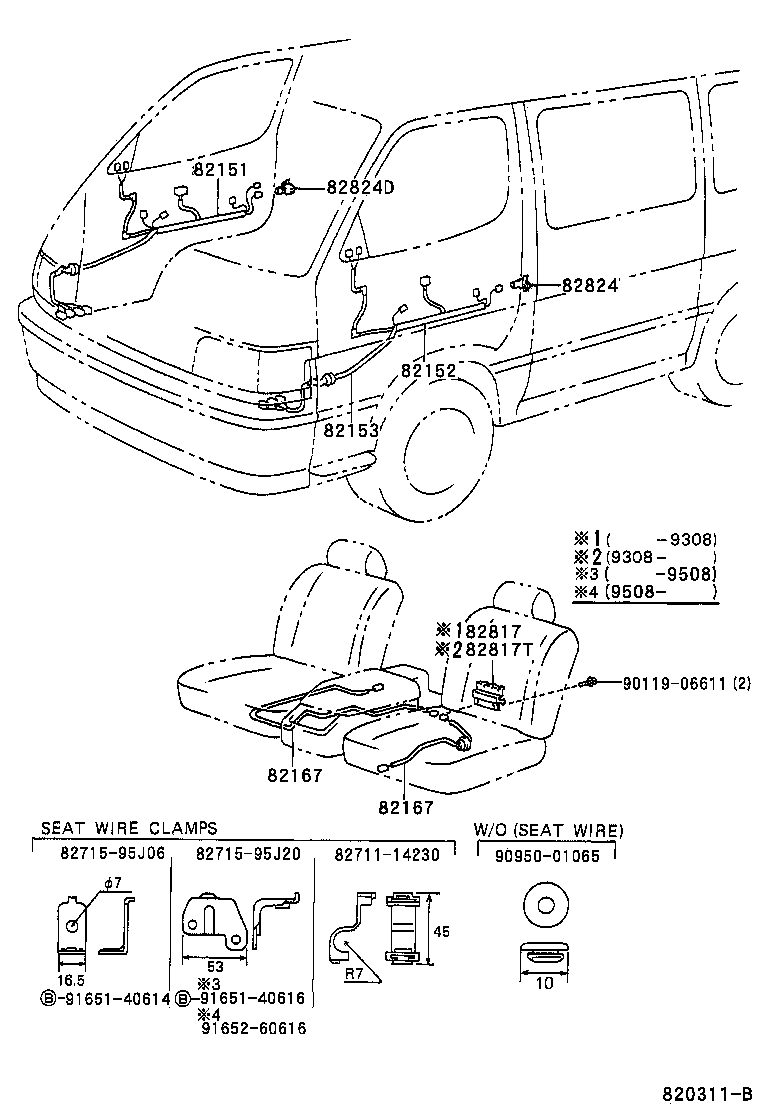

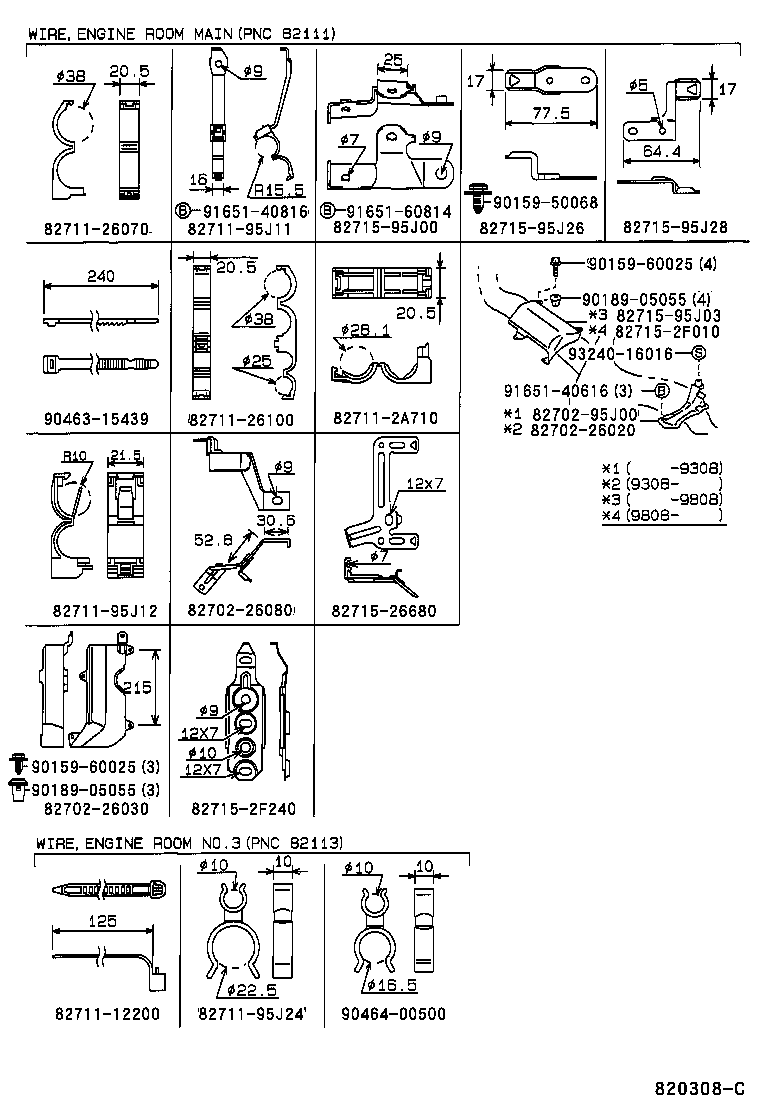

Figure 820293F 820293F 1989-08 → — Figure 820310G 820310G 1989-08 → — Figure 821738C 821738C 1989-08 → — Figure 821739C 821739C 1989-08 → — Figure 820308C 820308C 1989-08 → — Figure 820309B 820309B 1989-08 → — Figure 820239L 820239L 1989-08 → — Figure 820240 820240 1989-08 → — Figure 821625 821625 1989-08 → — Figure 821792A 821792A 1989-08 → — Figure 825530 825530 1989-08 → — Figure 820306B 820306B 1996-08 → — Figure 820307D 820307D 1996-08 → — Figure 820311B 820311B 1989-08 → — Figure 820241D 820241D 1989-08 → — Figure 821793 821793 1989-08 → — Figure 820385B 820385B 1989-08 → — Figure 821794C 821794C 1989-08 → — Figure 823630 823630 1989-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82020 Harness Assy, Wiring Cowl TO Headlamp
82024 Wire Sub-assy, Fog Lamp Feed
82025 Wiring Sub-assy, Front Side
82061 Wiring Sub-assy, Computer
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82119 Wire, Sensor

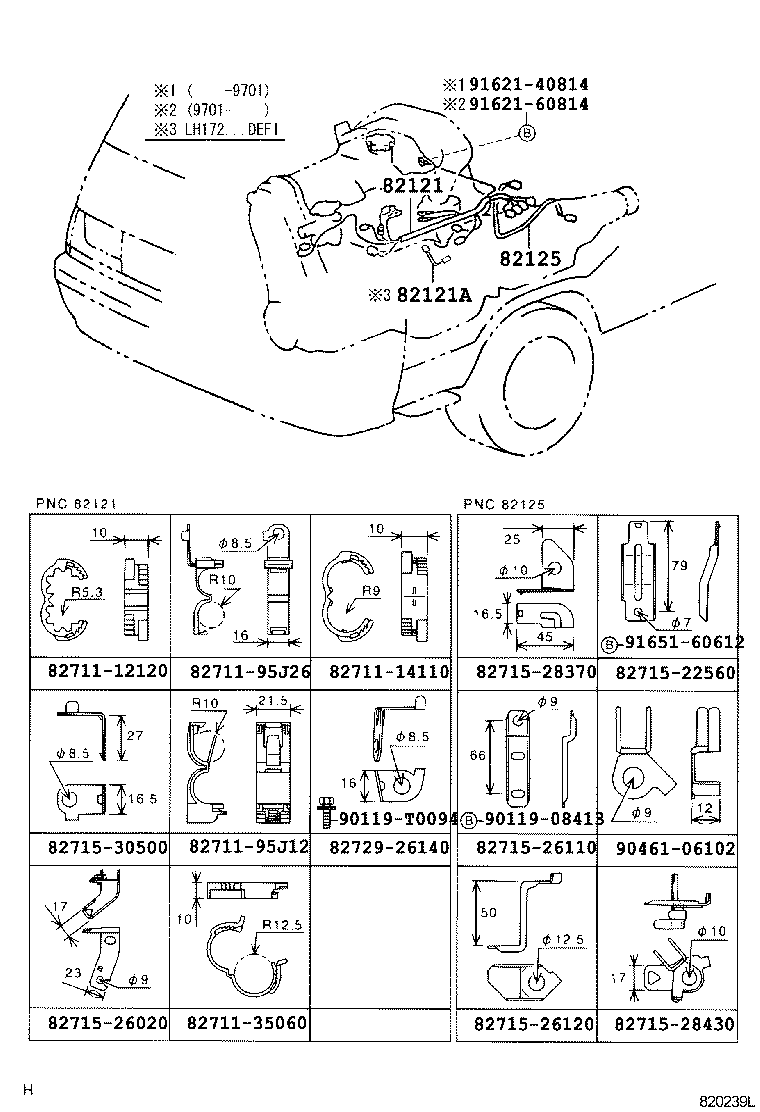

82121 Wire, Engine
82121A Wire, Engine (FOR TIMER CONTROL VALVE)

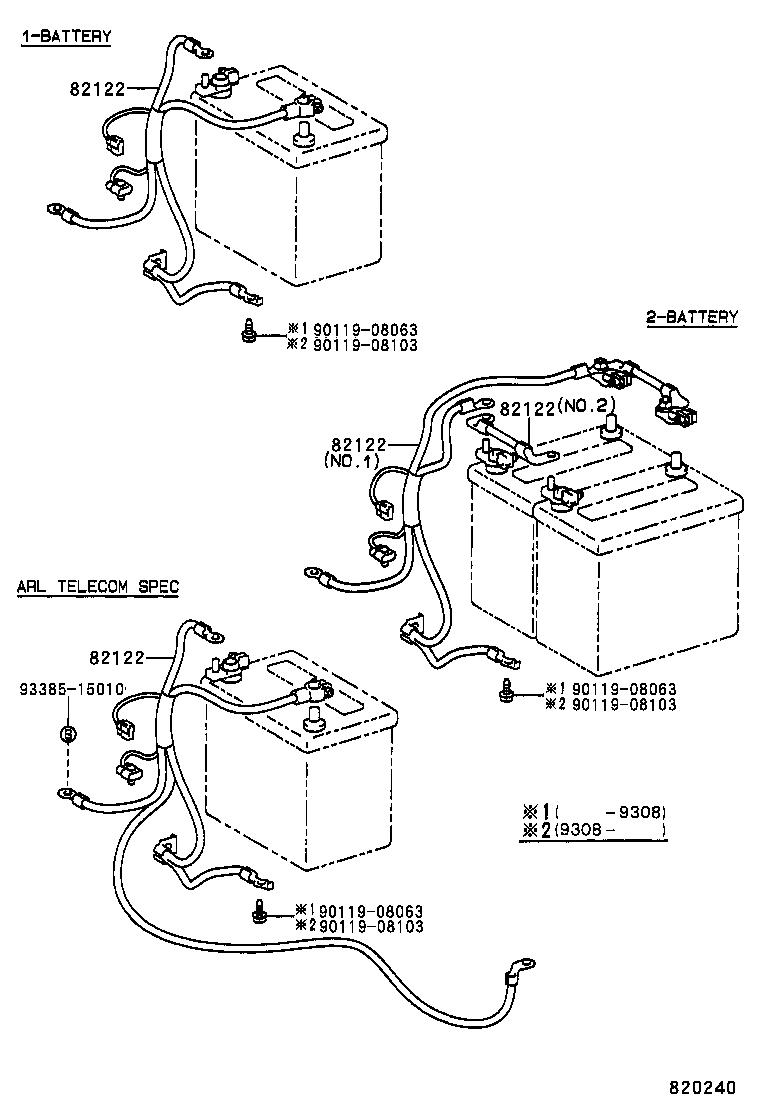

82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82125 Wire, Transmission

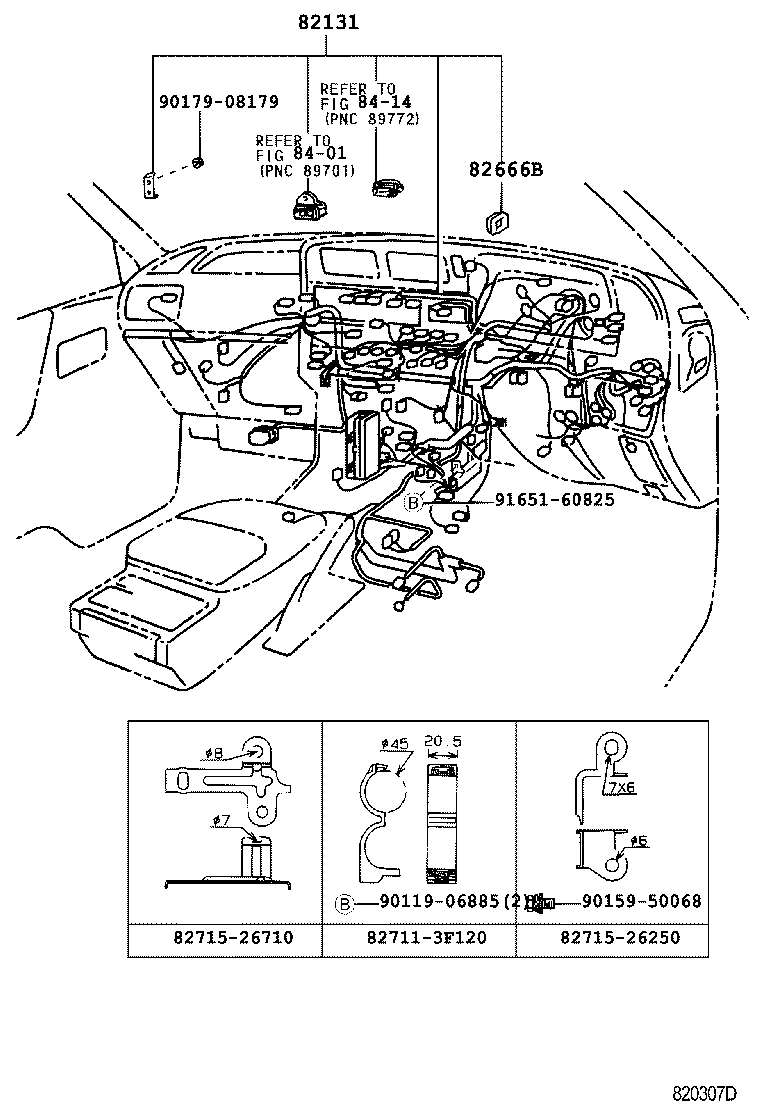

82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82157A Wire, Step Panel, RH
82158A Wire, Step Panel, LH
82162 Wire, Floor, NO.2
82164 Wire, Frame
82167 Wire, Seat, NO.1
82169 Wire Frame, NO.3

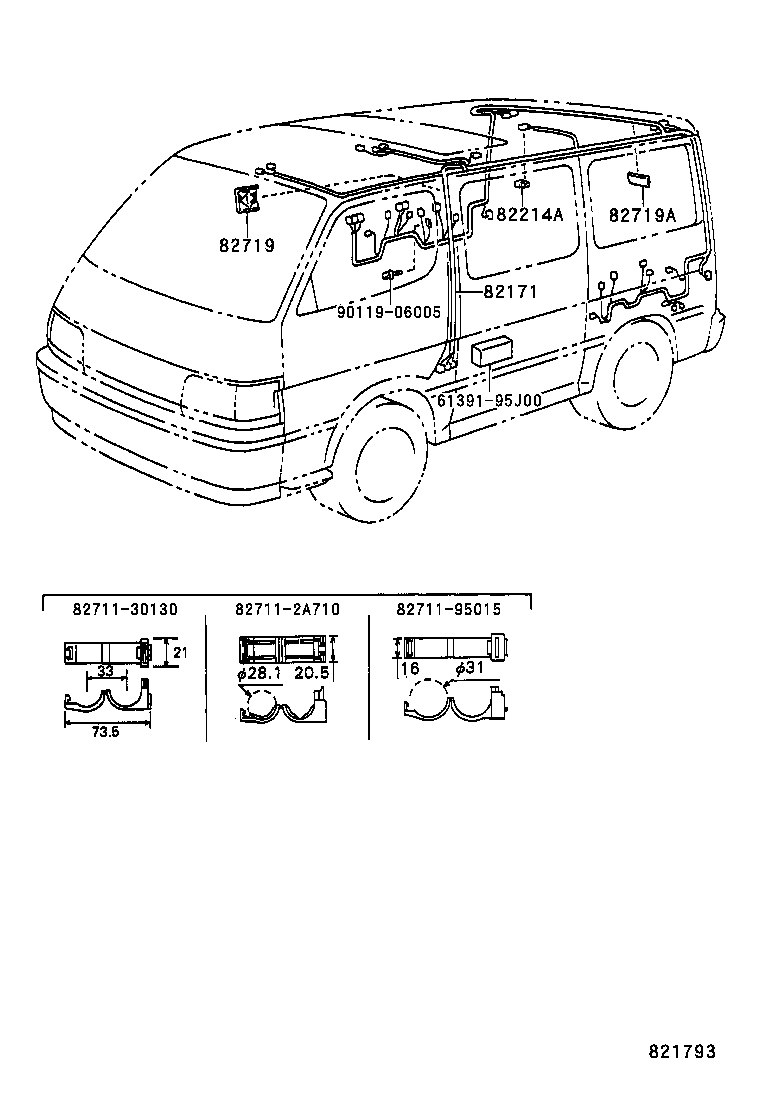

82171 Wire, Roof, NO.1

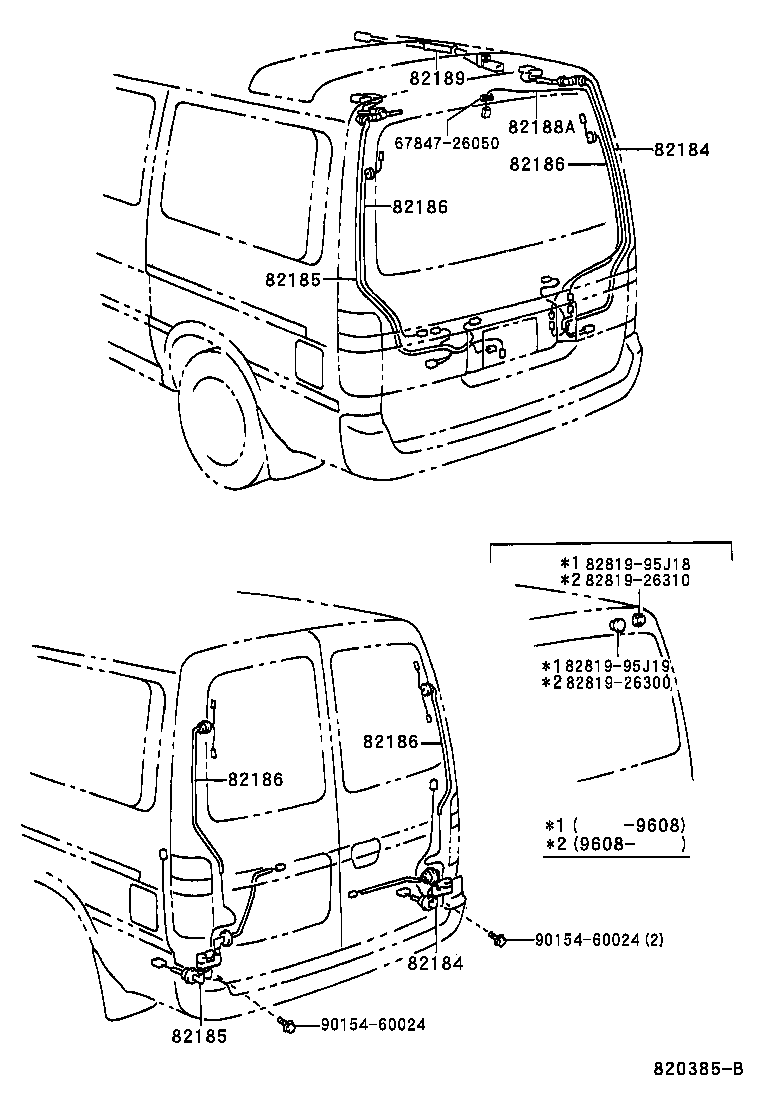

82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82188A Wire, Back Door, NO.3
82189 Wire, Back Door, NO.4
82210C Fusible Link
82214A Wire, Lamp
82223 Wire, Switch
82241C Wire, Relay
82345 Diode

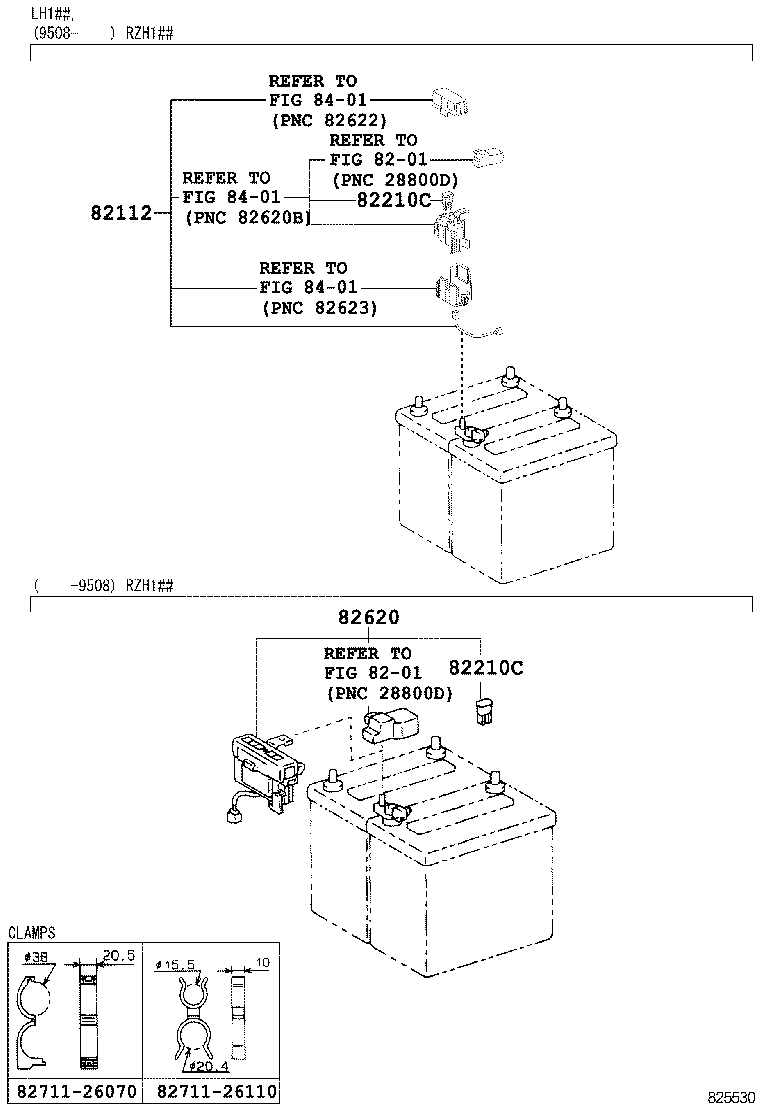

82620 Block Assy, Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82719 Cover, Wire Hanress Service Hole(FOR CENTER PILLAR)
82719A Cover, Wire Hanress Service Hole(FOR ROOF BACK)
82817 Protector, Wiring Harness, NO.1
82817T Protector, Wiring Harness, NO.15
82823T Cap, Alternator Terminal

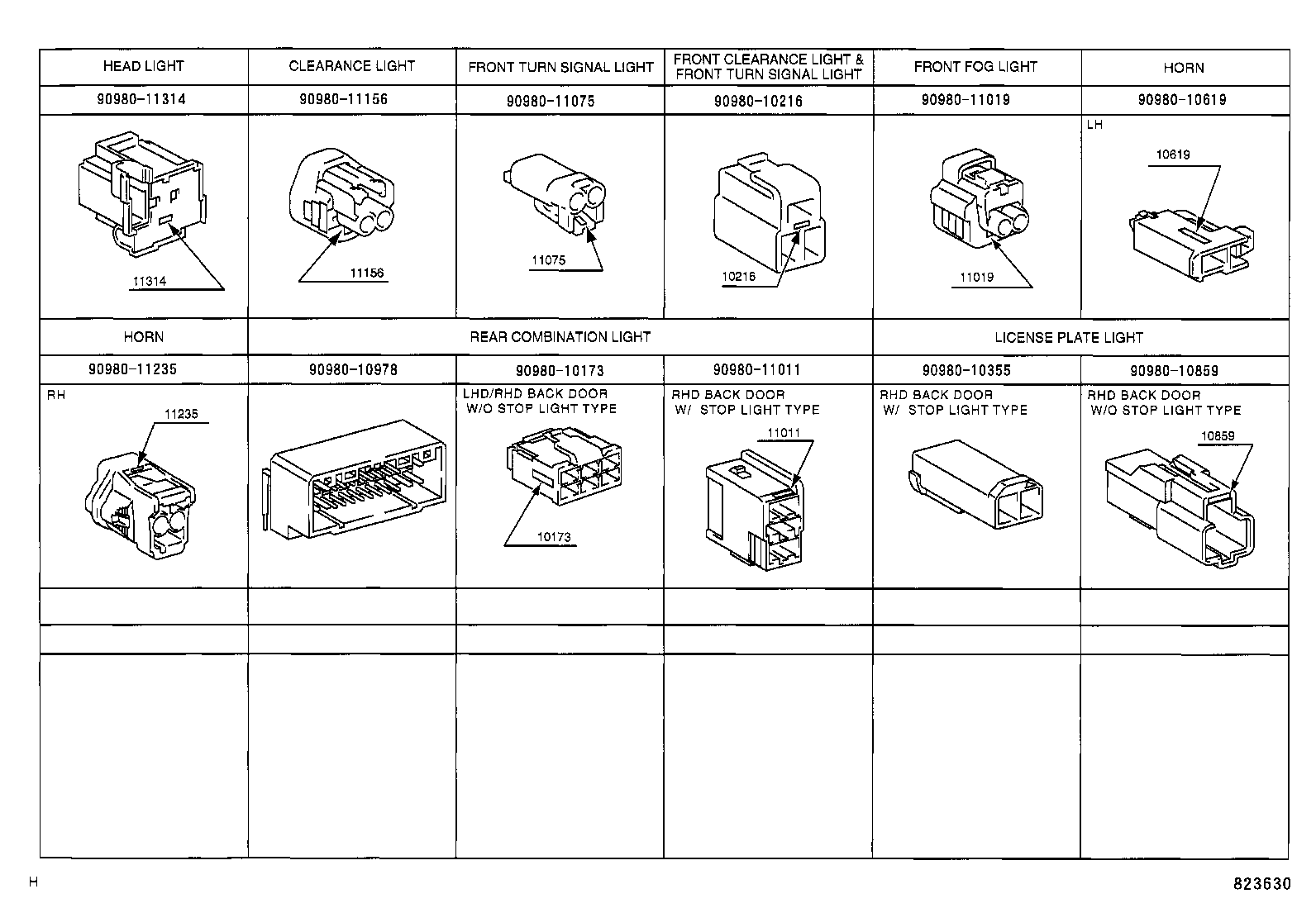

82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
