Toyota Hiace Van,Commuter

1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · General

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

7 part groups · 4 illustrations

Illustrations

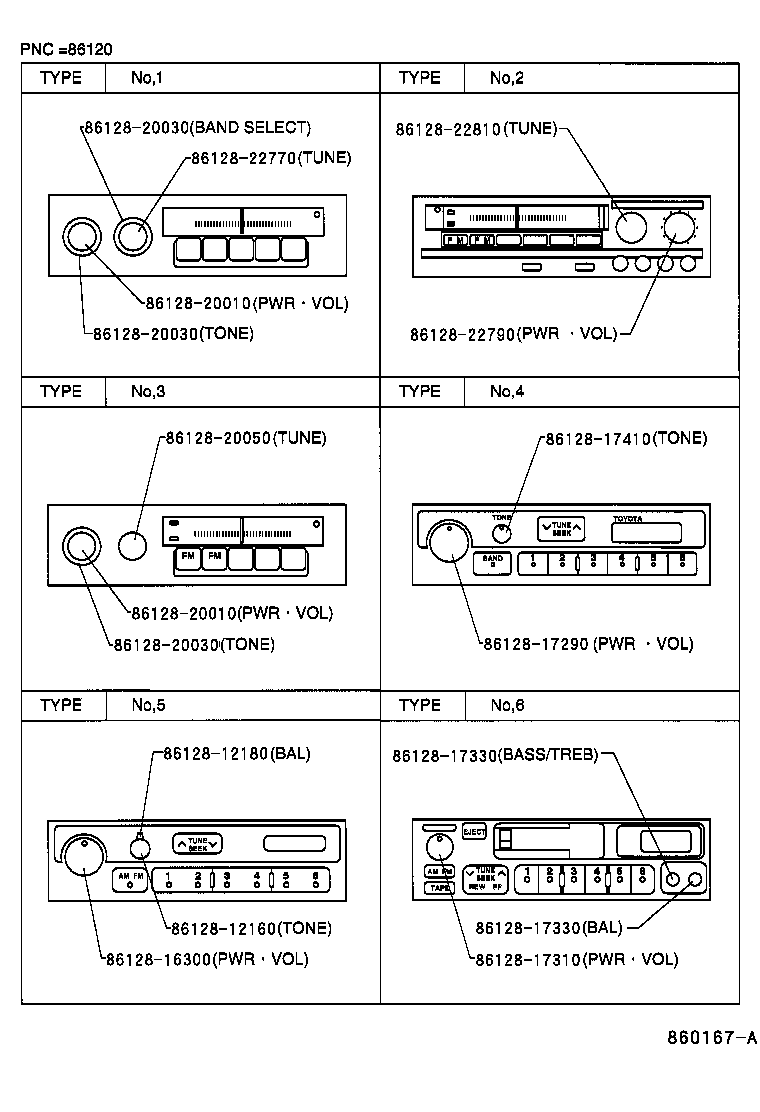

Figure 860169B 860169B 1989-08 → — Figure 860167A 860167A 1989-08 → — Figure 860168B 860168B 1989-08 → — Figure 860813 860813 1998-08 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86120 Receiver Assy, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86260 Tape Player Assy
86270A Disc Player Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
