Toyota Hiace Van,Commuter
1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · General
Discontinued model
Data version 2006-10
Heating & Air Conditioning - Heater Unit & Blower
19 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 55076A | Net Sub-assy, Air Duct |
| 55756B | Frame, Air Duct Net |
| 87029A | Cover Sub-assy, Heater Inlet Hole |
| 87103 | Motor Sub-assy, Heater Blower, W/Fan |
| 87104R | Motor Sub-assy, Rear Heater Blower |
| 87105R | Fan Sub-assy, Rear Heater Blower |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87107R | Unit Sub-assy, Rear Heater |

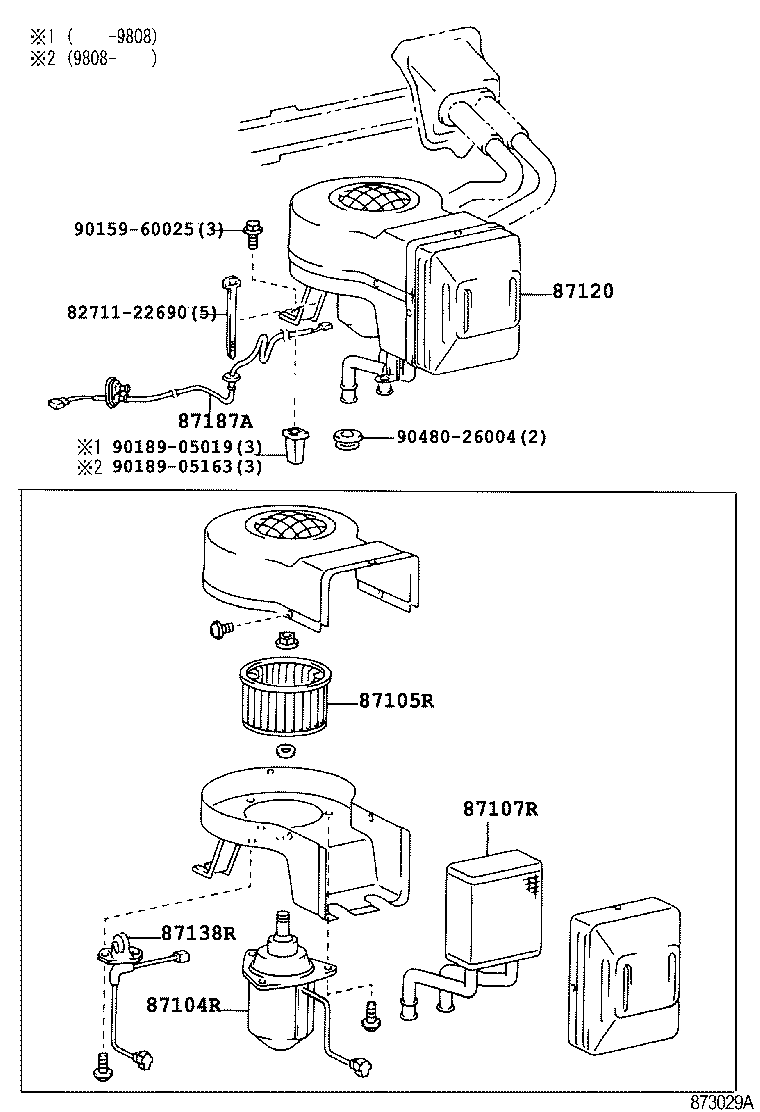

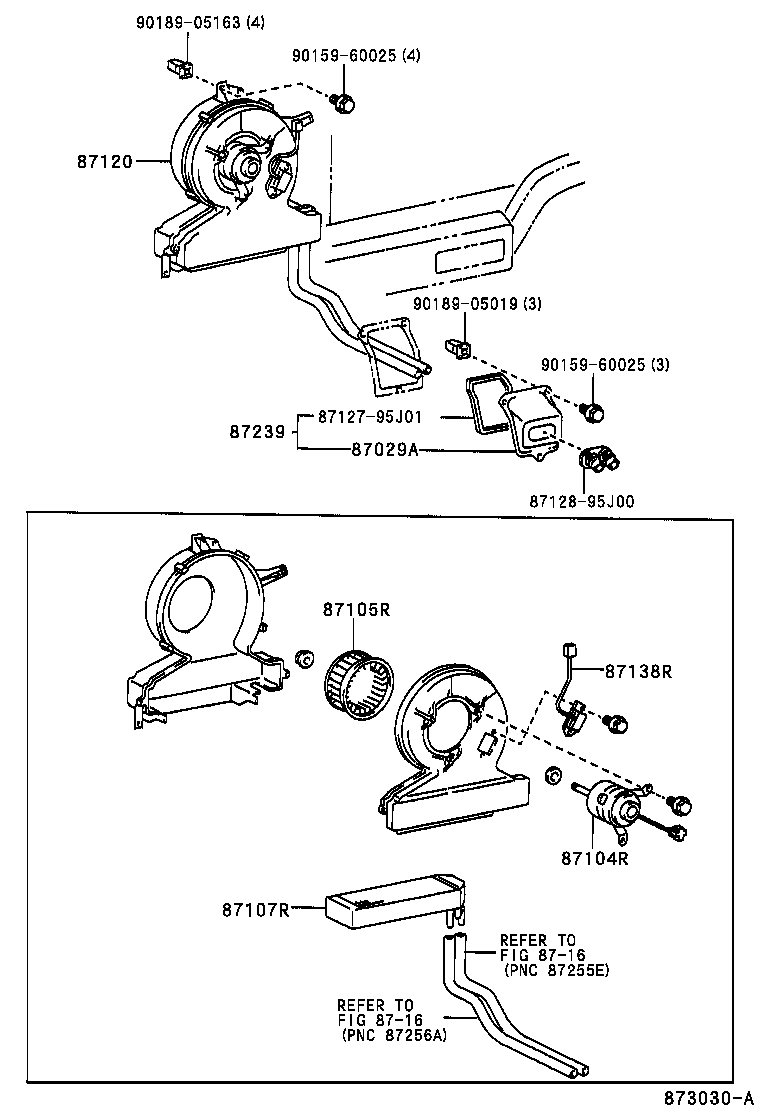

| 87120 | Heater Assy, Rear |

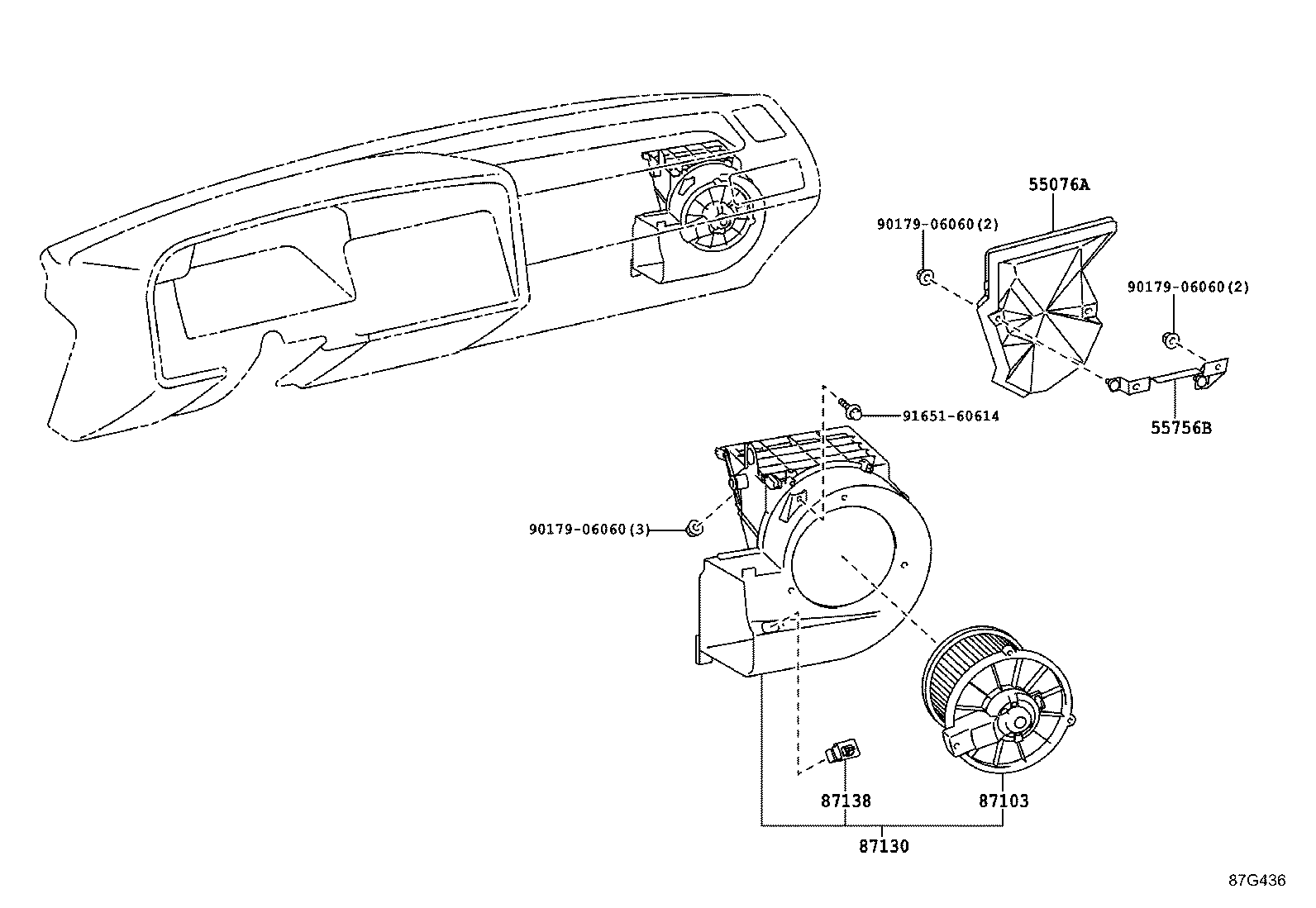

| 87130 | Blower Assy, Heater, Front |
| 87138 | Resistor, Heater Blower |
| 87138R | Resistor, Rear Heater Blower |

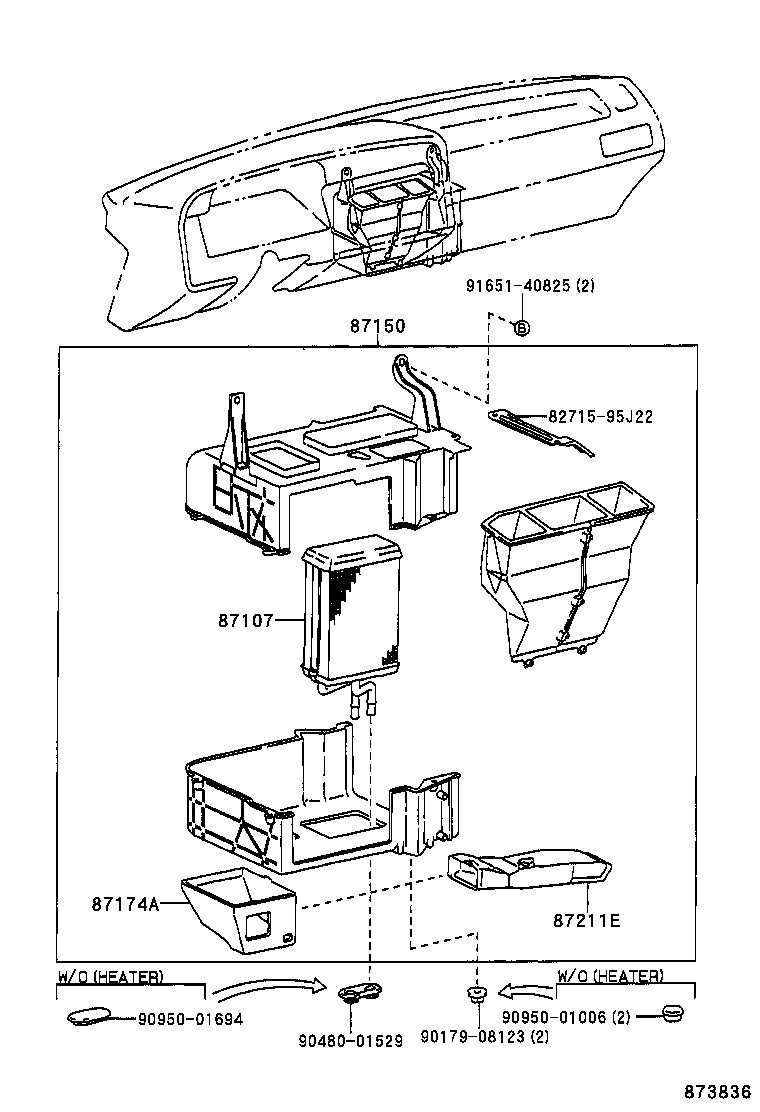

| 87150 | Radiator Assy, Heater |
| 87174A | Guide, Air Heater |
| 87174D | Guide, Air |
| 87187A | Wire, Blower Motor Lead |
| 87211E | Duct, Air |
| 87239 | Cover, Heater Inlet Hole |

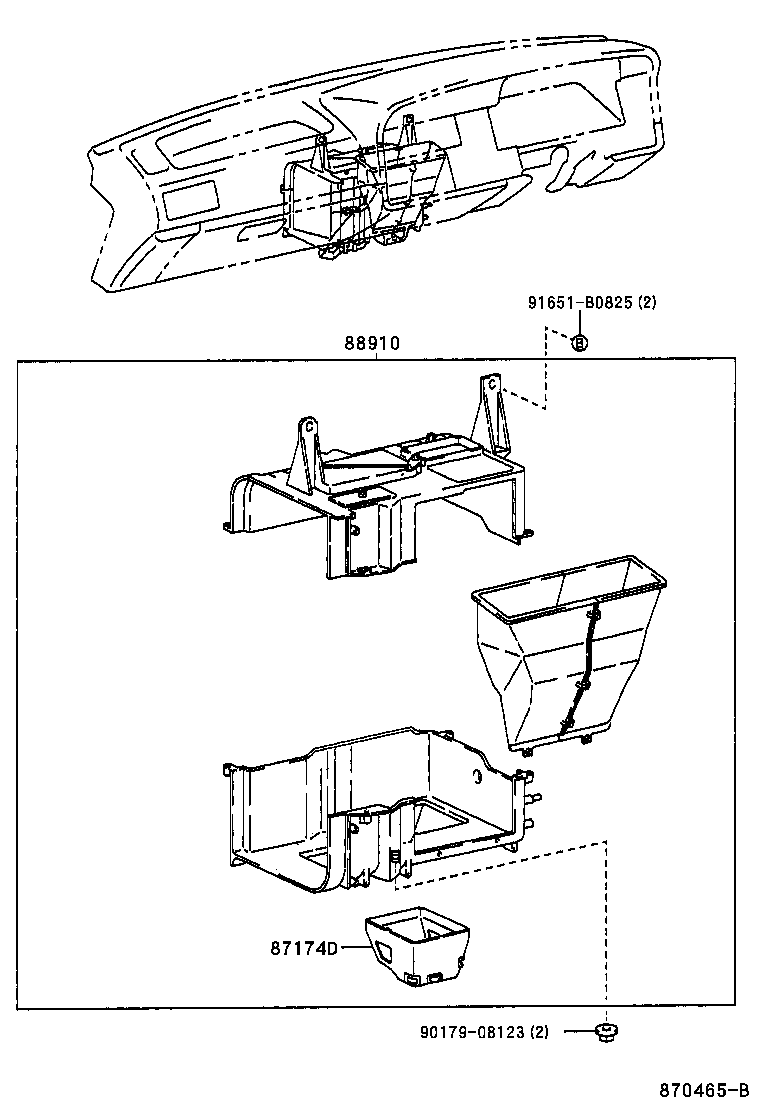

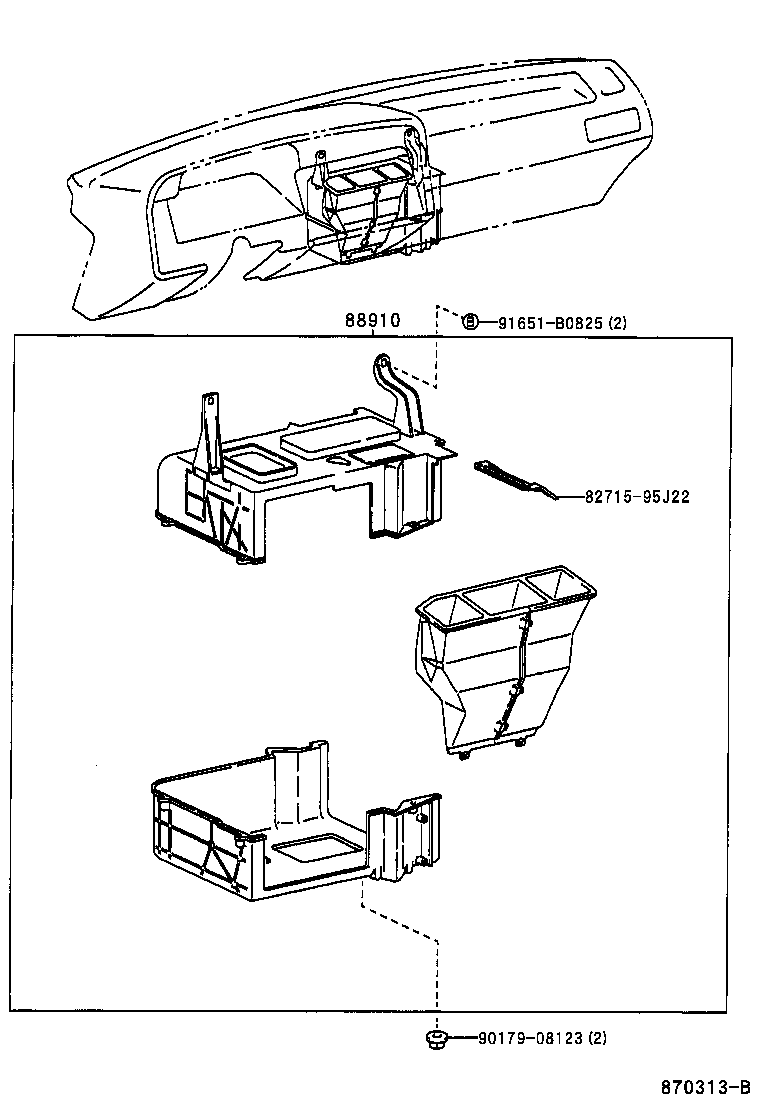

| 88910 | Ventilator Assy, Boost |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
