Toyota Hiace Van,Commuter
1989-08 → 2006-02 · chassis LH1##,RZH10#,11#,125,135,15# · catalogue 711340 · General
Discontinued model
Data version 2006-10
Heating & Air Conditioning - Compressor
23 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88302 | Stator Sub-assy, Magnet Clutch |

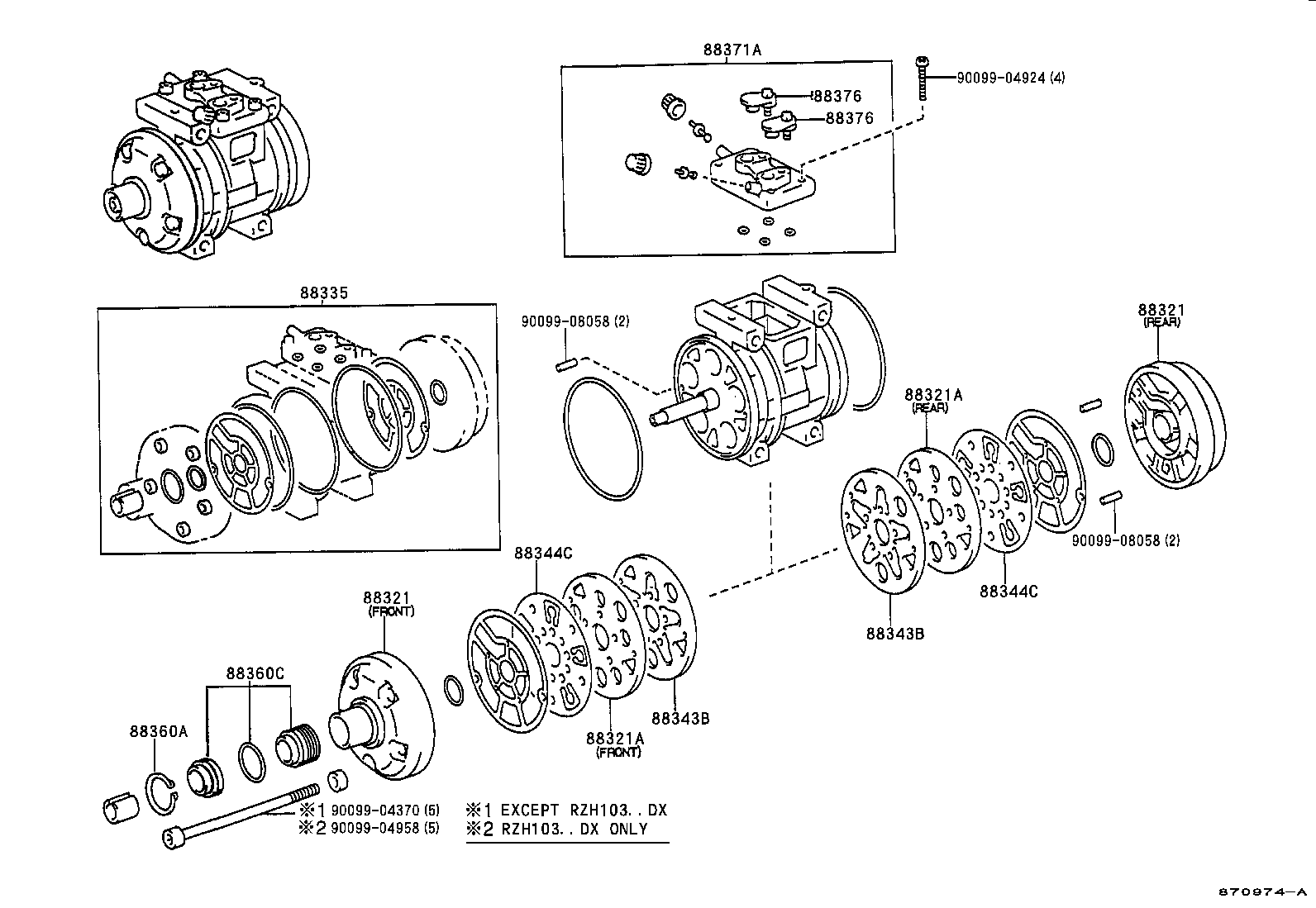

| 88320 | Compressor Assy, Cooler |
| 88321 | Head, Cooler Compressor Cylinder |
| 88321A | Plate Sub-assy, Valve |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88335 | Gasket Kit, Overhaul |
| 88343B | Reed, Suction Valve |
| 88344C | Reed, Discharge Valve |
| 88360A | Ring, Compressor Seal Plate Snap |
| 88360C | Seal Assy, Shaft |
| 88371A | Valve, Suction |
| 88376 | Cap, Blind |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88410 | Clutch Assy, Magnet |

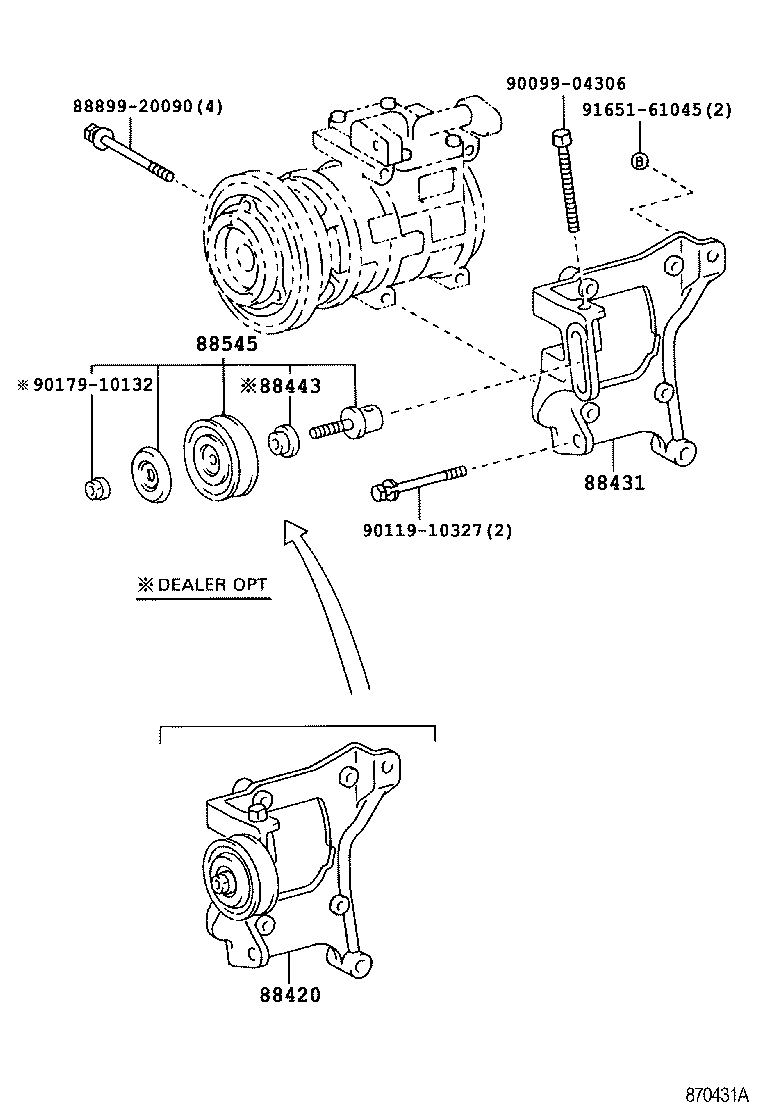

| 88420 | Pulley Assy, Idle, W/Bracket |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88443 | Collar, Idle Pulley |
| 88444 | Bracket, Idle Pulley |
| 88469B | Collar |
| 88545 | Pulley Assy, Idle |
| 88595A | Bearing (FOR COOLER IDLE PULLEY) |
| 88688K | Bracket, Cooler Compressor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
