Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

12 part groups · 4 illustrations

Illustrations

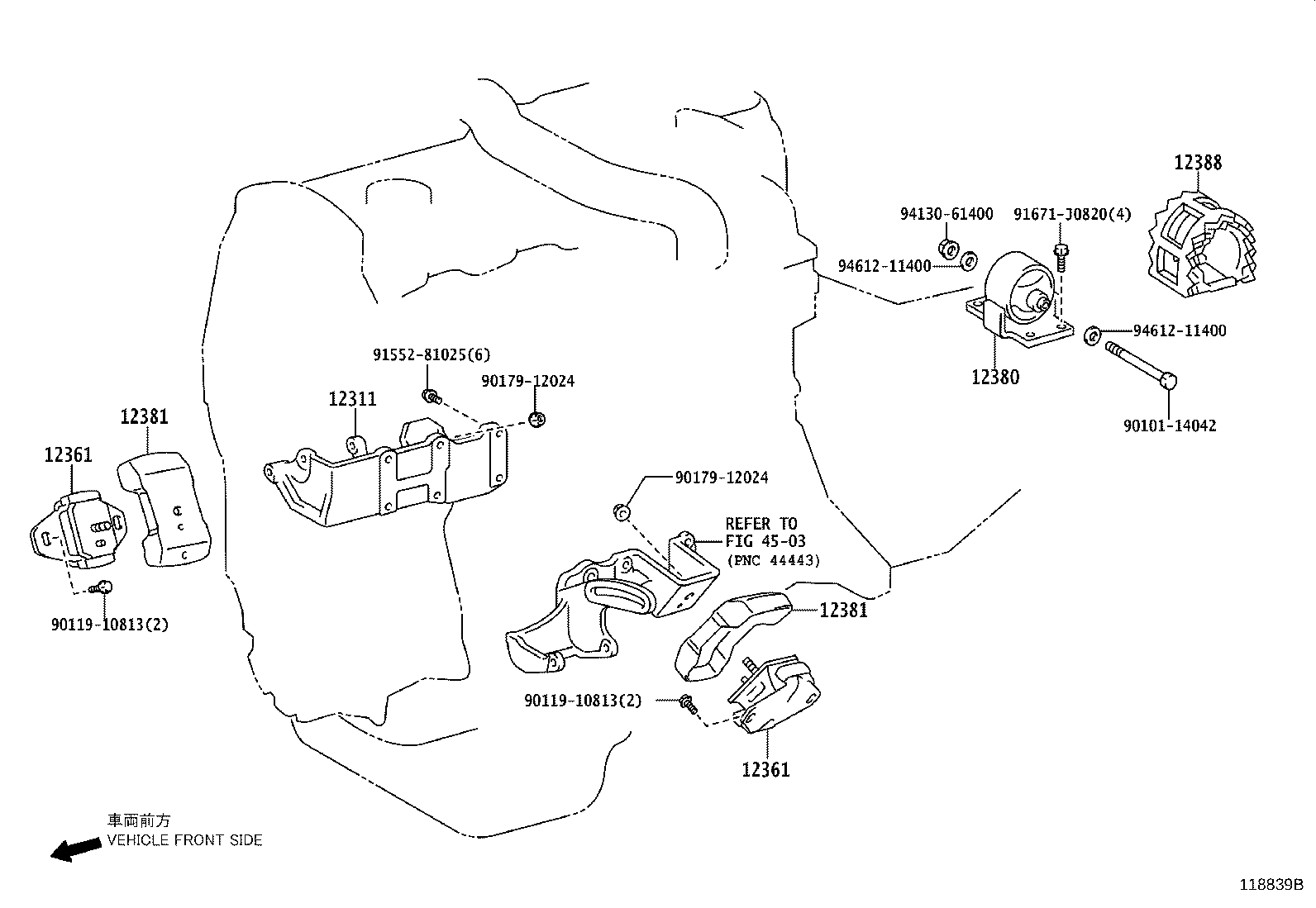

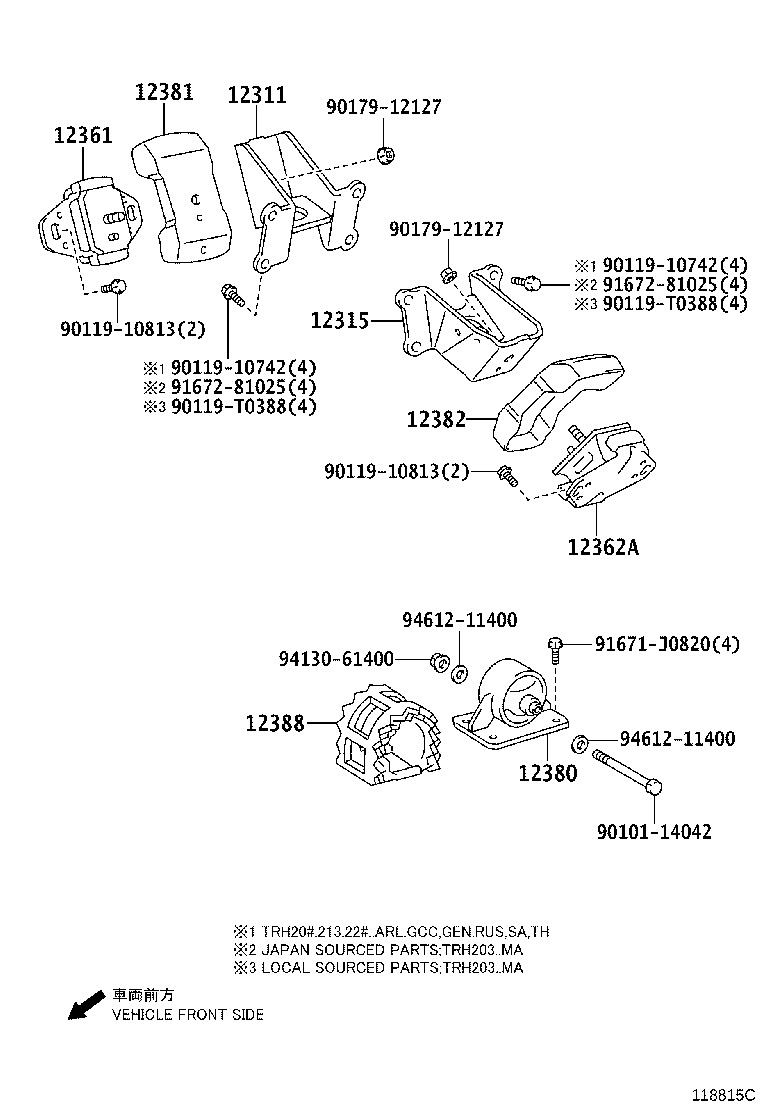

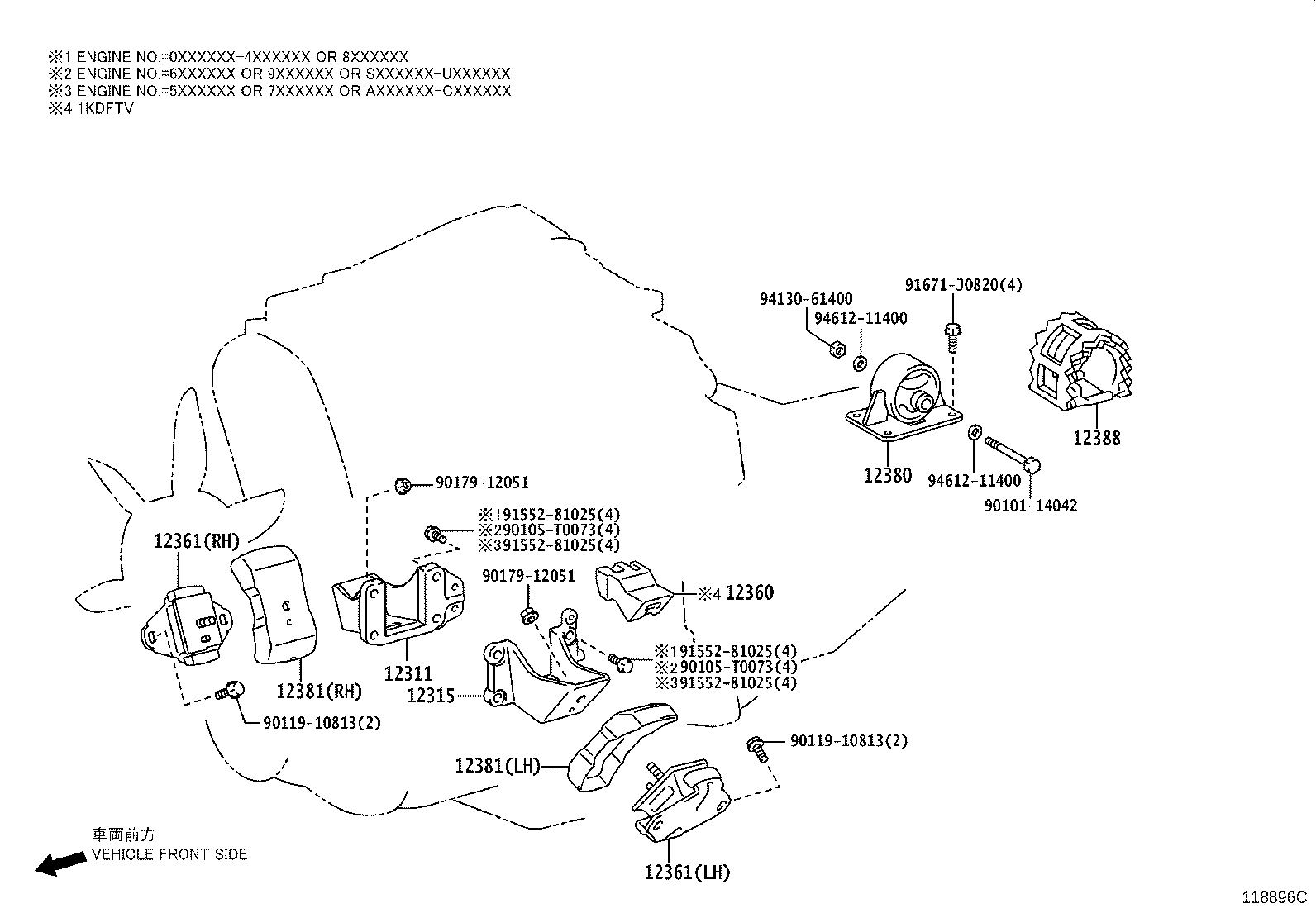

Figure 11B598B 11B598B 2017-01 → — Figure 118896C 118896C 2013-12 → — Figure 118839B 118839B 2013-12 → — Figure 118815C 118815C 2013-12 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12360 Insulator Assy, Engine Mounting, Front
12361 Insulator, Engine Mounting, Front
12362A Insulator, Engine Mounting, Front LH
12380 Insulator Assy, Engine Mounting, Rear
12381 Stabilizer, Engine Mounting
12382 Stabilizer, Engine Mounting, LH
12388 Stopper, Engine Mounting Bracket, Rear
12391 Insulator, Engine Mounting Front, Heat, RH
12501 Bracket Sub-assy, Alternator
12582 Insulator, Cylinder Block, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
