Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

16 part groups · 9 illustrations

Illustrations

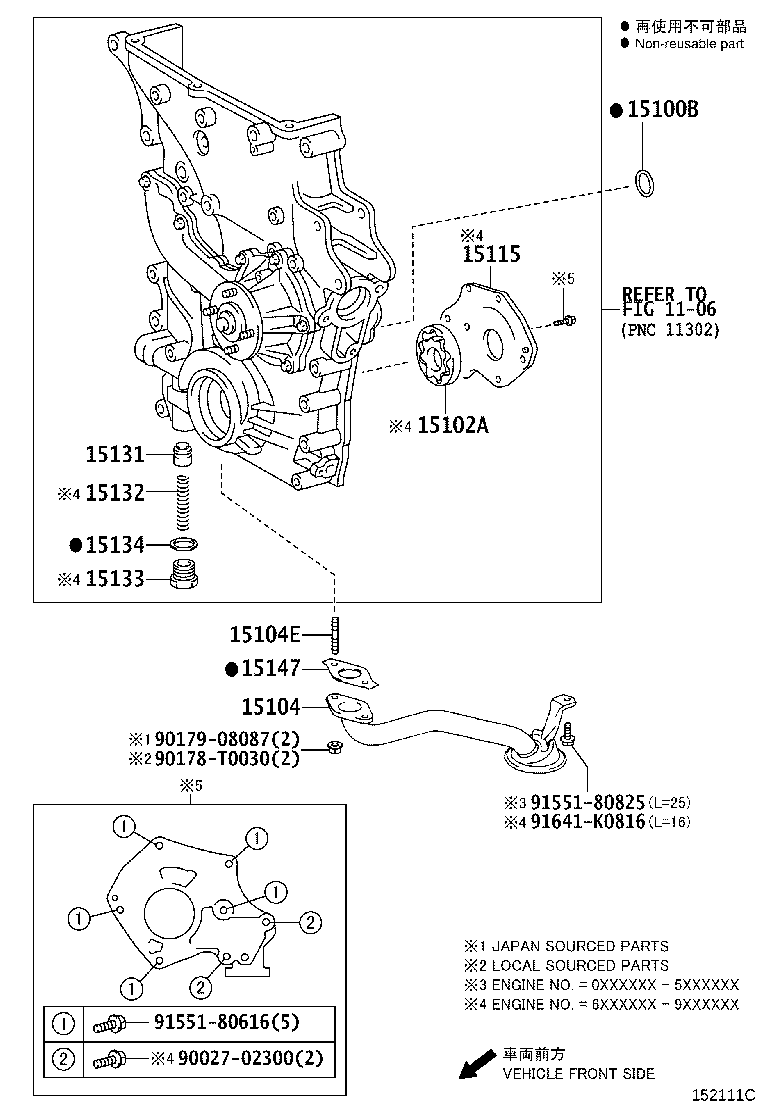

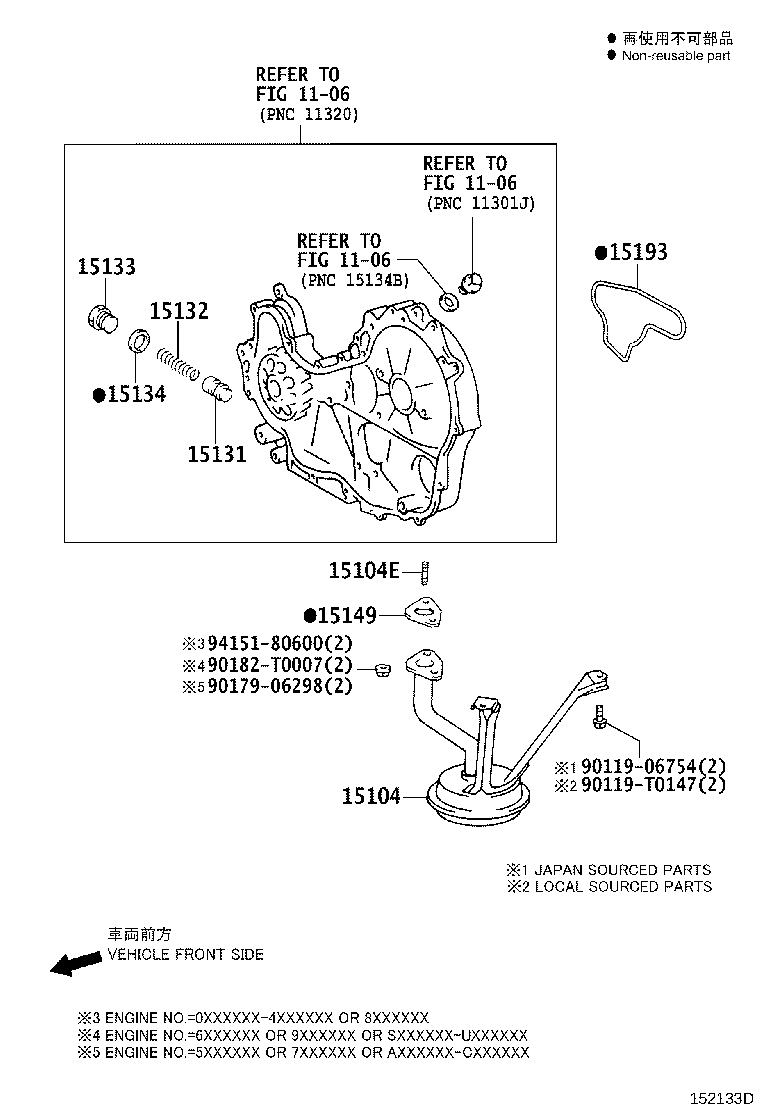

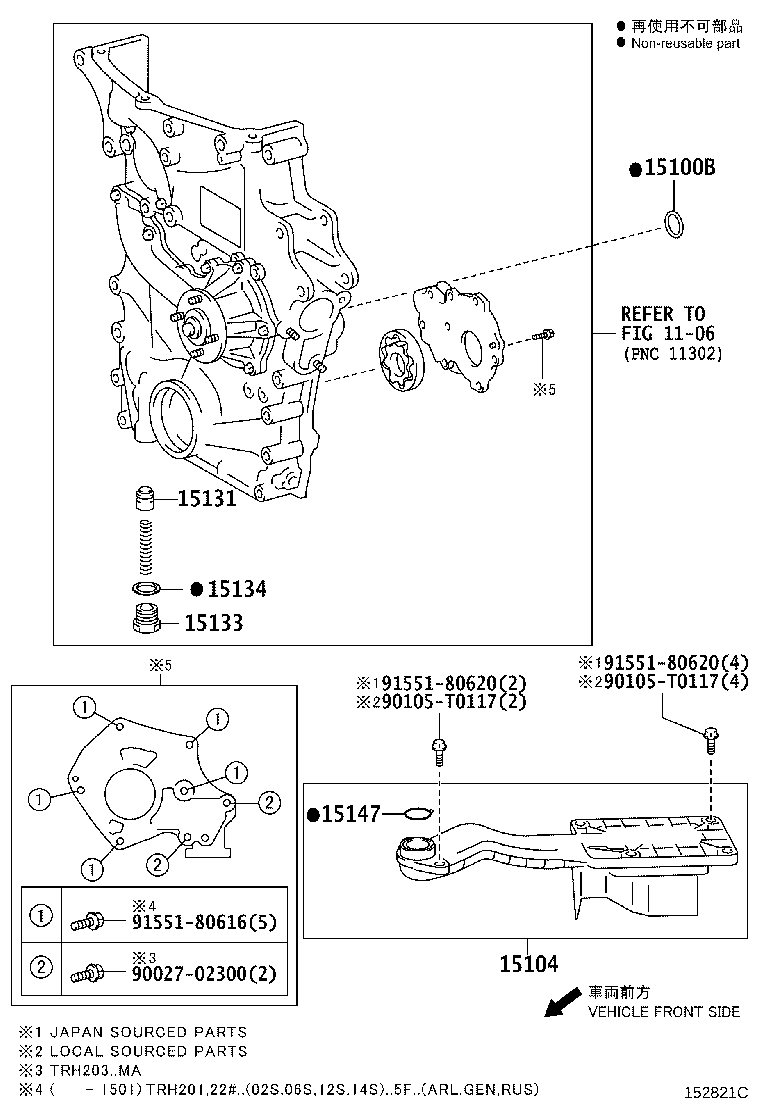

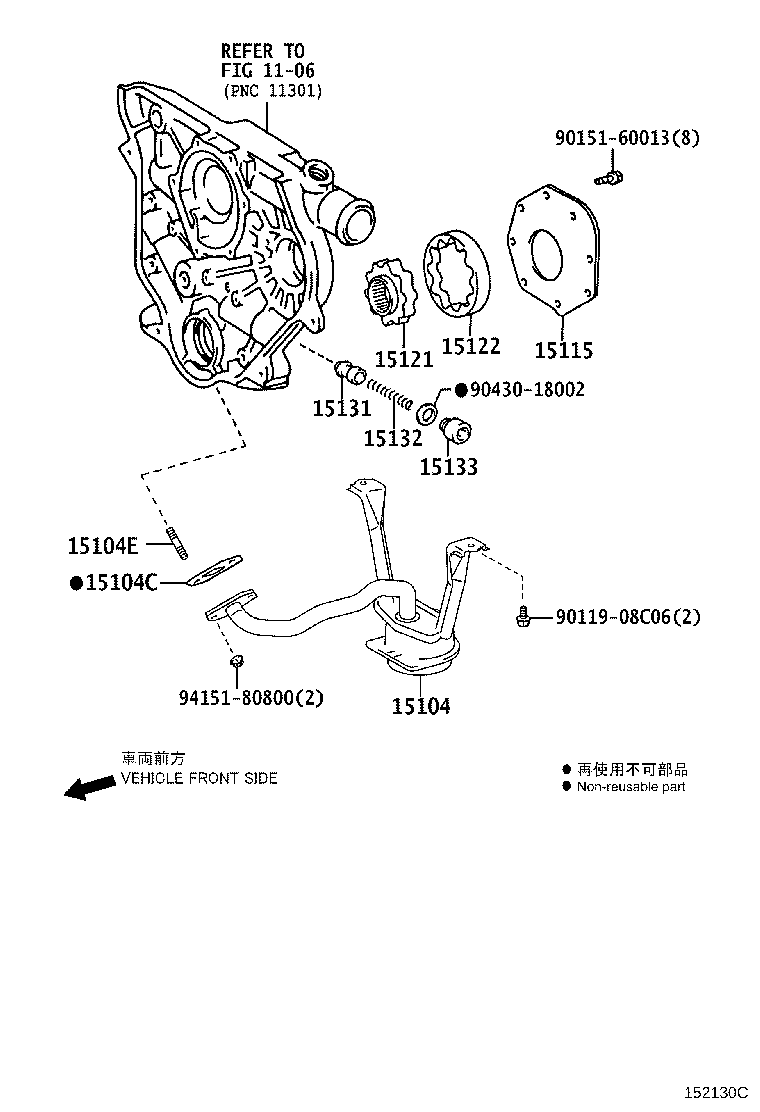

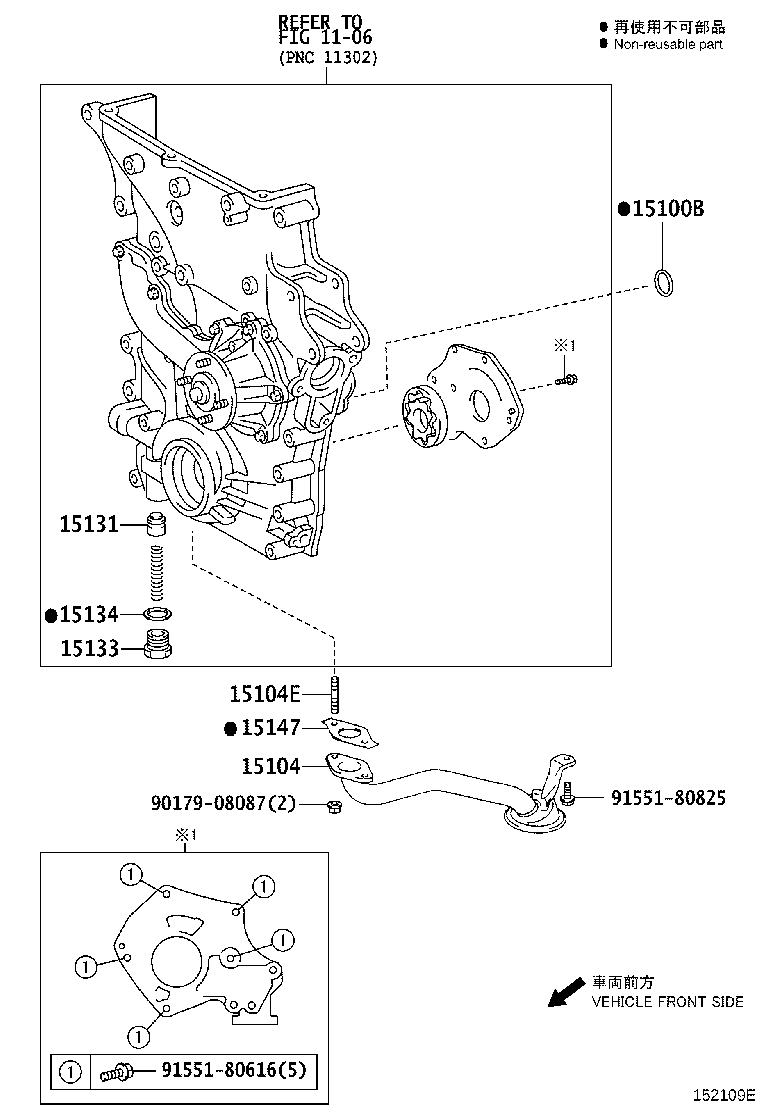

Figure 152574B 152574B 2017-01 → — Figure 152133D 152133D 2013-12 → — Figure 152130C 152130C 2013-12 → — Figure 152109E 152109E 2013-12 → 2015-01 Figure 152111C 152111C 2013-12 → 2014-11 Figure 152111C 152111C 2013-12 → 2015-01 Figure 152111C 152111C 2014-01 → 2015-03 Figure 152821C 152821C 2014-11 → — Figure 152821C 152821C 2015-03 → —

Part groups

PNCDescription
15012 Cover Sub-assy, Oil Pump
15100B Ring, O(FOR OIL PUMP)
15102A Rotor, Oil Pump
15104 Strainer Sub-assy, Oil
15104C Gasket(FOR OIL STRAINER)
15104E Bolt, Stud(FOR OIL STRAINER)
15115 Cover, Oil Pump
15121 Gear, Oil Pump Drive
15122 Gear, Oil Pump Driven
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15134 Gasket, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
15149 Gasket, Oil Strainer Flange
15193 Gasket, Oil Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
