Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

24 part groups · 19 illustrations

Illustrations

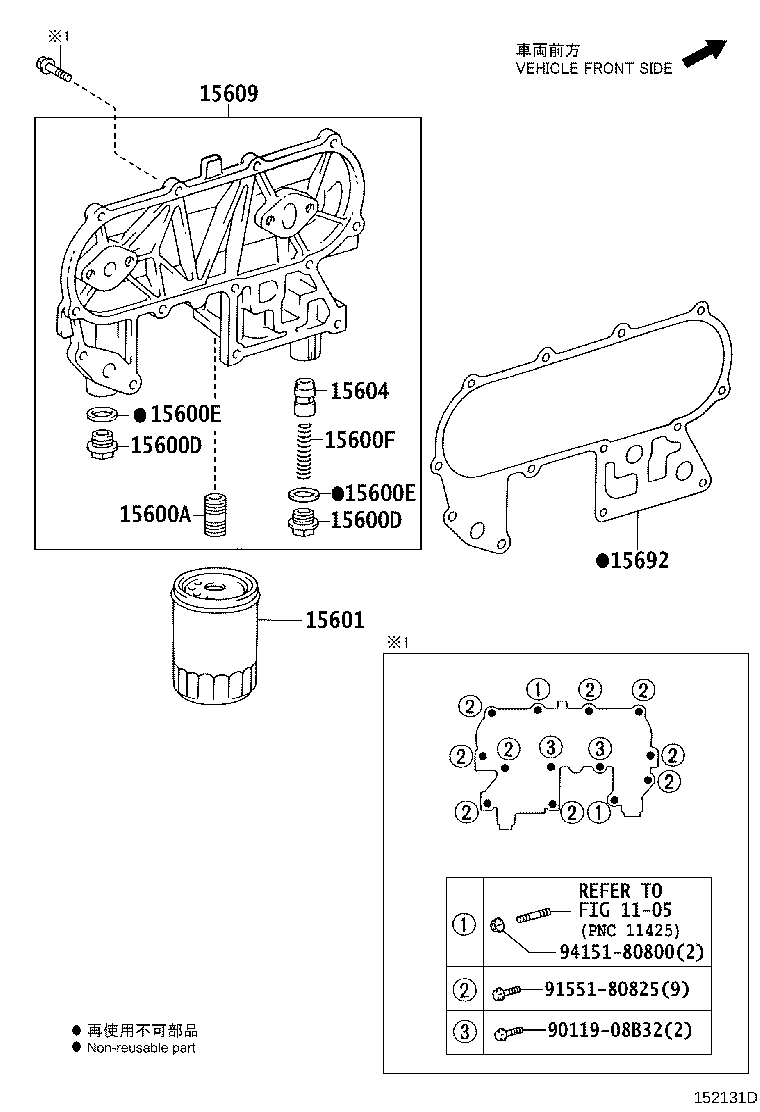

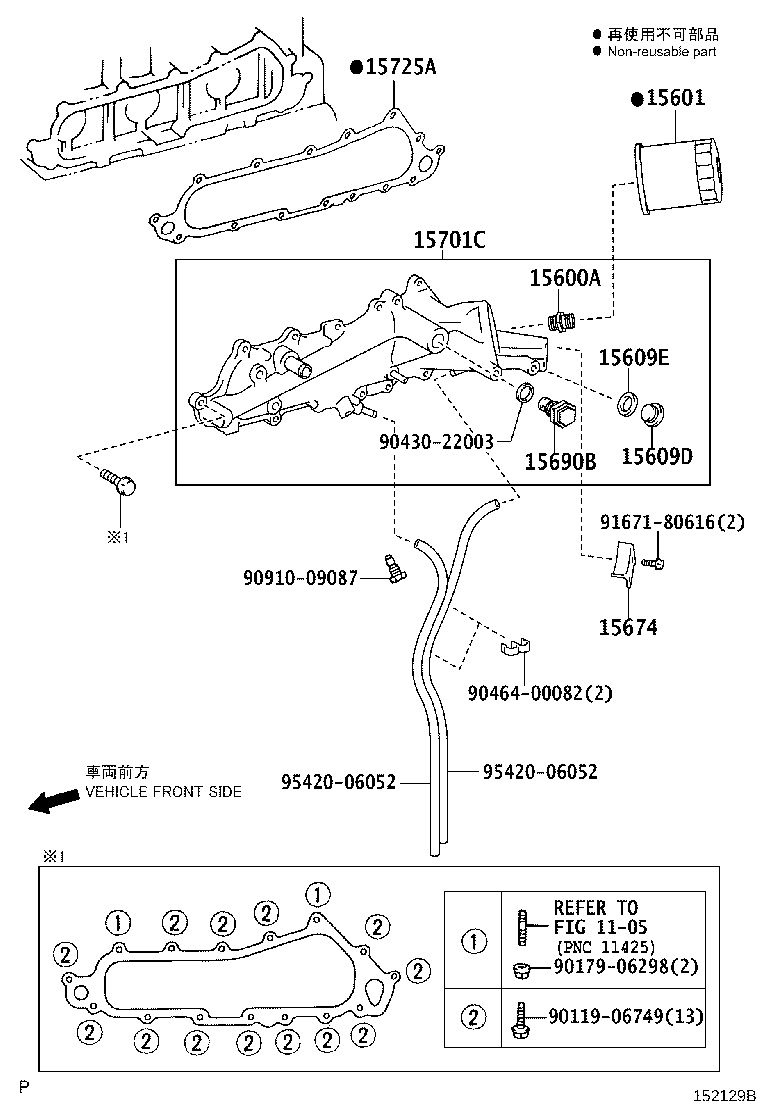

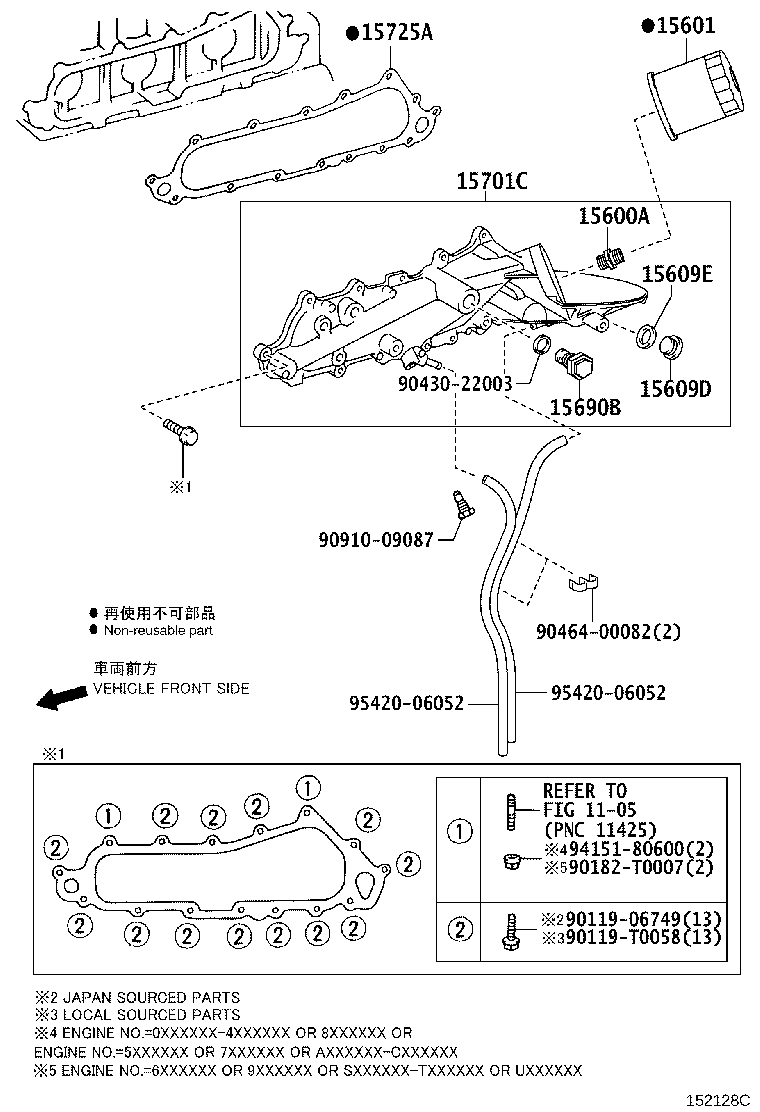

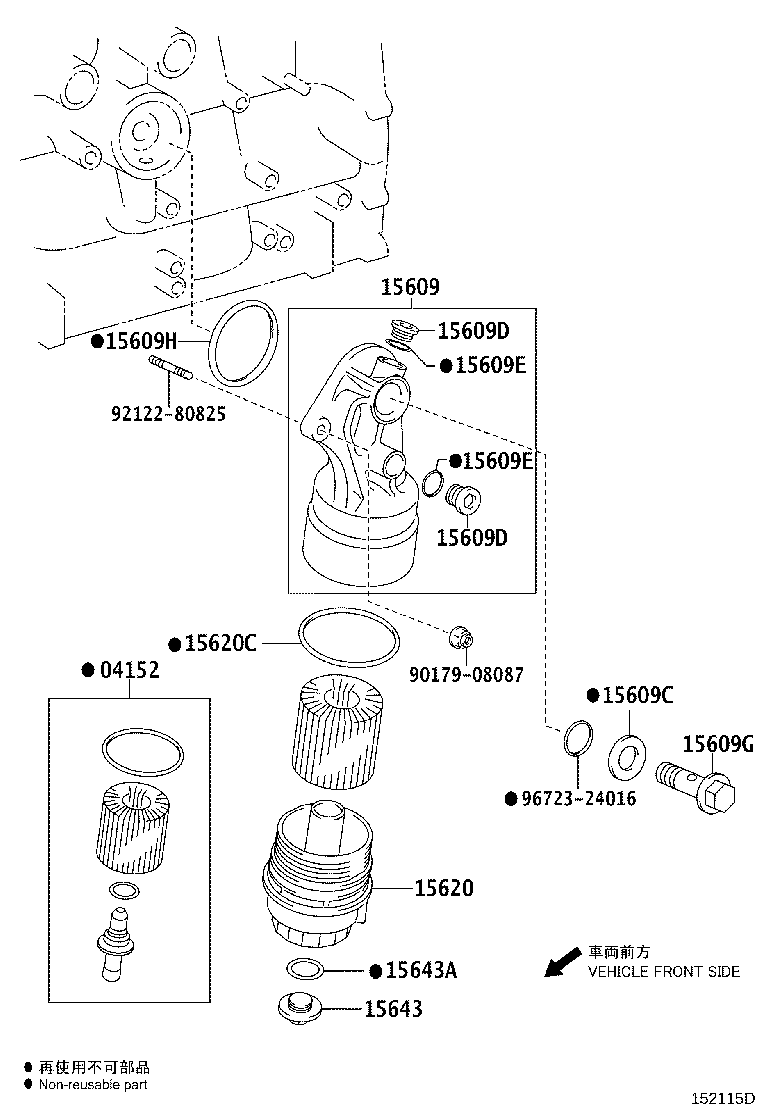

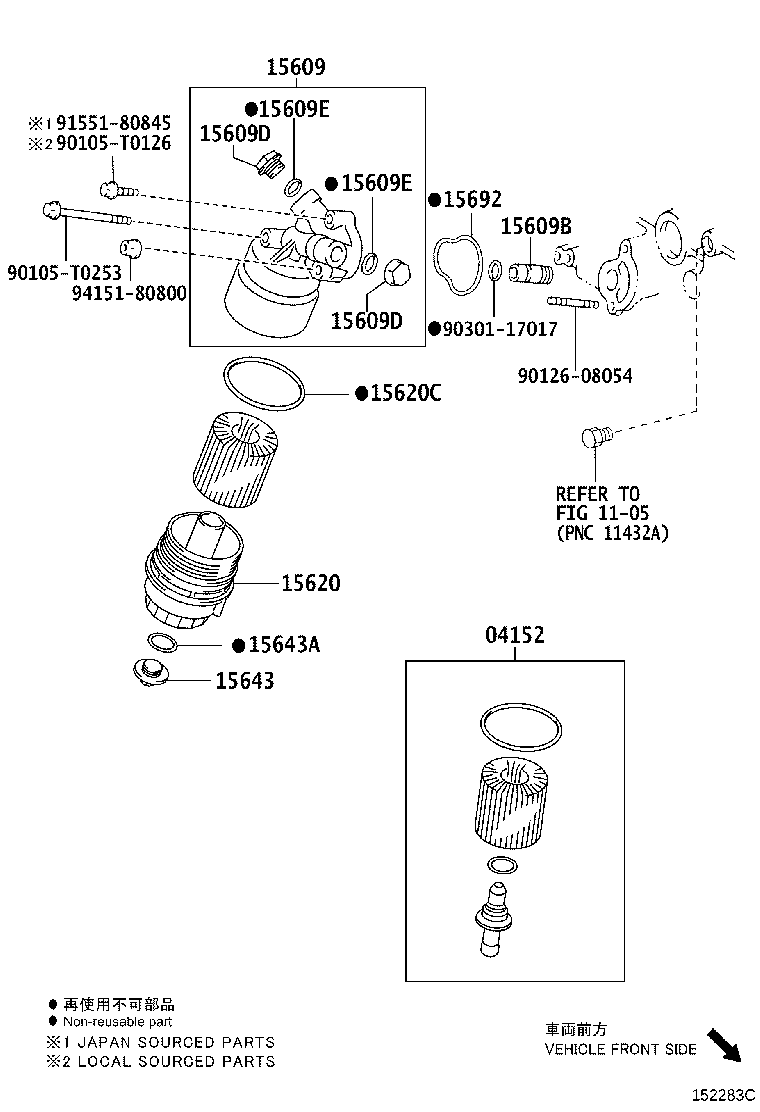

Figure 152573C 152573C 2017-01 → — Figure 152128C 152128C 2013-12 → 2015-01 Figure 152128C 152128C 2013-12 → 2016-06 Figure 152128C 152128C 2013-12 → — Figure 152128C 152128C 2013-12 → — Figure 152128C 152128C 2015-06 → — Figure 152128C 152128C 2016-06 → — Figure 152519B 152519B 2013-12 → — Figure 152519B 152519B 2015-01 → — Figure 152519B 152519B 2016-06 → — Figure 152519B 152519B 2016-06 → — Figure 152129B 152129B 2013-12 → 2016-06 Figure 152131D 152131D 2013-12 → — Figure 152115D 152115D 2013-12 → — Figure 152116C 152116C 2013-12 → 2015-01 Figure 152116C 152116C 2013-12 → — Figure 152116C 152116C 2013-12 → — Figure 152116C 152116C 2015-01 → — Figure 152283C 152283C 2015-01 → —

Part groups

PNCDescription
04152 Element Kit, Oil Filter
15600A Union(FOR OIL FILTER)
15600D Plug(FOR OIL FILTER)
15600E Washer(FOR OIL FILTER)
15600F Spring, Compression(FOR OIL FILTER)
15601 Filter Sub-assy, Oil
15604 Valve Sub-assy, Oil Safety
15609 Bracket Sub-assy, Oil Filter
15609B Union(FOR OIL FILTER BRACKET)
15609C Gasket(FOR OIL FILTER BRACKET UNION)
15609D Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
15609E Gasket, W/Head Straight Screw Plug
15609G Bolt, Union(FOR OIL FILTER BRACKET)
15609H Ring, O(FOR OIL FILTER BRACKET)
15620 Cap Assy, Oil Filter
15620C Gasket(FOR OIL FILTER CAP)
15643 Plug, Oil Filter Drain
15643A Ring, O(FOR OIL FILTER DRAIN PLUG)
15674 Receiver, Oil Filter
15677 Bracket, Oil Filter
15690B Valve Assy, Oil Cooler Relief
15692 Gasket, Oil Filter Bracket
15701C Cover Sub-assy, Oil Cooler
15725A Gasket, Oil Cooler Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
