Water Pump

17 part groups · 4 illustrations

Illustrations

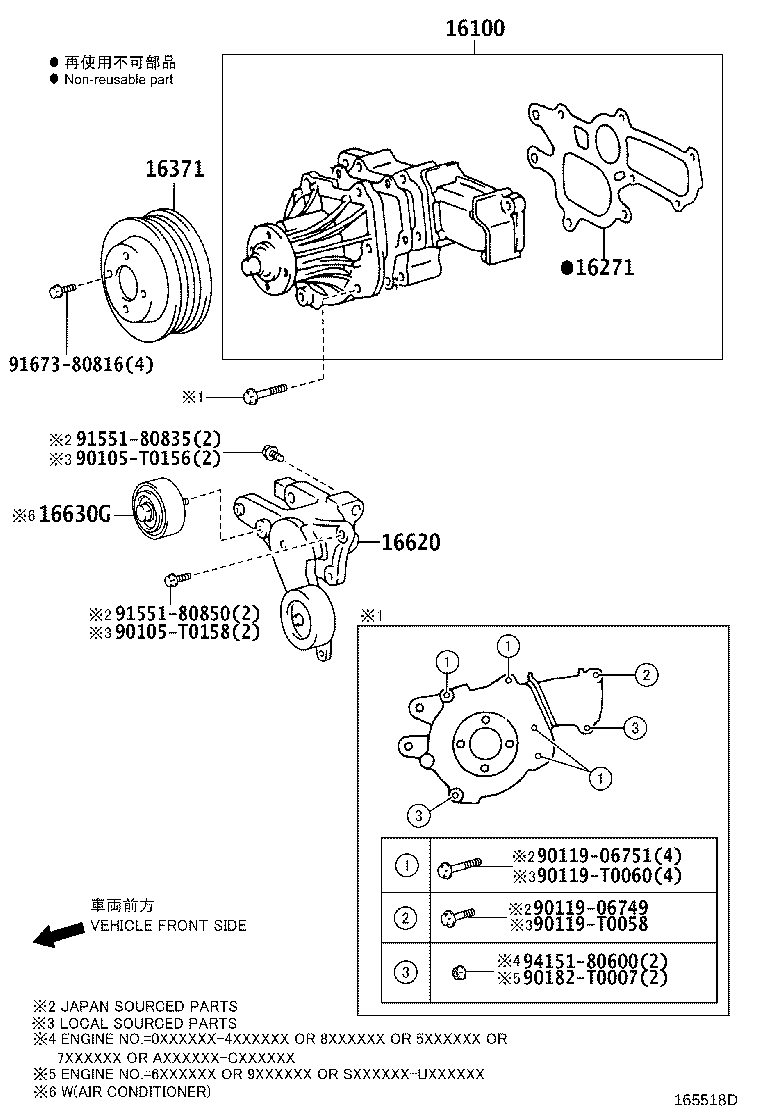

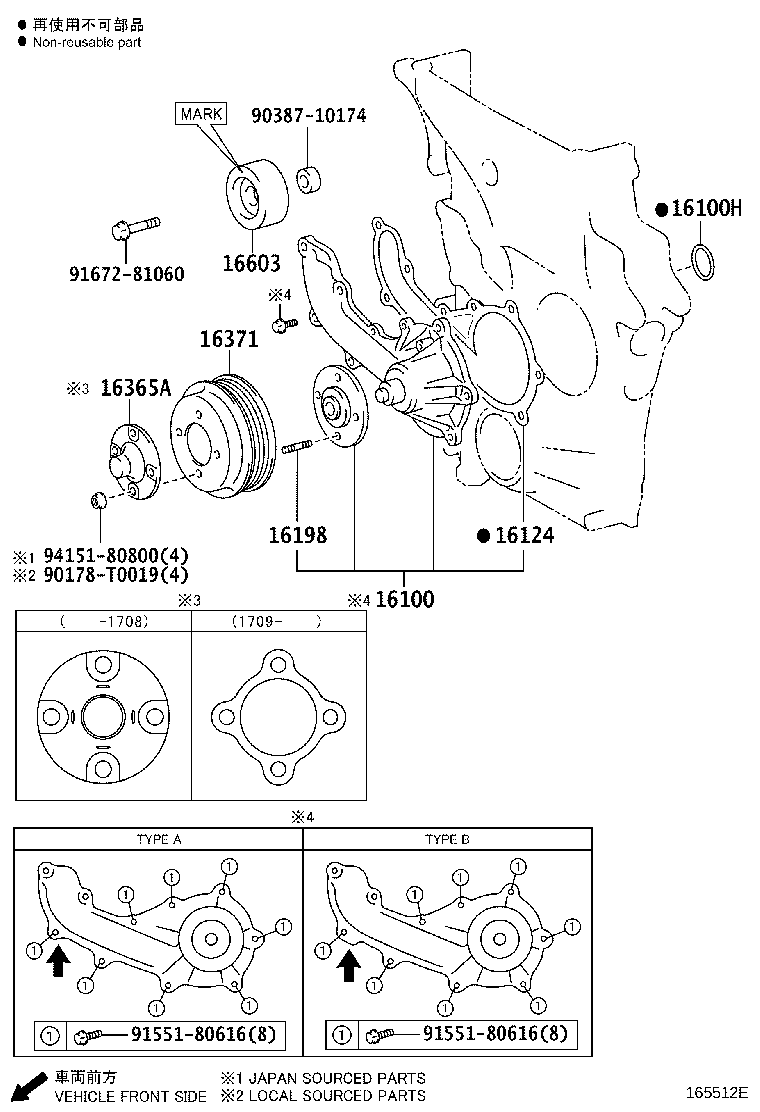

Figure 168840 168840 2017-01 → — Figure 165518D 165518D 2013-12 → — Figure 165542C 165542C 2013-12 → — Figure 165512E 165512E 2013-12 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16100H Ring, O(FOR WATER PUMP)
16124 Gasket, Water Pump Cover
16171 Seat, Water Pump Pulley
16198 Bolt, Stud(FOR WATER PUMP PULLEY SEAT)
16241 Bolt, Stud(FOR WATER PUMP COUPLING)
16271 Gasket, Water Pump
16272 Gasket, Water Pump, NO.2
16273 Spacer, Water Pump
16365A Spacer, Fan
16371 Pulley, Fan
16603 Pulley Sub-assy, Idler, NO.1
16603H Bolt(FOR IDLER PULLEY)
16603L Pulley Sub-assy, Idler, NO.1
16603M Bolt(FOR IDLER PULLEY)
16620 Tensioner Assy, V-ribbed Belt
16630G Pulley Assy, Idler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
