Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

121 part groups · 59 illustrations

Illustrations

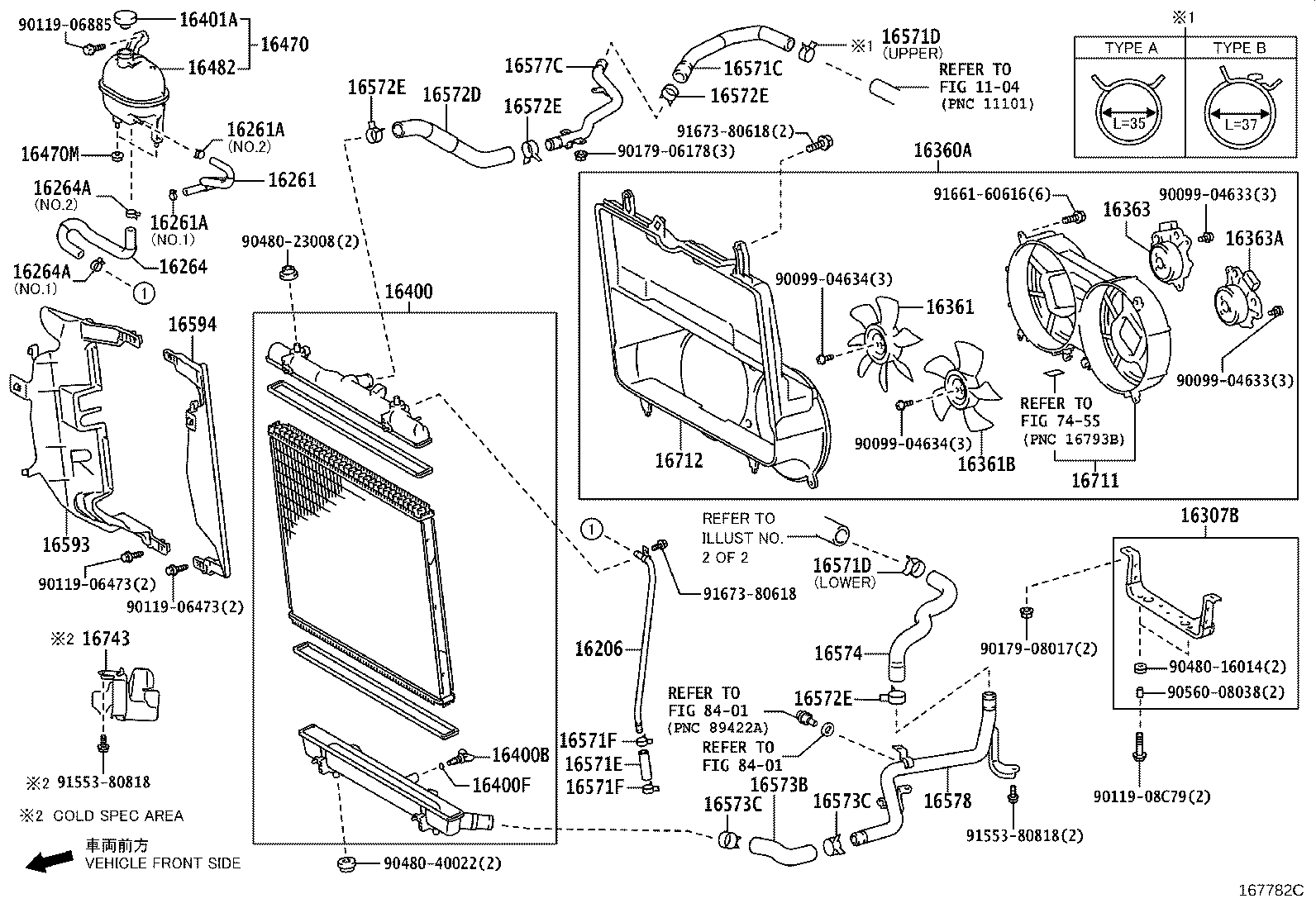

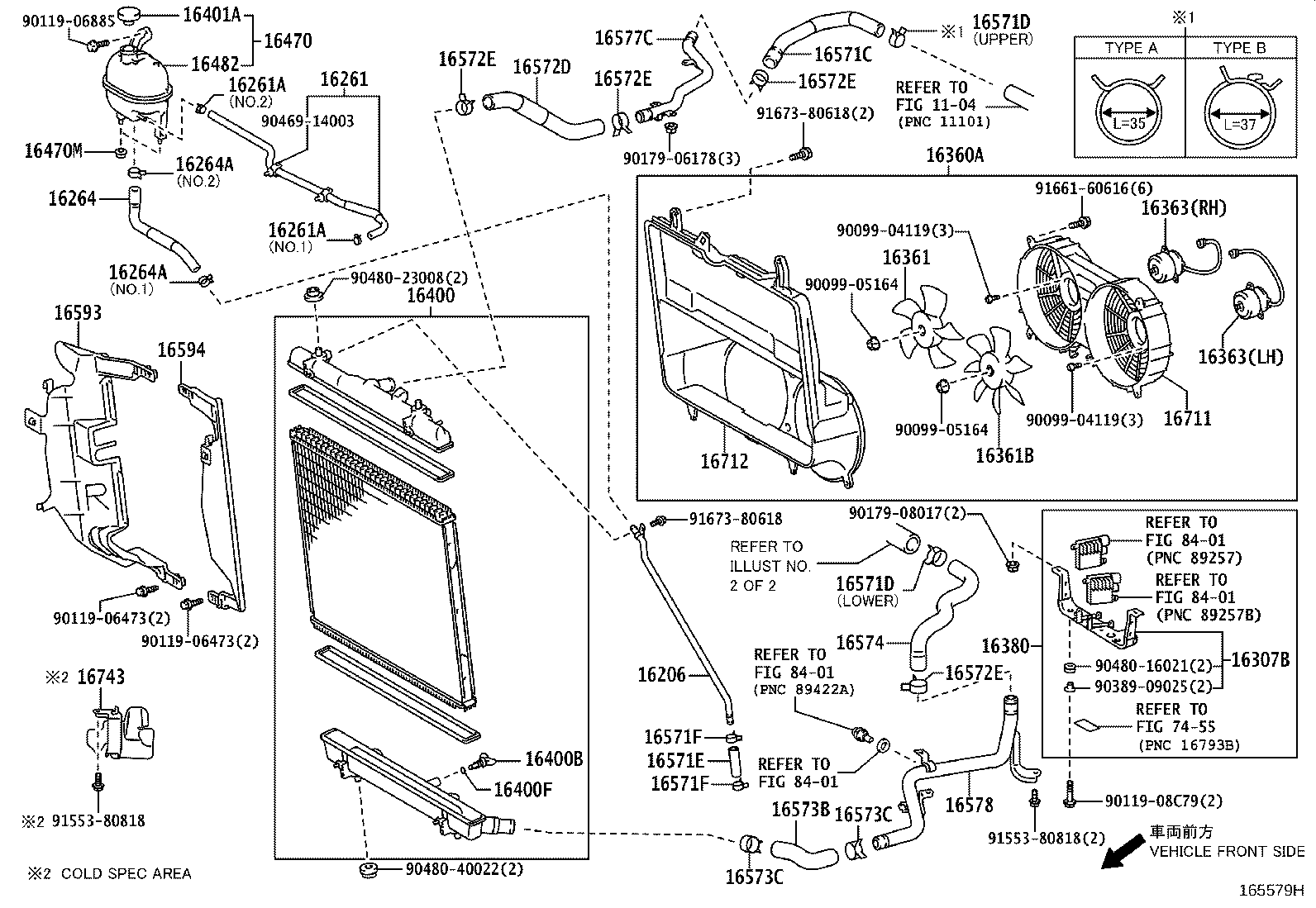

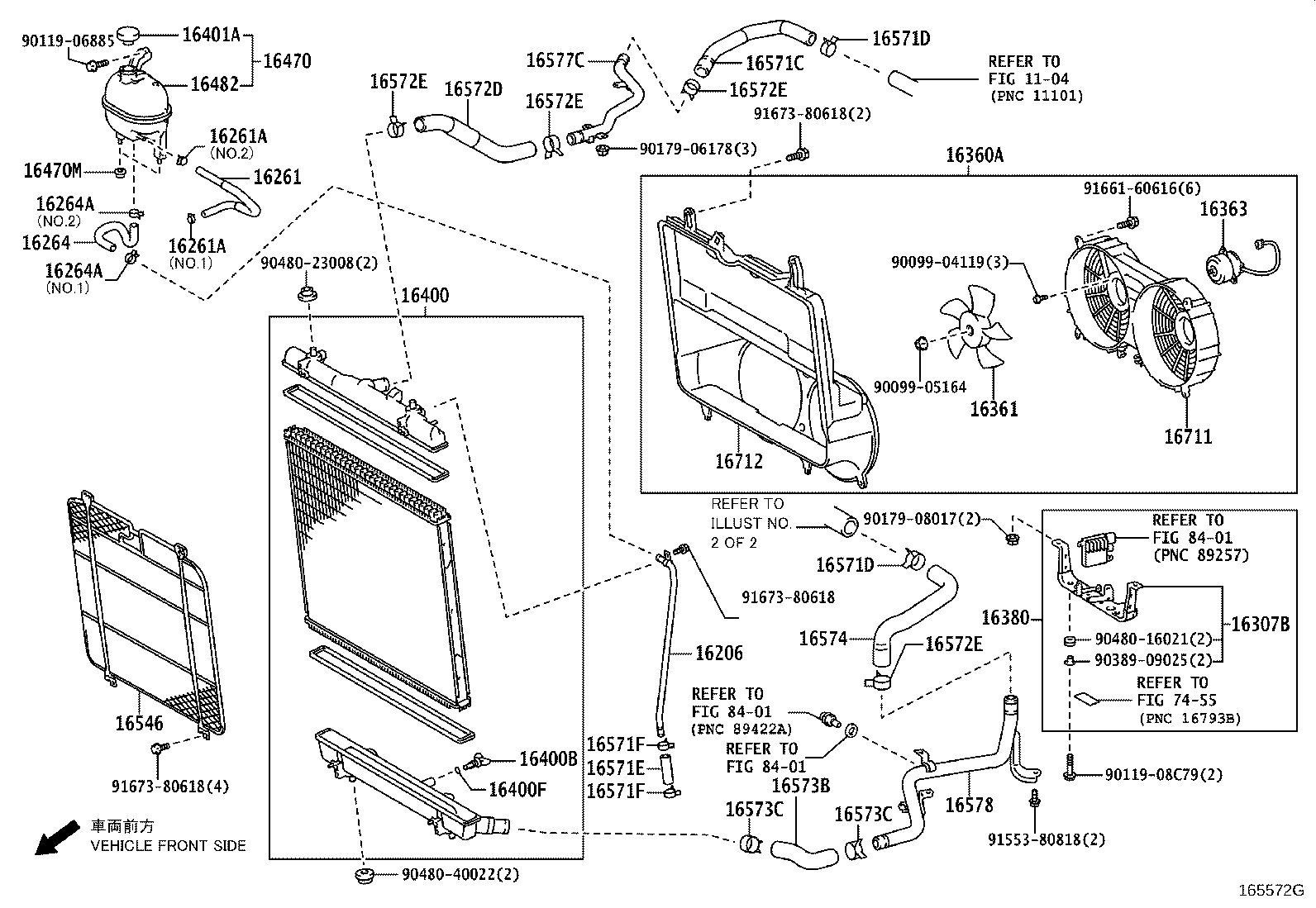

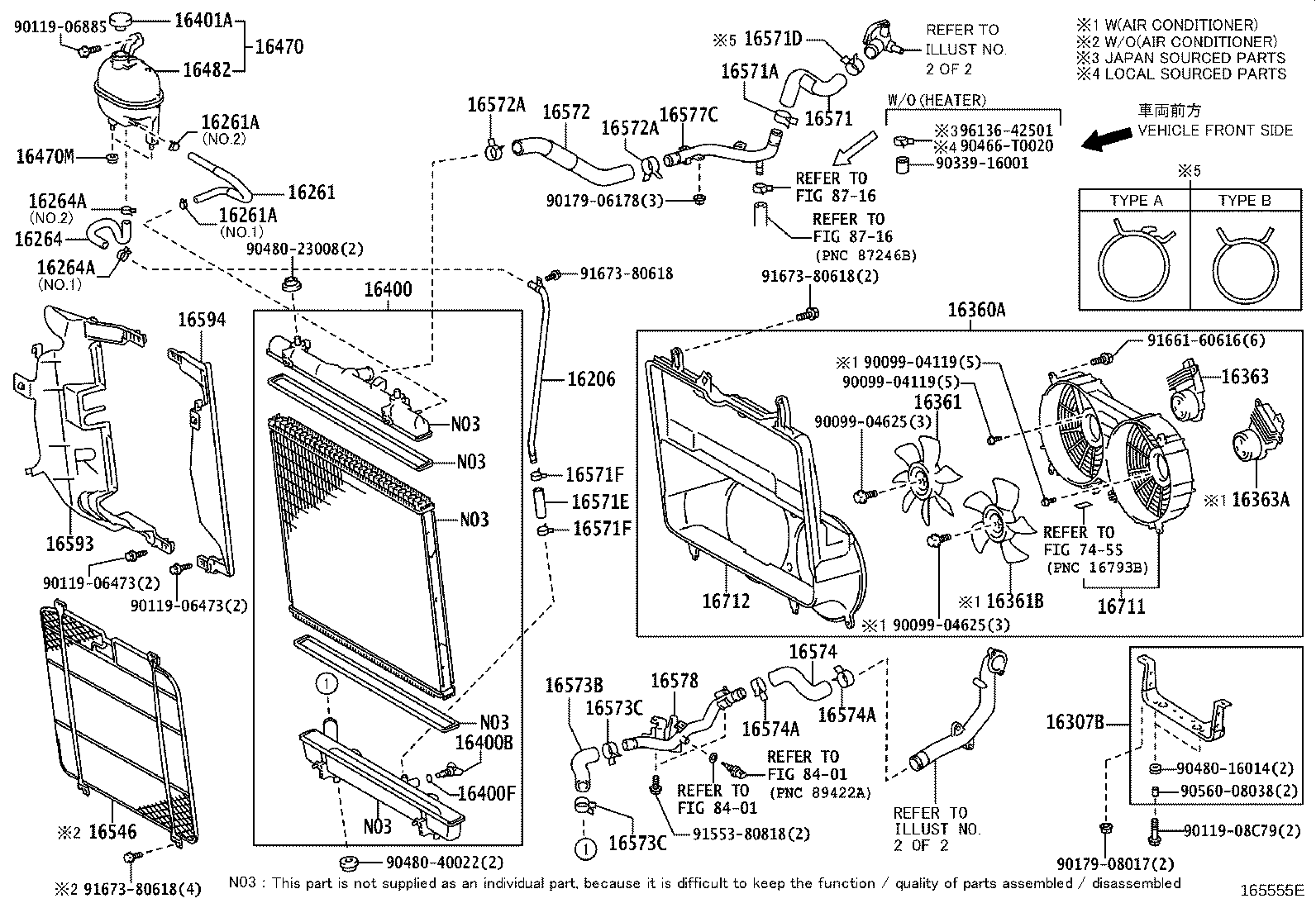

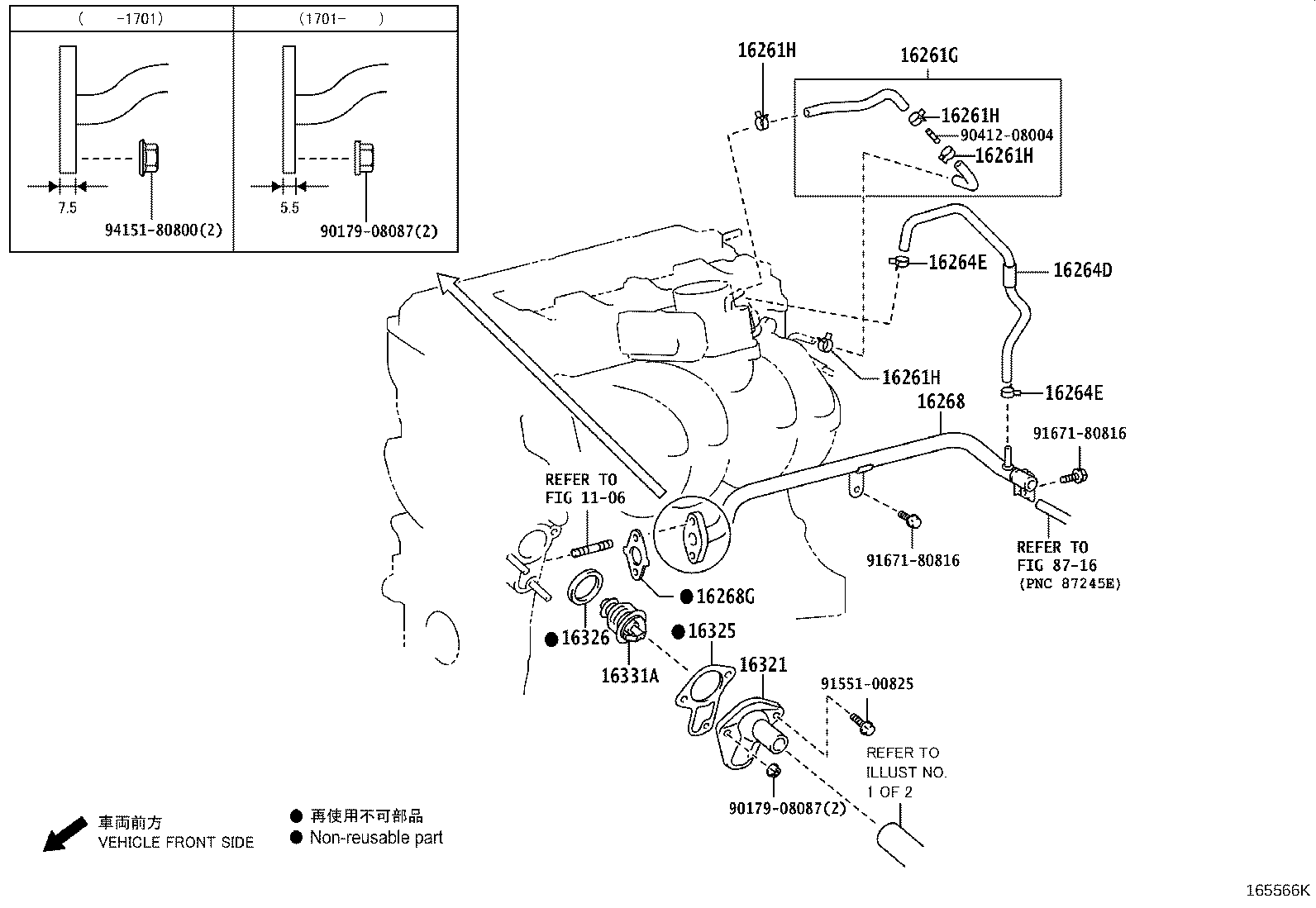

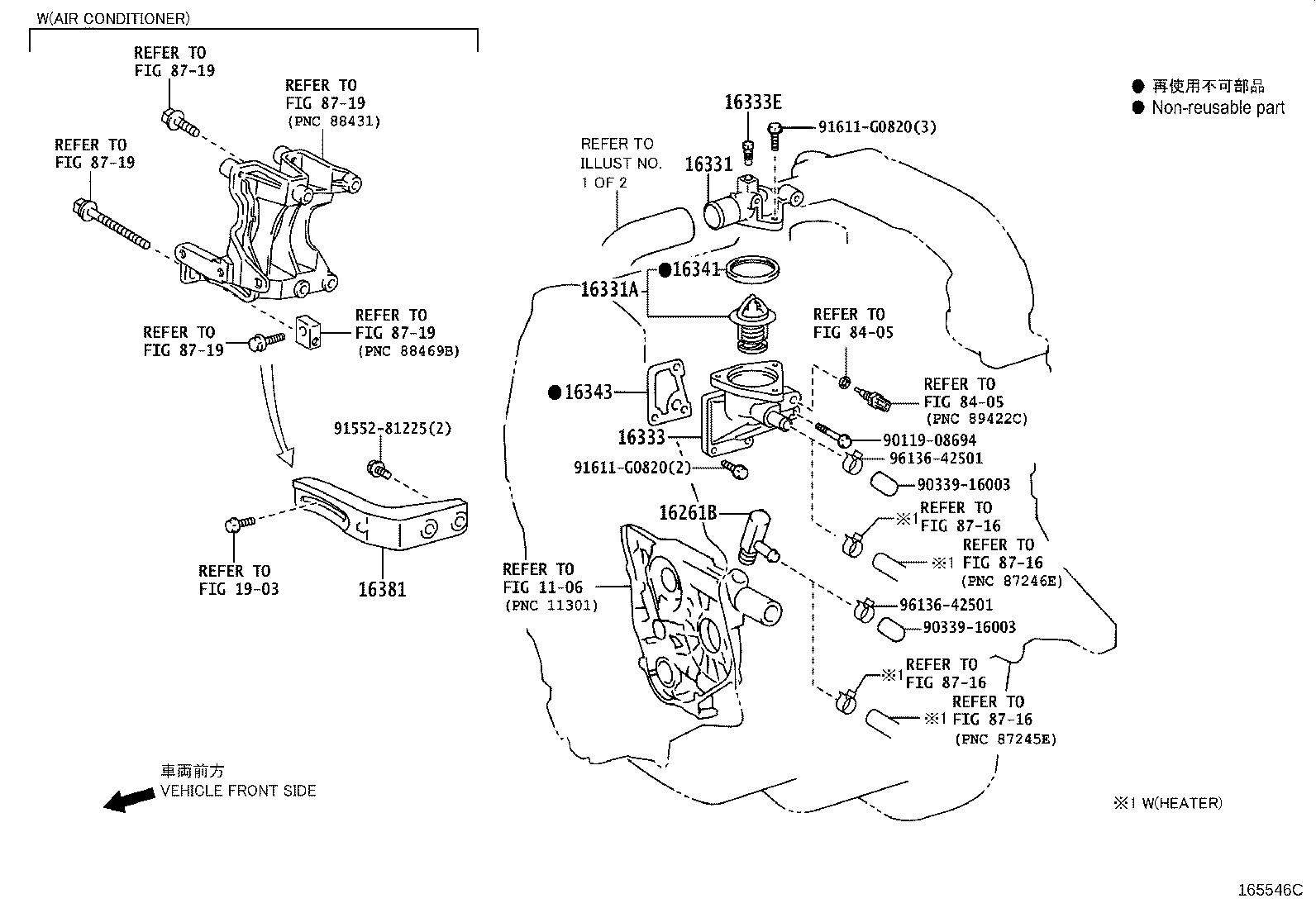

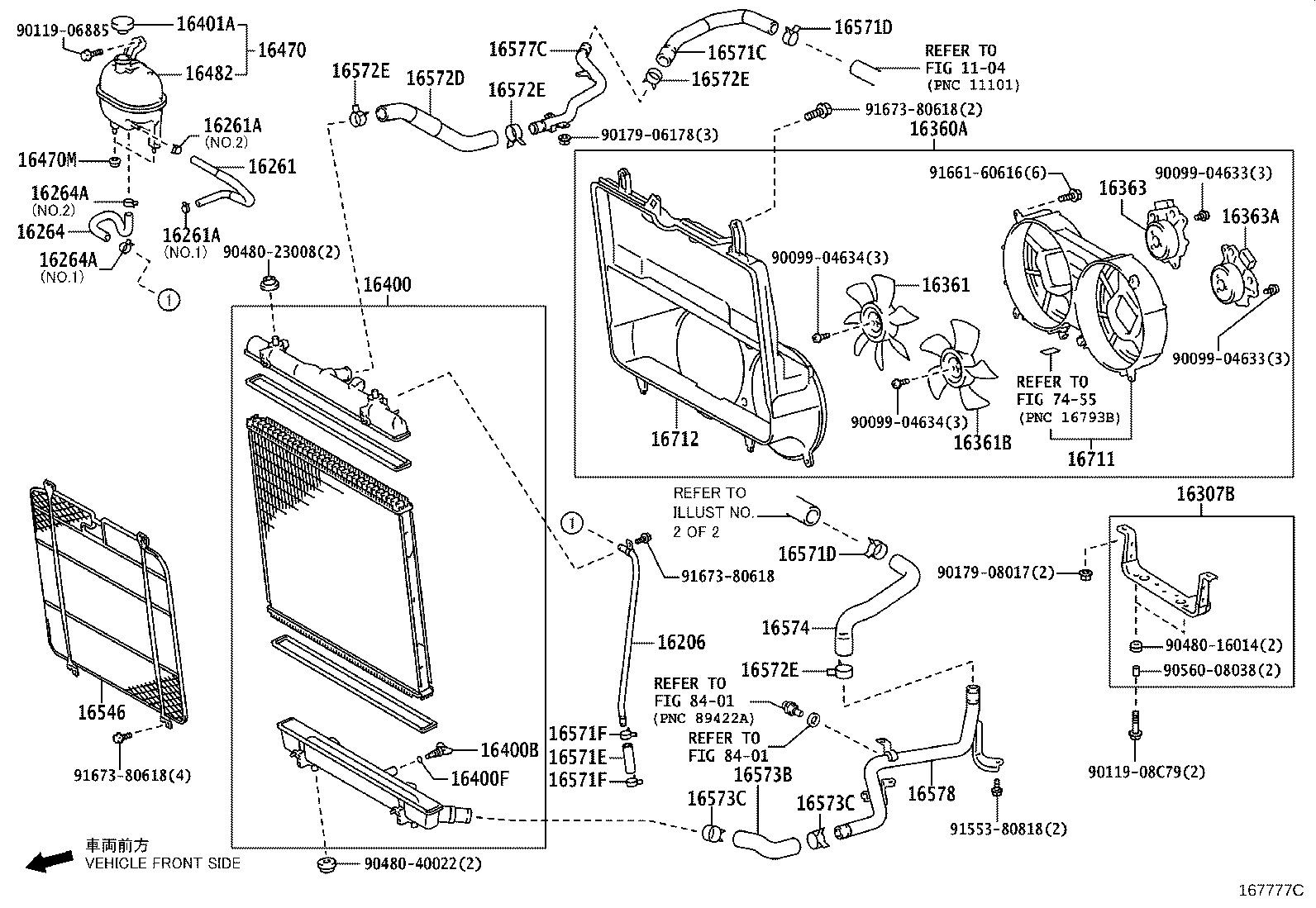

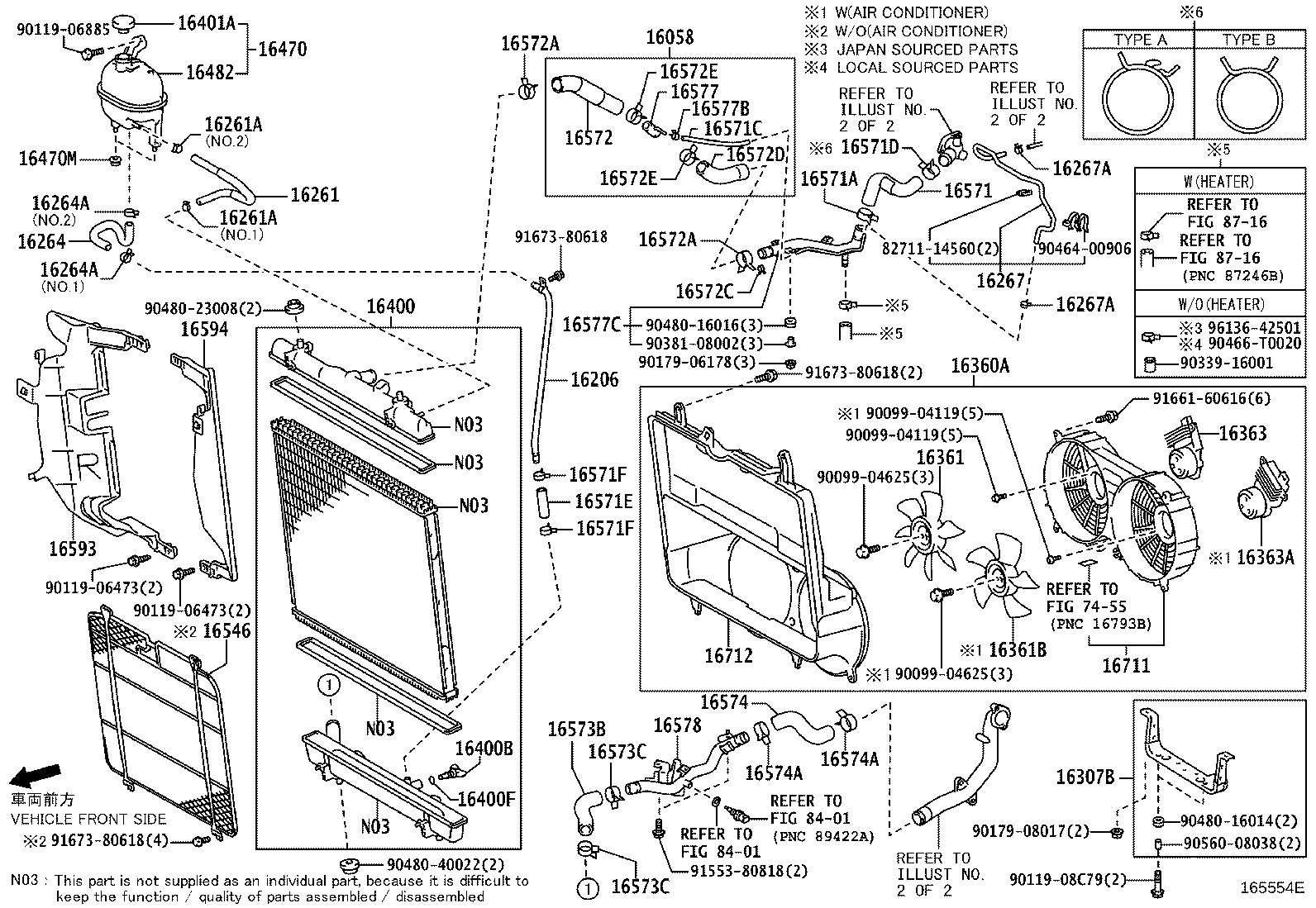

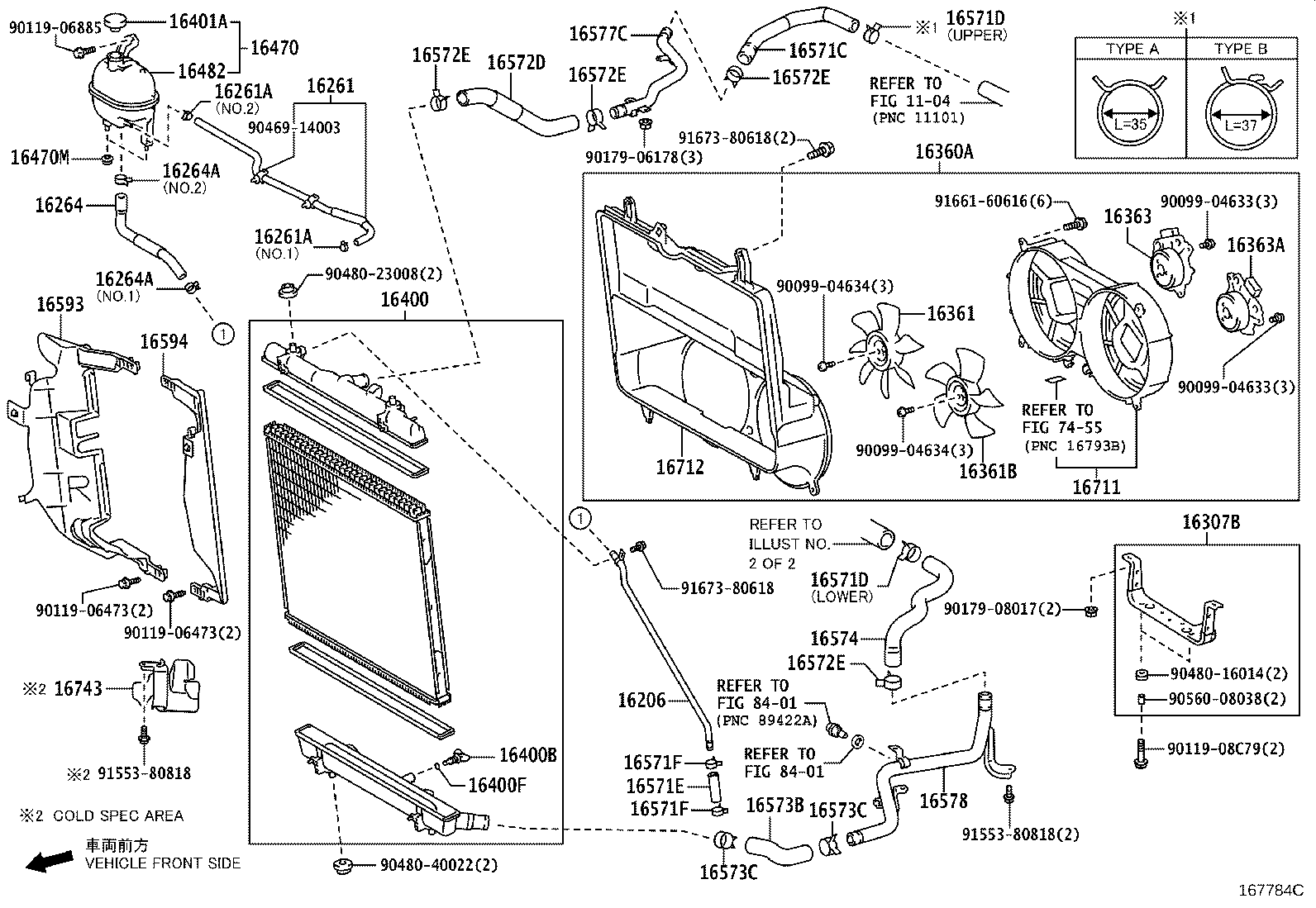

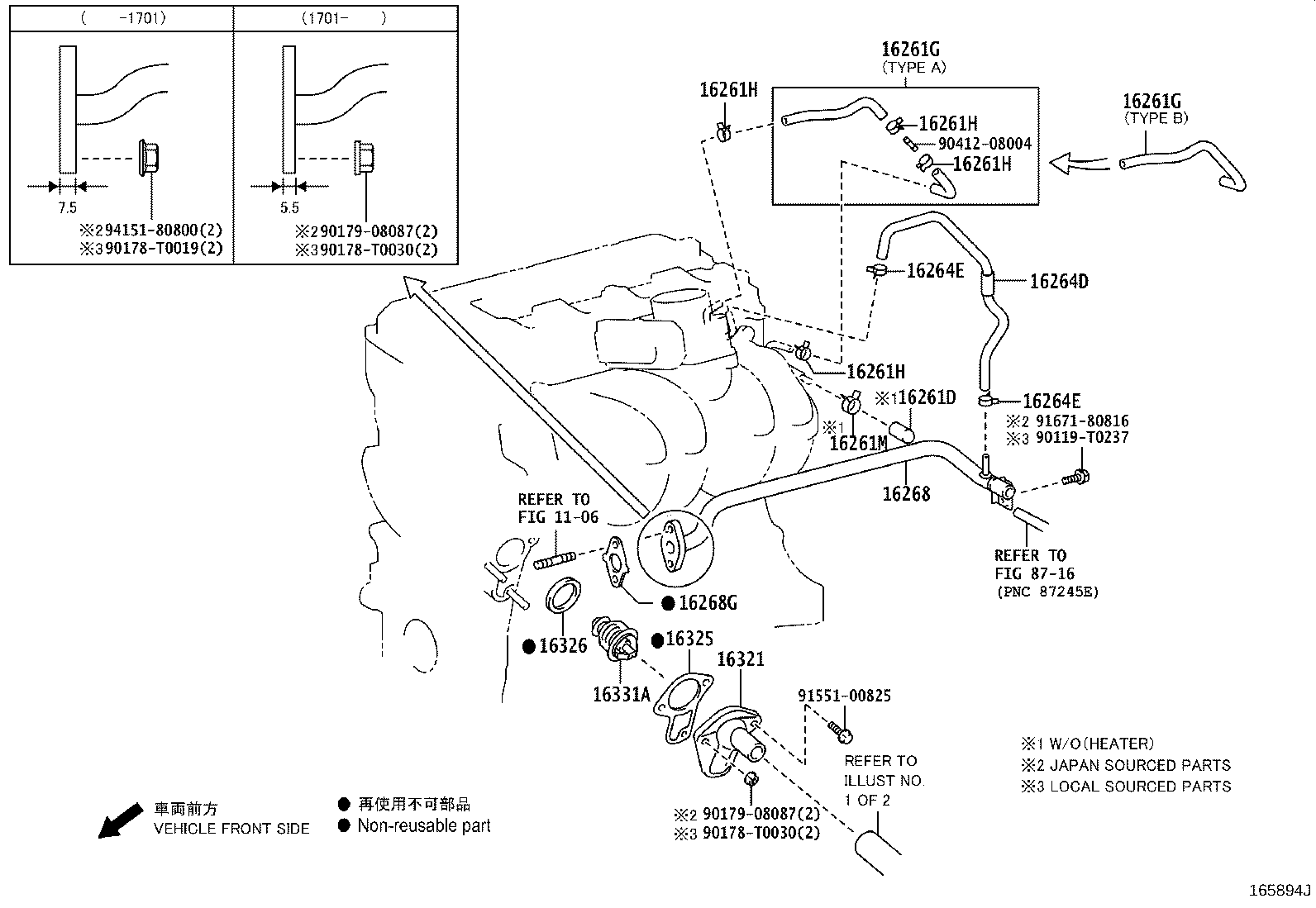

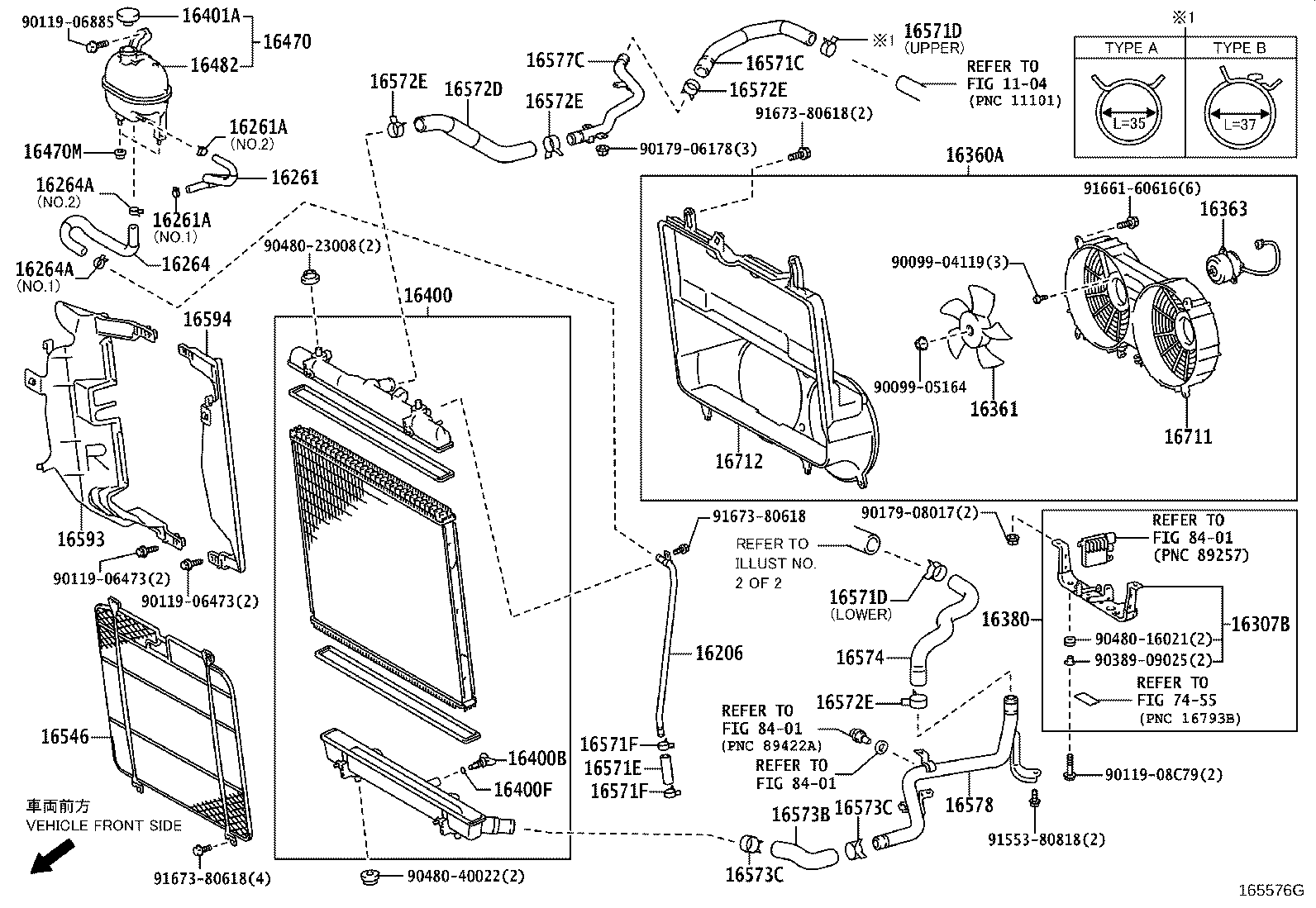

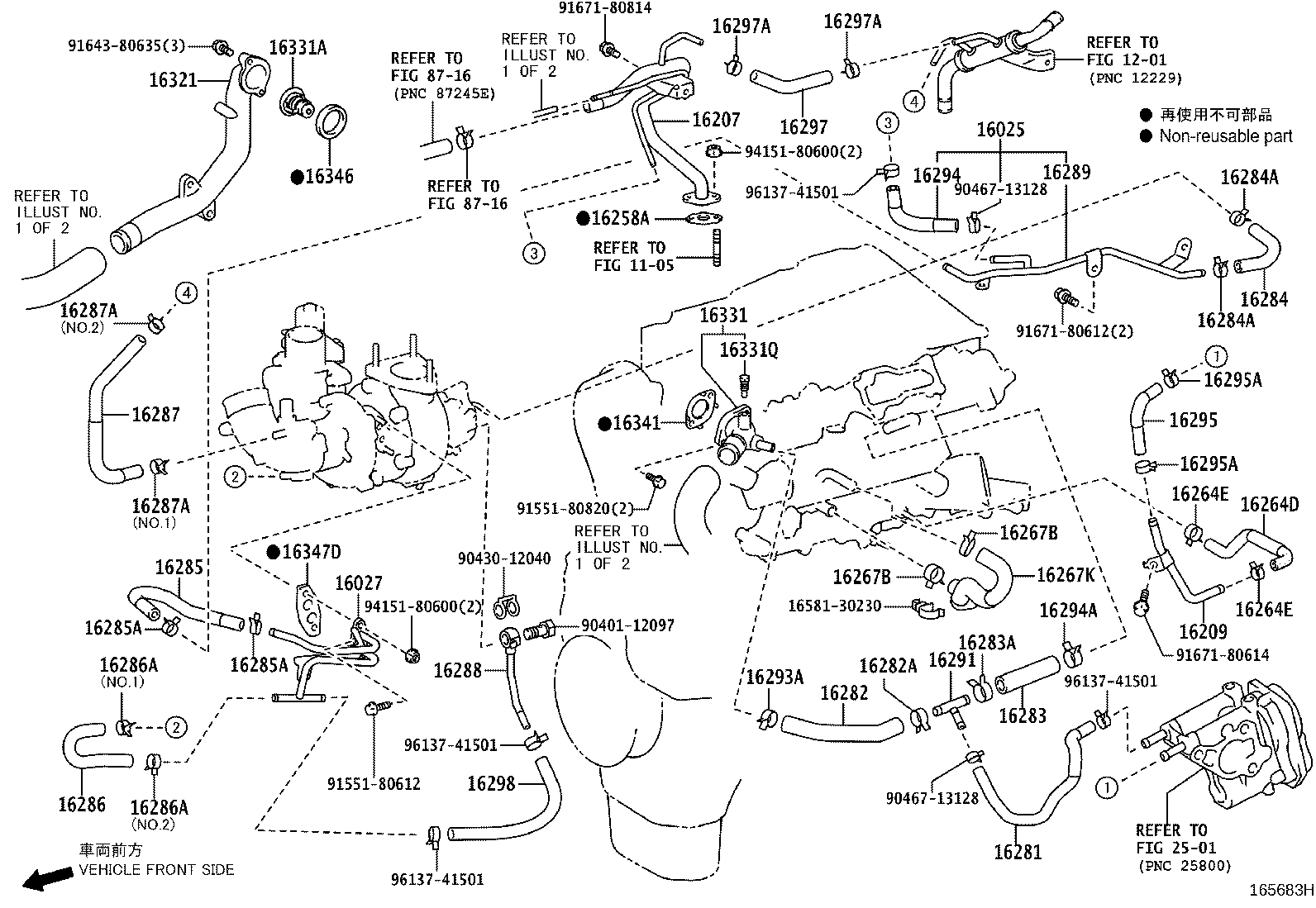

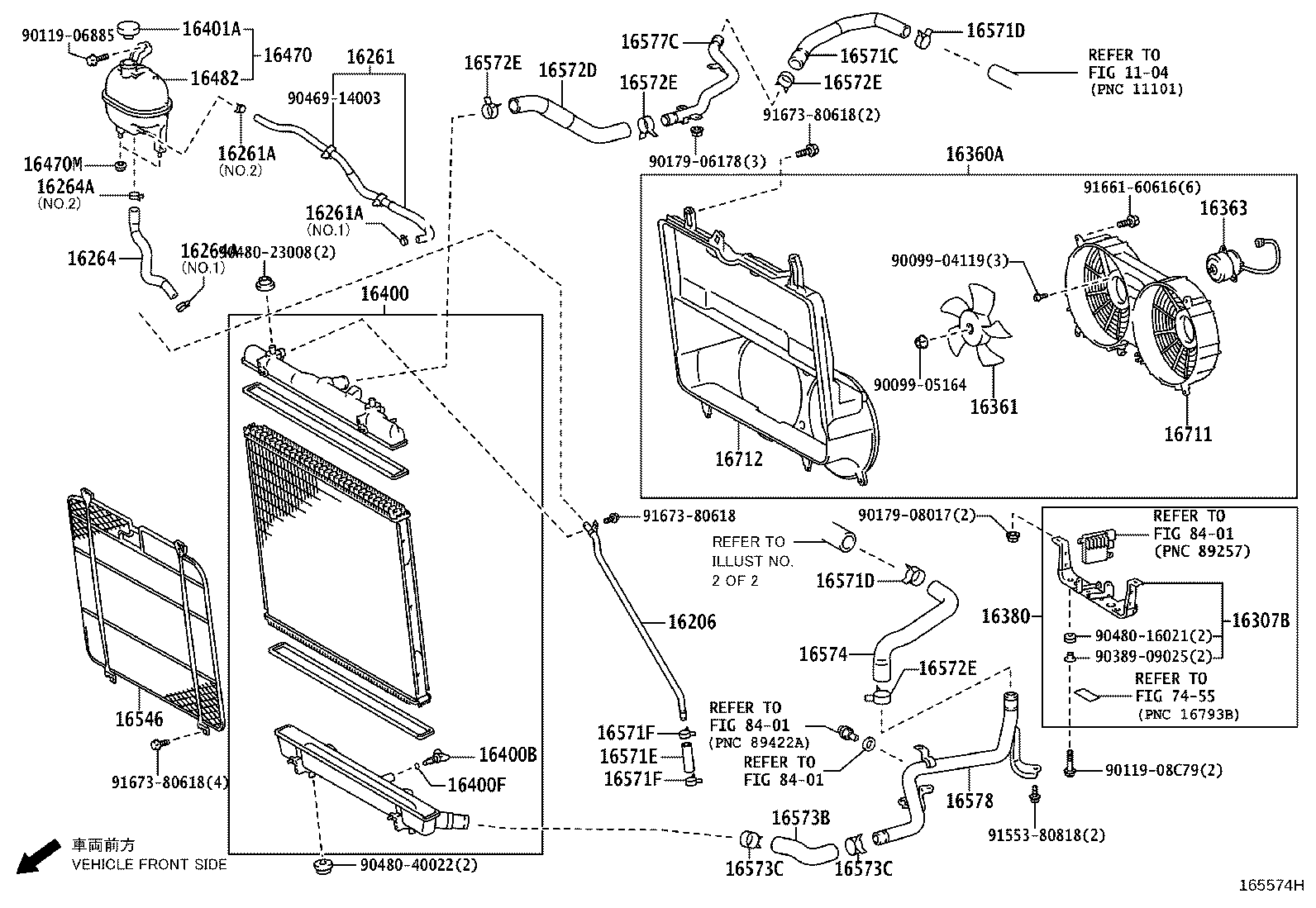

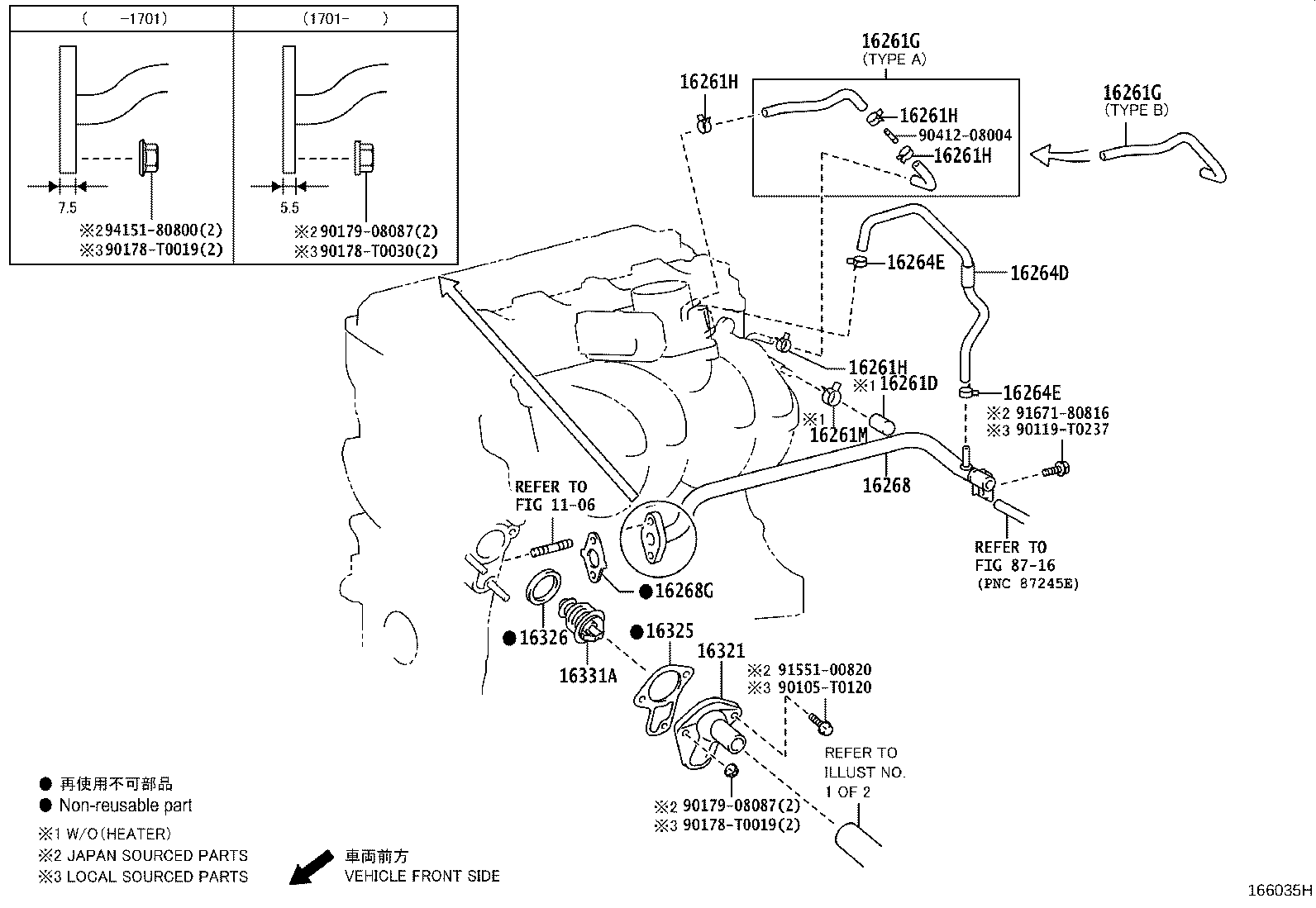

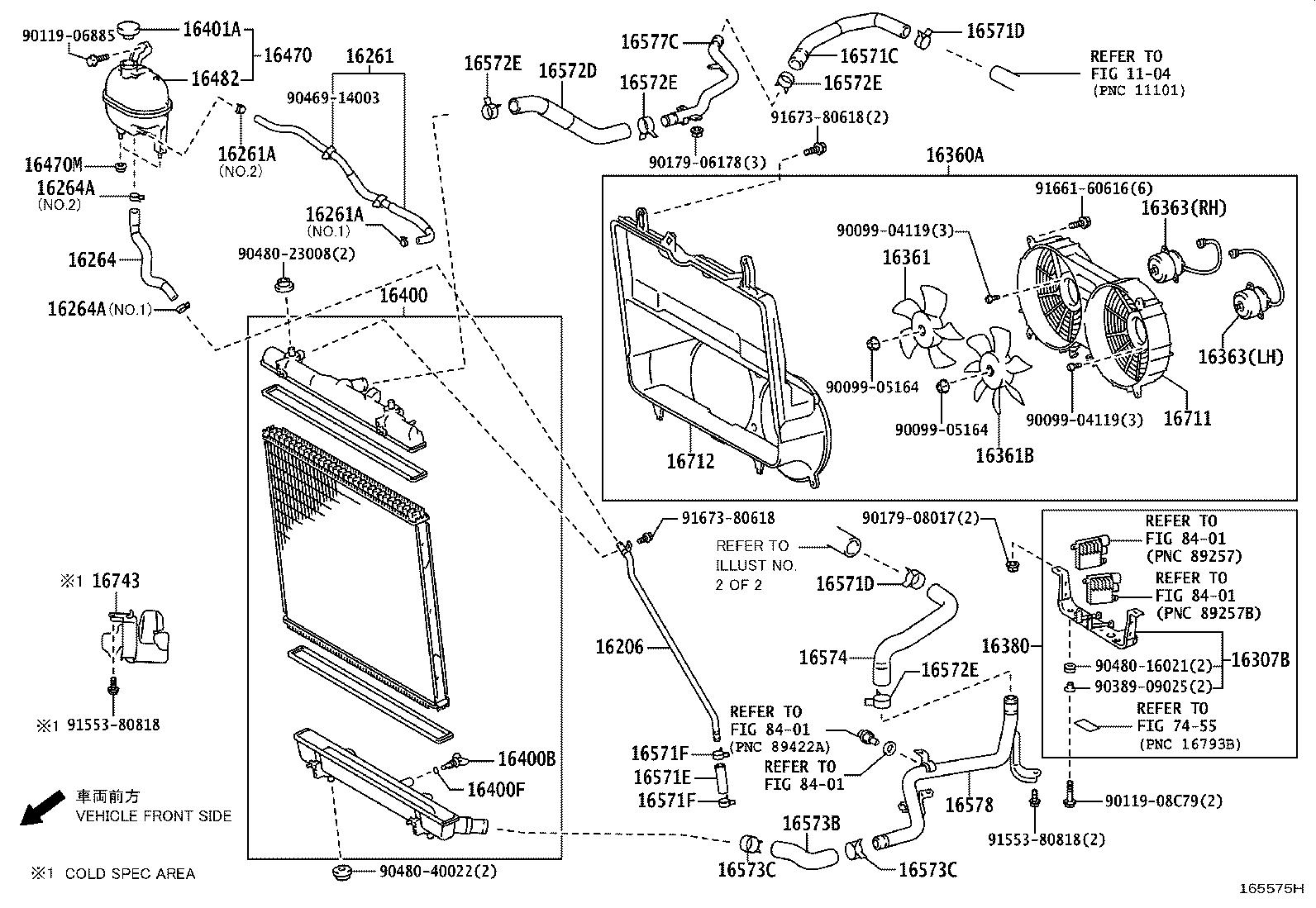

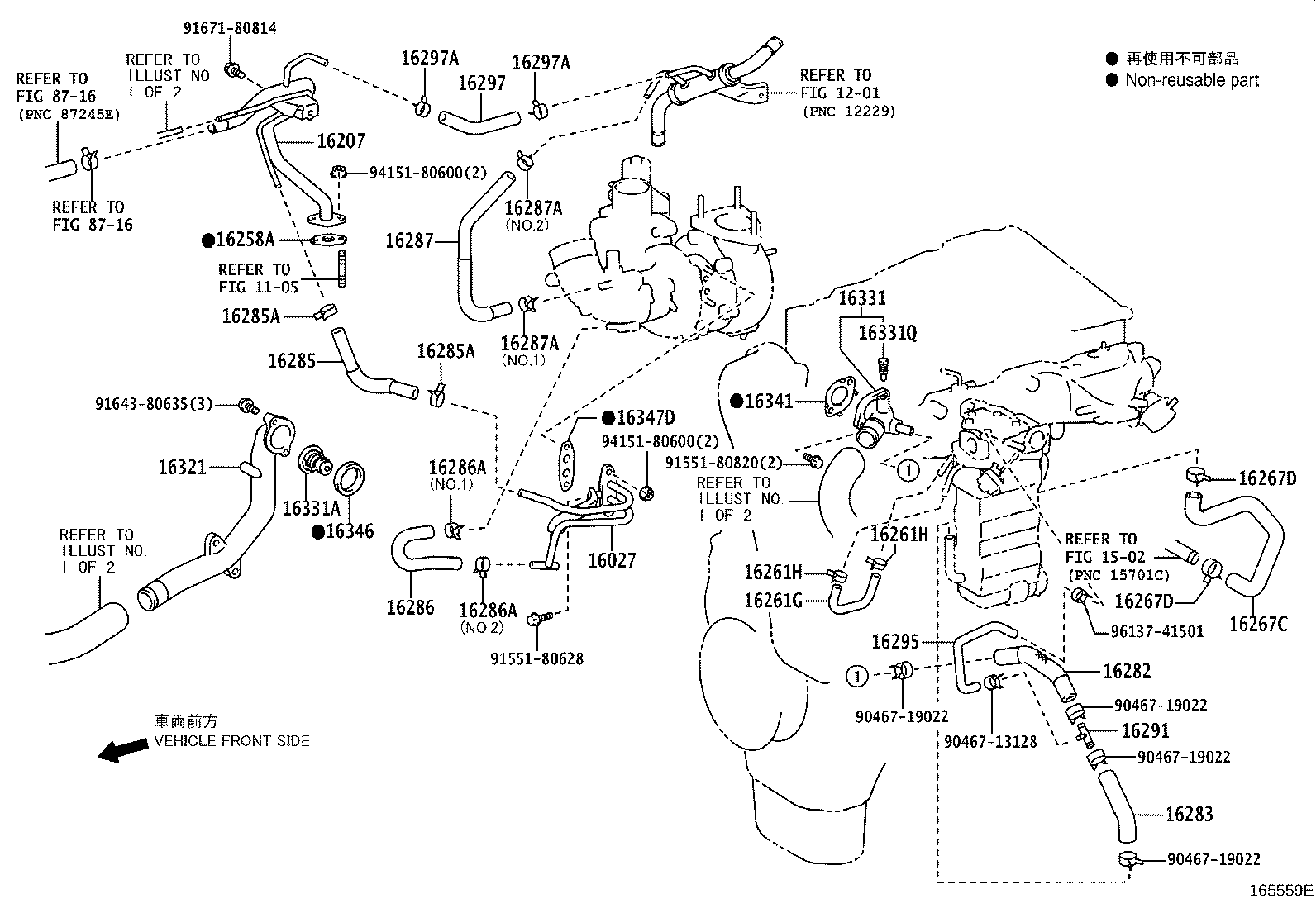

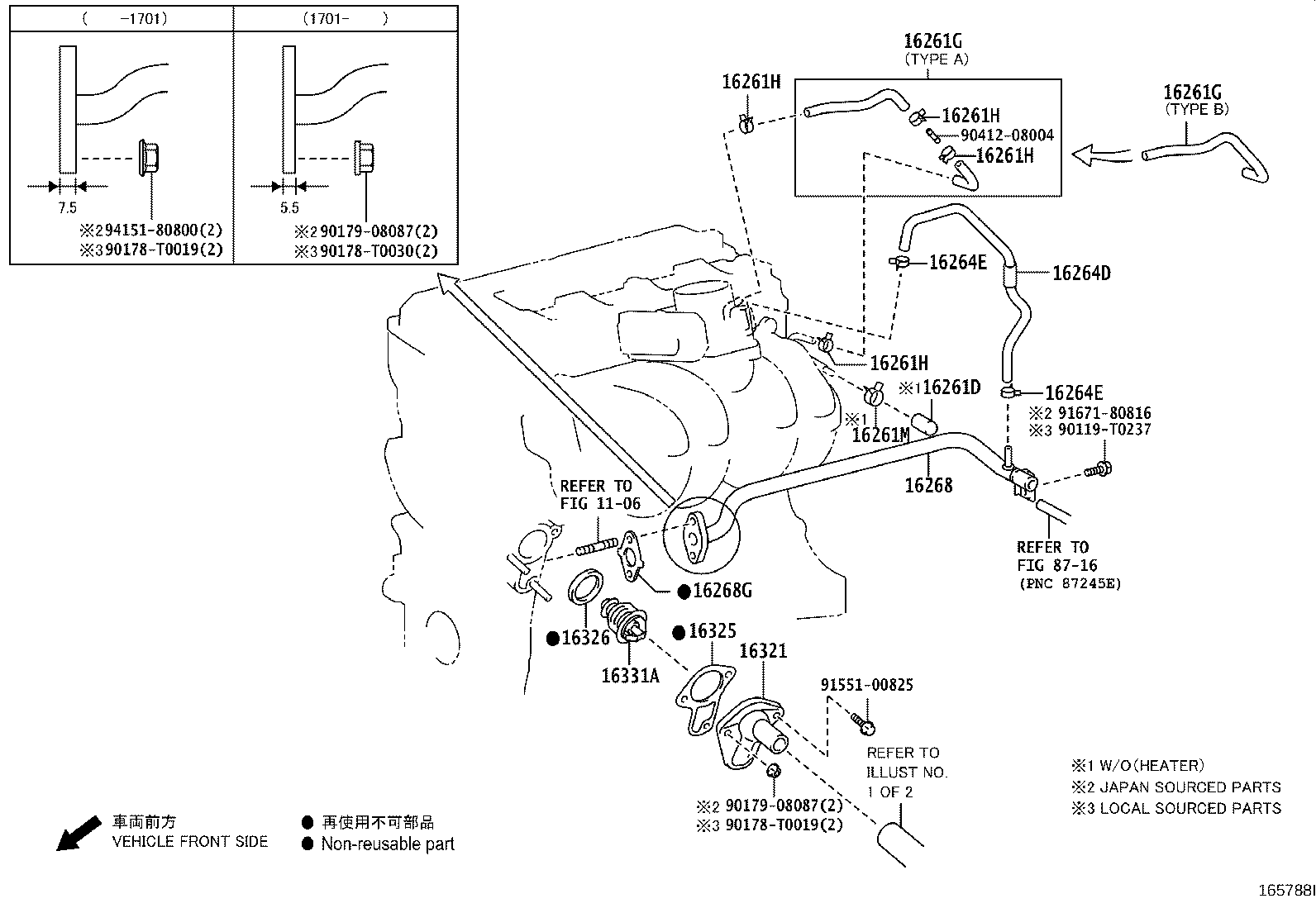

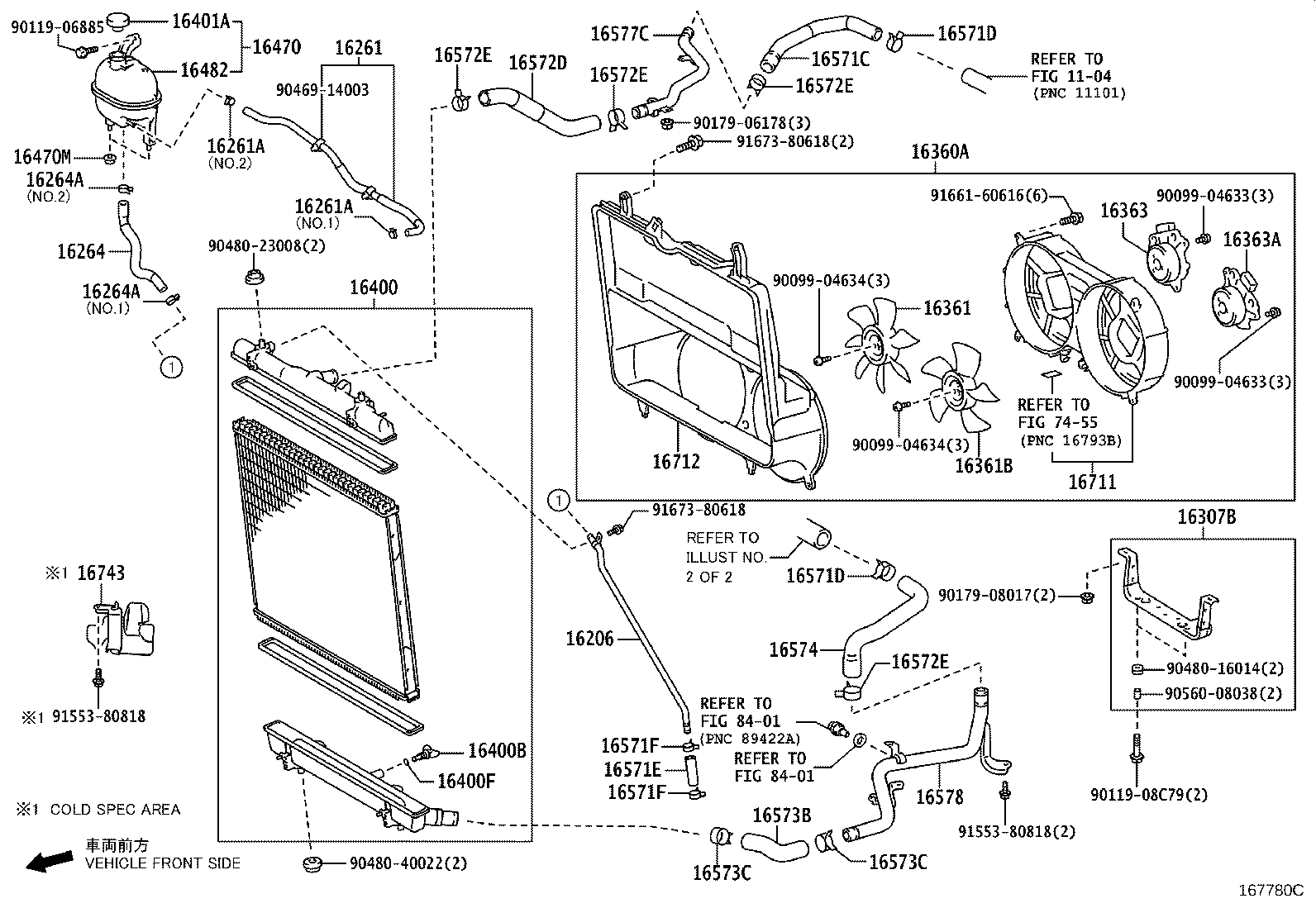

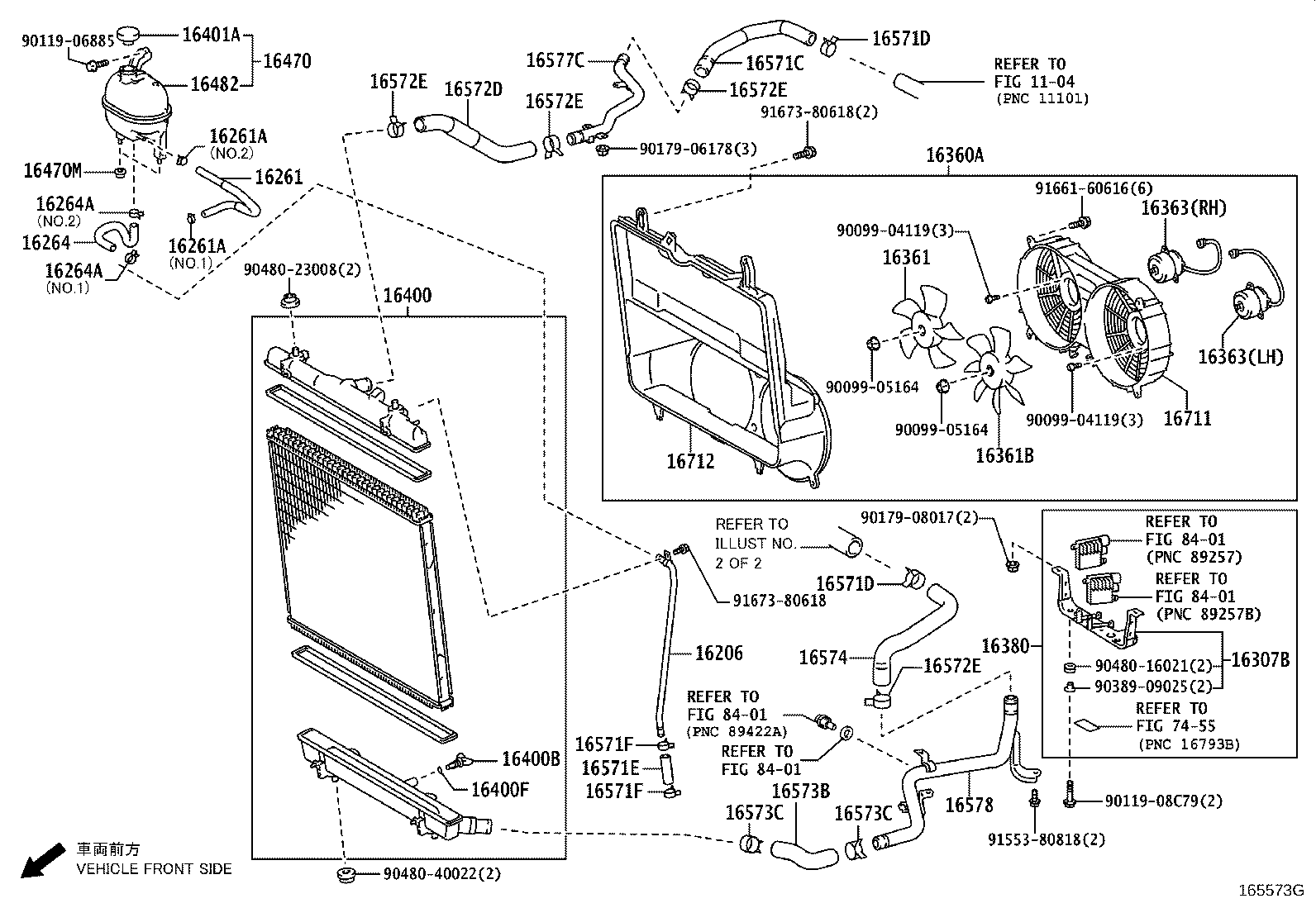

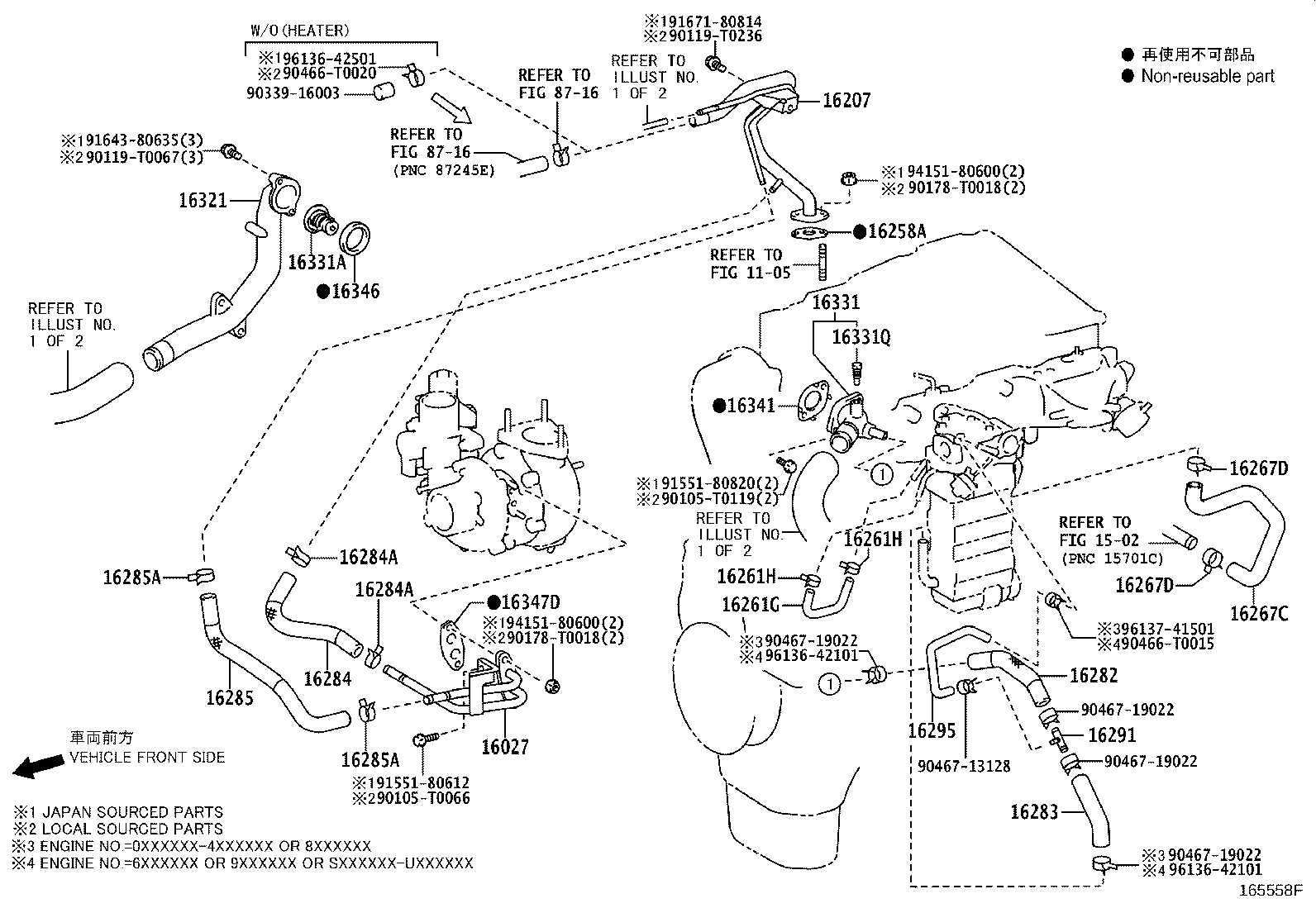

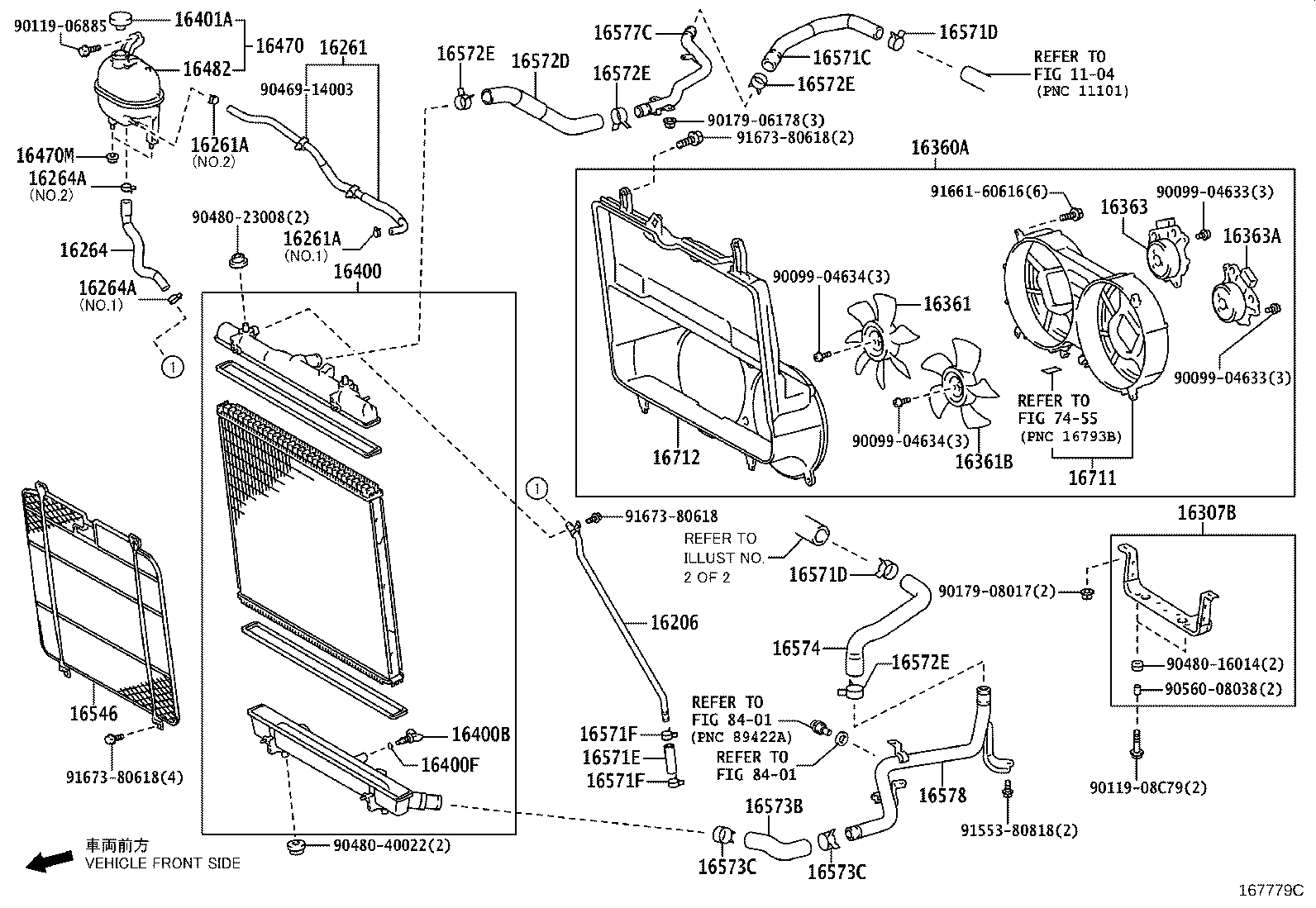

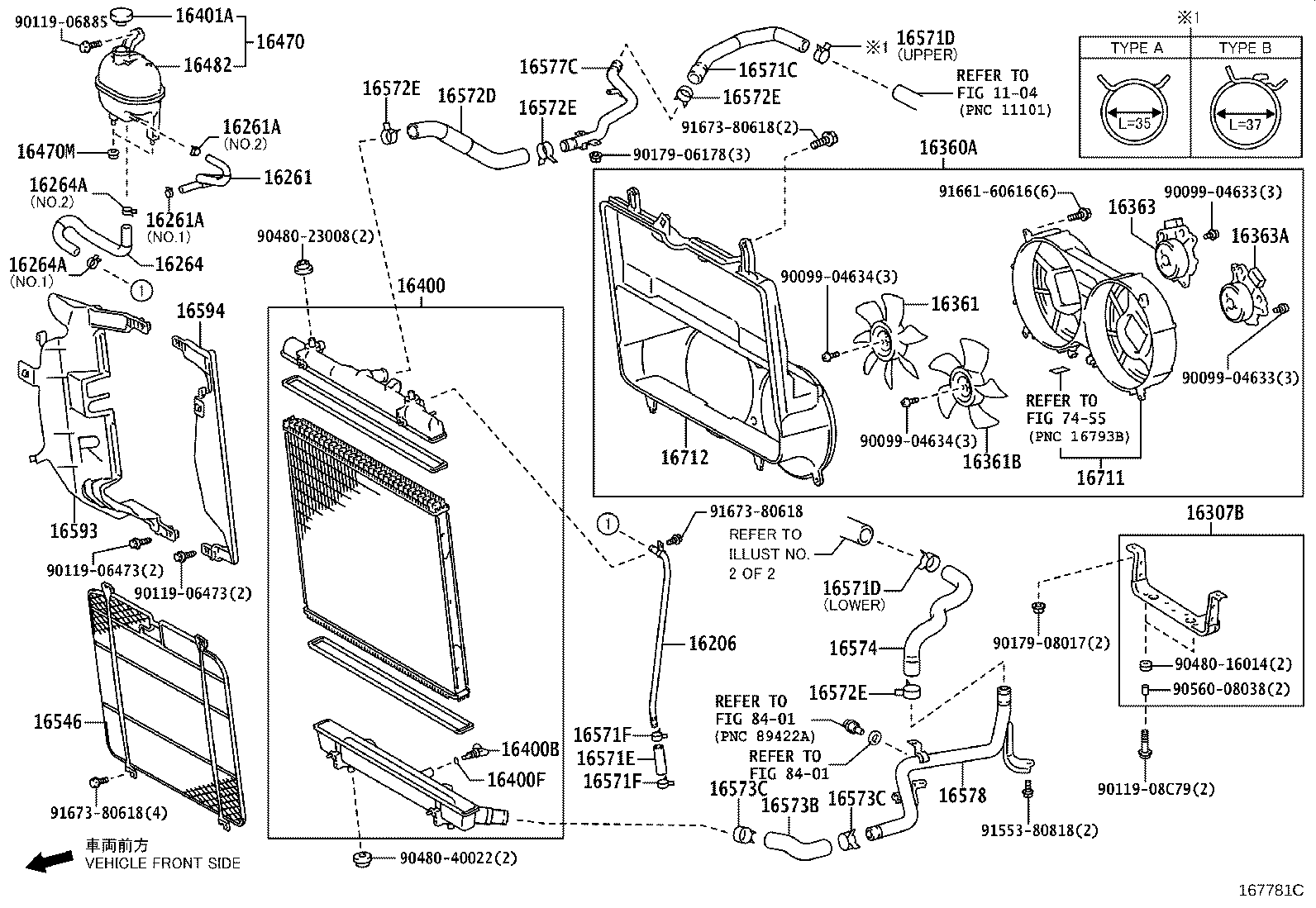

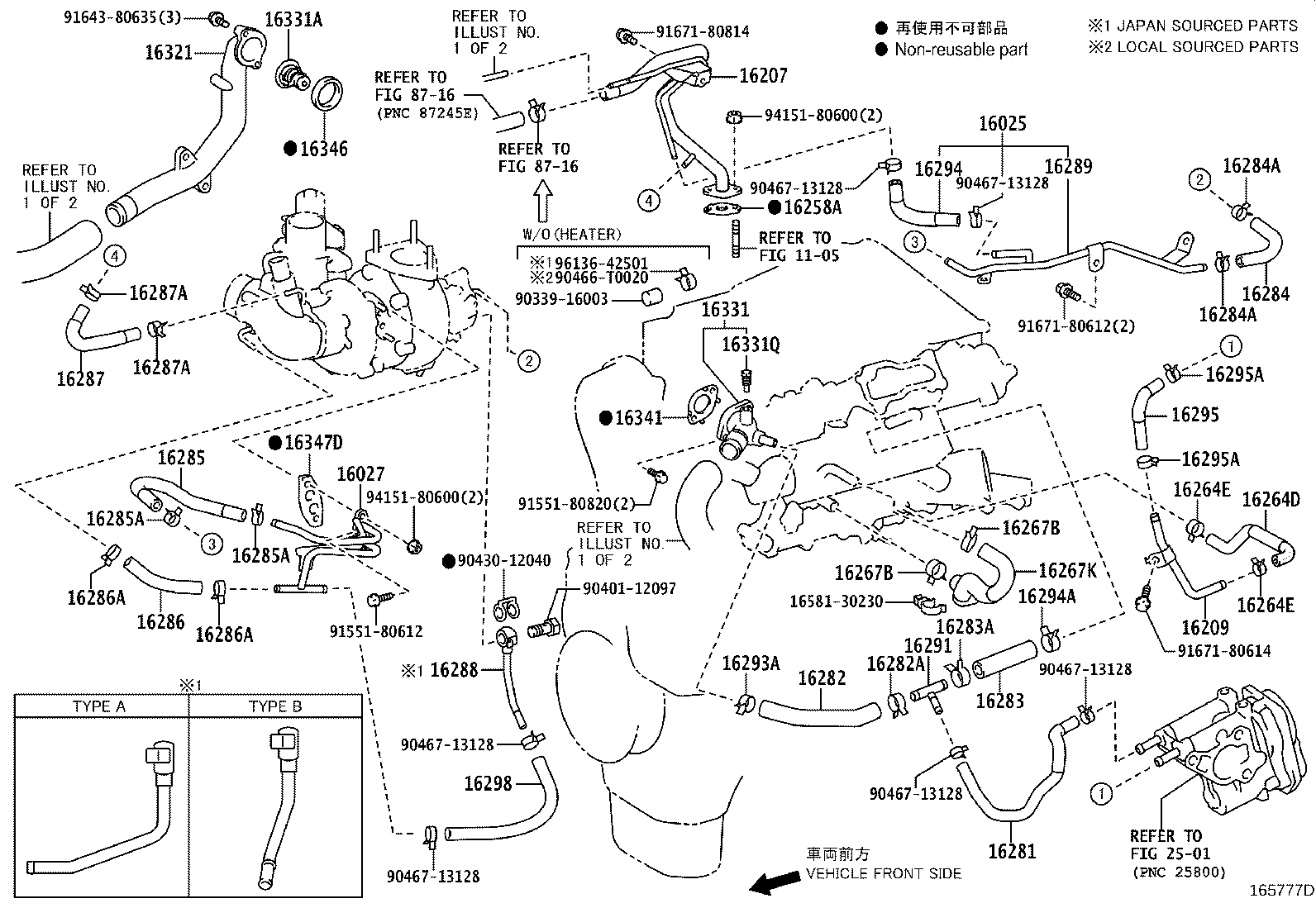

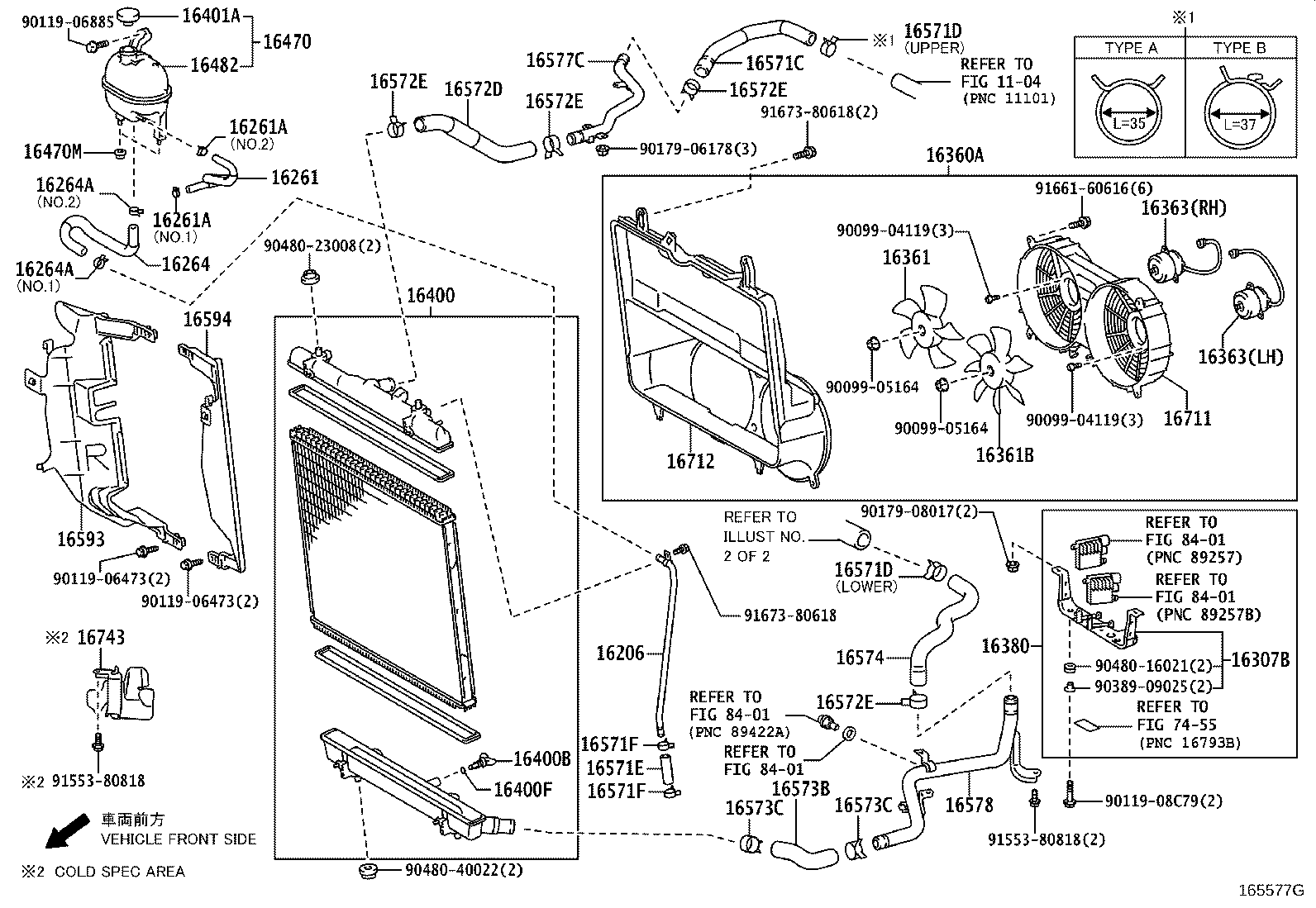

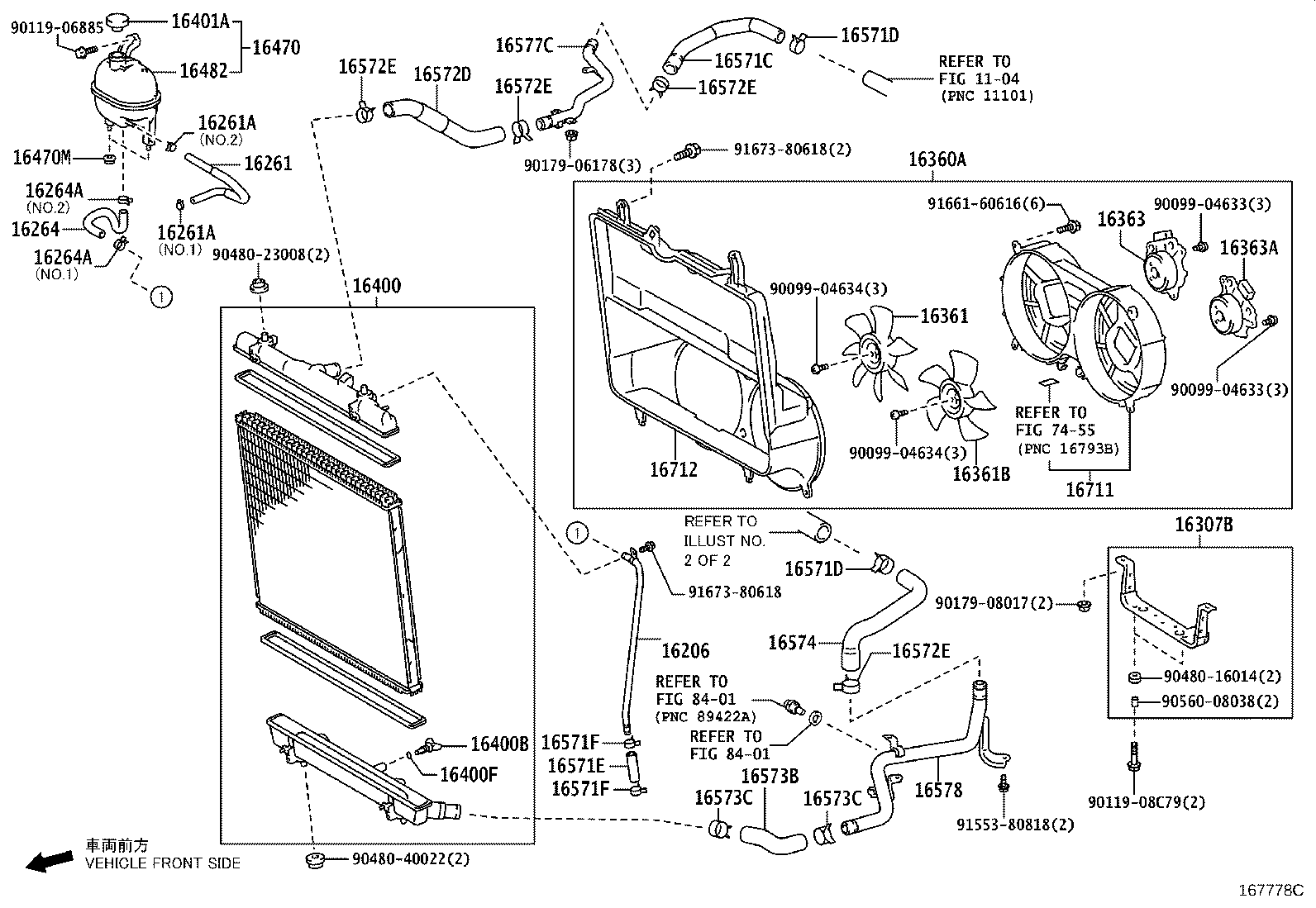

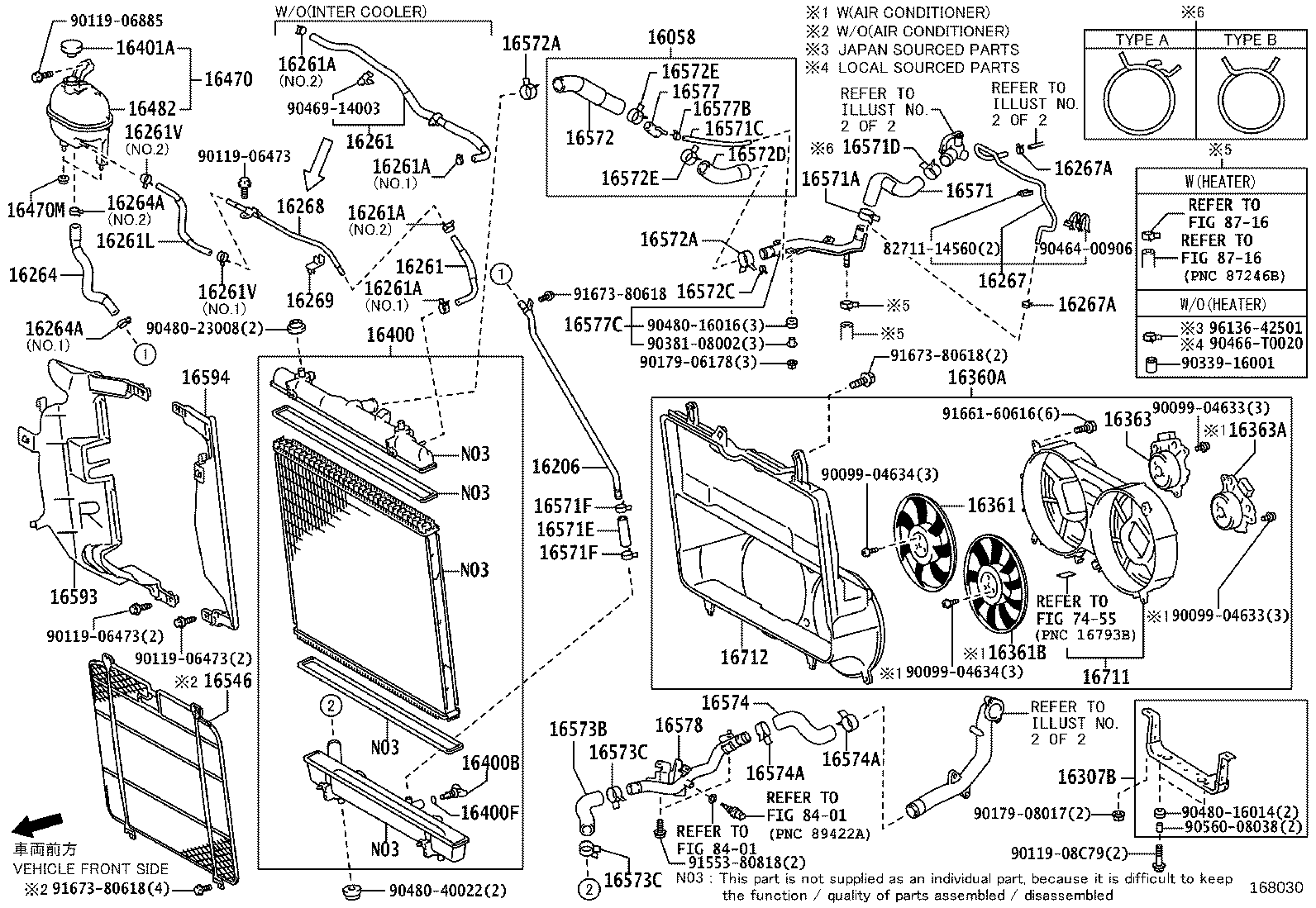

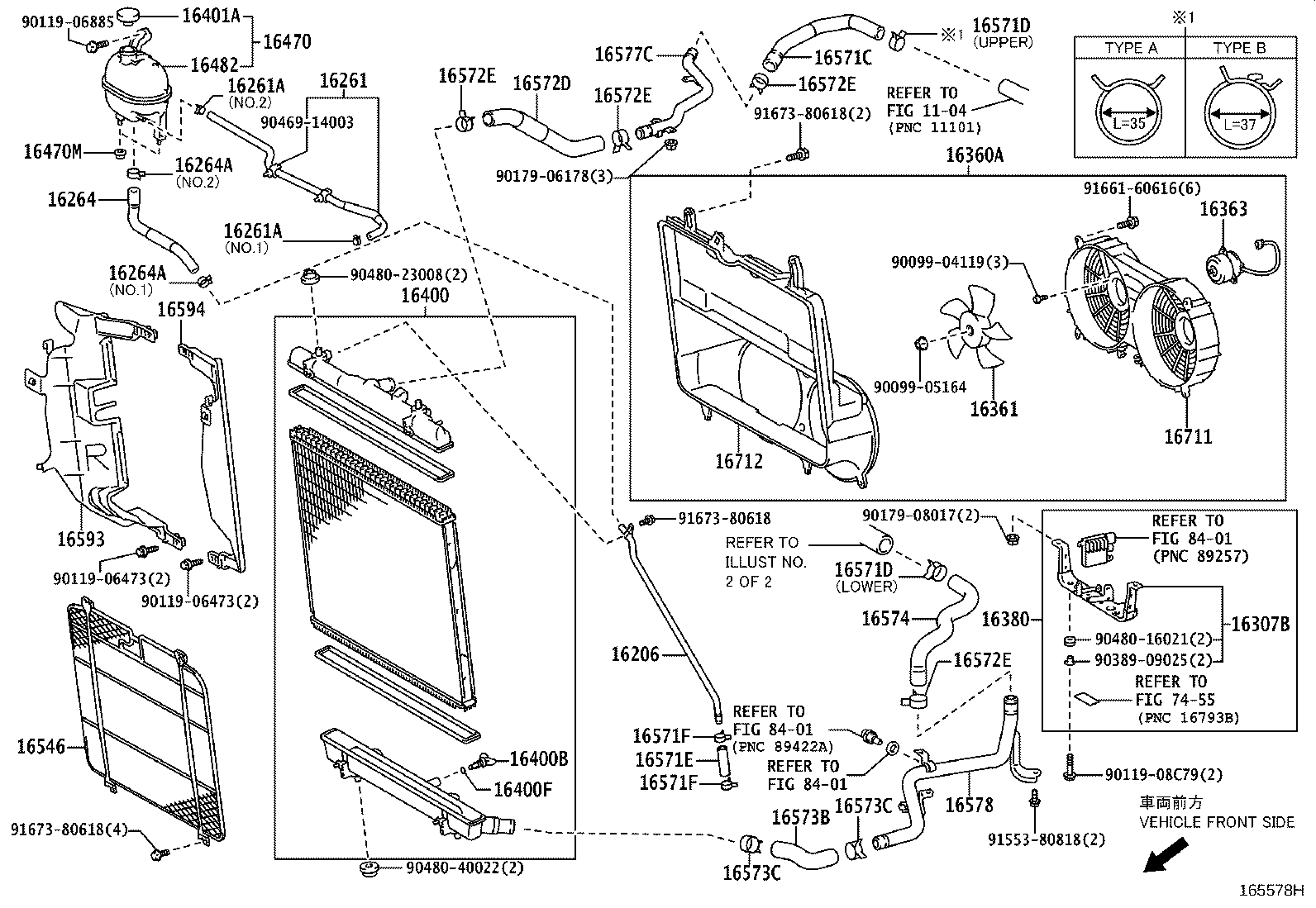

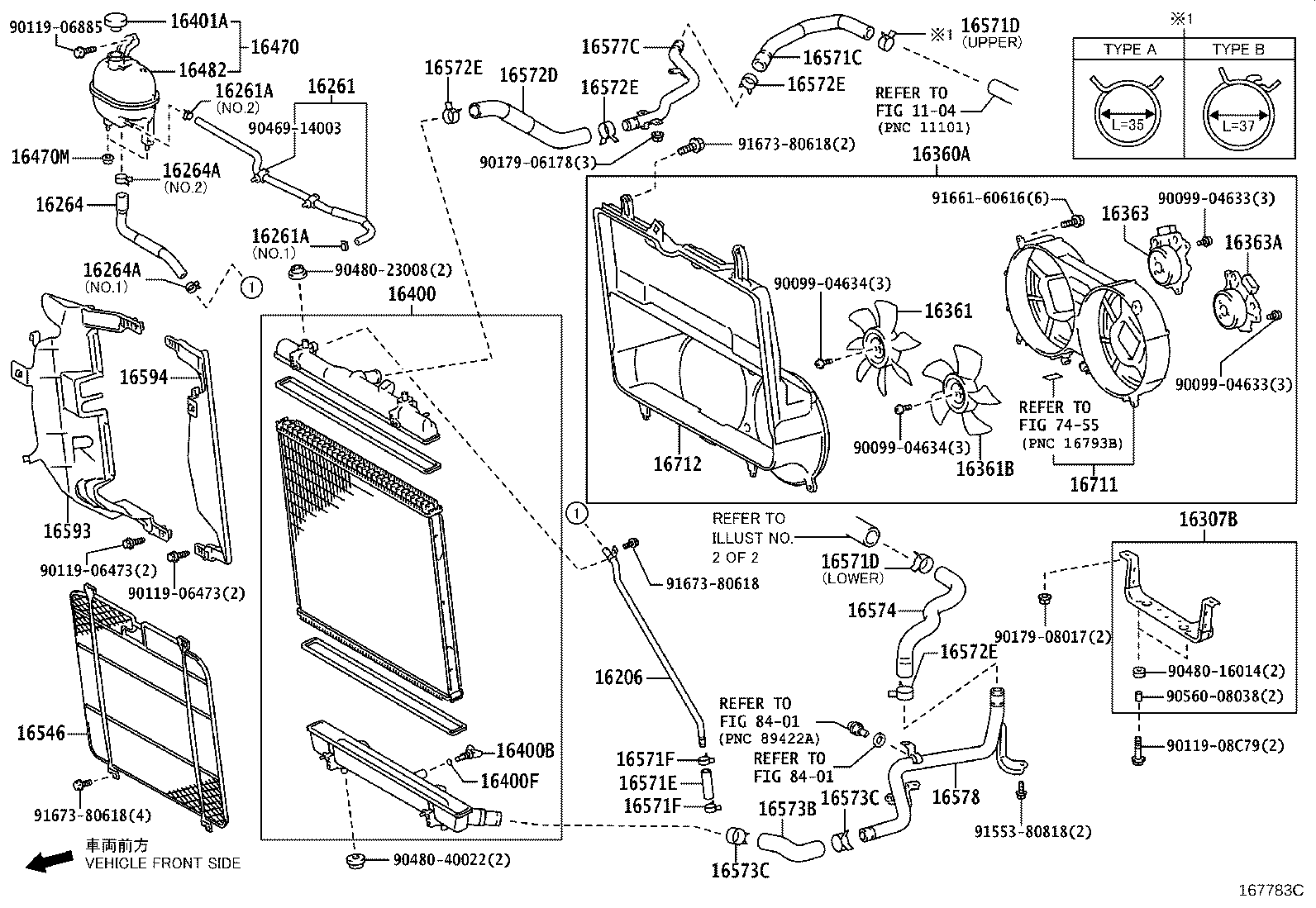

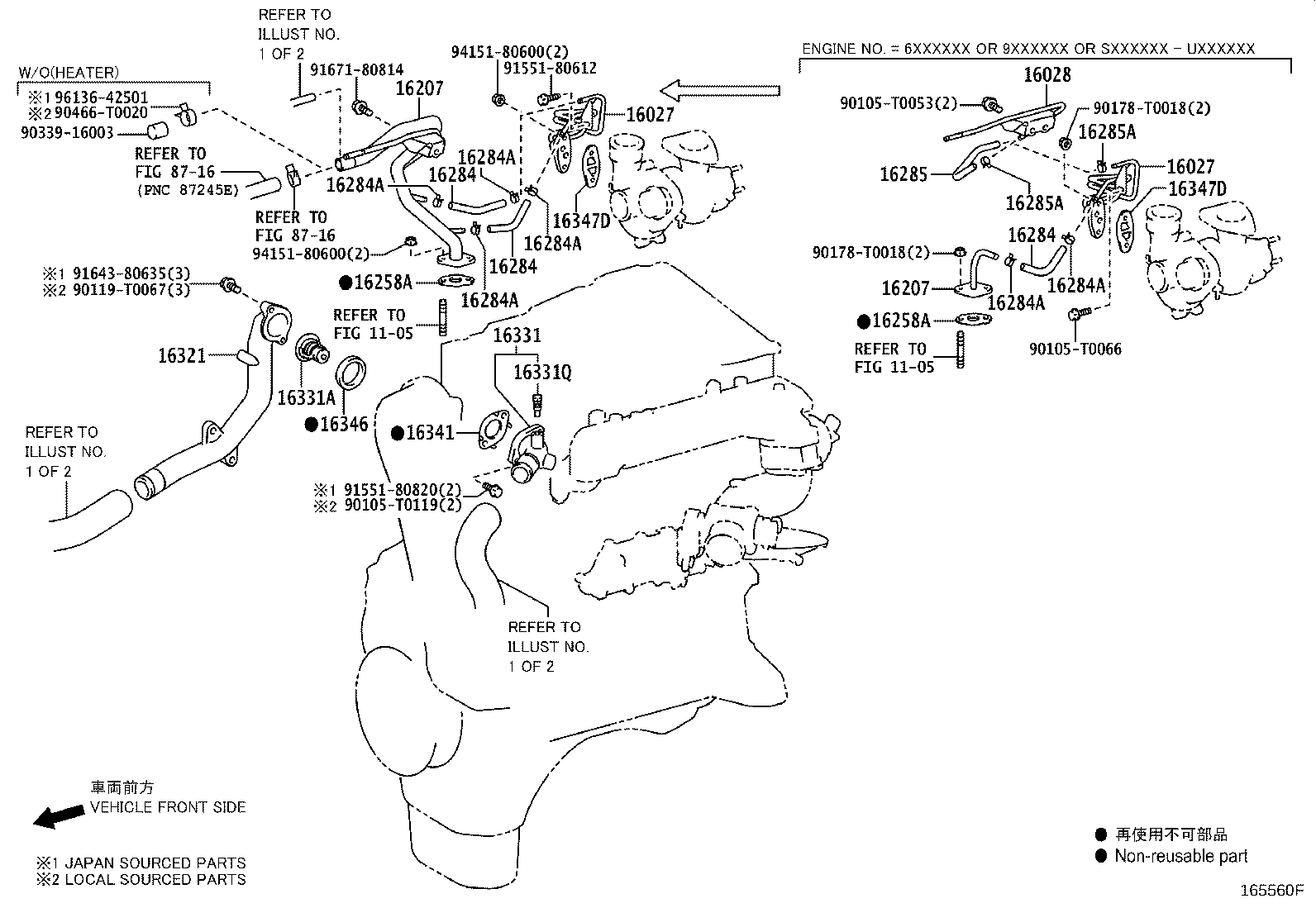

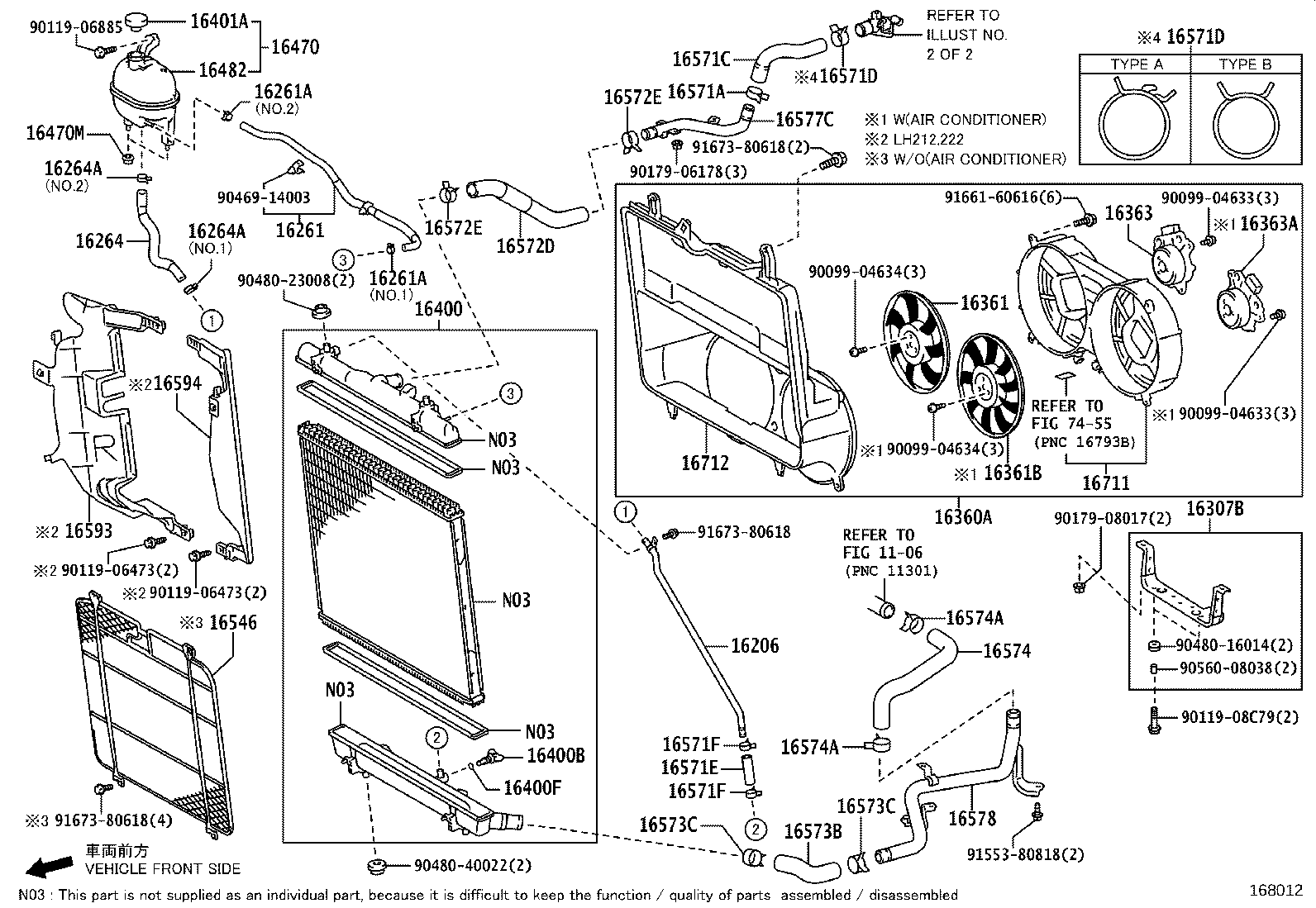

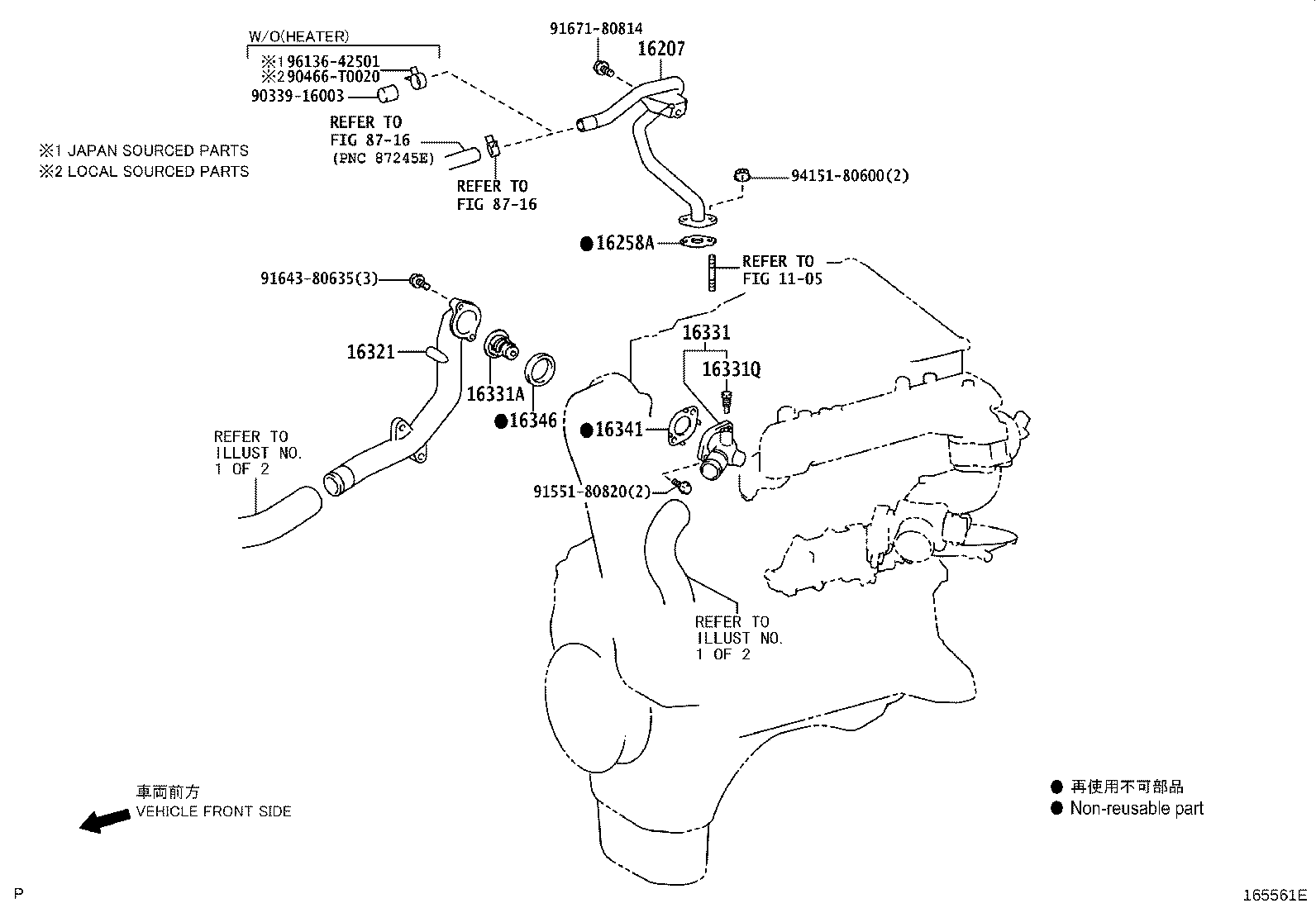

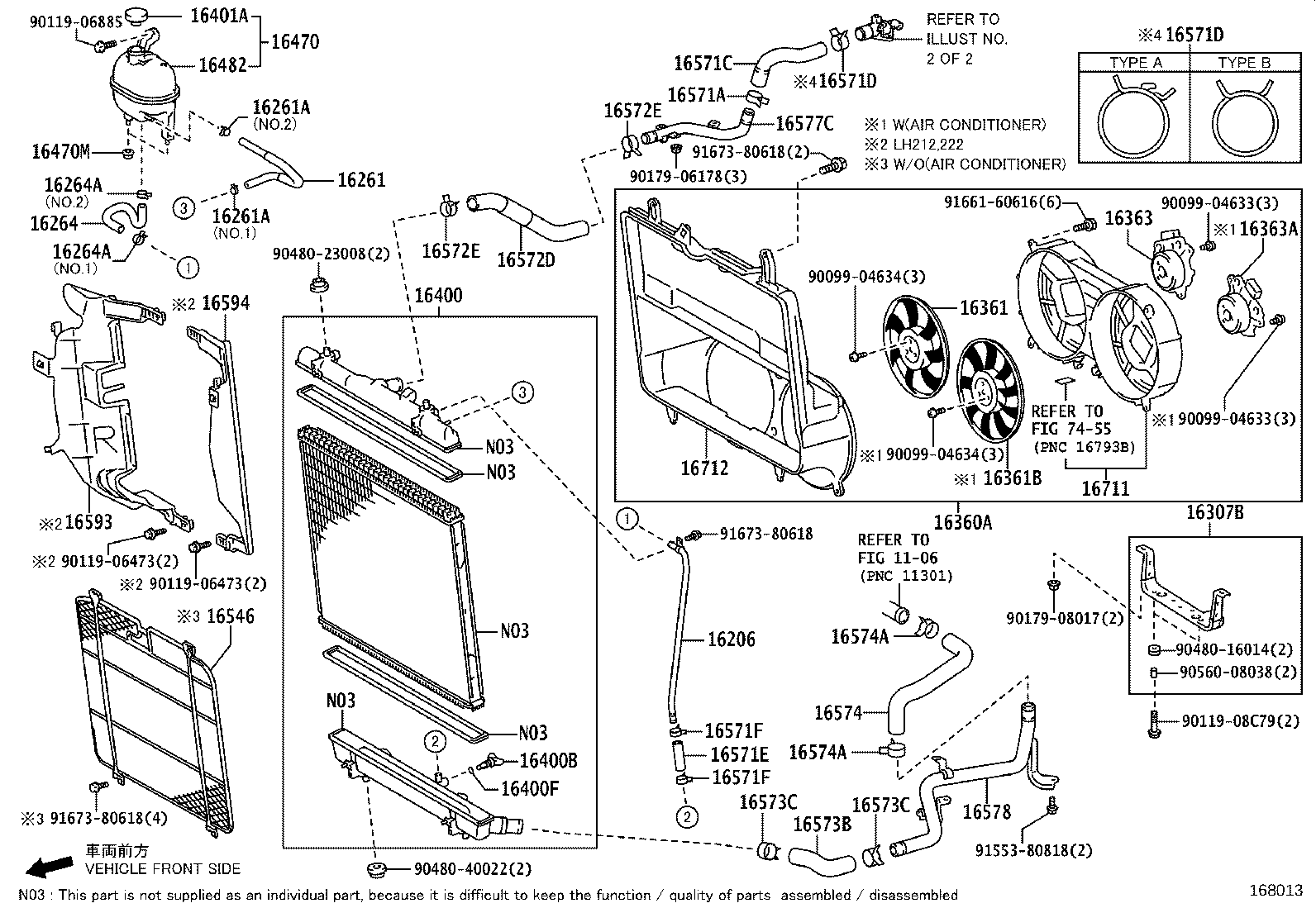

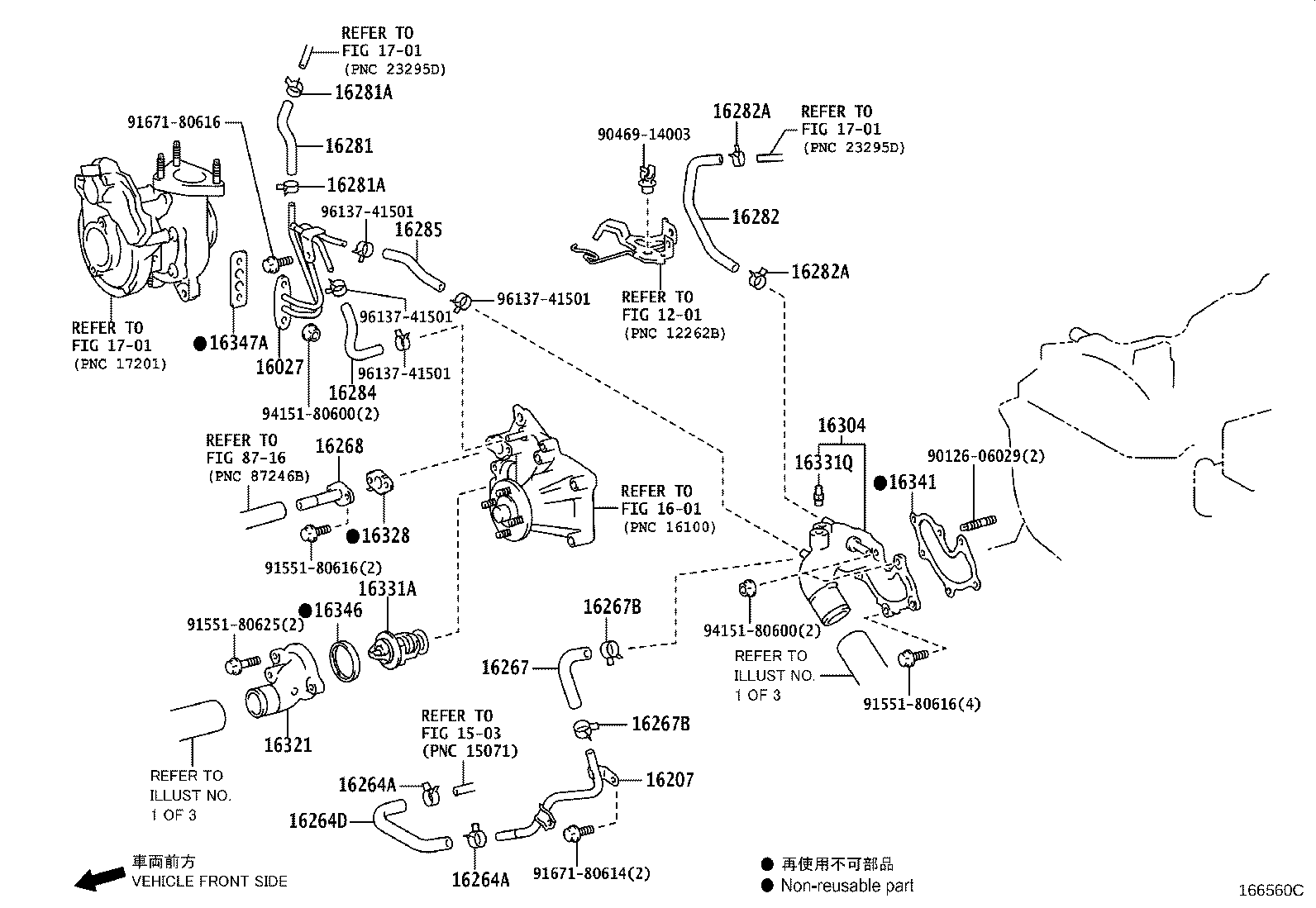

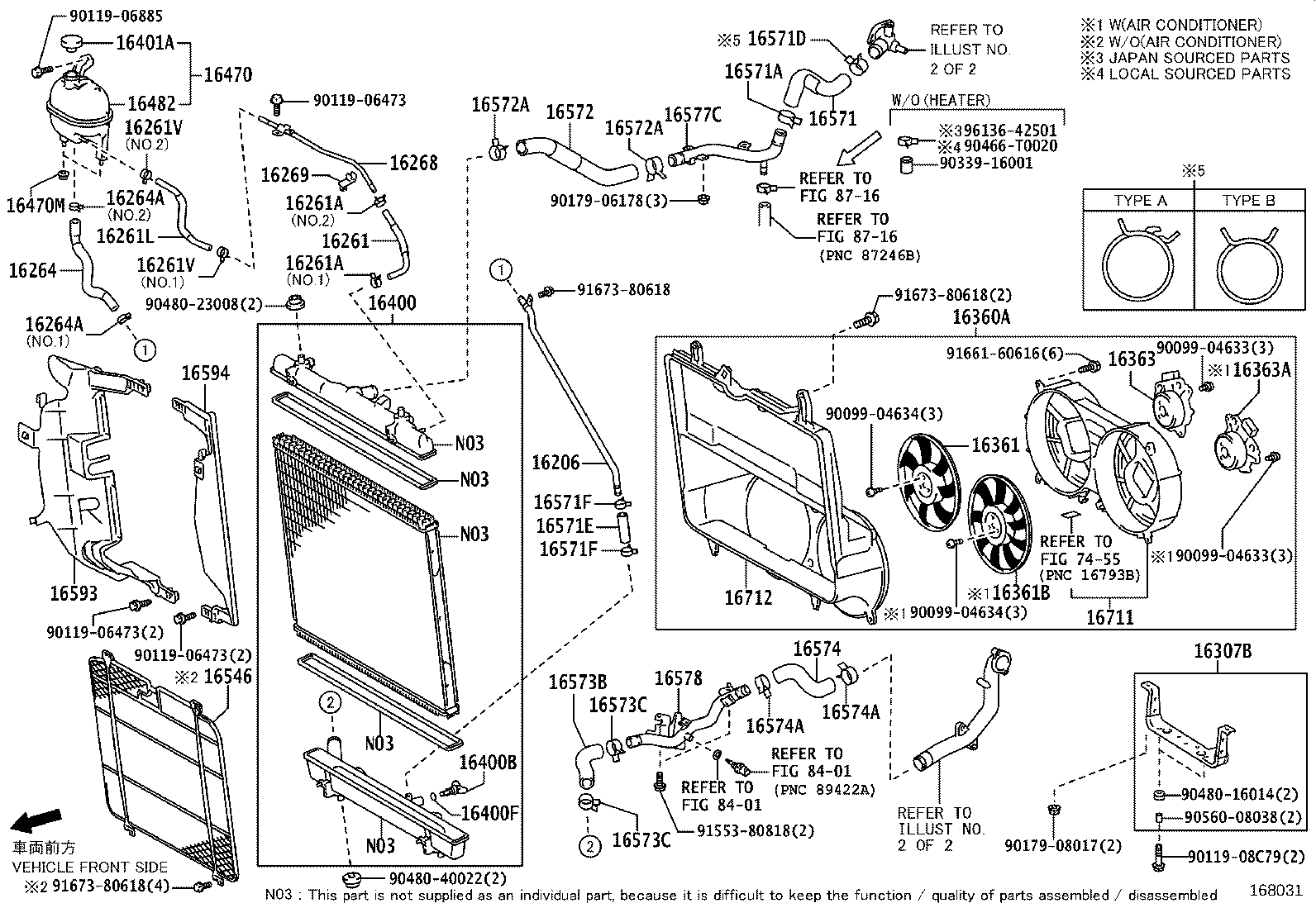

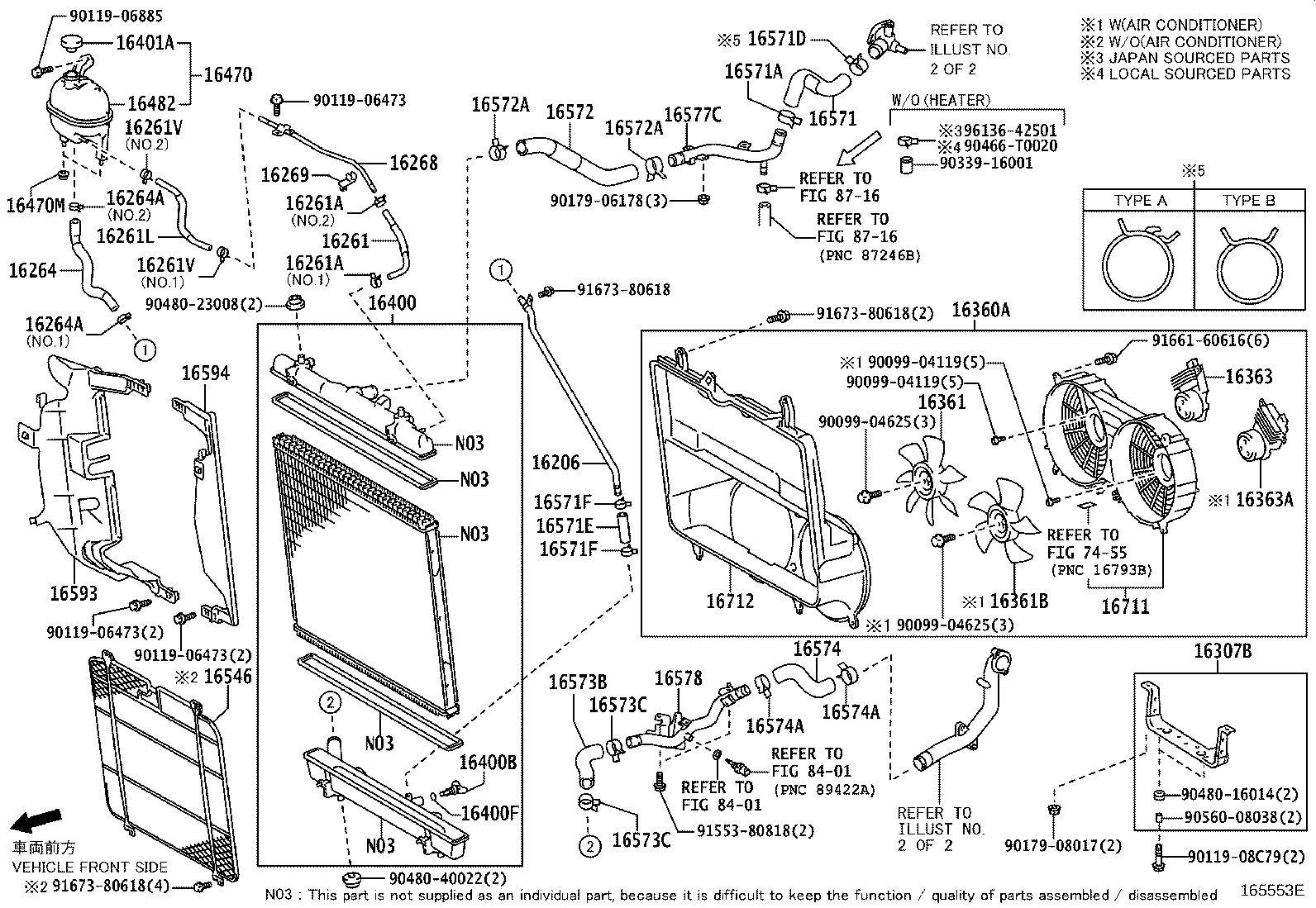

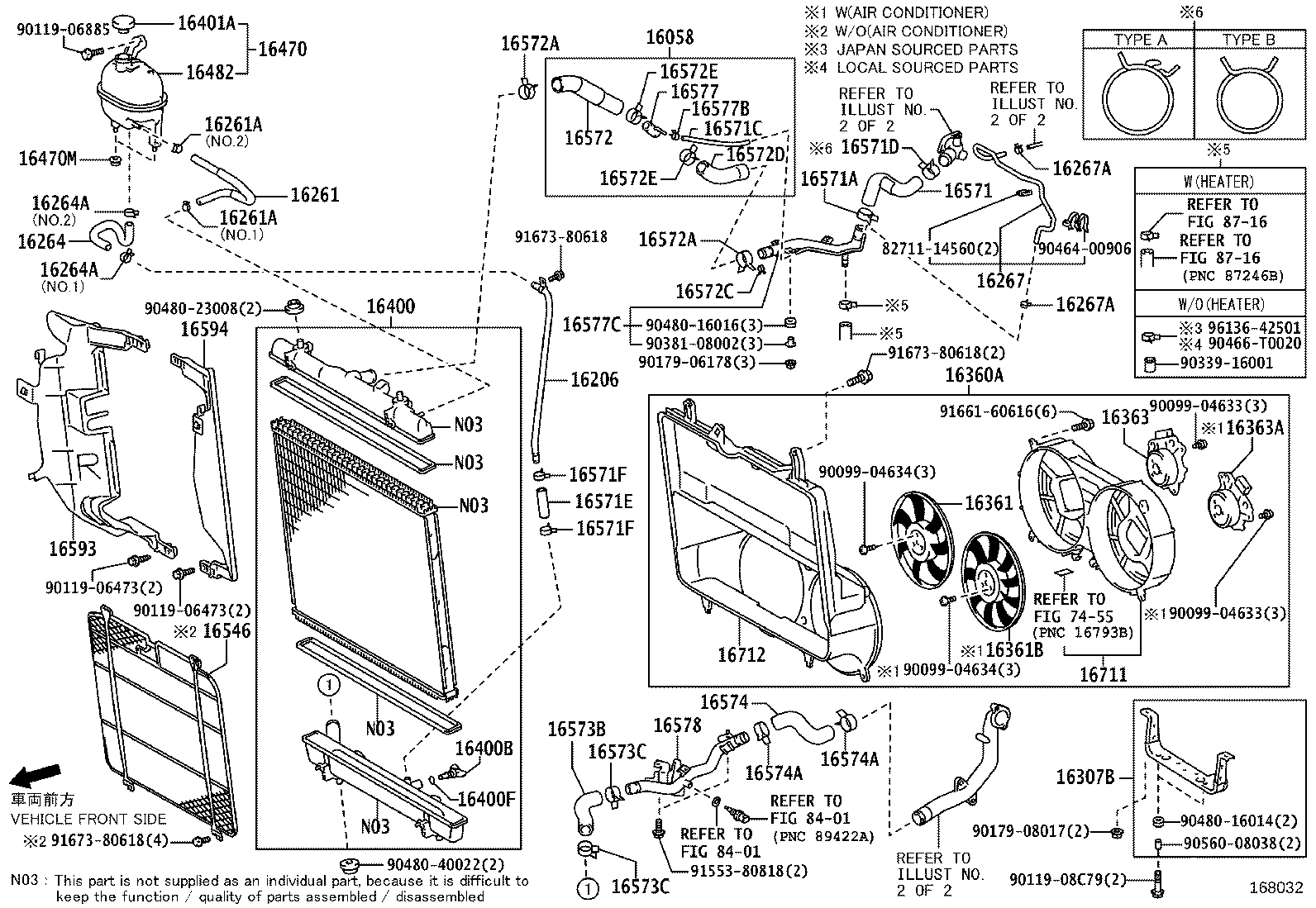

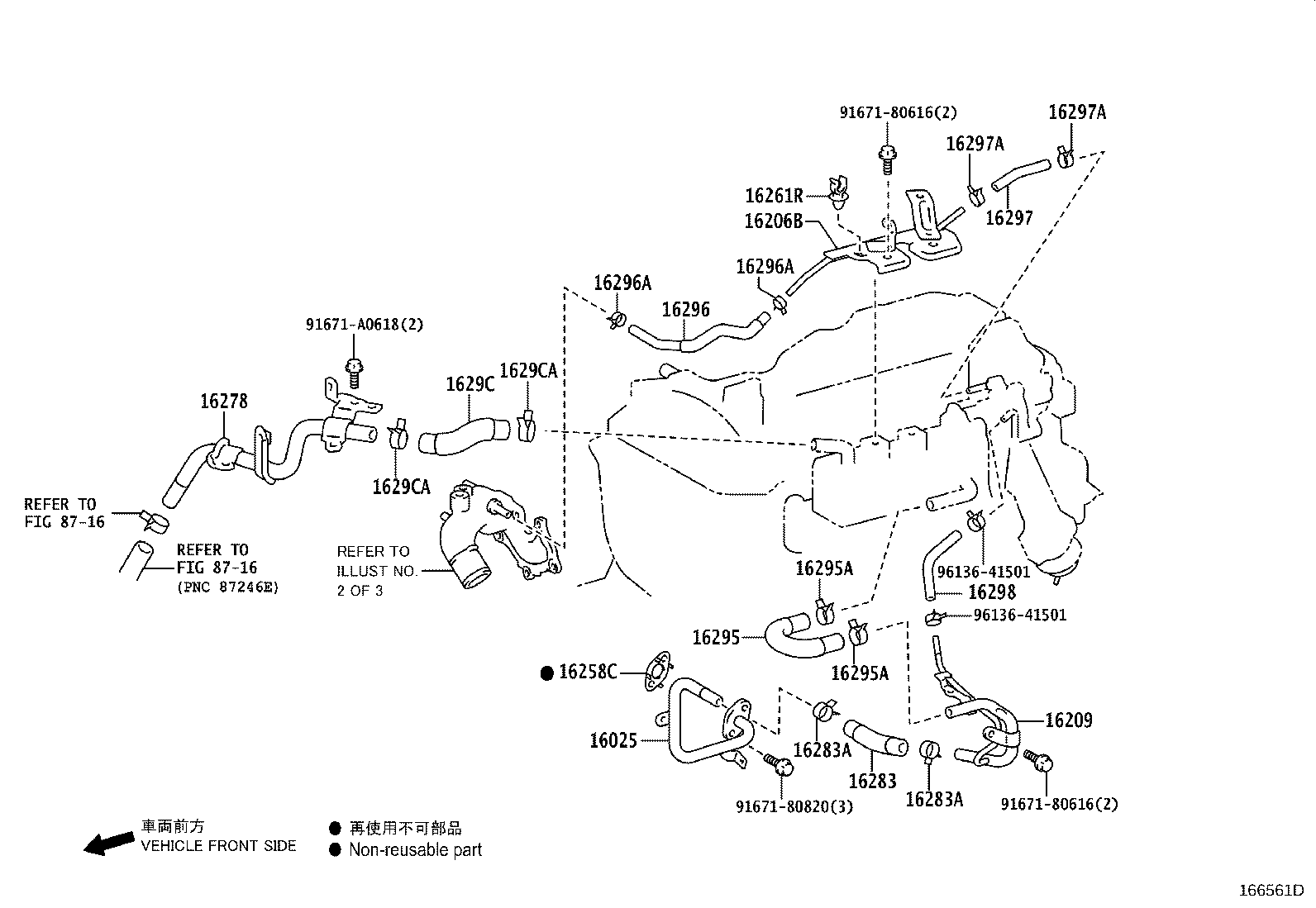

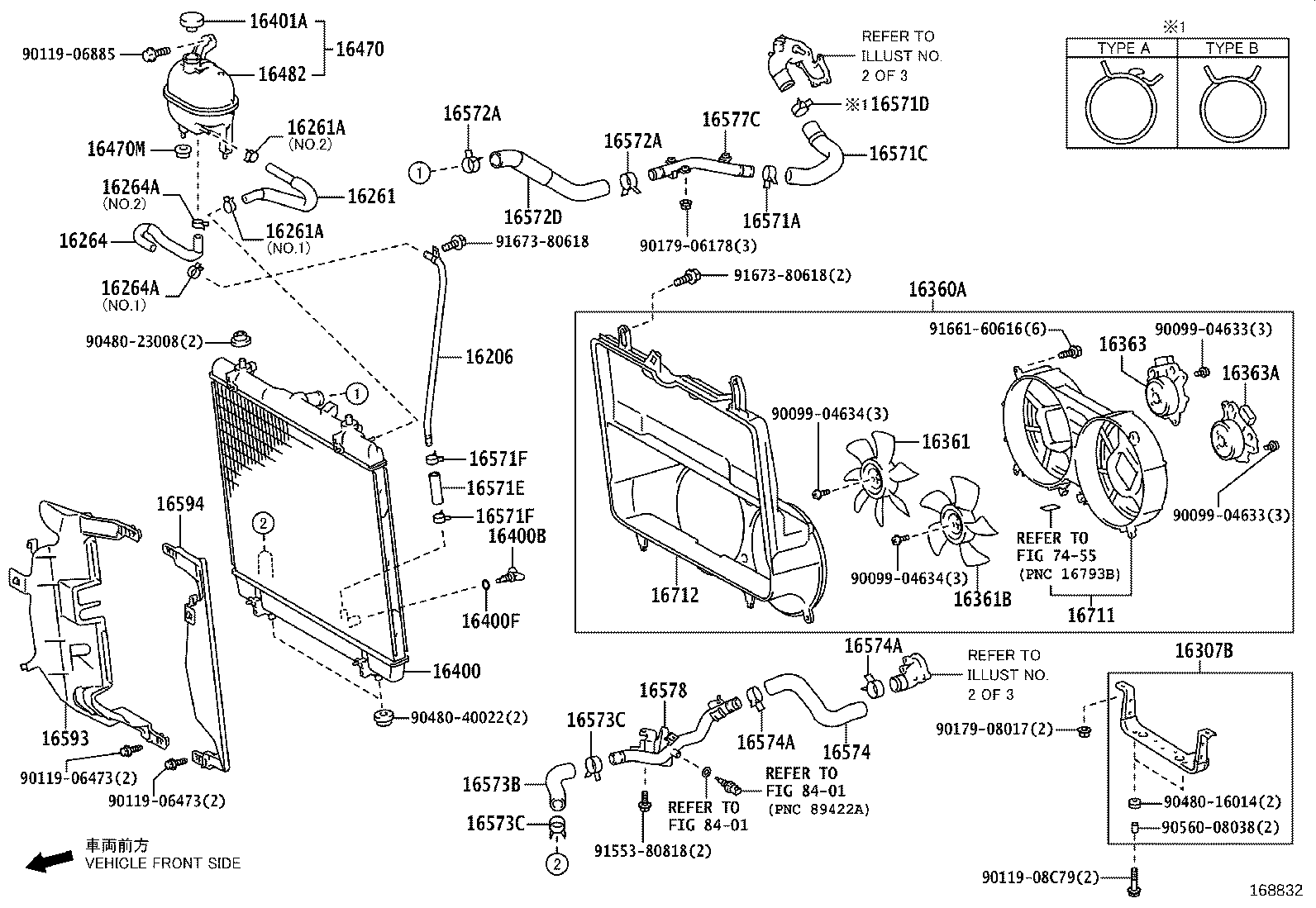

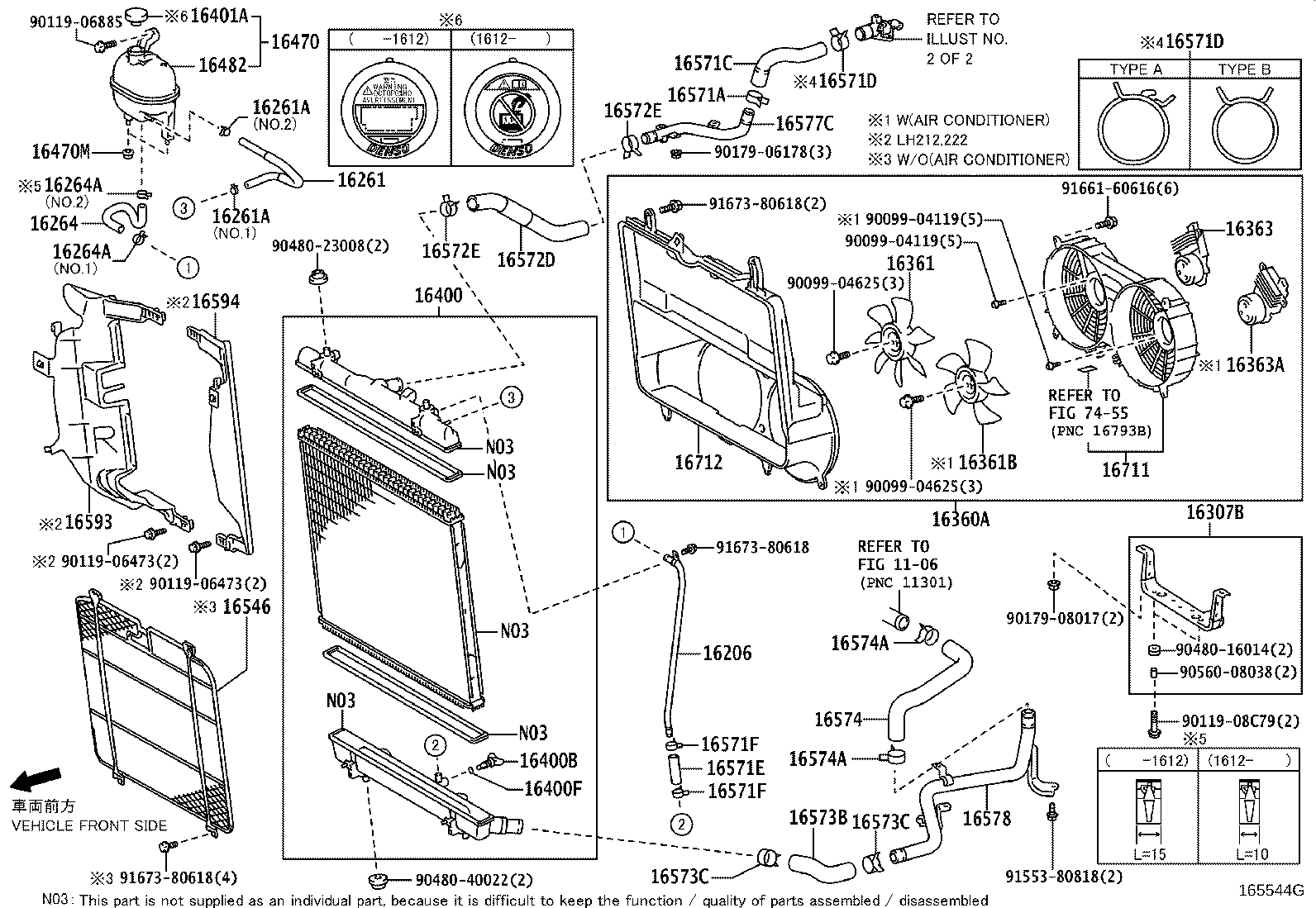

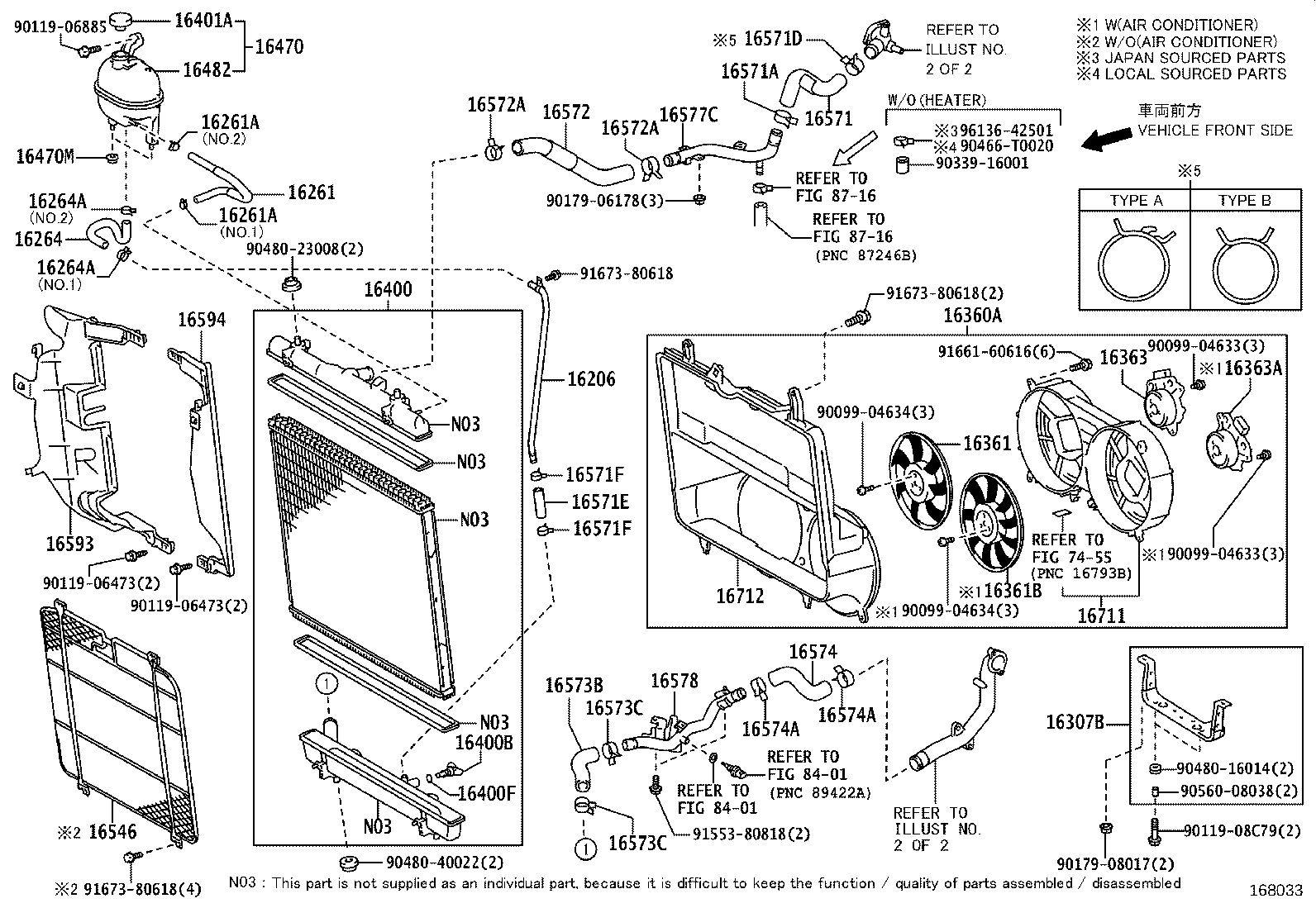

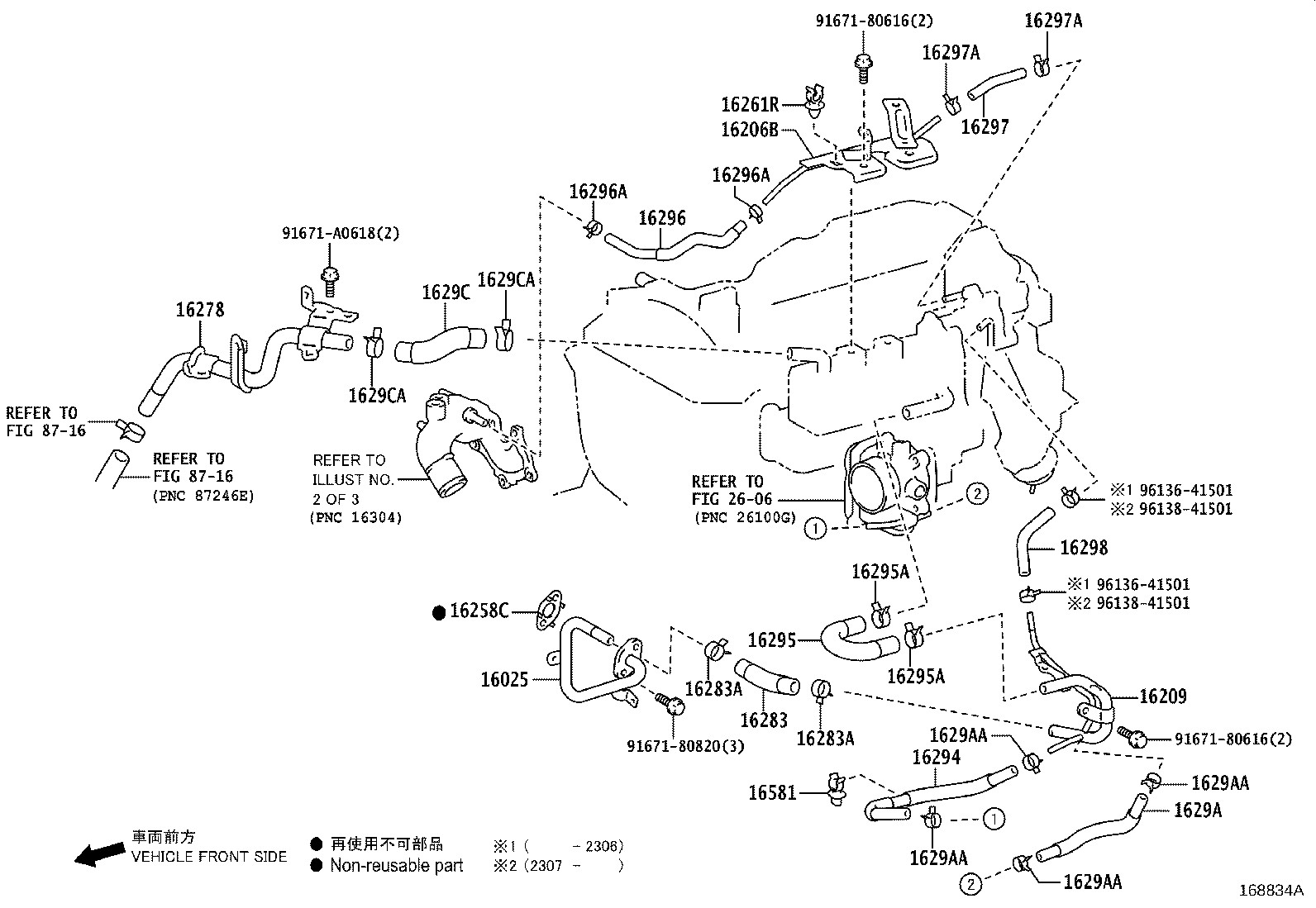

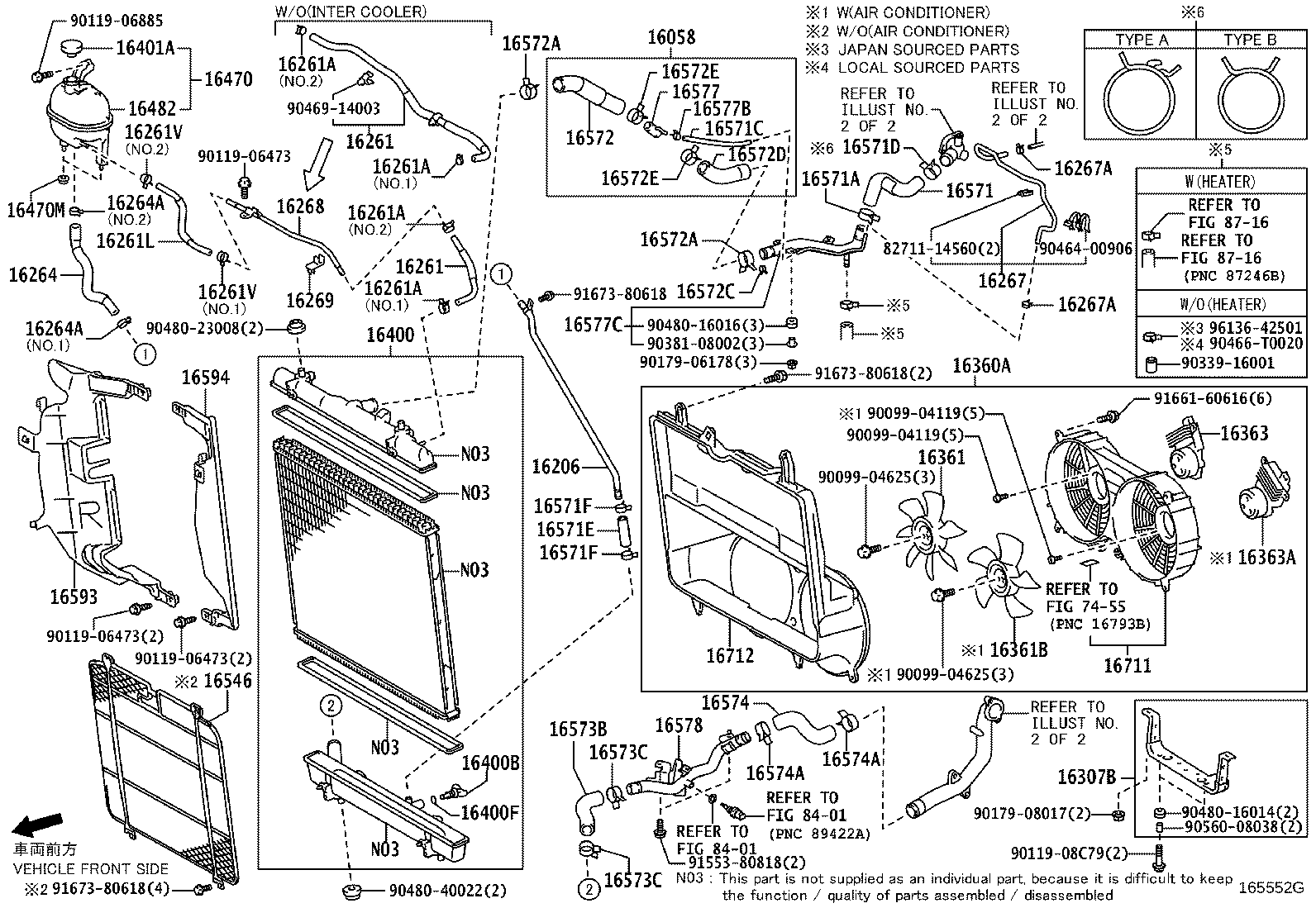

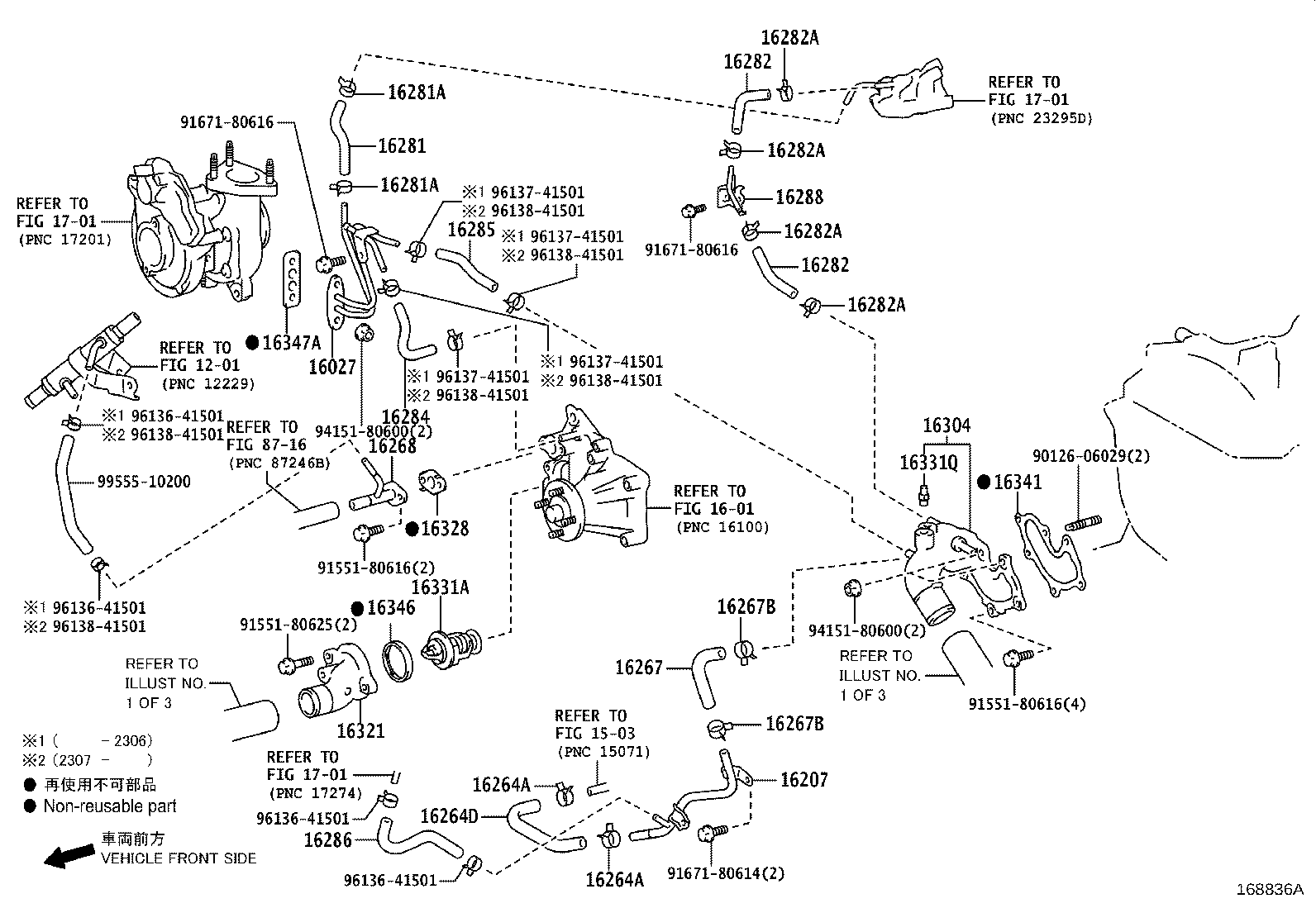

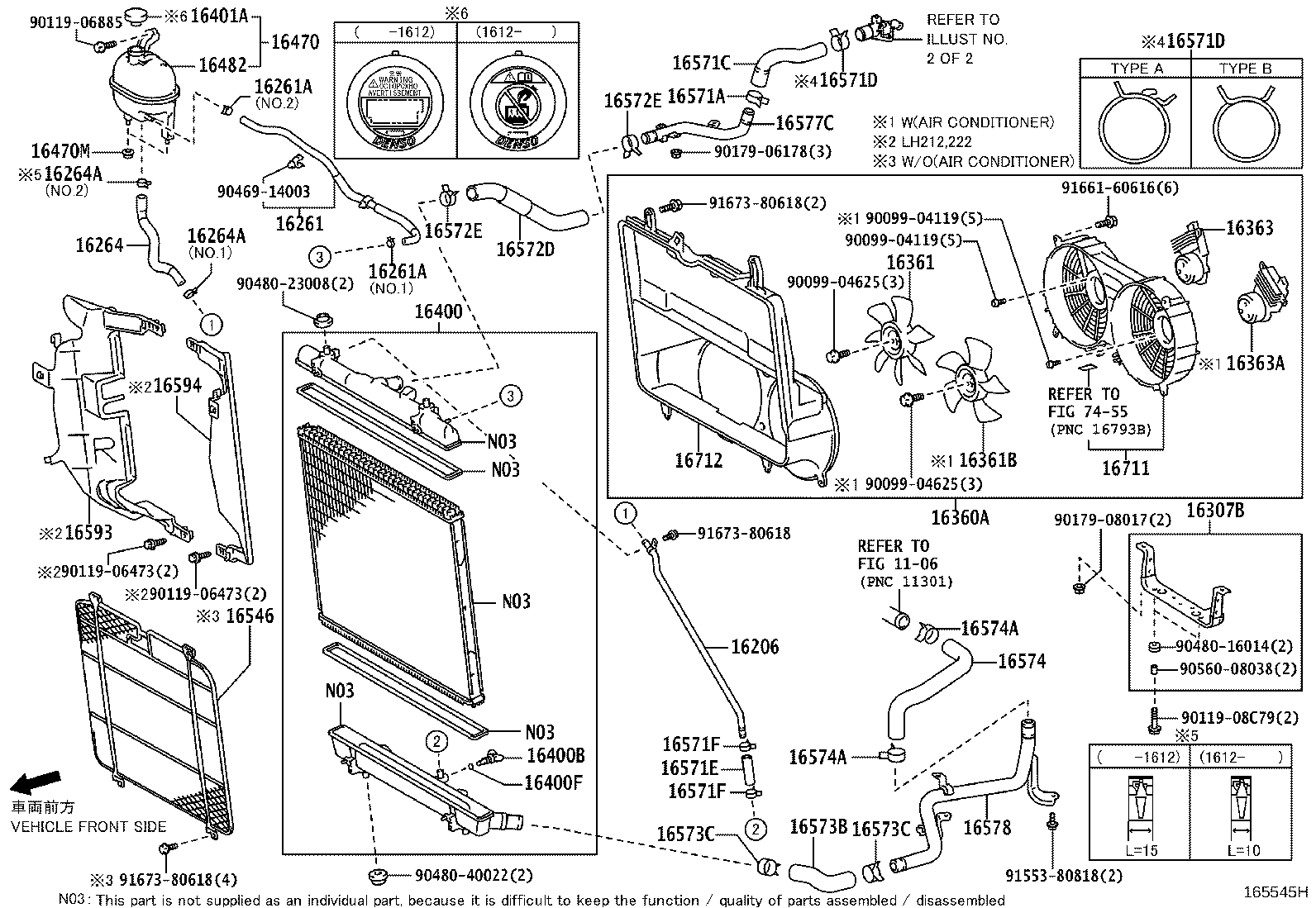

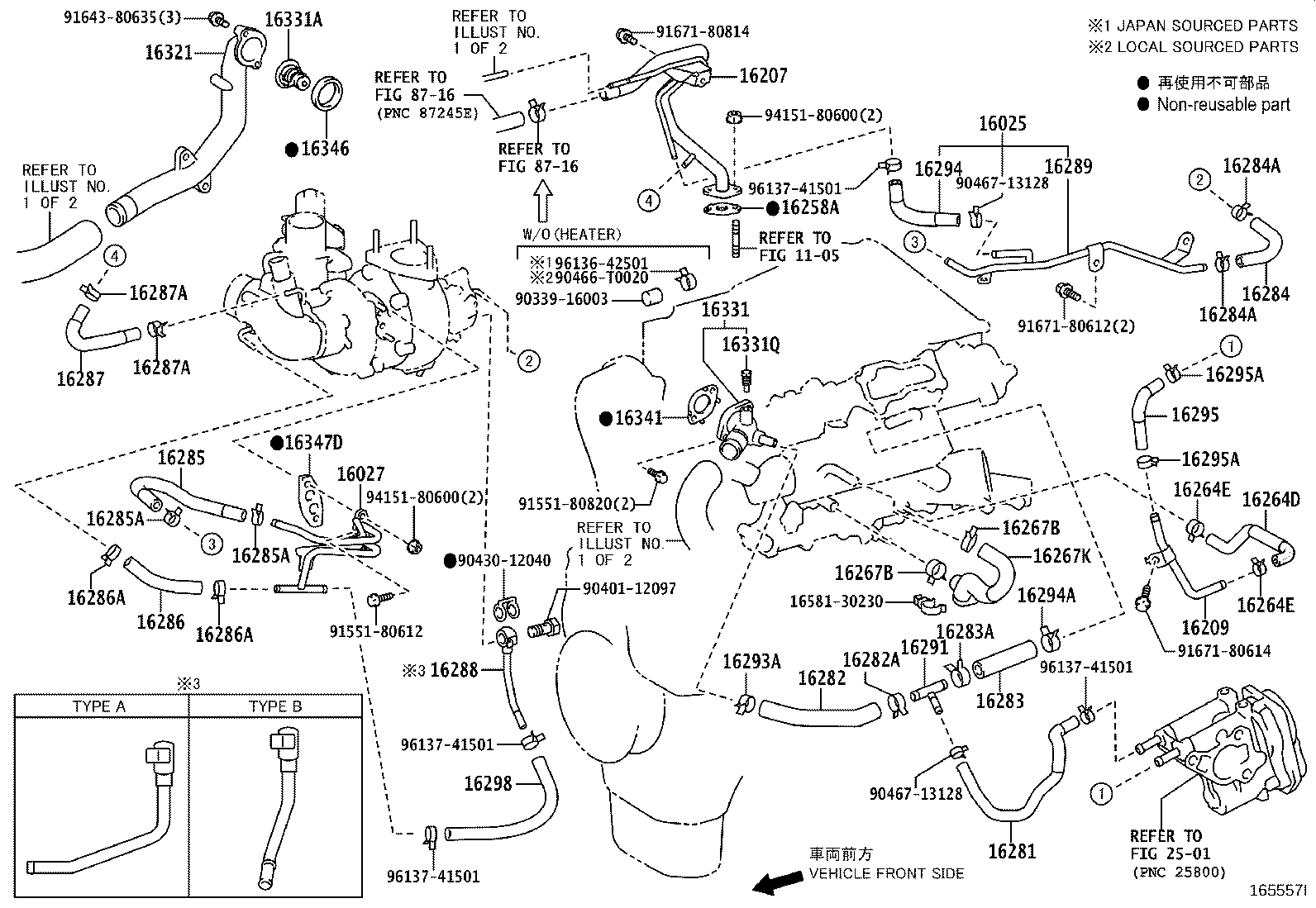

Figure 166559H 166559H 2017-01 → 2023-02 Figure 166560C 166560C 2017-01 → 2023-02 Figure 166561D 166561D 2017-01 → 2023-02 Figure 168832 168832 2023-02 → — Figure 168836A 168836A 2023-02 → — Figure 168834A 168834A 2023-02 → — Figure 165552G 165552G 2013-12 → 2020-05 Figure 165553E 165553E 2013-12 → 2020-05 Figure 165554E 165554E 2013-12 → 2020-05 Figure 165555E 165555E 2013-12 → 2020-05 Figure 168030 168030 2020-05 → — Figure 168031 168031 2020-05 → — Figure 168032 168032 2020-05 → — Figure 168033 168033 2020-05 → — Figure 165558F 165558F 2013-12 → 2016-06 Figure 165558F 165558F 2013-12 → — Figure 165558F 165558F 2013-12 → — Figure 165558F 165558F 2013-12 → — Figure 165558F 165558F 2015-06 → — Figure 165558F 165558F 2015-12 → — Figure 165558F 165558F 2015-12 → — Figure 165559E 165559E 2013-12 → 2015-01 Figure 165559E 165559E 2016-06 → — Figure 165683H 165683H 2015-01 → — Figure 165557I 165557I 2013-12 → — Figure 165557I 165557I 2016-06 → — Figure 165777D 165777D 2013-12 → 2016-06 Figure 165560F 165560F 2013-12 → — Figure 165561E 165561E 2013-12 → — Figure 165545H 165545H 2013-12 → 2020-05 Figure 165544G 165544G 2013-12 → 2020-05 Figure 168012 168012 2020-05 → — Figure 168013 168013 2020-05 → — Figure 165546C 165546C 2013-12 → — Figure 165572G 165572G 2013-12 → 2020-05 Figure 167777C 167777C 2020-05 → — Figure 165573G 165573G 2013-12 → 2020-05 Figure 167778C 167778C 2020-05 → — Figure 165574H 165574H 2013-12 → 2020-05 Figure 167779C 167779C 2020-05 → — Figure 165575H 165575H 2013-12 → 2020-05 Figure 167780C 167780C 2020-05 → — Figure 165576G 165576G 2013-12 → 2020-05 Figure 167781C 167781C 2020-05 → — Figure 165577G 165577G 2013-12 → 2020-05 Figure 167782C 167782C 2020-03 → — Figure 167782C 167782C 2020-04 → — Figure 167782C 167782C 2020-05 → — Figure 165578H 165578H 2013-12 → 2020-05 Figure 167783C 167783C 2020-05 → — Figure 165579H 165579H 2013-12 → 2020-05 Figure 167784C 167784C 2020-05 → — Figure 165566K 165566K 2013-12 → — Figure 166035H 166035H 2013-12 → 2014-11 Figure 166035H 166035H 2013-12 → — Figure 166035H 166035H 2013-12 → — Figure 166035H 166035H 2014-01 → 2015-03 Figure 165788I 165788I 2014-11 → — Figure 165894J 165894J 2015-03 → —

Part groups

PNCDescription
16025 Pipe Sub-assy, Water By-pass, NO.5
16027 Pipe Sub-assy, Turbo Water, NO.1
16028 Pipe Sub-assy, Turbo Water, NO.2
16058 Hose Sub-assy, Radiator, NO.2
16206 Pipe Sub-assy, Water By-pass
16206B Pipe Sub-assy, Water By-pass, NO.3
16207 Pipe Sub-assy, Water By-pass, NO.2
16209 Pipe Sub-assy, Water By-pass, NO.4
16258A Gasket(FOR HEATER RETURN)
16258C Gasket(FOR WATER BY-PASS PIPE)
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261B Union(FOR WATER BY-PASS HOSE)
16261D Plug, W/O Heater
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16261L Hose, Water By-pass
16261M Clip, W/O Heater Plug
16261R Clamp OR Clip(FOR WATER BY-PASS HOSE)
16261V Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D Hose, Water By-pass, NO.2
16264E Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16267B Clip(FOR WATER BY-PASS HOSE)
16267C Hose, Water By-pass, NO.4
16267D Clip(FOR WATER BY-PASS HOSE NO.4)
16267K Hose, Water By-pass, NO.3
16268 Pipe, Water By-pass, NO.1
16268G Gasket(FOR WATER BY-PASS PIPE)
16269 Support, Water By-pass Pipe
16278 Pipe, Water By-pass, NO.2
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16284 Hose, Turbo Water, NO.1
16284A Clip(FOR TURBO WATER HOSE NO.1)
16285 Hose, Turbo Water, NO.2
16285A Clip(FOR TURBO WATER HOSE NO.2)
16286 Hose, Turbo Water, NO.3
16286A Clip(FOR TURBO WATER HOSE NO.3)
16287 Hose, Turbo Water, NO.4
16287A Clip(FOR TURBO WATER HOSE NO.4)
16288 Pipe, Water By-pass, NO.4
16289 Pipe, Water By-pass, NO.5
16291 Joint, Water Hose
16293A Clip(FOR WATER BY-PASS HOSE NO.10)
16294 Hose, Water By-pass, NO.11
16294A Clip(FOR WATER BY-PASS HOSE NO.11)
16295 Hose, Water By-pass, NO.7
16295A Clip(FOR WATER BY-PASS HOSE NO.7)
16296 Hose, Water By-pass, NO.8
16296A Clip(FOR WATER BY-PASS HOSE NO.8)
16297 Hose, Water By-pass, NO.9
16297A Clip(FOR WATER BY-PASS HOSE NO.9)
16298 Hose, Water By-pass, NO.12
1629A Hose, Water By-pass, NO.14
1629AA Clip(FOR WATER BY-PASS HOSE NO.14)
1629C Hose, Water By-pass, NO.16
1629CA Clip(FOR WATER BY-PASS HOSE NO.16)
16304 Outlet Sub-assy, Water
16307B Bracket Sub-assy, Fan
16321 Inlet, Water
16325 Gasket, Water Inlet Housing, NO.1
16326 Gasket, Water Inlet Housing, NO.2
16328 Gasket, Water Inlet Pipe
16331 Outlet, Water
16331A Thermostat
16331Q Plug(FOR WATER OUTLET)
16333 Housing, Water Outlet
16333E Plug, Drain Cock
16341 Gasket, Water Outlet
16343 Gasket, Water Outlet Housing
16346 Gasket, Thermostat
16347A Gasket(FOR TURBO WATER PIPE)
16347D Gasket, Water By-pass
16360A Fan Assy, W/Motor
16361 Fan
16361B Fan, NO.2
16363 Motor, Cooling Fan
16363A Motor, Cooling Fan, NO.2
16380 Bracket Assy, Fan
16381 Bar, Fan Belt Adjusting
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16401A Cap Sub-assy, Radiator Reserve Tank
16470 Tank Assy, Radiator Reserve
16470M Grommet
16482 Tank Sub-assy, Radiator Reserve
16546 Protector, Radiator
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16571E Hose, Water
16571F Clamp OR Clip(FOR WATER HOSE)
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16572C Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.2)
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16573B Hose, Radiator, NO.3
16573C Clamp OR Clip, Radiator Hose, NO.3
16574 Hose, Radiator, NO.4
16574A Clip, Radiator Hose, NO.4
16577 Pipe, Radiator, NO.7
16577B Clamp OR Clip, Hose(FOR RADIATOR PIPE)
16577C Pipe, Radiator
16578 Pipe, Radiator, NO.2
16581 Clamp, Hose(FOR WATER HOSE)
16593 Guide, Radiator Air, NO.1
16594 Guide, Radiator Air, NO.2
16711 Shroud, Fan
16712 Shroud, Fan, NO.2
16743 Protector, Fan Shroud
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
