Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

59 part groups · 19 illustrations

Illustrations

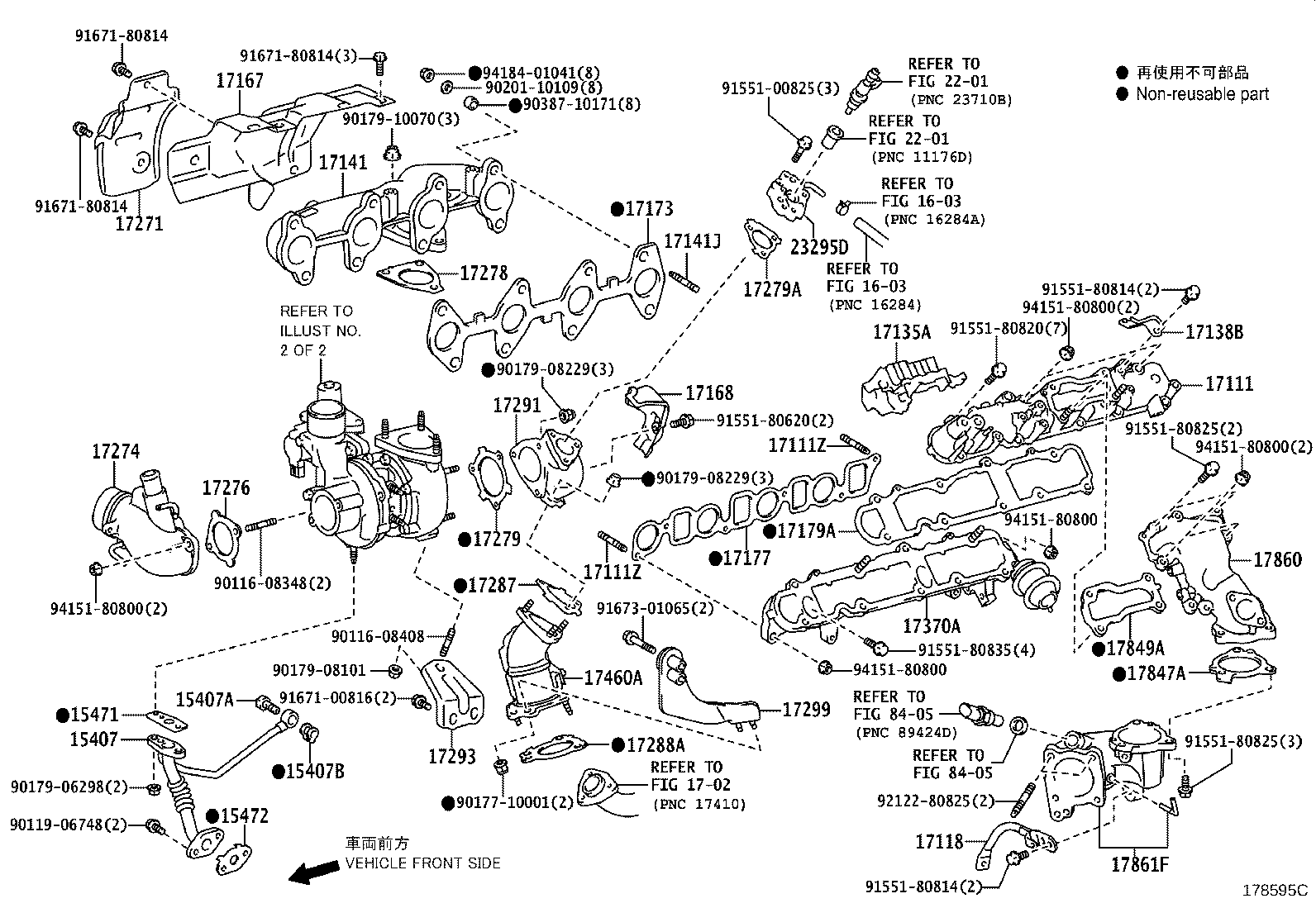

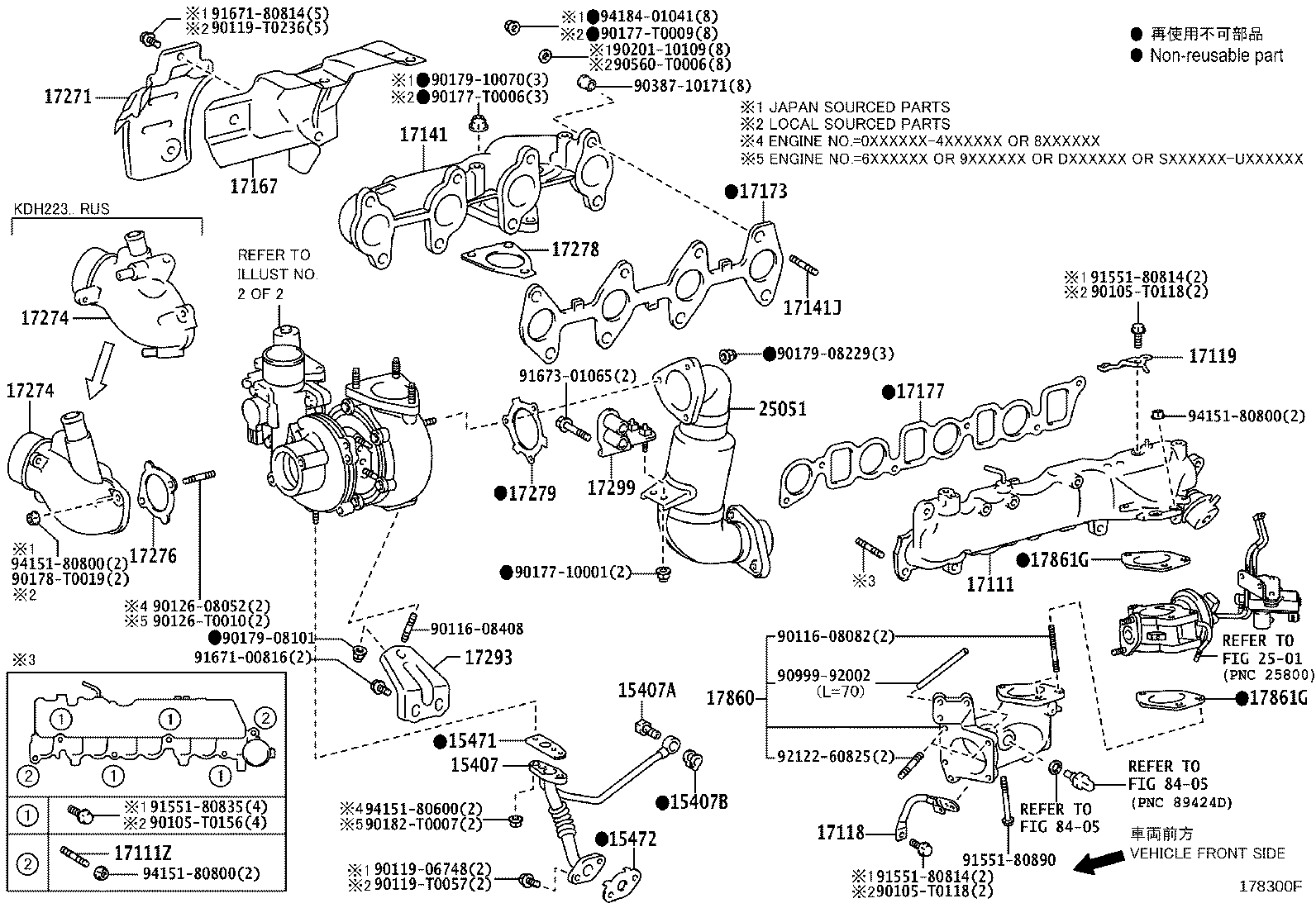

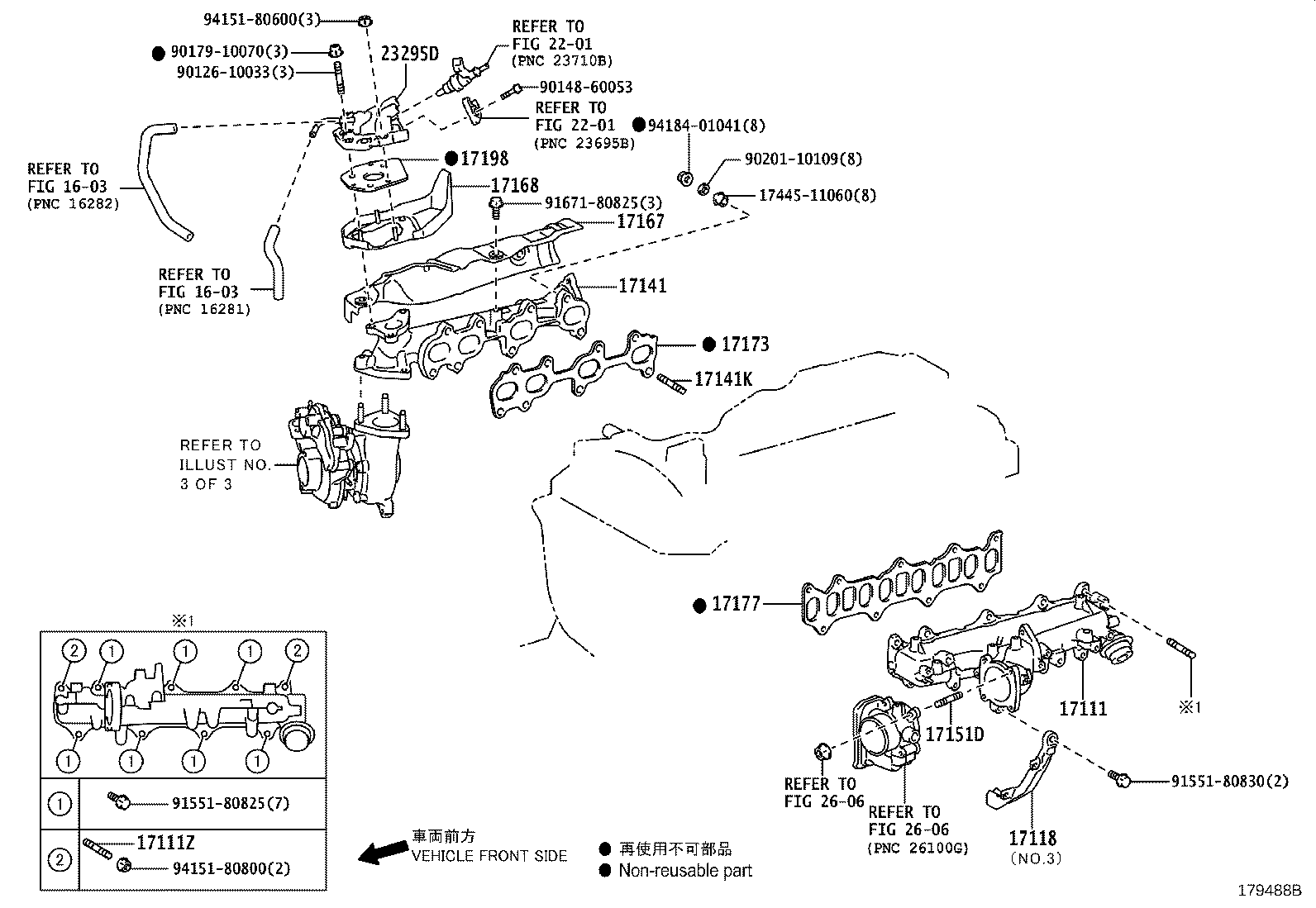

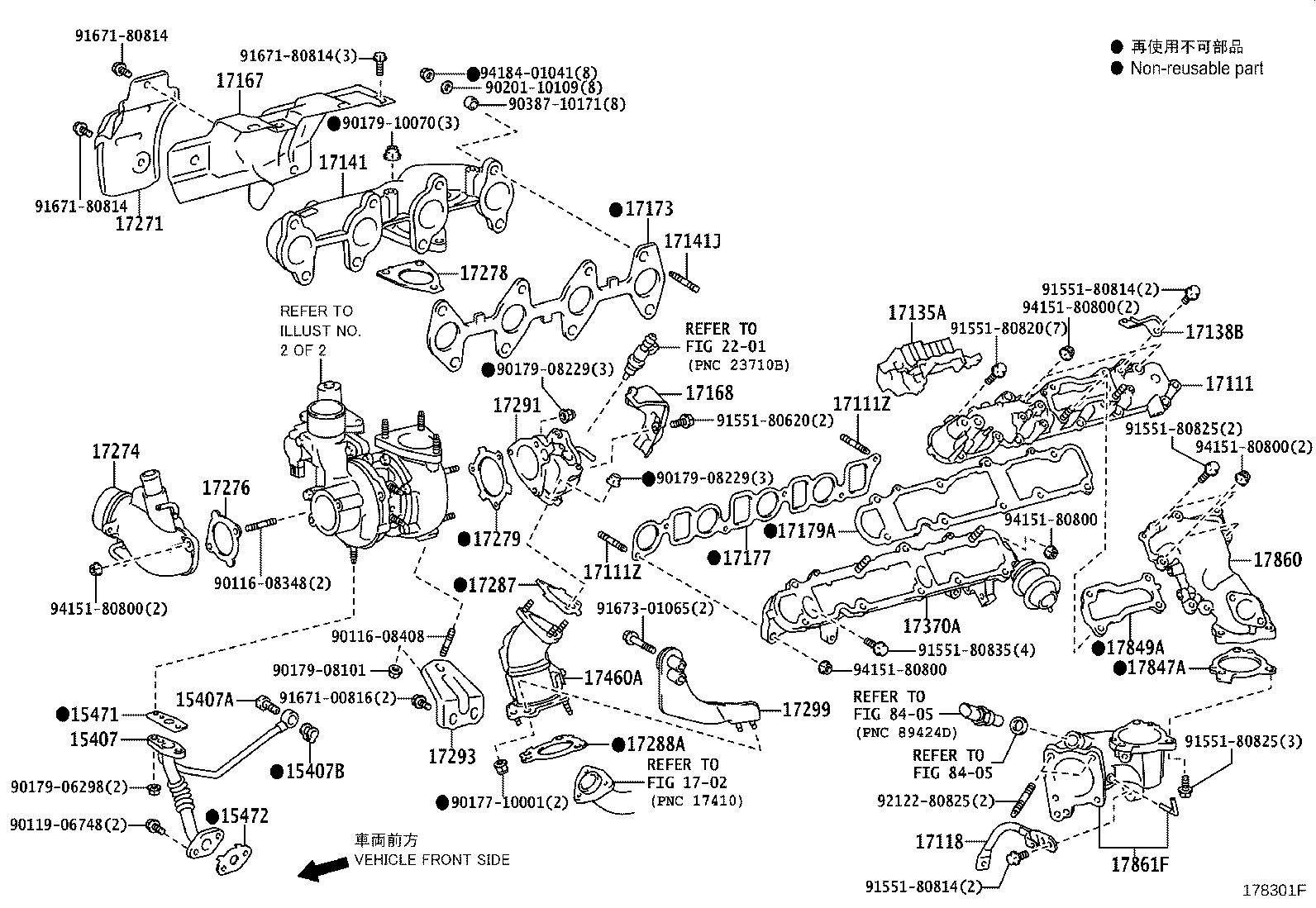

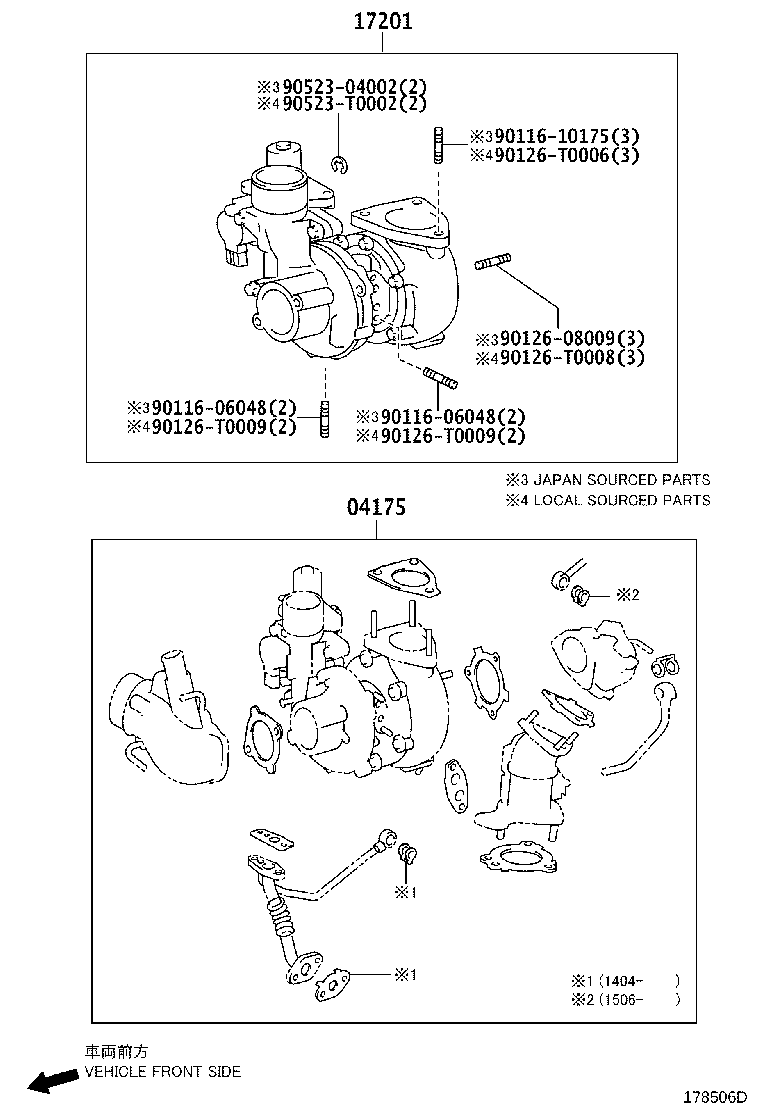

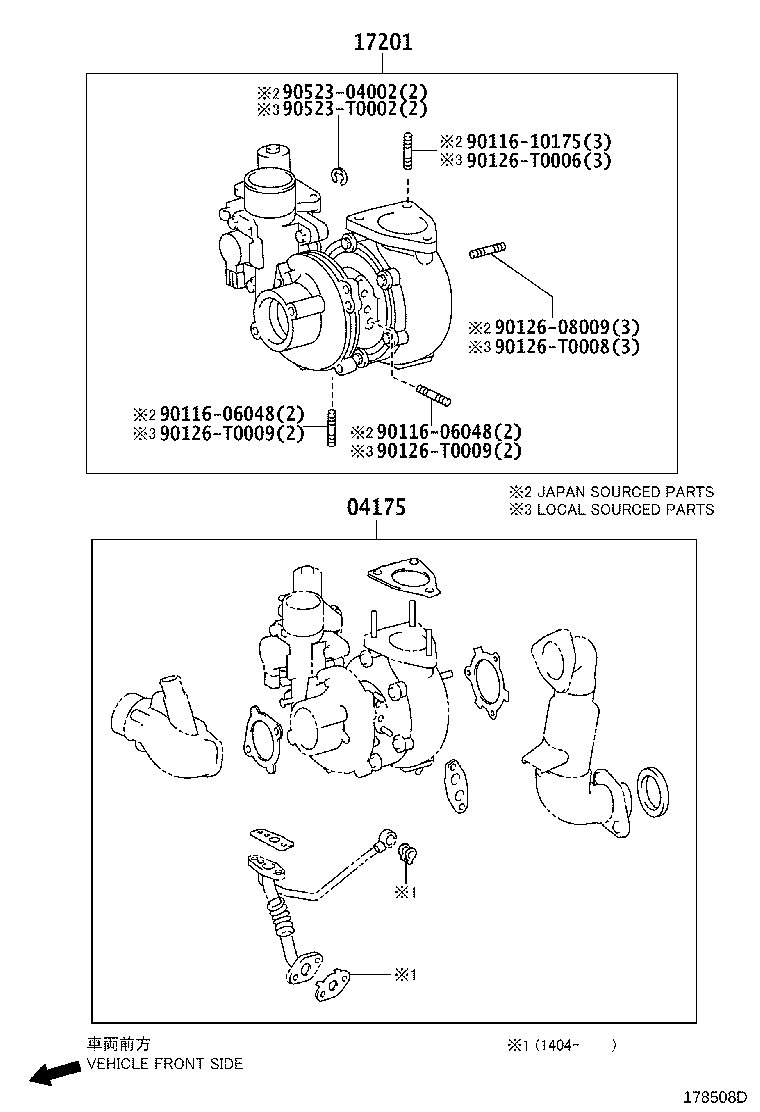

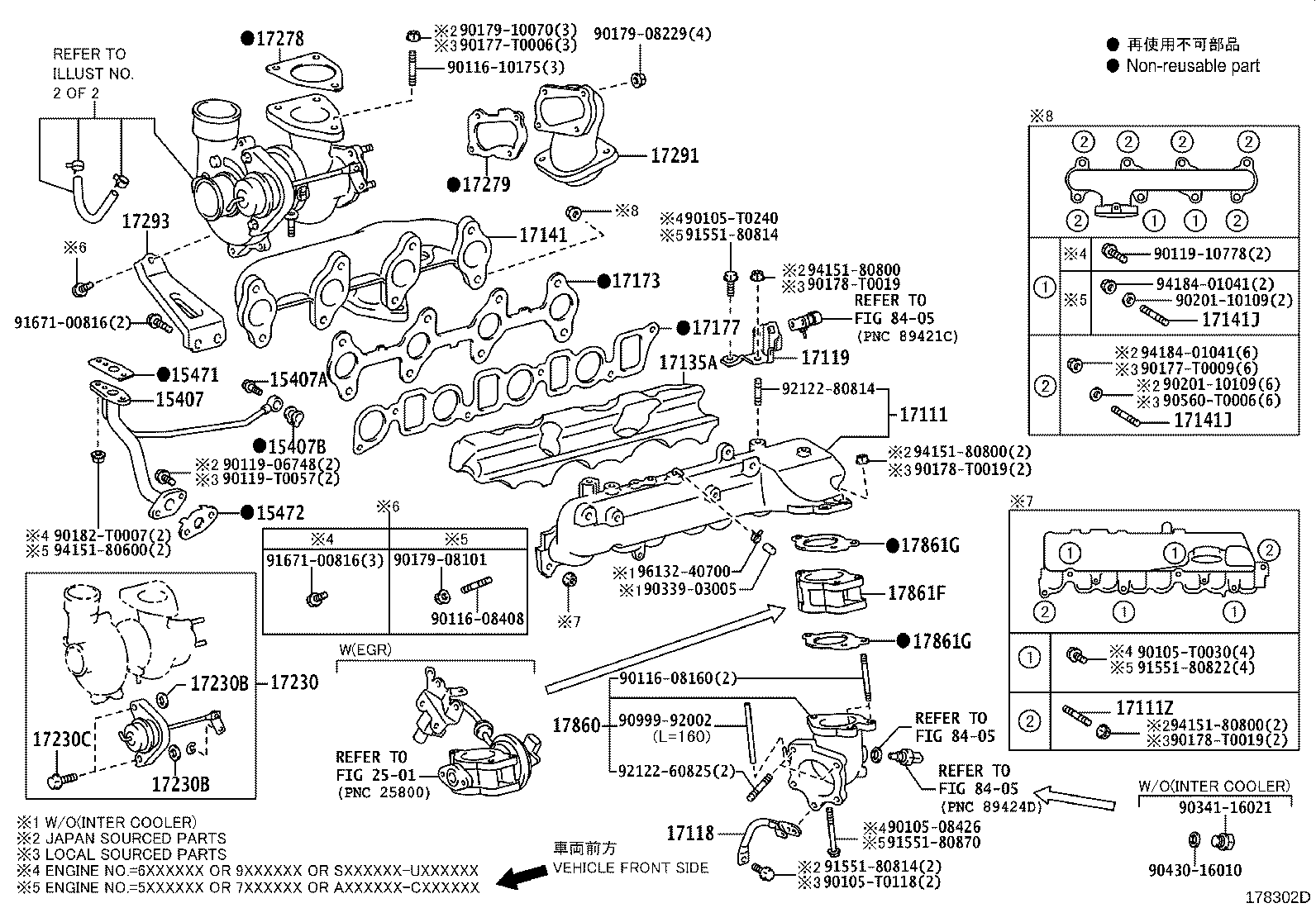

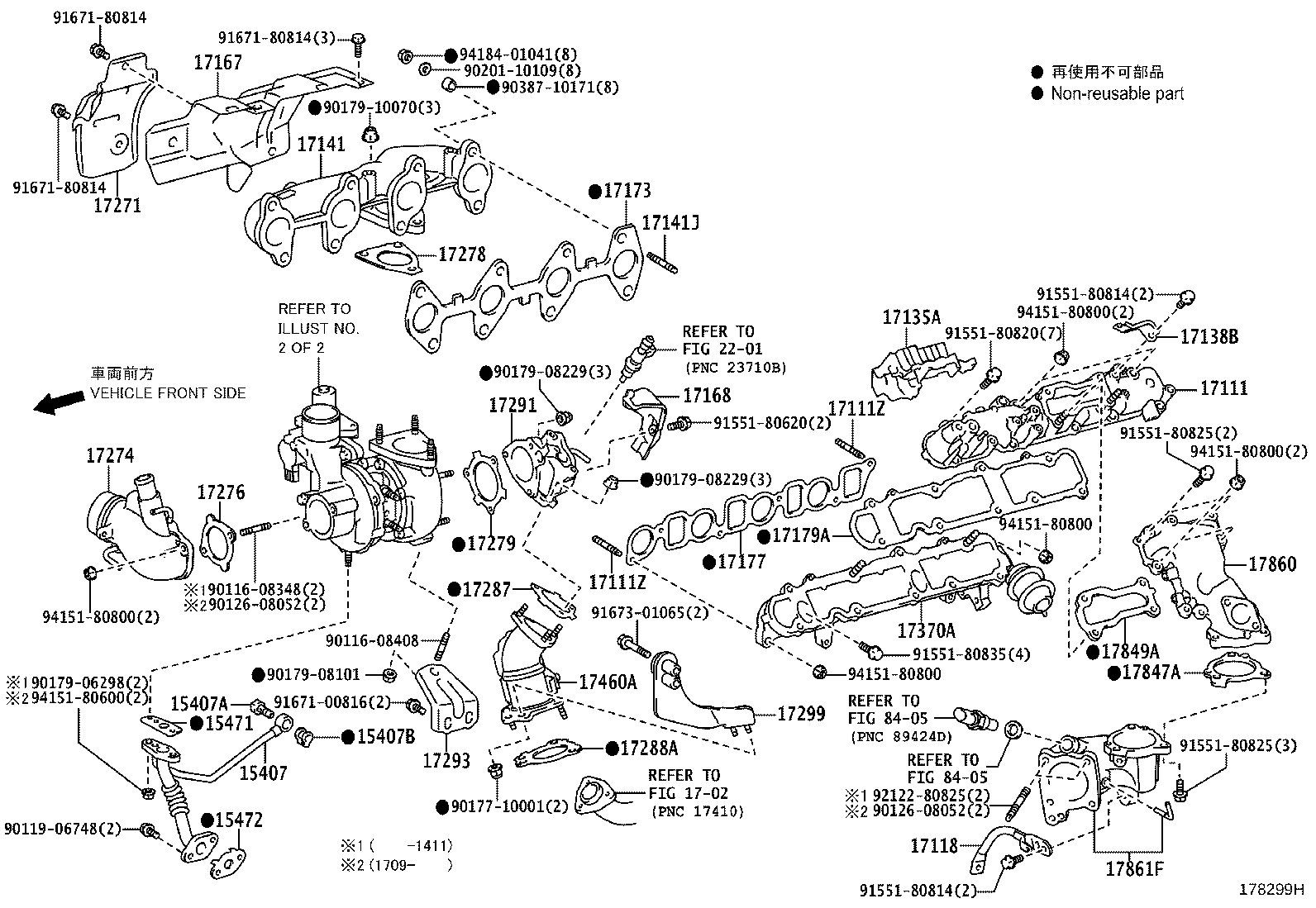

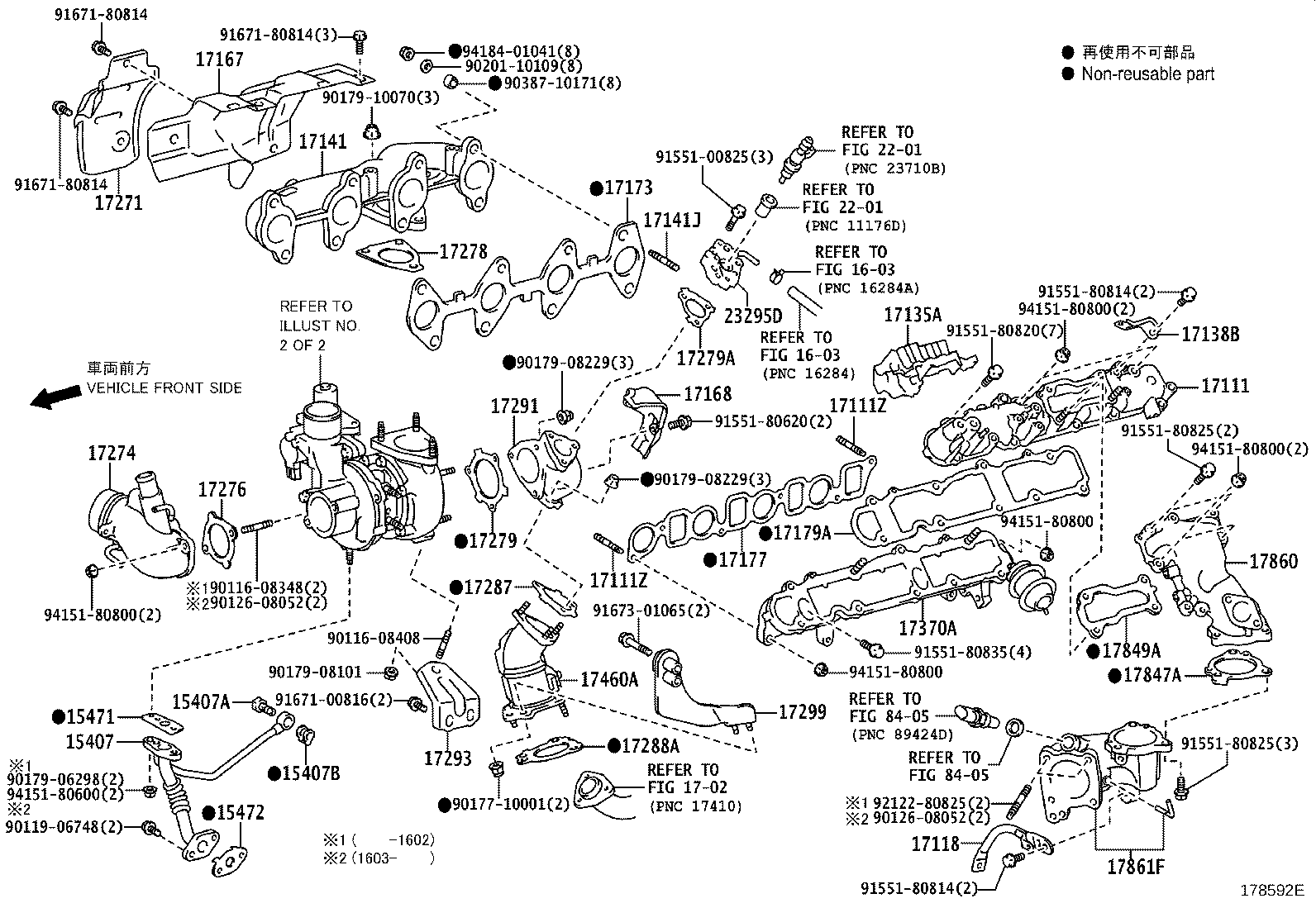

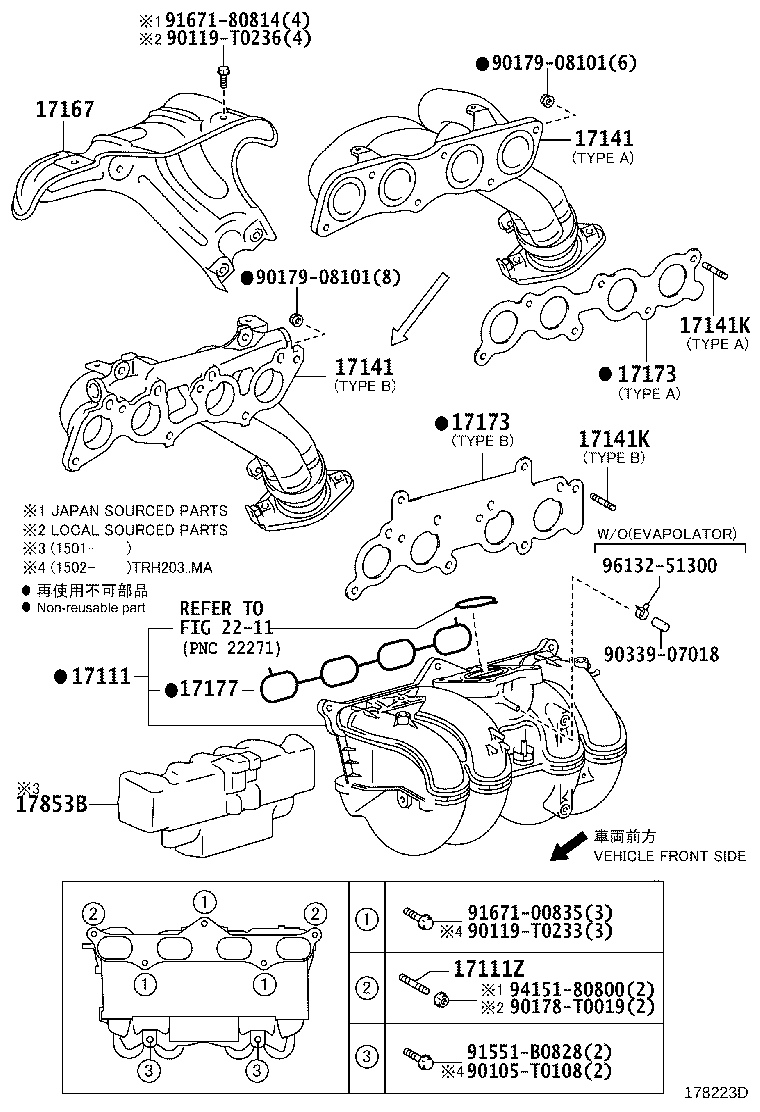

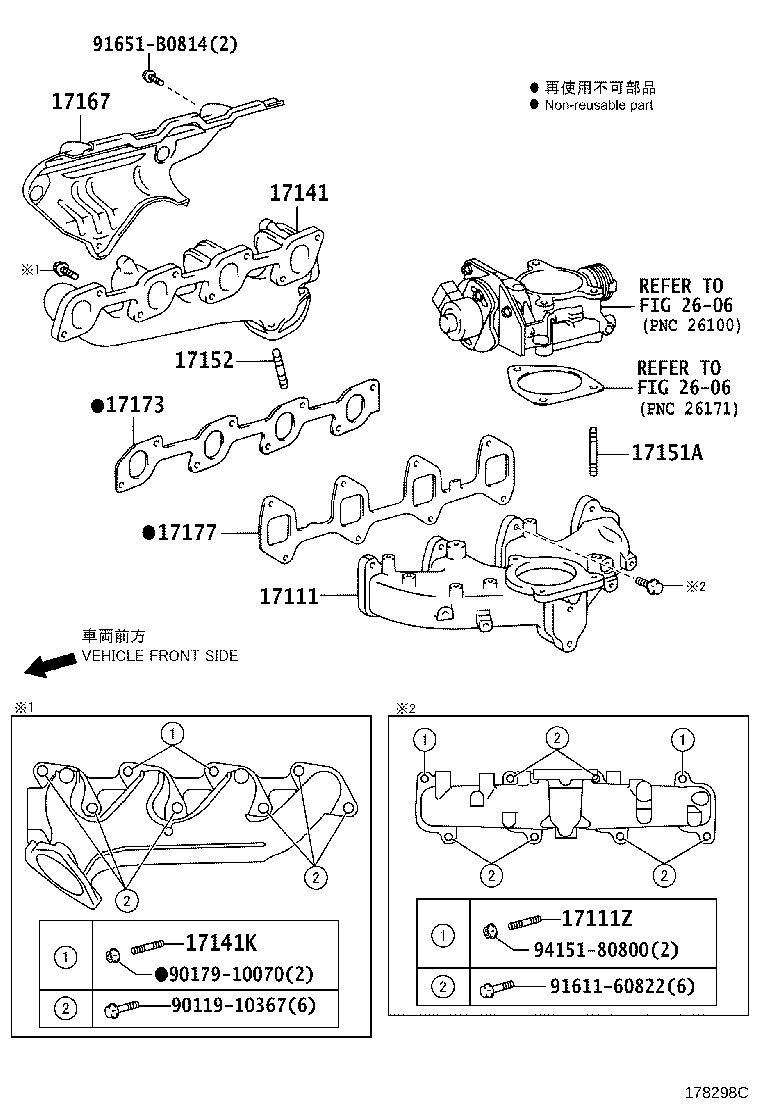

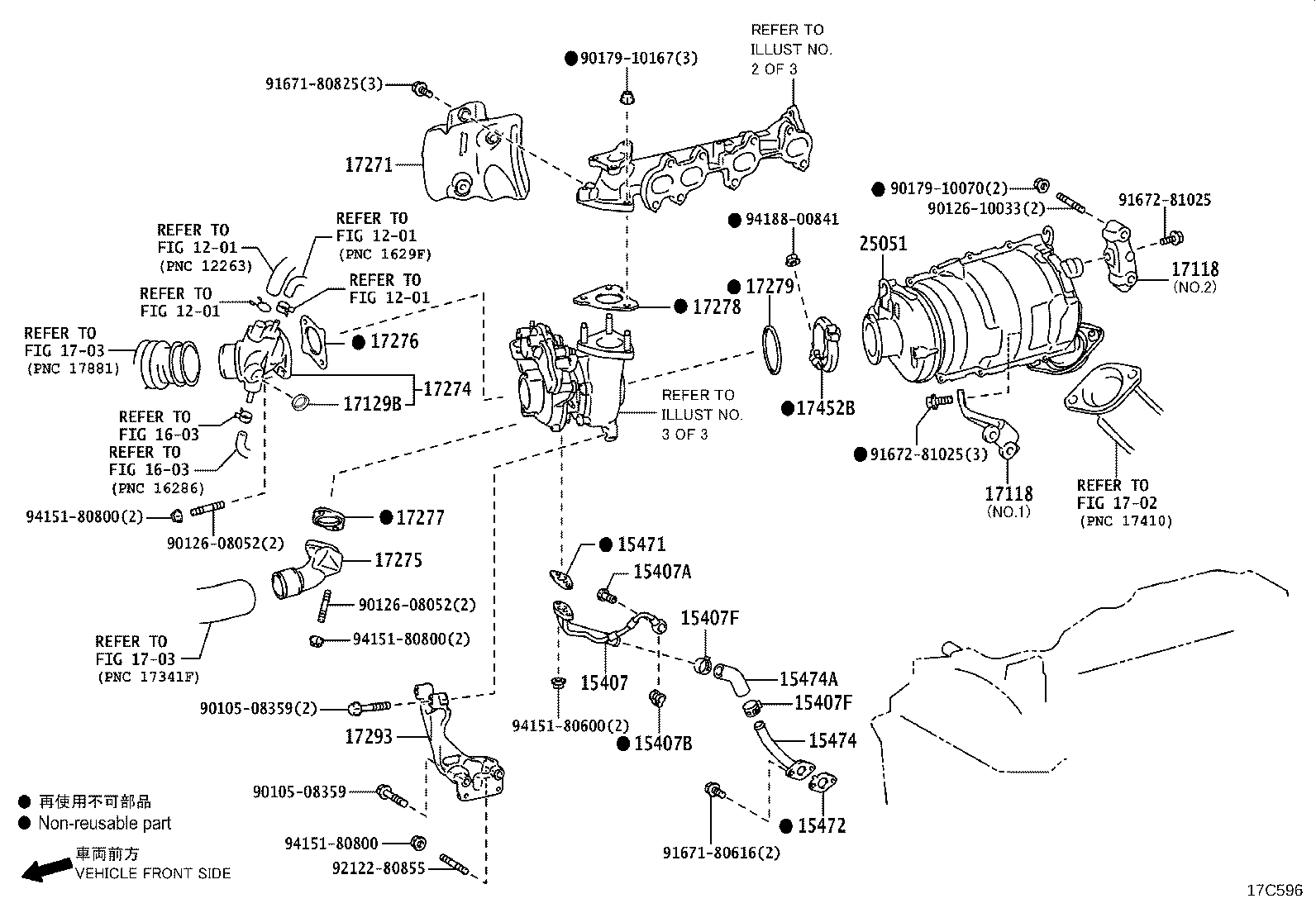

Figure 179487B 179487B 2017-01 → — Figure 17C596 17C596 2023-02 → — Figure 179488B 179488B 2017-01 → — Figure 179489C 179489C 2017-01 → — Figure 178300F 178300F 2013-12 → — Figure 178508D 178508D 2013-12 → — Figure 178299H 178299H 2013-12 → 2014-11 Figure 178299H 178299H 2017-09 → — Figure 178299H 178299H 2017-09 → — Figure 178592E 178592E 2014-11 → 2017-09 Figure 178506D 178506D 2013-12 → — Figure 178506D 178506D 2013-12 → — Figure 178301F 178301F 2013-12 → 2014-11 Figure 178595C 178595C 2014-11 → 2016-06 Figure 179518B 179518B 2013-12 → 2016-06 Figure 178302D 178302D 2013-12 → — Figure 178507B 178507B 2013-12 → — Figure 178298C 178298C 2013-12 → — Figure 178223D 178223D 2013-12 → —

Part groups

PNCDescription

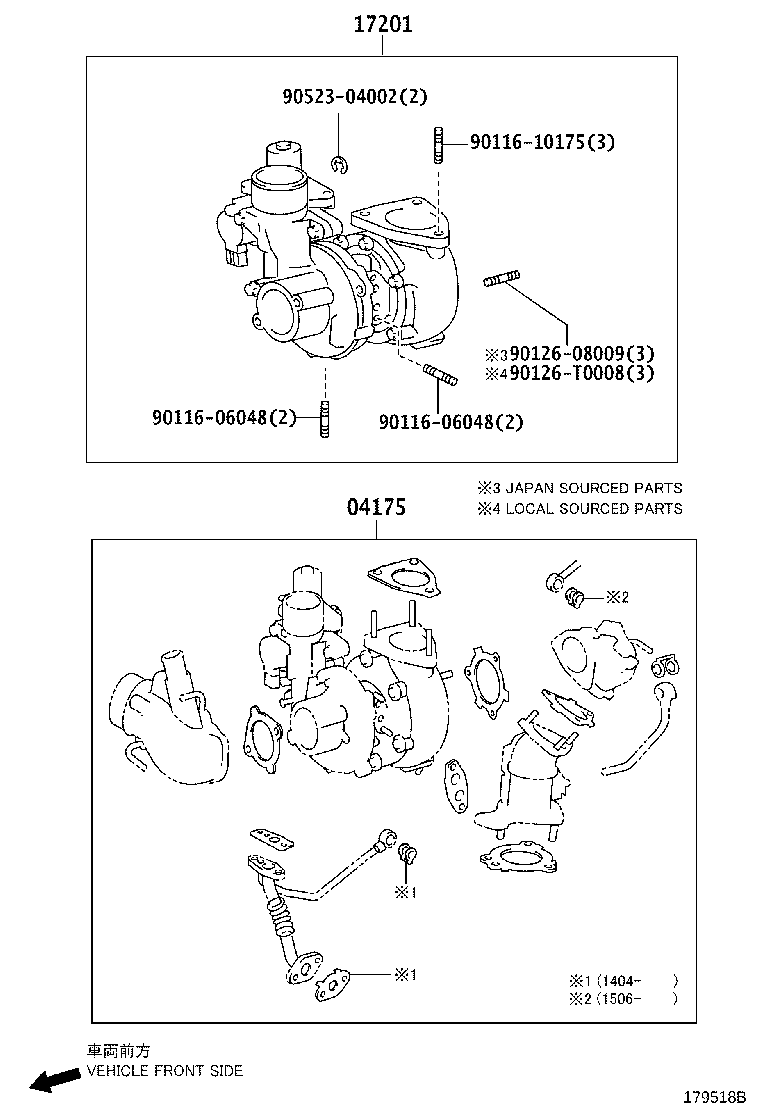

04175 Gasket Kit, Turbocharger
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15407F Clamp OR Clip, Oil Hose
15471 Gasket, Turbo Oil Inlet
15472 Gasket, Turbo Oil Outlet, NO.1
15474 Pipe, Turbo Oil Outlet
15474A Hose, Turbo Oil Outlet
17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17129B Plug
17135A Insulator, Intake Manifold, NO.1
17138B Stay, Intake Manifold
17141 Manifold, Exhaust
17141J Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
17141K Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17151A Bolt, Stud(FOR MANIFOLD TO VENTURI)
17151D Bolt, Stud(MANIFOLD TO THROTTLE BODY)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17179A Gasket, Intake Manifold, NO.2
17198 Gasket, Exhaust Manifold, NO.2
17201 Turbocharger Sub-assy
17230 Actuator Assy, W/Bracket
17230B Washer, Plate(FOR REPAIR ACTUATOR SET)
17230C Bolt, W/Washer(FOR REPAIR ACTUATOR SET)
17271 Insulator, Turbo, NO.1
17274 Elbow, Compressor Inlet
17275 Elbow, Compressor Outlet
17276 Gasket, Compressor Inlet
17277 Gasket, Compressor Outlet
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17279A Gasket, Turbine Outlet Elbow, NO.1
17287 Gasket, Turbine Outlet Elbow, NO.2
17288A Gasket, Turbine Outlet Elbow, NO.3
17291 Elbow, Turbine Outlet
17293 Stay, Turbocharger
17294 Hose, Actuator
17294A Clip(FOR ACTUATOR HOSE)
17299 Stay, Turbine Outlet Elbow
17370A Valve Assy, Swirl Control
17452B Clamp, Exhaust Pipe
17460A Converter Assy, Catalytic W/Pipe
17847A Gasket, Intake Air Connector, NO.2
17849A Gasket, Intake Air Connector
17853B Insulator, Intake Manifold
17860 Connector Assy, Intake Air
17861F Connector, Intake Air
17861G Gasket, Intake Air Connector
23295D Holder, Injector, NO.1
25051 Converter Sub-assy, Exhaust Manifold
89674 Motor, Turbocharger Variable Nozzle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
