Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

23 part groups · 14 illustrations

Illustrations

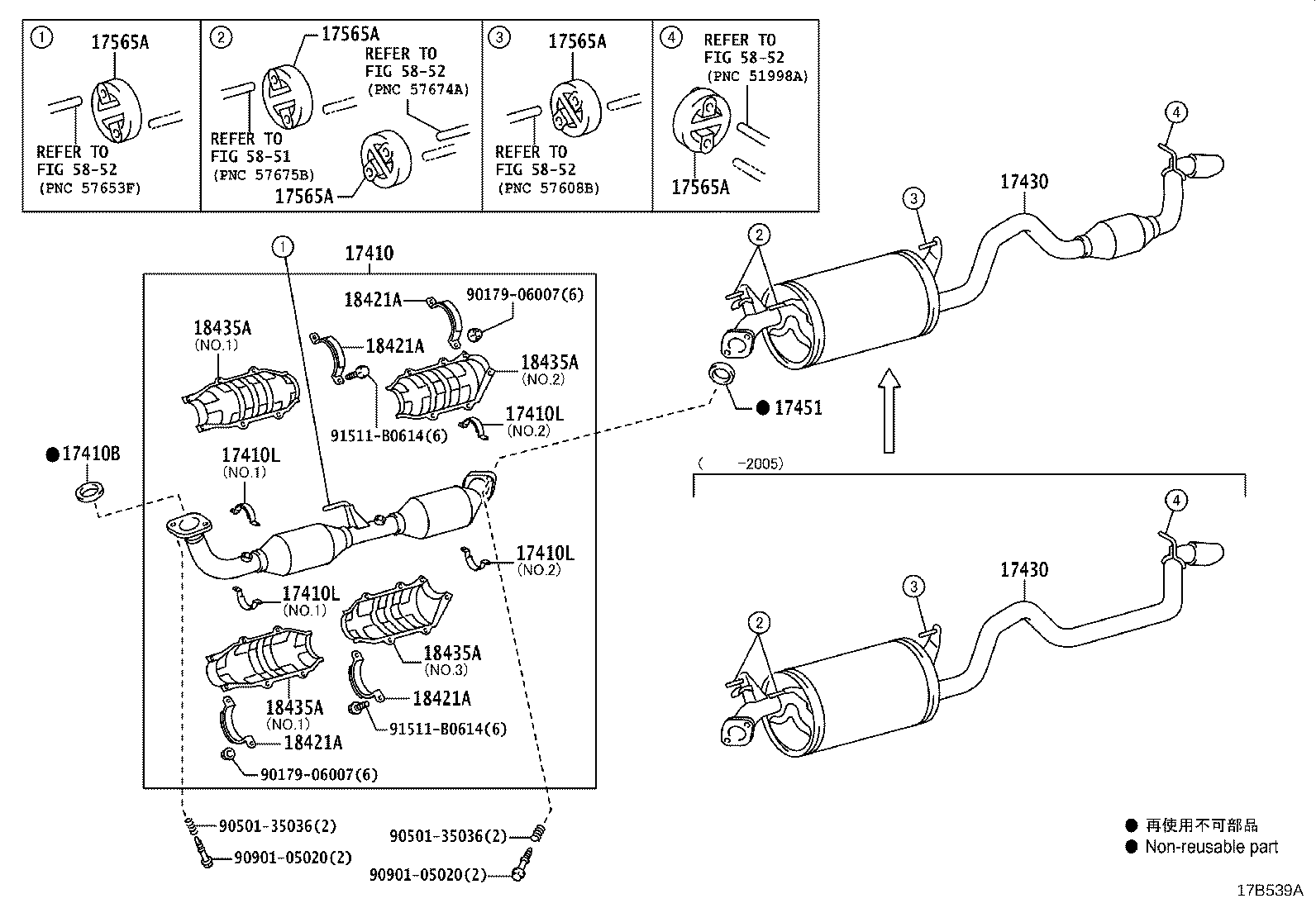

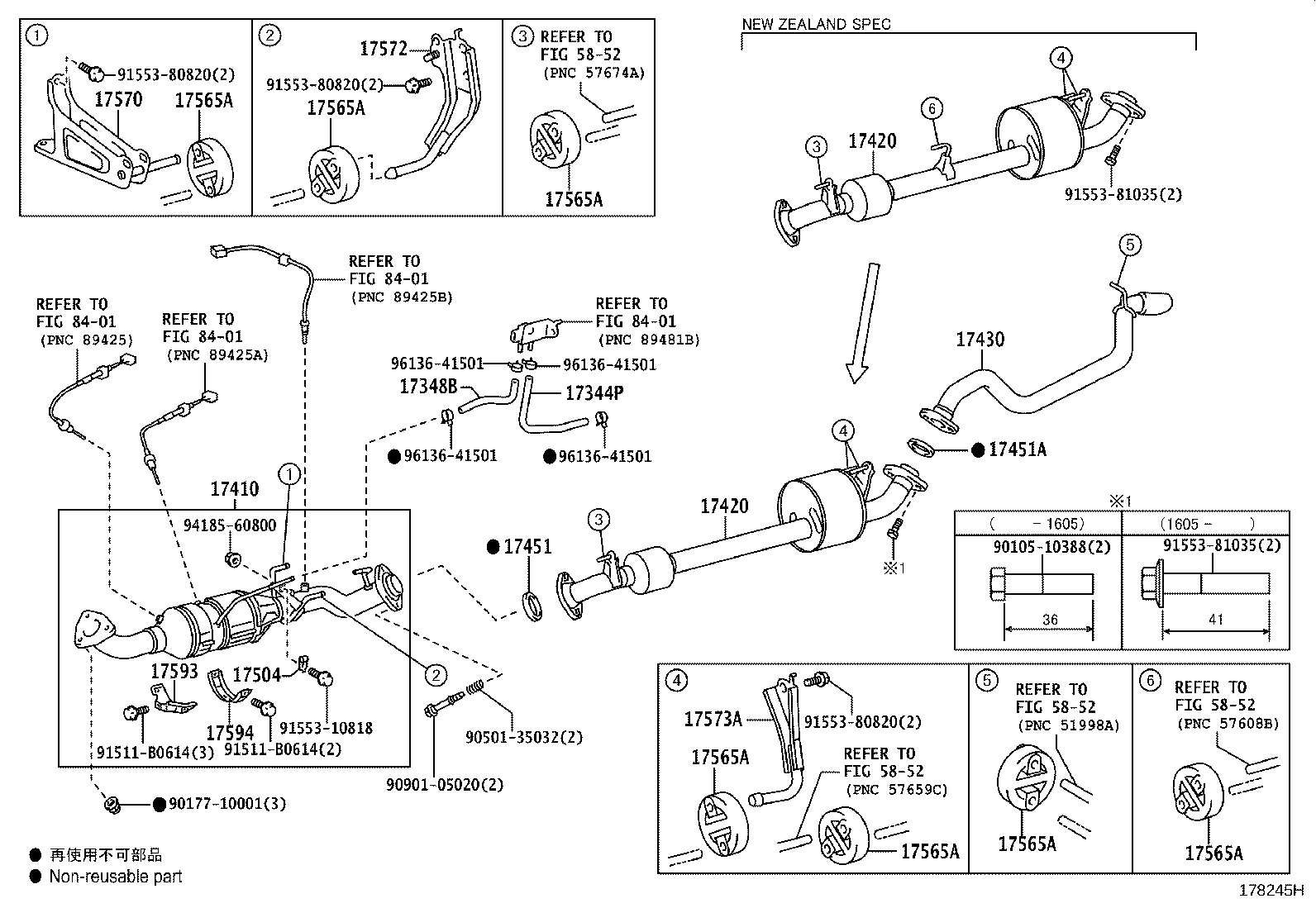

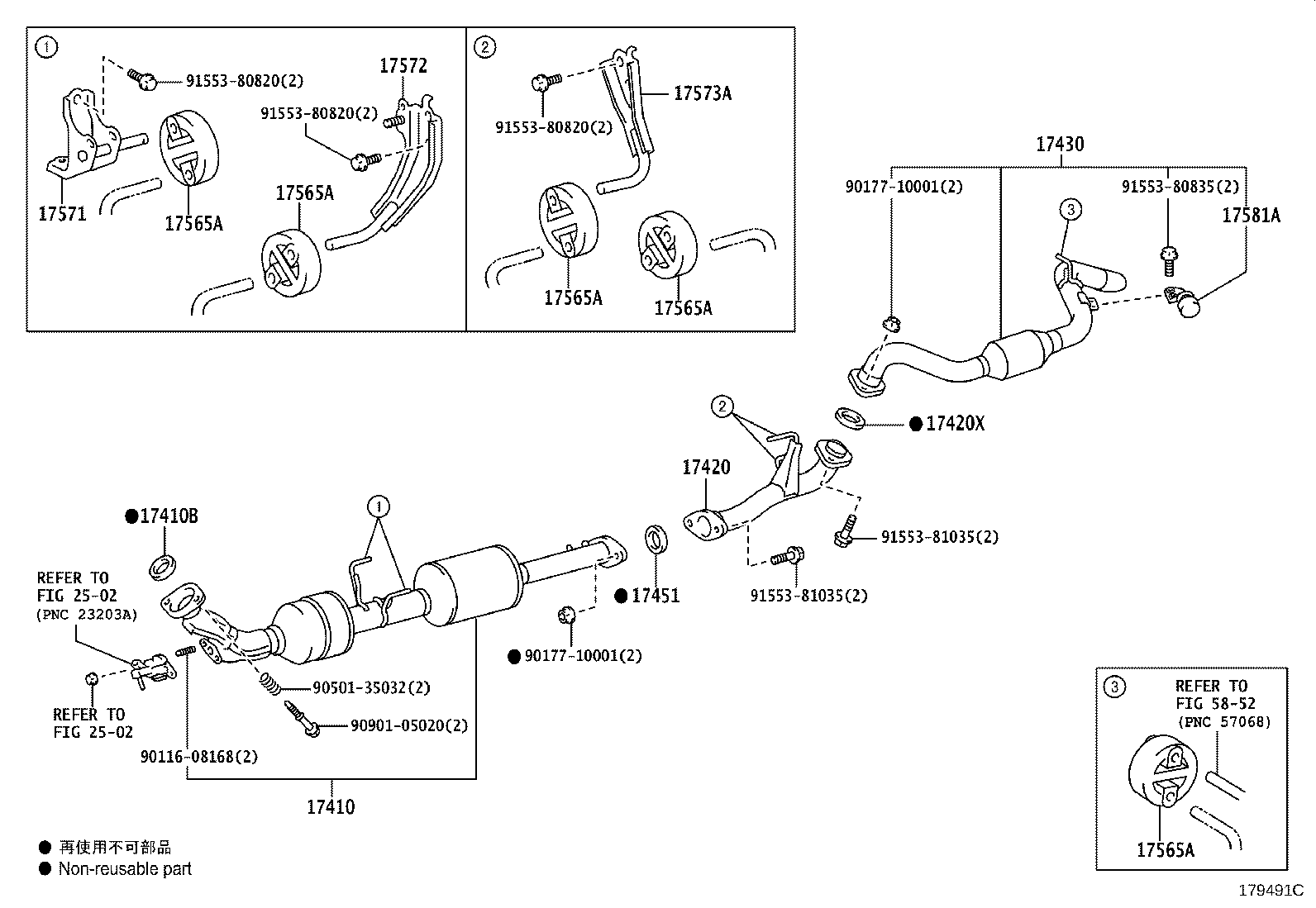

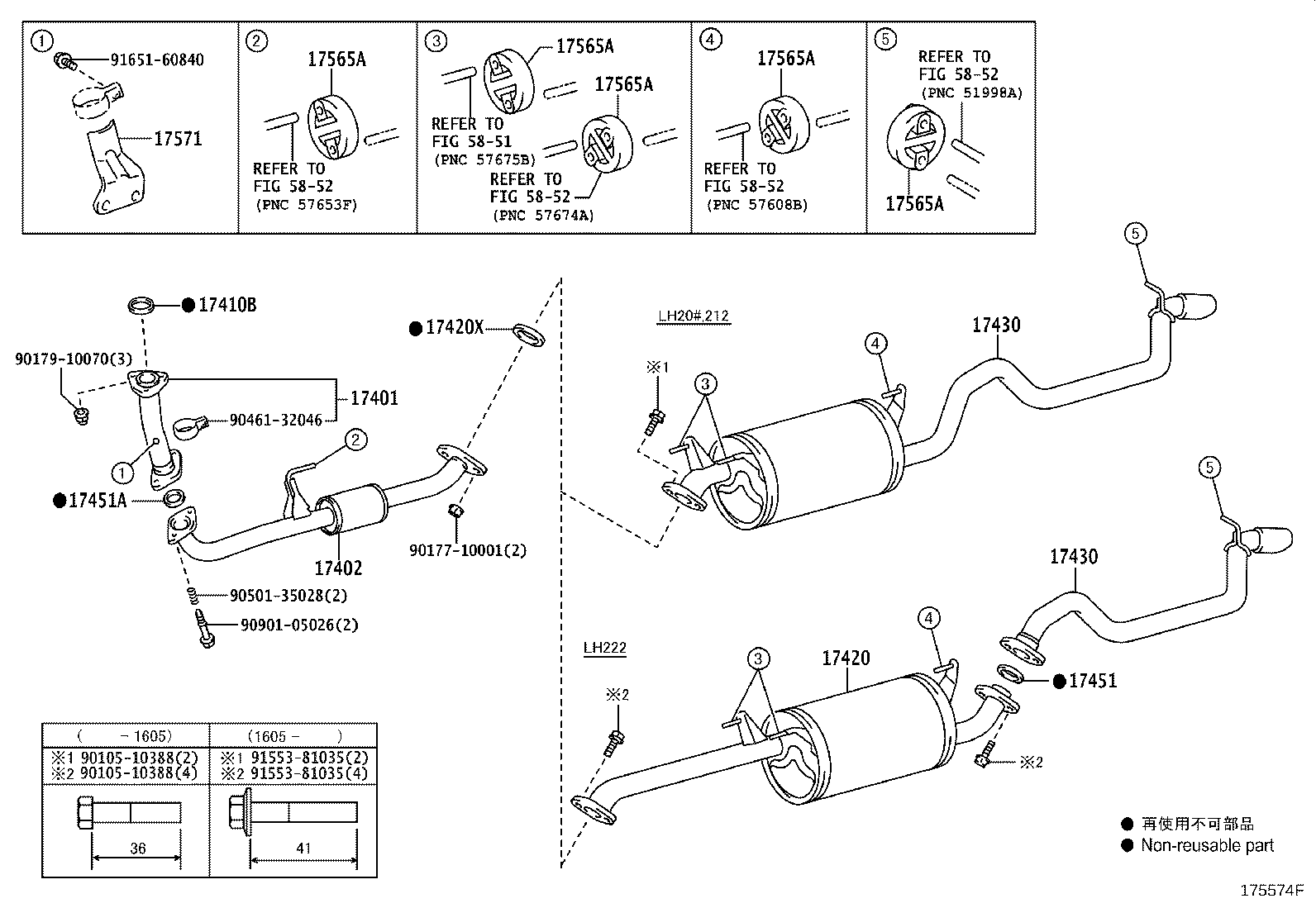

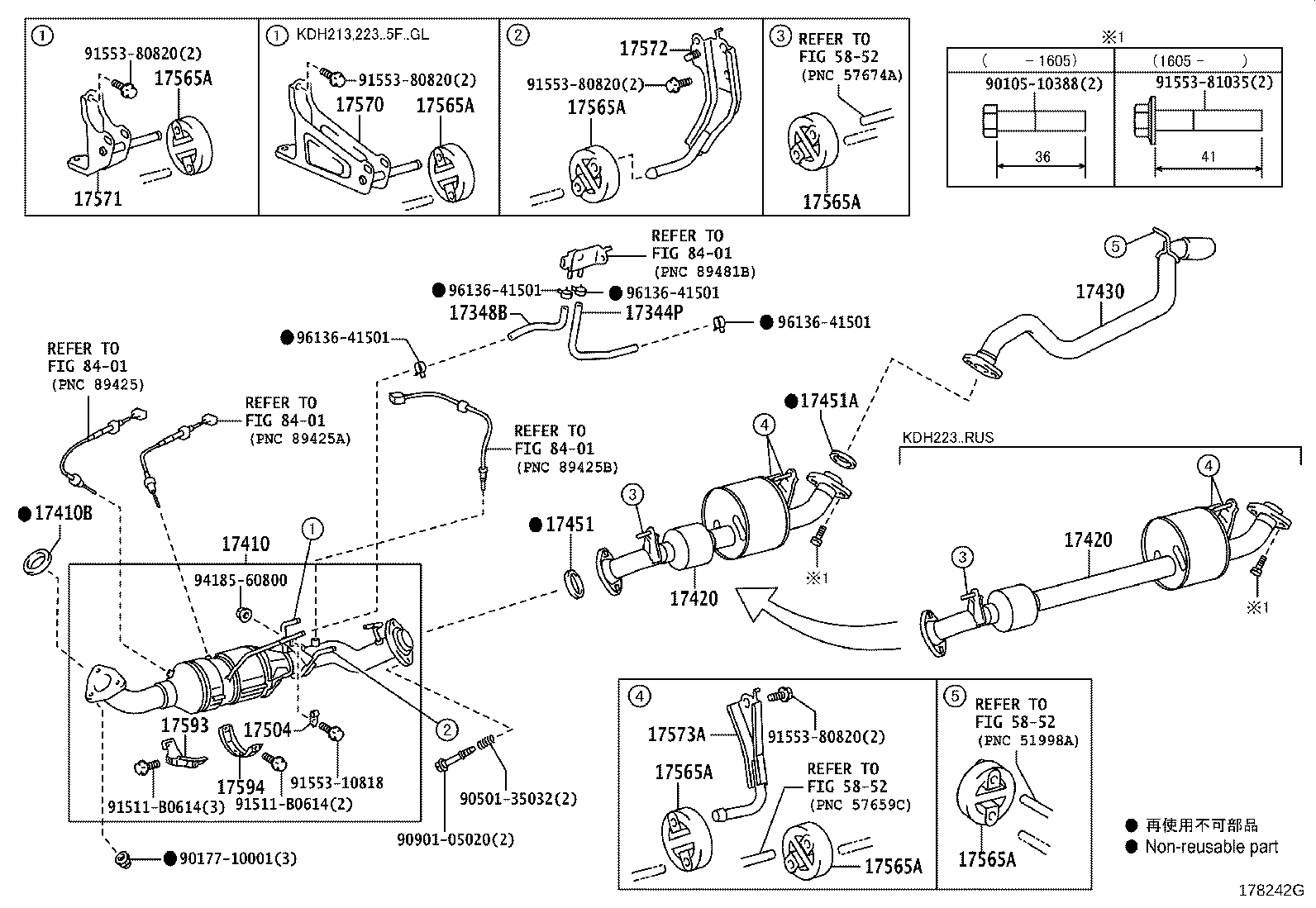

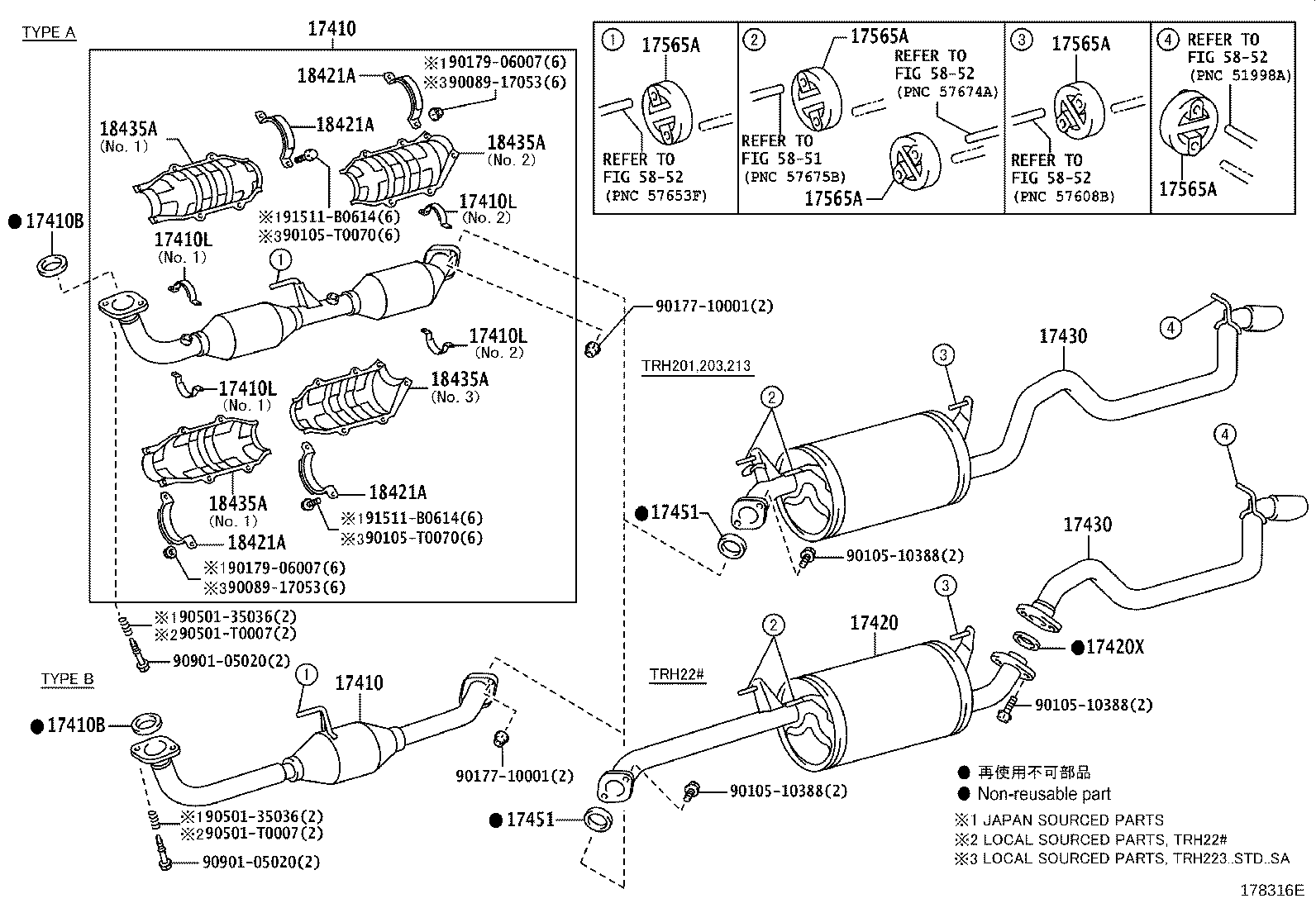

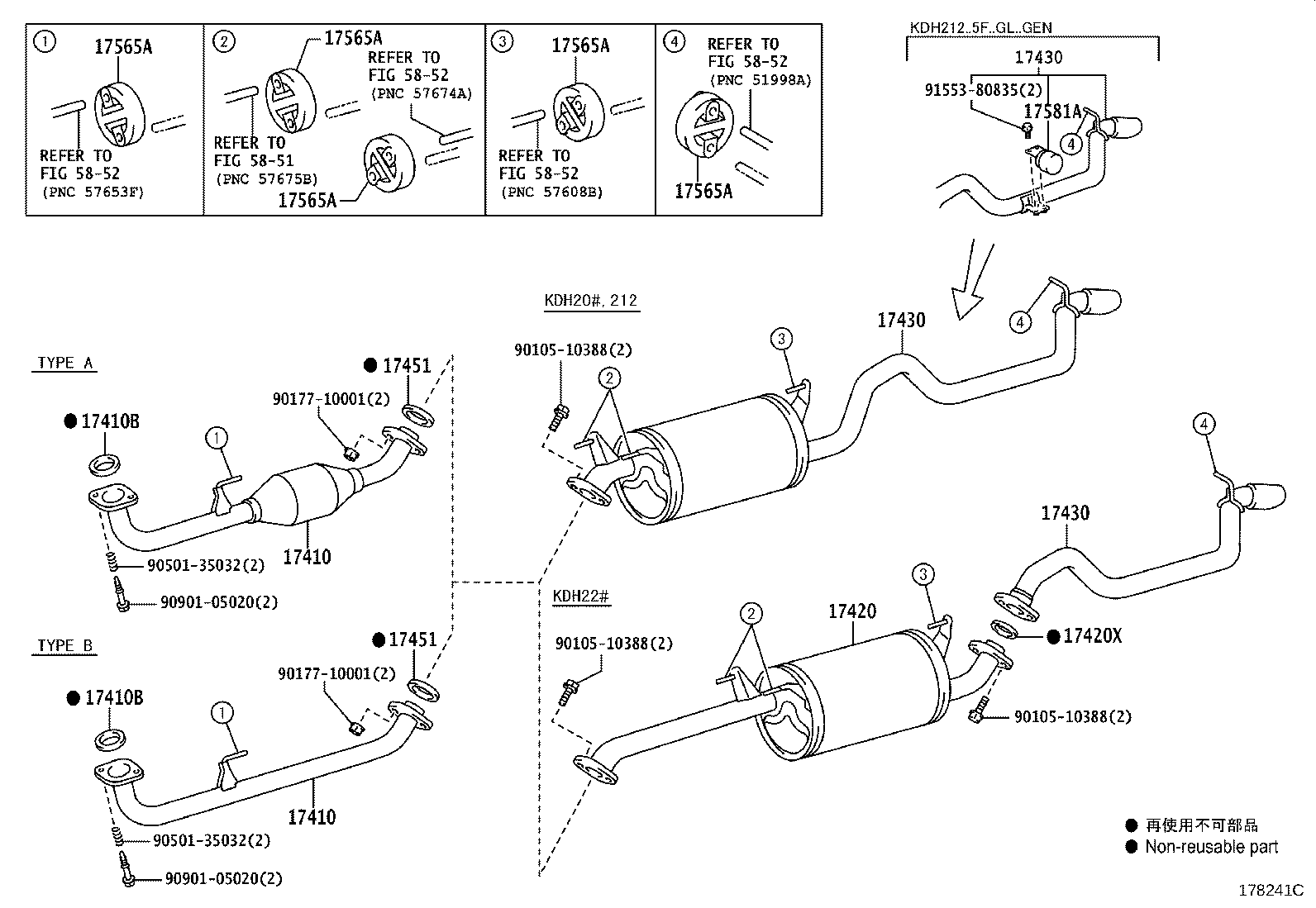

Figure 178243G 178243G 2013-12 → 2015-01 Figure 178243G 178243G 2013-12 → — Figure 178243G 178243G 2013-12 → — Figure 178243G 178243G 2013-12 → — Figure 178243G 178243G 2015-12 → — Figure 178242G 178242G 2013-12 → — Figure 178242G 178242G 2013-12 → — Figure 178242G 178242G 2015-01 → — Figure 178245H 178245H 2013-12 → — Figure 178241C 178241C 2013-12 → — Figure 17B539A 17B539A 2013-12 → — Figure 178316E 178316E 2013-12 → — Figure 175574F 175574F 2013-12 → — Figure 179491C 179491C 2017-01 → —

Part groups

PNCDescription
17344P Hose, Air, NO.4(FOR EXHAUST PIPE)
17348B Hose, Air, NO.8(FOR EXHAUST PIPE)
17401 Pipe Sub-assy, Exhaust, Front
17402 Pipe Sub-assy, Exhaust, Front NO.2
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17410L Stay, Exhaust Pipe Protector (FOR FRONT)
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17504 Bracket Sub-assy, Catalytic Converter
17565A Support, Exhaust Pipe, NO.4
17570 Bracket Assy, Exhaust Pipe Support
17571 Bracket, Exhaust Pipe Support, NO.1
17572 Bracket, Exhaust Pipe NO.1 Support
17573A Bracket, Exhaust Pipe Support, NO.3
17581A Damper, Exhaust Pipe
17593 Protector, Exhaust Pipe, NO.1
17594 Protector, Exhaust Pipe, NO.2
18421A Stay, Converter Protector, LH
18435A Protector, Monolithic Converter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
