Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

30 part groups · 19 illustrations

Illustrations

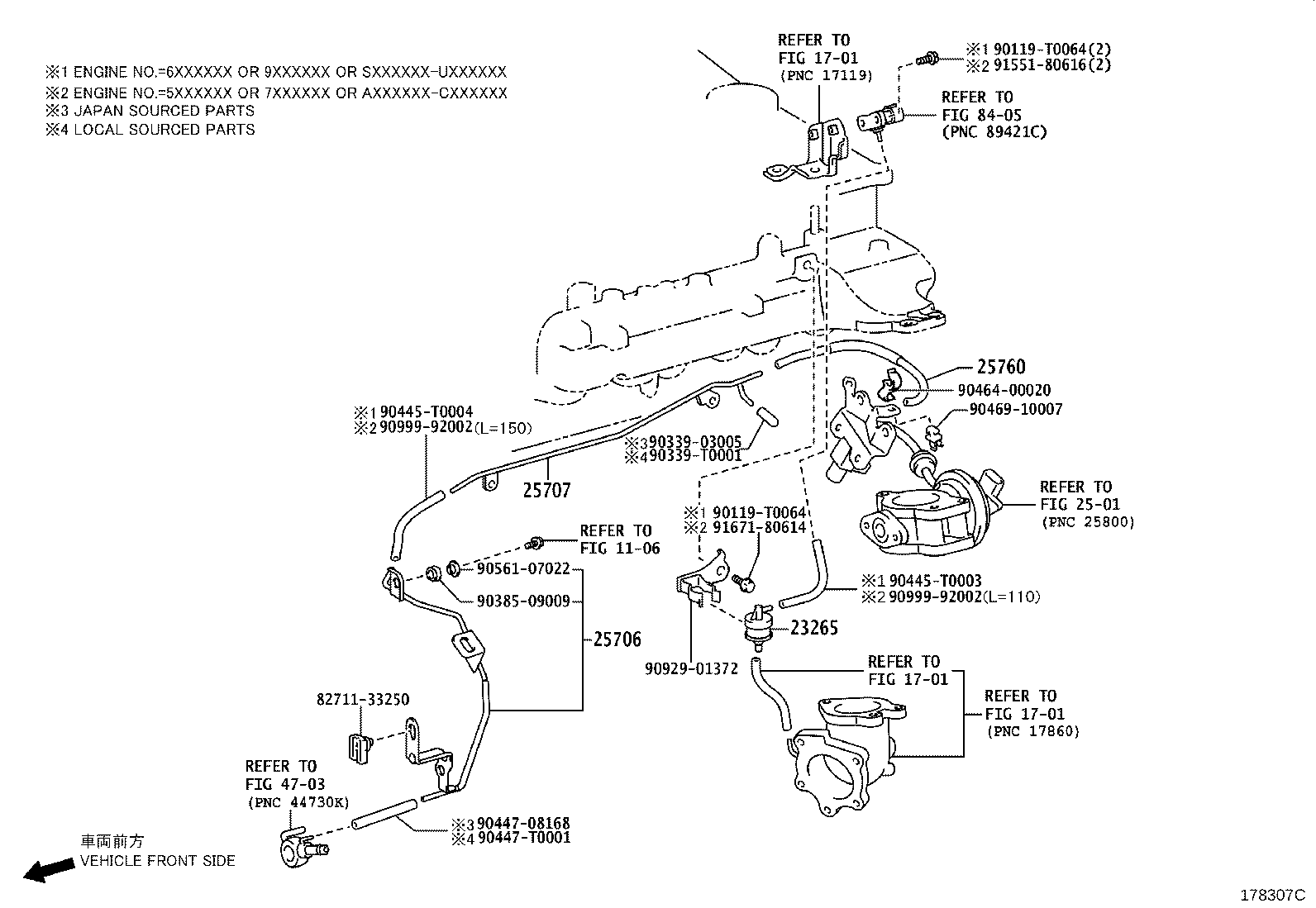

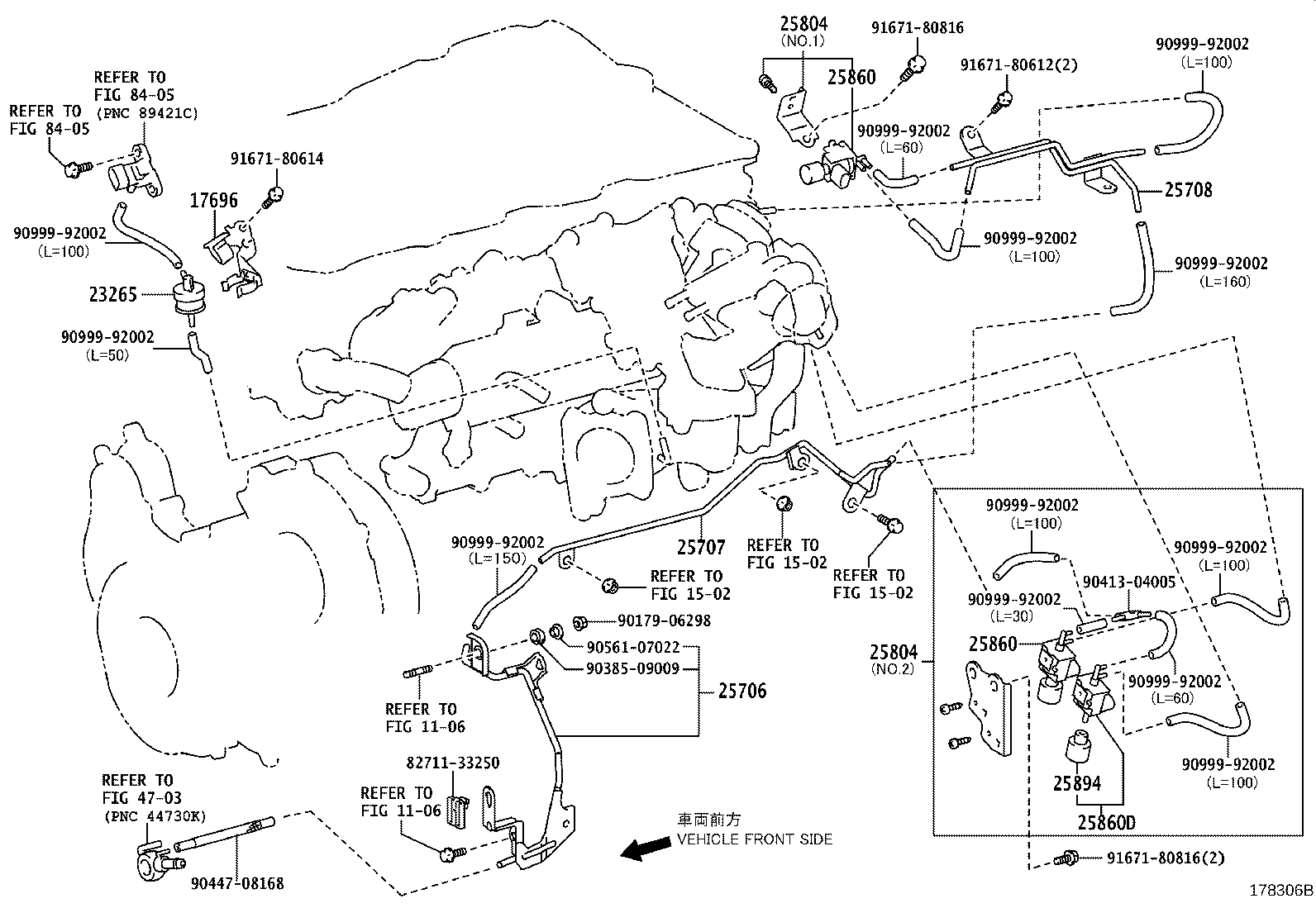

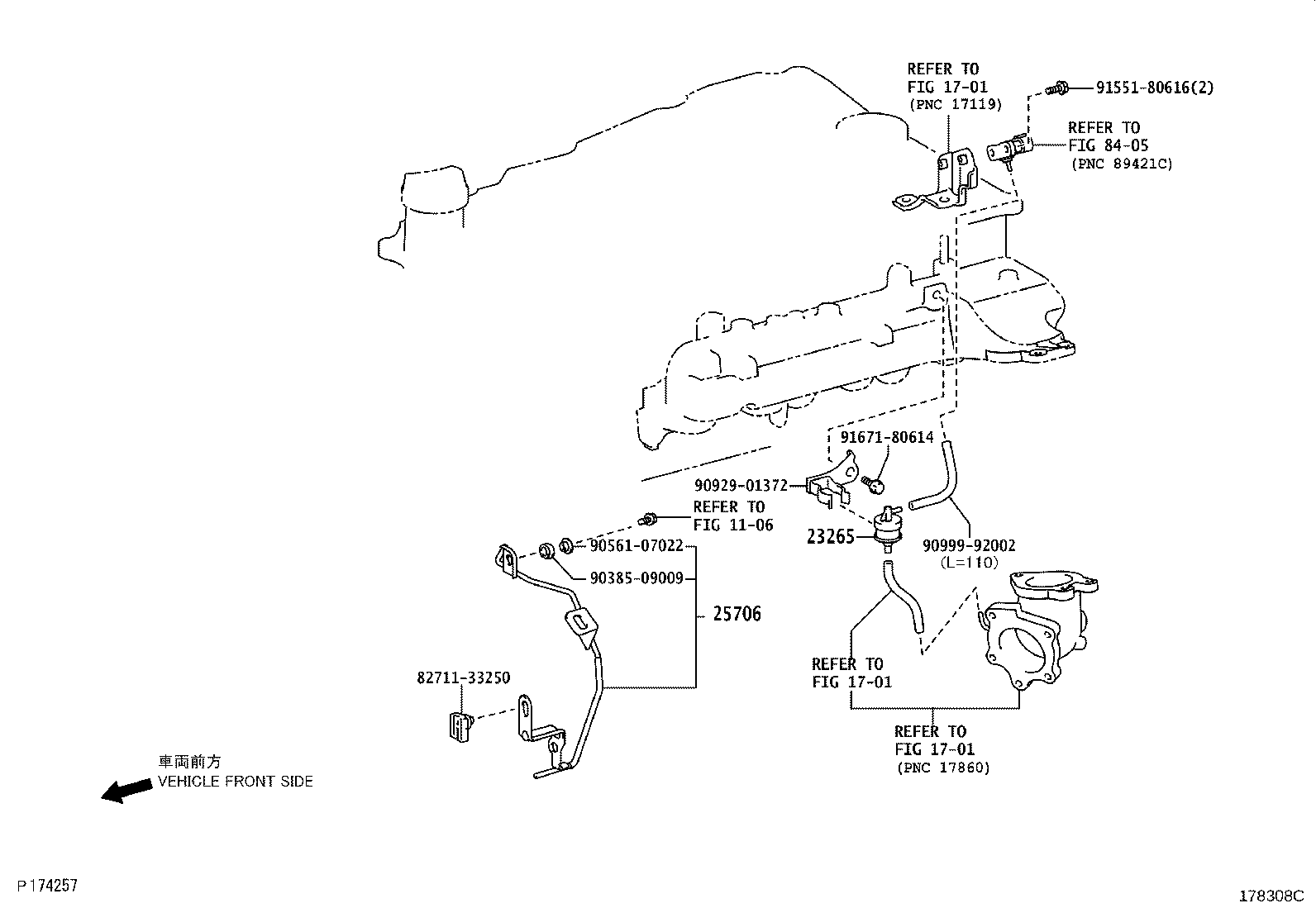

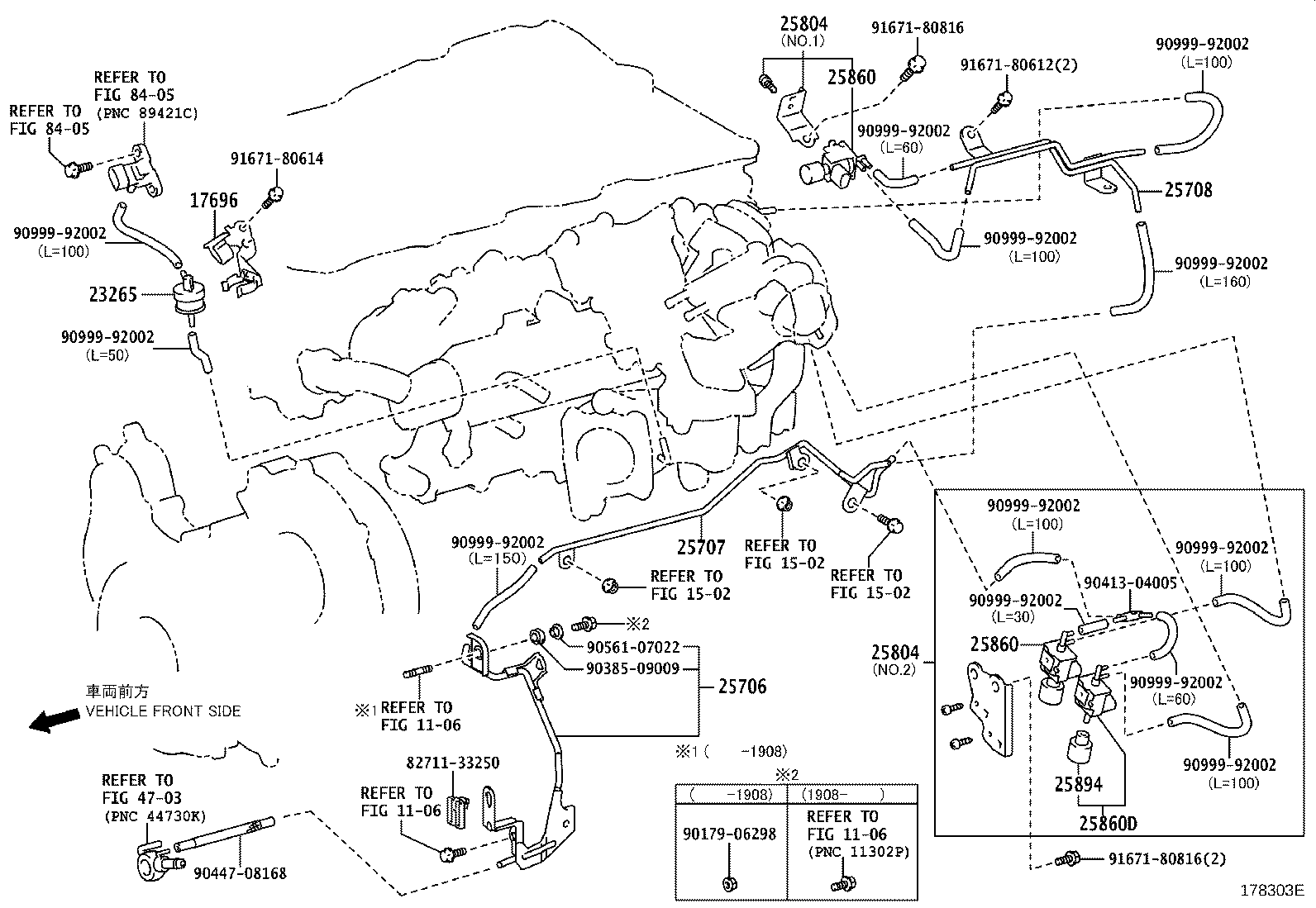

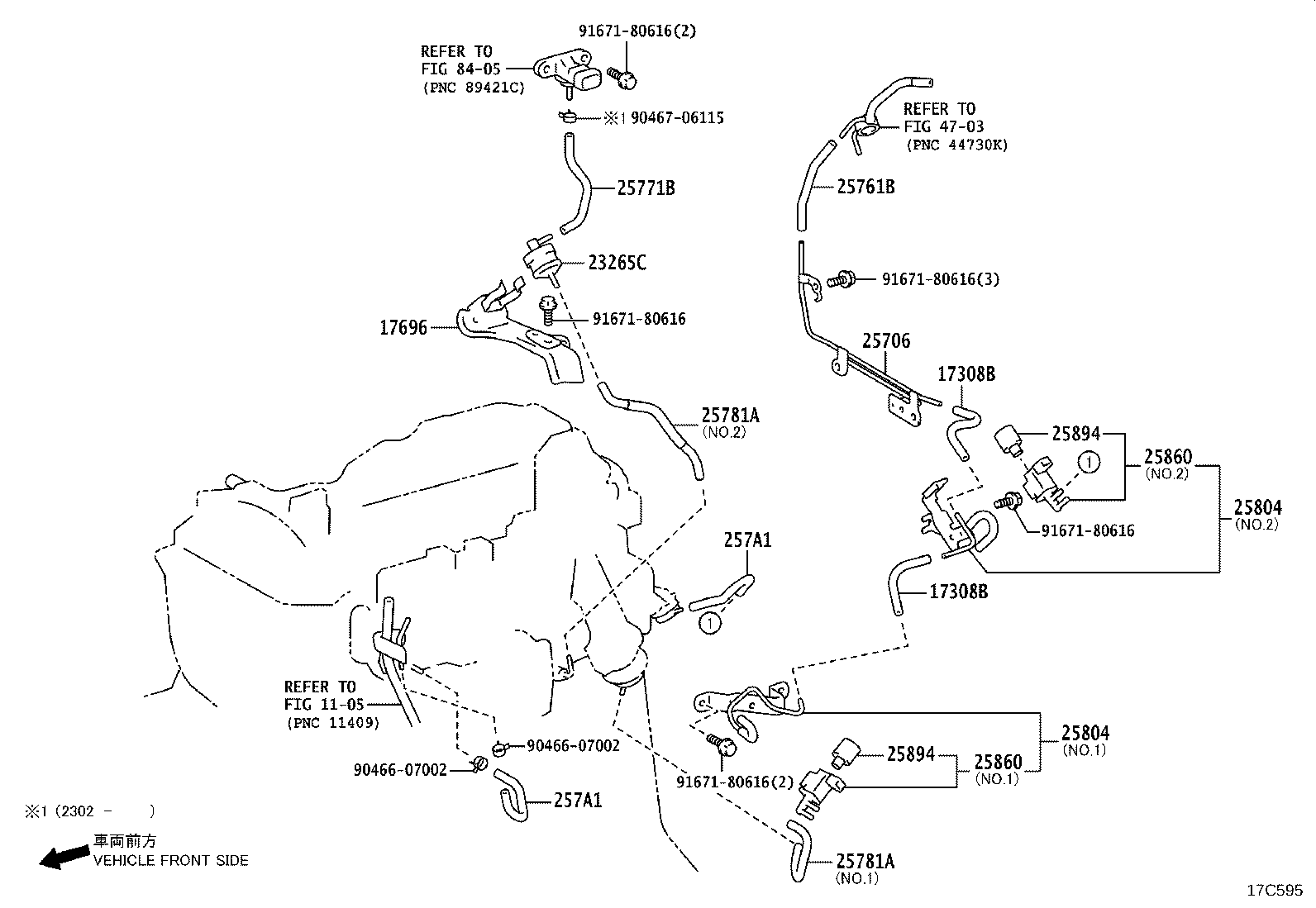

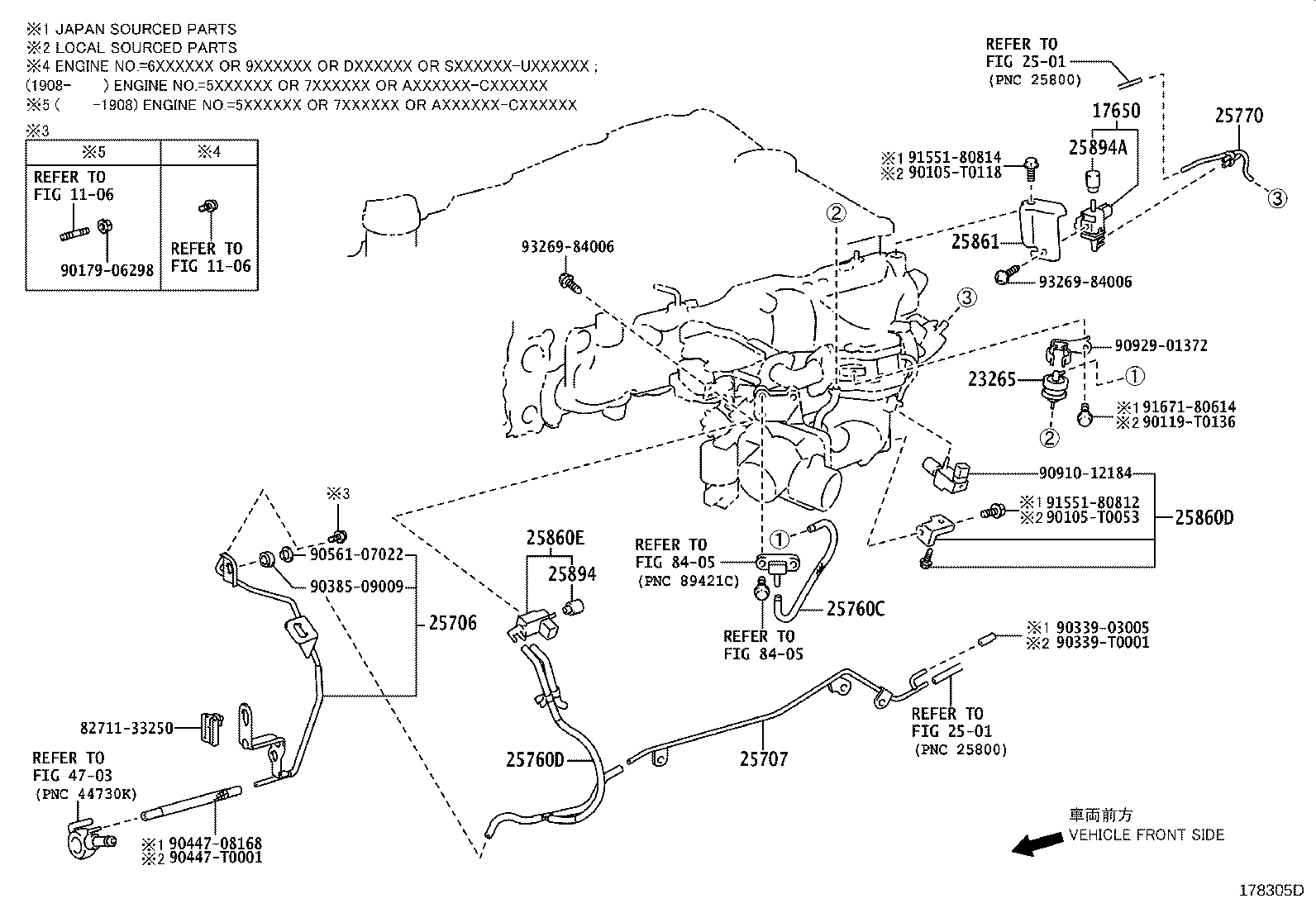

Figure 179494D 179494D 2017-01 → — Figure 17C595 17C595 2017-01 → — Figure 178305D 178305D 2013-12 → 2015-01 Figure 178305D 178305D 2013-12 → 2016-06 Figure 178305D 178305D 2013-12 → — Figure 178305D 178305D 2013-12 → — Figure 178305D 178305D 2015-06 → — Figure 178305D 178305D 2015-12 → — Figure 178305D 178305D 2016-06 → — Figure 178303E 178303E 2013-12 → — Figure 178303E 178303E 2015-01 → — Figure 178303E 178303E 2016-06 → — Figure 178303E 178303E 2016-06 → — Figure 178306B 178306B 2013-12 → 2016-06 Figure 178307C 178307C 2013-12 → — Figure 178307C 178307C 2013-12 → — Figure 178307C 178307C 2017-12 → — Figure 178308C 178308C 2013-12 → — Figure 178230D 178230D 2013-12 → —

Part groups

PNCDescription
17308B Hose Sub-assy, Vacuum
17341P Hose, Air
17578B Clamp, Pipe
17650 Valve Assy, Vacuum Switching
17696 Bracket, Gas Filter
23265 Filter, Gas, NO.1
23265C Filter, Gas
23820 Hose Assy, Fuel Vapor Feed
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25708 Pipe Sub-assy, Vacuum Transmitting, NO.3
25733A Pipe, Vacuum, NO.1
25734 Pipe, Vacuum, NO.2
25760 Hose Assy, Vacuum Transmitting
25760C Hose Assy, Vacuum Transmitting, NO.3
25760D Hose Assy, Vacuum Transmitting, NO.4
25761B Hose, Vaccum Transmitting, NO.1
25770 Hose Assy, Vacuum Transmitting, NO.2
25771B Hose, Vaccum Transmitting, NO.2
25781A Hose, Vacuum Transmitting, NO.3
257A1 Hose, Vacuum Transmitting, NO.5
25804 Valve Set, Vacuum Control
25860 Valve Assy, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
25860E Valve, Vacuum Switching, NO.2
25861 Bracket, Vacuum Switching Valve
25894 Filter, NO.1
25894A Filter, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
