Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

20 part groups · 11 illustrations

Illustrations

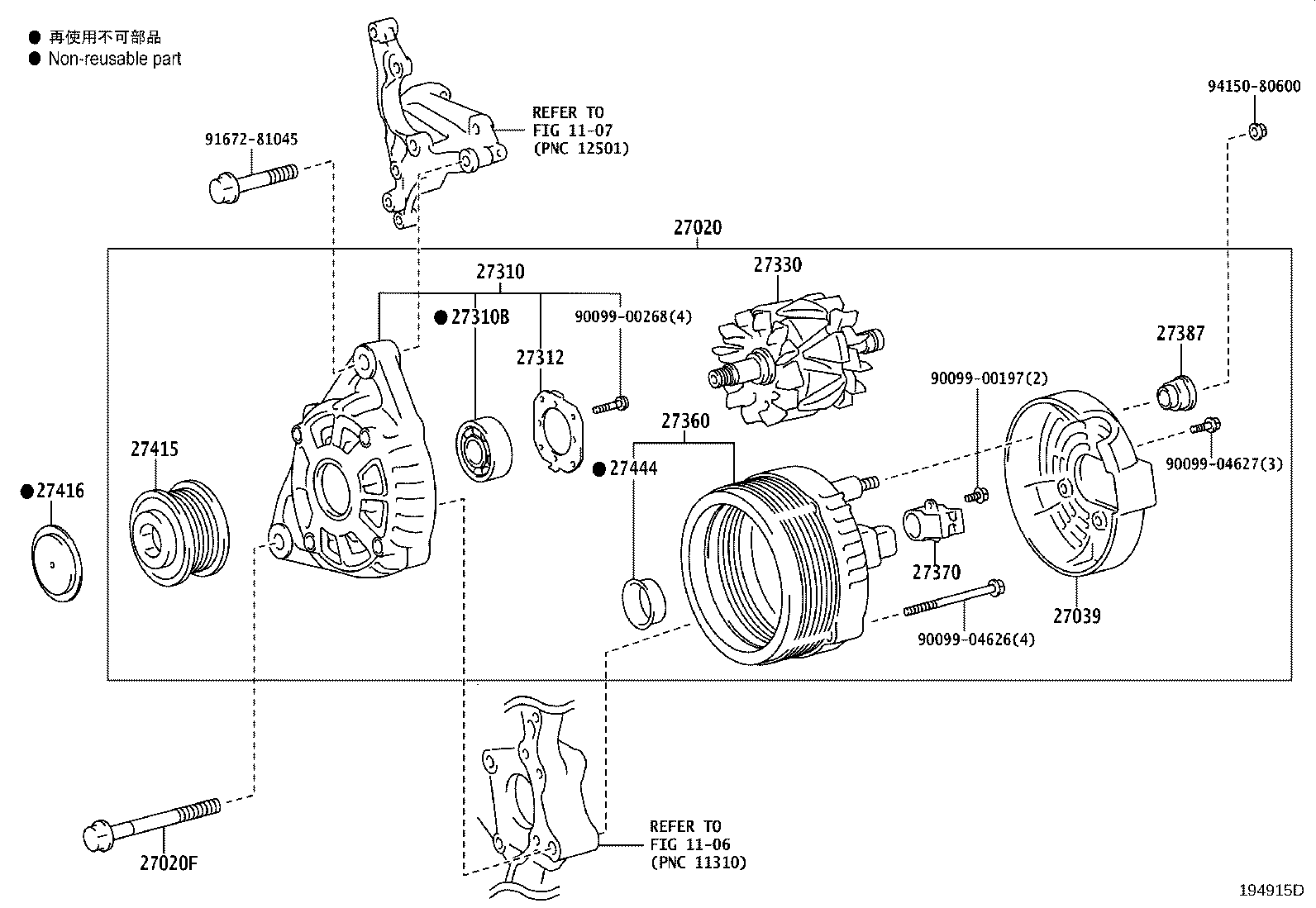

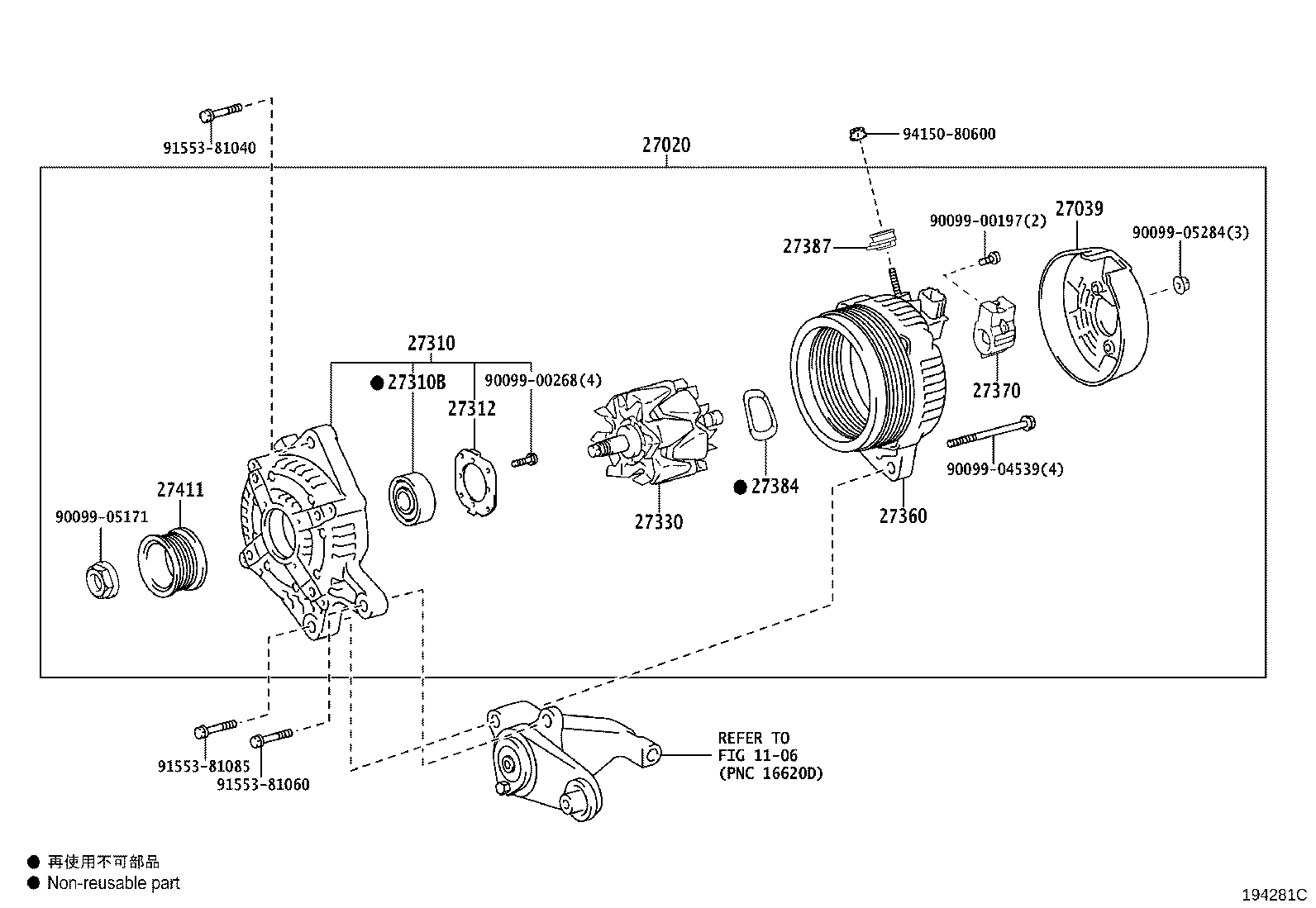

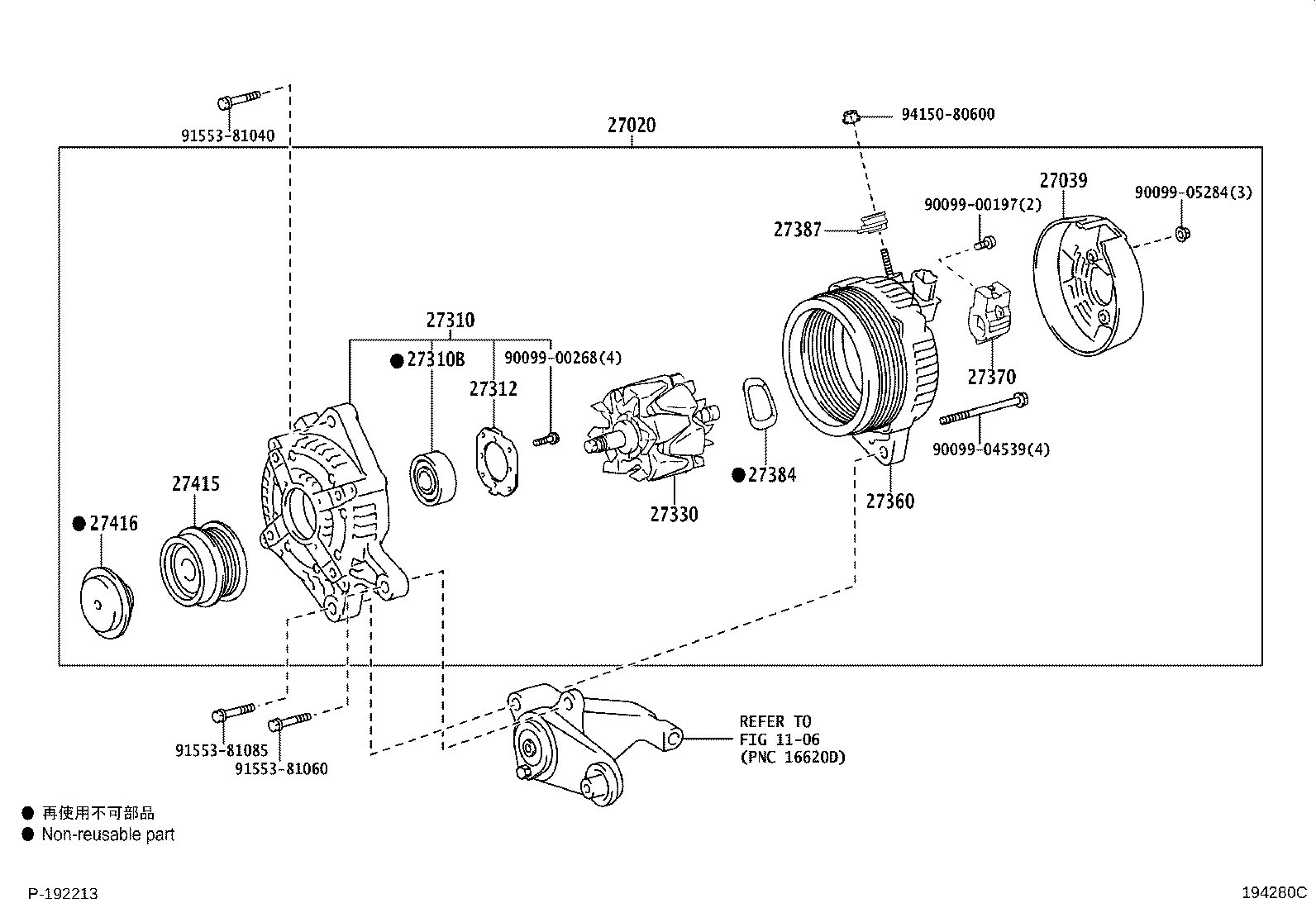

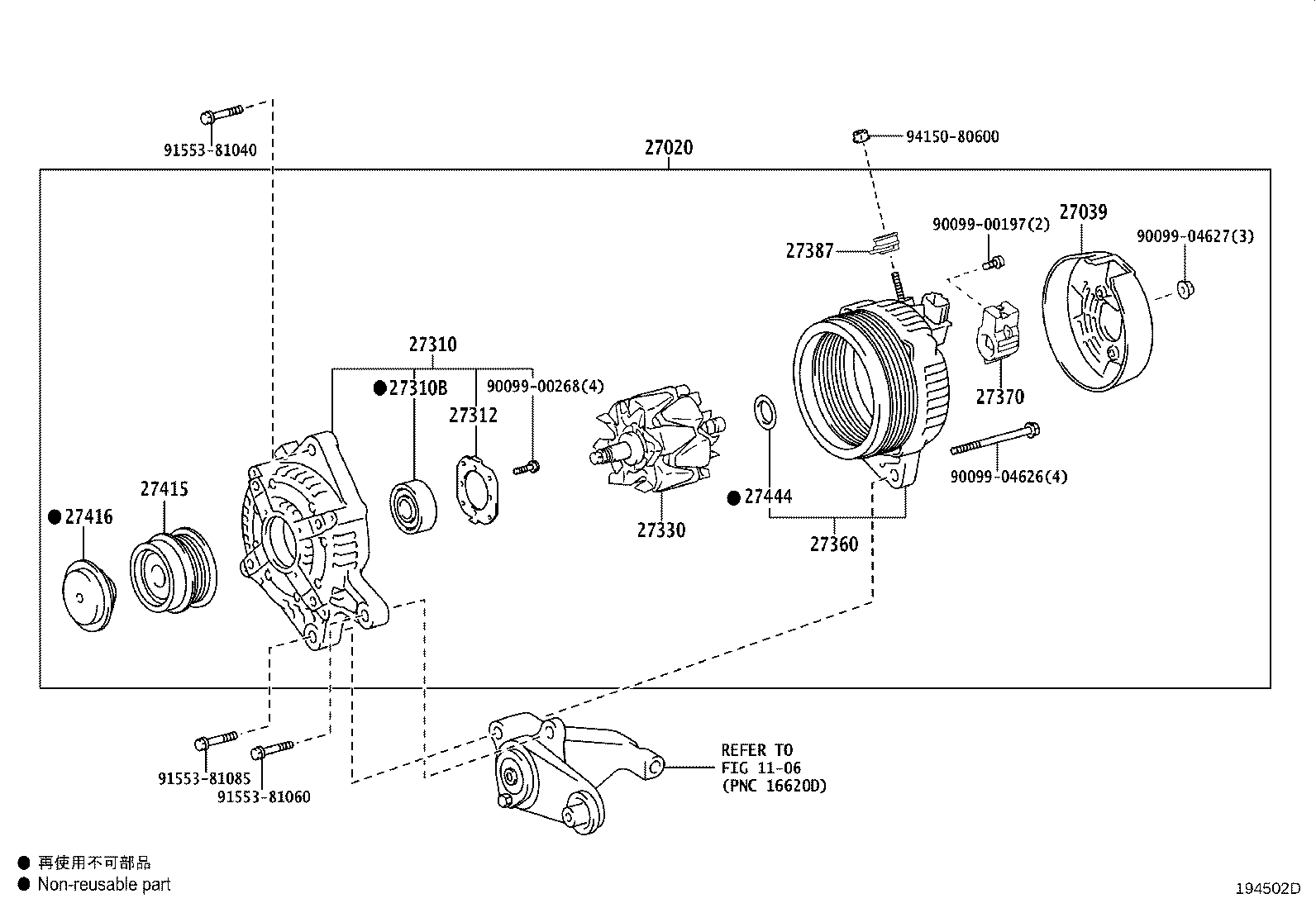

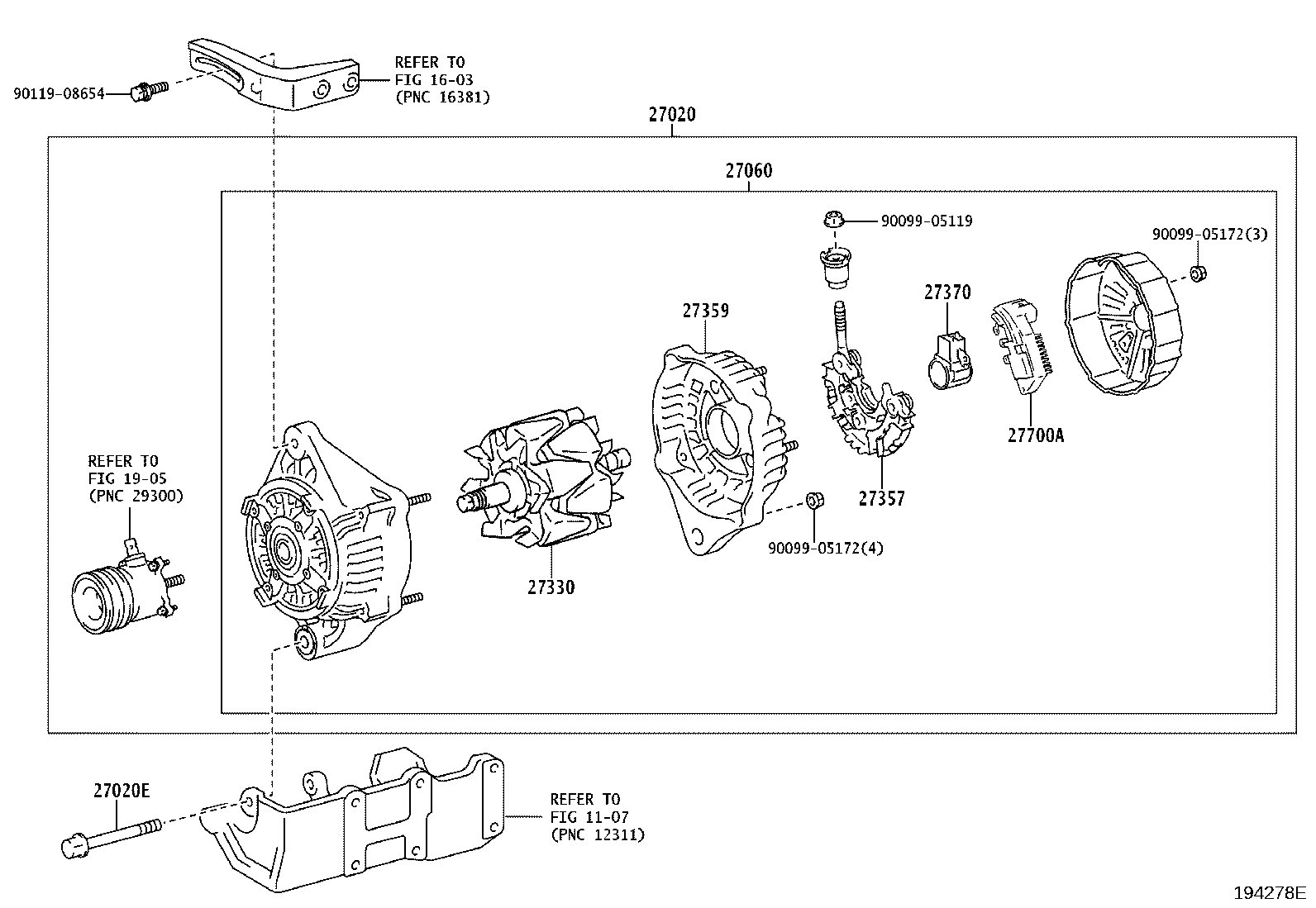

Figure 194279C 194279C 2013-12 → — Figure 194278E 194278E 2013-12 → — Figure 194280C 194280C 2013-12 → 2019-01 Figure 194280C 194280C 2013-12 → 2019-02 Figure 194280C 194280C 2013-12 → — Figure 194281C 194281C 2013-12 → 2015-01 Figure 194281C 194281C 2013-12 → — Figure 194281C 194281C 2013-12 → — Figure 194281C 194281C 2019-11 → — Figure 194502D 194502D 2015-01 → — Figure 194915D 194915D 2016-12 → —

Part groups

PNCDescription
27020 Alternator Assy
27020E Bolt(FOR ALTERNATOR)
27020F Bolt, NO.1(FOR ALTERNATOR)
27039 Cover, Alternator Rear End
27060 Alternator Assy, W/Regulator
27310 Frame Assy, Drive End, Alternator
27310B Bearing(FOR ALTERNATOR DRIVE END FRAME)
27312 Plate, Retainer
27330 Rotor Assy, Alternator
27357 Holder, Alternator, W/Rectifier
27359 Frame, Alternator Rectifier End
27360 Coil Assy, Alternator
27370 Holder Assy, Alternator Brush
27384 Washer
27387 Insulator, Terminal
27411 Pulley, Alternator
27415 Pulley, Alternator W/Clutch
27416 Cap, Alternator Pulley
27444 Packing, Alternator Bearing Cover
27700A Regulator Assy, Generator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
